10.3 Our Brain Gets Involved – Responsibilities of Upper Motor Systems

Establishing habits and motor sequences

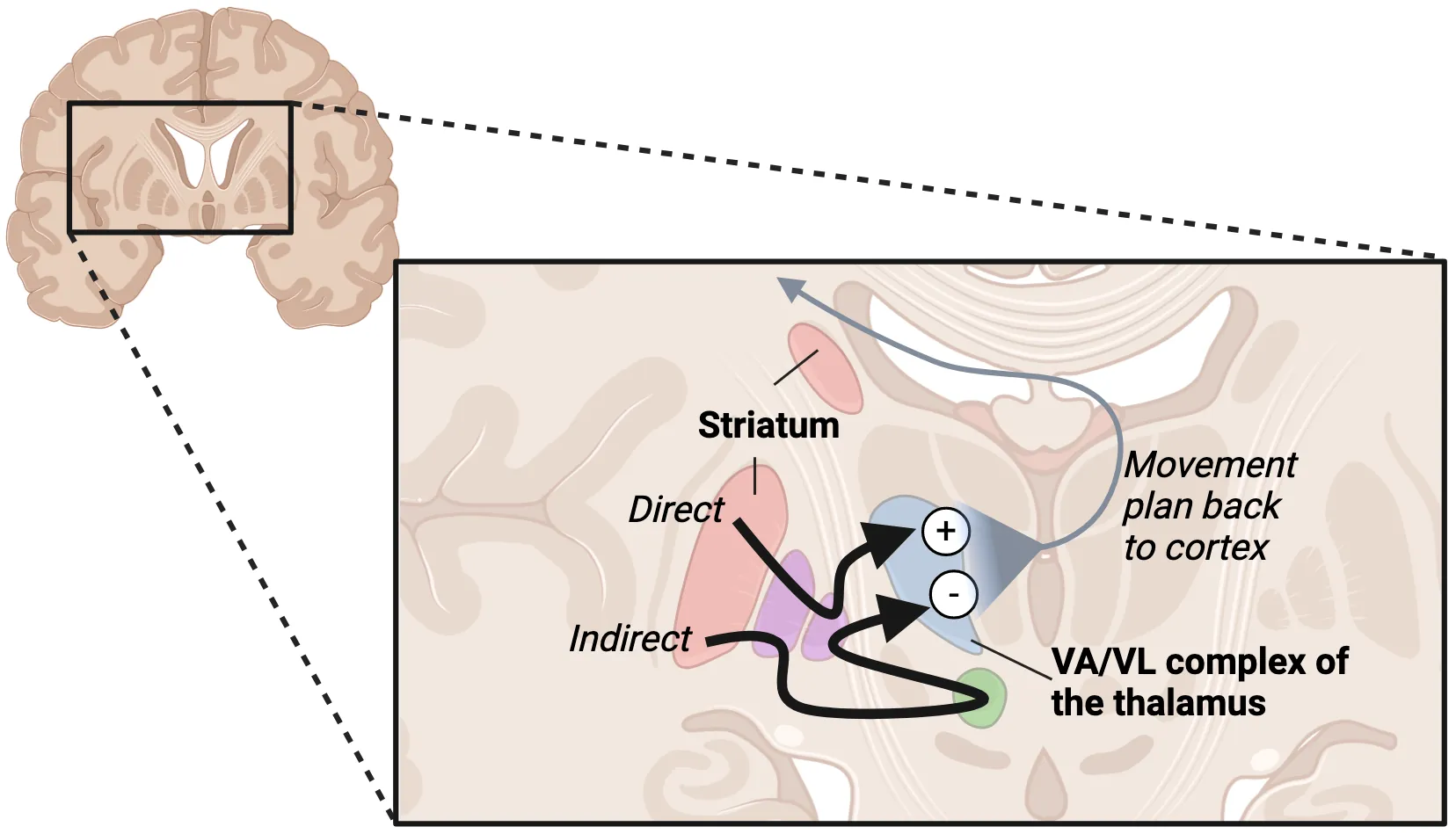

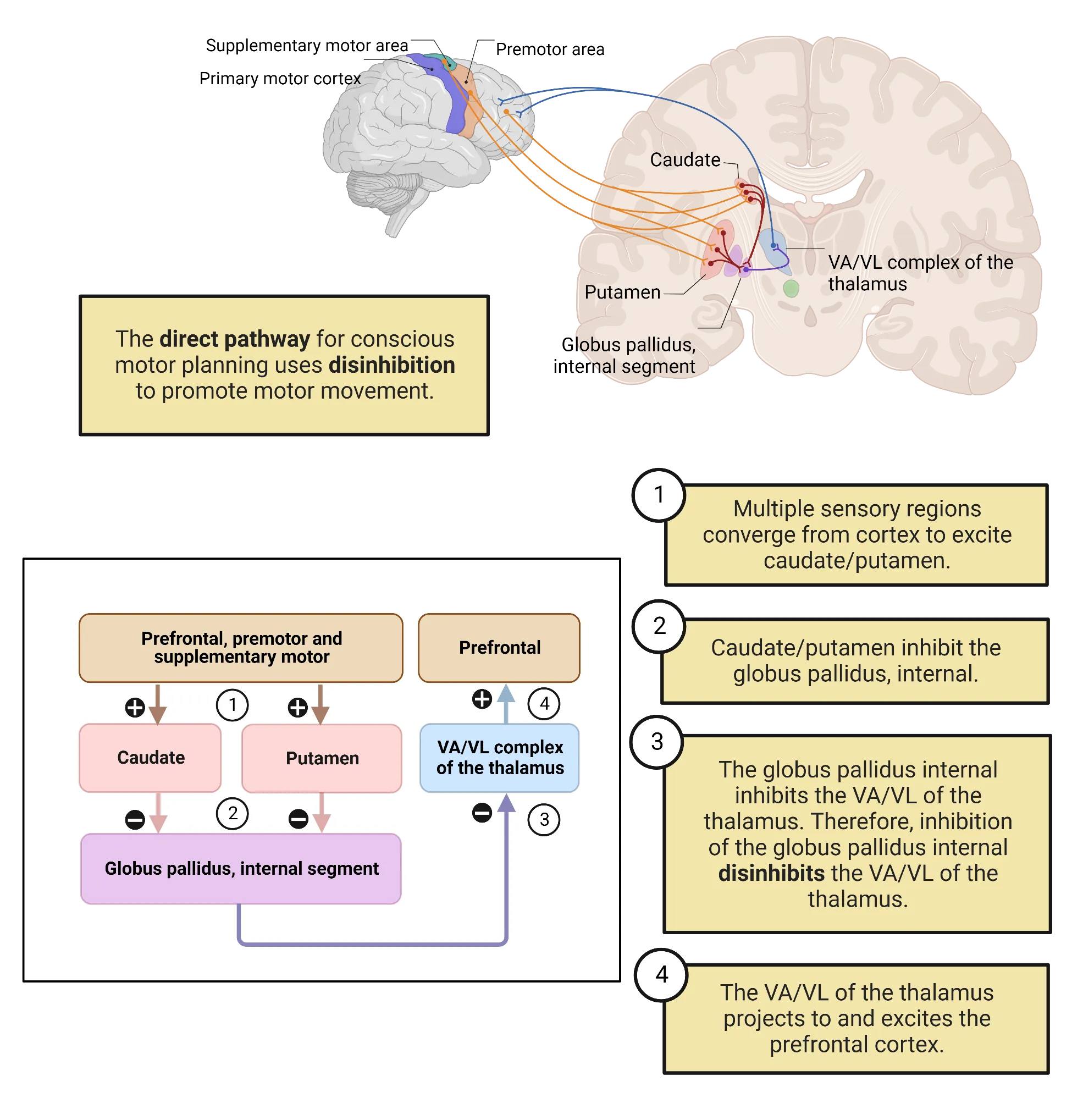

While we've described conscious involvement, the basal ganglia does also maintain heavy involvement in subconscious skill learning and movement control. Sometimes, we have an explicit or conscious desire to repeatedly produce a specific movement sequence that is learned and established via consolidation as an accessible circuit coordinating multiple muscles in a sequence or ensemble. A motor sequence represents a timed pattern of muscle activation sequentially, like finger movements on a piano in a Beethoven concerto. A muscle ensemble represents a group of muscles activated simultaneously to either create a specific movement trajectory or ensure other parts of the body remain stiff while limbs maneuver, like a wrestler using arms, legs, and back contractions to pin an opponent. The basal ganglia are essential for using motor sequences and muscle ensembles in habitual or learned movements. Specifically, the basal ganglia help to select cooperative muscle ensembles and inhibit unhelpful muscles when executing a learned motor skill.

To understand the role of motor system learning, imagine how we might learn to draw cartoon characters like Snoopy or Garfield. Our first tries are often embarrassing. To create these drawings free-handed, we must coordinate the actions of many muscles in our arms and hand. When should we select "this" muscle, or "that," or combinations of both? The basal ganglia circuitry focuses on proper selection of either individual muscles or groups that can produce the desired line in the right direction (drawing Snoopy's rounded snout, or Garfield's stripes or whiskers; see Zham et al., 2017). If the wrong muscles are selected, or the groups of muscles compete rather than cooperate, the drawing will look shaky and wobbly, and we might be likely to discard it rather than showing our friends. After learning to select the right muscle groups for each part, we can proudly show our friends the results. The basal ganglia can select which muscle groups to activate in sequence, so muscle ensembles combine with motor sequences. The package becomes a learned habit, re-played as circumstances demand (piano playing, wrestling).

Some disease states may result from inappropriate activation of motor sequences in basal ganglia circuitry. For example, some researchers suggest that Tourette's syndrome sudden-onset expressions ("tics" or bursts of uncontrolled movement), and dystonia (writhing movements and awkward postures), stem from over-reactive sensitivities at the level of the caudate and putamen, making "chunks" of unintended movements essentially habitual (Mink, 2018; Graybiel and Mink, 2009; Albin and Mink, 2006). The circuitries controlling habitual learned movements are substantially more complex than the conscious motor circuits, involving more sub-structures within the basal ganglia. While we will not describe those complexities here, your author hopes that you will pursue more advanced classes where these circuits are covered, as they are exciting, and hotly debated.

Disorders of the basal ganglia

We shall now describe two devastating diseases, Huntington’s and Parkinson’s, to emphasize functions that rely on the basal ganglia. Some readers may know people who suffer from various stages of movement control deterioration in these disorders. Neither Huntington’s nor Parkinson’s patients can engage proper motor sequences on demand while suffering their deficits (Moisello et al., 2011). Both diseases involve basal ganglia dysfunction, but result in different symptoms due to loss of different parts of the basal ganglia circuitry.

Patients with Parkinson’s disease experience severe, progressive loss of motor control. This includes (1) shakes or tremors; (2) “cogwheel” rigidity, a special kind labeled to emphasize the interspersion of stiffness with short releases, much like clock minute hands clicking into place; and (3) postural instability appearing to derive mostly from insensitivity to vestibular and muscular cues (Sveinbjornsdottir, 2016). While the tremors appear outwardly like other basal ganglia diseases such as Huntington’s, they often manifest more at rest when no effort to engage movement exists (resting tremor), compared to action tremor associated with cerebellar ataxia, discussed later.

Parkinson’s disease is caused by cell death of the dopaminergic neurons originating in the midbrain substantia nigra pars compacta, projecting into the caudate and putamen (Figure 10.16; Fahn 2008).

Figure 10.16 Parkinson’s disease anatomical pathology

Dopamine contributions to basal ganglia function are complex. As is usually the case with a modulatory transmitter, it largely adjusts the way glutamatergic excitation engages postsynaptic cells. In this case, the postsynaptic cells are inhibitory efferent neurons in the striatum (Surmeier, 2011). The interactions of dopamine with the striatum neurons are complex but their net effect is to stimulate the parts of the caudate and putamen that promote movement behavior, i.e., the direct pathway striatum neurons (follow the circuit diagram in Figure 10.17; Wall et al., 2013, Surmeier, 2011). Its loss in Parkinson’s disease makes movement much more difficult.

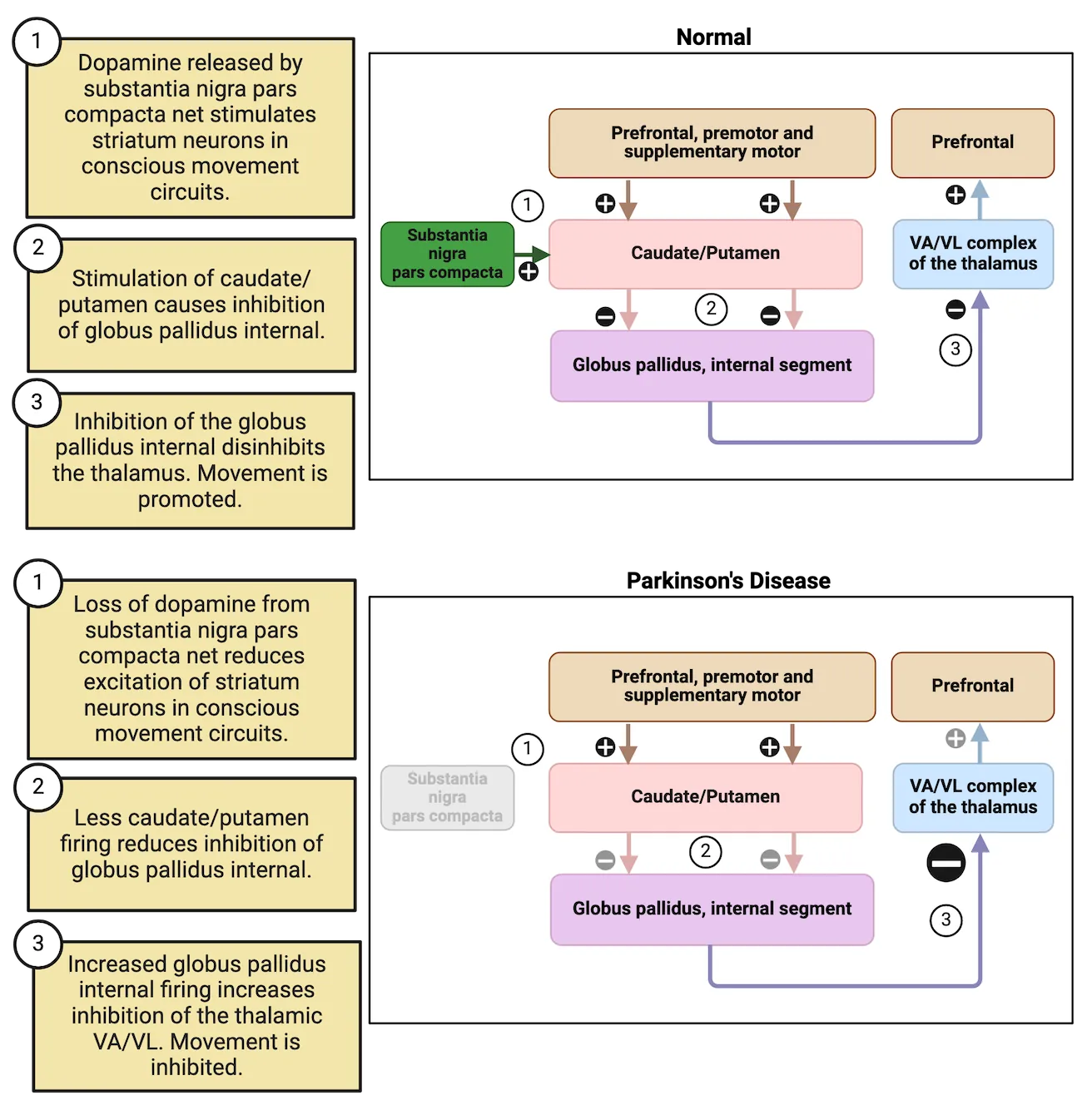

Figure 10.17 Parkinsonian state of basal ganglia

One major treatment for Parkinson’s patients is Levodopa (L-DOPA). It is a precursor molecule of dopamine derived from the amino acid tyrosine and is used by the enzymes within dopaminergic neurons to produce dopamine (see Figure 10.18 and Chapter 3 Basic Neurochemistry).

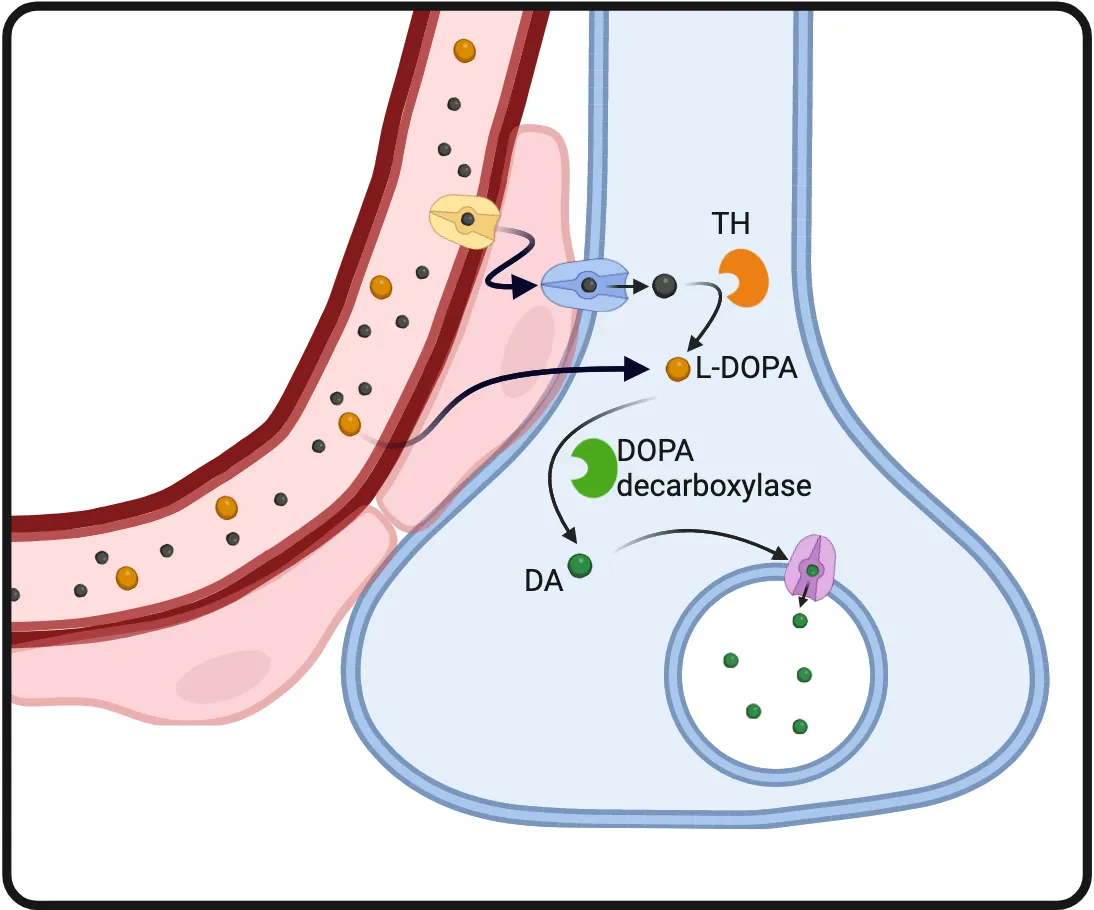

Figure 10.18 L-DOPA and Parkinson’s disease treatment Reminder: L-DOPA is a precursor in dopamine synthesis.
L-DOPA is also BBB permeable, so L-DOPA in the blood can get into the dopaminergic neuron terminals and boost dopamine synthesis.

When this drug is administered, there is typically an initial surge of dopamine, yielding improved movement. However, sometimes there’s a tendency to overdo. This is seen as impulsivity or a tendency to take more risks behaviorally, but that tapers off as the acute effects diminish (Voon et al., 2017). The greater propensity for movement is typically referred to as an “up, on, or acute” state by comparison to the “down, off, or long-term state” when the L-DOPA wears off (Albin & Leventhal, 2017).

The inconsistency of L-DOPA effects over time is one reason alternative treatments, like stem cell transplantation, are sought for Parkinson’s, which may provide more consistent dopamine presence (Sandstrom et al., 2018). Dopaminergic replacement cell populations derived from stem cells are typically placed into patients’ putamen, because this structure typically receives the highest dopaminergic input, and is most closely associated with movement control (Freed et al., 2011). Also, growth of new axons is considerably challenged across long distances in the adult brain, though strategies for guiding axon growth from the more appropriate substantia nigra pars compacta are being developed (e.g., Zang et al., 2013). Other treatments including a thalamotomy are more radical. In thalamotomy, distinct input regions of the thalamus are targeted for destruction, eliminating the supportive control provided by the compromised basal ganglia. While actors like Michael J. Fox opted for this treatment due to its general preservation of facial expression control, it is not an ultimate cure as the movements produced are often jerky and challenged. Restoring more natural or appropriate basal ganglia activity would be preferable to eliminating its influence, but this remains a challenge to achieve.

Deep brain stimulation is another potential treatment for Parkinson’s disease. In this treatment, electrodes are placed strategically into either the subthalamic nucleus, the internal globus pallidus (GPi) or select regions within the VA/VL thalamus that override the internal signaling strategy provided by the basal ganglia. Deep brain stimulation is particularly helpful in treating the resting tremors that are common in those with Parkinson’s disease. The resting tremors in Parkinson’s disease arise due to complex dysregulation of input to the GPi/VA/VL. Proper placement and high frequency stimulation of electrodes in these areas, supported by power coming from a battery that is typically placed under the skin around the shoulder, can significantly reduce these tremors (Figure 10.19).

Figure 10.19 Deep brain stimulation and Parkinson’s disease

Huntington’s disease (HD) arises from a dominant genetic mutation on the huntingtin gene within the autosomal portion of chromosome four. Though the genetic mutation is present from conception, the symptoms develop over a lifetime (Walker, 2007). Being autosomal dominant means that a person only requires one copy of the huntingtin gene to develop HD and a parent with HD has a 50% chance of passing on their mutated gene to their offspring. In HD, cognitive difficulties often arise first in the chain of symptoms since the basal ganglia are involved in strategic thinking and developing capacity to adapt thinking to new circumstances, given its interaction with prefrontal and premotor cortices (Novak & Tabrizi, 2011). Typically, movement problems arising in later adulthood, usually around 50-60 years of age, elicit more profound diagnostic concerns.

HD-related movement problems include a sort of undulation of limb and facial movements as if these cannot be suppressed. Limb movements appear dance-like and are referred to as chorea, though they are far from purposefully choreographed or intended (Thompson et al., 1988). At later stages, body movements stiffen, challenging the coordination of swallowing-related pharynx and esophageal muscles (dysphagia). This leads to problems of aspiration and choking (Heemskerk & Roos, 2011).

HD symptoms occur because of the progressive death of striatal neuron cells. The loss of striatal neurons destroys basal ganglia function. The neurons that perish early and more prominently represent those striatal neurons within the indirect pathway, the pathway that primarily suppresses unwanted movement. Progressive deterioration of indirect basal ganglia pathway leaves the VA/VL of the thalamus increasingly disinhibited and yields increased and uncontrolled muscle engagement until the antagonists become overstimulated, stiffening limbs by simultaneous activation (Joel, 2001; Nair et al., 2021). This overstimulation is evidenced as increasingly intense chorea and slowed movement (bradykinesia). Harkening back to drawing Snoopy, consider either unsuppressed wild movements of muscles, or muscles getting locked into tug-of-war battles rather than smoothly guiding the pen. Snoopy's snout would either look too short, or overly long.

There are no directly targeted cures for Huntington's disease right now. The absence of a cure has made diagnosis and genetic testing for Huntington's disease ethically and emotionally complicated. Without clear treatments available, a child with a parent showing symptoms of Huntington's has a dilemma. They have a 50% chance of carrying the mutated gene. If they are tested and have the Huntington's mutation, there is little they can do, so many patients may decide they don't even want to know. Hopefully that dilemma will be resolved in the future, as there are several treatments being actively worked out. Given the disease derives from a distinct mutation in the huntingtin gene, involving an inappropriate expansion of the genetic code, there have been some ideas about either suppressing mutated genes or targeting the mutation with gene therapy for heterozygotes. Transplantation of stem cells into Huntington's patients has also been attempted with varied success (Rosser & Bachoud-Levi, 2012). Currently, however, standard of care is pharmacological treatments, such as tetrabenazine, to reduce symptoms. Tetrabenazine is a vesicular dopamine transporter blocker that prevents the filling of dopaminergic synaptic vesicles (Bonelli, & Wenning, 2006). These drugs suppress chorea because they tend to dampen the movement initiation of the basal ganglia-based motor driving mechanisms. Dopamine net diminishes the activity in the indirect pathway, thereby promoting direct pathway initiation of planned movements. However, these drugs also tend to spread and have high cognitive side effect potential such as depression or other tensions (Paleacu, 2007). Much work is needed to improve treatment of Huntington's disease.

Corrective actions incorporated with ongoing movement, not after we perceive movement

Just like the basal ganglia, the cerebellum supports movement control by tweaking the thalamic VA/VL complex, though synapsing through distinct circuits. The cerebellum is inspired into action in relation to initial learning, and later provides anticipatory adjustment signals that integrate into ongoing movement but are sent prior to or in conjunction with the UMN signals that descend to initiate LMN actions. Most cerebellum contributions are made subconsciously and become integrated into movements we subsequently produce (the lack of sufficient adjustment is shown when errors occur, such as ataxia). Success in generating desired smooth movements, ending without jerky shakes, requires error corrections to be incorporated before movement begins. If we had to wait for proprioceptive feedback before correcting, there would always be a “jerk-back” effect due to delays inherent in sensory systems. This can result from conscious movement monitoring. Conscious proprioception (cortical) is slower than ongoing movements, so modifications come post-movement, making it jerky and uncoordinated. Damaged cerebellum patients are limited to this, so when their conscious stream is distracted, they produce more movement errors because their cortex cannot multitask well (Brunamonti, et al., 2014). Thus, a well-primed (skill consolidated) healthy cerebellum recognizes the need, then delivers its adjustments along with subsequent UMN-driven movement efforts rather than correcting errors after the fact. It learns while we do behind the scenes to determine how much boosting or tapering is necessary, and subsequently contributes these adjustments to future movements. Imagine these contributions behind the scenes of established Olympic floor moves, or the slight-of-hand demonstrated by a seasoned magician (Dahms et al., 2020).

Practicing and imagining success

It’s important for new behavior to start off slowly, allowing sufficient time for proprioceptive sensory feedback to reach the CNS and become conscious perception. We do this all the time when we are learning how to move in specific ways. For example, choreographed fight moves à la Jackie Chan are typically rehearsed slowly before filming so actors can anticipate blows and pull back to “act” hit. By going slowly, we have time to consciously perceive motor errors and use our cerebellar processes to correct them. Through this slow practice, the cerebellum helps us learn how to execute movements faster and faster, with less conscious perception of proprioception needed to keep our bodies on track. Notably, even imagined movements can play a role in this learning—a mental rehearsal without physical engagement (Decety & Ingvar, 1990, Jackson et al., 2003). Actors, dancers, skaters, and sports professionals do this all the time. The performance improvements from imagined practice are real, not illusory, as they entrain the cerebellar circuitry support of cerebral movement control via the same circuitry that adapts to actual movement.

Primary Precentral Gyrus Organization

The posterior frontal cortex has a major crease, the central sulcus, dividing the precentral (green in Figure 10.20) and postcentral gyri.

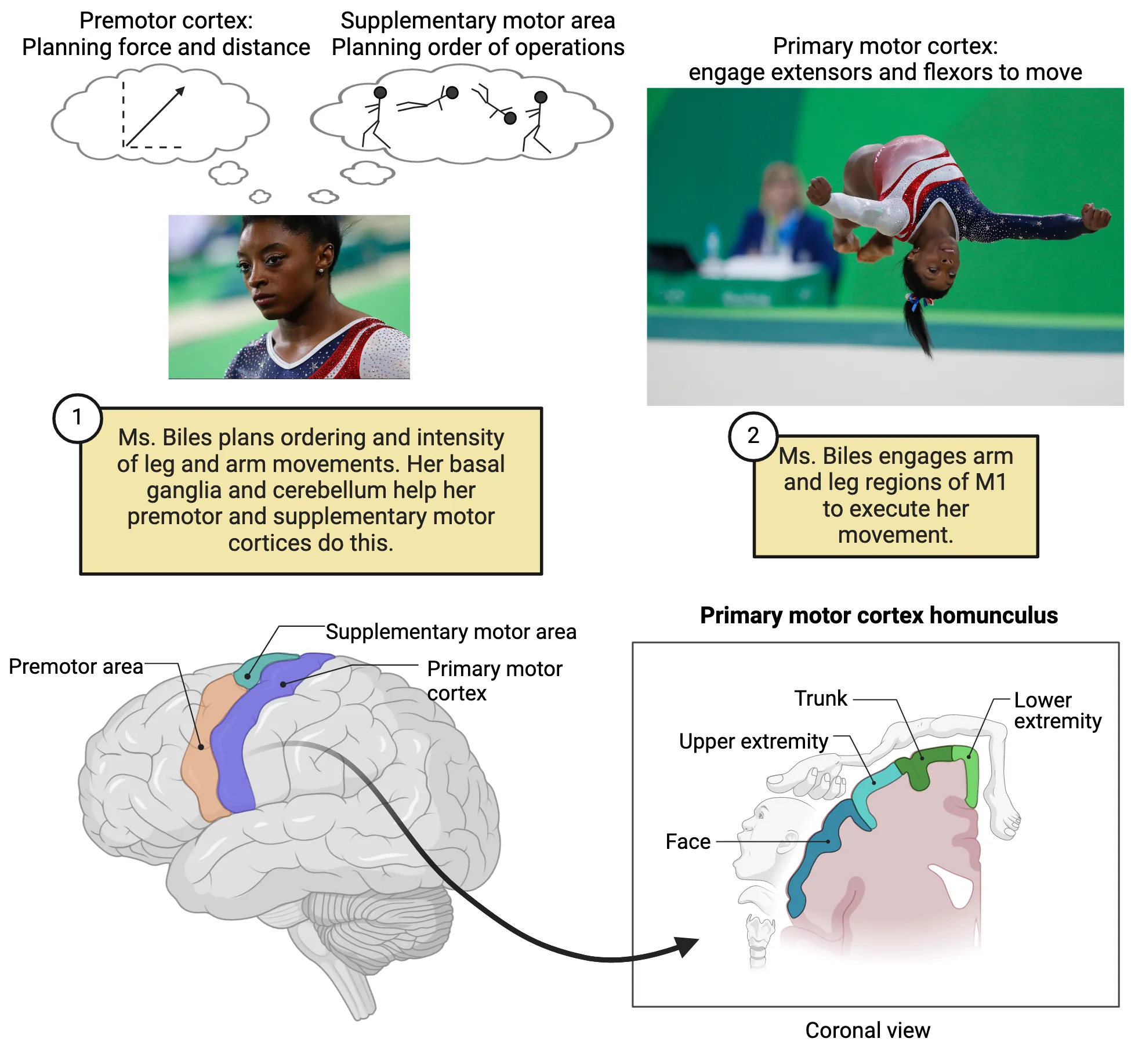

Figure 10.20 Primary motor cortex

This strip, from between the hemispheres out laterally, ending just above the lateral fissure (defining the top of the temporal lobe), contains the primary drivers of voluntarily organized/coordinated movement known collectively as the primary motor cortex. The neurons of the primary motor cortex are arranged in a homunculus. This arrangement is essentially a map of a little person lying across the precentral gyrus, so toe control is buried between the hemispheres. This map was famously created by neurosurgeon Wilder Penfield, who assessed movements when brain regions were stimulated during surgeries correcting epilepsy and made direct recordings during movements (Penfield and Rasmussen, 1950). The idea of a homunculus depicts the “person” as a distorted image made up of enlarged areas where more neuronal space engages with specific moveable body parts. The complexity or subtlety of movement of any body part tends to engage larger numbers of neurons as this attribute goes up, so the eventual map of a person has a large tongue, huge lips, prominent face around the forehead, huge hands and feet, with a smaller torso, limbs, and joints, according to the degree of movement sophistication possible. The motor homunculus is to movement sophistication as the somatosensory homunculus is to somatosensory density (see Chapter 9 Touch and Pain).

Descending motor projections

The primary motor cortex neurons send their axons out to the brainstem and spinal cord via three tracts (see Figure 10.21).

Figure 10.21 Corticospinal motor pathways for the body

• The corticobulbar (or corticonuclear) tract, carries descending efferents from the cortex, synapsing on brainstem nuclei serving regions of the jaw, face, ear mechanisms, for gagging or swallowing, or crinkling our noses. Corticobulbar tracts largely provide bilateral support, where each side directly serves ipsilaterally, and crosses over at the level of various nuclei to the contralateral side. The exception to this rule would be the descending tracts subserving the facial nucleus, specifically the lower part of the face, which is exclusively contralateral (Patestas & Gartner, 2016). We're overlooking autonomic patterning aspects of this projection to focus on controlled movement.
• The lateral corticospinal tract is the major descending tract for body limbs. It crosses almost entirely to the other side of the body to control the contralateral (opposite side from originating hemisphere) limbs, mostly the arm/hand/fingers and leg/foot/toes.
• The anterior corticospinal tract is a smaller but important tract responsible for controlling trunk muscles and more medial aspects. While some of this tract decussates (crosses over) at the level of the spinal cord in the ventral white matter as shown in Figure 10.21, a majority subserves the ipsilateral side.

The upper part of our body (head) is largely controlled via cranial nerves derived from the brainstem and therefore the corticobulbar tract. The two corticospinal tracts descend to different levels of the spinal cord. Within the spinal cord, these tracts interact with LMNs and the circuitry making up the reflex architecture (also used to engage the knee-jerk, or withdrawal reflexes, utilizing local spinal circuitry described above) to control the lower parts of our bodies such as limbs and trunk.

Why do some descending UMNs control need to cross over to operate the opposite side of the body? One simple explanation may be that visual information passing through lenses of your eyes is flipped (see Chapter 6 Vision). Events occurring to our left pass to the right sides of our retinae. The right sides of each retina connect with the right hemisphere, while the left connects with the left. However, the information they process is relevant to the opposite sides of our bodies. This probably created pressure for natural selection to derive a map of limb control so each hemisphere could control the opposite side.

Moving Beyond Vector Trajectories into Controlling Robot Arms

In the previous section, we discussed how the pioneering work of Georgopoulos pointed towards this key cortical element of “voting populations.” More recently, new and fascinating cutting-edge things have been happening to build off his work. By studying consensus of neuronal activities and how they link to vector trajectories, researchers have begun to be able to predict where limbs might go based on neuronal activity! Once you can predict what neuronal activity does, it becomes possible to tap in to those neurons to recreate movements. This basic idea is what underpins many modern efforts to link robot prosthetics to the human brain.

Many forms of brain or spinal cord damage can render a person unable to move any limbs despite owning an active and intact brain (quadriplegic). Neuroscientists such as Andrew Schwartz and others have been working to turn that remaining ability to direct movements in the brain into real movements of robotic prosthetic devices. This work is all based in the original concepts derived from Georgopoulos and has now yielded robotic arms that can respond to recordings from a patient’s brain and engage complex arm and hand type movements to select, grasp, and move objects! The details of how two human subjects with quadriplegia were implanted with specialized electrodes over the arm-related region of their M1 homunculi and subsequently gained considerable control over an attached robot arm are originally described in Lancet (Collinger et al., 2013). Since this initial proof-of-principle, improvements have been made. For example, a patient in 2015 received a version of this system that was not just unidirectional—taking motor commands and linking them to the prosthetic. This newer version also incorporated input from sensory information. Remember back to our example of a monkey swinging through the trees. To swing, grasp and release well, the monkey integrated several sources of touch information. Grasping without feeling the grasp would make branch swinging a far greater challenge for the monkey. The same applies to patients with prosthetic limbs. Adding touch feedback greatly improved the ability of the patient to use their limb. These devices, adjusted for circumstances, are moving outside of a theoretical possibility into a distinct therapeutic option reality! If movement practice feedback could also be incorporated, it is conceivable that practiced learning could get such patients back to cooking in the kitchen!
