4.5 How Can Diverse Species Help Us Make Inferences about Human Neurobiology?

Monkeys as model systems to understand human fetal development

Much of what we know about development in humans, and especially human fetal brain development, is inferred from model systems. Human fetal development is an especially challenging phase to study because there are limited methods for study. Accordingly, there is only so much we can study in prenatal humans (Byrston et al., 2008). Macaque monkeys have been one important model system to understand human development. This monkey is a popular choice for this kind of research because of its close phylogenetic proximity to humans, and because monkeys share many similar features with humans (Passingham, 2009; Rakic, 2009). More recently, researchers are turning their attention to a small monkey called the marmoset because it is an easier animal to handle and breed than macaques. Macaques have been used for some time and they have yielded insights into human neurodevelopment (Mitchell and Leopold, 2015; Okano et al., 2012).

This section articulates the basic outline of fetal and early postnatal development in macaques and how it can be used to make inferences about human development. We discuss how the study of model systems can enhance our understanding of neurogenesis (the process of neuron production), and synaptogenesis (the process of generating synapses) in the human brain (Clancy et al., 2001). More detail on these and surrounding neurodevelopmental processes is in Chapter 5 Neurodevelopment.

Neurogenesis is the term used to describe this entire process of generating neurons. Early in development, the brain is composed of proliferating cells (i.e., cells that are in the process of multiplying), which have yet to adopt a final, functional form (such as being a neuron or glial cell). These early, undifferentiated cells are called neural stem cells, and they have a unique shape, with a long fiber or process extending from their cell body to the edge of the developing brain tissue (Figure 4.10). Neural stem cells divide to create daughter cells that turn on to mature, or differentiate, into neurons or glial cells (step 1 in Figure 4.10). The maturing cells wrap around elongated fibers and migrate radially towards the outer surface of the cortex (step 2 in Figure 4.10).

Figure 4.10 Neurogenesis in mammalian cortex

Neurogenesis largely occurs during prenatal development (Byrston et al., 2008), and extends to postnatal stages of development. In humans, we have limited tools available to visualize this process. We can make inferences about the process of neurogenesis from anatomy and histology (thin slices of post-mortem brains), from gene expression of individual cells or from tissue, but these methods are only indirect means to probe neurogenesis, and we have to map findings from model systems onto humans (Clancy et al., 2001; Charvet and Finlay, 2018; Boldrini et al., 2018; Kozareva et al., 2019).

The use of model systems, such as macaques, has enabled us to better understand the process of neurogenesis in humans (Rakic, 2002, 2009). For example, researchers have used cell birth-dating techniques to see where proliferative cells migrate to their final destination. Essentially, birth-dating involves the administration of a compound that gets taken into proliferating cells. The compound marks the cell, which enables researchers to visualize where the cell ends up at a later stage in development. Once the compound gets incorporated into the cell, we can track it over time. We can, for example, use this method to track migratory patterns of cells. These techniques obviously cannot be done in humans for ethical reasons, but they can be performed in macaques and other species.

Birth-dating methods in macaques have revealed basic patterns of migration from the proliferative pool to the cortical plate (upper edge of the tissue, where the neural stem cell fiber ends). For example, proliferative cells exit the cell cycle and migrate according to an inside-out fashion such that recently generated neurons migrate past older ones in the cortical plate (Rakic, 1974, 2002). Figure 4.11 shows how these birth-dating experiments trace the birth of different cell types. Here, we use mice as an example. Mother mice are injected with the tracer at different days of pregnancy and the compound is taken into only those cells that are in the process of proliferating at that particular time (step 1 in Figure 4.11). The brains of their offspring are then examined after birth (step 2 in Figure 4.11). Offspring exposed to the compound early in development show labeled cells in the inner layers of the cortex (step 3 in Figure 4.11). Offspring exposed to the compound later in development show cells in the outer layers of the cortex. Based on these observations, we can say the cortex forms inside-out, or the first-born cells form the inner layers with later born cells migrating past them to form the outer layers.

Figure 4.11 Cell birth dating and inside-out formation of the mammalian cortex

Similar experiments to the one diagrammed in mice have been performed in macaques and other primates. These experiments revealed wide conservation in the inside-out pattern of neurogenesis across mammals. Early in development, recently generated neurons preferentially populate lower/inner layers of the cortex. Later born neurons preferentially populate the outer layers. Conservation of this pattern goes beyond primates and rodents. The inside-out sequence of cell birth specification has been observed in every mammalian isocortex studied (primates, rodents, marsupial mammals; Clancy et al., 2001). Because we can’t inject pregnant humans or their fetuses with tracers, we use observations such as these from model systems to make inferences about human brain development.

Synaptogenesis(i.e., the production of synapses) is yet another process that researchers have relied on model systems, particularly macaques and cats, to map the steps and the expected time course in humans. In macaques and cats, synaptogenesis occurs as neurogenesis wanes (Cragg, 1972; 1975; Bourgeois et al., 1994; Clancy et al., 2001). The number of synapses peaks in early infancy and subsequently declines in early adulthood. Many researchers believe that this surge in synapse numbers early in infancy provides an important critical period where young individuals can learn and adapt to their postnatal environment. Human synaptogenesis is to a large extent inferred from model systems.

In this section, we have considered how we make inferences about basic developmental processes from model systems, but not every developmental process is similar across humans and other species. For example, the overall duration of brain development is extended in humans compared with macaques (Clancy et al., 2001; Charvet and Finlay, 2018). The longer overall duration in neurogenesis, synapse development and myelination may be contributing factors to the evolution of the human brain structure and function. We can determine what is unique from a structural perspective in humans compared to other species, but we can’t explain the reasons why those differences exist. For example, humans and other non-human primates may differ in their length of gestation, but we can't necessarily conclude that this is the reason why humans have some structural difference relative to non-human primates. We next discuss how we can use closely related species to learn basic concepts in neurobiology.

Studying closely related species to make inferences about the neural basis of social bonds

Thus far, we have focused on looking for similarities between species to allow us to investigate the neural bases of behavior and extrapolate to difficult-to-study species like humans. Investigating differences between closely related species is also a useful approach to understand the neural basis of behaviors. In species that are close in phylogenetic proximity, one would expect relatively few differences in brain and behavior. These relatively few differences across closely related species permit pinpointing what neural structures form the basis of select behaviors. We discuss an example where phylogenetic proximity has been used to make inferences about the neurobiological basis of social bonds.

Throughout their lives, humans form selective attachments to family, friends, and romantic partners, which are critical for both mental and physical well-being. The pair bonding of Microtine rodents such as prairie versus meadow or montane voles show variation that mirrors the variation in pair bonding in humans (see Chapter 11 Sexual Behavior and Development). Prairie voles are monogamous; they form stable pairs. Other vole species, such as montane voles, are polygamous with males and females forming multiple pairs. That is, individuals will copulate with multiple partners. In these studies, montane and meadow voles are used as the non-monogamous counterpart to the monogamous prairie vole. The affiliative behavior can be measured with a partner preference assay. In short, a male vole is given a choice of where to spend his time: with a female with whom he previously mated or with a new female. Pair-bonded prairie voles will spend the majority of their time with their partner when given the opportunity to do so, whereas meadow voles show no preference toward either an established partner or a novel opposite-sex partner. The diverse pair bonding behaviors across vole species mirrors the diverse behaviors we see among humans with some humans engaging in monogamous relationships whereas others form polygamous relationships.

These two vole species are closely related so that their brain structure and function is highly similar with only a few differences. Studies of the basis of social bonding using these species therefore started with the idea that there should be relatively few differences across species since they are closely related. Brain region differences, then, could be related to variation in pair-bonding between the two species (Winslow et al., 1993; Insel et al., 1994). Researchers compared the brains of these meadow and prairie voles, and they found interesting species differences in vasopressin receptors (i.e., vasopressin 1a receptors, V1aRs) in the basal ganglia. Specifically, expression of V1aR in a region called the ventral pallidum was higher in the pair-bonding voles than in the solitary voles. This difference is shown in the autoradiograms in the top two rows of Figure 4.12.

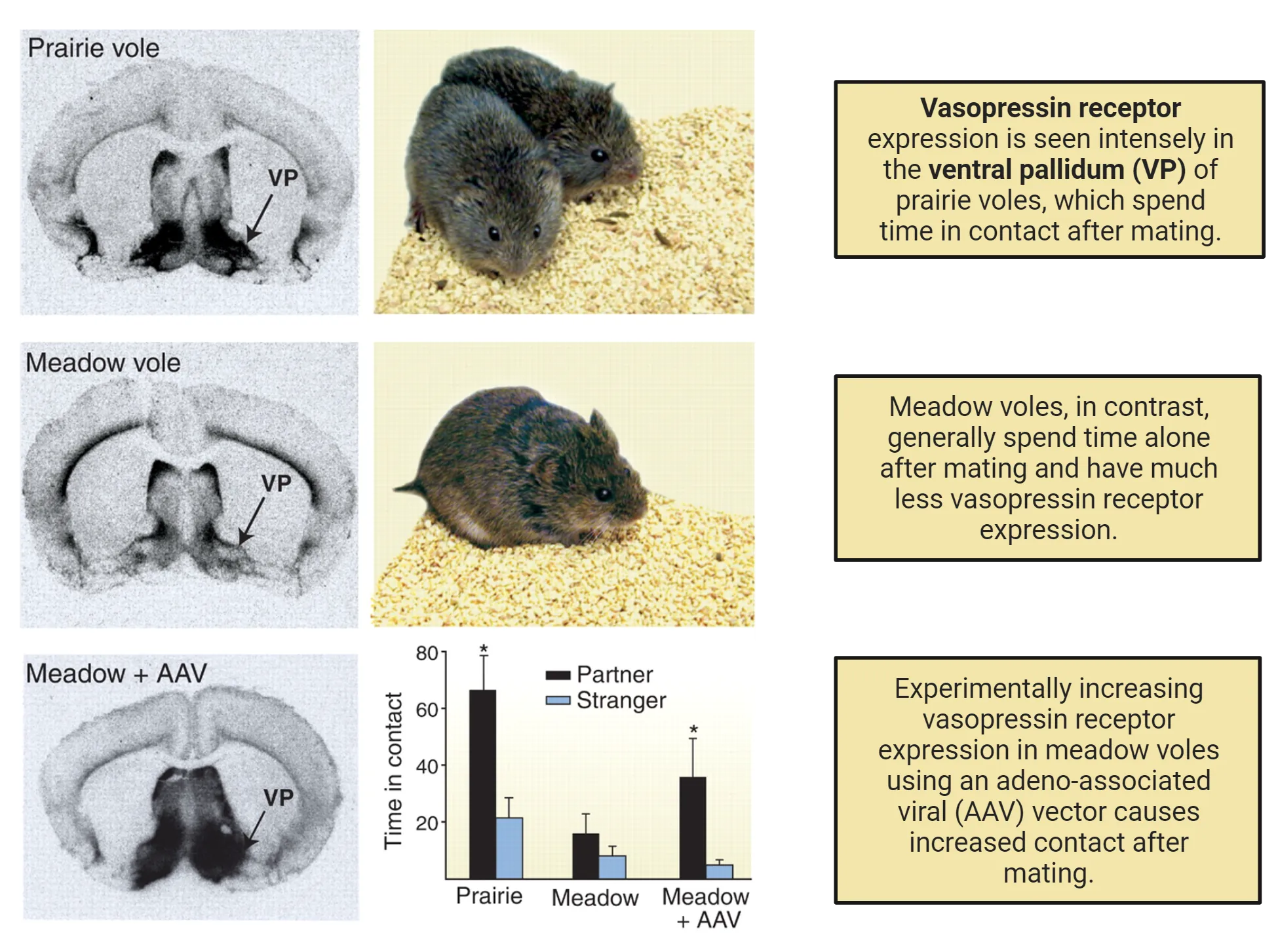

Figure 4.12 Pair-bonding in voles Image credit: From Donaldson, Zoe R., and Young, Larry J. "Oxytocin, Vasopressin, and the Neurogenetics of Sociality". Science, vol. 322, no. 5903, 2008, pp. 900-904. DOI: 10.1126/science.1158668. Reprinted with permission from AAAS.

While suggestive, these observed differences in V1aR expression do not by themselves demonstrate that the expression of vasopressin receptors is causally related to species differences in pair bonding. Researchers therefore went one step further with these cross-species investigations. Specifically, researchers experimentally increased the expression of vasopressin receptors in the normally non-pair bonding meadow voles to test whether the expression of vasopressin receptors is causally related to pair bonding. They then quantified partner preference as an index of pair bonding (Young et al., 1999). The bottom graph in Figure 4.12 shows the results of this experiment. First, untreated prairie voles showed a preference for their partner and untreated meadow voles did not, as we would expect. Increasing vasopressin receptors in meadow voles changed this, though. Meadow voles with V1aR overexpressed behaved much more like the pair-bonding prairie voles, spending more time with a previous partner than with a stranger (Winslow et al., 1993; Insel et al., 1994).

These findings point to vasopressin receptor expression in the ventral pallidum area of the basal ganglia as a major player in specifying social bonds. Other molecules (e.g., oxytocin) are also important in dictating social bonds (Anacker and Beery AK, 2013; Romero et al., 2014; Ahern et al., 2021). While V1aR expression is clearly important for partner bonding in prairie voles, can we apply this knowledge to human behavior? Interestingly, the results of these vole studies motivated studies in humans, which have identified individual differences in vasopressin receptors, specifically finding genetic variants of this receptor that predict different partner bonding behaviors (Walum et al., 2018). That is, similar genetic variants account for behavioral variation amongst humans. Examples such as this one demonstrate that we can understand the neurobiology of social bonds in humans by focusing our efforts on comparing the neurobiological basis of social bonds.
