Learning Objectives
By the end of this section, you should be able to
- 15.1.1 Name and define different biological rhythms.
- 15.1.2 Draw and label the components of a circadian rhythm.
- 15.1.3 Draw and label the components of a phase response curve.
Neuroscience Across Species: Why Are Rhythms Important?
The earth orbits the sun with a period of about 365 days and rotates on its axis every 24 hours. These rotations create a cyclical and predictable environment including rhythmic changes in light and dark, ambient temperature, and resource availability. Animals, plants, fungus and bacteria evolved during these predictable environments and have adapted their biological systems as a result. Thus, one significant benefit of biological rhythms is to synchronize the biology of an organism to environmental cycles in anticipation of recurring events. For example, organisms can increase their survival by avoiding predation, preparing for hibernation, gathering food, or finding mates when they can anticipate changes in the environment. Mammals increase their metabolism prior to the start of their active period when they eat their first meal of the day, mobilizing energy reserves in anticipation of increased demands on the body. Another example is that the mechanisms responsible for clearing out metabolic by-products from the brain go into high gear when we are sleeping, potentially helping create a neural environment conducive to new learning. Arctic mammals can prepare for a cold winter by reducing their metabolic rate and body temperature and hibernating for a portion of the year, and adult fruit flies emerge from their pupa in a timed manner, about 1-2 hours before dawn, which is the onset of their active period.
Examples of Rhythms
There are many different types of rhythms, with periods ranging in length from seconds to hours to days (Figure 15.2). Neuron electrical action potentials within the brain can occur at the level of milliseconds, neuronal firing rates can show spontaneous 24 hour rhythms, hormone surges such as the morning rise in cortisol can occur every 24 hours, and the reproductive or ovulatory cycle in laboratory rodents occurs every 4-5 days whereas it can occur around every 28 days in humans.
Circadian rhythms (circa = about, dia = day) describe rhythms with a period of about 24 hours and the best known of these is the daily rhythm of sleeping and wakefulness that many animals experience.
Ultradian rhythms have periods significantly shorter than 24 hours. An example of this would be heart rate, or the occurrence of multiple sleep cycles during the night (see below). Another type of ultradian rhythm are those that follow the cycles of tides; these are called circatidal and occur around every 12.4 hours. Marine organisms such as crabs time their locomotor activity to the occurrence of tides.
Infradian rhythms have periods significantly longer than 24 hours. For example, the reproductive rhythm (menstrual cycle) of women is a type of infradian rhythm. Circalunar rhythms are a type of infradian rhythm that follow the amount of moonlight that is available and last about 29.5 days. Examples of circalunar rhythms are seen in the reproductive cycles of marine animals. Circannual rhythms are another type of infradian rhythms—these are cycles that recur with a period of about 1 year. The onset of hibernation each year in Arctic ground squirrels would be a circannual rhythm.
Qualities of a Rhythm
A rhythm is a repeating event that occurs with a regular pattern (Figure 15.3). We can characterize the features of a rhythm by describing its period or the duration of time it takes one cycle of the rhythm to occur. The phase of a rhythm describes a marker or point in a daily rhythm. A phase could be measured at the peak of a daily rhythm, such as the peak of melatonin secretion, or a trough in a rhythm such as the time when your body temperature is the lowest. A phase relationship or phase difference is the timing of the phase of a rhythm in relation to another daily timing event. For example, we can talk about the phase difference between when you wake up each day (the phase) and the time when your alarm goes off. The mesor of a rhythm is the average level of the rhythm across a full cycle, and the amplitude of a rhythm is the difference between the peak and trough of that rhythm. Frequency describes how often the rhythm occurs within a period of time. For example, pulses of luteinizing hormone secretion might occur at a frequency of 4 per hour Chapter 11 Sexual Behavior and Development.
One fascinating concept about biological rhythms is that they are endogenous, meaning that they are driven by internal physiology rather than being entirely generated by external or exogenous cues. This means that rhythms will continue to be expressed even if the organism is isolated from the environment. For example, a variety of circadian rhythms continue to be expressed, even when the organism is maintained in an environment with constant lighting conditions, which lack any cues as to the time of day. This experiment has been done with numerous species including placing humans in underground apartments, or housing laboratory rodents or fruit flies in constant darkness. These experiments demonstrate that biological rhythms continue to oscillate in a consistent manner, though this rhythm may not perfectly match the solar day or other rhythmic environmental cues such as temperature fluctuations. For example, if you were to live in dim light in a sleep lab for seven days and we measured the time when you woke up each day, we would learn that the period of your daily sleep-wake cycle may run slightly faster or slightly slower than 24 hours. Under these constant conditions the rhythm is described as free-running. Humans can have a free-running period that normally ranges from 23.5 to 24.7 hours. In nocturnal lab rodents, a typical free-running period can range from 23-25 hours long, and in fruit flies population rhythms in emergence from the pupa and individual activity rhythm is about 24.5 hours. Of course, most organisms do not live in environments absent of cues, thus when an organism's internally generated rhythm is synchronized to the rhythms of the external environment we refer to this as entrainment.
Chronotypes
Are you someone who tends to stay up late into the night? A "night owl"? Or perhaps you go to bed early and wake up early? A “lark”? The tendencies of your body towards sleeping at some hours of the day and being more alert at other times of day is called a chronotype. Chronotypes exist on a spectrum and can be influenced by age, gender, and genetics. Chronotype has been linked to health outcomes, mood such as anxiety and depression, and the time of day you are most productive. For example, evening types ("owls") are more likely to have depression, anxiety, obesity, and lower grades compared to morning types ("larks") (van der Merwe, Munch, and Kruger, 2022; Walsh, Repa, and Garland, 2022; Yeo et al., 2023). Individuals with severe morningness or eveningness chronotypes may be diagnosed with conditions such as advanced sleep-wake phase disorder or delayed sleep-wake phase disorder (see 15.4 Disorders of Sleep and Circadian Rhythms).
Your chronotype typically changes across your lifespan. Young children tend towards a morning preference and wake up and go to bed relatively early, whereas after adolescence, teenagers and young adults have difficulties falling asleep before 11 pm and may struggle to wake up for an early morning class or job. The peak in an evening chronotype occurs around age 19 after which the chronotype begins to shift to an earlier time. Thus, older individuals tend to be morning types, and this tendency to be a morning type continues to increase from age 35-80 (Roenneberg et al., 2007). Interestingly, there is also a sex difference in chronotypes, with women typically being earlier (larks) compared to men (Fischer et al., 2017). Some researchers hypothesized that these sex differences could be attributed to circulating hormones. This is supported by the fact that as women age and go through menopause and hormone depletion around the age of 40-50, the sex difference in chronotype goes away.
Although you can adapt your circadian rhythms to new environmental light cycles, such as would occur if you traveled to another time zone, it is difficult to intentionally change a chronotype. However, light therapy, melatonin treatment, and adherence to a sleep schedule (sleep hygiene) can help shift the timing of rhythms. People with an evening chronotype report that shifting their rhythms towards a morning chronotype can reduce depression and stress, improve mood, and improve cognitive performance (Facer-Child et al., 2019).
Neuroscience in the Lab
Photic Phase Response Curve
How does your internal clock adjust your sleep-wake pattern when you fly to a new time zone? How does your body stay entrained to your rhythmic environment without drifting? There are many types of environmental cues that can entrain a biological rhythm including cycling changes in temperature, humidity, food availability, and social cues. However, the strongest entraining cue for most animals is the light:dark cycle driven by the earth’s rotation. In mammals, the biological clock in our brains responds to light cues and helps synchronize it to the external rhythm. If the endogenous clock isn’t in alignment with the 24 hr day/night cycle, the clock needs to be adjusted to bring it back in synchrony with the environment. Both the magnitude of the response and the direction of that response depend upon when the light cue is perceived by the clock. To phrase this another way, your body can respond to light cues and "reset" the clock. However, the degree to which your clock is adjusted depends upon the time when you were exposed to a light cue.

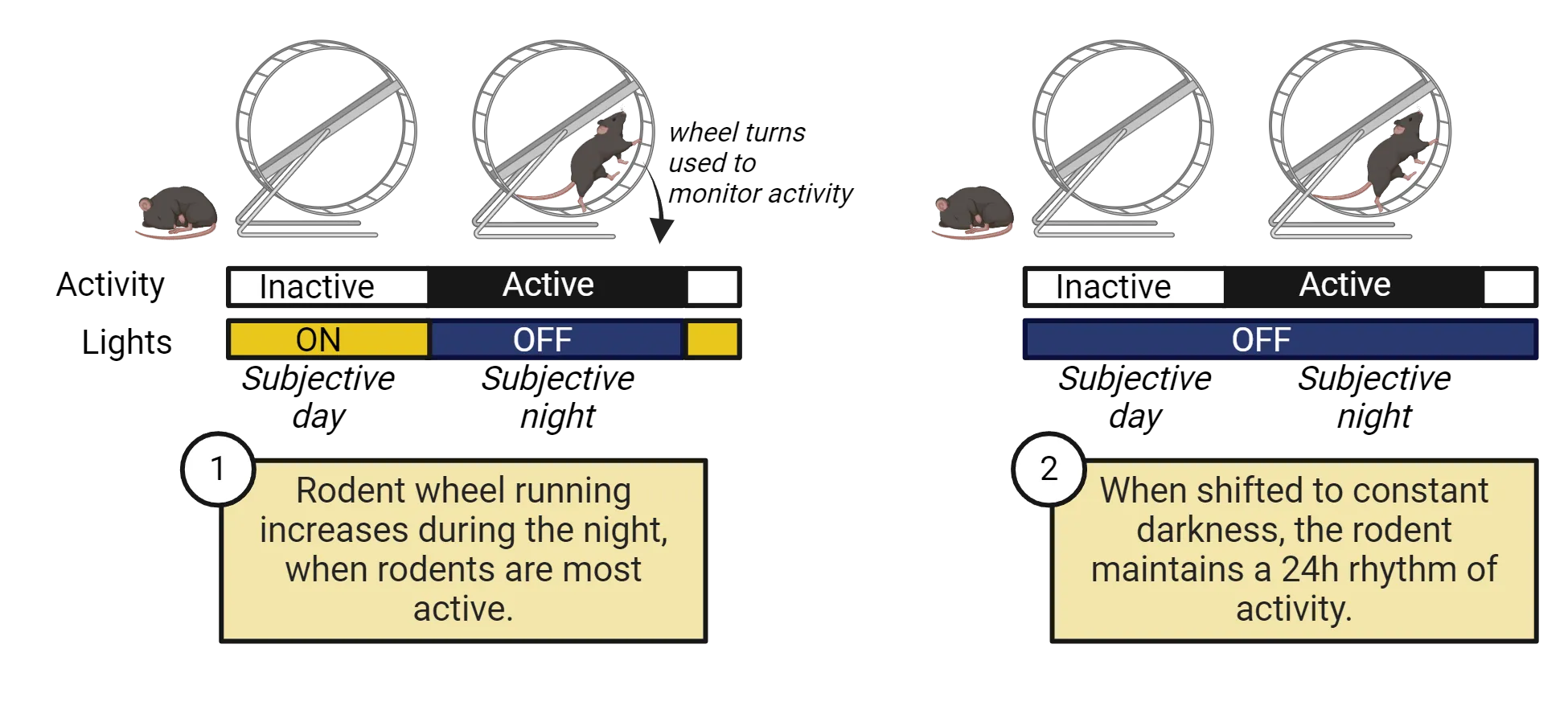

Consider an experiment where we house a laboratory rodent in constant darkness and measure the onset of their daily bout of activity in a running wheel. This wheel running occurs during the animal’s active time of day, thus in this nocturnal animal wheel running would reflect its subjective night. When the rodent is sleeping, it would reflect the subjective day. We use the term “subjective” because it reflects the brain’s internal interpretation of time, not the actual environmental condition experienced. Figure 15.4 shows how we often represent the data from an experiment like this, where a single bar represents a 24h period and light and dark shading within that bar represent periods of low and high activity, which we learn by recording turns of the running wheel.
In the lab, we can use rodent activity to study how biological clocks entrain to external cues depending on when they are given. For example, we can expose animals living in constant darkness to a 10-min pulse of light at various times across their subjective day and subjective night. We then measure the effect of that light cue on the timing of the wheel running onset. The observed change from the original activity onset to the new, adjusted onset is called a phase shift. We can plot phase shifts using a phase response curve (Figure 15.5).
Conventionally, we plot advances (waking up earlier) in the timing of activity as positive numbers and delays (waking up later) as negative numbers, against the time of day when the animals were exposed to the light pulse. By plotting the response to light pulses, we can see there is a pattern in sensitivity to the light cue. Generally speaking, if the animal was given a pulse of light during its subjective day there is little to no change in the onset of the wheel running the next day. This is to be expected because this is the time of day when light would normally be present. This part of the curve is referred to as a dead zone. However, when exposed to light in the early portion of the night, animals have a dramatic shift in the timing of wheel running or activity, such that it is delayed compared to when it was predicted to occur. Conceptually, think of this as the animal’s brain interpreting the light as meaning that it is still daytime, the animal got up too early, and therefore tomorrow it should become active at a later time. Conversely, light pulses given in the second half of the evening result in advances in the timing of the wheel running onset (the animal stayed up too late—it should shift its activity to an earlier time). This light sensitivity that varies as a function of the time of day is a critical function for how biological clocks synchronize to the environment. This same methodology has been used to determine the phase response curve in a variety of other species including fruit flies (Vinayak et al., 2013), sparrows (Binkley and Mosher, 1987), and flying squirrels (DeCoursey, 1960).
Interestingly, the shape of the phase response curve looks remarkably similar in diurnal and nocturnal organisms suggesting that there are similar clock processes underlying this response to light, despite behavioral rhythms having different patterns. Diurnal animals are those who are most active during the daytime hours whereas nocturnal animals are those who are active during the dark period of the day. Humans, and many species of primates, squirrels, and birds are diurnal. Similarly, there are birds such as owls, and primates such as lemurs that are nocturnal. Much of the basic research done on biological rhythms uses laboratory rodents which are either nocturnal or diurnal, or fruit flies, which are diurnal, but the principles of biological clock function are remarkably conserved across species and ecological niches.
People Behind the Science: Dr. Pat DeCoursey
The very first phase response curve has been credited to Dr. Pat DeCoursey. Dr. DeCoursey was always interested in science and while in high school conducted a census of songbirds in a tract in Long Island, NY. She entered her project into a science talent contest where she won scholarship money that helped her attend Cornell University. This was followed by graduate school at University of Wisconsin, Madison where she studied the emerging field of chronobiology. She was working with flying squirrels which have a precise free running period of nearly 24 hours and she was interested in asking questions about entrainment. She gave the animals light pulses and plotted their dramatic shifts in activity onset to create the first photic phase response curve. In her long career in biological rhythms, she worked with numerous species including Eastern chipmunks, antelope squirrels, hamsters, and golden mantled ground squirrels and she helped write and edit a textbook entitled Chronobiology. Later in her career, she performed exceptionally challenging experiments designed to examine the importance of a functional circadian clock to the survival of animals in the wild.
