7.2 Programming Language Constructs

Primitive Data Types

These data types are considered primitive because they relate very closely to the machine hardware. This means that the format, or bit pattern, of the actual values can be recognized by the registers and arithmetic-logic unit (ALU) of the computer. Some examples of primitive data types are number, character, and Boolean (hold the values true or false), as visible in Table 7.2.

We learned that strong typing refers to the characteristic of an HLL in which a variable is restricted to holding values of the type with which it is defined. The concept of coercion refers to the ability of a variable of a data type to be forced to hold a value of a different data type. In other words, coercion rules are a relaxation of type checking. For example, a Java int data type holds a whole number of size four bytes, while a short int holds a whole number of two bytes. We can legally assign the value of the short int to the int: it is coerced by the assignment, which makes absolute sense because the short value can fit into the longer value.

On the other hand, we cannot assign a Java 8-byte long data type to a Java 4-byte int; it is too big to fit, and if we try, we will get a compile time error that will not allow the program to run. However, we can coerce the assignment by using a mechanism called a type cast. This is a mechanism in many HLLs which allows us to force the larger value into the smaller space given to us by the smaller variable. This can have side effects, which must be known by the programmer to use the mechanism effectively. The side effect of the Java long to int example is truncation: four of the bytes are dropped.

Complex Data Types

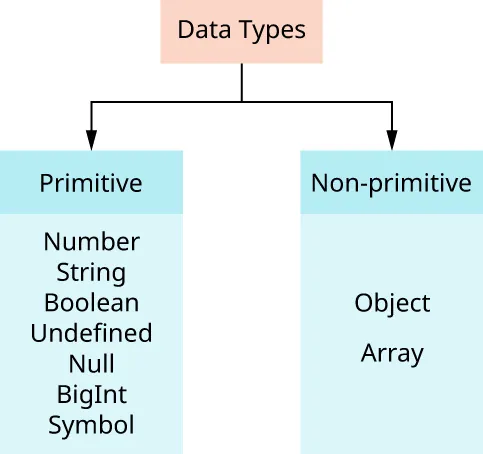

We have learned that some of the data types of a language are primitive types, meaning that data of that type can be directly represented in the registers and memory locations of the machine. However, languages usually contain complex data types as well.

A complex data type is one consisting of multiple primitive types used as its building blocks which is why we also call them composite types. These multiple types may be of the same type, as in a complex data type known as an array, or they may consist of collections of different data types in one construct, such as a C# class.

Arrays

An array is a typical composite type that is used as a data container. A great way to visualize an array is as a shelf unit, a connected structure where we can place items on each element. An instance of an array in this case could be a bookshelf that is meant to contain books (a book would be another composite type).

An array is a named variable that references a block of contiguous memory locations, and each “shelf” of the array is an element, which occupies exactly as many of the contiguous bytes as it takes to accommodate a value of the data type being stored. In the simplest type of array structure, an indexed array, the shelves are numbered with an index, starting at zero, or the lowest memory location. In a strongly typed language, all elements of an array must be of the same data type which means that every element will be of a uniform length in bytes.

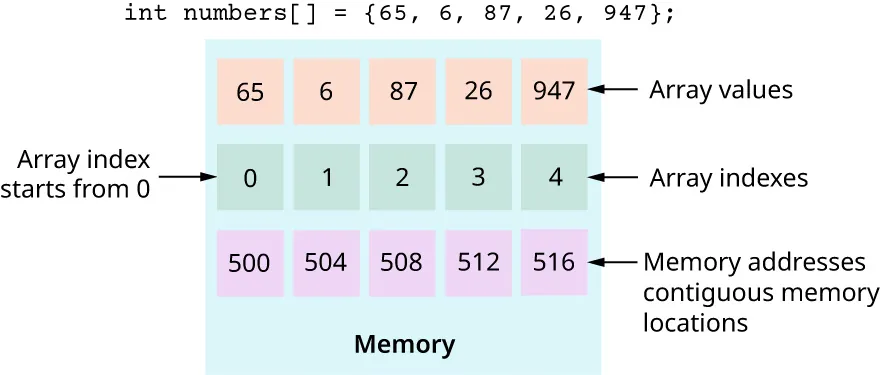

Figure 7.10 illustrates an array in any number of HLLs including Java, C, and C#. We start off with the array declaration, which gives the data type of each of its elements, names the array variable numbers, indicates it is an array with the opening and closing square brackets ([]), and assigns five values to it with what is known as an array initializer (values separated by commas placed between curly braces). We can see that the length of the array is 5, the indexes run from 0 to 4, and each of the elements are contiguous in memory and are 4 bytes in length. The following statement assigns an element of the array to a variable:

int myNumber = numbers[5];

Figure 7.10 Each value in an array is assigned an index and a memory address. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

String myUniversity = "Union Technical College";

Identifiers

A variable name is called an identifier. Different HLLs have different rules about legal identifier syntax. For example, in C# rules are as follows:

• An identifier cannot be a keyword, which is a word reserved by the language and that has a special meaning.
• A letter, @symbol, or an underscore must start an identifier while the remaining portion may be digits, the underscore symbol, and/or letters (different from this, an identifier in PHP starts with a dollar sign ($)).
• Identifiers are case-sensitive, where uppercase and lowercase letters are treated as distinct. Therefore, the C# identifier myAge is a different entity than myAGE (Fortran, BASIC, and Pascal are not case-sensitive).

Variable Declarations

A variable must be made known to a compiler or an interpreter before it may be used by a computer program. This process is variable declaration and/or definition. In strongly typed languages, a variable declaration consists of a statement which specifies the variable name and data type. Weakly-typed languages omit the data type when values are assigned to the variable, which may be different types at different times.

Variable definitions in various languages are as follows:

Java:             int myAge;

JavaScript:   var myAge;

PHP:             $myAge = 21;

Assigning its first value to a variable is known as initialization, which may be done at any time after declaration, such as in the following Java snippet:

int myAge;
myAge = 21;

It is a best practice to always initialize variables when they are declared. This is known as declaration and initialization. This keeps the value that is stored from being undefined at any time, which can have grave consequences in code in various situations. For example, in the C programming language, failing to initialize a pointer to an array of characters in a program and copying a string of characters to the (uninitialized) memory location referred to by that pointer later in the program will crash the program. Here is another example in Java:

int myAge = 21;

Assignment

A literal is a value of one of the legal data types of an HLL that can be written directly into the code. For example, in JavaScript, one of the data types is numeric, which may be represented by either the literal whole number 2 or by the floating-point number 2.0. In C++, a literal of the type char may be written as the single quoted sequence a.

Storing a value in a variable is carried out by creating an assignment statement: The value assigned may be a literal, or it may be the value that has been placed in another variable or the result of an expression. The value in a variable may also be replaced by using assignment. Therefore, variables may hold different values at different times.

In a PHP expression that makes up an assignment as shown, the variable is located at the left. Notice that the identifier starts with the dollar sign ($), complying with the identifier rules of PHP. The equals sign (=) is known as the assignment operator, as in most languages with C-like syntax (C/C++, Java, C#, Python, JavaScript, PHP).

$myAge = 21;

In programming languages, we refer to the left hand of a variable assignment statement (the variable) as the lvalue. The right-hand value (the literal) is referred to as the rvalue. The assignment operator is a binary operator, meaning it is surrounded by two operands. The operand is the lvalue or the rvalue on either side of the operator. The rvalue of a variable assignment statement may be the value of another variable as shown here or the result of an expression. An example of this in Java is as follows:

myAge = yourAge;

Let us examine the concept a little more deeply. Variables may be named memory locations. We give a variable a name so that it is easy for humans to deal with it. It is a best practice to use names that are indicative of both the purpose of the variable (what it will be used for) and the data type that it will hold. So the variable myAge in the previous example meets both characteristics. One HLL best practice is to use an agreed upon convention for variable names. An example is camelCase, a naming convention that eliminates spaces and punctuation in favor of capitalization of specific words; in this case, the first letter of the first word is lowercase and if the name has multiple words, the later words start with a capital letter (e.g., firstName and lastName). Other conventions exist such as snake case (e.g., first_name, last_name), kebab case (e.g., first-name, last-name), and Pascal case (e.g., FirstName, LastName).

When a program is compiled, the compiler allocates a memory location to hold variables’ values and reserves the amount of memory necessary to hold such value based on the data type of the variable. The addresses of the memory locations that the compiler assigns to variables are relocatable, meaning that the linker may change these addresses when creating the executable version of the program, and the program loader will also change them when running the program to match actual memory addresses in the machine memory. Figure 7.11 illustrates what this looks like.

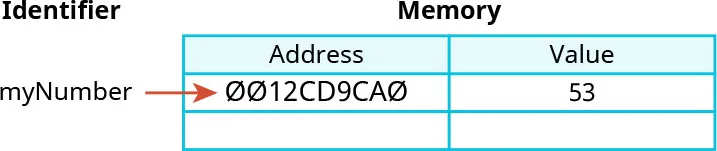

Figure 7.11 In JavaScript, the variable, in this case, myNumber, has a value that is assigned to a memory address. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

Named Constants

A variable may hold different values within the data type restrictions of the language at various times during program execution. There are times when we would like a value to be assigned to a specific memory location and not allow it to be changed thereafter. Most modern HLLs and associated DLLs (dynamic link libraries) provide a construct for this purpose called a named constant. It is also a best practice in most language cultures to use capitals with underscores separating multiple words. The following statement in C++ creates a named constant:

const int PAY_RATE = 15;

The word const is a keyword, int is a C++ integer data type followed by the name of the constant, equals (=) is the assignment operator followed by the rvalue, and the statement ends with a terminator. It is a best practice in programming to use named constants whenever indicated and possible. In this example, if an employee pay rate was to change, it would only have to be changed in one spot in the program rather than having to locate its usages in many lines of code.

Operators

Much like in algebra, an operator in HLLs performs various types of operations (processes) on values. Different HLLs may support operators differently. Some examples of the types of operations by which values may be manipulated are arithmetic operators (mathematical), relational operators (comparison), logical operators, and string operators (sequences of characters). They perform these operations within expressions of the language. To review, an expression is a construct in a programming language that evaluates two values. Operators may act upon different numbers of operands, usually one (a unary operator), two (a binary operator), or three (a ternary operator). Operators perform under certain rules that dictate the order of operations, or precedence. Although many HLLs use the same operators, when learning a new language, it is necessary to research its operators to identify the very few exceptions.

Documentation and Comments

All programming languages allow a programmer to document their code to improve code readability. This is a best practice in programming and a prospective job applicant may not get a job without demonstrating documentation skills.

Documentation is carried out by using a structure called a comment, a container used to hold documentation in code. A comment begins with a defined symbol or set of symbols of the language followed by the comment text itself. Comments may be single line or multiline depending upon the symbol used. Single line comment symbols indicate that whatever follows on the line is ignored by the compiler or interpreter. Multiline comments have an opening and a closing symbol or set of symbols. Examples are as follows:

// single line comment in C#
int myAge = 21;
int myAge = 21; // another single line comment in C#
/* this is a multiline comment in JavaScript
myAge will be used to hold the age of a student
*/
int myAge = 21;

Other languages may use different syntax for comments; in Python the symbol is the pound sign (#). In BASIC it is the REM keyword, which is short for “remark.”

Sequential Execution

Executing statements in the order in which they appear, sequential execution, is a linear ordering of statements in which one statement directly follows another. This is the default flow of control; it is automatic. An example of sequential execution would be the following:

int myAge = 35;
String myName = "Johnathan";
boolean isStudent = true;

These statements will execute one at a time in the order in which they are written.

A code block is a statement that consists of one or more statements that are structured in a sequential group and delineated as such. This is necessary so that an entire group of commands may be executed as a single sequential structure. In the C-like languages, opening and closing curly braces ({ }) are usually used to denote the beginning and end of a code block. We can modify the preceding example into a code block as follows in Java:

{
   int myAge = 18;
   String myName = "Johnathan";
   boolean isStudent = true;
}

Note that variables defined within code blocks only exist in the context of that code block, which makes it possible to manage the scope of variables within code more precisely. It is a best practice in programming to indent code contained within structures so that the code is both readable and maintainable.

Selection

Decision making in programming is called selection. A decision-making construct allows us to choose from one or many paths of execution in a program. To see how they work, one must understand the concept of conditional expressions.

Selection Statements

The simplest form of selection statement is a decision structure known as a one-way branch, as displayed in Figure 7.12. Most languages represent a selection statement that is a one-way branch with a construct known as an if statement. Other languages may use a slightly different syntax. In Java, a relatively simple if statement using a code block looks like this (it is recommended to use code blocks for single-line selection statements to avoid errors subsequently when/if more statements are added):

short temp = 90;
(…)
if (temp >= 95) {
   System.out.println("It is hot");
}

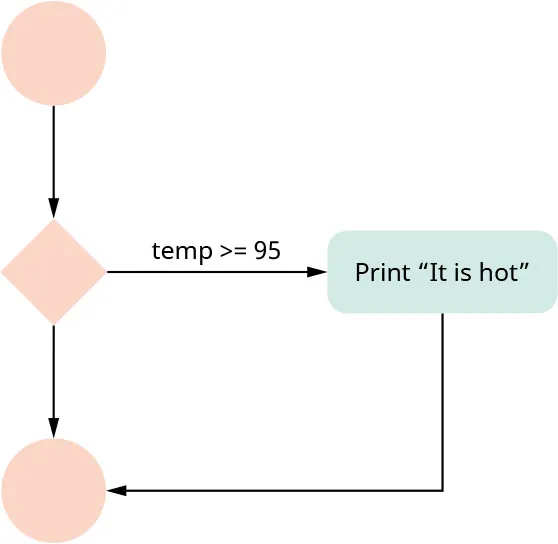

Figure 7.12 This unified modeling language (UML) activity diagram represents a selection statement that is a one-way branch. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

The only type of conditional statement that a language needs is the simple one-way branch and any number of them may be placed in sequential order to carry out any decision-making task. However, a variety of decision structures have evolved into different flavors that make programs easier to code, more readable, and more maintainable. Its logic is shown in Figure 7.13.

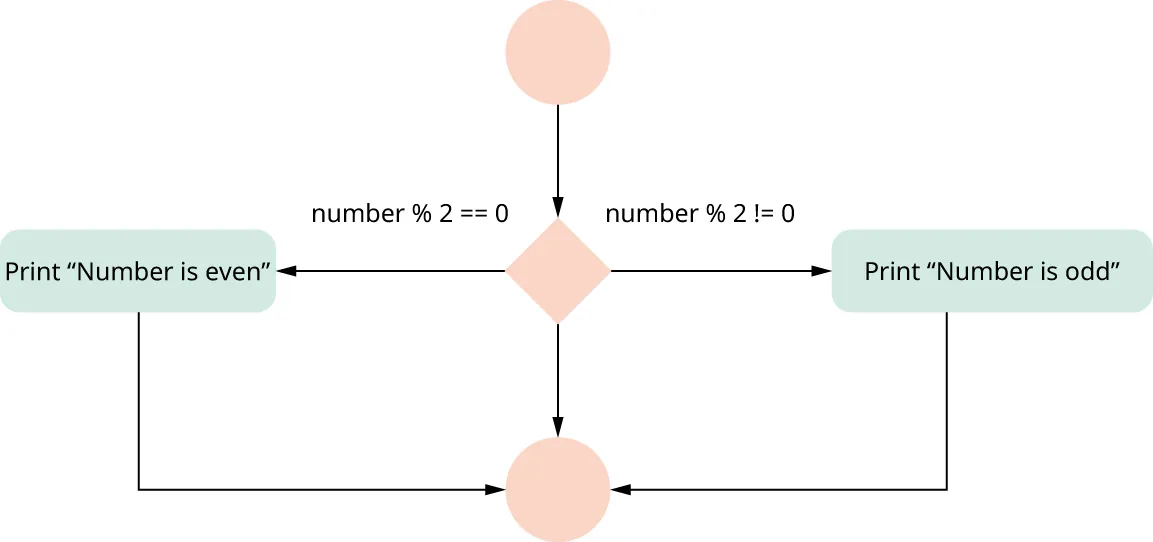

Figure 7.13 A unified modeling language (UML) activity diagram representing a selection statement that is a two-way branch. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

In Java, this might be coded with a two-way branch using an if…else statement:

int myNumber = 4;
if (myNumber % 2 == 0)
{
   System.out.println("The number is even.");
}
else
{
   System.out.println("The number is odd.");
}

Sometimes decisions might result in three or more possible pathways. In the C-like languages, this situation might be coded with a multi-way branch using an if…else…if statement:

if (myGrade >= 90)
{
   System.out.println("You got an A.");
}
else if (myGrade >= 80)
{
   System.out.println("You got a B.");
}
else if (myGrade >= 70)
{
   System.out.println("You got a C.");
}
else
{
   System.out.println("You need to work harder.");
}

Many programming languages have employed an additional selection statement for times when decisions result in three or more possible pathways. This is known as a switch or case statement, and it can be much more readable and maintainable than many if statements strung together. This looks like the following:

switch (myGrade)
{
   case 90: System.out.println("You got an A.");
   break;
   case 80: System.out.println("You got a B.");
   break;
   default: System.out.println("You need to work harder.");
   break;
}

Iteration

Also known as looping, iteration is going around and re-executing sequences of statements. One of the great strengths of computers is their ability to repeat actions over and over. Iteration structures allow us to write statements to be repeated just one time with the repetition monitored by flow of control structures.

The number of iterations is controlled by conditional expressions much like selection. The type of conditional statements used to control loops are categorized as either condition-controlled or count-controlled. In the condition-controlled scenario, the loop will continue to iterate until a condition is met. In a count-controlled situation, the loop repeats a specific number of times.

Iteration structures may also be categorized as top-tested or bottom-tested. In a top-tested loop, a condition is set at the entrance to the code block. If the condition is met, the loop executes and will continue to repeat until the condition is false. Note that if the condition in a top-tested loop is never true, the loop will not execute at all (for example “while True:” as the top-test of a loop in Python will result in the loop being executed forever).

In the bottom-tested loop, the sentinel, the expression that sets the condition at the entry or exit of a loop for continued iteration, is at the exit after the code block. A loop such as this is guaranteed to execute at least one time. The sentinel decides if the loop runs again. It is useful to guarantee at least one repetition of a loop.

As with selection statements, most languages have a variety of structures to choose from and just like in selection, there is only one that is necessary to do any kind of iteration: the top-tested condition-controlled loop. Its logic is represented by Figure 7.14. Note that it is assumed in this example that the variable “raining” can change as a result of an external event in reaction, say, to the output of a sensor that detects rain and issues a callback to an event handler (not shown here) that changes the value of the “raining” variable to being true.

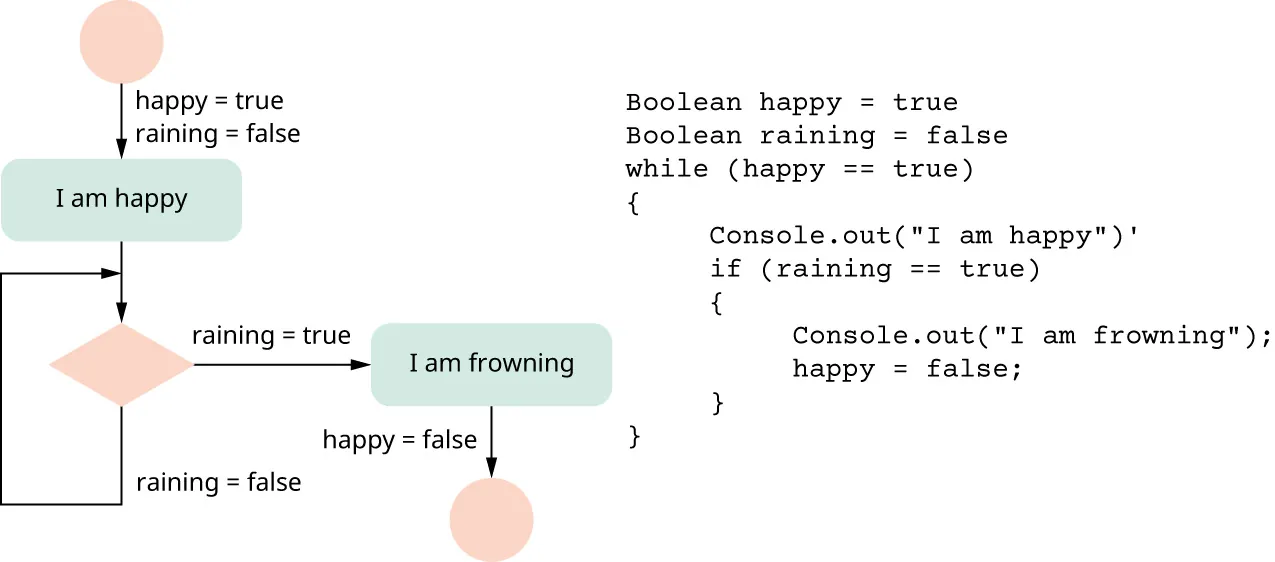

Figure 7.14 This unified modeling language (UML) activity diagram represents a while loop. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

In most modern languages, a top-tested loop is known as a while loop. Its syntax in C# is as follows:

Boolean happy = true;
Boolean rainin = false;
while (happy == true)
{
   Console.out("I am happy");
   if (raining == true) // raining value controlled by event handler
   {
      Console.out("I am frowning");
      happy = false;
   }
}

The sentinel in this loop is the variable happy, and if this condition remains true the loop will iterate.

This type of loop is non determinative, a loop for which we cannot predict the number of iterations (condition controlled). A determinative loop that is predictable in that its number of iterations will execute exactly five times and could be constructed in C# as follows:

int count = 1;
while (count <= 5)
{
   Console.out("I am smiling");
   count = count + 1;
}

In most modern languages a bottom tested loop is known as a do…while loop as highlighted in Figure 7.15. It’s syntax in C# is as follows:

Boolean happy = true;
Boolean raining = false;
do
{
   Console.out("I am smiling");
   if (raining == true) // raining value controlled by event handler
   {
      Console.out("I am frowning");
      happy = false;
   }
} while (happy == true)

The sentinel in this loop is still the variable happy; the loop will iterate at least once, and if this condition remains true the loop will continue to iterate.

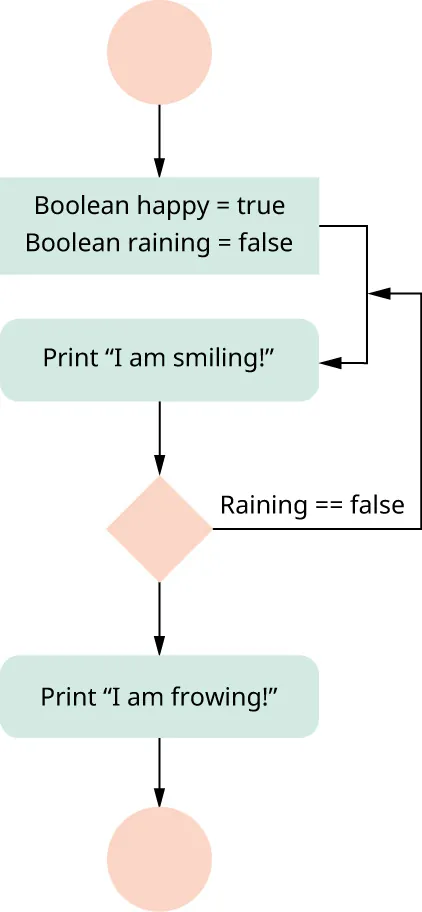

Figure 7.15 This unified modeling language (UML) activity diagram represents a do…while loop. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

The sentinel in this loop is again the variable happy; it will iterate at least once and will continue if this condition remains true. This type of loop is non determinative because we cannot predict when it will rain and, therefore, how many times it will execute. We could construct it in such a way as to make it count-controlled. For count-controlled loops, another style is a for loop. This structure is top-tested and count-controlled. It is concise, elegant, easy to maintain, and efficient. An example of a for loop in PHP is as follows:

for ($count = 1; $count <= 5; $count = $count +1) {
   print("the count is: "", $count);
}

The rules are as follows: inside the parentheses, the first expression is executed only once at the first entrance to the loop. The second expression is the sentinel and it is tested at all iterations of the loop. The last expression is executed at the bottom of each iteration and sets the stage for the next iteration.

Modularity

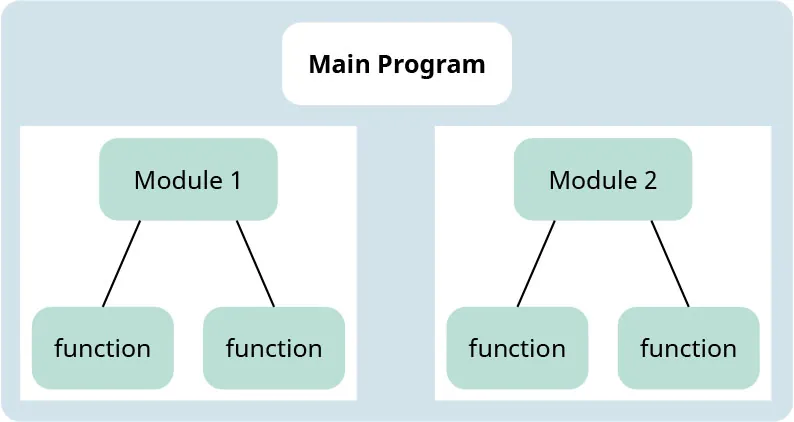

This refers to the need for a program to be broken into various tasks. An employee program would probably be carrying out many tasks, one of which might be to compute the weekly salary. Modular design allows us to specify these tasks, name them, and call upon them without the finished code. We can define the tasks as functions and build the stub of them without all the details. Then we can call them from our main flow of control and have them respond to the call.

Maintainability

If we had to change the way we pay our employees, perhaps due to a change in deductions, we have to change that code in a multitude of places. By using a function to carry out the job for all employees, changes can be limited to just one place in the code.

Reusability

Building functions to carry out tasks means that we can either reuse the code in other software and/or call upon the same code from other locations. An API that is shipped with most languages is a perfect example. Our code calling upon the PHP print routine shows the efficacy of this—it is not a part of the language itself; rather, it is part of the API that is shipped with it.

Function Signature

To build a function in an HLL, one must define its function signature. The signature defines a function and informs the compiler or interpreter of details that it needs in order to call upon that function to execute. It also defines what it may return to the code which called the function. The following illustrates a function signature in Java (in this case, the function may be a method) for the task of paying an employee:

public double payEmp(String empName, double empBasePay, double empHours);

The function can be called upon to do its job with the following code:

myPay = payEmp("John Doe", 15.0,40.0);

The pay amount would be computed by the function and the resulting value would be returned to the point of the call and placed in the variable.

The word public is a keyword in Java that is called an access modifier; it denotes where in code this method may be accessed from. In this case, it is available from anywhere in the program code.

The keyword double indicates that this method will return a value of that data type to the place where the method was called. In this case, we want it to return the total pay for the employee. In Java, if we use the keyword void for the return, it tells the compiler that we will not be returning any value.

The identifier payEmp is the name we have given to the method. Its syntax follows the same rules and best practices that are used for a variable identifier in this language.

The parentheses indicate that this is a function (method), thereby delineating it from a variable identifier.

A formal parameter represents values that the function needs to receive to do its job. Parameters are not required, but if they are specified, the call of the function must pass actual parameters values for them into the function. Not doing so would result in a compile error which will not allow the program to run. In fact, not complying with any of the signature items results in a compile error.

Function Call

A function call in an HLL must comply with the function signature. A Java call to the function looks like this:

double thisSalary = payEmp(thisName, thisPayRate, thisHrs);

Starting from left to right, we declare a variable thisSalary and assign to it the value that will be the return of the function. We then call the function, passing the values that are required for its defined parameters. The term argument is used for the values of a function call which must match the parameters in both number and data type.

Parameter Passing

Parameters are passed using one of two methods. In pass by value, a copy is made of the value and the copy is passed as an argument to the parameter. When it encounters the parameter, the value is assigned and the values in the original variable cannot be affected by any changes which may occur inside the function.

On the other hand, pass by reference is employed in Java to pass a complex data type, meaning that the value stored inside the variable is a pointer to the memory address of the actual complex object. The value copied into the parameter in this case gives the code access to the object itself within the scope of the function so any changes made to its value will be reflected in the actual object that was passed to the function as shown in Figure 7.16.

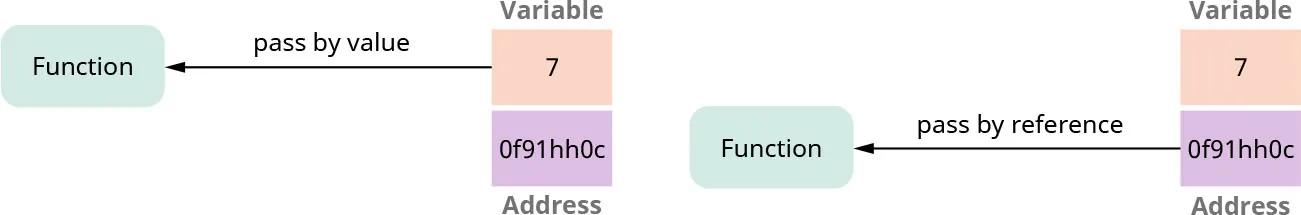

Figure 7.16 Compare passing a parameter by value versus passing it by reference in C++. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

Let’s code the entire function in Java to get a complete view of its components:

public double payEmp(String empName, double empBasePay, double empHours) {
    double empPay = empBasePay * empHours;
    System.out.println(empName + " is being paid " + empPay);
    return empPay;
}

In the example, empBasePay and empHours are passed by value of primitive data types. On the other hand, empName is passed by reference because string is a complex data type.

Call Stack

The call stack (execution stack) is a data structure that controls the calling and return of functions. Other duties include storing local variables, which dictates scope, defined as the visibility and lifetime of variables. It also has control of parameter passing.

Describing the call stack is usually done by comparing it to a cafeteria tray unit. Clean trays are pushed onto the unit as they come in and are popped off the unit as required. This concept is known as last in, first out (LIFO). Thus, when a subroutine is called, it is pushed onto the call stack. Its presence and all of its parts on the stack are called a stack frame. When it finishes executing, it is popped off. The flow of control of the program follows the current state of the call stack. A call stack is outlined in Figure 7.17.

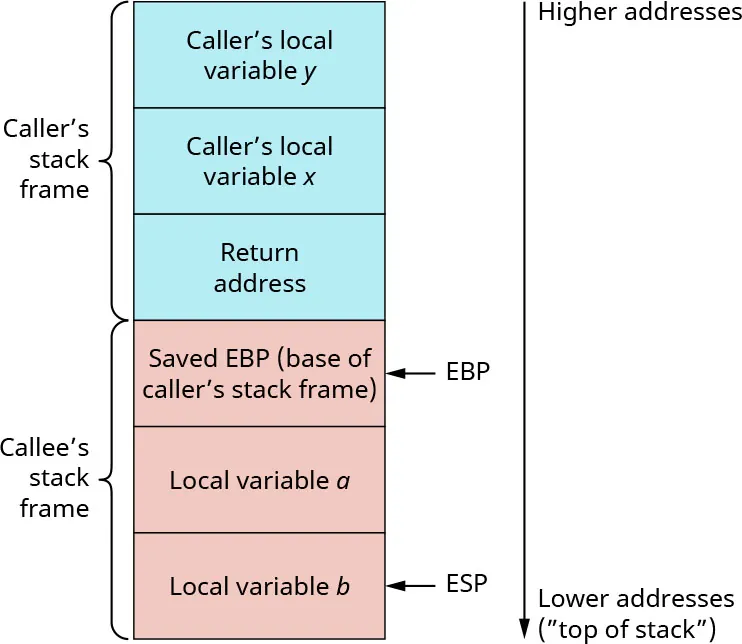

Figure 7.17 This is representative of a call stack. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

In this implementation, function1 is called first. It is pushed onto the stack in stack frame format and the parameters with their values are pushed first followed by the return address so that the flow of control can revert to the location of the function call after the stack frame has been popped off the stack. Lastly, the local variables are pushed onto the stack frame as they are defined. In this example, function1 has called function2 and has been pushed onto the stack. When it is popped off the stack, control will revert to the function1 stack frame.

Looking at function1, we see that the parameters come into existence when the function is pushed onto the stack and disappear when the function is popped from the stack. The same is true of any local variables declared in the function. This is an illustration of the scope of a variable which controls both the visibility and lifetime of a variable (i.e., a variable that is local to a function is only visible within the scope of that function for the duration of execution of that function). This scope is local because the visibility and lifetime is local to the function; they do not exist and cannot be seen from anywhere else in the program.

Recursion

Recursion is the sequence in which a function calls itself. If a function calls itself, then the next instance of the function will also call itself. This proceeds onward infinitely until the call stack runs out of memory, unless there is a means within the function to shut down the process. This condition is known as stack overflow.

Certain problems or tasks that we want a program to engage with lend themselves to recursion, such as with a rocket launch. If we want to program the display of a countdown sequence to launch, we can do it recursively. The signature, known as a prototype in C++, might look like this:

void countDown(long);

As indicated by the void, the function will return nothing to its calling point. It has a parameter that represents the starting point of the countdown. Therefore, if we want to start the countdown at 100, the call will look like this:

countDown(100);

Building out the recursive function could be done as follows:

void countDown(long count) {
   if (count < 0)
   {
      return;
   }
   cout << count << endl;
   count = count - 1;
   countDown(count);
}
