Learning Objectives
By the end of this section, you will be able to:
- Define parallel computing and related terminology
- Discuss parallel programming approaches
So far, our programs have run on a single at a time and the assumption is that the underlying machine only supported a single GPU core. A CPU core is a chip consisting of billions of transistors that function according to an instruction or opcode. It is like a single processor. While there is a lot that we can do with these single-core programs, there is also a need for programs to run in parallel, meaning that they execute code on multiple CPUs, cores, or computers at the same time. In parallel programming, bigger tasks are split into smaller ones, and they are processed in parallel, sharing the same memory. Parallel programming is trending toward being increasingly needed and widespread as time goes on. Many computers now come equipped with a graphics processing unit (GPU), which is a massively parallel processor that supplements a CPU. GPUs were originally designed for rendering real-time graphics in video games and are sometimes called “video cards.” A typical GPU has thousands of cores, although each is weaker than a CPU core. Parallel techniques are essential for making use of GPUs.
Parallel Computing Overview
In the 20th century, a computer typically had only one processor. Now, a CPU chip typically holds not just one processor, but multiple processors built into a single computer chip. Each individual processor built into a CPU is a core. A multicore processor is a CPU chip that has multiple cores. Multicore CPUs are prevalent; smartphones and budget PCs typically have two to four cores, and high-end PCs have eight or more cores. The trend is for these core counts to increase over time.
By default, a program runs on one core at a time. That means that a four-core computer can run up to four programs at full speed at the same time. That capability is occasionally useful, but more often a user wants a single high-demand program to make full use of their computer. This is the case with productivity software, games, embedded systems, and Web server software. For this to work, the program needs to be coded in a way that explicitly divides work among multiple cores.

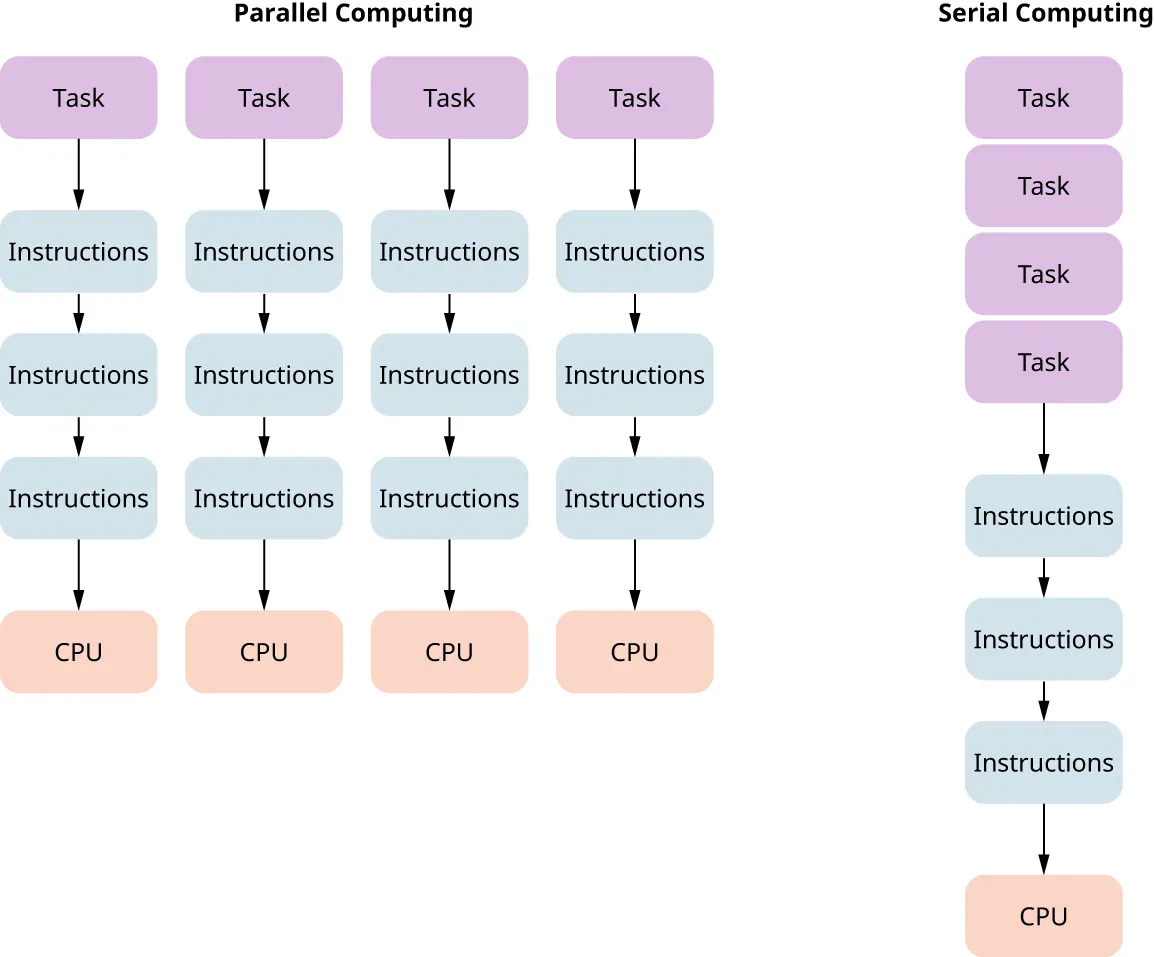

Fundamentally, in order to use multiple cores, a program needs to work in “parallel.” That means that multiple cores are working together at the same time (Figure 4.30). A real-world example of parallel work is a factory assembly line. If an assembly line has twenty workers, then at any given moment twenty people are working in parallel. This concept of parallel work also applies to software. The parallelism concepts discussed here are:
- parallel computer: a multiple-processor system that supports parallel programming.
- parallel computing: the practice of making productive use of parallel computers.
- parallel programming: a computer programming technique that provides for executing code in parallel on multiple processors.
There are two related but distinct terms that we should define at this point: concurrent programming, which refers to any situation where multiple programs or tasks are running simultaneously, regardless of whether they are using multiple processors or sharing one processor; and distributed computing, which is a more specific form of parallel programming where processors are working together in parallel, but the processors are in multiple connected computers, not a single computer. Concurrent programming is a broader term than parallel programming, while distributed computing usually refers to massively parallel programs that run on hundreds or thousands of servers, usually at large companies such as Amazon, Google, the NSA, and the NIH.
Think It Through
GPU Applications
GPUs are high-performance parallel processors. Some major applications of GPUs include cryptocurrency mining, video games, and the dashboard computers embedded in automobiles. In 2021, there was a shortage of GPUs due to a “perfect storm” of world events. The COVID-19 pandemic complicated manufacturing, limiting the rate at which GPUs could be built. In response to the pandemic, demand for computers increased, as many workers were forced to work from home. Demand for video games also increased as people sought indoor entertainment. At the same time, cryptocurrency prices went up, which stimulated interest in mining cryptocurrency, so even more people tried to buy GPUs at the same time.
All these events caused a severe shortage. Customers encountered long waiting lists for GPUs, or found that they were unavailable entirely. Scalpers sold GPUs at a substantial upcharge. Some people were unable to buy video games, or computers they needed to complete work. The shortages affected heavy industry; automobile manufacturers had to idle their factories, which impacted the factory workers’ livelihoods, and triggered a shortage in automobiles.
This situation pitted knowledge workers, gamers, market speculators, and manufacturers against each other in a struggle for scarce resources.
To what degree is this a problem? Do computing professionals have a responsibility to offer a technical solution, such as a technological alternative to GPUs? Do they have a responsibility to anticipate these kinds of unintended consequences? How should policy makers handle a shortage for a critical resource?
Parallel Programming
Parallel programming involves writing code that divides a program’s task into parts, works in parallel on different processors, has the processors report back when they are done, and stops in an orderly fashion. C was not designed with parallel programming in mind, so we need to use third-party libraries for parallel programming in C. Some newer languages were designed with parallel programming facilities from the start.
Parallel Programming Models and Languages
A parallel programming model is a high-level conception of how the programmer can control processors and the data that moves between them.
- Shared Memory: In the shared memory programming model, processes/tasks share a common address space, which they read and write to asynchronously. Various mechanisms such as locks/semaphores are used to control access to the shared memory, resolve contentions and to prevent race conditions and deadlocks. One example is SHMEM.
- Threads: This programming model is a type of shared memory programming. A thread is a single “heavyweight” process can have multiple "lightweight", concurrent execution paths. A simple example of a thread includes a chat feature, video, or audio in an application like Microsoft Teams. Examples include Pthreads, OpenMP, Microsoft Threads, Java and Python threads, and CUDA threads for GPUs.
- Message Passing: A parallel programming approach where separate processes communicate only by sending messages, not sharing memory. Each set of tasks use their own local memory during computation. Multiple tasks can reside on the same physical machine and/or across an arbitrary number of machines. One example is the Message Passing Interface (MPI) that was first developed in the 1990s.
- Hybrid Model: A hybrid model combines more than one of the previously described programming models; currently, a common example of a hybrid model is the combination of the MPI with the threads model. Other examples of hybrid models include MPI with CPU-GPU using CUDA, MPI with Pthreads, and MPI with non-GPU.
To program in parallel, you can extend compilers (i.e., translate sequential programs into parallel programs), extend languages (i.e., add parallel operations on top of sequential language), add a parallel language layer on top of sequential language, and define a totally new parallel language and compiler system. The extend language strategy (2) is the most popular, and MPI/OpenMP are examples.
Think It Through
Multi-Threading Parallel Programming
Why is it important at this time for application developers to turn to the multi-threading parallel programming paradigm and new emerging computing technologies for their application needs?
Designing Parallel Programs
Designing and developing parallel programs has historically been a very manual process. The programmer is typically responsible for both identifying and actually implementing parallelism. Developing parallel code is often a time-consuming, complex, error-prone, and iterative process. For a number of years now, various tools have been available to assist the programmer with converting serial programs into parallel programs. The most common type of tool used to automatically parallelize a serial program is a parallelizing compiler or pre-processor. A parallelizing compiler generally works in two different ways: fully automatic or programmer directed.
In the fully automatic method, the compiler analyzes the source code and identifies opportunities for parallelism. The analysis includes identifying inhibitors to parallelism, and it may determine whether the parallelism would actually improve performance. Loops (do, for) are the most frequent target for automatic parallelization.
In the programmer-directed method, the programmer explicitly tells the compiler how to parallelize the code using "compiler directives" or possibly compiler flags. This approach may be used in conjunction with some degree of automatic parallelization. The most common compiler-generated parallelization is done using on-node shared memory and threads.
If you are beginning with an existing serial code and have time or budget constraints, then automatic parallelization may be the answer. However, there are several important caveats that apply to automatic parallelization: wrong results may be produced, performance may actually degrade, it can be much less flexible than manual parallelization, is limited to a subset (mostly loops) of code, and it may actually not parallelize code if the compiler analysis suggests there are inhibitors or the code is too complex.

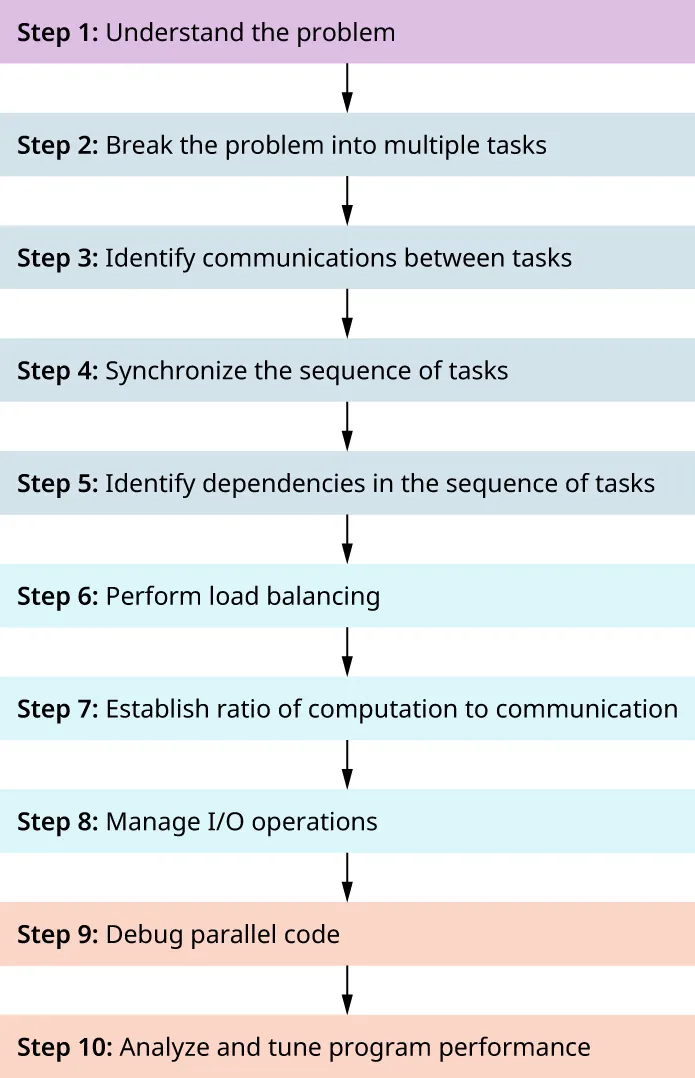

The first step in developing parallel software is to (1) understand the problem that you wish to solve in parallel. Next steps include (2) partitioning, or breaking the problem into discrete "chunks" of work; (3) identifying the need for communications between tasks; (4) synchronizing the sequence of work and the tasks being performed; (5) identifying data dependencies between program statements; (6) performing load balancing to distributing approximately equal amounts of work among tasks so that all tasks are kept busy all of the time; (7) establishing granularity as the qualitative measure of the ratio of computation to communication; (8) managing I/O operations that are generally regarded as inhibitors to parallelism; (9) debugging (a technique where the program is read through line-by-line to check for any bugs) parallel code; and (10) analyzing and tuning parallel program performance. Figure 4.31 shows these steps.
Link to Learning
Parallel programming is a deep subject with many avenues for further study, from the low-level details of hardware and programming to high-level parallel algorithm design. Learn more about the Introduction to Parallel Computing Tutorial at Lawrence Livermore National Laboratory.
Using C with MPI and OpenMP Parallel Libraries
We focus here on how parallel programs can be written in the C language using an API, which is the most popular method. Some programming languages support parallel programming and may also be used to program parallel applications using message passing features that are built into the language itself. A message passing feature is a parallel programming approach where separate processes communicate only by sending messages, not sharing memory. The symmetric multiprocessor (SMP) model applies when programming multiple processors that are practically identical. OpenMP is a library for parallel programming in the SMP model. When programming with OpenMP, all threads share memory and data. OpenMP supports C, C++ and Fortran. The OpenMP functions are included in a header file called omp.h. An OpenMP program has sections that are sequential and sections that are parallel. In general, an OpenMP program starts with a sequential section in which it sets up the environment, initializes the variables, and so on. When run, an OpenMP program will use one thread in the sequential sections, and several threads in the parallel sections. The parent thread is the thread that runs from the program beginning through end, and starts and manages child threads. A child thread is started by the parent thread and only runs for a limited period in a parallel section. A section of code that is to be executed in parallel is marked by a special directive that will cause child threads to form. Each thread executes the parallel section of the code independently. When a thread finishes, it joins the parent. When all threads finish, the parent continues with code following the parallel section.
Industry Spotlight
Artificial Neural Networks
The field of artificial intelligence makes heavy use of parallel computing. Artificial neural networks (ANNs) are a widely-used technology that simulates the flow of impulses through nerve cells in a brain. An ANN needs to be “trained” by feeding it many examples of the kinds of inputs and outputs that it will deal with. This training process benefits greatly from parallel programming. A typical ANN has thousands of simulated cells, and is trained on thousands of examples. This makes for millions, or even billions, of computations; parallel computing is a great benefit because this training process can be performed in parallel. Hardware manufacturers, including NVIDIA, Intel, and Tesla, have even created GPU-based computers specifically for the task of training ANNs. Figure 4.32 illustrates the model of a neural network.
