Learning Objectives
By the end of this section, you will be able to:
- Explain features of various file systems
- Discuss file system structures and layers
In this module, we learn about files, file management, disk devices, file systems, file system interface, and distributed file systems.
Files, File Systems, Directories, and File Management
A file is a collection of related information that is stored on a storage instrument such as a disk or secondary/virtual storage. It is the smallest storage unit from the user’s perspective. The file name includes two parts: name and extension (e.g., filename.txt). Each extension is for a specific purpose such as .exe (in Windows OS) to run a program and .txt for text files.
A file system is responsible for defining file names, storing files on a storage device, and retrieving files from a storage device. When designing a file system for managing many files, some issues to consider are as follows: most files are small so per-file overheads must be low; most of the disk space is in large files; many of the I/O operations are for large files so performance must be good for large files; files may grow unpredictably over time; users want to use text names to refer to files.
Special disk structures called directories are used to map names to support hierarchical directory structures. A directory is a set of files that is managed by the OS, and it also contains all the required information about the files, such as attributes, location, and ownership. The UNIX/Linux approach is as follows: directories are stored on disk just like regular files except with extra information to indicate that it is a directory. Each directory contains <name, address> pairs. The file referred to by the address may be another directory; hence, we can have nested and hierarchical directory structures.
The problems facing modern file systems include disk management, naming, and protection. File systems are often trying to improve access to files by minimizing seeks, sharing space between users, and making efficient use of disk space. A system’s ability to reduce faults and ensure that the information in the system survives OS crashes and hardware failures is called its reliability. In addition to improving reliability, a file system should guarantee a high level of protection by maintaining isolation between users and controlling the sharing of resources.
Disk Devices
While file systems are a layer of abstraction that provides structured storage and defines logical objects such as files and directories, disk devices are considered raw storage. Data that can be directly accessed by the CPU with minimum or no delay and does not survive a power failure is held in primary storage. Persistent memory that survives power failures most of the time, such as spinning disks, SSDs, and USB drives, is considered secondary storage. Routines that interact with disks are typically at a very low level in the OS and are used by many components such as file systems and virtual machines. These secondary storage devices may handle the scheduling of disk operations, error handling, and often the management of space on disks. A trend is for disks to do more of this themselves.
File System Architectures
Operating systems use various methods to locate files by their names, and the methodology often depends on their underlying file system architecture. To illustrate these concepts, here are some examples from UNIX-like systems and Windows:
- UNIX/Linux (Inodes): In UNIX-like systems, the file system uses a structure called an inode to represent files and directories. An inode contains metadata about a file or directory but not its name. The name-to-inode mapping is stored in directories, which are special files that list names of files and their corresponding inodes. When searching for a file by name, the OS starts at the root directory and follows the path specified in the file name. Each part of the path is looked up in the current directory’s list of names and their associated inodes. The OS reads the directory file, finds the name, and retrieves the inode number, which then leads to the inode itself. The inode provides the location of the data blocks, allowing the OS to access the file’s data. This process may involve multiple steps if the file is in a nested directory structure.
- Windows (File Allocation Table and NTFS): In File Allocation Table (FAT) format, files are located using a table that maps file names to the clusters (blocks) on the disk where their data is stored. The FAT is essentially a list, with each entry containing the location of the next part of the file. This creates a chain that the OS follows to read the entire file. In New Technology File System (NTFS), files are located using a Master File Table (MFT), and each file and directory on an NTFS volume has an entry in the MFT containing data, including the file name, size, time stamps, permissions, and the locations of the file’s data on disk. When searching for a file, the OS consults the MFT to find the entry corresponding to the file name, which then provides the information necessary to access the file’s data.

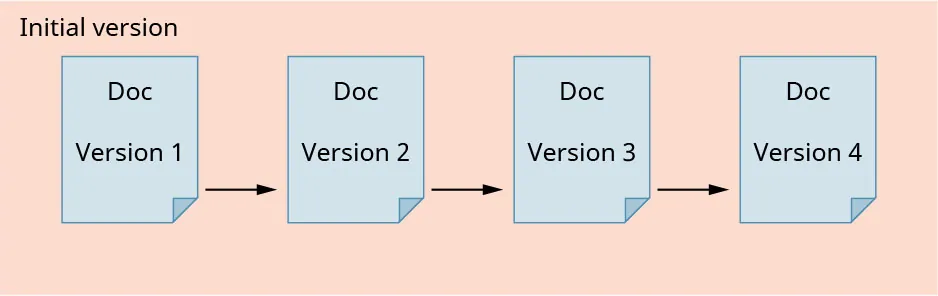

As you may recall, files represent values stored on disk and directories represent file metadata. File systems define operations on objects such as create, read, and write, and they may also provide higher-level services such as accounting and quotas, incremental backup indexing or search, file versioning, and encryption. A quota is the amount of space to store files based on the available memory space. Quotas are used to protect the system from unnecessary load and help in organizing the data in the storage. An incremental backup is a backup image containing the pages that have been updated from the time of the previous backup. The method that converts the data into secret code that hides the data’s true meaning is called encryption. The system that allows a file to exist in several versions at the same time, which gives the user complete control over file creation as in the file versioning example, is called file versioning (Figure 6.33).
File systems are concerned with lower-level characteristics such as performance and failure resilience. Both performance and failure resilience may be strongly affected by hardware characteristics.
File System Interface
In general, the file system interface defines standard operations such as file (or directory) creation and deletion, manipulation of files and directories, copy, and lock. Remember the various file attributes are name, type, size, and protection. The file system uses these attributes to provide system calls for the following operations:
- Create: Find a space for the file in the disk and enter the new file information in the directory.
- Write: Search the directory for a specific file and start writing from where the writing pointer is pointing to.
- Read: Specify the name of the file and start reading from where the reading pointer is pointing to.
- Seek: Search for the specific byte position in the file.
- Delete: Search for the file in the directory and erase the file from the directory.
- Truncate: Reset the file length to zero and release the allocated space for the file.
- Append: Add new information to the end of the file.
- Copy: Create a new file and read the data from an old file, then write it to the new one.
If multiple processes are trying to open a file at the same time, then there is a role for file management that should be applied—namely, lock.
Link to Learning
As people and businesses use various types of computers today, the ability to interchange files between various file systems is critical. In fact, insurance companies often ask their clients to sign insurance contracts over the Internet and rely on their digital signature in online documents. Teachers use Google Classroom to enable their students to collaborate on assignments or class presentations. Read this overview of common file systems to see how file systems enable us to seamlessly share documents and files.
Inodes

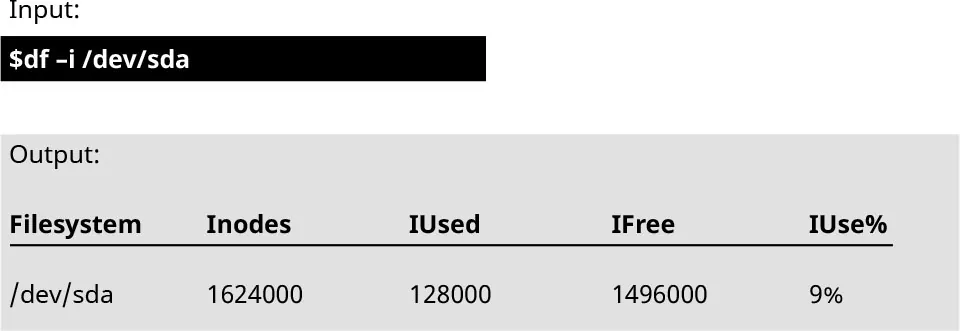

As mentioned earlier, inodes are OS data structures used to represent information about files and folders stored on disk along with file data and kept in memory when the file is open. An inode contains information including file size, sectors occupied by file, access times (e.g., last read and last write), and access information (e.g., owner id and group id). In Linux, whenever the system creates a new file, it gives it an inode unique number called i-number. Internally, the OS uses the i-number as an identifier for the file—in effect, as its name. When a file is open, its inode is kept in main memory. When the file is closed, the inode is stored back to disk. If you are using Linux, you can check the total number of inodes on disk using the df command and –i option, as shown in Figure 6.34.
File systems are responsible for managing parts of the disk that are used (inodes) and parts of the disk that are not used (free blocks). Each file system has different strategies and approaches for managing this information, with different trade-offs. Additional features of file systems include file system–level encryption, compression, and data integrity assurances.
Distributed File Systems

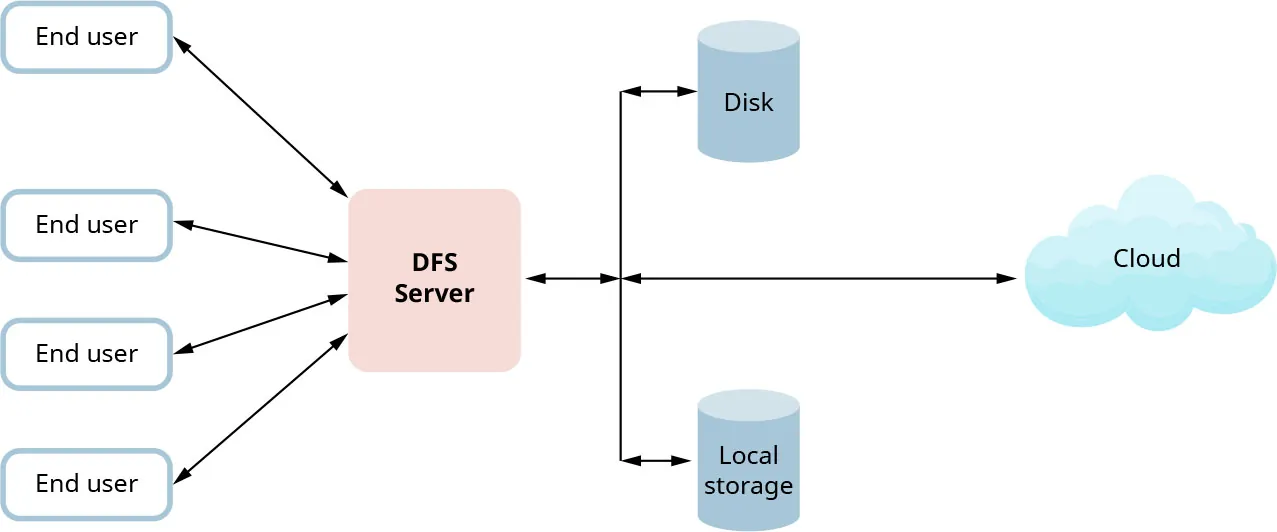

A distributed file system (DFS) is a file system that is distributed on multiple file servers or multiple locations that support network-wide sharing of files and devices. The presentation of a DFS is similar to the traditional view (i.e., client is using a file system). The main idea of a DFS is that it uses a namespace, which means all clients see a single namespace where files and directories are shared across the network. In a DFS, clients can read and write files on a remote machine as if they were accessing their local disks. A DFS provides an abstraction over physical disks that is akin to the abstraction virtual memory provides over physical memory (Figure 6.35).
DFS technologies like Google’s GFS (Google File System), Apache Hadoop’s HDFS (Hadoop Distributed File System), and Apache Spark’s RDDs (Resilient Distributed Datasets) have revolutionized the way we handle and process large volumes of data. These systems are designed to accommodate High Throughput Computing (HTC), complementing the capabilities of High-Performance Computing (HPC) by focusing on the efficient processing of vast datasets across clusters of computers.
- Google File System (GFS) is a prime example of a DFS that is highly optimized for large-scale data processing. It is designed to provide high fault tolerance while running on low-cost commodity hardware.
- Hadoop Distributed File System (HDFS) follows a similar principle but is open-source and commonly associated with the Hadoop ecosystem. It’s designed to store very large files across machines in a large cluster and to stream those files at high bandwidth to user applications. By breaking down files into blocks and distributing them across a network of computers, HDFS can process data in parallel, significantly speeding up computations and data analysis tasks.
- Resilient Distributed Datasets (RDDs) in Apache Spark are a further step in distributed computing, offering an abstraction that represents read-only collection of objects partitioned across a set of machines that can be rebuilt if a partition is lost. Spark’s use of RDDs allows it to process data in-memory, which is much faster than the disk-based processing used by Hadoop, making Spark an excellent choice for applications requiring quick iterations over large datasets.
To facilitate the communication necessary in these distributed environments, protocols such as Remote Procedure Call (RPC) and Distributed Hash Tables (DHTs) are employed. RPC is a protocol that a program can use to request a service from another program located in another computer in another network without having to understand the network’s details. DHTs are a class of decentralized distributed systems that provide a lookup service similar to a hash table; keys are mapped to nodes, and a node can retrieve the content associated with a given key.
Beyond these, the concept of N-Tier distributed file systems, such as the Network File System (NFS), plays a foundational role. NFS allows a system to share directories and files with others over a network. By using NFS, users and programs can access files on remote systems almost as if they were local files.
The basic abstraction of a remote file system is via open, close, read, and write. As it comes to naming, the names are location transparent. Location transparency hides the location where in the network the file is stored. The procedure that allows multiple copies of a file to exist in the network is called replication. This improves performance and availability. DFS handles the updates, checks if clients are working on separate copies, and performs reconciliation.
Link to Learning
Distributed file systems are used worldwide in a range of industries, from banking to health care. Read this brief tutorial on distributed file systems and name two advantages as well as two disadvantages of using DFSs.
Flash Memory
Flash memory is used for general storage and the transfer of data between computers and other digital products. Many of today’s storage devices, such as SSDs, utilize flash memory, which offers considerable performance improvements over traditional mechanical hard disk drives (HDDs). The performance improvements of flash-based storage devices like SSDs come from their ability to access data much faster than mechanical drives. Here’s why:
- No moving parts: Unlike HDDs that use rotating disks and read/write heads, SSDs have no mechanical parts. This not only increases durability, but also means that data can be read from and written to the drive much faster.
- Random access: Flash memory allows random access to any location on the storage, making it much quicker at reading data that is scattered across the drive. HDDs need to physically move the read/write head to the data location, which takes more time.
- Faster read and write speeds: SSDs can handle rapid read and write operations. This is especially beneficial for applications that require quick access to large amounts of data, such as video editing, gaming, and high-speed databases.
- Lower latency: Because they lack a physical read/write head that needs to be positioned, SSDs significantly reduce the time it takes for a storage device to begin transferring data following an I/O request.
- Improved durability and reliability: With no moving parts to wear out or fail, SSDs are generally more reliable and can better withstand being dropped or subjected to sudden impacts.
- Lower power consumption: SSDs consume less power, which can contribute to longer battery life in laptops and less energy use in data centers.
Global Issues in Technology
Global Distributed File Systems
Distributed file systems enable companies that operate globally and handle vast amounts of data from many different sources and in many different ways, such as the following:
- To store and manage that data in a cloud
- To scale up their operations as needed
- To enable users across the world to access the data seamlessly
- To use encryption and other protection mechanisms to secure sensitive data
- To ensure that data is regularly backed up and can be recovered if there’s a disaster
