Learning Objectives

By the end of this section, you will be able to:

  • Discuss key concepts related to memory
  • Evaluate dynamic storage management solutions
  • Discuss the differences between virtual and physical memory

As you have learned, memory plays a huge role in OSs. Here, we discuss the memory multiplexing, linkers and dynamic linking, dynamic storage management, virtual memory, and demand paging.

Memory

Different processes and threads share the same hardware. It is therefore necessary to multiplex the CPU (i.e., temporal execution), memory (spatial access), and disks and devices. As discussed earlier, the complete working state of processes and/or kernels is defined by its data (i.e., memory, registers, and disk). For the sake of safety, security, and reliability, processes should be barred from having access to each other’s memory. Dividing the capacity of the communication channel into multiple logical channels is considered memory multiplexing. There are several concepts that are critical to memory multiplexing, namely, isolation, sharing, virtualization, and utilization.

As you learned earlier in this chapter, isolation is important because it ensures that the multiple programs that are running concurrently on the same CPU and memory operate independently without interfering with each other’s execution or data. In memory multiplexing, isolation is achieved through a set of technologies that prevent distinct process states from colliding in physical memory due to unintended overlap (i.e., overlap control). These technologies aim to, for example, prevent process P1 from spying on process P2. Or, if process P1 has a bug, they ensure that this bug does not impact process P2. There are many isolation mechanisms, including:

  • User/kernel mode flag is a register that represents the CPU mode as user mode or kernel mode. As we have learned, the CPU boots in kernel mode, then it marks the flag as kernel mode. When the user starts any application, the CPU marks the flag as user mode.
  • Address space boundaries protect the kernel and address space programs from each other.
  • System call interface is the programming interface for application users to process a system call. As shown in Figure 6.25, a system call is executed by the user mode to request the kernel mode to perform a specific action (e.g., syscall () function).

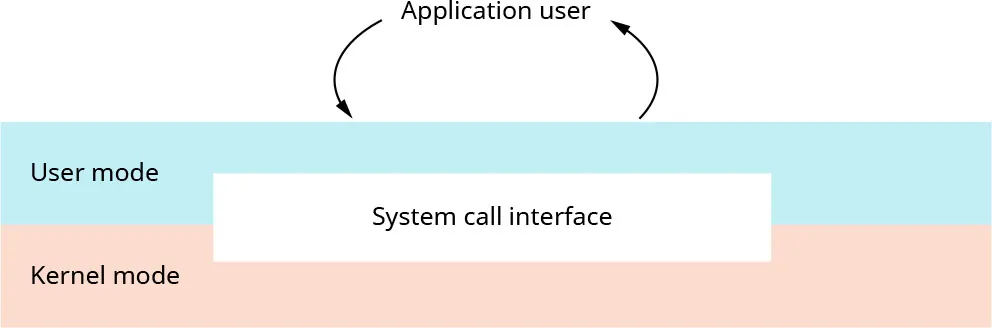

A diagram shows a system call interface using an isolation mechanism to address a system call.
Figure 6.25 The system call interface uses an isolation mechanism to address a system call, which is a request that arises from the user mode and requires the kernel mode to perform an action. The system call interface prevents these processes from overlapping or colliding. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

Time slicing provides a time frame for each process to run in a preemptive multitasking CPU such that each process runs every single time slice. If the process finishes the job before the time slice, it releases the CPU and does not need to be swapped out. If the time slice ends and the process did not finish the job, the CPU shifts it out to the end of the processes queue. For example, assume we have three processes P1 with execution time 3 ms, P2 with execution time 4 ms, and P3 with execution time 2 ms, and a time slice of 2 ms. Figure 6.26 illustrates how the CPU manages the processing using time slice and indicates in which time slice each process completes execution.

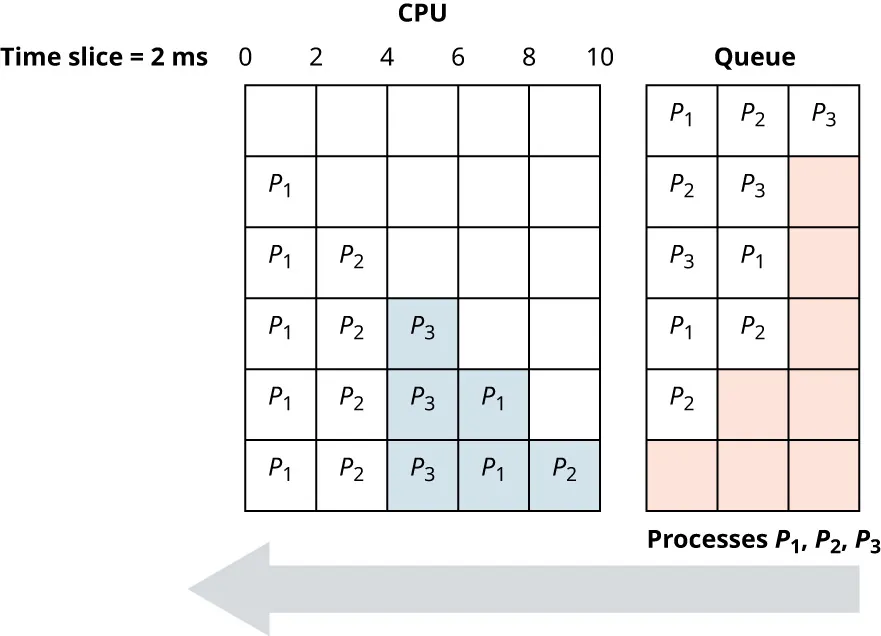

A diagram shows three processes P1, P2, and P3 working as scheduled based on the time slice.
Figure 6.26 The three processes P1, P2, and P3 (blue) will work as scheduled based on the time slice. The processes are scheduled in the queue and executed, so they come out of the queue (arrow). Empty spaces in the queue are shown in pink. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

When multiple processes can use the same piece of data concurrently, it is called sharing. The option for overlapping processes should be available when desired for efficiency and communication reasons. Memory sharing improves the performance of the system because the data is not copied from one address space to another, so memory allocation is done only once.

With respect to memory, virtualization is a technique that gives an application the impression that it has its own logical memory and that it is independent from the available physical memory. Thus, in virtualization, there is a need to create the illusion that there are more resources than those that actually exist in the underlying physical system. There are two approaches of memory virtualization: full virtualization and guest modification. When multiple operating systems run concurrently on a single physical machine, fully isolated from each other, by emulating hardware resources through a hypervisor, it is called full virtualization. For full virtualizations, all OSs expect contiguous physical memory that starts from physical address 0. In the context of virtualization, guest modification refers to altering the guest operating system or its configuration to improve compatibility, performance, or integration with the virtualization environment or hypervisor. Guest modification modifies the OS to avoid using instructions that virtualize inefficiently. An optimal use of limited resources is warranted to guarantee a high level of utilization.

Processes use different amounts of memory, and their memory needs change over time. Whenever a new process cannot fit into contiguous space in physical memory, it results in fragmentation (specifically, external fragmentation). When the memory blocks cannot be allocated to the processes due to their small size and the blocks remain unused, this problem is called fragmentation. There are two types of fragmentation: internal fragmentation and external fragmentation. When the process is allocated a block and its size exceeds the process size, it leaves part of the memory allocated unused and results in internal fragmentation. In the external fragmentation, the total space that is needed for the process is available, but we can’t use it because the space is not contiguous.

Linkers and Dynamic Linking

Linkers are software tools that an OS uses to combine object files into an executable file. A linker performs name resolution, matching the name of a variable or function in an application to a virtual memory address it will have when loaded and run. A linker combines many separate pieces of a program, reorganizes storage allocation so that all the pieces can fit together, and touches up addresses so that the program can run under the new memory organization. After a linker completes the task of combining multiple object files generated by a compiler into a single executable file, the executable file can be loaded and executed by the OS (Figure 6.27).

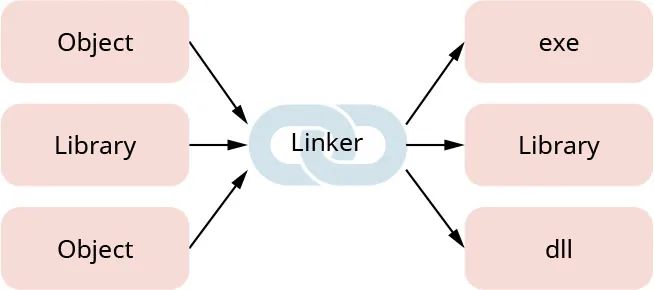

A diagram shows a linker process with arrows going from Object and Library to Linker, and arrows from Linker going to exe, Library, and dll.
Figure 6.27 A linker process includes object files and libraries. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

The mechanism that allows a program to associate external code symbols to addresses at runtime is dynamic linking. The allocation process starts when the process is running by dividing the memory into smaller parts called segments. For example, Linux’s memory layout is divided such that the code starts at location 0, the data starts immediately above the code, and the stack starts at the highest address, as illustrated in Figure 6.28. When a process is started, the OS will load the file to the memory with the added option of sharing the memory with others. The OS facilitates the memory size at runtime by adding more assigned memory when needed.

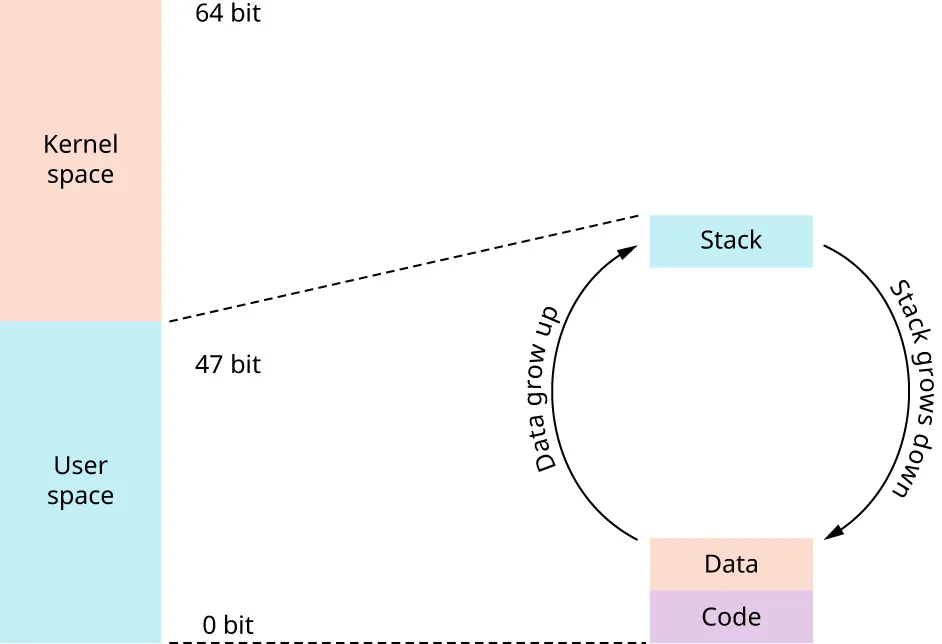

A diagram shows a Linux memory layout, the code starts at location 0, the data starts immediately above the code and grows upward, and the stack starts at the highest address and grows downward.
Figure 6.28 In Linux’s memory layout, the code starts at location 0, the data starts immediately above the code and grows upward, and the stack starts at the highest address and grows downward. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

In dynamic linking, the code is located and loaded when the program is first run. Since the late 1980s, most systems started supporting shared libraries and dynamic linking by only keeping a single copy of common library packages in memory that is shared by all processes. This means that the system does not know where the library is loaded until runtime and must resolve references dynamically when the program runs.

Dynamic Storage Management

There are two basic operations used in dynamic storage management to manage a memory or storage to satisfy various needs: allocate a block with a given number of bytes or free a previously allocated block. There are two general approaches to applying these dynamic storage allocation operations: (1) stack allocation, which is hierarchical and restricted, but simple and efficient; and (2) heap allocation, which is more general but more difficult to implement and less efficient.

The linear data structure that follows a LIFO order (last in, first out), as in the stack data figure configuration in Figure 6.29, is called stack allocation. In the stack approach, the memory is freed in opposite order from allocation. For example, if procedure X calls Y, then Y will certainly return before returning from X. Stacks take advantage of this programming practice to store the state of the current procedure call. When memory allocation and freeing are partially predictable, then a stack approach can be used.

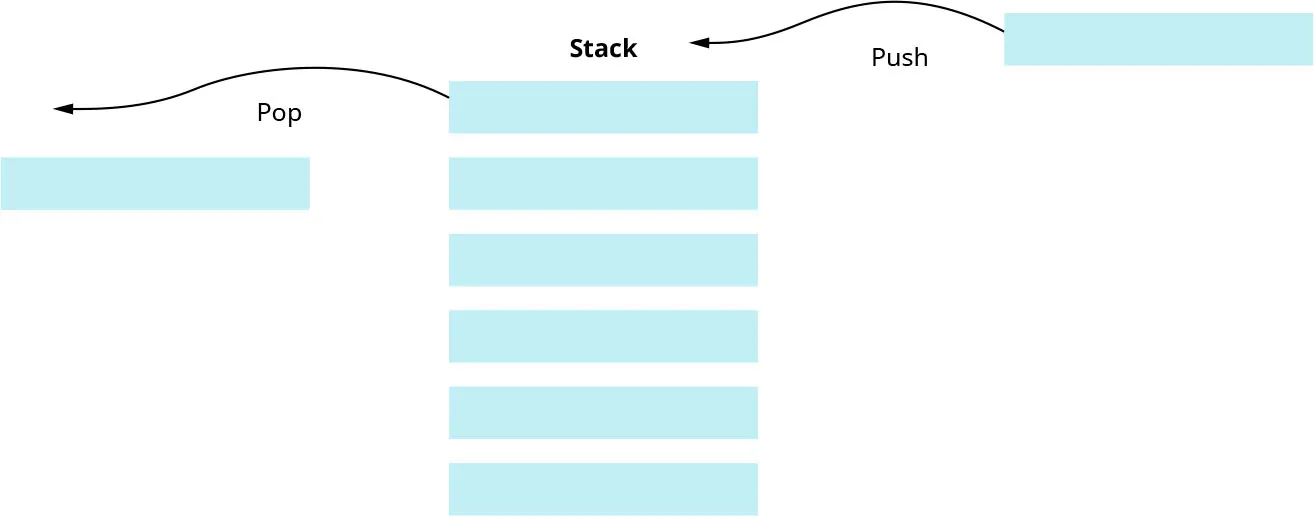

A diagram shows stack data structure. From right to left it shows –Push-> Stack –Pop->.
Figure 6.29 This stack data structure representation shows a last in, first out approach. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

Allocating the data in a tree-based data structure called a heap is heap allocation. A heap is represented by a complete binary tree. As shown in Figure 6.30, a heap data structure can be of two types: max heap and min heap. Max heap presets the root node with the greatest value and the same for the sub trees. It is the opposite for the min heap, where the root will have the minimum value and the same for the sub trees.

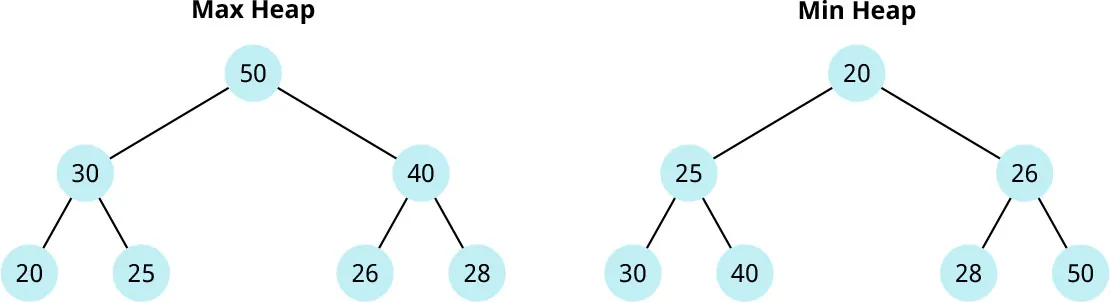

A diagram shows heap allocation structure, showing the structure of both max heap and min heap.
Figure 6.30 Heap allocation uses a data structure called a heap to manage memory and storage. There are two types of heap structures or trees: one for the max heap and one for the min heap. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

Memory managers, such as the ones used in C and C++, do not actually store available memory in a heap data structure. Instead, they manipulate a doubly linked list of blocks, which they confusingly refer to as a “heap,” and attempt to optimize memory using a “best fit” method.

Memory managers use the heap approach when the allocation and release of memory are not predictable (i.e., when it is not clear how much memory is needed until we run the program). Typically, the heap stores data structures that can change in size over time based on how many elements are added or removed from the data structure. The corresponding heap memory consists of allocated areas and free areas (or holes).

Virtual Memory

The key component of the operating system that ensures process isolation by guaranteeing that each process gets its own view of the memory is virtual memory. A running program (process) has a seemingly infinite view of memory and can access any region without worrying about other programs that might also be running on the computer. The OS seamlessly translates each process memory request into a separate region of the physical hardware memory through address translation. When the system needs to find a physical address in the memory that matches the virtual address, address translation occurs. The running process only deals with virtual addresses and never sees the physical address. Virtual memory is mapped to physical memory in units called “pages.”

There is a time cost associated with performing virtual-to-physical memory address translation, however, and this can add up given that most programs need access to the memory to store data. To speed up address translation, the CPU has dedicated hardware for caching (storing) recent address translations called a translation lookaside buffer (TLB). A TLB is a memory cache that stores the virtual memory recent transaction to physical memory. TLBs help the CPU avoid making multiple round trips to main memory just to resolve a single virtual memory access by only requiring one round trip (Figure 6.31).

A TLB contains page table entries that have been most recently used. Given a virtual address, the processor examines the TLB table. If a page table entry is present, it’s a “hit.” This means the frame number is retrieved, and the real address is formed. If a page table entry is not found in the TLB, then it’s a “miss.” In this case, the page number is used as an index while processing the page table. TLB checks if the page is already in the memory; if it’s not, then a page fault is issued and the TLB is updated to include the new page entry.

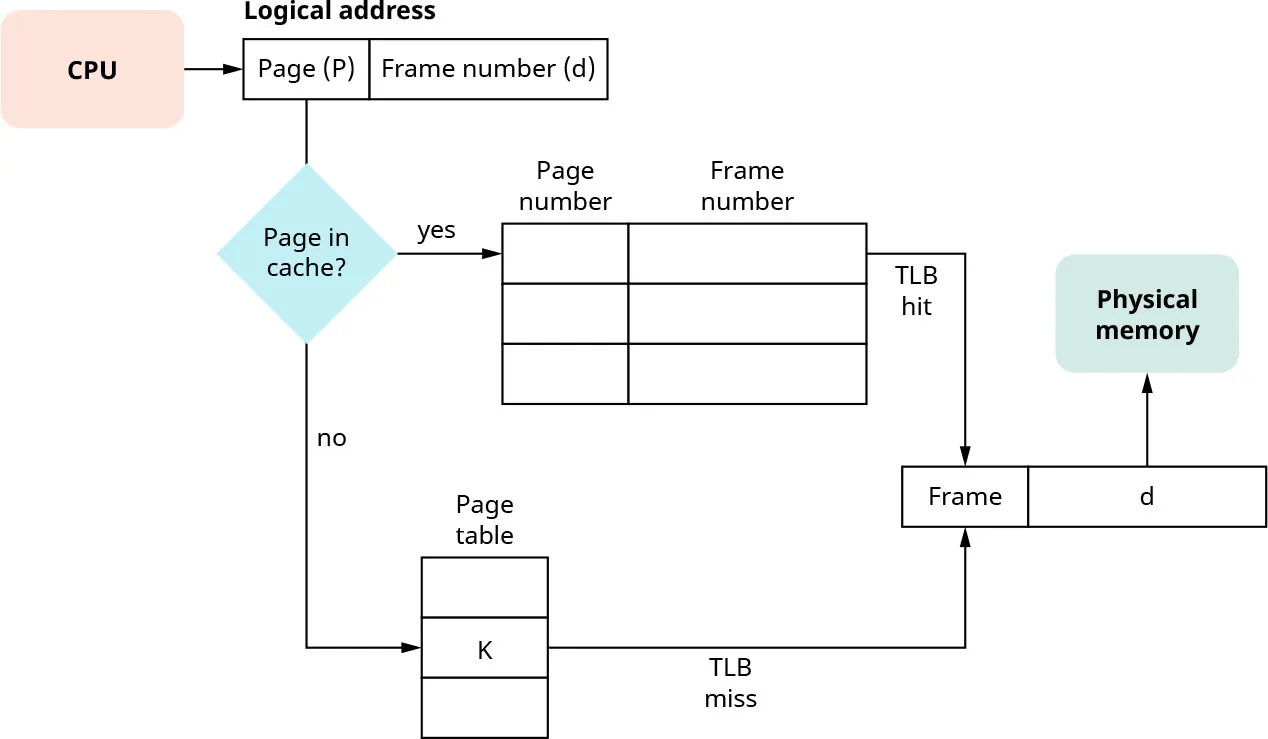

A diagram shows translation lookaside buffers (TLBs) speeding up address translation by using an approach that involves detecting “hits” and “misses.”
Figure 6.31 Translation lookaside buffers (TLBs) speed up address translation by using an approach that involves detecting “hits” (which means a page table entry is present in the TLB) and “misses” (a page table entry is not found in the TLB). (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

Demand Paging

The storage mechanism that uses a page form in retrieving a process from secondary or virtual memory to main memory is called paging. Virtual memory presented a seemingly infinite amount of memory to the running process, but what happens when the operating system runs out of free physical memory? Modern operating systems also have a backup when DRAM runs out, which means virtual memory can be mapped to disk to meet demand. The storage mechanism in which pages should only allocate in the memory if it is required from the execution process is called demand paging. Figure 6.32 shows a CPU that is demanding pages from the virtual memory to the main memory (i.e., swap in) and releasing pages from the main memory to the virtual memory (i.e., swap out). The working set size (WSS) refers to the total amount of memory a process requires during a specific period of activity, measured as the set of pages or data blocks the process accesses. WSS is measured by tracking the unique pages a process references over a fixed interval of time. This provides an estimate of the process’s active memory footprint and helps in memory management decisions like paging and swapping to optimize performance and resource allocation.

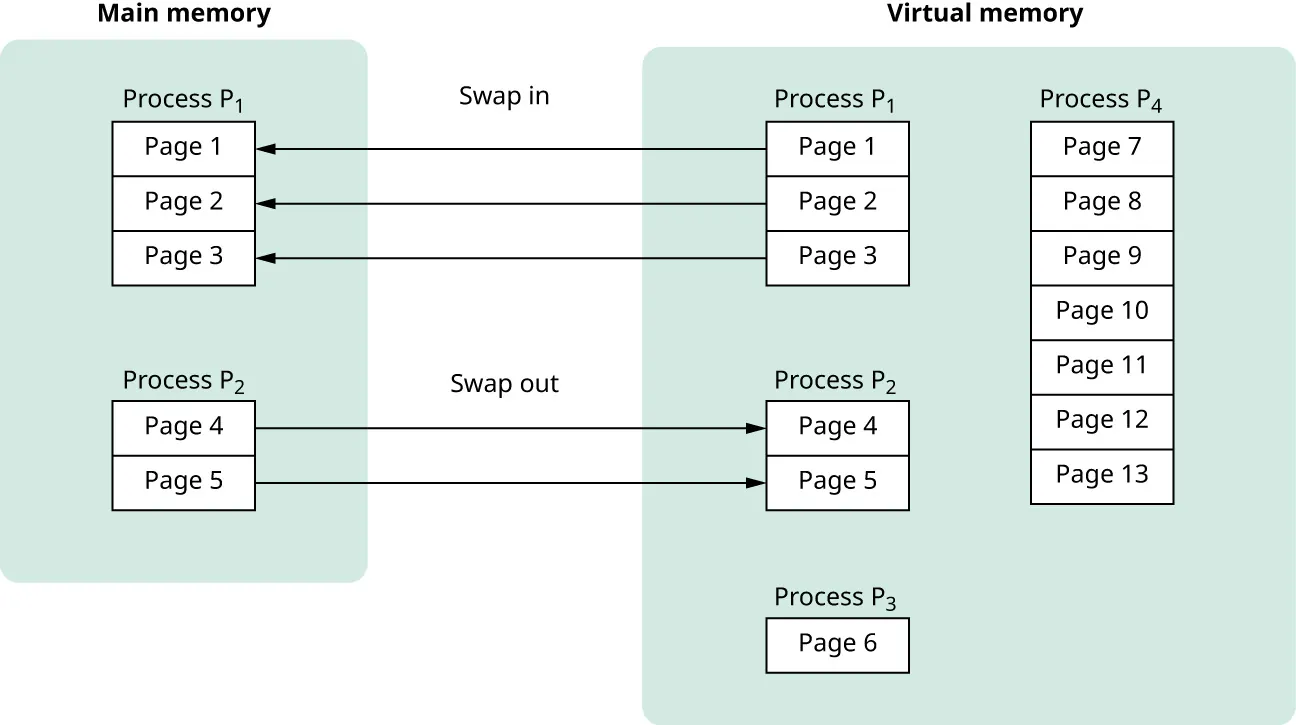

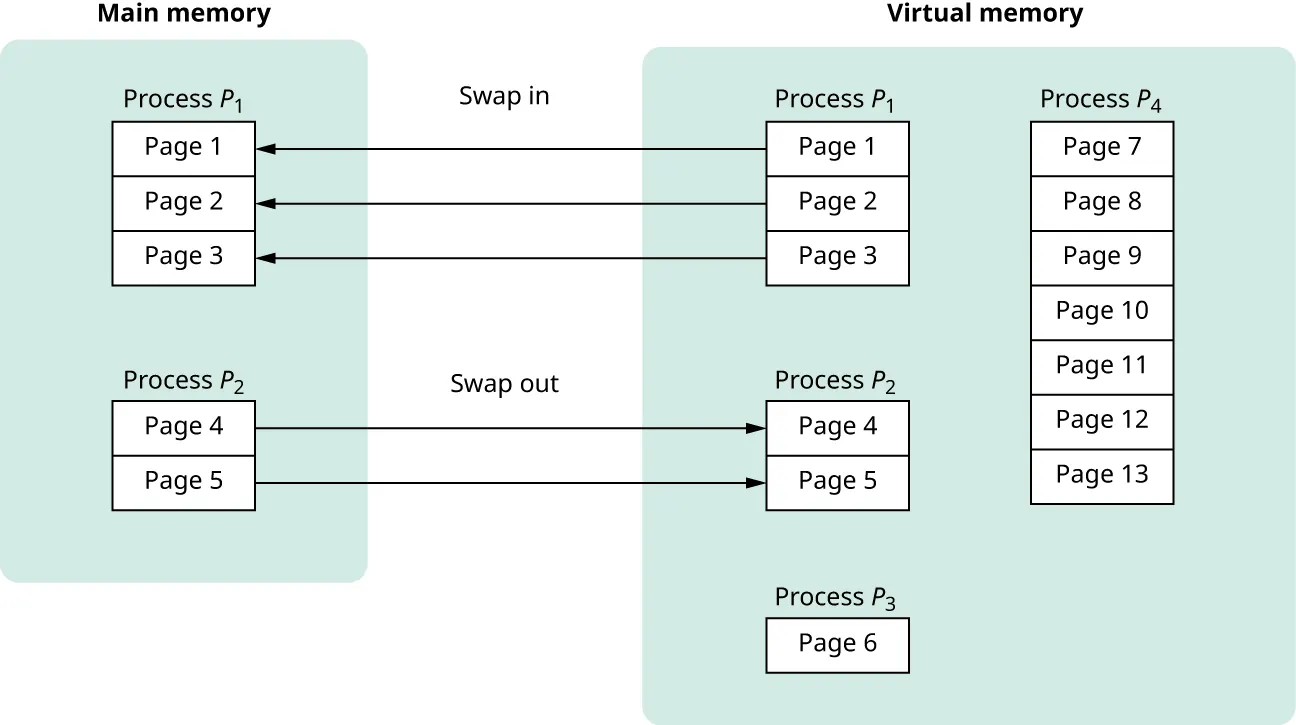

A diagram shows demand paging, where a CPU retrieves pages from the virtual memory to the main memory and releases pages from the main memory to the virtual memory.
Figure 6.32 In demand paging, a CPU retrieves pages from the virtual memory to the main memory and releases pages from the main memory to the virtual memory. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

When the CPU demands a page and this page is not present in the main memory, we call this situation a page fault. A page fault occurs when a process references a page that is in the backing store. To handle a page fault, the CPU transfers control from the program to the OS to demand the requested page to the main memory. OS finds a free page frame in memory, loads the page from the backing store to the main memory, and resumes execution of the thread. The CPU has special hardware to assist in resuming execution after a page fault.

Given that access to the disk is much slower than DRAM, operating systems are often designed to predictively swap in-use pages into DRAM and out-of-use pages to disk. The process of bringing pages into memory (i.e., demand paging) is called page fetching. Most modern OSs use page fetching by starting the process with no pages loaded and do not load a page into memory until it is referenced. If a requested page is stored on the disk, prefetching, which is the act of trying to predict when pages will be needed and loading them ahead of time to avoid page faults, is performed.

If all memory is in use, it is necessary to throw out one page each time there is a page fault. This process is called page replacement. In page replacement, one page in the (full) DRAM is swapped to disk while the requested page is brought into DRAM. However, if too many processes need access to a lot of memory back and forth between DRAM and disk, this causes problems. For example, each page fault causes one of the active pages to be moved to disk, so another page fault soon occurs, and this leads to thrashing. Thrashing is when a computer’s operating system becomes overwhelmed by the number of processes requesting memory. This situation leads to a cycle where the system spends more time moving data between the physical memory and disk storage (paging or swapping) than executing actual processes. It’s like a busy restaurant where the staff spends more time rearranging tables than serving food. The main cause of thrashing is often that too many programs are running at the same time. These activities exceed the available memory, causing the system to constantly try to make space for new requests by moving data to and from the disk.

Strategies to prevent thrashing include limiting the number of simultaneously running programs to avoid memory overcommitment, optimizing how memory is allocated to processes, and possibly increasing the system’s physical memory. By managing memory more efficiently and ensuring that the system is not overloaded with too many tasks, the system can not only avoid a slowdown, but significantly improve its performance.

In extreme cases of thrashing, the OS can spend all its time fetching and replacing pages and will not get much work done. This is one reason why our devices can slow to a halt when they run out of memory and each thread must wait on requested pages.
