Learning Objectives
By the end of this section, you will be able to:
- Explain how OSs protect computer systems
- Discuss key security-related functions of the OS
- Explain how the OS helps the computer system recover from failures
- Discuss how advances in technology affect the longevity of an OS
Remember that we consider an OS to be reliable if it delivers service without errors or interruptions. In addition to reliability, an OS should provide a high level of protection, security, and stability. Here, we learn about OS protection, security, recovery, and longevity.
Protection
The general mechanism that is used throughout the OS for all resources that need to be protected, such as memory, processes, files, devices, CPU time, and network bandwidth is called protection. The objectives of the protection mechanism are to allow sharing (which in this context means using the hardware to do more than one thing at a time), help detect and contain accidental or unintentional errors, and prevent intentional/malicious abuses. The main challenge when it comes to protection is that intentional abuse is much more difficult to eliminate than accidents.

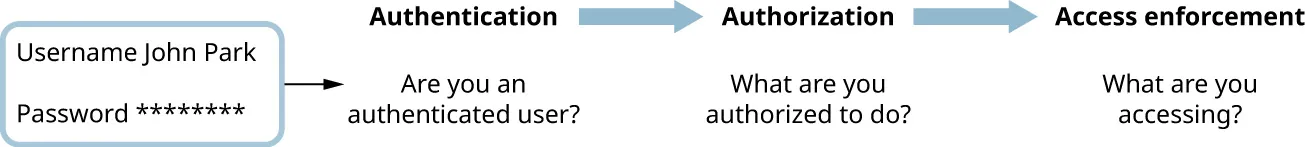

There are three aspects to a protection mechanism: authentication, authorization, and access enforcement. Authentication identifies a responsible party or principal behind each action, authorization determines which principals are allowed to perform which actions, and access enforcement controls access using authentication and authorization information. A tiny flaw in any of these areas can compromise the entire protection mechanism. It is extremely difficult to make all these protection mechanism techniques operate in such a way that there are no loopholes that can be exploited by adversaries. Figure 6.36 illustrates the relationship between authentication, authorization, and access enforcement.
Security
The process of checking to see if a user’s credentials match the credentials in a database of authorized users or in a data authentication server is called authentication. The traditional means of authentication involves the user providing a password, which is a secret piece of information that is used to establish the identity of a user and should be relatively long and hard to guess. Most systems store the passwords in a password database. A password database must be protected because it is vulnerable most of the time. For example, both organizations and users should avoid storing passwords in a directly readable form.
An alternate form of authentication involves using a badge or key. The badge is a logical access system. The badge does not have to be kept secret. It can be counterfeit, but if it is, the owner will know. The badge must be cheap to make but hard to duplicate.
Another form of authentication is two-factor authentication, which involves two factors: the system calls or texts a user’s phone for the traditional password during login, employing the cell phone as a key. For example, a site sends a text message to a user’s phone with a one-time passcode. The user must read the passcode from the phone and type it into the login page.
In two-factor authentication, an attacker must have both your password and cell phone to hijack your account. This approach is particularly effective for authenticating to websites, as the requiring of both the password and the physical cell phone is a sufficient deterrent. To enhance efficiency, the two-factor authentication process can be optimized for websites. Once the authentication is completed, a cookie is loaded into your browser. This cookie then transforms your browser into a type of key, granting you the ability to log in with the password as long as the cookie persists.
Whenever a user needs to log in from a different browser or different machine, two-factor authentication is used again. After logging in, the user id is associated with every process executed under that login because the user id is stored in the process control block and children inherit the user id from their parents. Once authentication is complete, the next step of protection is authorization.
The process of determining the relationship between principals, operations, and objects by defining the kind of principals that are allowed to carry out a specific activity with a defined set of objects is called authorization. These principals are represented using a matrix that includes an entry for each principal and a column for each object as a representation of authorization information on given operations. For example, defining who has the authorization to read/view, edit, or delete the file. Each entry in the access matrix describes the capability of each principal over each one of the objects. When the matrix includes all of the principals and all of the assigned objects, it can become complex and hard to manage. The ideal way to solve this problem is to use a guideline such as an access control list. An access control list (ACL) is a set of guidelines that outline the authority of each user (i.e., which user is permitted access to given resources). An ACL controls the access and privileges using a matrix design.
The ACL from Oracle features the assignment of users to roles such as basic users, advanced users, customer administrator, among others. A role is configured to confer privileges on objects rather than attaching privileges to individual users, as this would be much more difficult to set up and maintain. The most general form of setting privileges is creating a list of user and privilege pairs, which is called a capability list. A capability list is a list of objects and operations for each user that defines the user rights and capabilities. Typically, capabilities also act as names for objects, which means the list cannot even name objects not referred to in your capability list. For simplicity, users can be organized into groups with a single ACL entry for an entire group, and each group can be made to share the same privileges. While in Windows OS, ACLs are very general, they are relatively simple in UNIX/Linux. For example, in UNIX/Linux, access can be read, write, and execute, and it can be granted to the file owner, the file owner’s group, or “the world” of all users. In many cases, the user root has full privilege for all of the operations and has access to all of the permissions. For example, the user root can view, edit, and delete a file. ACLs are straightforward and can be utilized by any file systems in Windows. The utilization involves sharing a namespace at a high level of visibility by making it public, while defining another namespace as private—akin to the encapsulation of objects in object-oriented programming.
One component of an OS must be in charge of enforcing access rules and safeguarding authentication and authorization to provide a high level of security. The system’s access enforcement mechanism has complete authority; therefore, it must be simple in programming and small in size. The security kernel is a substitute approach that is composed of hardware and software and serves as the OS’s inner protection layer. Generally, any kind of management such as memory and interrupt management are provided by a security kernel.
Link to Learning
Every once in a while, you may get a notification on your computer asking you to update your OS, and the update may include a “patch” to address a security issue. Often, this security issue is related to a cyberattack that is exploiting some vulnerability in the OS. Check out this tutorial on OS vulnerabilities to gain a deeper sense of the kinds of OS vulnerabilities that these attacks target.
Recovery
Like any other system, an OS can crash in the middle of critical sections or while the system is running. These crashes may result in lost data, unexpected results, and inconsistency. For example, if the crash happened before the system had stored a user’s information in the main memory, the system will have lost this information. Unexpected results provide the wrong output and may affect other calculations.
An inconsistency is a situation that causes the system to produce errors or hardware failure. Inconsistencies may occur when a modification affects multiple blocks; a crash may occur when some of the blocks have been written to disk but not the others. For example, when the system adds a block to a file, it updates the free list to indicate that the block is in use, but if the inode is not yet written to point to the block, this will result in an inconsistency. Another inconsistency can occur when the system while creating the link to a file to make a new directory entry refers to an inode, but the reference count has not yet been updated in the inode.
The process of resolving OS faults or errors is called recovery. Three approaches that can address inconsistency issues include:

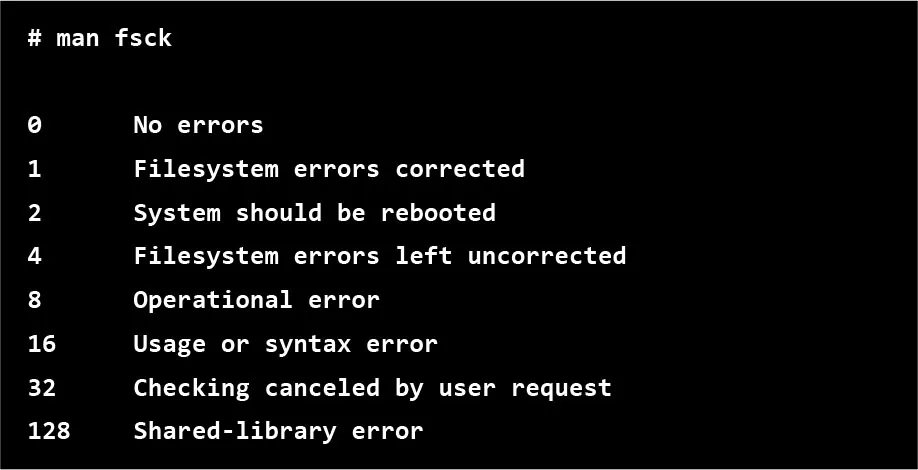

- Check consistency during reboot, and repair problem. A good example of checking for inconsistency is the file system check (fsck) command implementation for UNIX and UNIX-like file systems. The system executes fsck as part of every system boot sequence so it can check whether the system was shut down correctly or not. If it was properly shut down, it proceeds normally. In the alternative (e.g., crash, power failure, or any other reason), the recovery process will start. The recovery process will scan disk contents, identify inconsistencies, and repair them. The limitations of fsck are as follows: it will restore disk to consistency, but does not prevent information loss. This loss of information can lead to instability. Also, the fsck has security issues because a block could migrate from the password file to some other random file, which could make it visible to unauthorized users. In addition, running fsck may take a long time, and the user will not be able to restart the system until fsck completes. The recovery process with fsck will take more time if the disk size is big. Figure 6.37 illustrates an example of the code errors produced from fsck and the meaning of each code in the Linux OS.
- Check the order of the writes. This approach avoids some discrepancies by applying changes in a specific write sequence. For instance, to ensure the free list doesn’t still contain the file’s new block, write the content of the list before adding that block to the file. After ensuring that the list is not including that block, create a reference for the new block in the inode. Using this approach, you’ll guarantee that you’ll never write a pointer prior to initializing the block to which it points without validation. The validation will force the system to never clear the last pointer prior to setting a new pointer. The advantage of this approach is that it reduces the time spent waiting, as there is no need to wait for fsck while rebooting. However, there are several drawbacks, such as the potential for resource leaks (e.g., when the system runs fsck to recover some lost resources). Another drawback is that this approach slows file operation because writing while running the system requires considerable metadata.
- Perform write-ahead logging. This term is known as journaling file system and refers to the practice of recording the changes in the information in a separate log file sometimes called a journal file. These changes will be recorded prior to any new change or update on the system. Windows NTFS and Linux ext3 implement this kind of log file. The log procedure is analogous to the way log files are used in a database system to enable the correction of updated inconsistencies, which enables the healing quickly in case of any error. Prior to performing any operation, the recovery process will initially store information regarding the operation in a special log file. The next step is to flush the information to the disk before updating any other blocks. For example, a log entry such as “I’ll add block 100101 to inode 313 at index 90” will be added to the system’s log in case the operation involves adding a block to a file. This will guarantee that the actual block modifications can be performed. The system will restore the log in case of any crash to ensure that all of the updates have been saved in the disk. There are many benefits to employing logging such as reducing the time needed to recover from any failure. Also, improving the ability of localizing logs in the disk will result in improving the system’s performance. However, this approach has some drawbacks, namely, the size of the log file will grow over time, and this will affect the system’s processing time. This problem can, however, be resolved by performing periodic checkpoints.
Longevity
How long does an OS last? Did companies stop developing new OSs? How can the current OS survive? To answer these questions, we need to discuss concepts such as paging, TLBs, disks, storage latency, and multicores as well as virtual machines (VM).
Technology and OSs
Many of the basic ideas in OSs were developed 30–50 years ago, when technology was very different. The question is not only whether these ideas will still be relevant in the future, but whether they are relevant even today. After all, technology has changed considerably over the last thirty or so years. For example, CPU speeds went from 15 MHz in 1980 to 2.5+ GHz in 2024, a 167-fold increase. Memory size went from 8 MB to 16+ GB, a 2,000-fold increase. Disk capacity went from 30 MB to 2+ TB, a 6,667-fold increase. Disk transfer rate went from 2 MB/sec to 200+ MB/sec, a 100-fold increase. Network speeds went from 10 Mb/sec to 10+ Gb/sec, a 1,000-fold increase. As you can see, there were huge increases in size, speed, and other capabilities.
As you may recall, paging is a storage mechanism that allows processes to be retrieved from secondary memory and moved to main memory using pages. In the 1960s, paging originally touted disk speed latency of 80 ms, a data transfer rate of 250 KBs/sec, memory size of 256 Kbytes. Thus, for 64 pages, it took 6.4 sec to replace all of the memory to address individual page faults and 1 sec to address sequential page faults. Today, we have disk speed latency of 10 ms, a data transfer rate of 150+ MB/sec, and memory size of 64+ GB. For 16,000,000+ pages, it takes 44+ hours to replace all of memory to address individual page faults, and 320+ sec to address sequential page faults. Therefore, we cannot afford to page something out unless the system is going to be idle for a long time. But the real question is: does paging make sense anymore as a mechanism for the incremental loading of processes? The answer is yes, but by reading the entire binary at once because 15 MB of binary takes 0.1 sec to read.
TLBs have not kept up with memory sizes; 64 entries provide 256 KB coverage. In the mid-1980s, this was a substantial fraction of memory (i.e., 8 Mbytes). Today, TLBs can only cover a tiny fraction of memory. Some TLBs support larger page sizes of 1 Mbyte or 1 GB, but this complicates kernel memory management.
Disk capacity has increased faster than access time; storage access latency for disks is around 10 ms, and it is around 100 µs for flash memory. There are new nonvolatile memories, such as Intel’s 3D XPoint, that improve the latency to 100ns–300ns.
Chip technology improvements allowed processor clock rates to improve rapidly. Unfortunately, however, faster clock rates mean more power dissipation, and now power limitations limit improvements in clock rate. Chip designers are now using technology to put more processors (cores) on a chip. In general, all OSs must now be multiprocessor OSs. However, it is not clear how to utilize these cores, and application developers must write parallel programs, which is very hard.
Lastly, the current/hot trend for OS development is the data center, which coordinates thousands of machines working together trying to achieve very low-latency communication.
Link to Learning
As nearly every person and business on the planet uses computers today, their reliability and security are increasingly essential. At the same time, there is growing concern about whether the underlying technologies we are relying on to power OSs will become obsolete soon. And there are also questions about what will replace OSs. Check out the debate on what will replace OS and see whether you share any of the concerns.
Virtual Machines
As you learned earlier in this chapter, a virtual machine is a software emulation of a physical computer that creates an environment that can execute programs and manage operations as if it were a separate physical entity. This emulation allows multiple operating systems that are isolated from each other to run concurrently on a single physical machine. In essence, a VM provides the functionality of a physical computer, including a virtual CPU, memory, hard disk, network interface, and other devices.
Recall that the underlying technology enabling VMs is called a hypervisor or virtual machine monitor (VMM). This technology resides either directly on the hardware (Type 1 or bare-metal hypervisor) or on top of an operating system (Type 2 or hosted hypervisor). The hypervisor is responsible for allocating physical resources to each VM and ensuring that they remain isolated from each other. This isolation ensures that processes running in one VM do not interfere with those running in another and thereby enhances security and stability. VMs are widely used for a variety of purposes, including server virtualization, software testing and development, and desktop virtualization. Virtual machines have become a fundamental component of cloud computing, as they allow cloud providers to offer scalable and flexible computing resources to users on a pay-as-you-go basis.

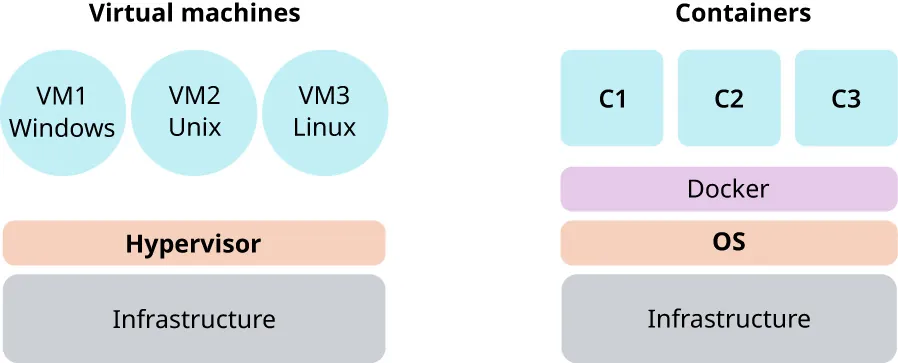

Figure 6.38 illustrates the difference between a Type 1 virtual machine monitor and container environment such as via Docker. A container is a standardized unit of software that logically isolates an application, enabling it to run independently of physical resources.
When the complete OS is running within a VM, then the system will be called a guest operating system. VMs are heavily used in cloud computing such as Microsoft Azure, Amazon Web Services, Google Cloud Platform, and IBM Cloud.
Think It Through
VMs vs. On-Premise Computing
VMs on the cloud represent a paradigm shift in how we utilize computing resources, offering compelling advantages over traditional on-premises computing. Cloud-based VMs provide scalability, flexibility, and cost-efficiency, making them a promising technology for businesses and individuals alike. In a traditional on-premises setup, a company or user must invest in physical hardware, maintain that hardware, and often overprovision resources to handle peak demand periods. This approach ties up capital and resources in equipment that may quickly become outdated or underutilized.
Why are virtual machines on the cloud a promising technology as compared to on-premises use of a computer?
