Learning Objectives
By the end of this section, you will be able to:
- Discuss x86-64 Intel processors and their architectures
- Differentiate between assembly and machine languages
- Explain basic concepts of assembly language and the types of operations
When you write a program in an HLL, there are several steps that need to be performed before the processor can start executing the code. Refer to Figure 4.18 for a high-level view of the process.
Let us assume you write your program in C and your program is spread over several source files for ease of management. As you now know, the first step is to go through the compiler. The compiler is totally oblivious to the fact that the multiple source code files belong to the same program; it just takes each file separately and generates the corresponding assembly language file for each one of them. If the input is three C files, the output of the compiler will be three assembly language files.
The next step is to take these language files and translate them to machine code files, also known as object files or binary files. Here too, the assembler is oblivious to the fact that the input assembly files do not belong to the same program, so it translates them separately. The first tool in this workflow that recognizes that all the files belong to the same program is the linker. The linker takes all the generated object files, looks for needed libraries, and links everything together into one executable file. Linked libraries are needed because it is very unlikely that programmers write self-contained code. You still use I/O, for example, for printing something on the screen, but you have not implemented those functions yourself—or you use mathematical functions someone else implemented. A library linked at this step is called a static library.
At this stage, you have an executable file residing on your disk until you decide to execute it by typing a command, clicking an icon, or even saying a command. At that moment, a part of the operating system, called the loader, loads the executable into the memory and arranges its content in a specific way to make it ready for execution by the processor. A dynamic library is when more libraries may be linked during execution or while the program is running.
This section takes a closer look at assembly language. As an example of a widely used assembly language ISA, we will look at x86 ISA used by Intel and AMD processors. But before we delve into this, we need to ask a simple question: Why learn assembly language? Will you ever need to write code in assembly language? Most likely not, except in rare cases where you are developing some part of an operating system, a device driver, or any other application that requires very low-level manipulation. However, by looking at the assembly language generated by the compiler for your code, you can find innovative ways to optimize your code, detect hidden bugs, and reason about the performance of your code once you execute it.
Intel Processors and Related Architectures

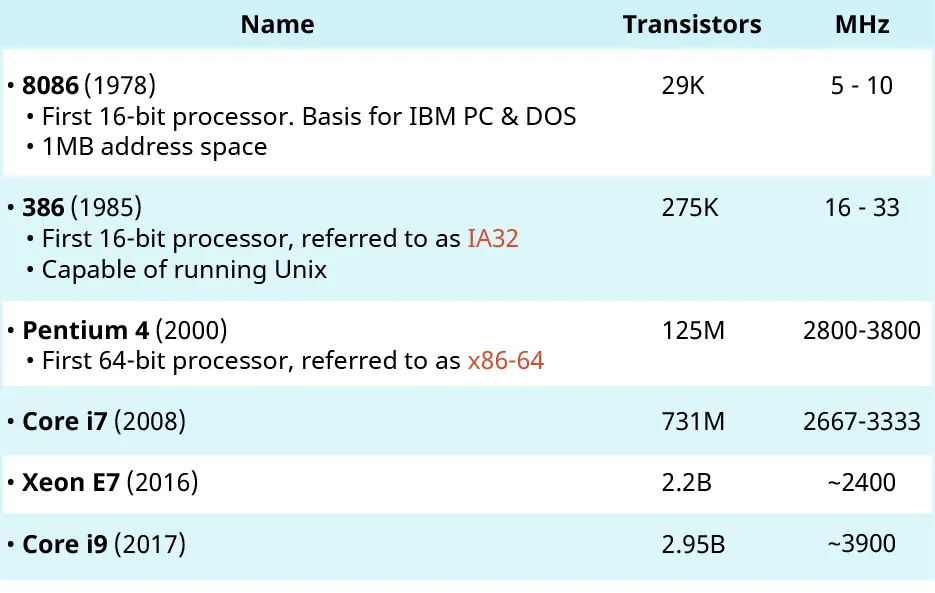

You may recall that each processor family understands a set of instructions, which is the ISA. The family of processors from Intel and AMD share the same ISA called x86 (x86-64 for the relatively newer version for later processors). This ISA has a long history that dates back to the 1970s. Figure 5.16 gives a quick glimpse at how things evolved. The figure does not show every single processor from Intel but instead focuses on some milestones.
First, as technology evolves and the need for faster processing power arises, we move from 16, to 32, to 64-bit processors. This number relates to the size of the registers (fast storage entities inside the processor), the width of the buses (parallel wires connecting the processor to memory), and the amount of memory the processor can access (for n-bit machines, the processor can access 2n bytes of memory). The ISA also evolves in parallel to incorporate the larger registers (hence the move from IA32 to x86-64) and the computations with larger numbers. Second, we can see the tremendous increase in transistors in each generation. Having more transistors means more features implemented inside the processor and hence higher performance and potentially richer ISA.
The complex architecture structure that assists in executing operations such as mathematical computations and memory storage is called complex instruction set computer (CISC). This is done by combining many simple instructions into a single complex one. This concept came from something called the semantic gap, which is the difference between the HLL program and its assembly equivalent. It is good for programmers to understand assembly language as this skill will help you code in any language. However, assembly programming is so much different from HLL programming that most programmers have difficulty understanding it. The wider the difference, the wider the semantic gap. To reduce this gap and make assembly language more accessible to programmers, x86 was designed to make its instructions a bit more complicated because statements in HLL are complicated. Complicated means a single assembly instruction can do several things. For example, an instruction like addw %rax, (%rbx) means access the memory at a specific address, get the data stored there, add that data to a number, and store that number in a specific place. So, it is accessing the memory, making an addition, and storing the result somewhere. Because the instructions are complicated, this set of these instructions is called CISC.
Complex instructions such as the ones corresponding to a for-loop in HLL were the norm until the 1980s when another viewpoint came into existence that said that complex instructions make the processor slow. Moving into the 1990s, and the appearance of portable devices with their sensitivity to power consumption and battery life, another disadvantage of CISC arose: complex instructions make the processor not only slow, but also power hungry. And, thus, the other viewpoint of simpler instructions called reduced instruction set computer (RISC) came to be the norm. Right now, all the processor families in the world are RISC except x86.
Link to Learning
There has been a debate among companies who are designing hardware as to whether CISC or RISC is better. Read this article chronicling this debate from MicrocontrollerTips.
Assembly and Machine Code
In our discussion of Figure 4.18 we saw assembly (output of the compiler) and object code, binary code, and machine code, which all designate output of the assembler. Machine code is the binary presentation of the assembly code. In some cases, there are assembly instructions that do not have a counterpart in the machine code called pseudo-assembly. For example, there are instructions in assembly that execute a go to if a number is less than another number. The only conditions known in machine code are equal and not equal, but not less than, less or equal, and so on. We can see this in an instruction set like MIPS.
The assembler’s job is to ensure that the machine code file only contains instructions that are native to the processor; that is, part of the ISA. So, we can think of the machine code as being a subset of the assembly code. You never find an instruction in the machine code file that is not part of the ISA of the processor for which you want to generate the binary. The reason there are pseudo-assembly instructions is to give the compiler a bit more freedom to generate efficient code. Let us assume that you write a program in C and you think about functions calling each other. If you write a program in C++ or Java, you think in terms of objects, methods, inheritance, and so on (refer to Chapter 4 Linguistic Realization of Algorithms: Low-Level Programming Languages). We call this the programmer view of the language. What if you write (or read) assembly code? What do you see? This view is summarized in Figure 5.17.

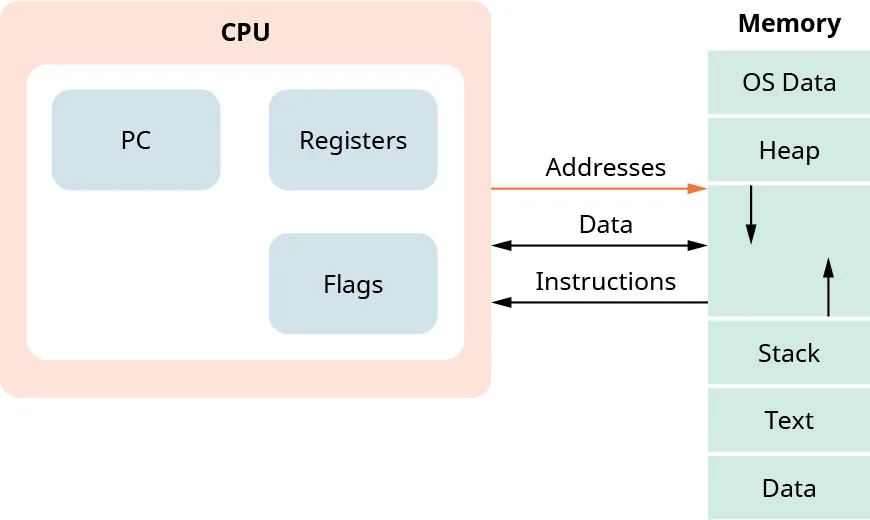

Figure 5.17 shows the following:
- There is a processor (CPU) and memory.
- The CPU and the memory are connected by a bus, which is a data pathway. When you access the memory, you may want to get data and must provide an address. Or you may want to write data to memory, so you must provide both the data and the address to which this data will be written. In both cases, the CPU must provide an address, therefore, the address bus is single directional. But the data bus is bidirectional because you can send data to memory or get data from memory.
- Data is not the only thing you need to bring from the memory to the CPU. The main job of the CPU is to execute instructions on data. For example, adding two numbers involves data (the two numbers) and the command for addition (instruction), which is why there is a single directional bus from memory to CPU for getting instructions from the memory.
- The memory holds several things: data, the instructions of the programs (shown as “Text” in Figure 5.17), some data needed by the OS to manage your program, and the resources it needs. The stack and heap are places in the memory to store data depending on the program at hand. The stack is used to store local variables (and some other stuff that we will discuss later), the heap stores dynamically allocated data, an Data in Figure 5.17 is another area in the memory to store global variables.
- Inside the CPU, there are registers which carry hardware parts that store data, instructions, addresses, and so on. Each register stores one item. An x86 programmer has access to 16 registers, as we will see shortly. Because the CPU is executing a program, which is a series of instructions, the CPU must keep track of what the next instruction to be executed is.
- Keeping track is the job of a specific register, shown separately from the other registers, called the program counter (PC). The PC is updated after executing each instruction to point to the next instruction to be executed. Also, it is useful to keep some information about the result of the instructions executed, such as whether the result generated by the current instruction is positive, negative, or zero, which is the job of the flags. A flag tells a program if a condition has been met.
Registers

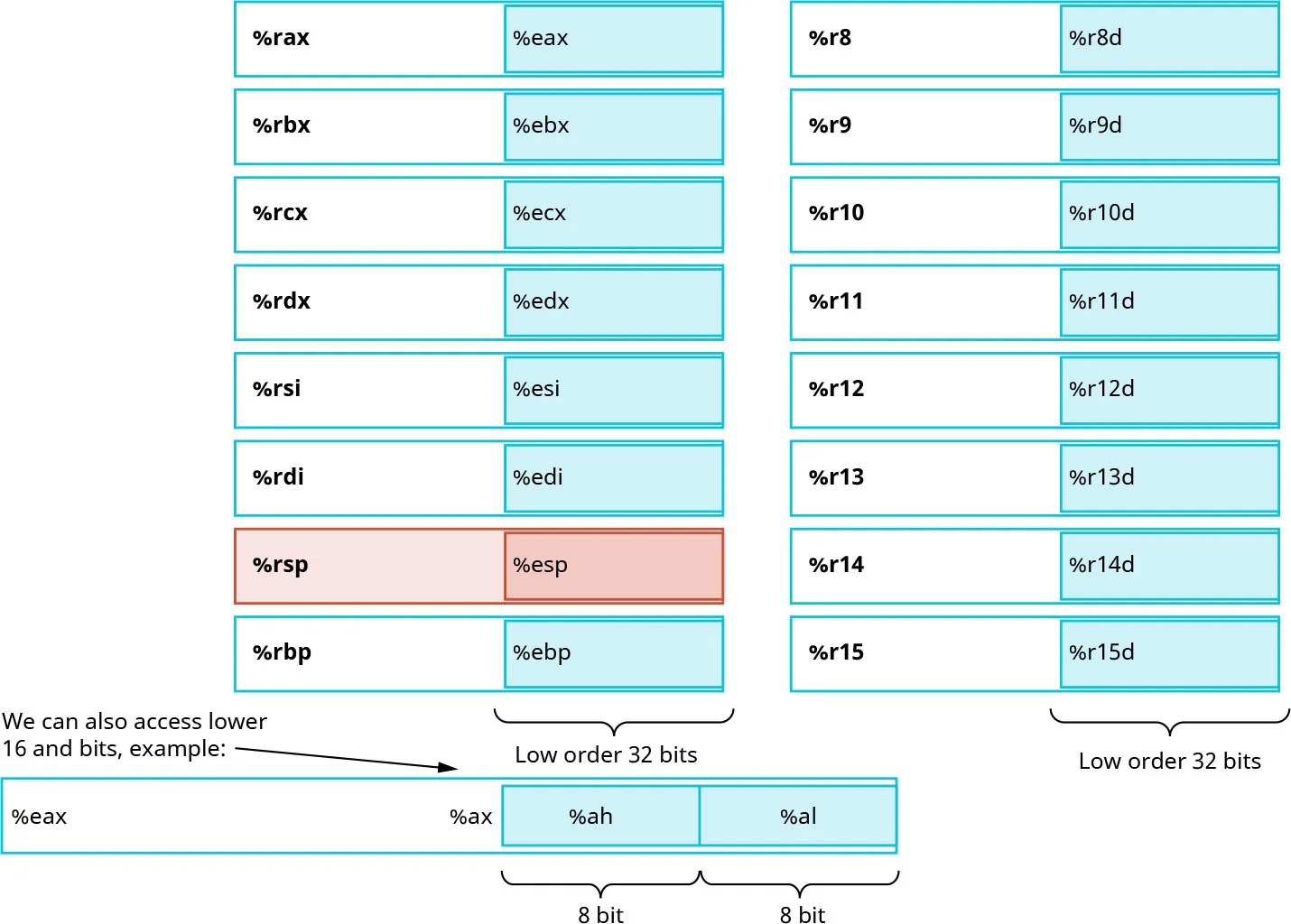

A register is a memory unit that functions at very high speed. Figure 5.17 shows registers as one black box. If we open this box and see what is inside, we see 16 registers. Any instruction in x86 assembly uses only those 16 registers. The name of each register is shown in Figure 5.18 and starts with an “r.” The naming convention of registers is a bit odd, but it is due to some historical naming (for the registers on the left). To keep backward compatibility, old register names cannot be changed.
Each one of these registers can hold 64 bits. When we had 32-bit machines, only eight registers existed, as shown on the left of Figure 5.18. In the 32-bit era, each register could hold 32-bits only and its name started with “e” (for extended). This is why we see that the lower 32 bits of the current registers hold the old names to keep backward compatibility. Not only that, in the 16-bit era, each register held 16 bits only. Those on the left had names: ax, bx, cx, and so on, which are the names of the lowest 16 bits of the current registers. Registers on the right side of the figure did not exist before the 64-bit era. If we go to the 8-bit era, we can even access the lowest 8-bits of the register. The register rax is shown as an example where parts of the register can be accessed using the naming convention: rax (16 bits), eax (32 bits), ax (16 bits), and ah and al (8 bits each). In the 8-bit era there were only four registers, which are the top four in the left column of the figure.
Concepts In Practice
HLLs and Assembly
Most programmers use HLLs to write their programs. Why do you think world class programmers are very well versed in assembly? Professional programmers write in HLL but they often like to look at the assembly version of their code as well. This allows them to discover mistakes in their HLL code and also to find out ways to enhance their HLL code.
However, there are some programs, or parts of programs, that need to be written in assembly and not in HLL for the sake of performance (assembly code written by a human in these cases is much faster than HLL translated to assembly by a compiler) and more control over the hardware. Assembly language common uses today include device drivers, low-level embedded systems, and real-time systems.
Operands
An assembly language program consists of a group of instructions. Each instruction does an operation and for this operation to be executed, it needs operands. An operand is a value used as input for an operator. Perhaps we want to add two numbers in an operation. To be executed it needs two numbers, which are the operands. For example: add %RAX, %RBX means add the content of the register RAX to the content of the register RBX and put the result in register RAX. Operands in assembly can be one of three things:
- A register
- An immediate operand (e.g., add 7 to rax; the operand here is mentioned explicitly in the instruction)
- Data from memory
Memory Addressing Modes
To get data from the memory, we need to specify the location, called the addressing mode, in the memory that contains the required data. Why are there several “modes” instead of just specifying an address directly? Well, the answer is related to the HLL.
In HLL programs, we use complicated data structures, such as arrays with one or more dimensions, structures, or linked lists. The compiler needs to translate this data structure to a much simpler assembly language. In assembly there are no complex data structures; there are only data items of 1, 2, 4, and 8 bytes. Then how can we map these complex data structures to the simple single dimension data items? One crucial way is to have rich addressing modes. In its most general form, an address in x86 is specified as D (Rb, Ri, S) where:
- D is a non-negative (but can be 0) integer whose range is from 0 to 232 – 1.
- Rb and Ri are registers, and they can be any one of the 16 registers.
- S is a scale that takes one of the following values: 1, 2, 4, or 8.
The address is calculated as: D + Rb + (S × Ri). While this is a general form, it can have more reduced forms such as (Rb, Ri). Here D’s default is 0 and S’s default is 1; D (Rb, Ri); or (Rb, Ri, S).
Now that we know about operands, let’s look at the operations themselves that are implemented by the different assembly instructions.
Link to Learning
It is always good to see the concepts we learn in action. Visit this site to write an HLL program and see the corresponding assembly at the same time. Any change you make to the HLL code will have an effect on the assembly.
Assembly Operations
In any ISA, all assembly instructions fall into one of three categories:
- Data movement: from register to register, from memory to register, and from register to memory
- Arithmetic and logic operations including addition, subtraction, AND, OR, and so on
- Control instructions, which are the instructions that implement the “go to” operations, whether conditional or non-conditional (category also includes procedure calls)
Data Movement Operations
The data movement in assembly takes the form movx source or destination where:
- “x” specifies the number of bytes to be moved from source to destination. It can take one of the following values: “b” means 1 byte, “w” (word) means 2 bytes, “l” (long) means 4 bytes, and “q” (quad word) means 8 bytes. If you think about it, these are the sizes of all the data types we have in any HLL.
- the source and destination can be any of the operand types we mentioned earlier. There are only three combinations that are not allowed. The first is to move immediate to immediate as it does not make sense. The second is to move from memory to memory because the CPU must be involved. The last prohibited combination is when the destination is immediate as it also does not make any sense. Some examples:
- “movq %rax, %rbx”
Move 8 bytes from register rax and put them in register rbx, which is not really a move; it is a copy. - “movq (%rax, %rbx, 4), %rcx”
This is a bit complicated. It involves three steps: first, calculate [rax + (4 × rbx)]; second, use this calculated value as an address and go to the memory at that address; and third, get 8 bytes, starting from the address you calculated (do not forget the “q” at the end of the mov instruction) and put them in register rcx. Now do you see why x86 is CISC where C means complex?
- “movq %rax, %rbx”
Arithmetic and Logic Operations
The arithmetic and logic operations involve very well-known operations such as add, subtract, multiply, and or, xor, shift left, and shift right. As you may have guessed, these are operations that require two operands. Look at the type of operands that we investigated earlier. For example:
addq %rax, %rbx
means rax = rax + rbx.
Additionally, there are some one operand operations such as increment and decrement. There are some complexities involved in multiplication and division where there are different instructions for signed and unsigned integers. And, for the division, yet another complexity is where to store the remainder.
Comparison and Test Operations
To be able to implement the complex data flow in HLLs (e.g., switch case or if-else), the assembly language must support conditional and unconditional go to. In x86 parlance, it is called a jump instruction. The generic form of jump is the jump instruction followed by a label. The label is a variable name that we give to an assembly instruction. This is needed because if you want to say (go to this instruction), how can you define “this” instruction? The label takes the following form: label: instruction. For example:
part: movq %rax, %rbx
. . . .
jmp part
In this example, “part” is the label for the move instruction. The “jmp” is a nonconditional jump; that is, it is always executed. There are some for conditional branches too. Let’s look at one of them.
For the jump if equal, or je, label, this instruction means jump to label if the zero flag is set to 1. In the programmer’s view of the assembly program, there are some flags that give information on the previous instruction (refer to Figure 5.18). One of the flags is called the zero flag, and it is set to 1 if the previous instruction has generated 0 as a result. For example, subtracting two registers and getting the result of 0.
Procedure Call Operations
One last item is related to procedure call—x86 has two instructions: CALL and RET to implement. However, the situation is more complicated than this. In HLLs, you have the concept of local variables and global variables. How is this enforced in assembly? Remember, the assembly program generated must behave in the same way you intended when you wrote the HLL program.
Assembly uses the concept of a stack, the very well-known data structure that works as last-in-first-out, to simulate the notion of local variables, passing arguments to procedure, and saving some of the registers in memory during a procedure call. Why do we need to save some registers? Because we have only 16 registers in x86, and programmers use way more variables than that in their HLL.
Vector Instructions
You may have realized that we have not mentioned floating points at all in the x86 operations. This is because there is another set of instructions and another set of registers for floating points—the vector instructions. These instructions operate not on individual registers, but on a vector (i.e., a group of numbers). So, an addition operation can add 32 numbers to another 32 numbers at once. That is, the first number is added to the corresponding first number in the second vector, the second number to second number, and so forth. These operations are usually very efficient in many applications.
