Learning Objectives
By the end of this section, you will be able to:
- Discuss various memory and storage tools
- Differentiate between various types of storage technologies
- Explain how locality is used to optimize programs
For the processor to do its job, which is doing the calculations, it must be fed instructions and data. This means the overall performance depends on both the calculation’s speed and the speed by which data and instructions are received. No matter how fast your processor is, you do not get good performance if the stream of instructions and data is not fast enough. Everything worked well in the early days of computing, from the 1940s until the early 1990s, and then computing hit a wall—a memory wall.
Researchers in industry and academia achieved good leaps in performance for processors by innovating ways to use transistors provided to them by Moore’s law. They used those transistors, which were doubling per chip on average every 18 months, to add more features to the processor leading to better processor performance. However, the same was not done with memory, which resulted in a speed up gap between memory and processor. The gap started small and then got wider until it became a bottleneck of performance. Figure 5.19 shows the trend in the processor-memory performance gap.
In this section, we explore memory technology. We will discuss the different technologies by which memory is built, explain what we mean by memory hierarchy, and see what researchers have done to deal with the processor-memory gap.
Memory and Storage
What is our wish list for the perfect memory? Probably speed—we want a fast memory. But be careful—memory speed is different from memory capacity. Memory capacity has increased throughout the years at a much faster rate than memory speed. We also want infinite capacity and persistence; that is, when the power is off, we want the memory to keep its content.
Next, we want to be able to pack a large amount of storage in as small an area as possible via density, which comes in handy especially for portable devices such as your smartwatch or smartphone. And what about the cost? If the memory is very expensive, the whole computer system is very expensive which means that nobody buys it; designers then have to put a smaller memory size into the computer system to keep the price low. But smaller memory means less functionality to the computer system and lower overall performance.
The reality is much less ideal. There is no single technology that excels in all these aspects. Some technologies are fast but more expensive, volatile, and less dense, while others are cheap and persistent but are relatively slower than other technologies. If we pick only one technology, we end up with a non-functional system. For example, if we pick the fast and volatile but expensive technology, the resulting computing system, which is probably very expensive, needs to be powered on indefinitely in order to retain the data. If we pick the persistent and cheap but slow technology, the system may be unusable due to its slow speed.
The word storage is usually used with persistence (long-term storage) while the word memory is used for volatility (short-term storage) even though this distinction may be blurred in future technologies. How can we get the best of both worlds?
Concepts In Practice
The More You Know
Knowing about hardware is always beneficial to a software programmer. The cache, for example, is transparent to the programmer; however, if the programmer knows about the cache and how it works, they can write code that exhibits locality and gets good performance.
If you are writing a program that accesses a matrix, and you know how the matrix is stored in memory, you can adjust your code to access the matrix row by row (or column by column) to increase the locality which makes your program much faster.
The Memory Hierarchy

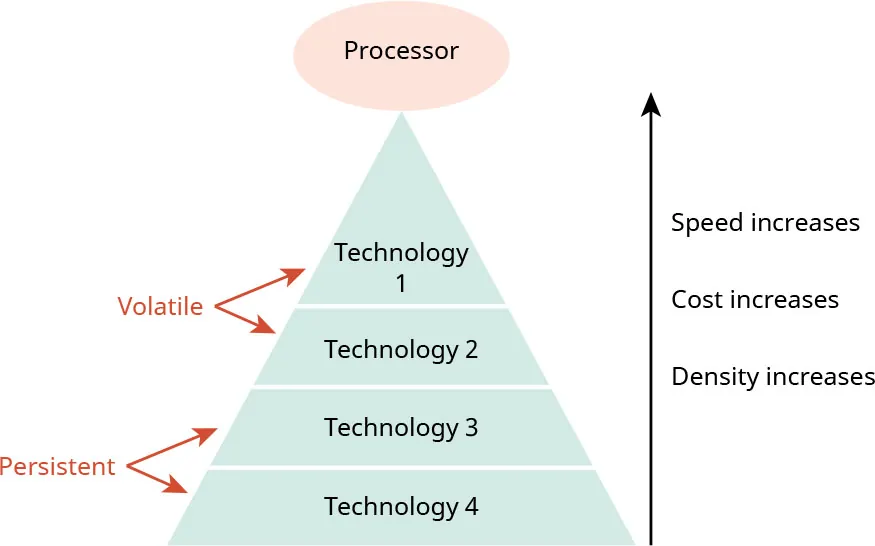

We have five items on our wish list for an ideal memory and, since there is no single technology that excels in all five, we must combine several technologies to come close to the ideal memory system. This ideal memory system must be fast, dense, persistent, large in capacity, and inexpensive. The technologies that we currently use have the following characteristics:
- Technology 1: very fast but expensive, less dense, and volatile
- Technology 2: faster and denser, but volatile and moderately expensive
- Technology 3: persistent and inexpensive but slow
- Technology 4: persistent and very inexpensive but very slow
We need to get the best of all of them, and the best way to combine them must ensure that we have higher capacity from technologies 3 and 4 but make technologies 1 and 2 closer to the processor so that they can respond faster to the processor. The obvious way to do this is to use an arrangement of storage available on a computer system in the form of a triangle as shown in Figure 5.20. We call this design memory hierarchy.
Table 5.3 gives the names of the technologies that we discuss later in this section. The processor is connected to the first cache using a set of wires called the bus. If the processor does not find what it wants, it goes to the next level, and so on.
| Technology Name | Use Case | |
|---|---|---|
| Technology 1 | Static random access memory (SRAM) | Cache memory
|
| Technology 2 | Dynamic random access memory (DRAM) | Main memory
|
| Technology 3 | Solid-state drive (SSD) | Storage
|
| Technology 4 | Hard disk drive (HDD) | Storage
|
Memory Technologies
Memory is volatile, at least for now, with research exploring other technologies for persistent memories, speed, storage, and expense. This covers technologies 1 and 2 and, therefore, they are closer to the processor. Technologies 1 and 2 cover two types of memories that both include random access memory (RAM), which allows the processor to access any part of the memory in any order. Technology 2 is called DRAM, and technology 1 is called SRAM. Let us explore each one in turn.
Memory: DRAM
As you now know, the memory stores instructions and data, which are presented as 1s and 0s. One type of memory, dynamic random access memory (DRAM), consists of a large number of capacitors. A capacitor is a very small electrical component that stores an electrical charge. A capacitor can be in one of two states: either it holds a charge, in which case we say that a 1 is stored in this capacitor, or it does not hold a charge, which means a 0. With millions of capacitors, we can store a large number of 1s and 0s. This is what you find in the specs of your laptop; when you say that you have 32GB of RAM, it means there are about 32 billion bytes in memory. Each byte consists of 8 bits. Each bit requires a capacitor.
Capacitors have a not-so-great characteristic though. When a charge is left on a capacitor for some time, the capacitor starts discharging and loses its charge. This means we lose the data stored in memory. Because of this, there is circuitry built inside the DRAM that, every few milliseconds, checks the capacitors and adds a charge to them. We call this the refresh cycle. It is done dynamically, hence the name dynamic RAM or DRAM.

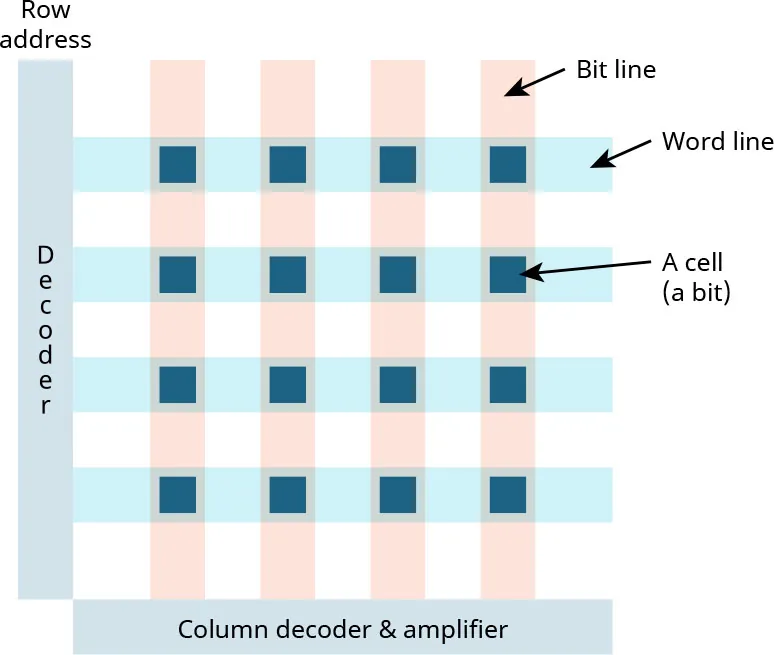

The capacitors are not standalone by themselves. Transistors are used with them to help organize those capacitors into rows (also called word lines) and columns (also called bit lines) for addressing specific bits. Figure 5.21 shows a simplified view of DRAM. The cell, which stores 1 bit, is made up of the capacitor and some transistors.

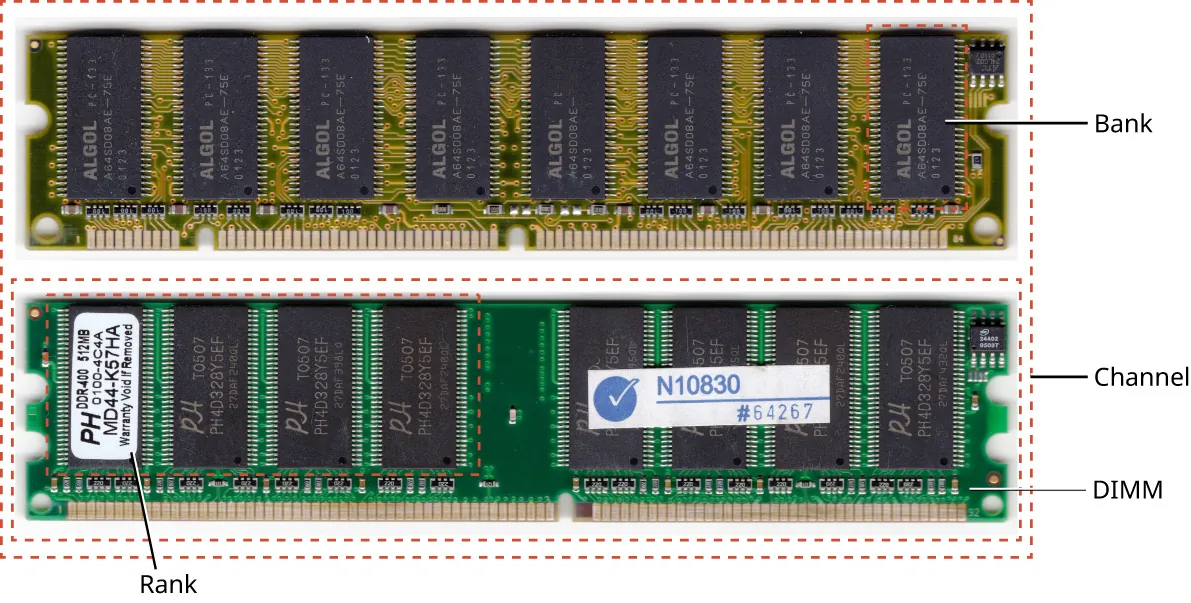

What is shown in Figure 5.21 is called a bank. Every few banks form a chip. Every few chips form a rank. A small memory board that contains several memory banks is a dual in-line memory module (DIMM). Several DIMMs form a channel. This organization is shown in Figure 5.22. The reason for having this organization is twofold. First, if we have one huge 2-D array of memory cells, it is too complex, slow, and power hungry, so dividing it into parts makes those parts simpler and that means faster and less power hungry. Second, if there are several memory addresses that need to be accessed and they fall into different banks, for example, the memory can respond in parallel.
You must have heard the term 64-bit machines, right? Most of our computer systems nowadays are 64 bit. One of the definitions of this term is that the connection between the processor and the memory has 64-bit width; its memory can send the data to, or receive data from, the processor in chunks of 64 bits.

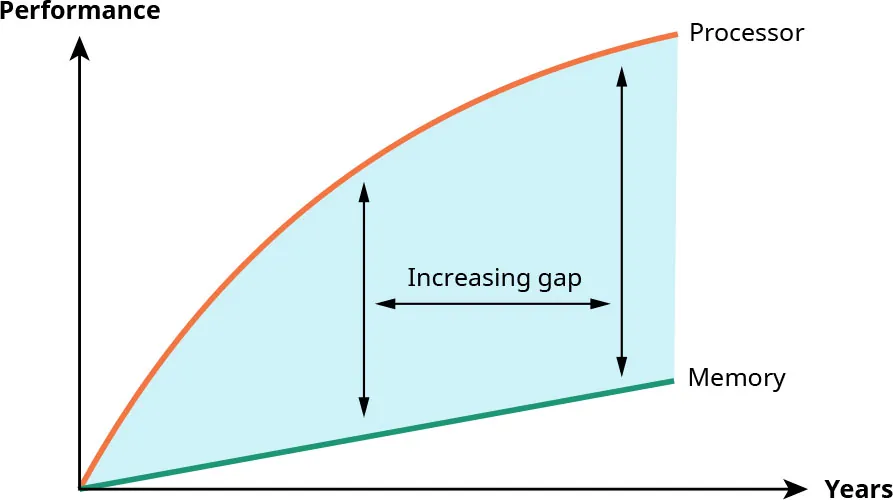

The curve that we saw in Figure 5.19 shows the slow speed increase of the DRAM, which affects the performance of the overall system. If the processor must go to the memory for every instruction and every piece of data, the overall system performance is very low; therefore, computer designers speed things up by using a faster technology together with the DRAM. This faster technology, technology 1 in Figure 5.20 is called the SRAM.
Memory: SRAM
There are several reasons for the slow speed of getting the data from DRAM to processor. One is the much slower speed of DRAM technology relative to the processor. The second reason is that going off the chip that contains the processor and to the bus to reach the DRAM memory is a slow process. To overcome this, we need to have a faster memory technology inside the chip together with the processor.
The solution is to use static random access memory (SRAM) which keeps data in the computer’s memory for as long as the machine is powered on. This means it does not need a refresh like the DRAM and is designed with a faster technology than DRAM. However, SRAMs are bigger in area; a single bit requires a large area in the chip as it needs four to six transistors, which is much larger than the capacitor in DRAM. Moreover, inside the chip we do not have a lot of space due to the existence of the processor itself. So, SRAM is a small, fast memory inside the chip that is connected to the processor from one side and to the DRAM off-chip from the other side, as shown in Figure 5.23. The DRAM is in the range of 8–64GB, while the SRAM starts from the KB range to a few MBs.
One important distinction between the cache memory and the DRAM is that the former is programmer-transparent (i.e., its use cannot be managed by the programmer), but the latter is not. Your laptop has 32GB of RAM, which is the size of the DRAM, but you may not know how much cache your processor has. However, if you know how the cache works, you can write more efficient programs as we learn when we talk about locality.

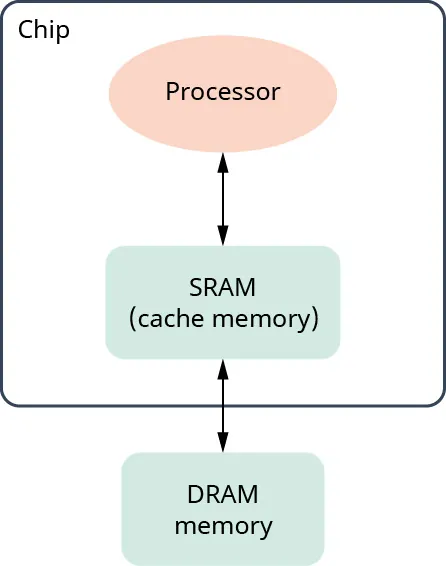

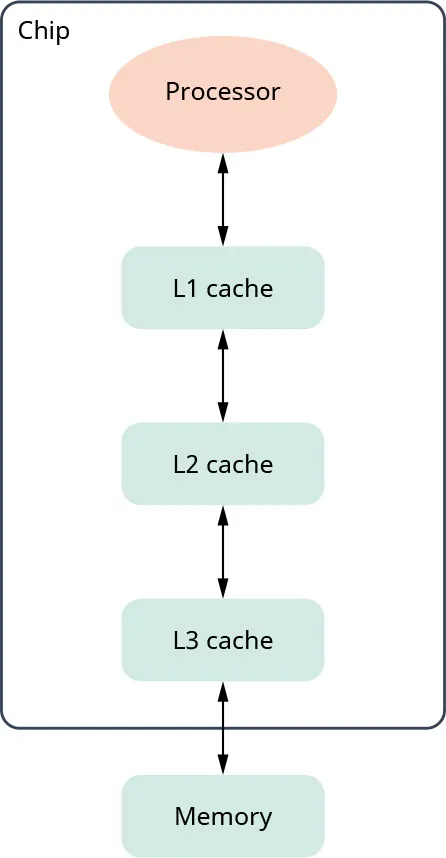

In Figure 5.23, SRAM is more commonly referred to as cache memory, which is the memory that allows for high-speed retrieval of data. Let us see how the cache and the DRAM memory work together. From now on, whenever we say cache we mean the SRAM, and whenever we say memory, we mean the DRAM.
Suppose the processor executes a program that accesses array A consecutively. The processor starts with A[0] and asks the cache memory whether it has A[0]. Initially the cache is empty, so it does not have the needed data which is called a cache miss. The cache then gets the data from the memory. But instead of just getting A[0], it gets A[0], A[1], A[2], …, A[x]. The number of extra elements the cache brings depends on the design of the cache. In most processors available now, the cache usually brings 64 bytes from the memory. So, if array A is an array of integers, that is, each element is 4 bytes in length, then the cache brings 16 elements from the memory, from A[0] to A[15]. The processor gets the A[0] it wants, and the extra elements brought from memory, which are in the cache. Now, if the processor wants A[1], it finds it right away in the cache, which is called a cache hit. However, if the processor instead needs A[17], then we have another cache miss and the cache gets to the memory again to bring several elements, including A[17].
Both the SRAM and DRAM, or cache and memory, are volatile—whenever there is a power perturbation or the machine runs out of battery, everything in the cache and the memory is gone. And we cannot build a full-fledged computer with volatile memory only; we need persistent storage too.
Storage Technologies
Storage exists in computer systems to ensure that data continues to exist even after the computer is powered off. Storage, presented as technologies 3 and 4 in Figure 5.20, has few characteristics that differ from DRAM and SRAM (technologies 1 and 2). The first, and most important one, is that they are persistent—they are non-volatile. The second characteristic is that they are slower in speed than DRAM and SRAM but have lower costs and higher capacities. It is to be noted that technologies 3 and 4 do not have to exist together in a computer system; you can have a computer with either or both.
Besides the storage that exists inside the computer system, there is a lot of storage in the cloud. That is, storage does not exist in your computer, but you can access it through the Internet. This storage is managed by big tech companies. For example, we have Azure from Microsoft, AWS from Amazon, Google Drive from Google, and so on. These companies are serving millions of users and are isolating users’ data from each other. There are techniques to make each user access cloud storage and even software in the cloud.
Now, it is time to give them names. Technology 3 is called a solid state disk (SSD) and technology 4 is called hard disk drive (HDD). What are the differences and where does the commonly encountered term “flash drive” fit in? Let us start with the older technology first.
Hard Disk

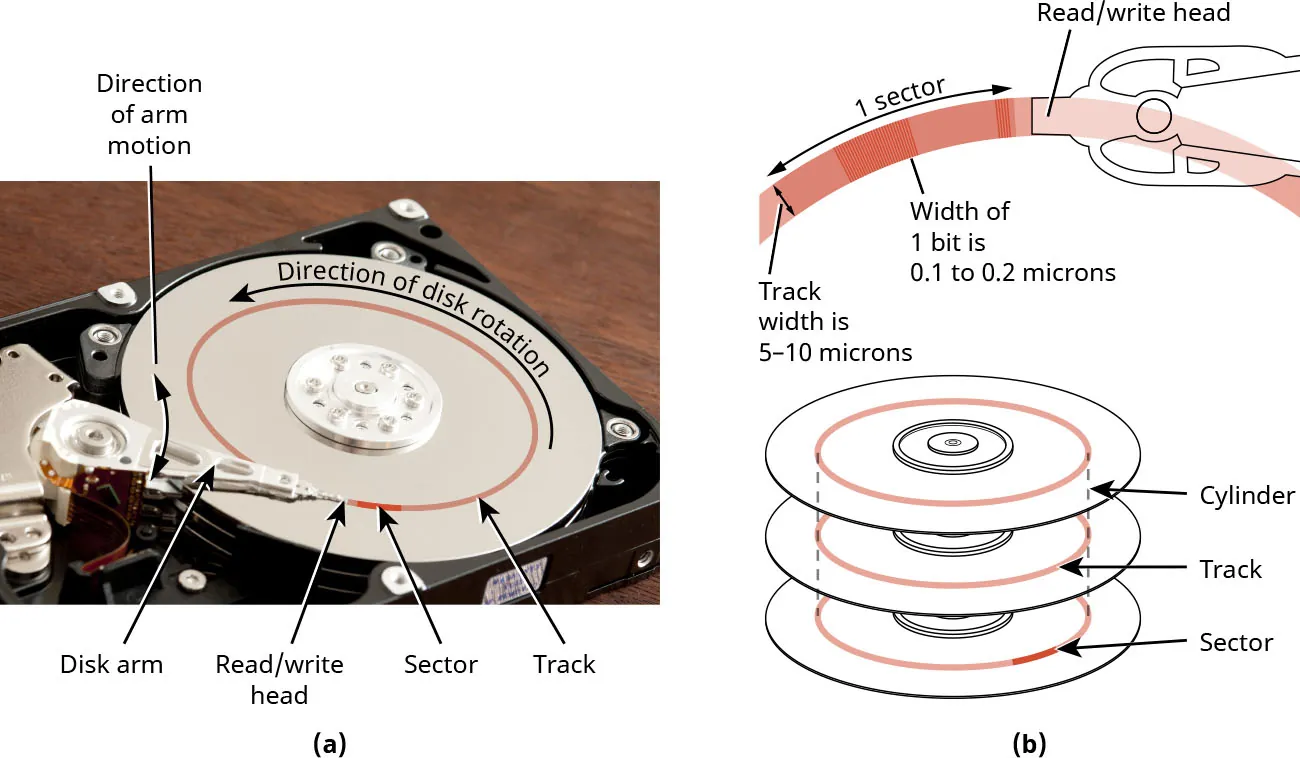

Hard disks were the main storage solutions for all computers in the 1980s, 1990s, and until the mid-2000s. A hard disk drive (HDD) stores data on a rotating platter, has a very large capacity, and uses a small motor to rotate platters to get the data. You can easily buy an 8TB disk for a modest amount of money. The industry took about 25 years to move from 5MB disk to 1TB, and only two years to go from 1TB to 2TB, and, after that, the capacity increased by a whopping 60% per year. So, we have a very ample size with a low price but also a very slow disk. It is several orders of magnitude slower than the DRAM memory. The reason is shown in Figure 5.24. The main reason the disk is slow is due to the mechanical movement. Therefore, computer designers have been looking for storage that does not need mechanical movement drives and that does not have any moving parts.
Solid-State Drive
The term solid state means that a system does not have moving parts and is expected to be fast. A solid-state drive (SSD) stores data on a chip and is two to three orders of magnitude faster than HDD. SSD has two main parts: the storage itself and the circuitry that accesses the storage. Nowadays SSDs use a storage technology called flash memory, which is a type of nonvolatile storage that can be electronically erased and reprogrammed. It is what you use in your thumb drives, just a bit faster. Flash memory in SSDs is based on NAND gates. A NAND gate is a type of logic gate used to store bits in flash memory. Flash memory is organized as pages, and a group of pages is called a block.
The circuitry that controls the flash memory, called the translation layer, has an important function. It maps the addresses to pages. One of the disadvantages of storage cells that make a page is that they wear out after 100 thousand to 1 million accesses. So, the translation layer tries to change the mapping to ensure that accesses are equally distributed among different cells. This is a complicated process and is one of the reasons SSDs are more expensive than HDDs. The sequential read from SSD reaches 7000 MB/s and the sequential write reaches 5000 MB/s. Random access to SSD has lower speed for reads and writes.
Link to Learning
Most laptops now have SSD storage, so it is good to know how SSD really works. Watch this video for a succinct explanation of how SSD works in the context of smartphones.
More About Cache Memory
As you have learned, cache memory is used as a fast, small memory inside the processor to close the gap between the processor speed and the memory speed. Given that latency is the rate of data transfer, assume DRAM memory’s access latency is M cycles and the cache access latency is m. Also assume that for a specific program the probability of cache hits = p. Then the average latency of the combined cache + Memory = mp + (1 – p)(M + m) = m + (1 – p)M.
Remember that whenever there is a cache miss, we have already spent m cycles searching the cache, then we go to the memory, which takes another M cycles. If we look at the equation m + (1 – p)M, we see that to get good performance, we need to do one or more of the following things:
- Have a faster cache and lower m.
- Increase cache hit rate and reduce p.
- Have a faster memory and lower M.
To have a faster cache, we must make it smaller in capacity, but smaller cache decreases hit rate, which is the number, usually a percentage, of times the cache was used to retrieve data. We cannot easily have faster memory to reduce M so the solution is to have more than one level of caches. Level 1 (L1), closest to the processor, is small in capacity and very fast but with a potentially low hit rate. When there is L1 cache miss, instead of going to the memory off-chip, we go to L2 cache, which is still on chip and bigger in capacity than L1. Most processors now have up to three levels of caches, as shown in Figure 5.25.
Locality
Throughout our discussion of the memory hierarchy, we have determined the following:
- Memory is read in a chunk of consecutive 64 bits which is 8 bytes.
- Whenever there is a cache miss, the cache works to bring a cache block, not the few bytes the processor needs. Most caches now have a cache block of 64 bytes. Those 64 bytes are consecutive bytes brought from the lower-level cache, that come from the even lower cache (i.e., from L3 to L2 to L1). The L3 cache brought the block from memory.
When a processor repeatedly visits the same memory locales, it has locality. We can surmise that if a program accesses the data in a consecutive manner, it gets better performance, called spatial locality. Also, if we reuse the data as much as possible, we get better performance because the data is available in the cache, and we can increase the cache hits. We call this second criteria temporal locality.
We can get even better performance if the programmer writes efficient code that makes the best use of the underlying hardware. An efficient program has a very important characteristic called locality. For example, if you want to add two arrays together (i.e., A[0] + B[0], A[1] + B[1]), then you get a good performance if you access these two arrays sequentially from element 0 until the end of the arrays which is an example of spatial locality. So, whenever you are writing a program, pay close attention to how you access the data.
Instructions also reside in memory. If we have a for-loop that is executed several thousand times, the instructions in the loop body are reused in every iteration which is an example of temporal locality.
