Learning Objectives
By the end of this section, you will be able to:
- Discuss the history and advancements in traditional processor architectures and computation models
- Define heterogeneity and discuss its effect on computer systems
Processors have a relatively short history that starts in the late 1960s; however, there have been big jumps since then. In this section, we learn about the evolution of processors from the dawn of processor design until today. The main measures of success of processors involve correctness, speed, power, reliability, and security.
Speed has been the main measure of success for some time. But then computer designers began to worry about battery life (for portable devices) and the electricity bill (for big machines) so power became a pivotal issue. As computers have invaded almost all aspects of our lives, reliability has become a must because we do not want computers to fail. With the widespread use of the Internet and peoples’ need to be connected all the time, security has also become an issue.
Homogeneous Processor Architectures
The current processors contain several CPUs inside the chip. If these CPUs are copies of each other, the design is homogeneous. If there are different types of CPUs, some are fast but power hungry while others are slow but power efficient, the design is called heterogeneous. An example of heterogeneous processors is the chip inside the latest MacBook Pro.
In its earliest version, a processor was just a big, bulky, black box that got its instruction from memory, executed it, got the next instruction, and so on. What was bad about this simple design? First, having one big bulky circuit made it slow and power hungry. Second, not all instructions took the same amount of time; a floating-point computation took as much as ten times longer than an integer computation. But since this design was one box working with one clock, the clock cycle had to be as big as the slowest instruction. The processor executed at the speed of the slowest instruction; therefore, even though the design was simple, it suffered from performance and power issues. However, physics came to the rescue.
Concepts In Practice
Social Media and Supercomputers
Billions of people use social media sites such as Facebook, X (formerly Twitter), YouTube, and Instagram every day and at the same time. This means we need supercomputers that can serve all these people, store and manipulate huge amounts of data in a short time, and not go down. This cannot be done with a simple multicore; it requires millions of multicores and thousands, if not millions, of accelerators such as GPUs, TPUs, and FPGAs.
Moore’s Law and Dennard Scaling
In 1965, Gordon Moore (cofounder of Intel) published a short paper that predicted that the number of devices inside the processor would double every 18 months, called Moore’s law. Since transistors are the building blocks of logic gates, and logic gates are the building blocks of pieces such as adders, multipliers, and registers, then more transistors would mean more features implemented in the processor, hopefully leading to better performance. More transistors inside the processor’s chip meant that transistors would get smaller in size, and smaller transistors would mean faster transistors. Not only that, but Robert Dennard from IBM found that as transistors got smaller, the power consumed and dissipated was also reduced in a phenomenon known as Dennard scaling.
Traditional Processor Architectures

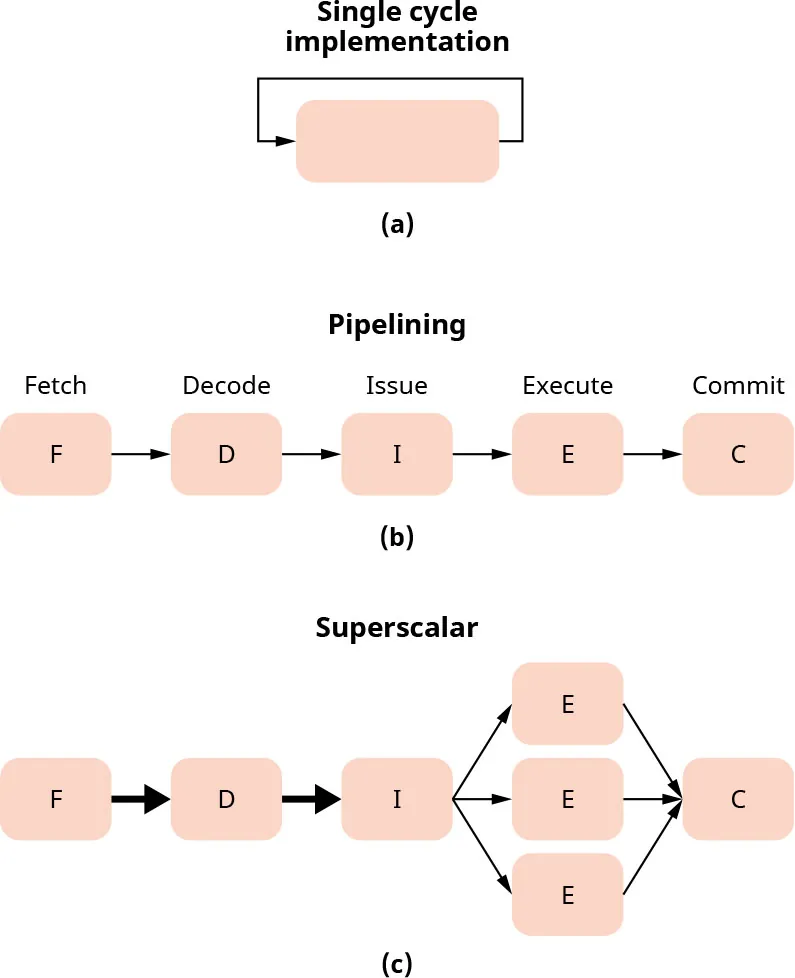

Figure 5.26 shows how the processor evolved from the single cycle implementation to more sophisticated and higher performance designs thanks to Moore’s law and its enabling technology, Dennard scaling.
If you think about what this bulky box in Figure 5.26(a) really does, you reach the following conclusion: it does few things repetitively with each instruction. It fetches an instruction from memory, decodes this instruction to know what needs to be done, and issues the instruction to the correct execution units (e.g., an integer operation to the integer execution unit and a floating-point operation to floating point execution unit).
After execution, it writes the result of the operation back to a destination specified by the instruction, which is called the commit. Given this description, why not take the bulky piece of hardware in Figure 5.26(a) and divide it into these pieces: fetch, decode, issue, execute, and commit? Each piece does the work needed by the following piece in a technique called pipelining, with each piece called a phase (Figure 5.26(b)). What do we gain from this?
First, each phase is now much less complicated, less power hungry, and faster. Second, once the fetch phase finishes fetching the first instruction and hands it to the decode phase, the fetch phase hardware is now free to fetch the second instruction. By the time the decode phase is done with instruction 1 and hands it to the issue phase, the fetch phase hands to it instruction 2 and starts fetching instruction 3, which is a form of parallelism.
If we take a snapshot of the pipeline during the execution of the program, we find different pipeline phases working on different instructions. We call this type of parallelism temporal parallelism. The benefit is that this parallelism—or better performance—is done with no involvement from the programmer. The hardware is doing it for you.
With more and more transistors available, designers move to executing several instructions at the same time, which means that several execution units are needed. The other phases must be modified to fetch/decode/issue several instructions at the same time, which is referred to as capability as shown in Figure 5.26(c). Another type of parallelism is superscalar capability, which is an execution unit that allows several instructions to be executed at the same time using another type of parallelism, spatial parallelism. If you look closely at Figure 5.26(c), you realize it combines both the temporal parallelism (from pipelining) and spatial parallelism (from superscalar capability).
The next step in enhancing a processor’s performance is to fetch instructions from more than one thread, and you can technically execute two or more programs on the same processor at the same time. This is called simultaneous multithreading (SMT), which Intel calls hyperthreading technology.
This last enhancement was introduced in the early 2000s, but something happened around 2004 that pushed both the hardware and software communities to change gears. Dennard scaling stopped and designers kept increasing the frequency of processors to make them faster. This led to a complete stall because increasing frequency resulted in drastic increases in power consumption.
Multiple Cores
With the stop of Dennard scaling and the inability to increase the frequency of the processor, it was time for a drastic change. On one chip, instead of putting one processor, designers decided to put multiple processors called cores inside the same chip which started the multicore era. All the processors we use today, from our watches to big supercomputers, are multicore processors.
The trend is to increase the number of cores per chip while decreasing their frequency. Each core in the multicore is an SMT to avoid an increase in power consumption as well as an increase in chip temperature. There is one catch though; all previous techniques (such as pipelining, superscalar, and SMT) were giving us performance without the programmers getting involved. To make use of all the cores in the chip with multicore, programmers must write parallel code that requires the use of a parallel programming language. This is bound to become the norm.
Link to Learning
Microprocessors (also known as processors) have evolved in the last half century in many ways. Visit this site to learn more about microprocessor trend data from 1970 to the present.
Heterogeneous Processor Architectures
Multicore processors are designed to be good on average for most applications. However, they do not give the best performance for every single program. Designers have started introducing chips that have excellent performance, better than multicore, but for a small subset of program types. Examples of these chips are graphics processing units (GPUs), field programmable gate arrays (FPGAs), and tensors processing units (TPUs). The idea is to start the program on a multicore until there is a part where other chips excel. In that case, the multicore sends that piece of code to the other chips, and this gives rise to parallel programming for heterogeneous systems (i.e., computer systems that have chips with different capabilities). Laptops can now have a multicore plus GPU.
Multiple Nodes
Having multicore plus accelerator chips (e.g., GPUs) on the same board is now the norm and is called a node. But what about big machines that run in the cloud to give us services such as Amazon, Facebook, and X (formerly Twitter)? These big machines are built using thousands, if not millions, of nodes and they need an even more sophisticated way of programming.
