13.4 Towards Intelligent Autonomous Networked Super Systems

Enhanced Learning Experiences

Mixed reality can provide visuals and relatable examples to help students perceive theoretical information in complex topics such as biology, anatomy, physics, and math. Medical students can learn anatomy and practice examining the body with XR apps that represent the human body inside and out. Chemistry students can conduct experiments using different chemical combinations and see results with no harm to students and school property. Nursing students can use simulations to learn and prepare for unique situations that they’ll encounter in clinical settings. Students can also take field trips to museums, exhibitions, and theaters all over the world without leaving the classroom.

In-Person Patient Care Applications

In operating rooms, clinics, hospital wards, and medical training settings, mixed reality speeds up diagnoses, increases access to health-care facilities, cuts down on infection transmissions, and improves medical care outcomes. XR enables holographic overlaying of images and data onto real-life situations such as surgical operations, remote consultation, and treatment, opening new avenues in health care.

In cardiology, initial XR health-care applications created interactive visualizations that enabled pediatric cardiologists to virtually demonstrate complex congenital heart problems to their students and patients. XR techniques reduce the time required to diagnose cardiology issues, and surgeons who use Microsoft HoloLens headsets during procedures can interact with the hologram using hand movements and benefit from a wider field of view, which improves surgical outcomes. In one application, XR technology enables surgeons to see patients’ 3-D computed tomography (CT) and magnetic resonance imaging (MRI) scans directly. This will make it easier for surgeons to identify the exact area of the patient’s body that needs surgery. This could be especially beneficial for emergency surgeries that must be performed as quickly as possible to save a patient’s life. Preoperative simulations are made easier with XR, which creates customized 3-D models for each patient and visualizes the inside anatomy in a fully immersive environment. In complex surgical operations such as reconstructive surgeries, holographic overlays can substantially help surgeons examine the bones and determine the flow of blood arteries. XR may also be helpful for pain relief. In Denmark, Aalborg University researchers studied the potential of XR to provide pain relief for phantom limbs. It may be possible to delude the brain of a person with an amputation into thinking it still controls their missing limb, which may assist in reducing the agony associated with phantom limbs.

Telemedicine

Using XR headsets and 3-D XR, medical practitioners are able to review patient histories vocally, discuss with medical specialists, and record patient records. XR-powered headsets can eliminate the need for doctors to review written reports, analyze patient data, and deliver findings in real time, resulting in faster and more precise diagnostics.

XR may also provide paramedics with remote support to address emergencies. With XR, paramedics can remotely get support from senior medical professionals. This can help them make more accurate and faster medical decisions, efficiently provide emergency medical aid, and improve patient outcomes.

Lastly, XR can help provide remote care to patients with mobility issues. It can also visually project simulations for different situations, offer ease of access to facilitators remotely, increase patient engagement by providing a safe and controlled immersive environment, and leverage telehealth appointments.

Therapeutic and Mental Health Applications

The Autism Glass Project at Stanford University’s medical school used XR to help children with autism manage their emotions and identify related facial expressions. There are many other possible applications of the same technology, including the use of VR psychotherapy to address mental health conditions and disorders and treat the cause rather than the effect of such disorders by combining VR technology with big data analytics, cloud computing, machine learning, IoT, and blockchain. Affective Interaction through Wearable Computing and Cloud Technology (AIWAC) technology provides a full-stack solution aiming at effective remote emotional health-care assistance. The solution components allow collaborative data collection via wearable devices, enhanced sentiment analysis and forecasting models, and controllable affective interactions.

Other Applications of XR Technology

As the metaverse evolves, XR-driven technology may be applied in various industries for uses such as the following:

• equipment assembly, maintenance, and repair
• engineering and architectural design (e.g., experiencing a virtual building before it is built)
• market research (e.g., experiencing a virtual product that does not yet exist)
• entertainment (e.g., cinema, music, and sports)
• product advertising and promotion
• computer games

Mixed reality technology also has the capacity to promote social good. For example, applications that combine XR with other innovative technologies to support people with disabilities have already been developed, including technology that alerts people who are blind when rapidly moving objects are headed in their direction.

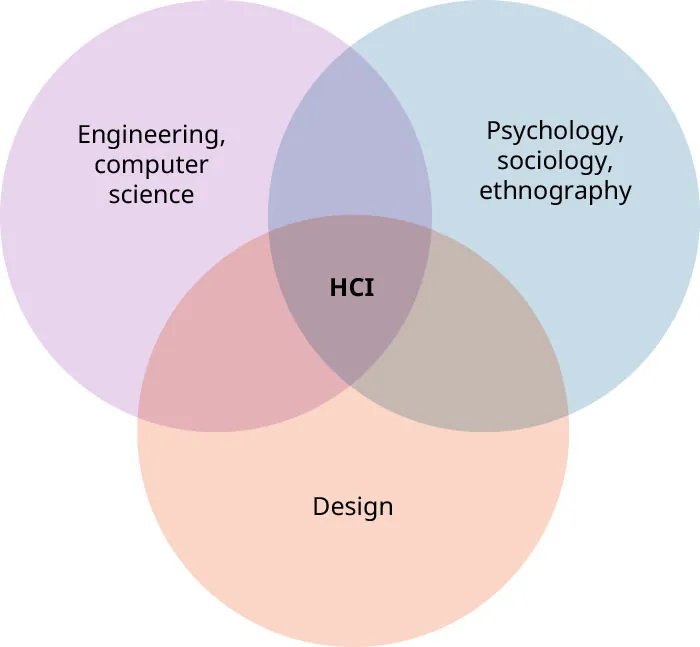

Human Computer Interaction (HCI) Guidelines for Immersive Solutions

The most important solution development steps in HCI are to define the context. This includes the type of uses and applications—such as industrial, commercial, and exploratory—as well as the market and the customer. The context is not the specific local environment, but rather the larger type of world that the system needs to exist in. This includes the users’ physical attributes, physical workspaces, perceptual abilities, cognitive abilities, personality and social traits, cultural and international diversity, and special abilities or disabilities. It also includes task analysis to understand what users need and want to do with technology. Other steps involve function allocation, system layout/basic design, mockups and prototypes, usability testing, iterative testing and redesign, and update and maintenance.

Similar to mobile solutions, immersive products must go through a series of prototypes to ensure stabilization, feasibility (a single logic path), alpha prototype (minimum viable product), beta prototype (largely complete), and release candidate (all required functionality) ready for product owner review. Quality measurement checklists and design best practices are different for web, mobile, and immersive solutions.

Software Robots

Software robots, or bots (e.g., web crawlers, chatbots), are computer programs that operate autonomously to complete a virtual task. They are not physical robots; instead, they exist only within a computer.

Another field of robotics, cognitive robotics, is a field that creates robots that can think, perceive, learn, remember, reason, and interact. It focuses on creating robots that mimic human perception, reasoning, and planning abilities. One subspecialty, biomimetic robotics, focuses on the design of robots that leverage principles common in nature, such as what can be learned from the evolution and development of intelligence in animals and humans. Recent progress and directions in AI, machine learning, and cognitive science drive the focus of the next generation of robotic systems. Figure 13.18 shows how these areas overlap.

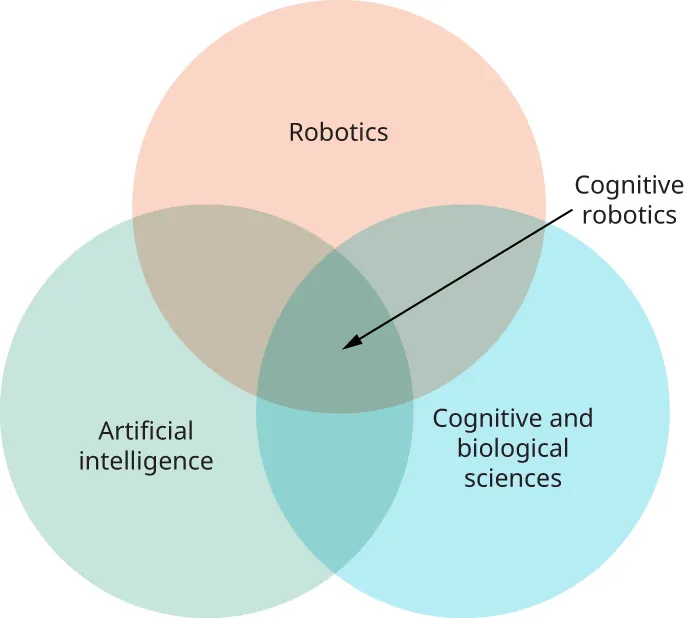

Figure 13.18 Cognitive robotics draws from the fields of cognitive and biological sciences and artificial intelligence, as well as robotics. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

The intent of cognitive robotics is to replace humans in dangerous environments or manufacturing processes or resemble humans in cognition, enabling robots to do jobs that are hazardous to people. Cognitive robotics aims to improve robots’ perception capabilities as they navigate and manipulate objects in a given environment and interact with people. It also makes it possible for robots to perform tasks by predicting the actions of people around them as well as their own. Cognitive robots can also perceive how people see the world, predict what they need, and anticipate their actions. This explains how these robots can execute daily tasks while interacting safely with people. They are capable of direct interactions, such as assisting customers, as well as indirect interactions, such as sweeping the floor while customers are shopping in a store.

Intelligent mobile robots that can move independently were introduced during the Second World War. Following the implementation of artificial intelligence (AI) in robotics, they became autonomous or more intelligent. Figure 13.19 provides a list of components and architecture of modern intelligent robots.

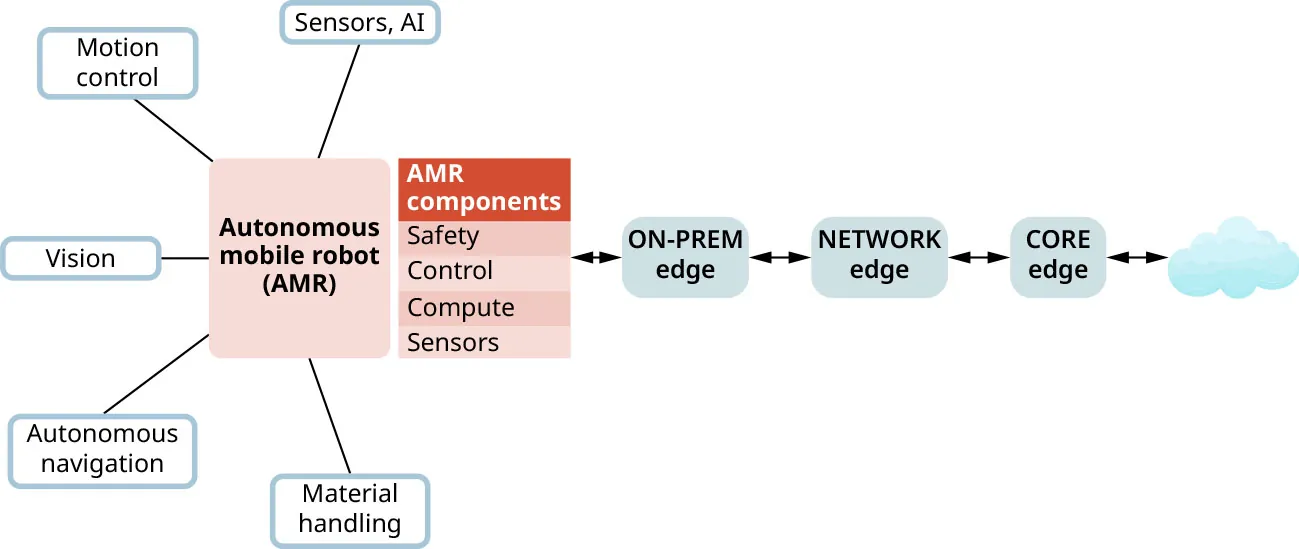

Figure 13.19 Modern, intelligent robots rely on various components and architecture to function as intended. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

Robot Operating System

The Robot Operating System (ROS) is a meta-operating system specially designed for robots. It is open-source and supports a variety of services to control robotics hardware, provide hardware abstractions, and perform common tasks. It can also help manage software packages and pass messages from one process to another. ROS also includes various libraries and tools to facilitate the selection, development, and operation of software modules across various computers.

Robot Manipulators and Mobile Robots Characteristics

Robots include robot manipulators and mobile robots. A robot manipulator is a physical tool that operates at a fixed location to catch and move items. A mobile robot is one that can navigate from one position to another. Robot manipulators face the challenge of being able to pick and place objects with a sufficient degree of precision, while mobile robots must be able to estimate relative and absolute robot positions and navigate on a map.

Mobile robots are used in applications such as medical treatment, mail delivery, infrastructure inspections, and passenger travel. For example, Nao is a humanoid robot that is specially designed to interact with humans. It is loaded with sensors that enable it to mimic emotions. It can recognize people’s faces as well as objects and can speak, walk, and dance. Nao was created by Aldebaran Robotics, which was acquired by SoftBank in 2015. Sixth-generation Nao robots are used in research as well as in the health-care and education industries.

Atlas is one of the most agile robots in existence. It uses whole-body skills to move quickly and balance dynamically. While Atlas can lift and carry objects such as boxes and crates, the robot can also run, jump, and do backflips.

Zipline is an autonomous fixed-wing aircraft drone used to carry blood and medicine from a distribution center to wherever it is needed. It can launch within minutes and travel in any weather.

As these examples show, mobile robots have many applications. Figure 13.20 provides an overview of the fields and industries that find mobile robots useful.

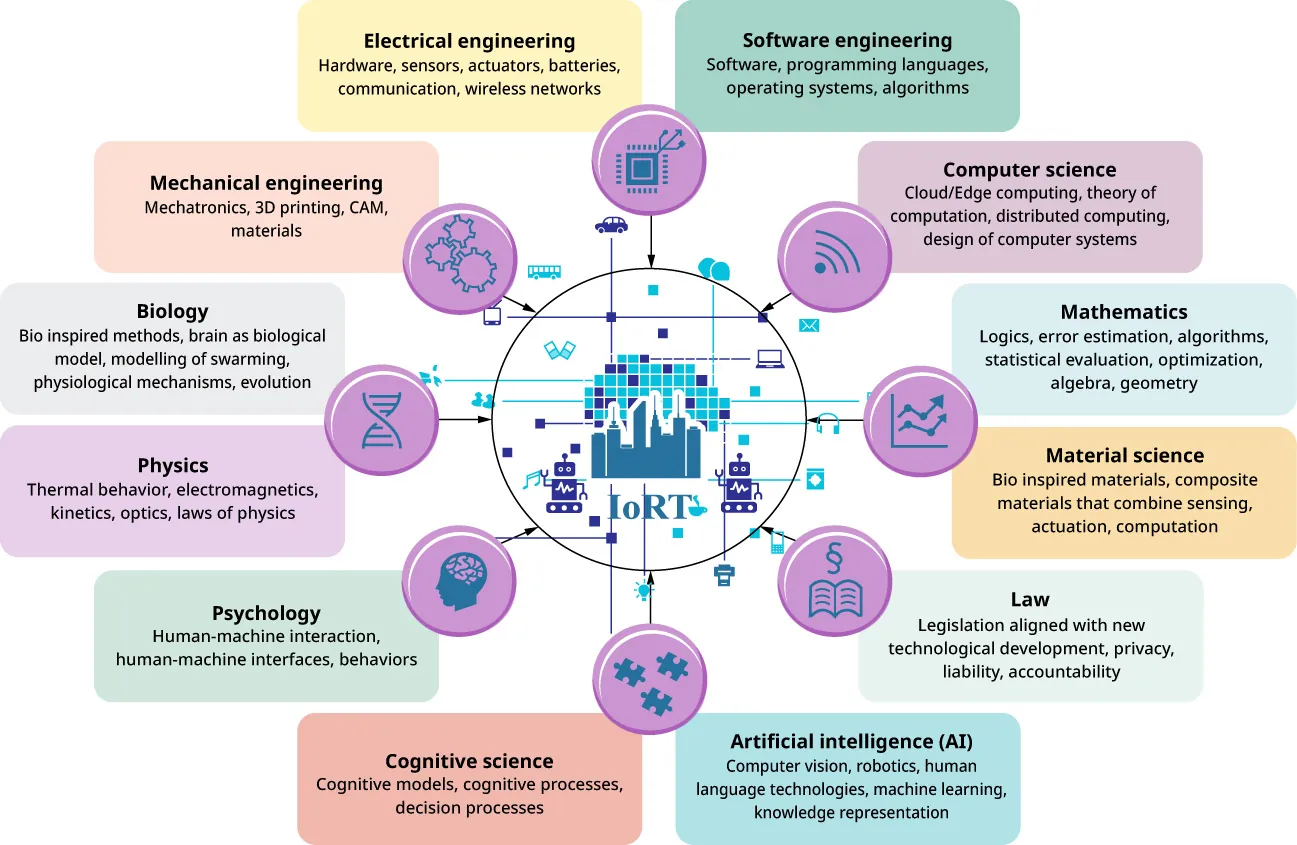

Figure 13.20 Mobile robots have a variety of applications in various fields and industries, including engineering specialties, science, mathematics, and law. (credit: Copyright © 2020 Vermesan, Bahr, Ottella, Serrano, Karlsen, Wahlstrøm, Sand, Ashwathnarayan and Gamba. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.)

Computer Vision and Cognitive Robotics

Computer vision advances have facilitated the positioning and navigation of mobile robots. Computer vision is achieved using optics and sensors, which involve image acquisition, image representation, and image processing.

Artificial Cognitive Systems

Robots need artificial cognitive systems that simulate human thought processes to supplement human cognition. Artificial cognitive systems are developed using algorithms in artificial intelligence and technologies such as machine learning, deep learning, speech recognition, and object recognition.

Cognitive Sciences and Neuroinformatics

The computing approach that combines the use of AI and cognitive science is called cognitive computing. The study of how to build a computer that can mimic basic human brain functions is called neuroinformatics. This requires robots’ ability to handle ambiguity as well as uncertainty. Robots that are equipped with these capabilities can mimic humans’ ability to memorize information, learn, reason, react, and show emotions.

Table 13.3 outlines related areas in cognitive sciences and technology support.

Desired features of cognitive computing systems include the following:

• adaptive learning, which is learning as information changes and as goals and requirements evolve, resolving ambiguity and tolerating unpredictability
• interaction with users, allowing users—which may include other processors, devices, and cloud services, as well as people—to define their needs as a cognitive system trainer
• ability to be iterative and stateful, which means the system may remember previous interactions and may redefine a problem by asking questions or finding additional source input if a problem statement is ambiguous or incomplete
• contextual in information discovery, which means the system may understand and extract meaning, syntax, time, location, appropriate domain, regulations, user profiles, process, tasks, and goals, and respond to sensory inputs with visual and gestural effects

The real-world applications of cognitive systems include speech understanding, sentiment analysis, facial recognition, election insights, autonomous driving, and deep learning applications. Deep learning, in particular, requires specific hardware, including graphic processors, digital signal processors, field programmable logic devices, systems on a chip, custom microchips, and application-specific integrated circuits. Some of the providers of deep learning hardware include the Google Neural Machine Translation System (GNMT), Google Cloud’s Tensor Processing Unit (TPU), TensorFlow, Cambricon’s Neural Processing Unit (NPU), Intel’s Movidius Neural Compute Stick (NCS), the Intel Movidius Neural Compute SDK, and Intel’s Movidius Vision Processing Unit (VPU).

Neuromorphic Computing

Cognitive science is interdisciplinary in nature. It covers the areas of psychology, artificial intelligence, neuroscience, and linguistics. It spans many levels of analysis, from low-level machine learning and decision mechanisms to high-level neural circuitry to build brain-modeled computers. It applies software libraries on clouds or supercomputers for machine learning and neuroinformatics studies. It uses representation and algorithms to relate the inputs and outputs of artificial neural computers. It also designs hardware neural chips to implement brain-like computers referred to as neuromorphic computers, as illustrated in Figure 13.21.

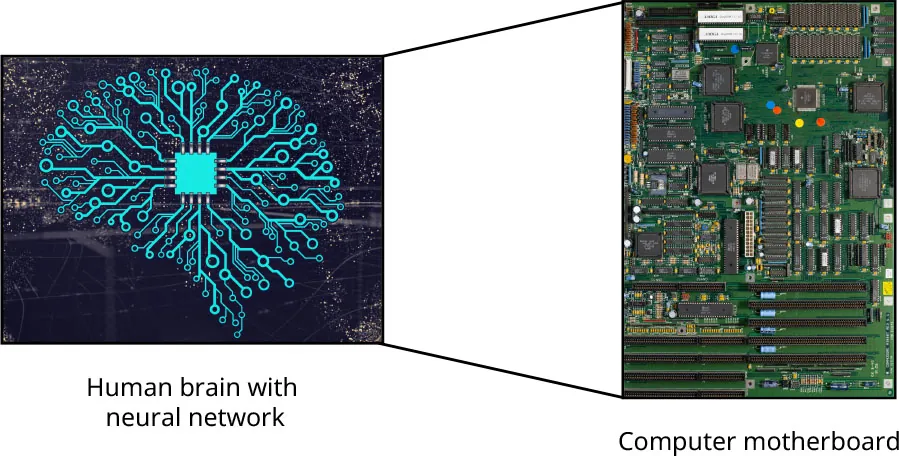

Figure 13.21 As a field, cognitive science has made many advances, including the design of hardware neural chips, such as those pictured here, which are used to implement brain-like computers known as neuromorphic computers. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license; credit left image: modification of “Artificial Neural Network with Chip” by mikemacmarketing/Wikimedia Commons, CC BY 2.0; credit right image: modification of “Amiga 3000T motherboard without annotations” by Podstawko/Wikimedia Commons, CC0)

In 1990, Carver Mead, the Gordon and Betty Moore Professor Emeritus of Engineering and Applied Science for the California Institute of Technology, introduced the term neuromorphic computing, which relies on a hardware architecture that models how the human brain uses neurons. This provides the potential for faster, more complex computations while remaining power efficient. This field of computing emerged to compete with traditional computer architectures. Machine learning became popular, and as it advanced, neuromorphic computing became the best platform for machine learning algorithms. Comprised of a network of neurons and synapses, neuromorphic computing relies on hardware architecture modeled after the human brain. A neuron is a function that operates on an input. A synapse, which processes neuron output and passes a state to another neuron, can be trained to know how to convert neuron output to states. A memristor is a component that remembers the charge of an electric current. Memristors are great for neuromorphic computing as they provide neuroplasticity. Neurons pulse electric signals as input. Output is based on the path taken through the network, and it is a highly connected and parallel architecture that uses side-by-side memory and processing while consuming a low amount of power. Various neuromorphic computing models have been developed on this type of hardware, including the Neuroscience-Inspired Dynamic Architecture (NIDA), Dynamic Adaptive Neural Network Arrays (DANNAs), and Memristive Dynamic Adaptive Neural Network Arrays (mrDANNAs). Intel Labs developed the Loihi 2 neuromorphic chip that is used for research along with an open-source framework known as Lava. Intel’s goal is to facilitate the adoption of neuromorphic computing. Intel Labs’ second-generation neuromorphic research chip, codenamed Loihi 2, and Lava, an open-source software framework, will drive innovation and adoption of neuromorphic computing solutions.

Quantum Computing

Quantum computing has applications in experimental physics. It provides a theory that is more fundamental than Newtonian mechanics and electromagnetism and can explain phenomena that these theories cannot tackle.

A quantum computer is a machine that performs calculations based on the laws and principles of quantum mechanics, in which the smallest particles of light and matter can be in different places at the same time. Information is stored in a physical medium and manipulated by physical processes. Designs of “classical” computers are implicitly based in the classical framework for physics and can only deal with bits, not qubits. This classical framework has been replaced by the more powerful framework of quantum mechanics. In a quantum computer, one qubit (a quantum bit) could be both 0 and 1 at the same time. So, as Figure 13.22 shows, with three qubits of data, a quantum computer could store all eight combinations of 0 and 1 simultaneously. That means a three-qubit quantum computer could potentially process information more efficiently than a classical three-bit digital computer, depending on the algorithm.

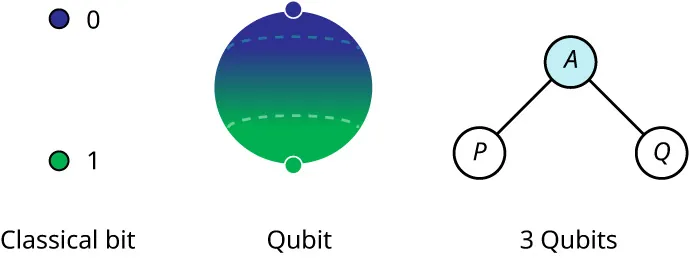

Figure 13.22 In a quantum computer, one qubit, or quantum bit, could be both 0 and 1 at the same time, enabling a quantum computer to store all eight combinations of 0 and 1 simultaneously. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

Typical personal computers today calculate 64 bits of data at a time. A quantum computer with 64 qubits would be 2⁶⁴ faster, or about 18 billion times faster. A bit of data is represented by a single atom that is in one of two states, denoted by |0> and |1>. A single bit of this form is known as a qubit. A physical implementation of a qubit could use the two energy levels of an atom. An excited state represents |1>, and a ground state represents |0>. A single qubit can be forced into a superposition of the two states denoted by the addition of the state vectors:

where α and α are complex numbers and $|\text{α}|+|\text{α}|=1$.

A qubit in superposition is in both of the states |1> and |0 at the same time.

In general, an n qubit register can represent the numbers 0 through 2ⁿ–1 simultaneously. Entanglement is the ability of quantum systems to exhibit correlations between states within a superposition. Imagine two qubits, each in the state |0> + |1> (a superposition of the 0 and 1). We can entangle the two qubits such that the measurement of one qubit is always correlated to the measurement of the other qubit.

However, if we attempt to retrieve the values represented within a superposition, the superposition randomly collapses to represent just one of the original values. This means that a wave function changed and instead of the superposition state continuing, the superposition has collapsed into a single state that has a defined value representing only one of the original values.

In the classical computing model, a probabilistic Turing machine (PTM) is an abstract model of the modern (classical) computer. The strong Church-Turing thesis states that a PTM can efficiently simulate any realistic model of computing, meaning that if a problem is difficult for a PTM, it must also be difficult for any other reasonable computing model. For example, factoring is believed to be hard to perform on a Turing machine (or any equivalent model). We do not know whether there is some novel architecture on which factoring is easy. Because we lack certainty, we assume that certain computational problems, such as factoring, possess inherent complexity regardless of the effort put into finding an efficient algorithm.

In the early 1980s, Richard Feynman noted that it appeared unlikely for a PTM to efficiently simulate quantum mechanical systems. Because quantum computers operate as quantum mechanical systems, the model of quantum computing appears to challenge the strong Church-Turing thesis.

Possible applications of quantum computing include efficient simulations of quantum systems, phase estimation, improved time-frequency and other measurement standards such as GPS, factoring and discrete logarithms, hidden subgroup problems, and amplitude amplification. Possible implementations of quantum systems include optical photon computers, nuclear magnetic resonance (NMR), ion traps, and solid-state quantum. The optical photon computer operates through the interaction between an atom and a photon inside a resonator, while another approach employs optical devices such as a beam splitter and mirror. NMR represents qubits using the spin of atomic nuclei, with chemical bonds between these spins manipulated by a magnetic field to simulate gates. The spins are initialized by magnetization, and measurement is achieved by detecting induced voltages. Currently, it is believed that NMR will not scale beyond about twenty qubits. However, in 2006, researchers reached a 12-coherence state, showing that scalability up to 12 qubits is feasible using liquid-state nuclear magnetic resonance quantum information processors. Ion traps form qubits using two electron orbits of an ion (charged atom) confined in a vacuum by an electromagnetic field. Additionally, there are two widely recognized solid-state implementations of qubits:

1. A qubit formed through a superconducting circuit using a Josephson junction, which establishes a weak link between two superconductors. A Josephson junction consists of two superconductors separated by a very thin insulating barrier.
2. A qubit formed using a semiconductor quantum dot, a nanostructure ranging from ten to several hundred nanometers in size, designed to confine a single electron.

Many papers have explored various aspects of quantum computing, including detailed language specifications. For more information about any of the following examples, perform some further research.

• Quantum computation language (QCL) by Bernhard Ömer: a C-like syntax and very complete
• Quantum Guarded-Command Language (qGCL) by Paolo Zuliani and others: a high-level imperative language for quantum computing
• Quantum C by Stephen Blaha: currently just a specification
