3.3 Formal Properties of Algorithms

Time and Space Complexity

One way to measure the efficiency of an algorithm is through time complexity, a formal measure of how much time an algorithm requires during execution as it relates to the size of the problem. In addition to time complexity, computer scientists are also interested in space complexity, the formal measure of how much memory an algorithm requires during its execution as it relates to the size of the problem.

Both time and space complexity are formal measures of the efficiency of an algorithm as it relates to the size of the problem, particularly when we are working with large amounts of complex data. For example, gravity, the universal phenomenon by which things attract and move toward each other, can be modeled as forces that act on every pair of objects in the universe. Simulating a subset of the universe that contains only 100 astronomical bodies will take a lot less time than a much larger universe with billions, trillions, or even more bodies, all of which gravitate toward each other. The size of the problem plays a large role in determining how much time an algorithm requires to execute. We will often express the size of the problem as a positive integer number corresponding to the size of the dataset such as the number of astronomical bodies in our simulation.

The goal of time and space complexity analysis is to produce a simple and easy-to-compare characterization of the efficiency of an algorithm as it relates to the size of the problem. Consider the following description of an algorithm that searches for a target word in a list. Start from the very beginning of the list and check if the first word is the target word. If it is, we have found the word. If it is not, then continue to the next word in the list and repeat the process.

The first task is to identify a metric for representing the size of the problem. Typically, time complexity analysis assumes asymptotic analysis, focusing on evaluating the time that an algorithm takes to produce a result as the size of the input increases. There are two inputs to this algorithm: (1) the list of words, and (2) the target word. The average length of an English word is about five characters, so the size of the problem is primarily determined by the number of words in the list rather than the length of any word. (This assumption might not be right if our dataset was instead a DNA sequence consisting of millions of nucleotides—the time it takes to compare a pair of long DNA sequences might be more important than the number of DNA sequences being compared.) Identifying the size of the problem is an important first task because it determines the other factors we can consider in the following tasks.

The next task is to model the number of steps needed to execute the algorithm while considering its potential behavior on all possible inputs. A step represents a basic operation in the computer, such as looking up a single value, adding two values, or comparing two values. How does the runtime change as the size of the problem increases? We can see that the “repeat” part of our description is affected by the number of words in the list; more words can potentially lead to more repetitions.

In this case we are choosing a cost model, which is a characterization of runtime in terms of more abstract operations, such as the number of repetitions. Rather than count single steps, we instead count repetitions. Each repetition can involve several lookups and comparisons. By choosing each repetition as the cost model, we declare that the few steps needed to look up and compare elements can be effectively treated as a single operation to simplify our analysis.

However, this analysis is not quite complete. We might find the target word early in the list even if the list is very large. Although we defined the size of the problem as the number of words in the list, the size of the problem does not account for the exact words and word ordering in the list. Computer scientists say that this algorithm has a best-case situation when the word can be found at the beginning of the list, and a worst-case situation when the word can only be found at the end of the list (or, perhaps, not even in the list at all). One way to account for the variation in runtime is via case analysis, which is based on factors other than the size of the problem.

Finally, we can formalize our description using either precise English or a special mathematical notation called Big O notation, which is the most common type of asymptotic notation in computer science used to measure worst-case complexity. In precise English, we might say that the time complexity for this sequential search algorithm has two cases (Figure 3.13):

• In the best-case situation (when the target word is at the start of the list), sequential search takes just one repetition to find the word in the list.
• In the worst-case situation (when the target word is either at the end of the list or not in the list at all), sequential search takes N repetitions where N is the number of words in the list.

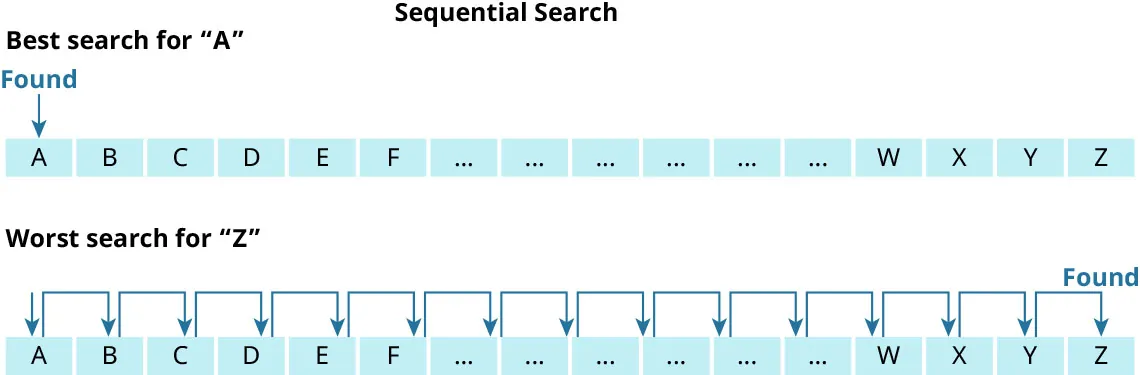

Figure 3.13 The best case for sequential search in a sorted list is to find the word at the top of the list, whereas the worst case is to find the word at the bottom of the list (or not in the list at all). (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

While this description captures all the ideas necessary to communicate the time complexity, computer scientists will typically enhance this description with mathematics to convey a geometric idea of the runtime. The order of growth is a geometric prediction of an algorithm’s time or space complexity as a function of the size of the problem (Figure 3.14).

• In the best case, the sequential search has a constant order of growth that does not take more resources as the size of the problem increases.
• In the worst case, the sequential search has a linear order of growth where the resources required to run the algorithm increase at about the same rate as the size of the problem increases. This is with respect to N, the number of words in the list.

Constant and linear are two examples of orders of growth. An algorithm with a constant order of growth takes the same amount of time to execute even as the size of the problem grows larger and larger—no matter how large the dictionary is, it is possible to find the target word at the very beginning. In contrast, an algorithm with a linear time complexity will take more time to execute as the size of the problem grows larger, and we can predict that an increase in the size of the problem corresponds to roughly the same increase in the runtime.

This prediction is a useful outcome of time complexity analysis. It allows us to estimate the runtime of the sequential search algorithm on a problem of any size, before writing the program or obtaining a dictionary of words that large. Moreover, it helps us decide if we want to use this algorithm or explore other algorithm designs and approaches. We might compare this sequential search algorithm to the binary search algorithm and adjust our algorithm design accordingly.

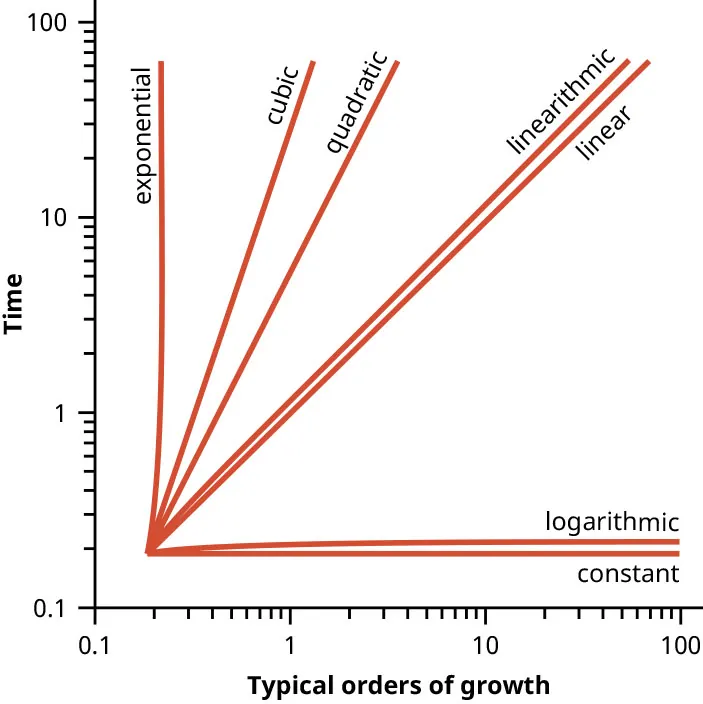

Figure 3.14 The order of growth of an algorithm is useful to estimate its runtime efficiency as the input size increases (e.g., constant, logarithmic, and other orders of growth) to help determine which algorithmic approach to take. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

Big O Notation for Orders of Growth

In the 1970s, computer scientists applied asymptotic notation, a mathematical notation that formally defines the order of growth. We can use Big O notation to describe the time complexity of the sequential search algorithm. In general, we say a function f(N) is in the class of O(g(N)), denoted by f(N) = O(g(N)) or f(N) in O(g(N)), if when N tends to infinity, the ratio f(N)/g(N) is upper bounded by some constant. The function g(N) is usually some simple function that defines the order of growth such as g(N) = 1 (constant function), g(N) = N (linear function), g(N) = log N (logarithmic function), or other functions as follows:

• In the best case, the order of growth of sequential search is in O(1).
• In the worst case, the order of growth of sequential search is in O(N) with respect to N, the number of words in the list.

The constant order of growth is described in Big O notation as “O(1)” while the linear order of growth is described in Big O notation as “O(N) with respect to N, the size of the problem.” Big O notation formalizes the concept of a prediction. Given the size of the problem, N, calculate how long it takes to run the algorithm on a problem of that size. For large lists, in order to double the worst-case runtime of sequential search, we would need to double the size of the list.

O(1) and O(N) are not the only orders of growth.

• O(1), or constant.
• O(log N), or logarithmic.
• O(N), or linear.
• O(N log N), or linearithmic.
• O(N²), or quadratic.
• O(N³), or cubic.
• O(2^N), O(3^N), . . . , or exponential.
• O(N!), or factorial.

The O(log N), or logarithmic, order of growth appears quite often in algorithm analysis. The logarithm of a large number tells how many times it needs to be divided by a small number until it reaches 1. The binary logarithm, or log₂, tells how many times a large number needs to be divided by 2 until it reaches 1. In the worst case, the time complexity of sequential search is in O(N) with respect to N, the number of words in the list, since each repetition of sequential search rules out one remaining element. How about binary search? In the worst case, the time complexity of binary search is in O(log N) with respect to N, the number of words in the list, since each repetition of binary search rules out half the remaining elements.

Another way to understand orders of growth is to consider how a change in the size of the problem results in a change to the resource usage. When we double the size of the input problem, algorithms in each order of growth respond differently (Figure 3.15).

• O(1) algorithms will not require any more resources.
• O(log N) algorithms will require 1 additional resource unit.
• O(N) algorithms will require 2 times the number of resources.
• O(N log N) algorithms will require a little more than 2 times the number of resources.
• O(N²) algorithms will require 4 times the number of resources.
• O(N³) algorithms will require 8 times the number of resources.
• O(2^N), O(3^N), . . . algorithms will require the squared or cubed number of resources.
• O(N!) algorithms will require even more.

This growth compounds, so quadrupling the size of the problem for an O(N²) algorithm will require 16 times the number of resources. Algorithm design and discovery is often motivated by these massive differences between orders of growth. Note that this explanation of how each order of growth responds differently oversimplifies the problem. Rigorously speaking, a function f(N) expressed in the big-O notation as being is in the class of O(g(N)) can be much more complex than the simple function g(N). For example, f(N) = 4log N + 100 log(log N) is in O(log N), but when N doubles, f(2N) is definitely not just one unit more than the original function f(N). A similar argument applies for all other functions other than the constant O(1) function.

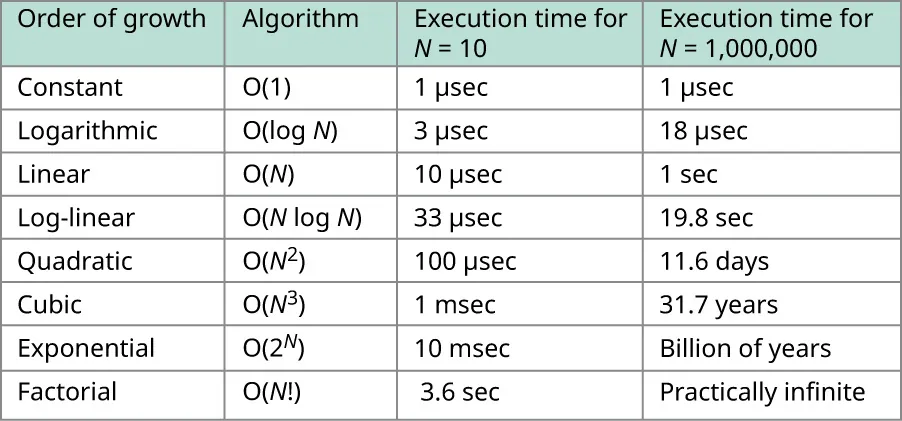

Figure 3.15 This chart shows the time it would take for an algorithm with each of the given orders of growth to finish running on a problem of the given size, N. When an algorithm takes longer than 1025 years to compute, that means it takes longer than the current age of the universe. (data source: Geeks for Geeks, “Big O Notation Tutorial—A Guide to Big O Analysis,” last updated March 29, 2024; attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

As the size of the problem increases, algorithmic complexity becomes a larger and larger factor. For problems dealing with just 1,000 elements, the time it would take to run an exponential-time algorithm on that problem exceeds the current age of the universe. In practice, across applications working with large amounts of data, O(N log N) is often considered the limit for real-world algorithms. Even then, O(N log N) algorithms cannot be run too frequently. For algorithms that need to run frequently on large amounts of data, algorithm designers target O(N), O(log N), or O(1).
