Learning Objectives
By the end of this section, you will be able to:
- Describe how business solutions design heuristics and how patterns are used
- Discuss the role of enterprise architecture (EA) and related architecture domains
- Differentiate between enterprise and solution architecture
While computational thinking commonly employs a bottom-up strategy for crafting well-structured components, adaptive design reuse adopts a top-down methodology, emphasizing the creation and assembly of business solutions by combining existing design components. A design component is a reusable element within a larger system that serves a specific purpose. These components, akin to low-level solution building blocks, necessitate minimal modifications. This approach, often termed computing in the large, diverges from individual algorithmic instructions. Instead of composing instructions for the execution of specific actions through computational thinking’s decomposition, adaptive design reuse identifies fitting components based on the articulated requirements of the business solution’s potential users, commonly referred to as stakeholders. The method(s) used to identify these needs will be discussed in detail in Chapter 9 Software Engineering. While adaptive design reuse typically considers algorithmic designs as building blocks, it uses similar techniques (i.e., decomposition, logical thinking and pattern recognition, abstraction/generalization, componentization, testing, and debugging) to identify and reuse building blocks.
The structural designs that stem from the top-down adaptive design reuse approach to business solution design are referred to as business solutions architecture models. A business solution architecture is a structural design that is meant to address the needs of prospective solution users. When a structural design meets these needs, it is considered “architecturally sound” for the problem at hand. Furthermore, to accelerate the putting together of complete solutions, the adaptive design reuse approach relies on architectural models or component assemblies that were developed from previous designs. When the granularity of these architectural models is at the level of subsystems, they are referred to as system family architectures or architectural patterns. An architectural pattern is a reusable solution to a recurring problem in software architecture design. Chapter 10 Enterprise and Solution Architectures Management provides more detail about the various levels of patterns and how to organize them and bookkeep them into pattern catalogs to facilitate reuse.
Business Solutions Design Patterns
Business solutions are strategies/systems created to solve specific challenges in a business. They aim to make operations more efficient, improve decision-making, and contribute to overall success. Creating business solutions is a multifaceted and intricate process, demanding knowledge in different technological domains and the relevant business sector. A crucial step in this procedure is outlining the solution’s architecture, serving as a master blueprint, and guiding the entire design and implementation process. A blueprint is a detailed plan or design that outlines the structure, components, and specifications of a building, product, system, or process.
Computational thinking and adaptive design reuse are simply methods used to bootstrap and/or accelerate the design of business solutions by providing a comprehensive set of methods for developing software solutions to business problems—for example, gathering solutions needs, building, and deploying turnkey solutions. These solutions will be discussed in detail in Chapter 9 Software Engineering.
As explained earlier, the computational thinking and adaptive design reuse approach only provide high-level techniques to help create or reuse components. As a result, one of the typical criticisms is that these approaches are too vague, as it is sometimes not clear how they differ from other forms of thought. This is why experts at applying these methods are usually seasoned architects who can instinctively recognize when various types of components may be reused. When you ask Thoughtworks’ enterprise architecture expert Martin Fowler why a particular business solution architecture is sound in a given context, he will often reply that it simply “smells good” to him.
Rather than looking at computational thinking and adaptive design reuse as a best practice set of techniques, it is best to consider them as process patterns that may be applied and adapted to help create a business solution architecture model, which represents the content of the application architecture. Process patterns may, in turn, leverage other process patterns that are more focused. When process patterns that are an inherent part of the process of creating a work product become rules of thumb, they are referred to as heuristics.
Industry Spotlight
Case Study: Making Online Shopping Easier with Smart Design
Imagine an online store called SwiftShop. They had a problem. Even though they had lots of great products to buy, people were leaving their website without buying anything. It was like having a store full of customers who walked in and out without buying anything! The business challenge is SwiftShop wanted to make shopping on their website easier and more fun. They wanted people to stay longer, buy more, and come back again and again. SwiftShop decided to use smart design tricks to fix their website and make it super easy to shop. Here’s how they did it:
- User interface (UI) design patterns: Breadcrumb navigation: SwiftShop added breadcrumb trails so shoppers could easily see where they were on the website and find their way back if they got lost.
- Progress indicators: During checkout, SwiftShop put in progress bars so shoppers knew how far along they were in the buying process.
- Information architecture (IA) design patterns: Card sorting: SwiftShop asked real shoppers to help organize their products. By sorting cards and asking people how they’d group things, SwiftShop made it easier to find what customers were looking for.
- Faceted search: SwiftShop added filters so shoppers could narrow down their searches by attributes like price, size, and brand.
- Interaction design (IxD) patterns: One-click purchase: To speed up the buying process, SwiftShop let registered users buy with just one click.
- Personalized recommendations: SwiftShop used machine learning algorithms to suggest products that customers might like based on what they’ve bought before.
- Results: After making these changes, SwiftShop saw great results:
- More people buying: With the new features, more people ended up buying products from SwiftShop.
- Happier shoppers: Customers spent more time on the website, which meant they liked shopping there more.
- More repeat customers: Because it was easier to shop, people kept coming back to SwiftShop again and again.
So, by using smart design tricks like breadcrumb navigation, progress indicators, card sorting, faceted search, one-click purchase, and personalized recommendations, SwiftShop made their online store a better place to shop.
Layering and Componentization
Two heuristics are inherent to the design of business solutions and the creation of business solution architectures. These heuristics are known as layering and componentization and can be thought of as design approaches followed with an intent of architectural concerns.
Componentization has already been introduced as a computational thinking and adaptive design reuse technique.1 Layering in business solution architecture involves creating distinct layers that abstract specific aspects of the overall architecture. This heuristic enables the separation of concerns between layers and improves modularity. Each layer comprises components, and a layer may consist of multiple components. This hierarchical structure helps organize and separate different functionalities or responsibilities within the architecture, making it easier to manage and understand.
The layering strategy is based on the concept of separating different concerns. This method structures software design into distinct, stacked layers, with each layer tasked with specific functions. Commonly, business solution architectures are organized into three main layers: the presentation, business logic, and data management layers. The presentation layer is the user’s touchpoint, handling the user interface (UI) and delivering the user experience (UX), which is the overall experience that a person has when interacting with a product, service, or system. The business logic layer holds the business logic for the business solution or application, separating the UI/UX from the business-centric computations. This separation affords the flexibility to adjust business operations as needs evolve without disrupting other system components. Although not tied to a specific domain, the data management layer is responsible for interacting with persistent storage systems like databases and various data processing mechanisms. In a layered architecture, information and commands flow through each layer, enhancing the design’s abstraction level, which denotes the granularity or detail at which a system is represented. Despite its structured approach and abstraction benefits, software designed in this layered manner might lean toward a monolithic build, potentially making modifications challenging. Layered architecture can lead to tightly connected layers in software, making it difficult to change one part without affecting others. This tight connection can also make it harder to update or expand the software.

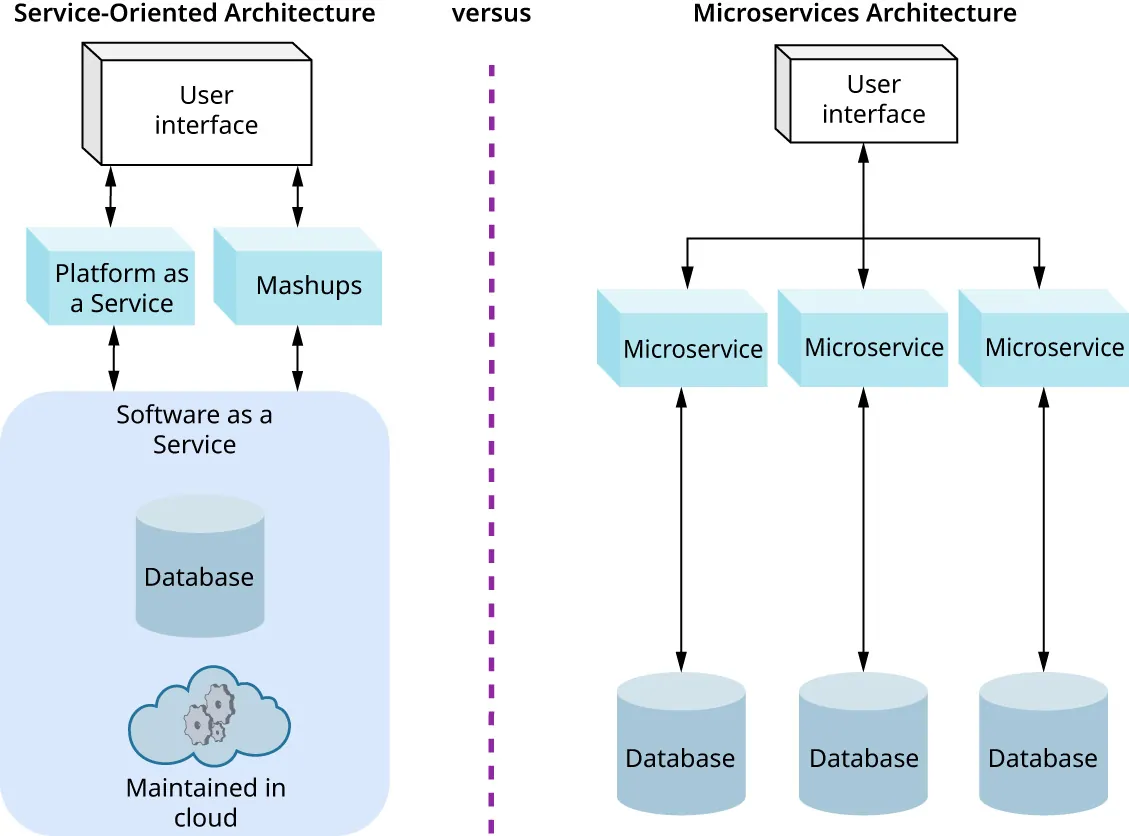

A monolithic structure is a type of system or application where all the parts are closely combined into one single unit. This setup means that everything from the user interface to data handling and processing is interconnected within one big software application. While this can make the system easier to set up and manage initially, it also means that changing one part can require changes throughout the whole system, making it less flexible. As illustrated in Figure 2.10, there are many more recent variations of layered architectures that also provide complementary capabilities, such as tiered architectures, service-oriented architectures (SOA), and microservices architectures.2
Detailed coverage of these specific architectures is not part of the scope of this chapter. They will be discussed in more detail in multiple later chapters. It’s fundamental to understand that each software architecture model is crafted to address the key challenges found in its preceding models. Being well-versed in various architectural approaches equips you to devise a robust and effective architecture for your specific project. While no software architecture can claim absolute perfection, an approach can be deemed highly suitable or “relatively perfect” if it aligns well with the specific requirements and goals of your current project.
Enterprise-Level Architecture Domains
Enterprise-level architecture encompasses various domains that define the structure, components, and operations of an entire organization. These domains provide a comprehensive framework for managing an enterprise.
Up to this point, our efforts have been centered on employing the adaptive design reuse methodology to construct business solution architectures tailored to individual projects. Within this scope, we aim to facilitate the conversion of solution requirements into a cohesive solution concept, comprehensive business and IT system outlines, and a collection of implementation activities, essentially forming the project plan. However, because the adaptive design reuse approach is top-down, it is possible to start applying it at a higher level. The enterprise level is typically the highest level of an organization, and it covers all strategic and tactical functions. An enterprise often spans multiple organizations.
Enterprise architecture (EA) emerged at the beginning of the information age in the 1970s, and various enterprise architecture frameworks (EAFs) were developed and used over time. The Open Group Architecture Framework (TOGAF) is one such framework. According to TOGAF, an EA domain represents business, data, application, and technology architectures. While specific frameworks may vary, Table 2.3 illustrates the common enterprise-level architecture domains.
| Architecture | Purpose | Components |
|---|---|---|
| Business architecture | Defines the organization’s business strategy, goals, processes, and functions | Business models, processes, capabilities, and organizational structure |
| Information architecture | Manages data and information assets | Data models, information flow diagrams, data governance, data standards, and metadata |
| Application architecture | Designs and organizes software applications | Application portfolio, application integration, and interface design |
| Technology architecture | Specifies the hardware, software, and technology infrastructure | Servers, networks, databases, cloud services, security protocols |
| Security architecture | Ensures the protection of information assets, systems, and networks | Security policies, access controls, and encryption mechanisms |
| Integration architecture | Facilitates seamless communication and data exchange | Middleware, messaging systems, and integration patterns |
| Process architecture | Defines and optimizes business processes | Process models, workflow diagrams, and performance metrics |
EA adopts a holistic perspective, treating the enterprise as a unified system or a system of systems. Its primary aim is to integrate disparate processes, both manual and automated, into a cohesive environment that is responsive to change and aligned with the enterprise’s business strategy. EA involves designing comprehensive systems to support business processes, going beyond individual software or technology systems. By standardizing and integrating fundamental processes across various business divisions, EA facilitates enterprise-wide alignment and optimization of operations.
Solution architecture complements EA by tailoring specific system solutions to meet defined business and technological needs. While EA focuses on defining the present situation and future goals of the organization, solution architecture ensures the timely availability of suitable systems to fulfill business requirements.
TOGAF architectures promote the reuse of building blocks but lack a prescriptive method for managing them. Adaptive design reuse becomes valuable in this context, involving understanding enterprise architectures and adapting preexisting models and implementations. Detailed management of EA, solution architectures, and leveraging EAFs is explored further in Chapter 10 Enterprise and Solution Architectures Management.
Enterprise Business Architecture and Model
The enterprise business architecture (EBA) is a comprehensive framework that defines the structure and operation of an entire organization. It is related to corporate business and the documents and diagrams that describe the architectural structure of that business. It characterizes the processes, organization, and location aspects of the EBA at hand. EBAs usually consist of different business capabilities grouped into categories, as illustrated in Figure 2.11. In this example, sample categories include product, sales, and service. The business capabilities shown under the various categories typically have business models of their own that are part of the overall organization’s business model. Note that it is clear from this diagram that the layering and componentization heuristics play an important role in structuring capability models.
Business architecture modeling helps extract the overall business model of an organization’s capability, which includes the set of underlying processes necessary to operate the various capabilities of the organization.
A business model is a framework that outlines how a business creates, delivers, and captures value. It covers the way a company generates revenue, identifies its target audience, and defines the products/services it offers. The business model includes the organization, location, and process model, as described in the following sections. It may include additional models, such as the financial model, which will not be covered here. To illustrate what a business model entails practically, we will focus on a typical financial instruments trading capability, which could be one of the capabilities in the overall business model of an organization operating in the global markets industry. The organization, location, and process models are typically represented at a logical level of abstraction, which is the most detailed representation for these types of models. Note again that layering and componentization heuristics play an important role in structuring these models.
Organizational Model
The organizational model is the structure and design of an organization, outlining how roles, responsibilities, and relationships are defined. It provides a framework for understanding how various components within the organization interact and collaborate to support its functions. In addition, it offers clear definitions of roles and a matrix mapping of processes to roles.
Role definitions encapsulate a set of functional capabilities essential for an individual to manage one or several distinct business processes, as shown in Table 2.4. It is common for an individual to fulfill multiple roles. The process/role matrix delineates which business roles are accountable for particular business processes. Typically structured at the elementary business process level, this matrix can also be extended to more overarching levels when beneficial.
| Role Title | Responsibilities | Reporting |
|---|---|---|
| DBA (database administrator) | Managing and monitoring the database activities | IT manager or VP of IT |
| CIO (chief information officer) | Overall IT leadership | CEO (chief executive officer) |
| HR employee | Human resources operations | HR manager |
In general, the role matrix is a visual representation or chart that outlines the various roles within an organization and their respective responsibilities. It helps in clarifying and communicating the distribution of tasks and authorities among different positions or departments.
In a financial instruments trading business model, various roles contribute to the overall functioning of the organization, as shown in Table 2.5.
| Title | Roles and Responsibilities |
|---|---|
| Traders |
|
| Sales team |
|
| Back-office operations3 |
|
| Risk managers |
|
| Legal advisors |
|
| Technology professionals |
|
| Human resources |
|
In addition to these titles, there are two primary management layers: upper management and systems management. Upper management is tasked with the supervision of various sectors within the organization, encompassing numerous business units, operations departments, and other key areas. This tier includes roles such as division managers, group managers, and risk managers, who collectively ensure the smooth operation and strategic direction of the business. On the other hand, systems management is dedicated to the routine functioning of the trading system. This includes positions like site manager, systems maintenance manager, content manager, and help desk personnel, all of which collaborate daily to ensure the trading system is operational, well-maintained, and user-friendly.
Process Model
The business process is a series of interrelated tasks, activities, or steps performed in a coordinated manner within an organization to achieve a specific business goal. The business process model can be encapsulated within a framework of business process hierarchies. These hierarchies visually illustrate the outcome of breaking down complex processes, a method known as process decomposition. This decomposition is carried out until it reaches the elementary business process (EBP), which is a fundamental and indivisible activity within a business that is not further subdivided into smaller processes (i.e., the smallest unit of business activity). Figure 2.12 illustrates an example of business process modeling for creating an order.
EBPs possess distinct characteristics that make them noteworthy in the context of business operations. They are considered significant and candidates for in-depth analysis. EBPs are typically associated with the actions of a single user, emphasizing a focused responsibility within the organization. Furthermore, these processes may encompass both manual and automated activities, reflecting the diverse nature of contemporary business workflows. User involvement in EBPs is concentrated at a specific point in time, streamlining the temporal aspect of these activities. The preservation of crucial business distinctions between processes ensures clarity and coherence. Finally, EBPs aim to leave the conceptual entity model in a consistent state, contributing to data integrity and maintaining a reliable representation of the organization’s entities and relationships where the entity model represents the various objects or concepts and their relationships within a system. A process map displays the order of chosen processes from the process hierarchies, highlighting their connection to the roles responsible for executing them. A business process hierarchy organizes a company’s activities from broad, general processes down to specific tasks, making it easier to manage and improve how the business operates. Figure 2.13 illustrates a high-level business process hierarchy that could be used for any manufacturing business process.

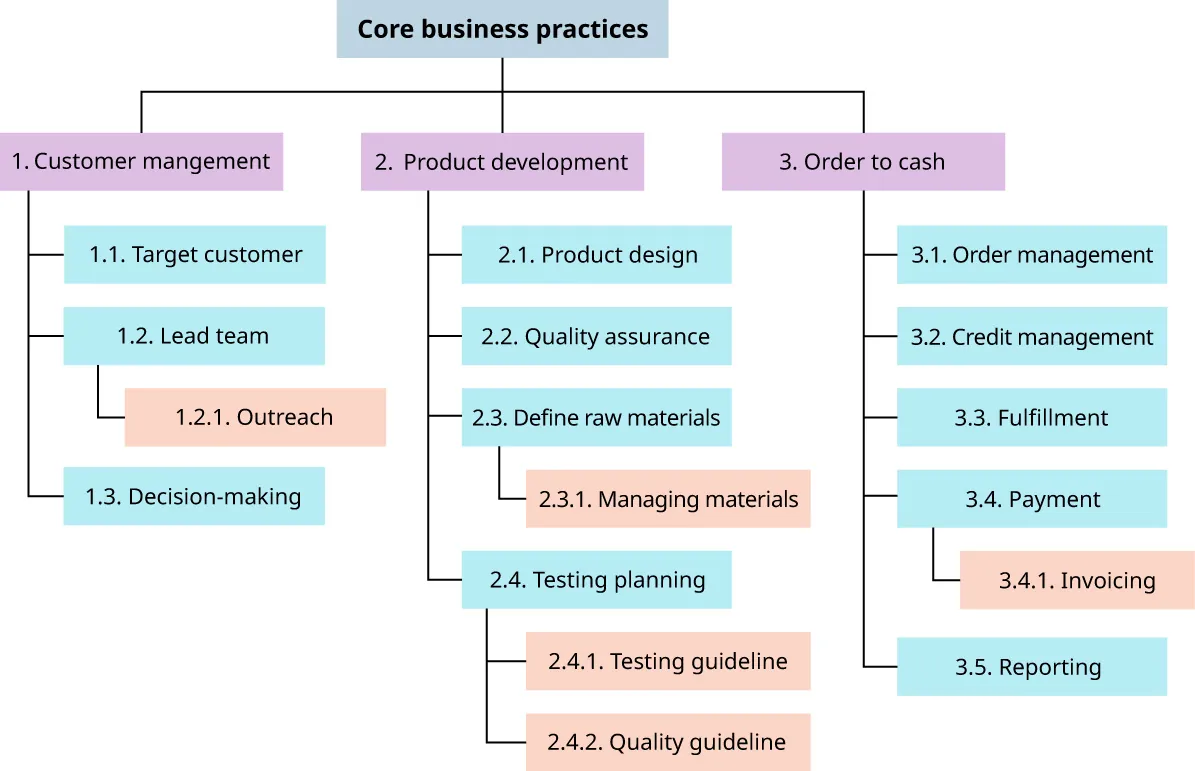

At the top of the hierarchy, there are three core business processes:
- Customer management: This process plays a central role, interacting with various activities designed to acquire, retain, and develop customer relationships. It focuses on all aspects of customer interaction. There are three subsections as follows:
- 1.1. Target customer: Customers first discover a company and its offerings through various marketing efforts. They then evaluate these offerings to decide if they meet their needs, leading to a purchase decision. After buying, customers may require support, which is provided to ensure satisfaction. A positive experience can turn these customers into loyal buyers and advocates for the company and maintain strong customer relationships.
- 1.2. Lead team: This involves identifying potential leads and assessing their likelihood to purchase. It includes:
- 1.2.1. Outreach: This includes reaching out to customers (current and new) with promotions and advertisements.
- 1.3. Decision-making: This step focuses on the creation and evaluation of product prototypes to ensure they meet the required standards before launch.
- Product development: This encompasses the entire life cycle of a product from initial idea generation through design and development to launch. There are four subsections:
- 2.1. Product design: This focuses on the creation and evaluation of product designs to ensure they meet the required standards before testing.
- 2.2. Quality assurance: QA involves checking the quality of the design and matching it with the listed requirements.
- 2.3. Define raw materials: Raw materials are the basic substances needed to make products. These can be things taken from nature, like wood, oil, or metals, which are used in making everything from buildings to clothes and food. The type of raw material used affects how products are made, their quality, and how much they cost. It includes:
- 2.3.1. Managing materials: Managing materials well is important for businesses to make sure they have enough to meet demand, keep production running smoothly, and reduce waste, making the whole process more efficient and sustainable.
- 2.4. Testing planning: Writing detailed instructions for setting up and conducting usability tests, including how to select participants and record feedback, is important and includes:
- 2.4.1. Testing guidelines: Rules that help ensure a product or service works well and is safe before it’s made available or used. These rules guide how to test the item, what tools to use, and what problems to look for, aiming to fix any issues found. The main goal is to make sure the product does what it’s supposed to do and meets quality standards.
- 2.4.2. Quality guidelines: These are rules that help ensure products or services are consistently good and meet customers’ needs. By following these guidelines, companies aim to make their customers happy, reduce mistakes, and work more efficiently. This involves regularly checking and improving how things are done to make sure they meet high standards.
- Order to cash: This is a comprehensive business flow that starts when a customer places an order and ends when the payment is received and recorded:
- 3.1. Order management: The process begins when a customer places an order through a chosen method, such as an online platform, phone call, or sales representative.
- 3.2. Credit management: A credit check is performed to ensure the customer has the necessary credit to make the purchase. If the customer passes the credit check, the order is approved for processing. Otherwise, it may be held until payment is secured or canceled.
- 3.3. Fulfillment: The required products are allocated from inventory. If products are not available, this may trigger a back-order or manufacturing process.
- 3.4. Payment: The customer makes a payment using one of the accepted payment methods.
- 3.4.1. Invoicing: This step will start if the customer pays with a purchase order (i.e., the customer may use different payment methods such as credit card or money transfer). Once the order is shipped, an invoice is generated and sent to the customer, detailing the amount paid and/or due for the products or services provided.
- 3.5. Reporting: Reports are generated to analyze the sales volume, payment collection efficiency, and customer buying patterns.
EBP definitions include brief explanations of the activities within each process. These descriptions, when paired with the appropriate process flow, serve as a foundation for progressing to intricate design stages and aid in the ongoing creation of functional specifications. Furthermore, they highlight any presumptions established during the architectural development, delineate rules for decisions that require manual intervention, and, where relevant, provide cross-referencing details to ensure compatibility with the functional demands of the application being developed.
The assignment of numbers to EBPs mirrors their placement within hierarchical structures, enabling their linkage to various work products throughout the business, organizational, and location-specific domains, along with pertinent models.

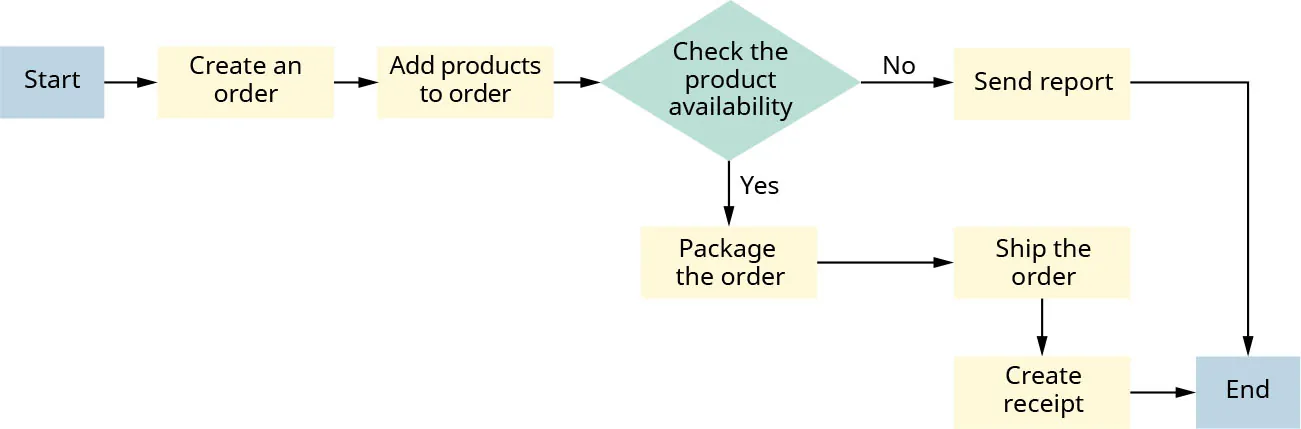

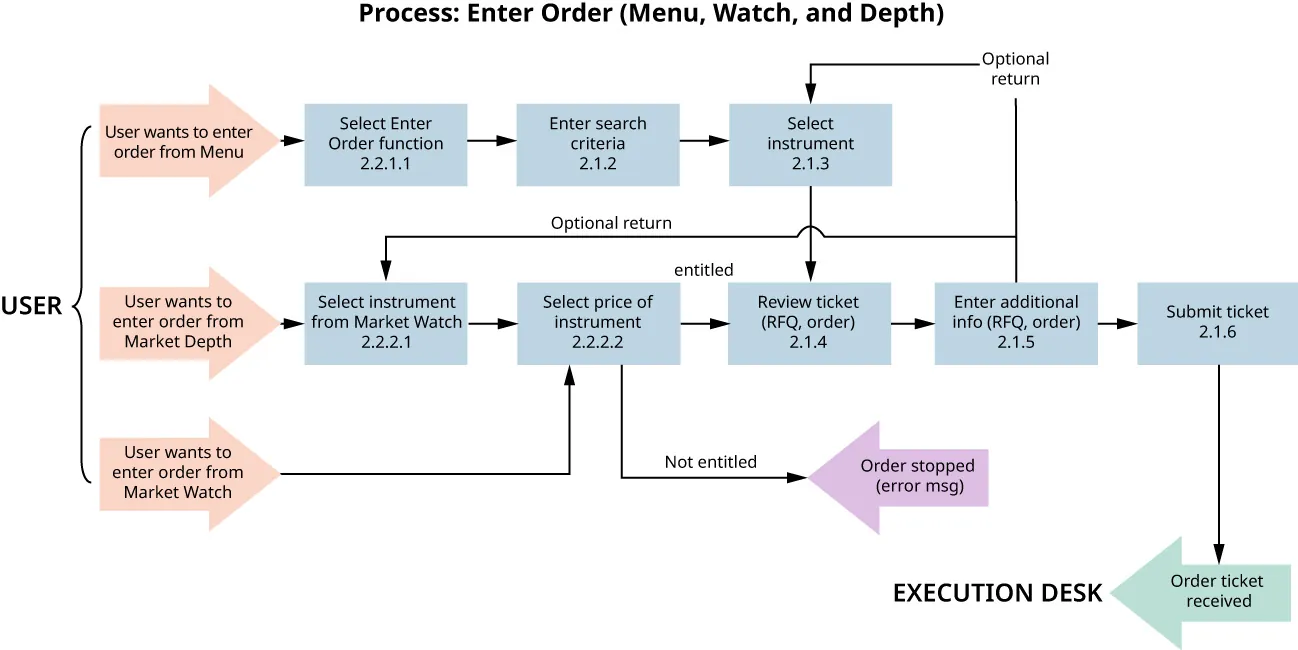

Process map diagrams illustrate the order of chosen processes from the process hierarchies, focusing on their connection to the roles responsible for executing them. The process maps specifically highlight key processes that hold particular business importance. Although every process featured in a process map is also included in the business process hierarchy, not all processes in the hierarchy are depicted in the process maps. Process flow diagrams can depict various elements, such as the business events triggering a process, outcomes of completing a process, the processes themselves, the sequence of process steps, interruptions in the process flow, possibilities for repetition, choices, exclusivity among processes, and any additional notes. Figure 2.14 illustrates a process map diagram for an order to cash business process.

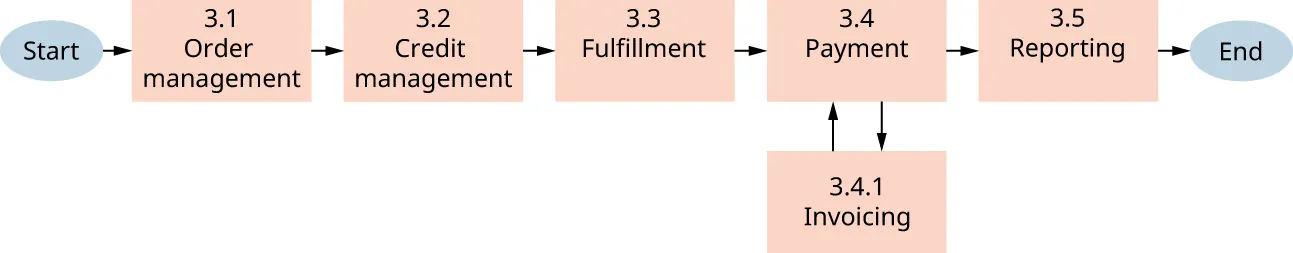

Figure 2.15 illustrates the process of managing orders within a business. It begins with order management, where orders are received and verified for accuracy. Next is credit management, which assesses the customer’s credit to ensure they can fulfill payment requirements. The process then moves to fulfillment, where the order is prepared and shipped. Then, during payment, the customer is invoiced and payment is processed. Invoicing is a detailed part of this step, where an invoice is generated and sent to the customer. The final stage is reporting, where the business generates reports on sales and financial transactions. This process ends once all steps are completed, ensuring each order is handled efficiently from start to finish.
Location Model
A location model refers to a set of rules used to analyze and make decisions related to the positioning of entities, activities, or resources. The conceptual location model shows how business processes will be distributed geographically. Within the location model, definitions of location types specify the identification of locations based on both their type and general geographic area. Additionally, the location model contains a matrix illustrating the relationship between processes and locations, indicating the specific location types where each process takes place.
Enterprise Technical Architecture
The enterprise technology architecture (ETA) is a comprehensive framework that defines the structure, components, and interrelationships of an organization’s technology systems to support its business processes and objectives. In general, the ETA guides the development and support of an organization’s information systems4 and technology infrastructure. Therefore, it characterizes the organization’s application, data, and technology infrastructure architectures and describes their models. The technology (virtual infrastructure) supports the execution of information systems services, which in turn support business functions and related services. Application, data, and technology infrastructure architecture models may be described via blueprints at different levels of abstraction, including presentation, conceptual, logical, and physical. Layering and componentization heuristics play an important role in structuring these models.
The abstraction level indicates the extent to which a design is distanced from tangible technological details. This level of abstraction can differ across various architectural fields, but four main levels are widely recognized:
- Presentation: At this level, architecture is simplified into a form to streamline the communication of essential ideas, particularly to business executives. Distilling complex architectural diagrams into more straightforward, high-level visuals ensures that the core messages are conveyed effectively.
- Conceptual: This level offers a more structured view of architecture, deliberately omitting many specifics. The rationale for not including certain details is that they may not be relevant to the diagram’s intended purpose or are yet to be decided.
- Logical: The architecture is depicted in detail but remains uncertain of specific technologies. It aims to give a full outline without committing to the particular technologies that will be employed for the final build.
- Physical: This level focuses on the actual technological specifics used or to be used in the architecture’s realization, making it the most concrete representation of the four.
Concepts In Practice
Manufacturing Industry
Business operations are commonly articulated through a value chain framework, a concept originating from manufacturing practices. Analogous to the manufacturing industry where raw materials like steel are transformed into various components, each step in the value chain plays a role in creating a finished product, such as a car. In our approach, we’ve utilized the componentization heuristic to break down business operations into distinct steps constituting the elements of a value chain. Additionally, the layering heuristic has been applied to structure the value chain as layers of elements. Each layer in this model relies on the output of the preceding layer to perform its specific function. This methodology enhances the understanding of how value is sequentially added throughout the business process.
Application Architecture Model
The application architecture is a subset of the enterprise solution architecture that includes a process to architect and design the application architecture as well as the actual application architecture model, which represents the content of the application architecture. Application architecture helps organizations decide how to invest in new software and systems. It makes sure that any new software being looked at, designed, or put into use can work well with the systems the organization already has. This includes brand-new software, updates to old software, making old software better, and buying and updating software packages.

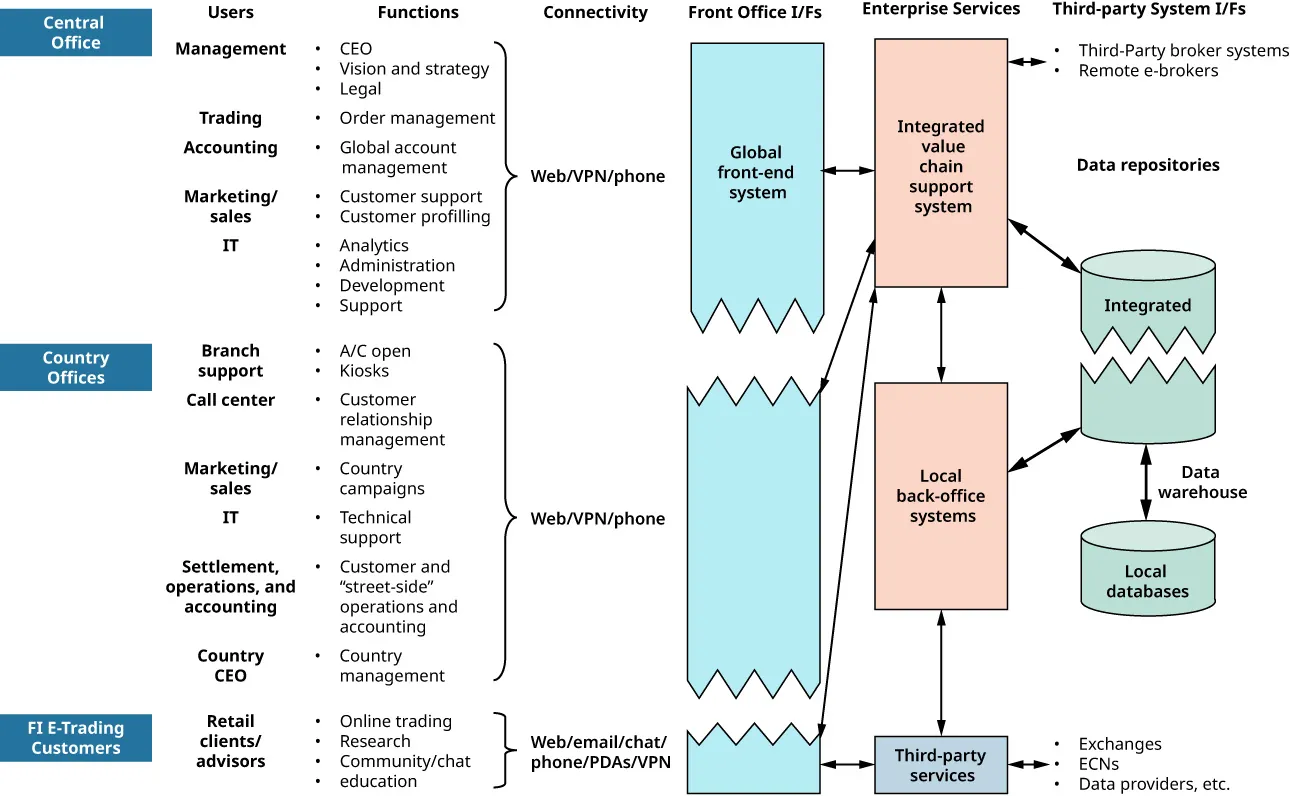

Figure 2.16 illustrates a conceptual application architecture model of the sample trading business model that was introduced earlier in this section. The goal of a conceptual application architecture is to demonstrate how members of the organization interact with the application architecture from different locations when invoking business processes. This example illustrates three distinct offices accommodating a diverse range of users, including management, trading, IT, and others.

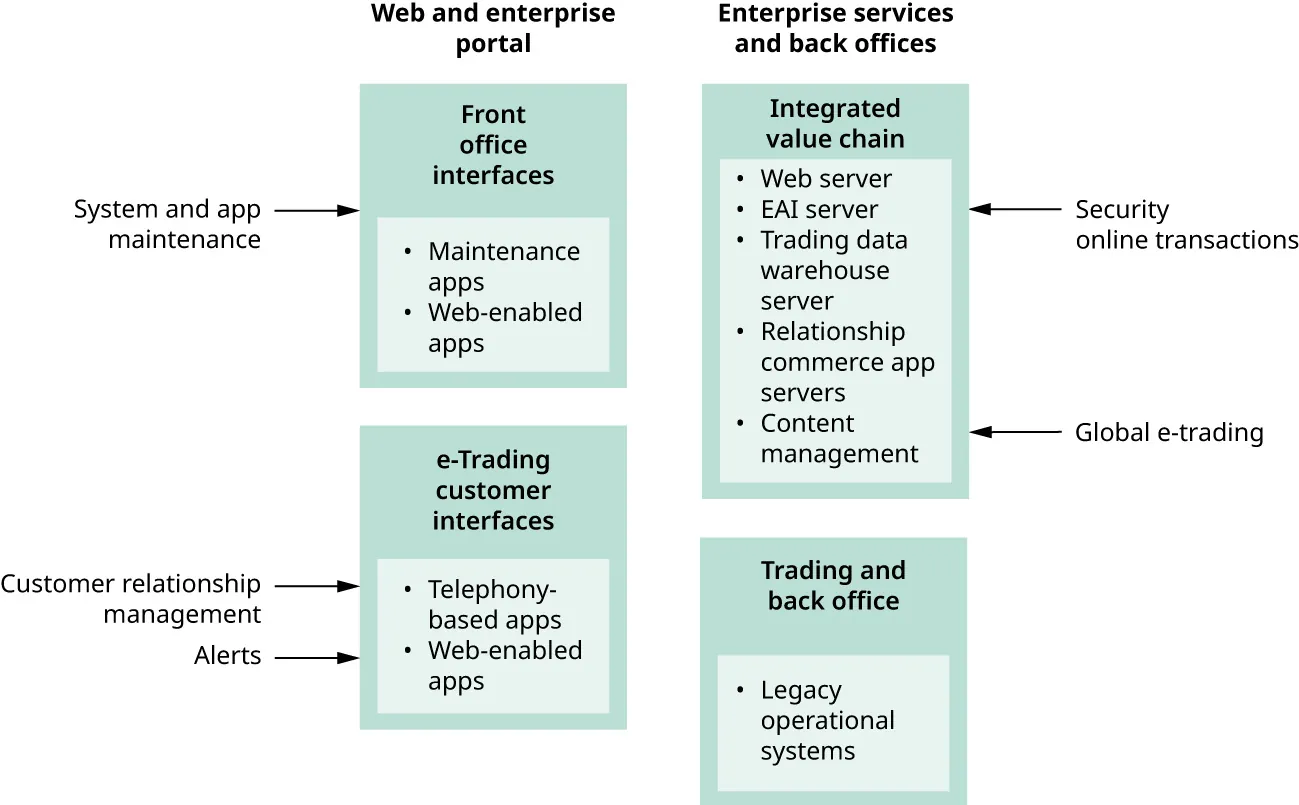

Figure 2.17 takes the conceptual trading application architecture a bit further and describes what one of the alternative application architectures may look like at the logical level. The goal of the logical application architecture is to identify the various functional blocks within the architecture without getting into the details of how they connect with and/or use each other.
Think It Through
Enterprise Business Architecture
What is the mechanism that prompts the creation of organization, location, and process domains to describe an (enterprise) business architecture? How does decomposition help describe (enterprise) technology architectures?
Hint: The organization domain focuses on the structure, roles, responsibilities, and relationships within the enterprise. The location domain deals with the physical or virtual places where business activities take place. The process domain delves into the business processes that drive the value chain and operational activities.
The process involves dividing a system or architecture into smaller, more discrete elements, which aids in analysis, understanding, and effective communication. Technology architectures in enterprises can be highly complex, involving numerous components and interdependencies. Decomposition simplifies this complexity by breaking down the architecture into smaller, comprehensible pieces. Each component can then be analyzed and understood independently.

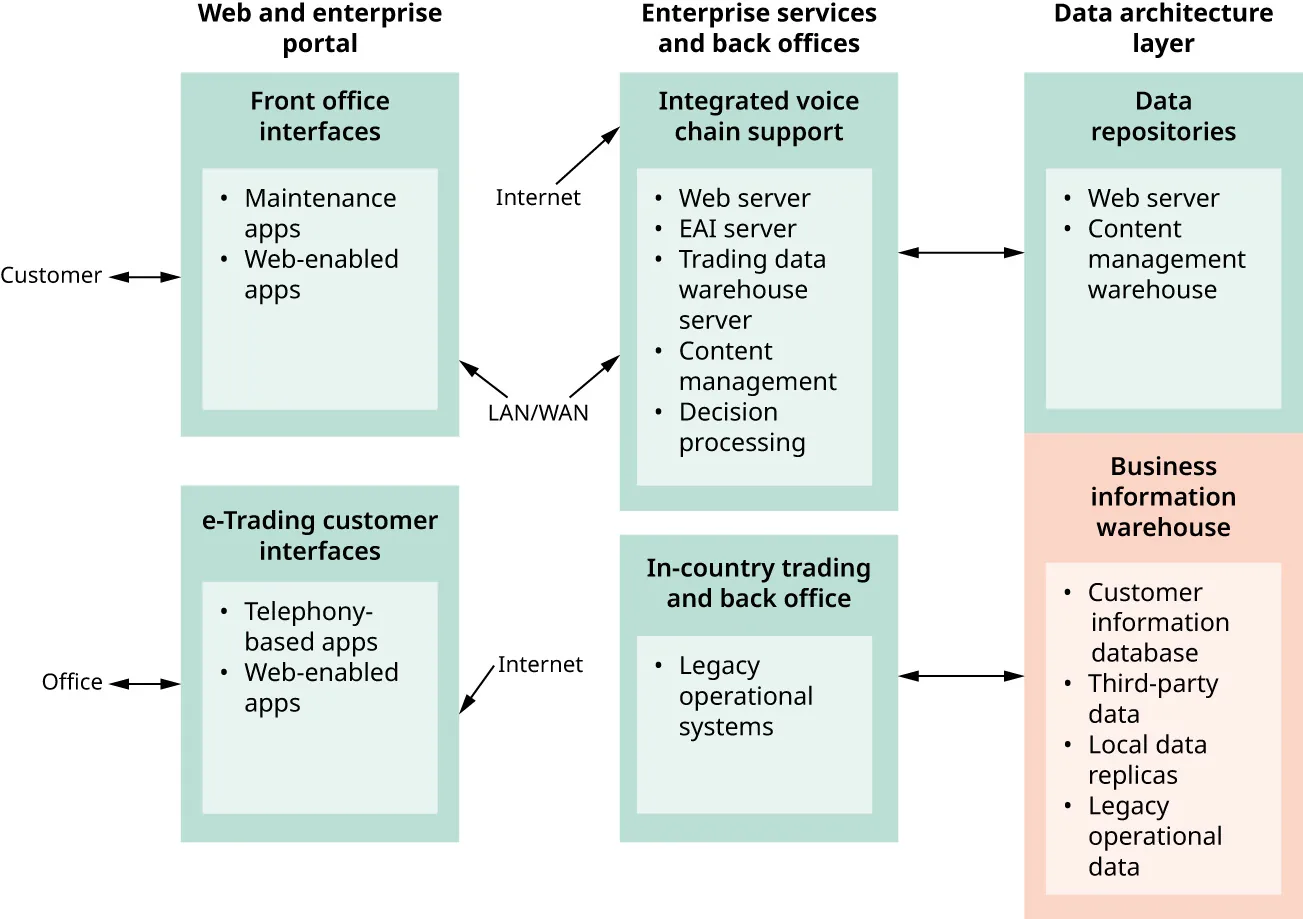

Figure 2.18 is a simplified view of the logical trading application architecture model that provides callouts to explain what the various functions are meant to accomplish. It is good practice to document the functions in that way. It is also good practice to provide an additional diagram (not included here) that includes callouts identifying the actual third-party technologies that are used to implement the various functions.
Data Architecture Model
A data architecture model is a conceptual framework that outlines how an organization structures, organizes, and manages its data assets. Data architecture forms a component of the broader enterprise solution architecture. It encompasses the design process for both information and actual data architecture models, representing the content within the data architecture. This framework aids organizations in strategically planning investments in data management solutions and associated systems. The evaluated, designed, and delivered data management solutions must seamlessly coexist with established ones, managing newly developed databases as well as legacy database extensions.
In general, information can be extracted from raw data, knowledge can be gleaned from information, and wisdom can be obtained from knowledge. Most enterprises refer to the relationship between data, information, knowledge, and wisdom as the pyramid of knowledge. A wealth of additional information related to data management and the pyramid of knowledge is provided in Chapter 8 Data Management. Information modeling is the process used to describe the metadata necessary to understand the data, processes, and rules that are relevant to the enterprise, as illustrated in Figure 2.19.

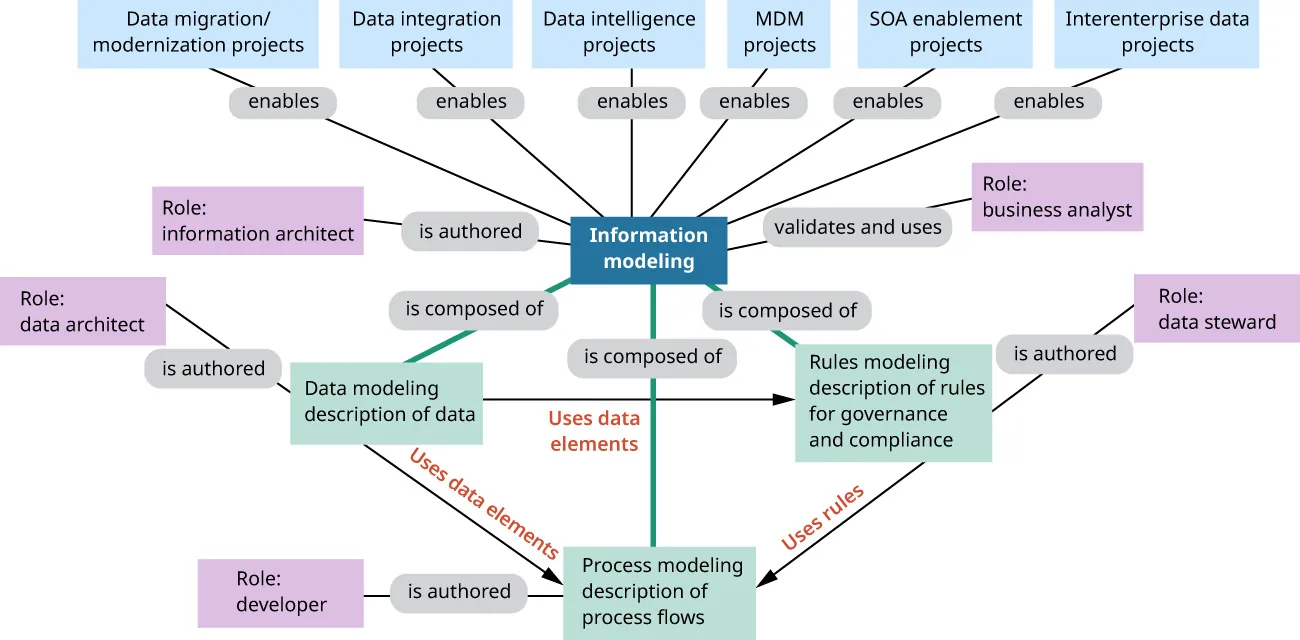

In the collaborative process of data modeling, IT and business stakeholders establish a shared understanding of essential business terms, known as entities, which typically end up being represented as tables that contain data in a relational database management system. This involves defining the attributes that characterize these terms and establishing the relationships between them. The capability to uphold and document the data model is integral to an organization’s capacity to address varied data acquisition needs across critical business projects. In essence, a well-maintained data model serves as a foundational element for ensuring coherence and effectiveness in managing diverse data requirements.

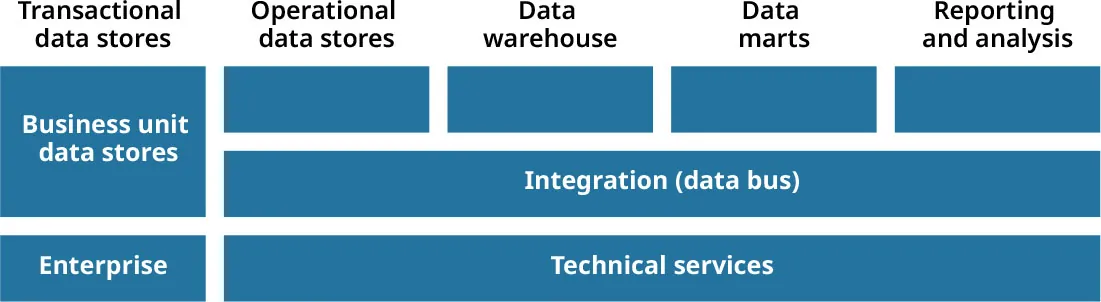

Figure 2.20 is an example of an enterprise-level conceptual data architecture for an insurance company. The goal of the enterprise conceptual data architecture is to illustrate the various types of data repositories and the way data is collected and managed within the enterprise.
Concerning the data that flows through the application architecture, there may be many types of data (e.g., relational and NoSQL) and various ways to represent the corresponding data architecture models. A relational database organizes data into tables where each row represents a unique record and each column represents a property of that record. It uses a language called SQL to manage and query the data. NoSQL databases are designed to store and manage data that doesn’t fit neatly into tables and can handle various types of data models like documents or graphs.
Industry Spotlight
Design Reuse
Adaptive design reuse plays a crucial role across various industries today, including the health-care sector, where its impact is profoundly significant. Understanding and leveraging adaptive design reuse in health care can lead to innovative solutions for complex medical problems, enhancing patient care and treatment outcomes. One prime example of its application is in the design of artificial valves that can replace natural heart valves in people.
Heart valve disease is a condition where one or more valves in the heart do not function properly, leading to disrupted blood flow. The traditional solution involves surgical replacement with prosthetic valves, which can be derived from biological sources or made from synthetic materials. Adaptive design reuse in this context refers to the innovative process of designing these prosthetic heart valves by repurposing existing materials, technologies, and design principles from within or outside the medical field. This approach can accelerate the development of more effective, durable, and safer heart valve replacements.
Infrastructure Architecture (Infrastructure Pillars)
Technology architecture is a fundamental component of enterprise architecture, supported by four main pillars: compute, memory, storage, and network. It outlines the organization and functionality of an enterprise’s solutions or system’s technology framework. This encompasses the configuration of client and server hardware, the applications operating on this hardware, the services these applications provide, and the protocols and networks facilitating communication between applications and hardware components. It’s important to distinguish technology architecture from system architecture. The system architecture deals with applications and data, how they are related to each other, and what business process they support together. The technical architecture includes the software and hardware capabilities to fully enable application and data services.
Refer to Figure 10.36 for an example of an enterprise-level conceptual technology architecture for a fictitious company. The goal of the enterprise conceptual technology architecture is to illustrate the various types of hardware components that are part of the enterprise infrastructure and the way they are laid out at a high level.
Global Issues in Technology
Design Reuse Broader Impacts
Focusing on reusing existing designs and technologies can save time and money, but it might also limit new ideas and innovations because designers could stick too closely to what’s already been done. This approach can have several effects:
- Socially, it might not meet the needs of all users, especially if the technology doesn’t consider different cultures or lifestyles, leading to some people being left out.
- Ethically, there’s a question about fairness and whether technology serves everyone equally, as relying on old designs may not address current or future challenges well.
- Environmentally, while using existing designs could reduce waste and save resources, it might also keep using outdated, less eco-friendly technologies instead of developing cleaner, more efficient options.
- Economically, countries that already have a lot of designs and technologies could get ahead because they have more to reuse, making it harder for countries with fewer resources to catch up or compete.
While reusing designs has its benefits, it’s important to also think about these broader impacts and strive for a balance between recycling old ideas and creating new ones to make sure technology keeps improving in a way that’s good for everyone.

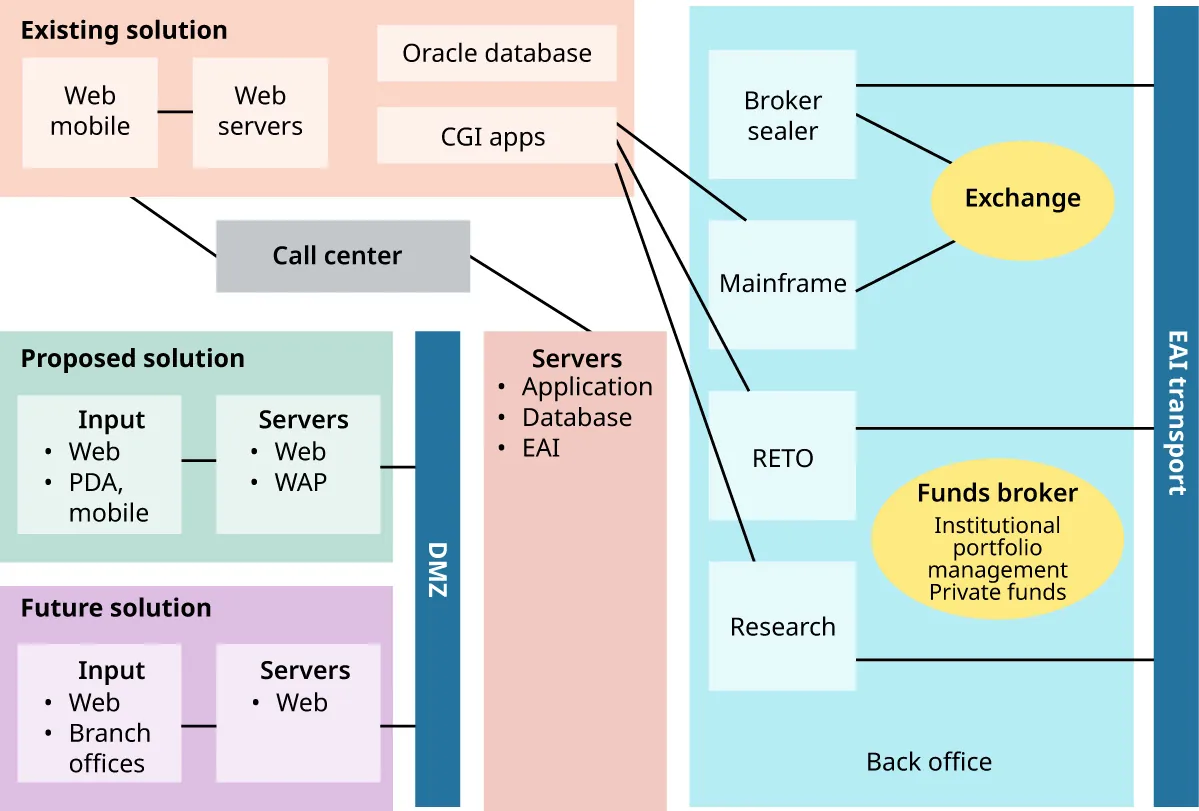

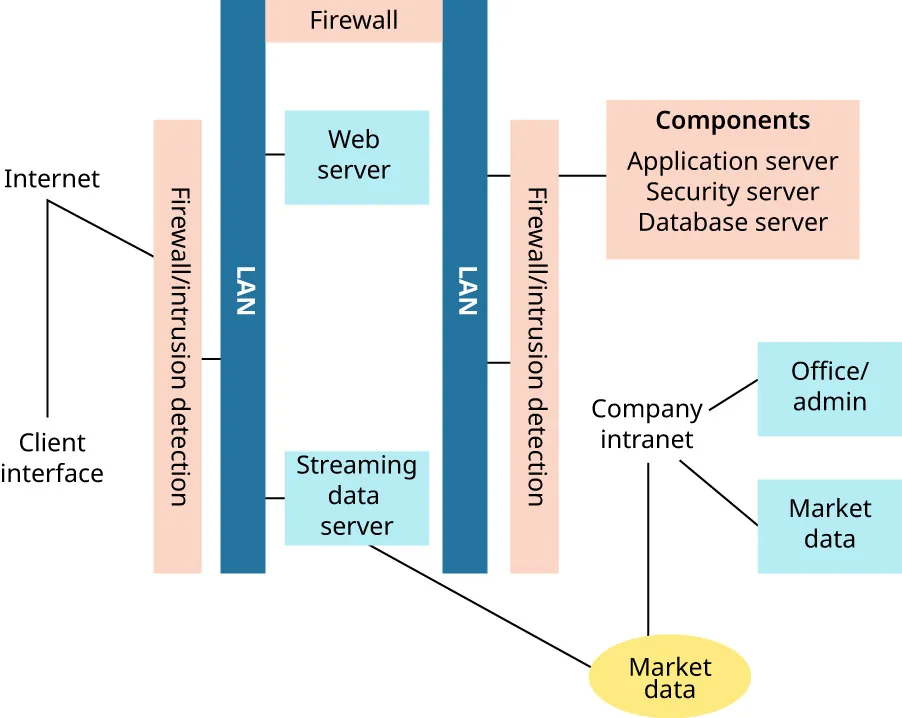

Figure 2.21 illustrates a possible physical architecture for the sample trading business model that was introduced earlier in this section. This diagram depicts the layout of the actual hardware components that make up the infrastructure of the trading solution. It also delineates where the functional blocks of the application architecture are physically deployed. Note that this physical technology architecture leverages the layout and components of the enterprise application architecture illustrated previously at the conceptual level.
An alternative physical application architecture for the trading solution is shown in Figure 2.22. The diagram does not delineate where the functional blocks of the application architecture are physically deployed.
Information Systems Architecture View

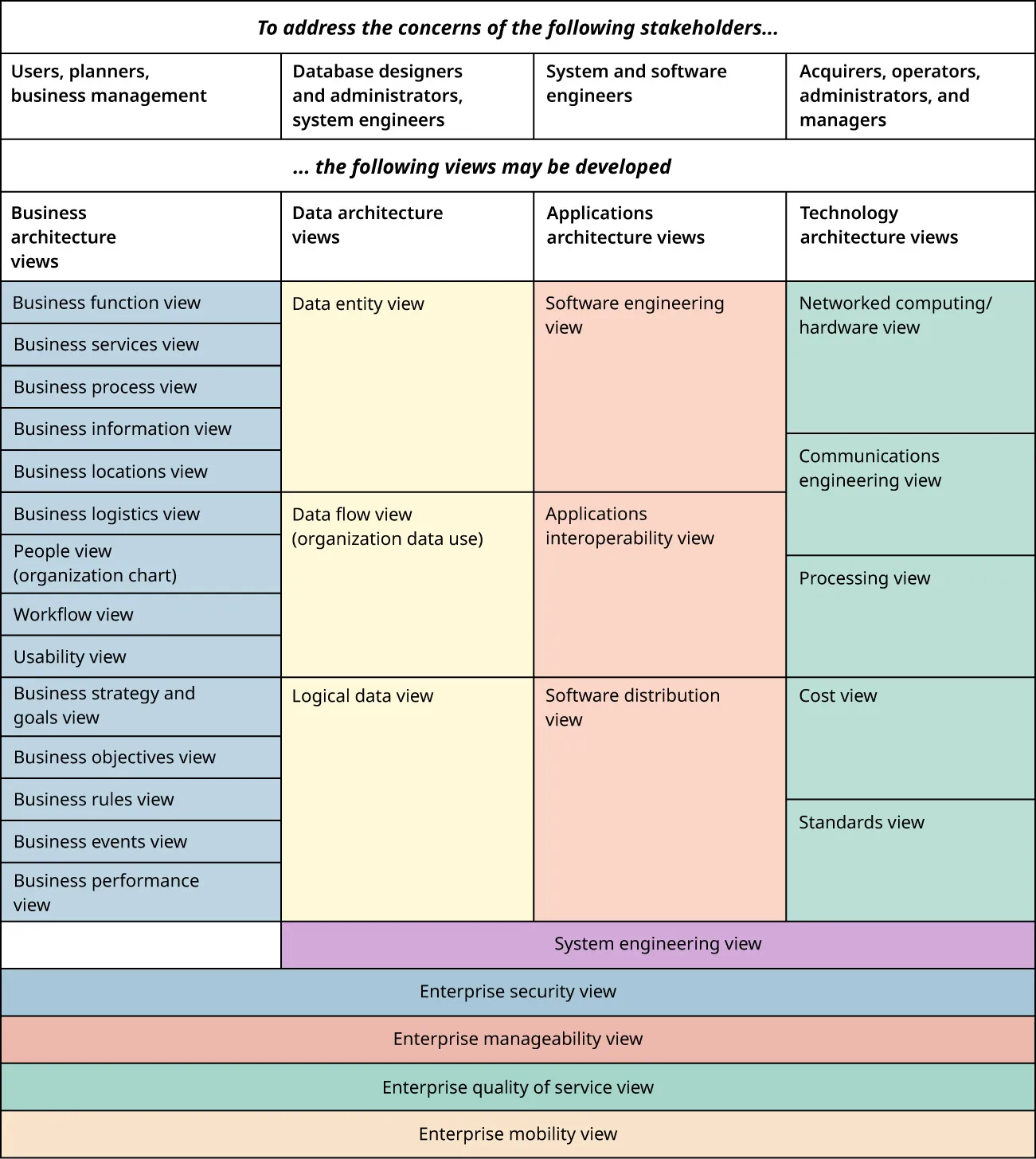

Architecture views are representations of the overall system design that matter to different stakeholders. In addition to the application, data, and technology architecture models, IT architects create specific views to communicate and ensure that the system meets the needs of various stakeholders. An architecture is typically conveyed through one or more architecture models that collectively offer a clear description of the system’s structure. A singular, all-encompassing model is often too intricate to be easily grasped, displaying every intricate relationship among diverse business and technical elements.
Just as an architect designs different aspects of a building, such as wiring diagrams for electricians, floor plans for owners, and elevations for planners to address their unique needs, the architecture of an information system is similarly broken down into various views for effective communication among its stakeholders. In the IT world, for example, an architect might create specific views of the system’s physical layout and security measures. These tailored views ensure that stakeholders, each with their own concerns and areas of focus, have a clear understanding of the system’s components relevant to their interests.
From Enterprise to Solution Architecture
After identifying business and technical characteristics through the diagrams discussed in the previous section, solution models can be developed, and implementations can be created. This involves constructing new components as necessary and combining them with reusable design components obtained from a pattern catalog. If implementations of these reusable components already exist and can be customized, the implementation of the solution becomes much faster. This approach helps avoid reinventing the wheel and developing software components or systems that already exist, focusing instead on assembling existing components for efficiency.
Breadth of Applicability of Models
Figure 2.23 illustrates the key dimensions for representing and categorizing architecture models, accompanying diagrams, and related patterns. These architecture domains align with the TOGAF standard, as discussed earlier. The diagram also illustrates the levels of abstraction to characterize various architectural models. Additionally, it introduces the architecture scope as another dimension, classifying the models’ breadth of applicability at the enterprise, portfolio, or project level. The architecture scope is the extent and boundaries within which architectural considerations, decisions, and solutions apply.
Portfolio- or domain-level architectures usually concentrate on collections of solutions and projects associated with a specific business unit, like marketing or sales in a large organization. In contrast, project- or system-level architecture is geared toward individual solutions and projects within those business units. Defining the scope of a model is crucial because there exists a direct relationship between the scope and the level of detail achievable in a blueprint. This is due to the necessity for increased generalization, such as simplification, feature selection, and grouping, as the blueprint’s scope expands.
Technology in Everyday Life
Adaptive Design Reuse: Eco-Friendly Homes from Recycled Materials
Adaptive design reuse can significantly benefit people in everyday life by promoting efficiency, sustainability, and improved user experiences. Imagine a neighborhood called EcoHomes, where all the houses are built using old materials from buildings that were taken down or left unused. It is all about making new homes without needing to produce or buy more materials, which helps the environment. In EcoHomes, architects and builders take things like bricks, glass, and wood from old sites and use them to build new, modern houses. For example, wooden beams from an old barn become part of the living room in a new house, adding a cool, old-time feel to a modern design. Windows from an old office building let in lots of sunlight, cutting down on the need for electric lights. EcoHomes is a hit because it shows how reusing building materials can save money and help the planet. The people living there have lower energy bills and are proud of their unique, eco-friendly homes. This story shows how using what we already have in new ways can make a big difference for our wallets and the world.
