Learning Objectives
By the end of this section, you will be able to:
- Analyze similarities between architectures and apply patterns
- Discuss how to accelerate the creation of applications
The combination of top-down, adaptive design reuse, and bottom-up, computational thinking, optimizes modern software development. This blend allows software developers to find a middle ground by adapting and assembling existing components, minimizing the need for developing entirely new software. A clear example of this cooperation is evident in modern websites, where the Model-View-Controller architectural pattern is widely employed. The Model-View-Controller (MVC) is a software architectural pattern commonly used in the design of interactive applications, providing a systematic way to organize and structure code. The pattern separates an application into three interconnected components: model, view, and controller. The model represents the application’s data structure and business logic, managing data and rules. The view is responsible for displaying the user interface; it shows data to the user and sends user commands to the controller. The controller serves as an intermediary between the model and the view. It processes user input received from the view, interacts with the model to retrieve or update data, and determines the appropriate view for presenting the response. Many practical web application frameworks, such as Django, have already implemented the MVC pattern. In this setup, the application is divided into three parts: the model handles the data structure, the view displays the data on web pages, and the controller manages the business logic, facilitating interaction between the model and the view. Adding a broker pattern to MVC architectures can improve the system’s scalability and flexibility when applicable and/or necessary. The broker acts as a middleman that manages communication between different parts of the application, helping to handle more data and complex operations efficiently.
Leveraging these existing frameworks enables developers to concentrate on crafting the specific logic relevant to the website rather than reinventing the wheel. The beauty of this approach lies in the ability to swiftly piece together solutions by extending and adapting the available frameworks. By doing so, developers streamline the development process, enhance efficiency, and capitalize on the collective wisdom embedded in proven frameworks, thereby fostering innovation in a more focused and resource-efficient manner.
Leveraging Architectural Similarities and Applying Patterns
The adaptive design reuse approach is a strategy in software development that emphasizes the efficient reuse of existing design solutions to create new systems or applications. The beauty of the adaptive design reuse approach is that the business solution architecture model helps create abstract representations of real systems. Therefore, if there exist tangible realizations of the various components that are part of these abstract representations, it is possible to implement the model and create specialized running business solutions from it.

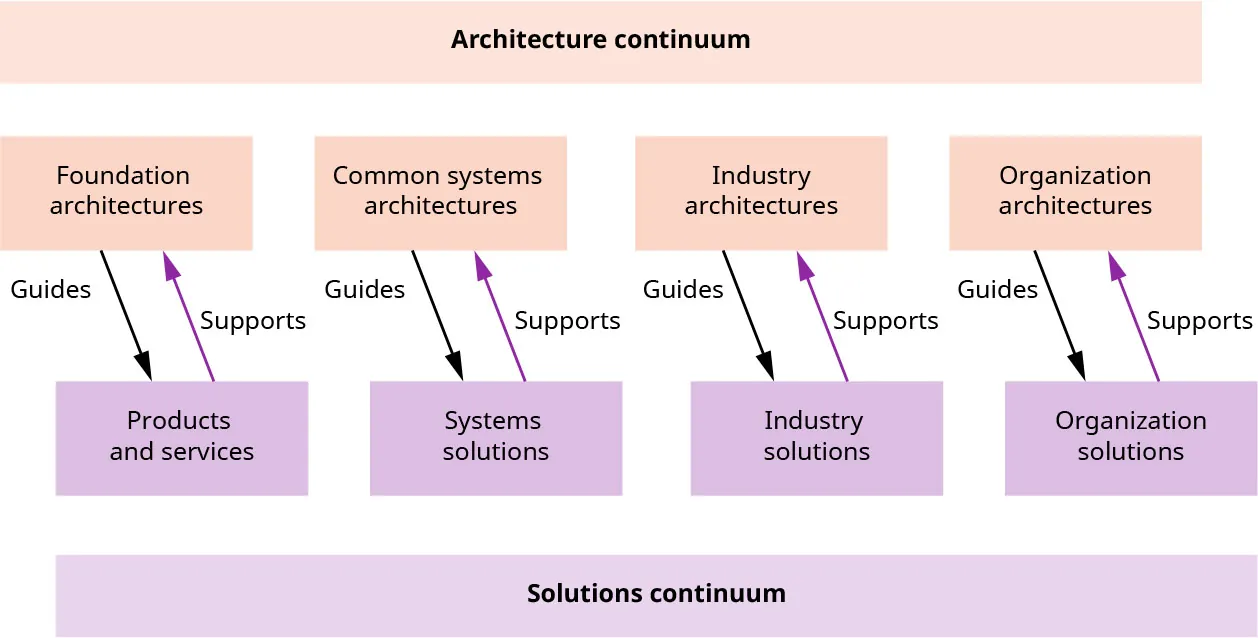

A solutions continuum is a strategy where existing solutions, components, or patterns are leveraged and adapted for use in different contexts. Figure 2.24 illustrates the TOGAF model of reuse that is referred to as the solutions continuum. As mentioned earlier, TOGAF does not provide a prescriptive approach to creating and/or managing a catalog of patterns. However, various pattern repositories are available on the Internet and the adaptive design technique can be used to avoid having to reinvent the wheel when architectural patterns and related component implementations exist and can be customized and assembled with new components. More information on this topic is provided in Chapter 10 Enterprise and Solution Architectures Management.

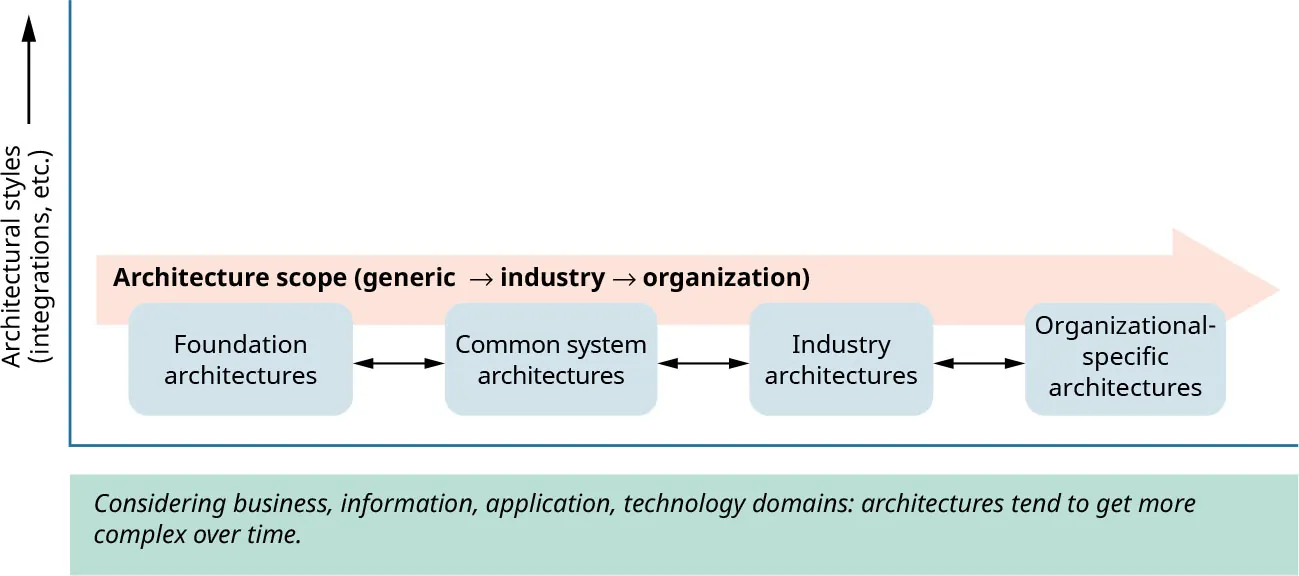

As illustrated in Figure 2.25, the TOGAF solutions continuum offers a limited set of dimensions. It serves as a guideline, and The Open Group allows interested parties to enhance the model by incorporating additional dimensions that are relevant to their specific needs.
Accelerating the Creation of Mainstream Business Solutions
To illustrate the power of architectural design and adaptive design reuse, various designs used in mainstream business solutions are surveyed, followed by explanations as to how corresponding turnkey solutions can be derived from these models. Several subsequent chapters of the book elaborate on building-related solutions.
Concepts In Practice
Object Management Architecture (OMA)
Organizations like the Object Management Group (OMG) create foundational and common system architectures that may be used across industries. An example is the Object Management Architecture (OMA), which is a foundation for developing architectures as building blocks. It then elaborates in providing Object Services, Horizontal Facilities, and Vertical Facilities as subcomponents to help classify common system architectures that may be used to assemble a complete OMA-centric architecture. It is then the responsibility of the various industries to establish standard architectures that may be leveraged by organizations that operate in these industries. Finally, organizations benefit from being able to leverage foundational, common systems and industry architectures to develop their own proprietary architectures. Based on the models of the various architectures that organizations may use and assuming there exists solutions for them, organizations can develop their own solutions faster by reusing and customizing existing solution components instead of reinventing the wheel. This is actually how the TOGAF solution continuum applies adaptive design reuse.
Responsive Web 2.0 Business Solutions
World Wide Web Consortium (W3C) is an international community that develops guidelines to ensure the long-term growth and accessibility of the World Wide Web. Web 2.0 is the second generation of the World Wide Web when we shift from static web pages to dynamic content. Web 3.0 is the third generation of the World Wide Web and represents a vision for the future of the Internet characterized by advanced technologies. Most modern websites rely on the Web 2.0 architectural model set forth by W3C. A sample logical application architecture model is illustrated in Figure 2.26.

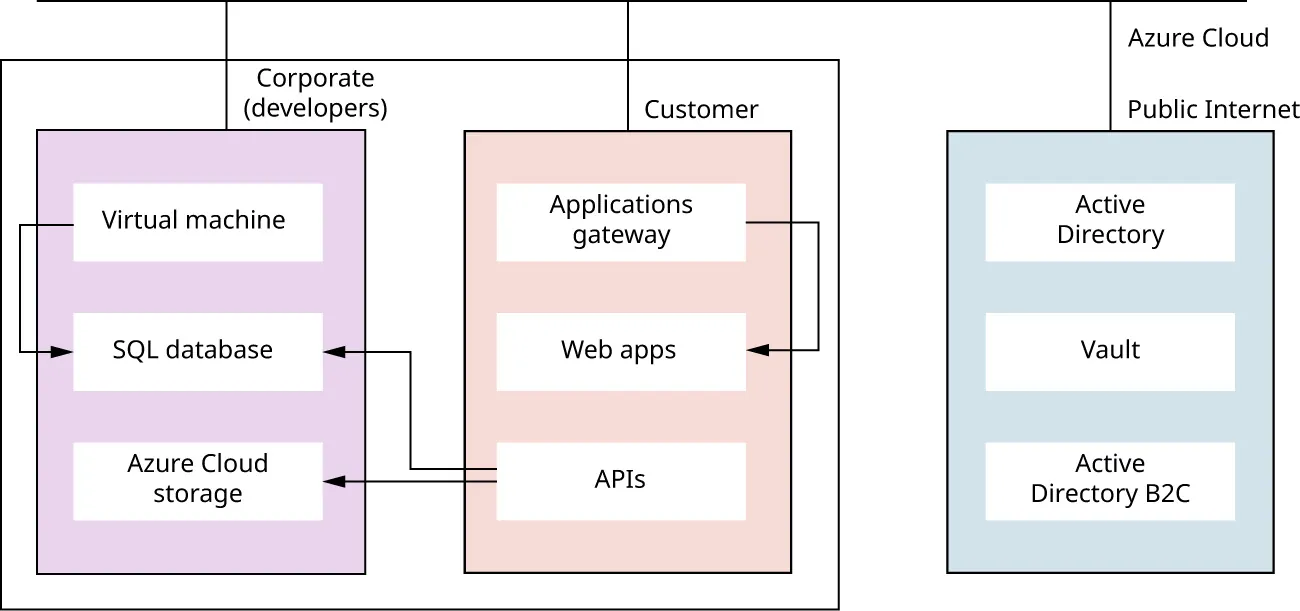

In this case, the model leverages the various components available on the Microsoft Azure Cloud. Microsoft Azure is a comprehensive cloud computing platform provided by Microsoft. Azure is designed to help organizations build, deploy, and manage applications and services through a global network of data centers. Azure provides streamlined development capabilities under its DevOps offering to make it very easy to develop and quickly deploy websites on the Azure platform using mainstream web application frameworks (e.g., ASP.Net, PhP, Java). DevOps is an Agile Software Engineering tools-driven approach that focuses on developing software and deploying it into operation.
Many of the support components required to support website implementations are readily available on Microsoft Azure and other systems that provide reusable components for responsible web design. It is easy to evolve the model shown below into a running website. A web application framework has built-in support for architectural patterns that make it easy to extend the framework and use plug-ins to implement commercial-grade websites in a reasonable amount of time. They also support the use of web frameworks that make it possible to build a responsive web application that makes the functionality available on the desktop version of the application seamlessly available on a mobile device. In addition to these capabilities, the adaptive design reuse approach may be used to create the custom part of the web application. More information related to the development of web solutions is provided in Chapter 9 Software Engineering, Chapter 10 Enterprise and Solution Architectures Management, and Chapter 11 Web Applications Development.
Think It Through
Architectural Similarities
What is one of the mechanisms that makes it possible to compare architectural similarities between two solutions at different levels?
Native Mobile Business Solutions
A web application (web app) is a software application that is accessed and interacted with through a web browser over the Internet. Many web-based solutions leverage the inherent capabilities of mobile devices, offering web apps tailored for various types of phones in addition to responsive websites. Numerous frameworks exist to facilitate the development of native web apps, streamlining the process of creating applications that can run seamlessly on different mobile platforms. These frameworks often provide a unified and efficient approach to building cross-platform mobile applications, ensuring a consistent user experience across various devices.

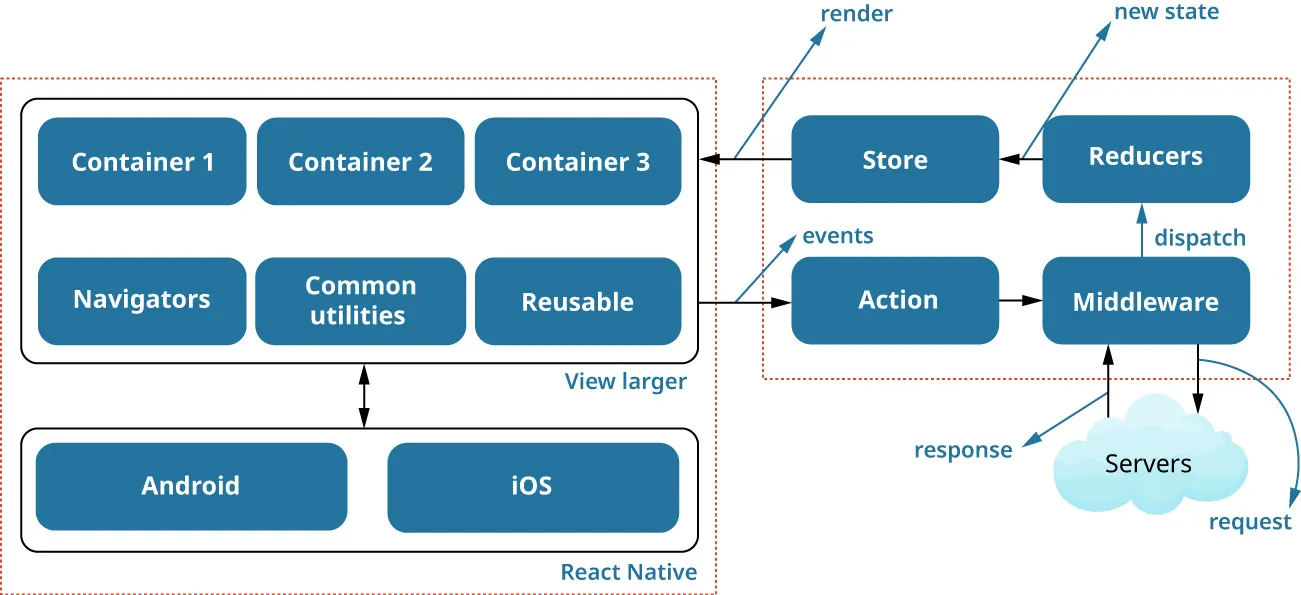

In certain frameworks and development environments, React Native UI component libraries can be leveraged to, port web apps to mobile devices. Examples include React Native support for Android apps using the Android Studio (Android Studio provides a comprehensive environment for developing, testing, and debugging Android apps) or iPhone web app using XCode IDEs (Xcode is an integrated development environment [IDE] developed by Apple for macOS that offers a suite of tools for building software for Apple platforms, including macOS, iOS, watchOS, and tvOS). Figure 2.27 illustrates the logical application architecture of mobile web apps that use React Native. In addition to these capabilities, the adaptive design reuse approach may be used to create the custom part of the native web app. More information related to the development of native web app solutions is provided in Chapter 9 Software Engineering, Chapter 10 Enterprise and Solution Architectures Management, and Chapter 11 Web Applications Development.
Native Mobile Business Examples
Native mobile apps are designed specifically for mobile operating systems, providing optimal performance and a seamless user experience.
- WhatsApp: WhatsApp is a native mobile app designed specifically for iOS and Android platforms. It directly accesses the hardware of the device, such as the GPS, camera, and microphone, which allows for features like real-time location sharing, voice and video calls, and media sharing.
- Instagram: Instagram is a photo- and video-sharing app. Native development helps Instagram manage high-quality media content efficiently, apply real-time filters, and smoothly handle in-app animations.
- Uber Eats: Uber Eats is a food-delivery service that operates as a native app on mobile devices. Being native allows the app to use device-specific features, such as GPS for tracking the delivery person’s location in real time.
- Spotify: Spotify uses its native app to deliver personalized music and podcast streaming services. The app’s native nature allows it to integrate closely with the device’s hardware, offering features like offline downloading, low-latency streaming, and background play.
Web 3.0 Business Solutions

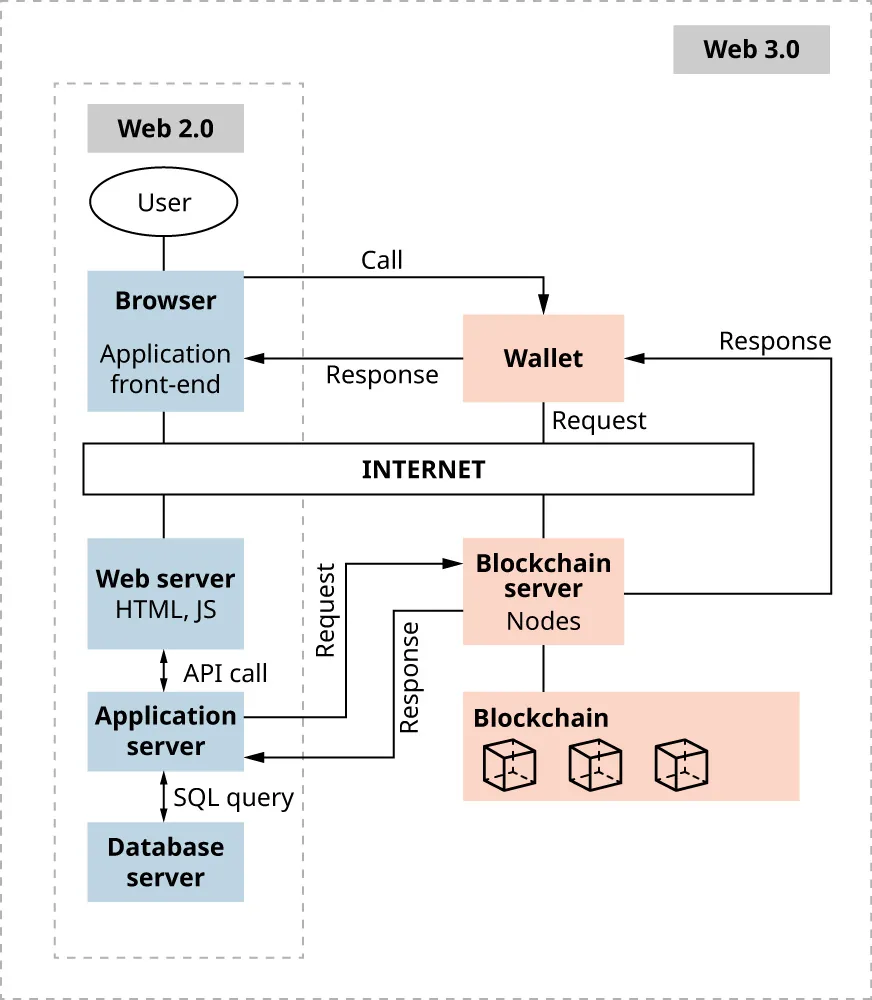

The secure and transparent way of recording transactions that uses a chain of blocks, each storing a list of encrypted transactions is called blockchain. Once a block is full, it is linked to the previous one, forming a chain. Blockchain technology decentralizes processing to ensure the integrity of transactions across multiple computer nodes. This ensures that no single computer node gets assigned to processing transactions repeatedly, thereby preventing possible fraudulent modifications of transactions. A smart contract is an automated agreement written in code that runs on blockchain technology. They enforce contract terms automatically when specific conditions are met, removing the need for intermediaries and ensuring security. The use of blockchain smart contracts within web applications is becoming more popular. The logical application architecture model in Figure 2.28 illustrates how this is made possible by creating hybrid Web 2.0 websites that interact with Web 3.0 smart contracts.
Building these types of business solutions is greatly facilitated by the use of the Ethereum platform, an open-source blockchain platform that enables the creation and execution of smart contracts and decentralized applications, or Cloud blockchain platforms provided by one of the Cloud service providers such as Amazon AWS, Google GCP, IBM Cloud, Consensys, Oracle Cloud, and others. These platforms provide frameworks and APIs that make it easy to develop and deploy smart contracts. The Web 2.0 portion of the website can leverage the frameworks mentioned earlier. In addition to these capabilities, the adaptive design reuse approach may be used to create the custom part of the Web 3.0 application. More information related to the development of Web 3.0 solutions is provided in Chapter 9 Software Engineering, Chapter 10 Enterprise and Solution Architectures Management, and Chapter 13 Hybrid Multicloud Digital Solutions Development.
Cloud-Native Business Solutions
A way of building software by breaking it into small, independent pieces where each piece, or service, does a specific job and works on its own is called microservices. A large number of businesses have been migrating their legacy business solutions to the cloud to take advantage of microservices that are designed around specific business functions and can be deployed independently using automated deployment systems. Figure 2.29 illustrates how secure, managed, and monetized APIs that are critical for a digital enterprise can be created by leveraging a combination of API-led integration frameworks and cloud-native technologies. The use of such frameworks and technologies helps streamline the migration of legacy business solutions. The process of migrating legacy business solutions means upgrading or replacing old systems with newer, more efficient ones. In addition to these capabilities, the adaptive design reuse approach may be used to create the custom part of the cloud-native applications. More information related to the development of cloud-native solutions is provided in Chapter 9 Software Engineering, Chapter 10 Enterprise and Solution Architectures Management, and Chapter 12 Cloud-Native Applications Development.

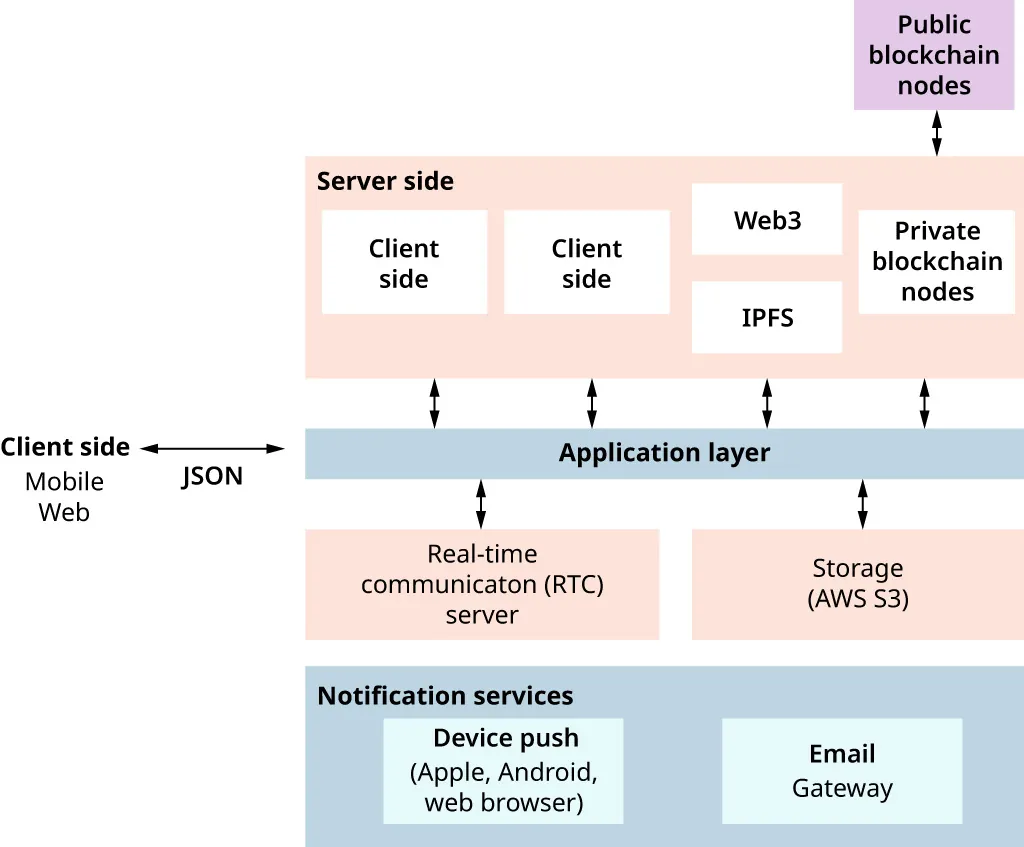

Figure 2.29 illustrates the architecture of a digital platform that combines web and mobile applications with blockchain technology. On the client side, users interact with the platform through web dashboards and mobile apps, which communicate with the server using JSON and handle notifications via services like Firebase, Huawei, and Apple. The server side includes an API layer that processes these requests, a caching layer to improve performance, and a back-end logic layer responsible for application logic, backups, and analytics. The architecture also features integration with public blockchain networks for enhanced security and transparency, and it supports various notification services to keep users informed.
Global Issues in Technology
Scale Transformations
The approach that consists of reinventing, rethinking, and rewiring solutions in various industries seems to favor countries that have the means to perform broadscale transformations. This may have ethical, social, and economic implications in other parts of the world.
Consider how advanced countries are rapidly adopting electric cars. They have the resources to reinvent transportation by investing in electric vehicle (EV) technology, rethinking their energy use to reduce pollution, and rewiring their infrastructure to support EV charging stations. This shift toward electric cars is more challenging in less wealthy countries due to the high costs of EVs and the lack of charging infrastructure. As a result, these countries may continue to depend on older, more polluting vehicles, facing both environmental and economic disadvantages.
Innovative Cloud Mashups
Innovative cloud mashups refer to creative combinations of different innovative business solutions that leverage disruptive technologies such as IoT, big data analytics, machine learning, blockchain, and others that can be quickly assembled today as hybrid cloud applications. A hybrid cloud application combines the benefits of both private and public clouds, allowing organizations to optimize their infrastructure based on specific requirements.

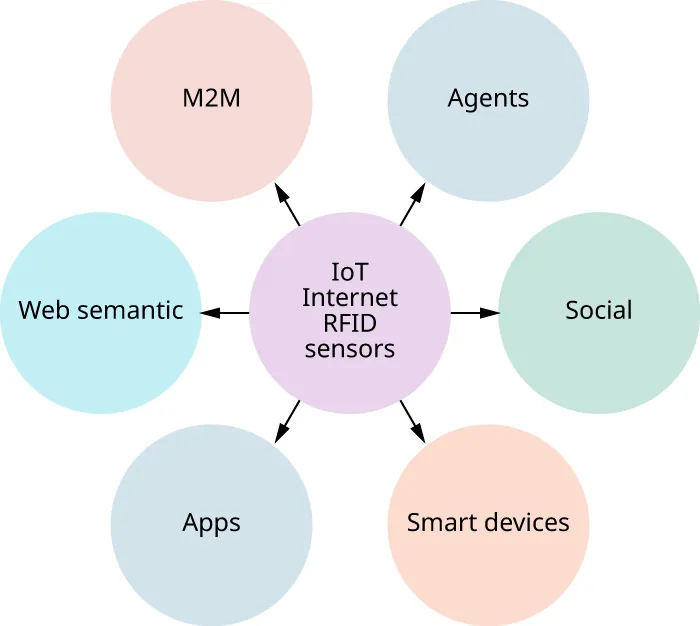

Internet of Things (IoT) refers to the network of physical devices embedded with sensors, software, and connectivity, enabling them to collect and exchange data. The process of examining, processing, and extracting valuable insights from large datasets is called big data analytics. Developing algorithms that enable computers to learn from data and make decisions without explicit programming is called machine learning. This is made possible by creating mashups of platform services provided by various public cloud vendors to gain access to these disruptive technologies.

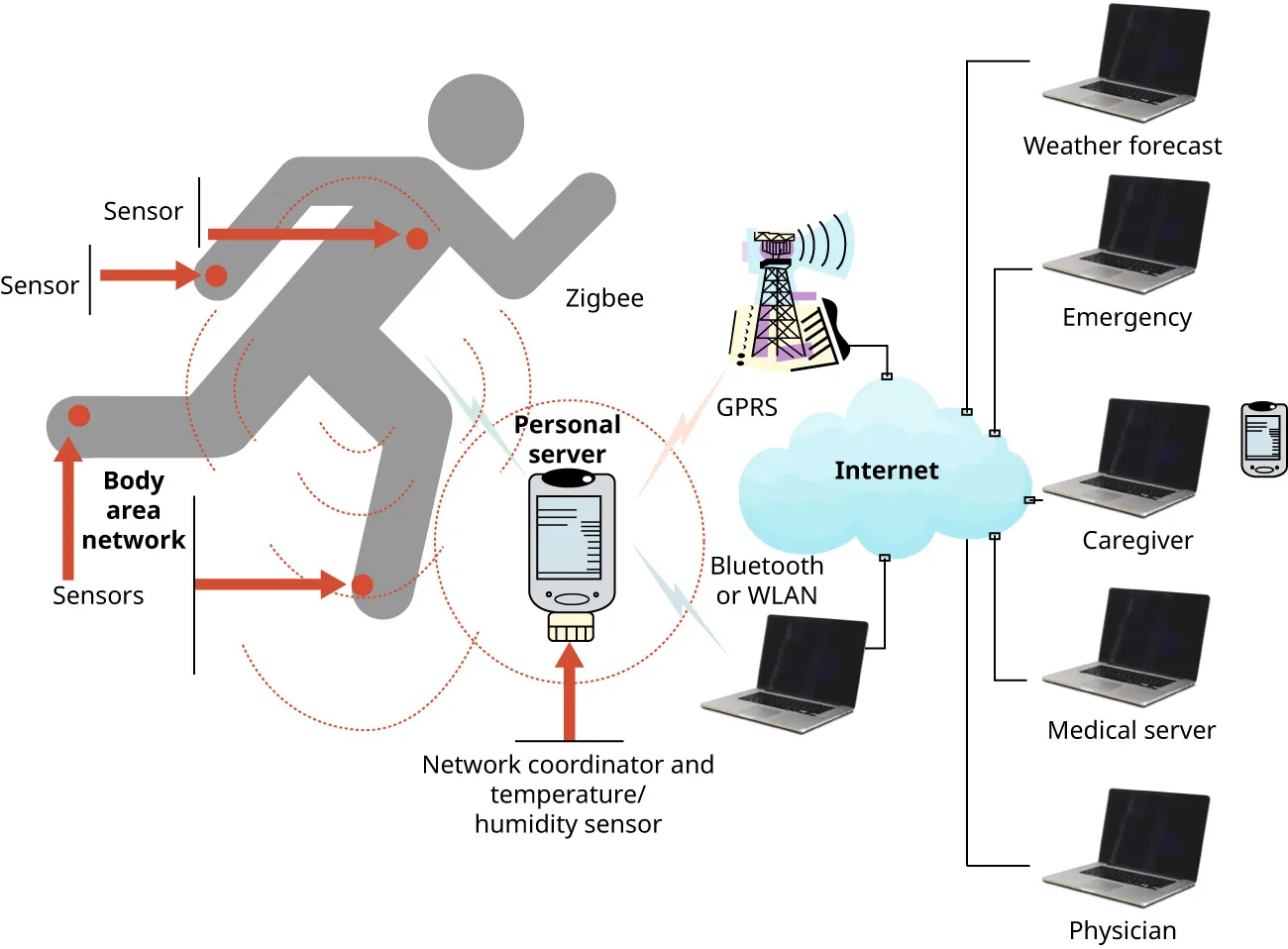

Figure 2.30 and Figure 2.31 illustrate models of solutions that are used today to support a variety of mobile health (MHealth), body area networks (BANs), emotions monitoring, and social media applications. In addition to the capabilities provided by the Big Clouds, the adaptive design reuse approach may be used to create the custom part of these hybrid solutions. Google Maps and Zillow are prime examples of applications that utilize location-based data to deliver valuable services. A GPS device identifies a user’s location, and that information flows through the central network. Apps then display this data in a user-friendly manner, connecting users with real-time geographic information in Google Maps or housing market details in Zillow. The integration of GPS with other IoT systems allows for the seamless presentation of customized, location-specific content to enhance the user experience. More information related to the development of web solutions is provided in Chapter 9 Software Engineering, Chapter 10 Enterprise and Solution Architectures Management, and Chapter 13 Hybrid Multicloud Digital Solutions Development.
Web 3.0 enables businesses to create more personalized and predictive services for users, fostering greater trust and engagement by giving users control over their own data. For companies, this translates to new opportunities for collaboration, innovation, and reaching consumers directly without intermediaries, ultimately driving more efficient business models and creating value in ways that were not possible with earlier web technologies.
