5.3 Machine-Level Information Representation

Integer Numbers Representation

As human beings, we always think in numbers, specifically decimals. Whenever you mention a number, it is usually in decimal form; that is, base-10. But what does base-10 mean? It means the value of the number is calculated by scanning the number from right to left. And as you pass by a digit, multiply it by 10 to the power of the position of that digit. The number at the far right, called the least significant digit, has position 0. The one after is at position 1, and so on. Figure 5.11(a) shows this process.

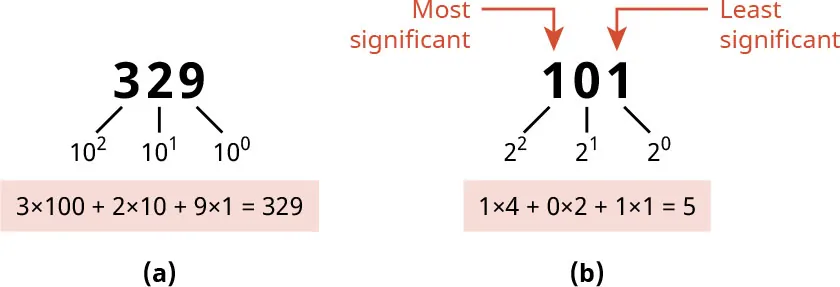

Figure 5.11 The only difference between (a) decimal and (b) binary is the base. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

What about binary numbers? Binary numbers use base-2 and are presented as a series of 1s and 0s. In order to go from binary to the equivalent decimal, we need to differentiate between the ways unsigned integers and signed integers are represented in binary.

Signed Integer Numbers Representation

A signed integer is an integer that can be negative or positive. The word signed means that they have a sign of + or –. To present negative numbers, designers experimented with several options before picking the de facto choice. The obvious option is to use the most significant bit (i.e., the leftmost bit) as a sign bit where 0 means positive and 1 means negative. The rest of the number is treated with a method called sign-magnitude. Is it a good option? Let us look at the first column of Figure 5.12. It represents the sign-magnitude for a 3-bit number. We see two things.

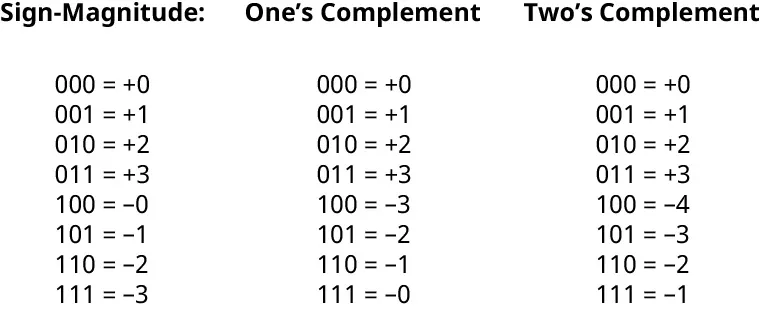

Figure 5.12 Two’s complement is the representation of choice for signed numbers. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

First, there are two presentations of 0 (+0 and –0), which is a waste of data. Second, the numbers are not mirrored around 0. That is, usually, the number after 0 is +1 and the one before 0 is –1. This is not realized here. The importance of this mirror is to make the hardware a bit simpler.

The second method to try is a bit less intuitive. It is called the one’s complement method of a binary number, which is obtained by flipping each 1 in the original number to 0 and each 0 to 1. For example, 101 has its one’s complement as 010. The one’s complement method is explained in more detail:

• Check the most significant bit and if it is 1, the number is negative and is represented in its one’s complement form. To get the original number, you need to get its one’s complement.
• The one’s complement of the one’s complement is the original number. For example, the one’s complement of 101 is 010. The one’s complement of 010 is 101.
• Looking at the second column of Figure 5.12, let us take a number such as 110. Its most significant bit is 1 so the number is negative and in its one’s complement form. To know its original value, we need to get its one’s complement again. The one’s complement of 110 is 001 which corresponds to decimal number 1, so the result is –1.
• If the most significant bit is 0, then the number is positive, and to get its decimal equivalent, we treat it as if it is unsigned. With the number 010, the most significant bit is 0, so the number is positive and the decimal equivalent of 010 is 2. Therefore, the result is +2.

Is the one’s complement a good method? There is a mirroring effect around the +3/–3. But we still have the two presentations of 0. The third method is called the two’s complement, which is the least intuitive method. It is important to note that what is good for machines is not intuitive or easy for human beings!

The two’s complement of a binary number is simply the one’s complement with 1 added to the result. For example, to get the one’s complement of 011, we do it in two steps. First, we get the one’s complement: 011 is 100. Second, we add 1 to the result: 100 + 1 = 101, and 101 is the two’s complement of 011. Now that we know the definition of two’s complement, let us see how we can get the decimal equivalent of a binary number. We perform a very similar technique as the one’s complement but use the two’s complement.

Look at the most significant bit. If it is 0, the number is positive, and the decimal equivalent can be calculated as if the number is unsigned. For example, 011 is positive and the decimal equivalent is +3. If the most significant bit is 1, then the number is negative, and it is written in its two’s complement form. Also, the two’s complement of the two’s complement brings the original number so 101 has the most significant bit of 1. The number is negative and written in its two’s complement form.

The two’s complement of 101 is 011, which corresponds to 3. The number 101 represents –3, as you can see in the third column of Figure 5.12. A close look at the figure shows that even though the two’s complement is not the most intuitive method, it is the most efficient. Since we have only one presentation of 0, we can see from the figure that with three bits, the two’s complement method can present up to –4, which we did not find in the other two methods.

Another important issue with the two’s complement is that the hardware implementation of it is very efficient because we can use the same piece of hardware for both addition and subtraction and for both signed and unsigned integers. Therefore, a two’s complement presentation of a signed number is the standard presentation in all computer systems.

With n bits, the range of numbers that can be presented is [–2^{n – 1}, +2^{n – 1} – 1]. You can see that this range contains 2ⁿ different numbers, exactly like n-bit unsigned integer numbers. The only difference is that in the signed range, half the range is negative, while in an unsigned integer, the whole range is positive.

Lastly, let us look at how additions and subtractions are done. The process is similar to a decimal by starting from the right and a possible carry propagates to the left. Additionally, the subtraction is nothing but an addition; that is, A – B is the same as A + two’s complement of B. When we add two numbers in decimal, it is straightforward. With binary, it is also straightforward. Just remember the information in Table 5.2; op1 and op2 are the two inputs to the addition operation.

Op1	Op2	Carry	Sum
0	0	0	0
0	1	0	1
1	0	0	1
1	1	1	1

Table 5.2 Op1 and Op2 Inputs to the Addition Operation

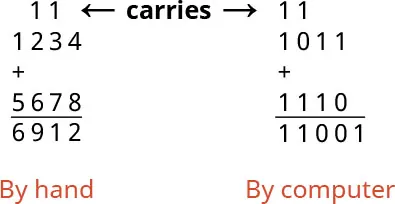

Let us apply this to numbers longer than one bit. In Figure 5.13, the left side of the example is a traditional decimal addition as done on paper by hand. The right side of the example shows what computers do. Computers, as we already know by now, use only 1s and 0s. So, if they add 1 to 1, for example, the result is not 2 because computers do not know 2. The result of 1 + 1 is 10, which is the binary representation of 2. From this 10, the 0 is the result and 1 is used as carry.

Figure 5.13 This illustrates the difference between traditional addition versus computer computation. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

Think It Through

Why Integers?

A real number, represented on a computer as a single precision floating point, takes four bytes. An integer also takes four bytes. Yet, the range of numbers that a floating point can represent is much larger than the integer.

• Why do we use an integer in the first place?

Computers are much slower dealing with floating points because the hardware for a floating point is much more complicated than the one for an integer, and it is better to make things faster by performing computations with an integer. We also only use floating points if it is an absolute need.

Character Representation

Remember that what is stored inside the computer is not only integers. If you look at a keyboard you see a bunch of characters, digits, and symbols and when you press a key, that symbol appears on the screen. But how do computers recognize these characters and deal with them?

Each printable and non-printable character on the keyboard has a unit code or unique binary number. These codes are known as American Standard Code for Information Interchange (ASCII). Capital letters have different codes from lowercase letters. For example, “A” has a different code than “a.” Decimal digits also have their own code. The code is 7-bit length, which covers 128 characters. This encoding has been extended to 8 bits to encompass non-printable characters as well (i.e., characters on the keyboard that cannot be printed on the screen: can you guess them?). The reason to have standardized codes across all machines is to allow computers of different brands, specifications, and sizes to work together. This code was approved in 1963, before personal computers existed, and then revised in 1965, 1967, 1968, 1977, and 1986. Now, all computers use this code to represent the characters.

You may realize that 128 characters, or even 256 ones, cannot include all written languages which is why there are new encoding standards such as Universal Coded Character Set (UCS) and Unicode that encompass all written languages and incorporate ASCII as the first 128 codes, which is backward compatible, allowing for the integration with older legacy systems.

Real Numbers (Floating Points)

There is no computer worth its salt that cannot present and manipulate real numbers. A real number, such as 3.14, is also called a floating point number because there is a decimal point somewhere in the middle. In most HLLs, a single precision floating point number requires four bytes of storage such as integers (signed and unsigned).

Let us start with an easy question: if given a binary floating-point number, for example 1010.010101, how do we get the decimal equivalent? Figure 5.14 illustrates how fractional binary numbers are represented. We use the same technique as getting the decimal equivalent of an unsigned integer. The only difference is that the digits at the right, after the floating point, have negative ranks starting from –1. If we have a number such as 11.111, the rank of the first digit after the floating point is –1, the following one is –2, and the leftmost one is –3. The digits at the left of the floating point have the usual rank that starts from 0. Therefore, the decimal equivalent of 11.111 = 2¹ + 2⁰ + 2^–1 + 2^–2 + 2^–3 = 2 + 1 + 0.5 + 0.25 + 0.125 = 3.875.

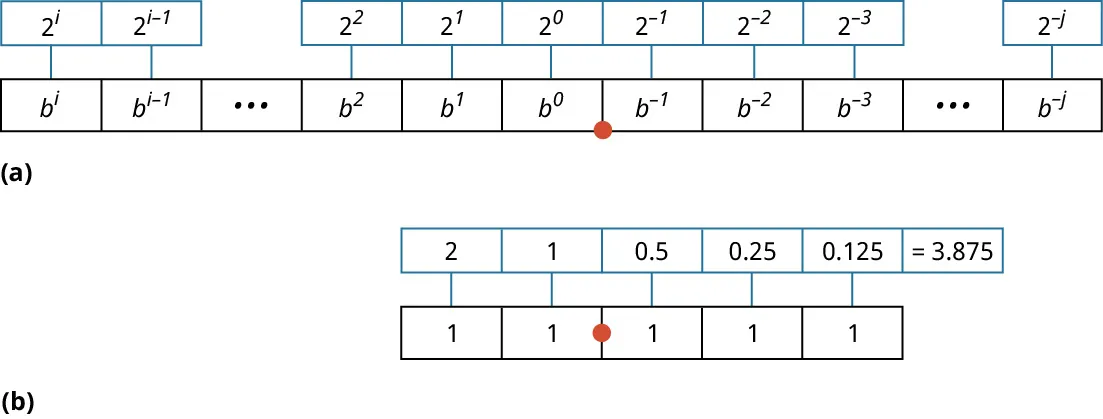

Figure 5.14 Floating point uses the same base 2, but after the decimal point the exponent is negative. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

But how do we store numbers like 11.111 inside the computer memory or register? The hard part is the position of the floating point itself because it is not known beforehand and can change during computations, which makes it very hard to decide how many bits to reserve for the digits at the right of the floating point and the digits at the left of the floating points. If we try to make it a fixed number, say 16 bits and 16 bits, we do not get good precision. Going back to the mathematical representation of decimal floating point numbers, you may recall that we can move the floating point to the left or to the right and keep the final value unchanged by multiplying by 10 to some power. For example, 1.875 is the same as 18.75 × 10^–1, which is the same as 1875 × 10^–3, which is the same as 0.1875 × 10, and so on. In binary, we can do the same by multiplying by 2 to the power of something. The number 11.111 is the same as 111.11 × 2^–1 and so on. In fact, we can express any floating point binary number in the form 1.xxxx × 2^y. Except for special cases, such as 0, expressing any binary number in this format requires storing three pieces of information:

• The sign bit specifying if the whole number is positive (sign bit of 0) or negative (sign bit of 1)
• The exponent (the y in 1.xxxx × 2^y)
• The fraction (the xxxx in 1.xxxx × 2^y)

Note we don’t need to store the “1.” because we know that it exists except for some special cases. And this is why one of the names of the floating point format is “the hidden 1 technique.” If we are talking about single precision floating point, it takes 4 bytes (32 bits) and the format is shown in Figure 5.15. One bit is needed for the sign, 8 bits for the exponent, and the rest (32 bits) for the fraction. This format is called IEEE 754 format, developed by the Institute of Electrical and Electronics Engineers (IEEE). It is the standard format used by almost all computers that support floating points with very few exceptions.

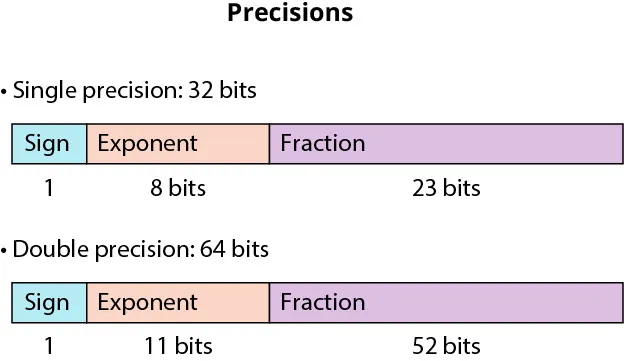

Figure 5.15 IEEE 754 is the standard of choice in most machines to present floating points. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

There is one piece of complexity regarding the exponent—the sign bit is responsible for the sign of the whole number. But, what about the exponent? We need to be able to have positive and negative exponents. If we use the two’s complement format for the exponent, the whole floating point format is overly complicated. The hardware that deals with floating point operations is very complicated and much slower than the one dealing with integers, and we do not want to make it even more complicated. The solution is to shift the range of the numbers presented by the 8 bits of the exponent. What does that mean? With 8 bits, we can present numbers from 0 to 256. What if we subtract 127 from each number? That is, you read the 8 bits, get the decimal equivalent (same way as an unsigned integer), then subtract 127. The result will be the range that can be presented is now from –127 to +128. You get the idea.

Another name for the IEEE 754 format is “excess 127.” Note that 127 is for the single precision. For double precision that takes 64 bits, we subtract 1023, which is roughly half the range. The double precision is shown at the bottom of Figure 5.15. Let us see an example. What is the decimal equivalent of 10111011010110000…0?

• First, let us divide it into its three main components: sign, exponent, and fraction. This makes it: 1     01110110     10110000…0.
• Sign bit is 1, so the whole number is negative.
• Exponent = 01110110. Its decimal equivalent is 118. We subtract 127. This makes the exponent: 118 – 127 = –9.
• The rest is the fraction, but we need to add the hidden one, so 1011000…0 becomes 1.1011, which has a decimal equivalent of 1 + 2^–1 + 2^–3 + 2^–4 = 1.6875.
• This makes the whole number = –1.6875 × 2^–9.

Before we finish our discussion about floating points, there is the question of 0. How to present the 0? Even if we make all bits 0, the hidden 1 makes the final value a non-zero one. How can we deal with this problem? The representation approach that we have learned so far is called the normalized encoding of the IEEE 754 format. This is used if the exponent is non-zero and is not 11111111. If the exponent is 0 (i.e., 00000000) we are in denormalized encoding (also called subnormal). When we are in this special case, there are some differences in the translation to decimal:

• The exponent is 1-bias instead of 0-bias. The bias is 127 in single precision and 1023 in double precision.
• There is no hidden 1, so the fraction part is 0.xxxx (the 23 bits in the fraction in single precision) instead of 1.xxxx….

With these exceptions, we cannot present the 0 (but setting all 32 bits to 0) but can present very small numbers.

The case where the exponent is all 1s is called “special values encoding.” If the exponent is all 1s and the fraction is all 0s, it represents infinity. If the exponent is all 1s and the fraction is non-zero, this is called NaN (Not a Number) and raises an exception. This happens when there is a bug in your program that does a division by 0 or the square root of –1, for example.
