Learning Objectives
By the end of this section, you will be able to:
- Describe abstraction levels from the highest to the lowest
- Explain application programs abstractions in relation to HLLs and instruction set architectures
- Discuss processor abstractions and how microarchitecture supports them
- Identify the role of the operating system within abstraction
- Discuss examples of new disruptive computer systems
When you look around, you see that complex systems can be viewed as layers of abstractions. The removal of unimportant elements of a program or computer code that distract from its process is called abstraction. This way of looking at complex systems makes it easier to understand them. For example, cars are very complicated inventions. At the highest level of abstraction, we look at a car as a set of devices used to operate it such as a steering wheel, brake and accelerator pedals, and so on. If we go to a lower level, we see devices that power the car such as its engine, gears, and spark plugs. If we take these parts and look at how they are designed, then we are at an even lower level where we see metals, plastics, and other materials. The same approach can be applied to computers to understand how they work. We can see computers as several layers of abstractions, as shown in Figure 5.5. For the remaining part of this section, we start from the highest level and then work through each abstraction layer to illustrate how it is used as a building block by the layer before it.
Computers are just a tool used to solve a problem. You may use computers to play games or listen to music, and in these cases, the problems that the computer is trying to solve are associated with programs that you use for entertainment purposes.

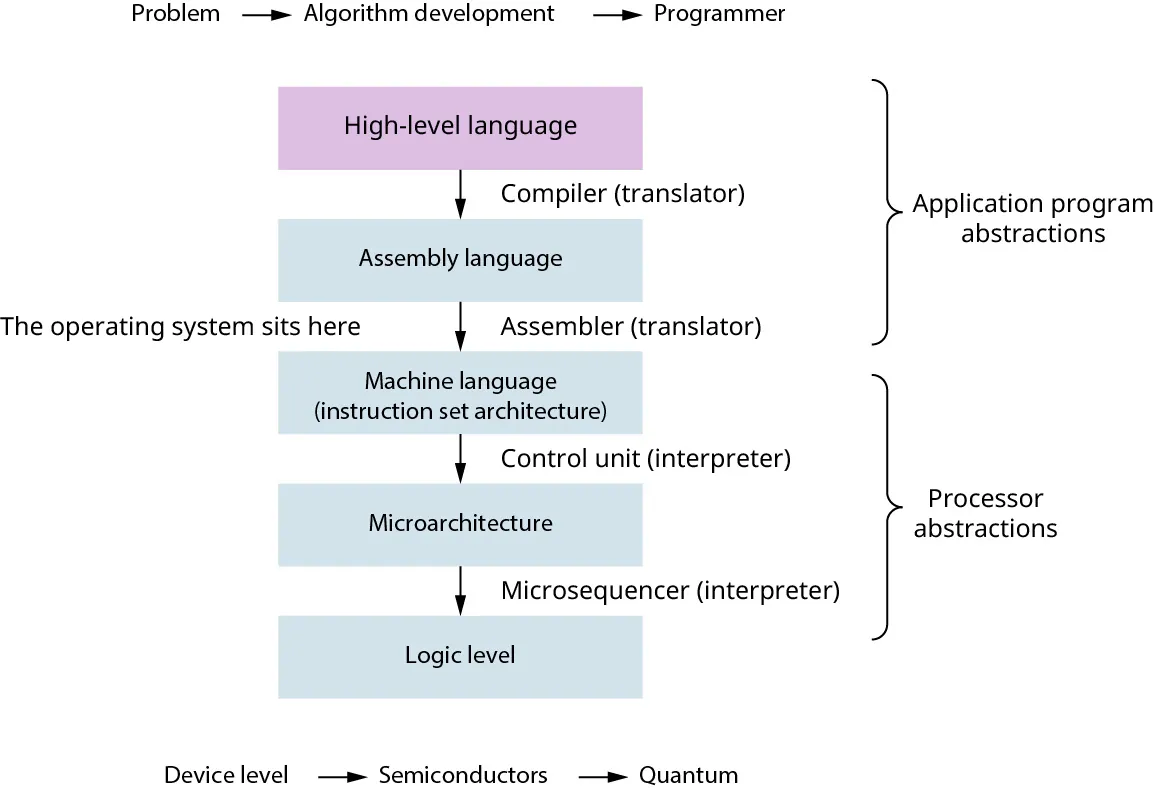

The top line in Figure 5.5 starts with the problem; we must have a very precise definition of the problem we are trying to solve with a computer. So, the first step in solving a problem with a computer is to know exactly, and with no vagueness, what we are trying to solve. You cannot make a computer solve a problem unless there is a defined and repeatable set of instructions to solve the problem. You may wonder then why it is necessary to use a computer in the first place if you can solve the problem yourself. Well, computers do not get bored, are precise, and can deal with very large problems. This is why, the next step after problem definition is to lay out the steps for solving the problem. This solution layout is called an algorithm. The algorithm is written in free format; that is, it can be steps written as a bulleted list, it can be a flowchart, or it can be a series of mathematical equations. Regardless of the format you choose for writing the algorithm, the algorithm needs to have a key set of characteristics.
The first characteristic is that an algorithm must be unambiguous. Each step of the algorithm must be very well defined and precise. The second characteristic is that the algorithm must be deterministic to be reproducible and repeatable so that the same set of inputs produce the same output. The third characteristic is that the algorithm, when implemented on a computer, must consume a reasonable amount of time and storage based on the problem needs. For example, an algorithm can be finite and precise, but if it requires 100 years to generate a result, it is clearly useless. For instance, an algorithm that counts the number of even numbers is not finite because we have an infinite number of even numbers.
Assuming we have an algorithm, we then need to prepare it for execution on the computer. First, we must prepare the input before it is ready to be consumed by the computer, so we give the algorithm to a programmer whose job it is to read the algorithm, understand it, and then write a program in a known computer language such as C/C++ or Python. The program tells the computer what to do, but in a formal way rather than a freeform way as an algorithm. At that point, we move to another level of abstraction.
Application Programs Abstractions
Next, the programmer writes a program. The main difference between an algorithm and a program is that the former is written by an algorithm designer and the latter is written by a programmer so that the program can be executed by a machine. These programs are called application programs, or simply, programs, and there are billions of them in existence today. Once the programmer finishes writing the program, there are two more steps before it can be executed by a computer.
High-Level Programming Language
The program generated in the previous step is written in a programming language. There are many programming languages in the world currently. A high-level language (HLL) is the most evolved method by which a human can direct a computer on how to perform tasks and applications. The phrase high-level means that it is closer to a natural language rather than a machine level language such as strings of 1s and 0s. That is, HLL is more user-friendly, and it is made to make the life of the programmer easier regardless of the hardware or the machine. If you look at the code of a program, you find that it is still in English, yet a restricted version of English with very specific keywords and formats to remove the ambiguity that usually exists in natural human language.
Even though HLLs rely on restrictive versions of English, they still use English at a high level. The machine does not understand English and needs a low-level language; therefore, we need yet another next step: assembly language.
Think It Through
One Hundred or One?
Since HLLs aim to make the life of the programmers easy, why do we have many HLLs? Why not one language that all programmers use?
Programming languages are typically designed to help create readable programs. However, some languages are designed with specific applications in mind. That is, some programming languages are easier to use for designing games, while other languages are meant to address mathematical problems or artificial intelligence. However, we can write any program in any language. But our task will be easier if we use the language that is designed with specific applications in mind.
Assembly Language
When you look at most mainstream programming languages, you find constructs such as functions, methods, subroutines, and objects. These concepts were invented to help human beings (the programmers) write their programs after understanding the algorithm. High-level languages make life easier for programmers. By using functions, objects, and other constructs, programmers can write programs faster and make them understandable and reusable for others. Computers, on the other hand, need specific instructions to perform tasks (for example, add this number to that other number and store the result in that place). Writing programs in this way is not easy for programmers because it is error prone, takes a lot of time to write correctly, and is not portable from one computer to the next. So, how do we deal with these conflicting requirements for programmers and computers? The answer is compilers.

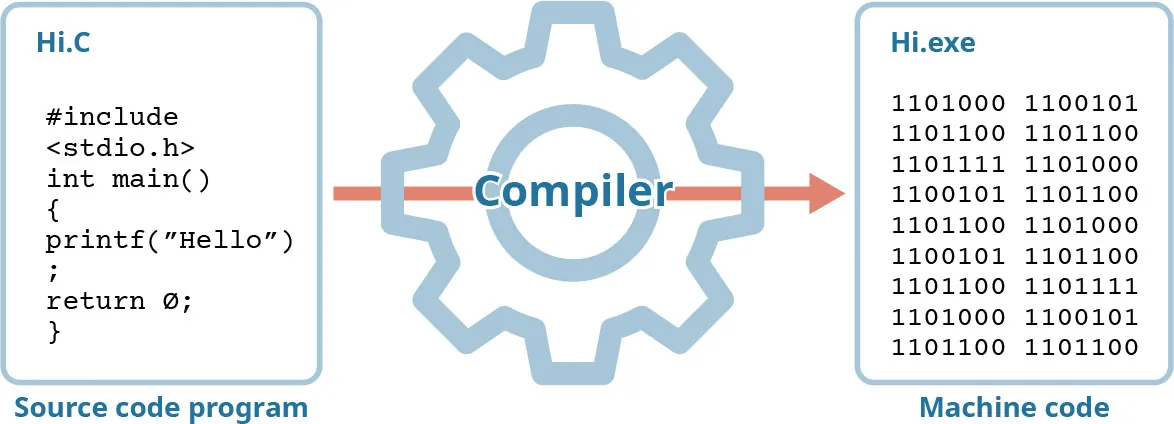

A compiler is a piece of software that takes a program written in a given HLL and generates another program that does the same task as the initial program but is written in a language that is much friendlier to the computer called assembly language. Assembly language is then translated into machine language code so that the program can be executed (Figure 5.7).
One low-level language designed to be computer friendly rather than human friendly is called assembly language. It does not use all the constructs found in HLLs such as objects or sophisticated data structure, which leads to two challenges.

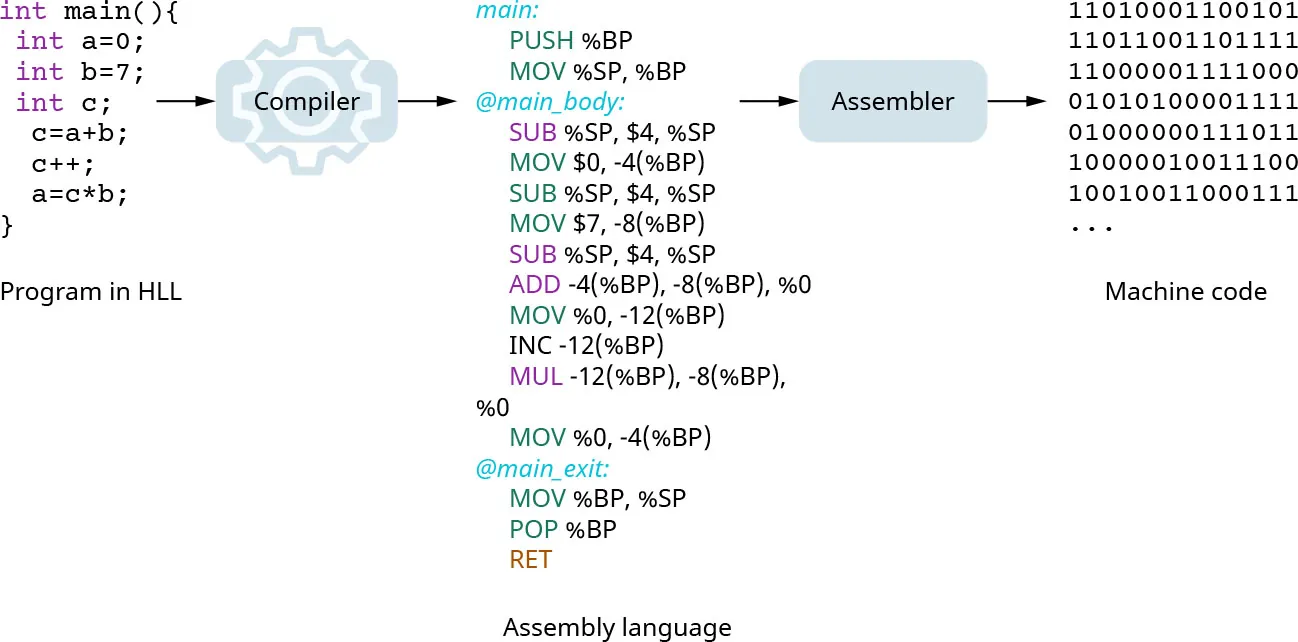

The first challenge is to manage the output of the compiler, which is an assembly language program that you can open and read. It is basically a text file, so it is written in English. Remember, computers do not understand English; they only relate to 1s and 0s. To deal with this challenge we use yet another program, shown in Figure 5.5, called an assembler (note that compilers may invoke assemblers directly). The assembler takes, as input, the assembly program generated by the compiler, and as output, a file that contains the equivalent of that assembly program in terms of 1s and 0s. This generated file is no longer in English, and you cannot open it with your favorite text editor. It is called a machine language file. This is the file that a computer understands. Figure 5.8 shows an example of a program written in an HLL (actually, a middle-level language, which is the C programming language), which is then translated to x86 assembly language and then to binary (refer to Chapter 4 Linguistic Realization of Algorithms: Low-Level Programming Languages).
The second challenge relates to managing the assembly language itself. If you look at the assembly language program, you find that it consists of instructions such as add, divide, and jump. But are these instructions recognized by all the processors (i.e., the main part of the computer that executes the program) in the world? If you give these instructions to a processor such as Intel, AMD, ARM, Qualcomm, or IBM Power, will they all recognize these instructions? The answer depends on a new concept referred to as the instruction set architecture.
Instruction Set Architecture
The instruction set architecture (ISA) is the set of instructions recognized by each processor family. For example, both Intel and AMD processors use the same ISA, called x86-64, which is different from the ISA recognized by ARM or IBM. This makes us revisit the concept of compilers. A compiler takes as input a program written in an HLL, and we have a compiler for each HLL. The output of the compiler is an assembly program in a specific ISA, and we have a compiler for each different ISA (e.g., ISA 1 and ISA 2). So, if we have programs written in three HLLs and we need to generate assembly for processors of two different families, then we need six compilers as shown in Table 5.1.
| Compiler# | Input to the Compiler | Output from the Compiler |
|---|---|---|
| 1 | HLL 1 | ISA 1 |
| 2 | HLL 2 | ISA 2 |
| 3 | HLL 3 | ISA 1 |
| 4 | HLL 1 | ISA 2 |
| 5 | HLL 2 | ISA 1 |
| 6 | HLL 3 | ISA 2 |
As we saw earlier, the output of the compiler is the input to the assembler so we need assemblers for each ISA in existence to generate a machine language file (e.g., .exe file) that the processor can execute.
Processor Abstractions
As we cross the layer of ISA in Figure 5.5, we cross the boundary between software and hardware. Before we discuss hardware, we need to understand two words: translator and interpreter. Both words mean “translating from language 1 to language 2” regardless of what those languages are. The main difference is the process by which translation is done. A translator takes a whole program in language 1 and generates another program in language 2. For example, the compiler takes an HLL as input (language 1) and generates the corresponding assembly language program (language 2). The interpreter takes one line (or command) in the program in language 1 and generates one (or more) instructions in language 2. Python is a popular example of an interpreted language.

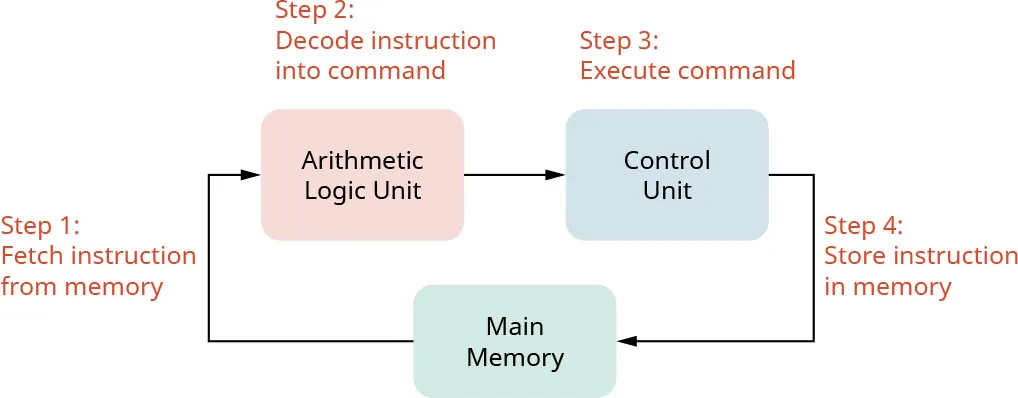

Understanding the hardware level allows us to see how computers execute programs. The main part of the computer hardware that does the execution is called the processor. The processor takes one instruction from the machine language file, executes it, and writes the results back in a designated place. Then, it fetches the following instruction and does the same. It keeps doing this until the program ends or an error occurs. This is an oversimplification, but it conveys the general idea. As you can see, it takes one instruction at a time, which is why the vertical arrow coming out of the machine language box in Figure 5.5 shows the word interpreter. But how does the processor do its job of fetching an instruction and executing it? To answer this question, we need to look at the main components of a processor.
Link to Learning
The transistor is the building block of the hardware of any computer. A transistor is merely an on/off switch; when it is on, it lets the electrical current pass. When it is off, it blocks the electrical current. This is very similar to the light switch you find in your room. But with these transistors, we can do more: with transistors, we build computers. Read this article to learn more about transistors and how they work.
Microarchitecture
The architecture (i.e., design) of the microprocessor (i.e., the processor) is called microarchitecture (Figure 5.9). Its main job is to design the different components of the processor and decide how to connect them so that the processor can do its job. For example, one important piece inside the processor is the part that fetches the next instruction of the program. Another crucial part, called the control unit, is responsible for decoding, or understanding, what this instruction wants to do and then tells the other components of the processor to execute this instruction. So, the control unit’s job is to take an instruction as input and generate signals to control the rest of the processor to make it execute the instructions. Other parts of the processor include the execution units that do the actual computations such as divide, multiply, add, and subtract.
To summarize, inside the processor you find those different pieces that fetch instructions, decode them, and execute them. But what is inside each one of these black boxes?
Digital Logic Abstraction
The main building block that forms the processor is called a logic gate. There are very few logic gate types: AND, OR, NOT, NAND, NOR, XOR, and XNOR. Using these gates, and most of the time only a subset of them, you can design all the pieces that form the processor discussed earlier. But what is inside these gates? How are they built?
The Lowest Level of Abstraction
The main building block of all logic gates, and hence of all processors, is the transistor. This is shown at the bottom of Figure 5.5 as device level. Though you may have heard the word transistor before, you may not know exactly what it does. Simply speaking, a transistor is an on and off switch. This is very similar to the light switch in your house that can turn a light on or off. A transistor lets an electrical current pass, the ON state, or can block the electrical current, the OFF state. Transistors are turned ON/OFF based on the voltage input to the transistor. If the voltage is higher than a threshold, the transistor is in the ON state. Otherwise, it is in the OFF state. There are only two states: ON/OFF, which correspond to 1 and 0. This is why computers understand only 1s and 0s. By interconnecting several transistors in some way, we build an AND gate. If we connect them in a different way, we build an OR gate, and so on.
If we try to see how transistors are built and work, then we move to the semiconductor level. At this level we use a special material such as silicon and a special, and very expensive, process to turn it into a working transistor. A single processor contains billions of transistors. How can a material like silicon make a transistor? This takes us to the level of atoms and quantum physics.
The Role of the Operating System
Now that we have rundown the problem definition to quantum physics, you may wonder where the operating system (OS) (i.e., OS X, Windows, Linux) fits in this bigger scheme. The OS is similar to any application program in the sense that it has to be written in an HLL, typically C/C++, and passed through the compiler and assembler to generate machine code. However, the OS differs from traditional application programs in that it has more privileges in the computer system.

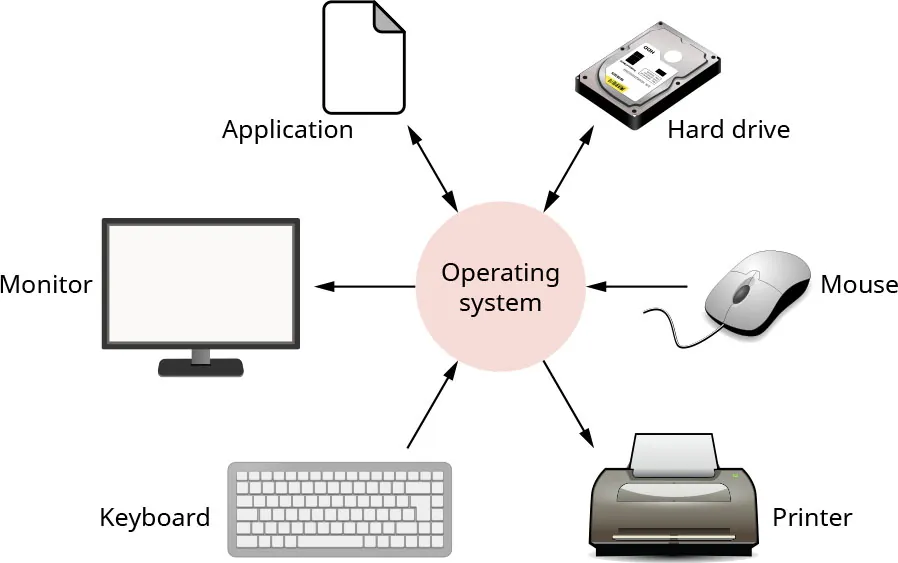

The operating system (OS), shown in Figure 5.10 is the only piece of software that can directly access the hardware. Any other program that needs to access the hardware, such as printing something, must talk to the OS, and the OS achieves the requested task on behalf of the program. The reason all computers are designed this way is to increase security (only one program deals with the hardware so other programs cannot affect the machine) and reliability (a program cannot affect a piece of hardware, which would then affect other programs). In order for the OS to do its job efficiently, it stores the data and programs on disk in an organized way using a file system. The file system helps organize files so that it is easier to find them when needed.
A file is a generic name for any entity we want to store in the computer. For example, any program that you use consists of one or more files. Each song you listen to is a file. Any image or video you watch is a file, and so on. The process in which the OS manages which program to use with what part of the hardware at any given time is called scheduling. That is, the OS decides when your web browser must use the processor and when your media player uses the screen or speaker. There is a generic name for all programs running on your computer: process. So, if you are listening to music while browsing the web then you are using two processes: your media player and your browser. Therefore, part of the job of the OS is process scheduling.
The technique that the OS uses to isolate different programs from each other so that they do not overwrite each other’s data or corrupt each other’s files is called virtual memory. Additionally, the OS can leverage several computers referred to as virtual machines together to act as one big computer and to serve several uses at the same time. Users may think they have control of the whole machine, even though the reality is not so. This is why this technology used by the OS is called virtual machine.
There are many OSs in the world but the most famous are Windows from Microsoft, macOS from Apple, and Linux.
New Disruptive Computer System Abstractions
Almost all computers in the world are designed in the way we have learned so far and involve very similar levels of abstraction. However, there are very futuristic designs that scientists are tinkering with today that differ from the traditional transistors. Scientists are trying, for example, to build computers using DNA. We have DNA computing, and we have a prototype for DNA storage, too.
We have several prototypes from various companies of quantum computing where instead of using bits, 1 and 0, the machines use quantum bits (qubits) that take a value between 1 and 0. We must not forget that traditional computers in general operate in binary state (i.e., using 0 and 1). To use these computers, we need to build different types of compilers, operating systems, programming languages, and so on. Another form of a non-traditional computer is a neuromorphic computer, which is built to act like a simplified version of the brain. So, it consists of hardware neurons connected together. These computers are not programmed but trained. What will computers look like 100 years from now? We do not know, yet.
