Learning Objectives
By the end of this section, you will be able to:
- Understand the approach to solving algorithmic problems
- Explain how algorithm design patterns are used to solve new problems
- Describe how algorithms are analyzed
Our introduction to data structures focused primarily on representing complex data. But computer scientists are also interested in designing algorithms for solving a wider variety of problems beyond storing and retrieving data. For example, they may want to plan a route between a start location and an end location on a map. Although every real-world problem is unique, computer scientists can use a general set of principles to design solutions without needing to develop new algorithms from scratch. Just like how many data structures can represent the same abstract data type, many different solutions exist to solve the same problem.
Algorithmic Problem Solving
An algorithm is a sequence of precise instructions that takes any input and computes the corresponding output, while algorithmic problem-solving refers to a particular set of approaches and methods for designing algorithms that draws on computing’s historical connections to the study of mathematical problem solving. Early computer scientists were influenced by mathematical formalism and mathematical problem solving. George Pólya’s 1945 book, How to Solve It, outlines a process for solving problems that begins with a formal understanding of the problem and ends with a solution to the problem. As an algorithm's input size is always finite, finding a solution to an algorithmic problem can always be accomplished by exhaustive search. Therefore, the goal of algorithmic problem-solving, as opposed to mathematical problem solving, is to find an “efficient” solution, either in terms of execution time (e.g., number of computer instructions) or space used (e.g., computer memory size). Consequently, the study of algorithmic problem-solving emphasizes the formal problem or task, with specific input data and output data corresponding to each input. There are many other ways to solve problems with computers, but this mathematical approach remains the dominant approach in the field. Here are a few well-known problems in computer science that we will explore later in this chapter.
A data structure problem is a computational problem involving the storage and retrieval of elements for implementing abstract data types such as lists, sets, maps, and priority queues. These include:
- searching, or the problem of retrieving a target element from a collection of elements
- sorting, or the problem of rearranging elements into a logical order
- hashing, or the problem of assigning a meaningful integer index for each object
A graph problem is a computational problem involving graphs that represent relationships between data. These include:
- traversal, or the problem of exploring all the vertices in a graph
- minimum spanning tree is the problem of finding a lowest-cost way to connect all the vertices to each other
- shortest path is the problem of finding the lowest-cost way to get from one vertex to another
A string problem is a computational problem involving text or information represented as a sequence of characters. Examples include:
- matching, or the problem of searching for a text pattern within a document
- compression, or the problem of representing information using less data storage
- cryptography, or the problem of masking or obfuscating text to make it unintelligible
Modeling
Computer scientists focus on defining a problem model, often simply called a model, which is a simplified, abstract representation of more complex real-world problems. They apply the algorithmic problem-solving process mentioned previously to design algorithms when defining models. Algorithms model phenomena in the same way that data structures implement abstract data types such as lists, sets, maps, priority queues, and graphs. But unlike abstract data types, models are not necessarily purely abstract or mathematical concepts. Models are often linked to humans and social phenomena. A medical system might want to decide which drugs to administer to which patients, so the algorithm designer might decide to model patients as a complex data type consisting of age, sex, weight, or other physical characteristics. Because models represent abstractions, or simplifications of real phenomena, a model must emphasize some details over others. In the case of the medical system, the algorithm designer emphasized physical characteristics of people that were deemed important and chose to ignore other characteristics, such as political views, which were deemed less important for the model.
If an algorithm is a solution to a problem, then the model is the frame through which the algorithm designer defines the rules and potential outcomes. Without models, algorithm designers would struggle with the infinite complexity and richness of the world. Imagine, for example, designing a medical system that models patients at the level of individual atoms. This model offers a detailed representation of each patient in the most physical or literal sense. But this model is impractical because we do not know how particular configurations and collections of atoms contribute to a person’s overall health. Compared to this atomic-scale model, our former model consisting of age, sex, weight, and other physical characteristics is more practical for designing algorithms, but necessarily involves erasing our individual humanity to draw certain conclusions.
In order to design algorithms, we need to be able to focus on relevant information rather than detailed representations of the real world. Further, computer science requires a philosophical mind to aid in problem solving. According to Brian Cantwell Smith, philosopher and cognitive and computer scientist, “Though this is not the place for metaphysics, it would not be too much to say that every act of conceptualization, analysis, or categorization, does a certain amount of violence to its subject matter, in order to get at the underlying regularities that group things together.”1 Without performing this “violence,” there would be too many details to wade through to create a useful algorithm.
The relationship between algorithms, the software they empower, and the social outcomes they produce is currently the center of contested social and political debate. For example, all media platforms (e.g., Netflix, Hulu, and others) use some level of targeted advertising based on user preferences in order to recommend specific movies or shows to their users. Users may not want their information to be used in this way, but there must be some degree of compromise to make these platforms attractive and useful to people.
On the one hand, the technical definition of an algorithm is that it represents complex processes as a sequence of precise instructions operating on data. This definition does not overtly suggest how algorithms encode social outcomes. On the other hand, computer programs are human-designed and socially engineered. Algorithm designers simplify complex real-world problems by removing details so that they can be modeled as computational problems. Because software encodes and automates human ideas with computers, software engineers wield immense power through their algorithms.
To further complicate the matter, software engineering is often a restrictive and formal discipline. Problem modeling is constrained by the model of computation, or the rules of the underlying computer that is ultimately responsible for executing the algorithm. Historically, computer science grew from its foundations in mathematics and formal logics, so algorithms were specialized to solve specific problems with a modest model of the underlying phenomena. This approach to algorithm design solves certain types of problems so long as they can be reasonably reduced to models that operate on a modest number of variables—however many variables the algorithm designer can keep in mind. In the case of the medical system, the algorithm designer identified certain characteristics as particularly useful for computing a result.
But there are many other problems that defy this approach, particularly tasks that involve subtle and often unconscious use of human sensory and cognitive faculties. An example of this is facial recognition. If asked to describe how we recognize a particular person’s face, an algorithm designer would be challenged to identify specific variables or combinations of variables that correspond to only a single person. The formal logic required to define an algorithm is strict and absolute, whereas our understanding human faces is defined by many subtle factors that are difficult for anyone to express using formal logic.
Industry Spotlight
Machine Learning Algorithms
A machine learning algorithm addresses these kinds of problems by using an alternative model of computation, one that focuses on generalized algorithms designed to solve problems with a massive model of the underlying phenomena. Instead of attempting to identify a few key variables for facial recognition, for instance, machine learning algorithms can take as input a digital image represented as a rectangular grid of colored pixels. While each pixel in the image offers very little information about the person in mind, the facial features unique to each human arise from the arrangements and patterns of pixels that result from seeing many images of the same person.
Think about the way your Apple iPhone or Google Pixel phone may look at you when you try to access it and have facial recognition enabled. The algorithm is not going to try to match your face to a saved picture of you because it would not work all the time if you do not look exactly like you did in the picture. Rather, it uses machine learning to extract patterns out of a person's face and match them, making it possible to recognize people all the time even if they are wearing glasses but was not wearing them when they set up facial recognition on their phone. This method does seem to mimic the way humans recognize people, even if they have not seen them for decades.
Machine learning algorithms offer a more robust approach to modeling these kinds of problems that are not easily expressed in formal logic. But in this chapter, we focus on the earlier, classical perspective on algorithmic problem-solving with the end goal of designing specialized algorithms to solve problems with modest models of the underlying phenomena.
Search Algorithms
In computer science, searching is the problem of retrieving a target element from a collection that contains many elements. There are many ways to understand search algorithms; depending on the exact context of the problem and the input data, the expected output might differ. For example, suppose we want to find the target term in a dictionary that contains thousands or millions of terms and their associated definitions. If we represent this dictionary as a list, the search algorithm would return the index of the term in the dictionary. If we represent this dictionary as a set, the search algorithm would return whether the target is in the dictionary. If we represent this dictionary as a map, the search algorithm would return the definition associated with the term. The dictionary data structure has implications on the output of the search algorithm. Algorithmic problem-solving tends to be iterative because we might sometime later realize that our data structures need to change. Changing the data structures, in turn, often also requires changing the algorithm design.

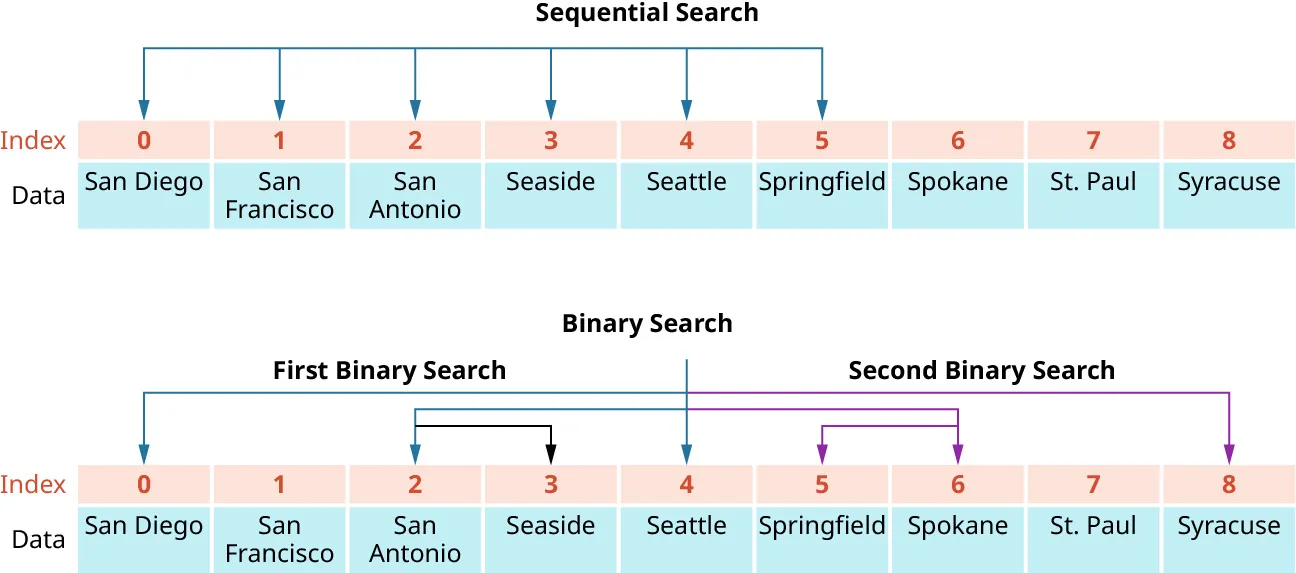

Despite these differences in output, the underlying canonical searching algorithm can still follow the same general procedure. The two most well-known canonical searching algorithms are known as sequential search and binary search, which are conducted on linear data structures, such as array lists.

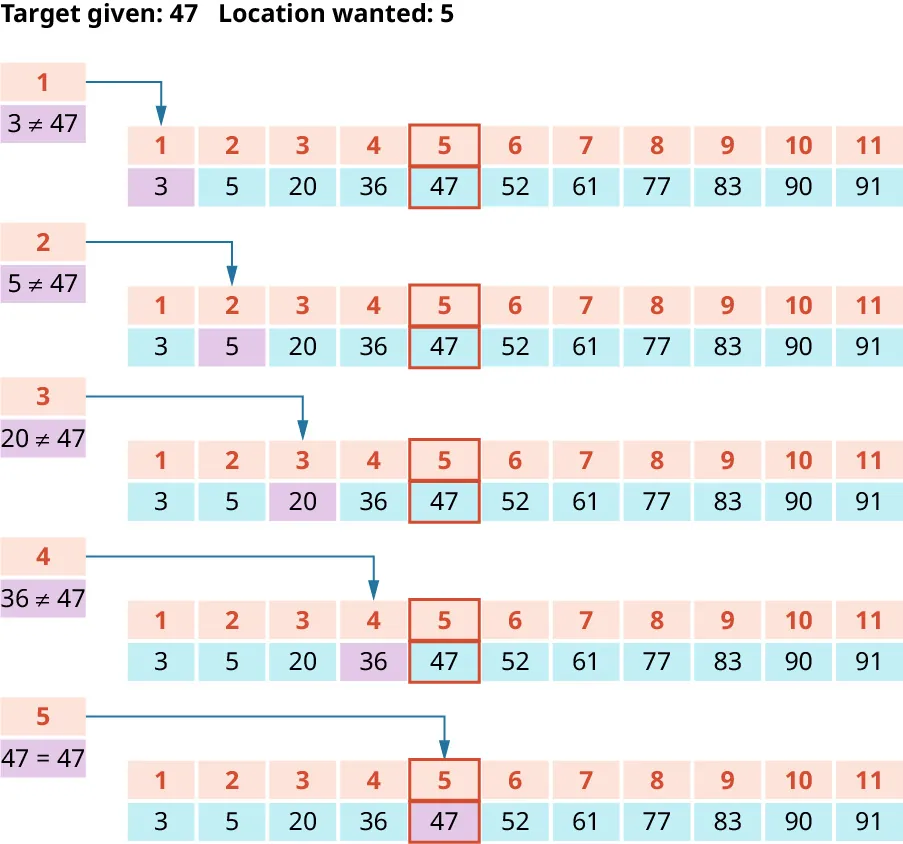

- Sequential search (Figure 3.9). Open the dictionary to the first term. If that term happens to be the target, then great—we have found the target. If not, then repeat the process by reading the next term in the dictionary until we have checked all the terms in the dictionary.

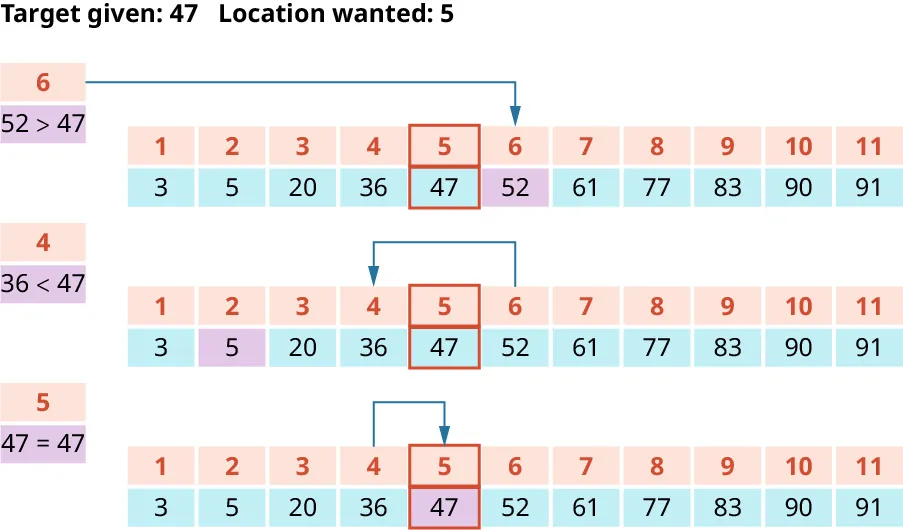

- Binary search (Figure 3.10). Open the dictionary to a term in the middle of the dictionary. If that term happens to be the target, then great—we have found the target. If not, then determine whether the target comes before or after the term we just checked. If it comes before, then repeat the process except on the first half of the dictionary. Otherwise, repeat the process on the second half of the dictionary. Each time, we can ignore half of the remaining terms based on the place where we would expect to find the target in the dictionary.
Algorithm Design Patterns
This case study of canonical search algorithms demonstrates some ideas about algorithmic problem-solving, such as how algorithm design involves iterative improvement (from sequential search to binary search). But this case study does not demonstrate how algorithms are designed in practice. Algorithm designers are occasionally inspired by real-world analogies and metaphors, such as relying on sorted order to divide a dictionary into two equal halves. More often, they depend on knowledge of an existing algorithm design pattern, or a solution to a well-known computing problem, such as sorting and searching. Rather than develop wholly new ideas each time they face a new problem, algorithm designers instead apply one or more algorithm design patterns to solve new problems. By focusing on algorithm design patterns, programmers can solve a wide variety of problems without having to invent a new algorithm every time.
For example, suppose we want to design an autocomplete feature, which helps users as they type text into a program by offering word completions for a given prefix query. Algorithm designers begin by modeling the problem in terms of more familiar data types.
- The input is a prefix query, such as a string of letters that might represent the start of a word (e.g., “Sea”).
- The output is a list of matching terms (completion suggestions) for the prefix query.
In addition to the input and output data, we assume that there is a list of potential terms that the algorithm will use to select the matching terms.
There are a few different ways we could go about solving this problem. One approach is to apply the sequential search design pattern to the list of possible words (Figure 3.11). For each term in the list, we add it to the result if it matches the prefix query. Another approach is to first sort the list of potential terms and then apply two binary searches: the first binary search to find the first matching term and the second binary search to find the last matching term. The output list is all the terms between the first match and the last match.
Technology in Everyday Life
Online Autocomplete Algorithms
In online mapping, autocomplete might take the prefix Sea and automatically suggest the city Seattle. We know that search algorithms solve this problem by maintaining a sorted collection of place suggestions. But many online mapping applications allow users to change maps as the places change in the real world. How can we design the autocomplete feature to support real-world user changes? To apply the binary search algorithm, all place names must be stored in a sorted array-based list. So, every change will also need to maintain the sorted order.
If we instead add all the place names to a binary search tree, what are the steps for the autocomplete algorithm? How does this choice affect additions, changes, and removals?
Algorithm Analysis
Rather than rely on a direct analogy to our human experiences, these two algorithms for the autocomplete feature compose one or more algorithm design patterns to solve the problem. How do we know which approach might be more appropriate to use? One type of analysis is known as algorithm analysis, which studies the outputs produced by an algorithm as well as how the algorithm produces those outputs. Those outputs are then evaluated for correctness, which considers whether the outputs produced by an algorithm match the expected or desired results across the range of possible inputs. An algorithm is considered correct only if its computed outputs are consistent with all the expected outputs; otherwise, the algorithm is considered incorrect.
Although this definition might sound simple, verifying an algorithm for correctness is often quite difficult in practice, because algorithms are designed to generalize and automate complex processes. The most direct way to verify correctness is to check that the algorithm computes the correct output for every possible input. This is not only computationally difficult, but even potentially impossible to achieve, since some algorithms can accept an infinite range of inputs.
Verifying the correctness of an algorithm is difficult not only due to generality, but also due to ambiguity. Earlier, we saw how canonical searching algorithms may have different outputs according to the input collection type. What happens if the target term contains special characters or misspellings? Should the algorithm attempt to find the closest match? Some ambiguities can be resolved by being explicit about the expected output, but there are also cases where ambiguity simply cannot be resolved in a satisfactory way. If we decide to find the closest match to the target term, how does the algorithm handle cultural differences in interpretation? If humans do not agree on the expected output, but the algorithm must compute some output, what output does it then compute? Or, if we do not want our algorithms to compute a certain output, how does it recognize those situations?
Correctness primarily considers consistency between the algorithm and the model, rather than the algorithm and the real world. Our autocomplete model from earlier returned all word completions that matched the incomplete string of letters. But in practice, this output would likely be unusable: a user typing "a" would see a list of all words starting with the letter "a." Since our model did not specify how to order the results, the user might get frustrated by the irrelevancy of many of the word completions. Suppose we remedy this issue by defining a relevancy metric: every time a user completes typing a word, increase that word’s relevancy for future autocompletion requests. But, as Safiya Noble showed in Algorithms of Oppression, determining relevance in this universalizing way can have undesirable social impacts. Perhaps due to relevancy metrics determined by popular vote, at one point, Google search autosuggestions included ideas like:
- Women cannot: drive, be bishops, be trusted, speak in church
- Women should not: have rights, vote, work, box
- Women should: stay at home, be in the kitchen
- Women need to: be put in their places, know their place, be controlled, be disciplined2
Noble’s critique extends further to consider the intersection of social identities such as race and gender as they relate to the outputs of algorithms that support our daily life.
Global Issues in Technology
Searching for Identity
In Algorithms of Oppression, Safiya Noble describes how search engines can amplify sexist, racist, and misogynistic ideas. While searching for “Black girls,” “Latina girls,” and “Asian girls” circa 2013, Safiya was startled by how many of the top search results and advertisements that appeared on the first page of Google Search led to pornographic results when her input query did not at all suggest anything pornographic. In contrast, searching for “White girls” did not include pornographic results. As algorithms become more commonplace in our daily lives, they also become a more potent force for determining certain social futures. Algorithms are immensely powerful in their ability to affect not only how we act, but also what we see, what we hear, what we believe about the world, and even what we believe about ourselves.
As the amount of input data increases, computers often need more time or storage to execute algorithms. This condition is known as complexity, which is based on the degree computational resources that an algorithm consumes during its execution in relation to the size of the input. More computational time also often means consuming more energy. Given the exponential explosion in demand for data and computation, designing efficient algorithms is not only of practical value but also existential value as computing contributes directly to global warming and resultant climate crises.
Think It Through
Content Moderation
Online social media platforms facilitate social relationships between users by allowing users to create and share content with each other. This user-generated content requires moderation, or methods for managing content shared between the platform users. Some researchers argue that content moderation defines a social network platform; in other words, content moderation policies determine exactly what content can be shared on the platform, which in turn defines the value of information. As social media platforms become increasingly prevalent, the information on these platforms plays an important role in influencing their users.
One approach for content moderation is to recruit human moderators to review toxic content, or content that is profane, abusive, or otherwise likely to make someone disengage. An algorithm could be developed to determine the toxicity of a piece of content, and the most toxic content could be added to a priority queue for priority moderation.
What are the consequences of this approach? How does the definition of toxicity prioritize (or de-prioritize) certain content? Who does it benefit? Consider the positionality of the users that interact with the platform:
- marginalized users of the platform, who may be further marginalized by this definition of toxicity.
- content moderators, who are each reviewing several hundred pieces of the most toxic content for hours every day.
- legal teams, who want to mitigate government regulations and legislation that are not aligned with corporate interests.
- social media hackers, or users who want to leverage the way certain content is prioritized in order to deliberately shape public opinion.
