4.1 Models of Computation

Machine Code

The sequence of binary digits (bits) that can be understood and executed directly by a computer is called machine code (Figure 4.5). Machine code is the most low-level language. It is also known as binary code. It is a program in the native format that can be understood by a CPU, in the form of a long series of 0s and 1s. Machine code, or binary code, is the only computational model that a computer can execute; a program written in any other language must be compiled or interpreted into machine code before the program can run. The CPU of a computer is a computer chip capable of executing machine code programs (Figure 4.6). It is impractical for humans to work with machine code directly because a machine code program is not designed to be human-readable. The patterns of 0s and 1s are designed to be convenient for a CPU to decode, not for humans to manipulate; and such programs are long, typically millions or billions of bits long. Another obstacle is that machine code is hardware dependent. As discussed in 5.3 Machine-Level Information Representation, every processor architecture has its own machine language, so machine language written for one architecture (for example, INTEL X86) cannot work on any other architecture (such as ARM). When the very first digital computers were built, and programming languages had yet to be invented, programmers had no choice but to write machine code by hand. However, this is extremely time-consuming and prone to errors, so is almost never done today.

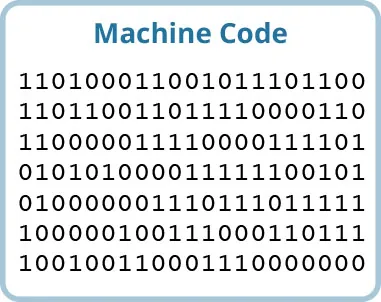

Figure 4.5 Machine code, with its 0s and 1s, is the only computational model a computer can execute. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

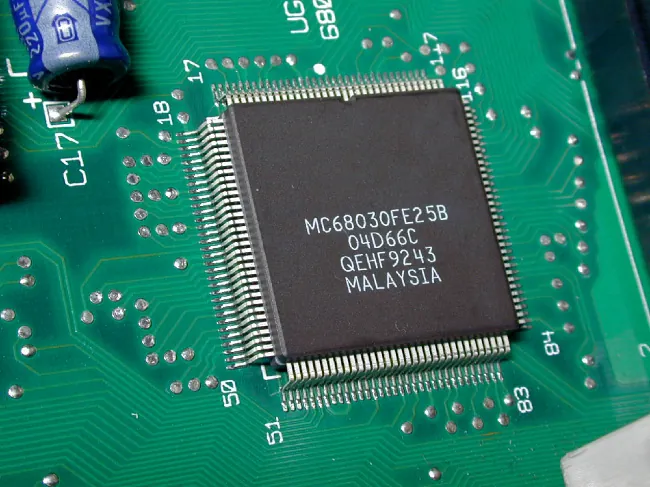

Figure 4.6 A computer chip is a computer’s central processing unit (CPU). (credit: modification of "IIci" by raneko/Flickr, CC BY 2.0)

Assembly Language

The low-level language in which every statement corresponds directly to a machine instruction is called assembly language. Assembly language is a small step above machine code but is still a very low-level language. Assembly language is a textual representation of machine code. Just like a machine code program, an assembly language program is a series of instructions that a CPU will execute. However, rather than writing the instructions in a binary format of 0s and 1s, each instruction has a textual name such as “ADD” or “MOVE.” An assembler is a program that translates assembly language source code into machine code. As shown in Figure 4.7, an assembler translates each textual instruction into the corresponding list of 0 and 1 bits.

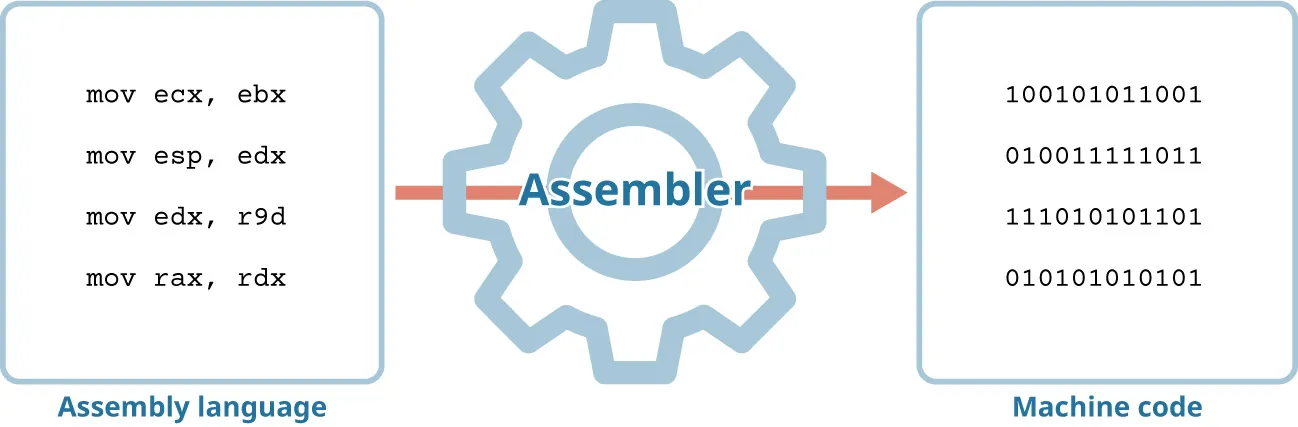

Figure 4.7 An assembler is a program that translates assembly language source code into machine object code. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

While it is practically impossible for a human to write a complete program in machine code, writing programs in assembly language is viable. Because assembly language is extremely low-level, these programs tend to run quickly, but they are labor-intensive to write, and are machine-dependent. This type of programming was sufficient in the 1960s, 1970s, and 1980s when software was written for one-off capital-intensive machines, such as multimillion-dollar mainframes or space vehicles. Programmer labor was comparatively cheap then, and there was no need to move programs to different hardware. But today, we expect applications to be compatible with multiple kinds of platforms, including phone, computer, and gaming systems. Programmer labor is more expensive than computer hardware, so writing entire programs in assembly language is uneconomical. Consequently, programs are often written predominantly in a high-level language, with assembly language used to write short excerpts on an as-needed basis. Writing code in a higher level language makes it easier to write correct code that does not have defects.

The Imperative Programming Paradigm

In imperative programming, the programmer writes a series of steps that must be followed in order. Source code spells out a precise series of operations that the computer must execute in order. Since the computer is told to take specific actions and execute these statements, the language is referred to as “imperative.” An imperative is an order or command. Low-level languages are imperative languages, and middle-level languages, such as C, are imperative and include another paradigm. While low-level languages can mimic the style of a structured language, these properties are not inherent in the language itself and must be imposed by the programmer as a practice. Assembly code can easily be written in a non-structured way.

Declarative and Functional Programming

Another type of programming, declarative programming, is a paradigm in which code dictates a desired outcome without specifying how that outcome is achieved. Declarative languages are an alternative to imperative languages. In a declarative language, the programmer declares the desired outcome, and it is the compiler’s job to create a series of imperative steps that obtains that outcome. For example, the Structured Query Language (SQL) used to query database systems makes it possible to specify what data should be retrieved from a database, without specifying how the database system should retrieve that data.

Functional languages are another alternative to imperative languages. Recall that a function is a mathematical object that defines how to convert an input into an output. For example, given x = 4, the function $f\text{(}x\text{)}=x+\text{3}$ converts the input 4 into the output 7. Functions can be defined in most programming languages and correspond to small sections of code that perform a specific task such as a calculation. Functions can be defined in most programming languages.

Functional programming is a programming paradigm in which algorithms are written as mathematical functions (Figure 4.10). In functional programming, practically every part of the program is written as a function. The programmer writes functions that convert inputs to outputs, and it is the compiler’s job to create imperative steps to evaluate the functions.

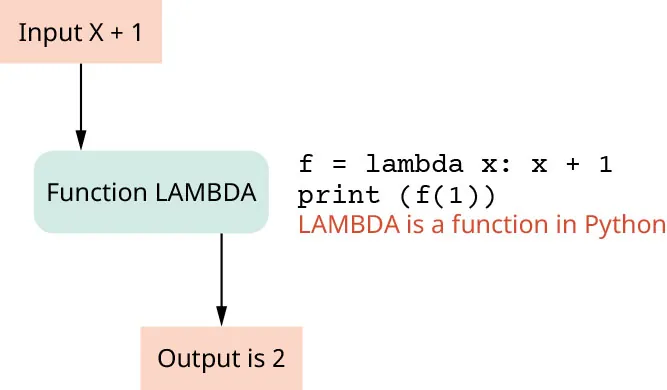

Figure 4.10 This diagram shows a functional programming example using Python. Here the function “LAMBDA” is used to increment the value of x by 1 whenever it is called. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

Declarative and functional languages are considered high-level languages because the compiler is creating these steps on behalf of the programmer. Functional languages are discussed in more detail in Chapter 7 High-Level Programming Languages.

Structured Programming

In low-level languages and early high-level languages such as BASIC, some special statements called conditional statements (using “if/then”) and iteration (called “loops”) are programmed using an operation called GOTO, a non-structured operation that instructs a computer to jump to an entirely different part of the program. In large programs, these jumps from one spot to another interact in complex ways, so the flow of execution is difficult to understand when attempting to read the code. These sorts of programs are criticized for being messy “spaghetti code” (Figure 4.11).

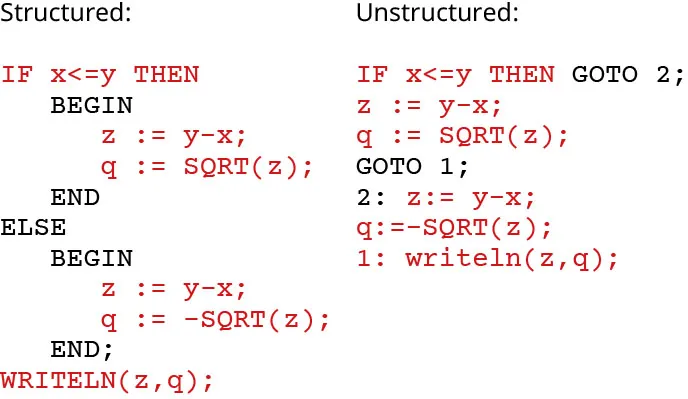

Figure 4.11 The same program that prints the square root of an integer (using SQRT(z)) is shown in a structured format and an unstructured format. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

Newer languages were developed to help avoid spaghetti code. In a structured programming language, control flow leverages conditionals (e.g., “if-then”) and iteration statements (e.g., “while” or “do while”) and never uses GOTO statements. For example, C is a structured language that includes the conditional statements “if” and “switch,” and the iteration statements “for,” “while,” and “do.” In proper C, all the code sections that involve conditionals and iteration are written with these statements, and GOTO should not be used. Note that the fact that GOTO is provided as a keyword in the C language relates to the fact that C is a low-level language and programmers at that level are given the choice of using unstructured programming if necessary, although it is not recommended.

The benefit of using these statements is that they make the flow of execution clear in the source code. When writing an “if,” for instance, it is clear which code is inside the “if” and which is outside. And when mixing an “if” with a “for” loop, it is clear whether the “if” is inside the “while” or vice-versa. These sorts of inside/outside relationships are difficult to perceive in unstructured code. In a conditional statement like “if”, the compiler executes a line if the condition has been met or is true. Otherwise, it moves to the next statement:

import java.util.*;

public class Main {
    public static void main(String[] args) {
        Scanner s = new Scanner(System.in);
        System.out.println("Enter an input value: ");
        int Val = s.nextInt();
        int Curr_Val = 10;

        if (Val > Curr_Val) {
            System.out.println("The Value that you entered is greater than the current.");
        } else {
            System.out.println("The Current value is greater than the value that you entered.");
        }

    }
}

Inside a loop, like “while”, the statements are executed only if the condition in the loop is true. Otherwise, the loop execution terminates, and the compiler moves to the statements after the loop:

import java.util.*;

public class Main {
    public static void main(String[] args) {
        Scanner s = new Scanner(System.in);
        System.out.println("Enter an input value: ");
        int Val = s.nextInt();
        int Prod = 1;

        while (Val != 0) {
            Prod = Prod * Val;
            Val--;
        }

        System.out.println("The factorial is " + Prod);
    }
}

There is a substantial upside to making a language structured, and the only significant downside is that it makes the language a bit more high-level. Therefore, among programming languages that are currently in widespread use, all the middle-level and high-level languages are structured.

Procedural Programming

In a procedural language, each part of the program is a procedure, which is a function in the context of programming. Known as procedural programming, this is a paradigm in which code is organized into procedures (Figure 4.12). It is a sub-type of imperative programming. All procedural languages, then, are imperative, but not all imperative languages are procedural. A programmer designs each procedure to accomplish a specific task and gives it a descriptive name. This allows the programmer to break a large and complicated program into smaller, more manageable pieces, which are easier to write and easier for other programmers to understand. This property of code being divided into small, reusable piece is called modularity, and it is considered a virtue.

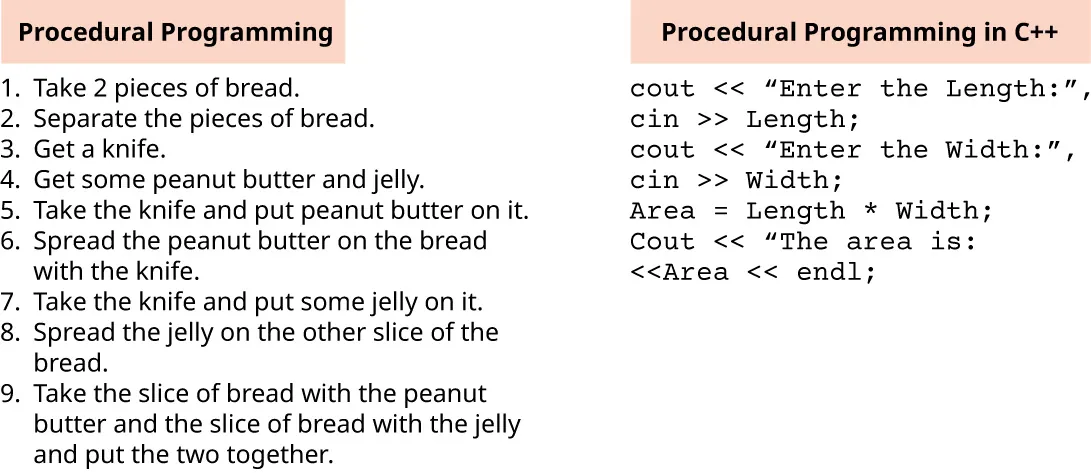

Figure 4.12 This procedural programming comparison relates a real-life scenario, such as making a sandwich, to the corresponding C++ version of the same scenario. In both cases, each step has its own procedure. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

For example, in C, a procedure that opens a socket, or an Internet connection between two computers, is called g_socket_connect()(Figure 4.13). This procedure involves executing a series of imperative commands that use operating system features (such as the transport layer), system calls, and networking hardware (such as network interface cards, or NICs), to set up a socket connection. To close that connection and end communication, C uses the g_socket_close() procedure, which executes a series of commands that shut down the connection. These procedures use the imperative approach to accomplish their respective tasks, so each function contains a series of imperative statements.

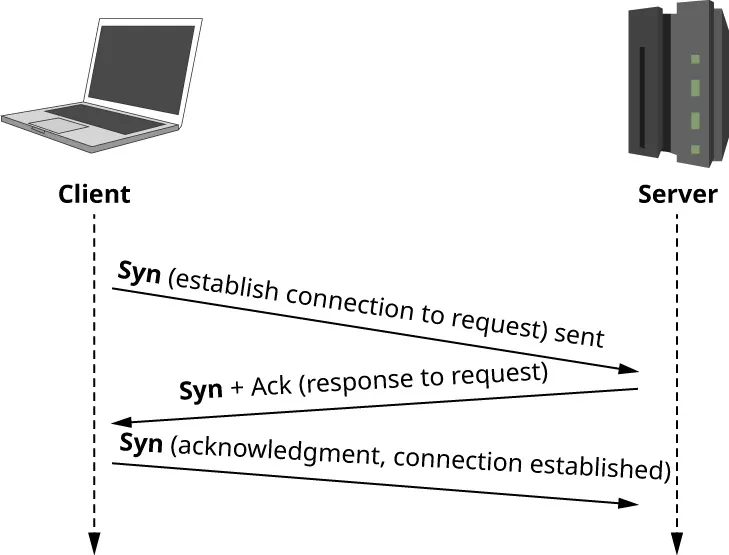

Figure 4.13 This diagram demonstrates various functions used by the socket on both the client and the server side to establish and close a connection. (credit: modification of “Tcp connect” by Sébastien Koechlin/Wikimedia Commons, CC BY 3.0)

A procedural programming language provides syntax for defining procedures but cannot force individual programmers to follow through with breaking their code up into small procedures and giving the procedures descriptive names. So, even when a program is written in a procedural language, the source code may not necessarily be written in a procedural style.

Object-Oriented Programming

Object-oriented code is organized around objects. An object has both data, or variables, and procedures that work together to represent a specific human concept. For example, in a desktop or mobile application, every button on the screen is an object. Each button has variables to represent information, such as the location and color of the button, and procedures that perform tasks, such as clicking, hiding, or displaying the button. This programming paradigm is known as object-oriented programming. It is a programming paradigm in which code is organized into objects, where each object has both data and procedures. It is a sub-type of procedural programming. All object-oriented languages, then, are procedural (and by extension, imperative), but not all procedural languages are object-oriented. A simple example of an object can be a rectangle used to represent meaningful concepts in real life, such as the rooms in a house or a person or robot and what it can do. Different rooms may have different attributes, representing features that are specific to a kitchen, a living room, or a bedroom. A robot can have a name and age and can receive input commands and respond or print a greeting, as illustrated in Figure 4.14.

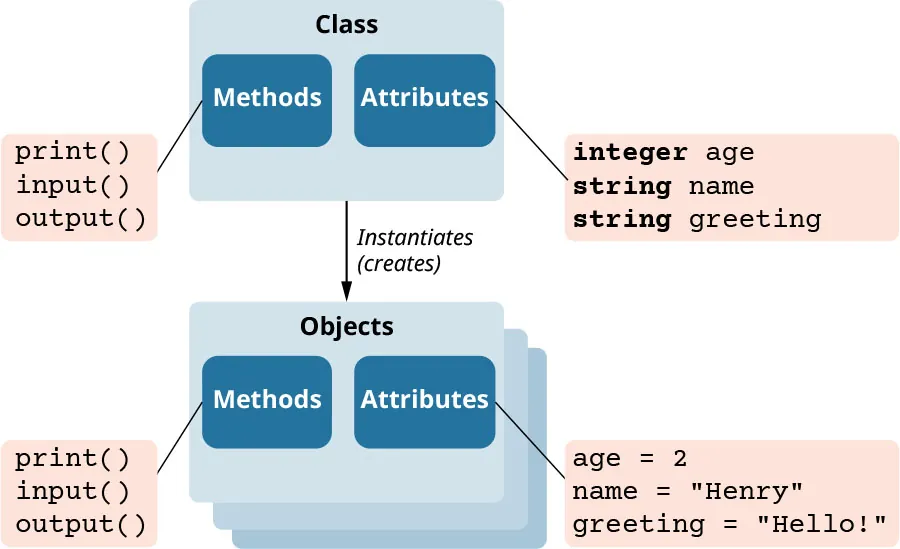

Figure 4.14 The object-oriented use of a robot class instantiates robot objects that have attributes of age, name, and greeting and methods of

input()

,

output()

, and

print()

. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

Object-oriented programming was invented to help programmers organize their code, and it has been very successful. The most widely used high-level languages, including C++, C#, Java, JavaScript, and Swift, are all object-oriented. Object-oriented programming is discussed further in Chapter 7 High-Level Programming Languages.
