3.6 Computer Science Theory

Models of Computation

Computers include basic algorithms for solving problems like adding, subtracting, or comparing two numbers. Computers, owing to their roots in calculators, are optimized to solve these problems; these basic algorithms are constant-time operations. What programming offers is the ability to define our own algorithms that can be used to solve more complex problems, such as searching, sorting, and hashing. Unfortunately, these programmed algorithms are not as fast as basic operations. We have even seen certain problems deal with a combinatorial explosion in the number of potential solutions. For many of these problems, the best-known algorithms do not do much better than brute-force, which takes exponential time.

In the bigger picture, computer science engages the central question of how humans can encode intelligence. Our discussion of algorithm design grounded the activity in problem modeling, the process of encoding a complex real-world phenomenon or problem in a more abstract or simple form. How is problem modeling constrained by the model of computation, or the rules of the underlying computer that executes an algorithm? Why are certain problems challenging for computers to execute?

Combinatorial explosion poses a problem for computer algorithms because our model of computation assumes computers only have a single thread of execution and only execute one basic operation on each step. If we overturn some part of this assumption, either by creating computers with multiple processors or by creating more sophisticated operations, then it might be possible to deal with combinatorial explosion. Almost all of today’s computer hardware, ranging from massive supercomputers to handheld smartphones, rely at least to some degree on expanding the model of computation to compute solutions to problems more efficiently. Even so, much of today’s computer hardware still relies on the same fundamental programming assumptions: that there are variables to represent data and arithmetic or logical operations.

Turing Machines

In the 1800s, Charles Babbage imagined a mechanical machine—the Analytical Engine—that could automatically calculate mathematical formulas. Ada Lovelace then extrapolated that the Analytical Engine could solve more general algorithms by using loops to repeat processes and variables to represent data. Lovelace’s vision of algorithms represented a synthesis between human intuition and mathematical reasoning. In the mid-1900s, Lovelace’s ideas inspired Alan Turing to imagine a more general notion of algorithms and machines that could run those algorithms. A Turing machine is an abstract model of computation for executing any computer algorithm. A Turing machine describes computers in terms of three key ideas:

1. a memory bank for storing data.
2. an instruction table, where each instruction can either:
   1. store a value to the memory bank.
   2. retrieve a value from the memory bank.
   3. perform a basic operation on a value.
   4. set which instruction will be executed next by modifying the program counter.
3. a program counter that keeps track of the current instruction in the instruction table.

A Turing machine executes a computer algorithm by following each instruction specified by the program counter. An algorithm can use these basic operations to compute the sum of 1 and 1.

1. Store the value 1 to address A in the memory bank.
2. Store the value 1 to address B in the memory bank.
3. Add the values at addresses A and B and then store the result at address A.

What makes computers useful is not just the fact that they can calculate numbers, but that they can encode logic in the instructions. Instead of just computing the sum of 1 and 1, this program continues adding 1 to a growing sum stored at address A.

1. Store the value 1 to address A in the memory bank.
2. Store the value 1 to address B in the memory bank.
3. Add the values at addresses A and B and then store the result at address A.
4. Set the program counter to execute step 3 next.

The Turing machine abstract model of computation assumes a single thread of execution following each instruction in an algorithm. Although today’s computers are much more efficient than the first computers that realized the Turing machine, most computers still rely on the same fundamental assumptions about how to execute algorithms. The O(N)-time sequential search algorithm, though it might execute 1,000 times faster on today’s computers, still grows linearly with respect to the size of the input. An O(2^N)-time brute-force algorithm, though it might execute 1,000 times faster on today’s computers, still grows exponentially with respect to the size of the input. Even as computers become faster over time, inefficient algorithms still cannot be used to solve any problems larger than a few thousand elements.

Complexity Classes

One subfield of computer science is theoretical computer science, which studies models of computation, their application to algorithms, and the complexity of problems. The complexity of a problem is the complexity (in terms of time or memory resources required) of the most efficient algorithms for solving the problem. Theoretical computer scientists are interested in understanding the difficulty of a problem in terms of time complexity, space complexity, and some other complexity measures.

In this chapter, we have focused on solving problems known to have polynomial time algorithms. Searching, sorting, hashing, traversal, minimum spanning trees, or shortest paths are all examples of problems in the polynomial (P) time complexity class because they are all problems that have runtimes with a polynomial expression such as O(1), O(log N), O(N), O(N log N), O(N²), O(N³). In general, these problems are considered tractable because computers can solve them in a reasonable amount of time. But there are many problems that are considered intractable because they do not have efficient, polynomial-time algorithms.

The nondeterministic polynomial (NP) time complexity class refers to all problems that can be solved in polynomial time by a nondeterministic algorithm. A nondeterministic algorithm is a special kind of Turing machine, which at each step can nondeterministically choose which instruction to execute, and is considered to successfully find a solution if any combination of these nondeterministic choices eventually lead to a correct solution. In other words, in contrast to a deterministic algorithm, such as a greedy algorithm, which must repeatedly apply a simple rule to deterministically select the next element in a solution, a nondeterministic algorithm is able to simultaneously explore all the possible choices. We do not yet have computers that can execute nondeterministic algorithms, but if we did, then we would be able to efficiently solve any combinatorial problem by relying on the special power of nondeterminism.

Technically, all P problems are also NP problems because we already have deterministic algorithms for solving them and therefore do not need to rely on the special power of nondeterminism. For example, Dijkstra’s algorithm provides a deterministic polynomial-time solution to the shortest paths problem by building up a shortest paths tree from the start vertex outward. This application of the greedy algorithmic paradigm relies on the structure of the shortest paths tree, since the shortest path to a point further away from the start must build on the shortest path to a point closer to the start.

NP-complete Problems

NP-complete refers to all the hardest NP problems—the combinatorial problems for which we do not have deterministic polynomial-time algorithms. More precisely, a problem PI is said to be NP-complete if PI is in NP and for every problem in NP, there is a reduction that reduces the problem to PI. For example, a longest path, or the problem of finding the highest-cost way to get from one vertex to another without repeating vertices, is an NP-complete problem opposite to shortest paths (Figure 3.32). What makes longest paths so much harder to solve than shortest paths? For one, there is no underlying structure to the solution that we can use to repeatedly apply a simple rule as in a greedy algorithm. With the shortest paths problem, we could rely on the shortest paths tree to inform the solution. But in longest paths, the goal is to wander around the graph. The longest path between any two vertices will probably involve traversing as many edges as possible to maximize distance, visiting many vertices along the way. For some graphs, the longest paths might even visit all the vertices in the graph. In this situation, the longest paths do not form a tree and instead involve ordering all the vertices in the graph for each longest path. Identifying the correct longest path then requires listing out all the possible paths in the graph—a combinatorial explosion in the combinations of edges and vertices that can be selected to form a solution.

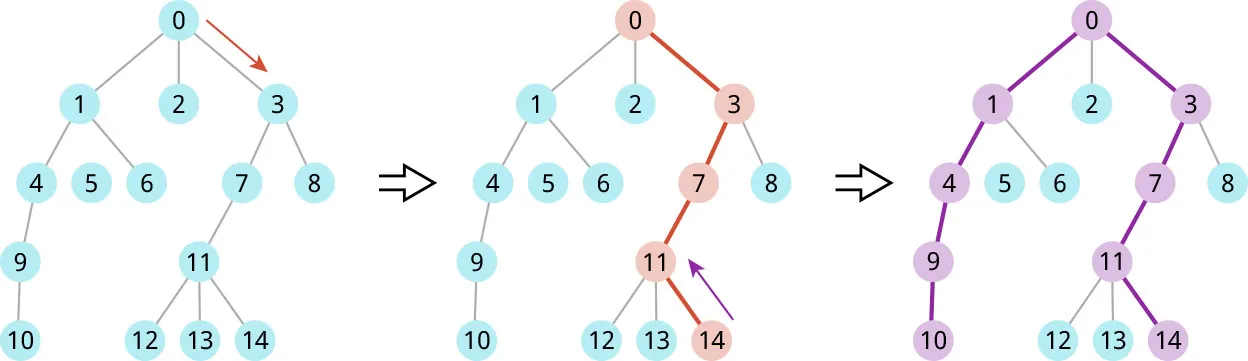

Figure 3.32 The longest path in a graph maximizes the distance, which often (but not always) involves visiting many vertices along the way. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

Related to the problem of longest paths is the traveling salesperson problem (TSP), which is the problem of, given the path cost of every pair of vertices, finding the lowest-cost tour, or path from a start vertex visiting every vertex in the graph once including a return to the start vertex. Compared to the TSP, which is finding the lowest-cost tour, the longest paths problem is like finding the highest-cost tour. What makes both these problems difficult is that we do not have a simple rule for selecting the next element to include in the solution. Unless we have the special power of nondeterminism, it is hard to tell from the beginning which edge is the right one to include in the final solution. Applying a simple rule like, “Select the edge with the lowest cost,” might not necessarily lead to the overall lowest-cost tour. Even though this simple rule worked for the problem of minimum spanning trees, the additional restriction of a tour rather than a tree makes the TSP a much harder problem to solve efficiently. Although we have efficient algorithms for shortest paths, we do not have efficient algorithms for the shortest tour (TSP).

How do we know if a problem is NP-complete? Earlier, we introduced reduction as an algorithm paradigm that is not only useful for solving problems, but also for relating the difficulty of problems. A reduction from a difficult problem A to another problem B proves that B is as difficult as A. It turns out that all NP-complete problems can be reduced to all the others, so an algorithm for solving any NP-complete problem solves every NP-complete problem.

P versus NP

Longest paths and TSP are just two among thousands of NP-complete problems for which we do not have efficient algorithms. The question of P versus NP asks whether it is possible to design a deterministic polynomial-time algorithm for solving any—and therefore all—of NP-complete problems. There are two possible answers to the question of P versus NP:

• If P = NP, then there is a deterministic polynomial-time algorithm for solving all NP-complete problems.
• If P ≠ NP, then there are NP-complete problems that cannot be solved with a deterministic polynomial-time algorithm.

Most theoretical computer scientists believe that P ≠ NP; in other words, it is impossible to design a deterministic polynomial-time algorithm for longest paths, TSP, or any other NP-complete problem. However, they do not have any definite proof that P = NP or P ≠ NP. An efficient algorithm for any one NP-complete problem would not only directly solve routing and logistics problems but would also enable massive advancements in drug discovery through scientific simulation, for instance. It would also break essentially all modern Internet security and password systems—among thousands of other problems.
