6.2 Fundamental OS Concepts

Process Management and Threads

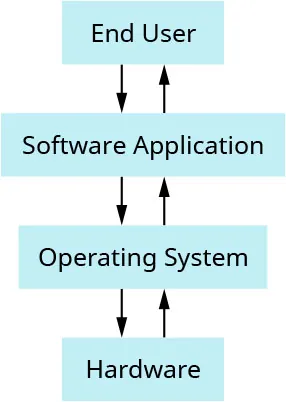

With a single click, end users seamlessly launch applications, enjoying the simplicity of the process. Have you ever wondered what manages the application once it is launched? The direct answer is the OS. An OS executes many kinds of activities starting from users’ programs, background jobs or scripts, to system programs. There are many system programs such as print managers, name servers, and file servers. Each one of these programs or activities is encapsulated within a process. As you learned in the preceding section, a process is a running program that has an execution context plus the runtime instance of the program itself. Examples of an execution context are program counters (PCs), registers, VM maps, OS resources, and examples of runtime instance are code and data.

Here are some other process-related concepts that will be introduced here and developed as the chapter progresses:

• A register is a high-speed memory storing unit.
• A process can be in running state (when it is executed by the CPU), ready state (when it is waiting in the CPU), or blocked state (when it is waiting for an event to occur).
• The OS’s process module manages the processes via creation, destruction, and scheduling. One way an OS controls access to a resource is through a data type called a semaphore.
• Managing the sharing of a system’s resources to avoid interference and errors is called process synchronization.

Address Space and Memory Space Management

The address space is the set of addresses generated by programs as they reference instructions and data. The memory space holds the actual main memory locations that are directly addressable for processing. The OS is responsible for managing these memory and address spaces (Figure 6.6). To enhance performance, computers use virtual memory address space to create the illusion of a large and continuous block of memory for applications and the operating system to utilize. To do so, the computer’s physical memory is used in combination with a portion of a hard drive that contains the swap file or page file. Pages containing address space information for programs are moved in and out of physical memory as necessary to ensure that there is enough physical memory to hold the pages of programs that are running at a given time.

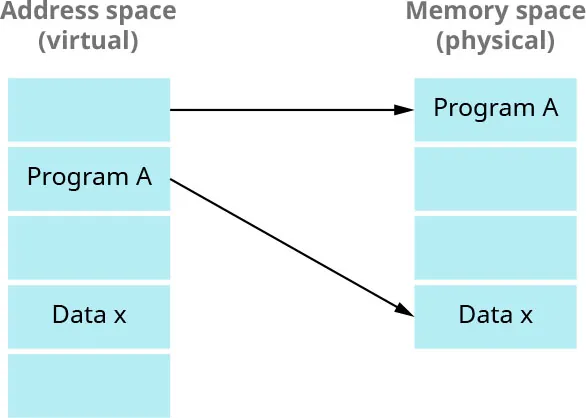

Figure 6.6 The addresses of the data will be in the address space waiting for the execution to be moved to the memory space. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

Computer memory consists of two main types: primary and secondary memory. The initial point of access for a processor that also serves as direct storage for the CPU is called primary memory. To be executed, programs must reside in primary memory. In multiprocessor systems, primary memory can be classified into three architectures. The first, uniform memory access (UMA), employs a single memory controller and, thus, access time to any memory location is the same across all processors. The second, non-uniform memory access (NUMA), is a computer memory design that uses different memory controllers, thus its memory access time varies depending on the memory’s location relative to a processor. The third, cache-only memory architecture (COMA), uses multiple interconnected processing nodes, each equipped with a processor (i.e., a cache). This allows for the dynamic allocation of data for optimized access and performance in multiprocessor environments.

Memory that is used for long-term storage, housing the operating system, applications, and data that need to persist even when the power is off, is called secondary memory. Unlike primary memory, which is volatile and loses data during power interruptions, secondary memory is nonvolatile—meaning it retains data even during power failures—and thus it provides durability and data retention. Common examples of secondary memory include hard disk drives (HDDs) and solid-state drives (SSDs).

An OS must satisfy the policies of how much physical memory to allocate to each process and when to remove a process from memory. It must implement these policies using the following mechanisms: memory allocation and memory deallocation. Memory allocation is the process of setting aside sections of memory in a program to be used to store variables and instances of structures and classes. The memory allocation can be static memory allocation or dynamic memory allocation. Memory deallocation is the process of freeing the space corresponding to finished processes when that space is needed by the rest of the system. In addition, the OS must maintain mappings from virtual addresses to physical (i.e., page tables) and switch CPU context among address spaces.

Device Drivers and I/O Devices

Computers have many input and output devices such as the keyboard, mouse, display, or USB port. Some examples of OS-specific devices include file system (disk), sockets (network), and frame buffer (video). A frame buffer is a portion of random access memory (RAM) containing a bitmap that drives a video display. A big chunk of the OS kernel deals with I/O (Input/Output). The OS provides a standard interface between programs/users and devices to communicate with them (Figure 6.7). A device driver’s routines interact directly with specific device types and related hardware to initialize the device, request I/O, and respond to interrupts or errors. An interrupt is a signal to the processor from either software or hardware that indicate events that needs immediate attention. Examples of device drivers include Ethernet card drivers, video card drivers, sound card drivers, and PCIe (Peripheral Component Interconnect Express) device drivers, which are associated with graphics cards and other peripherals. Device drivers are implemented by device manufacturers or open-source contributors and support a standard, internal interface. They can execute in the OS address space and run at high privilege.

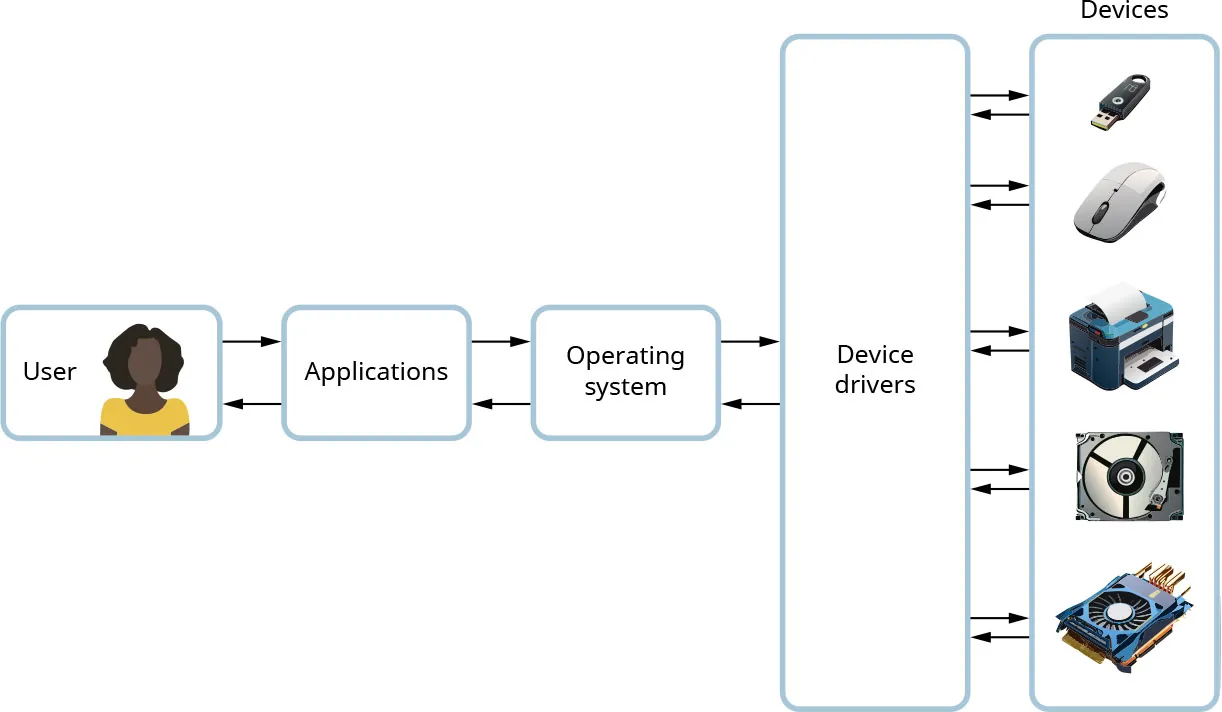

Figure 6.7 Multiple I/O devices are typically connected to a computer. When the user starts using an application, the operating system will define the devices used by the application by using each device’s driver. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

Device drivers are specialized software components that enable higher-level computer programs to interact with hardware devices. These drivers provide a software interface to hardware devices, allowing operating systems and other computer applications to access hardware functions without needing to know precise details about the hardware being used.

• At the heart of any computer is the CPU, the primary component responsible for executing instructions. Interestingly, CPUs themselves do not typically require external device drivers for direct operation, as the core management of CPU resources is a fundamental role of the operating system.
• Memory operates under the direct management of the operating system, which allocates and manages the system’s memory resources. RAM can be accessed randomly and used for storing data temporarily while a computer is running. While standard RAM modules—both dynamic and static RAM—do not necessitate distinct drivers, specialized memory hardware, such as flash memory devices, including solid-state drives (SSDs), USB flash drives, and memory cards, interact with the system through file system drivers that manage the organization and access of stored data.
• Storage devices, encompassing a broad range of hardware from traditional hard disk drives (HDDs) to modern SSDs and removable storage media, require device drivers to facilitate data read/write operations.
• Network connectivity relies on an array of device drivers designed to manage the protocols and hardware functions of network interfaces.

Device Registers

A device register is the interface a device presents to a programmer where each I/O device appears in the physical address space of the machine as a memory address. The operating system reads and writes device registers to control the device. There are three types of device registers: status, command, and data. The status register provides information about the current state of the device (e.g., read), the command register issues a command to the device (e.g., writing a value to the register), and the data register is used to transfer data between the computer and the device. Device registers use bits to service three purposes: parameters provided by the CPU to the device, status bits provided by the device, and control bits set by the CPU to initiate operations. Figure 6.8 provides an example of the content of each of a device register’s bits.

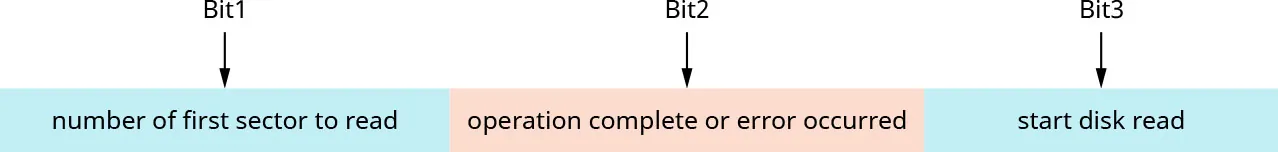

Figure 6.8 Device register bits define the first sector to read, the status of the operation, and the operation itself. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

The behavior of device registers is different from that of ordinary memory locations. For example, the start operation bit may always read as 0, and the bits may change from one status to another (i.e., the operation complete bit may change without being written by the CPU).

The OS uses the device register to communicate with an I/O device as follows:

1. The CPU writes device registers to start the operation.
2. The CPU polls the ready bit in the device register.
3. The device sets the ready bit when the operation is finished.
4. The CPU loads the buffer address into a device register before starting the operation to define where to copy data read from disk.
5. Fast storage media devices move data directly to/from physical memory via direct memory access (DMA); other devices require the intervention of the CPU via programmed I/O or interrupt initiated I/O.
6. Interrupts allow the CPU to do other work while devices are operating, and the OS figures out which device interrupted.

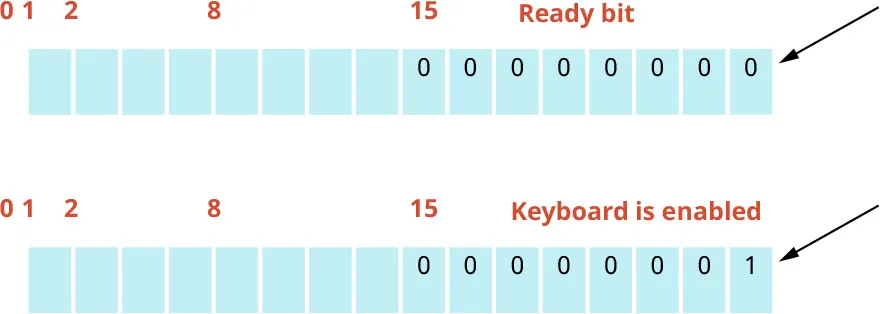

Figure 6.9 depicts the device register for a keyboard. Note that it has 2 bytes (16 bits). The data is in the first byte, and the second byte includes all zeros (i.e., from bit 8 to bit 15). When the user starts typing, the ready bit, which is bit number 15, sets to 1.

Figure 6.9 In this device register for a keyboard, the ready bit is set to 1 for when a user starts using the keyboard. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

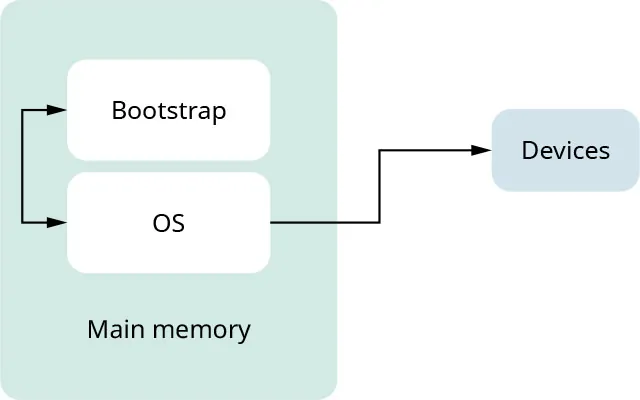

Monolithic OS Design

A monolithic design refers to a specific architecture for OSs where the entire OS operates within the kernel space, and all components and functionalities of the operating system are organized within the space. In a monolithic architecture, the entire operating system functions as a single, integrated unit, and all of its components, such as process management, file systems, device drivers, and memory management, reside and operate within the same address space, known as the kernel space. This means that the entire OS operates as a single, large program, and any module or component can directly call the functions of another without any restrictions.

While a monolithic design simplifies the communication and interaction between OS components, it has both advantages and disadvantages. One advantage is that it generally provides efficient and fast communication between different parts of the OS because they share the same address space. Another major advantage of the monolithic design is that it uses a familiar architectural style, and the cost of module interactions in terms of procedure calls is low. However, there are many disadvantages. Namely, this structure is hard to understand, modify, or maintain, and does not support fault containment. A failure in any one component can potentially crash the entire system, making it less fault-tolerant compared to more modular architectures. In this case, the alternative is to find an organizational way to simplify the OS design and implementation.

Traditional OSs such as UNIX (Figure 6.11) were built using the monolithic architecture. In contrast to monolithic designs, other OS architectures such as microkernel or hybrid designs distribute OS functionalities into separate modules or user-space processes, leading to better modularity and potentially improved system stability.

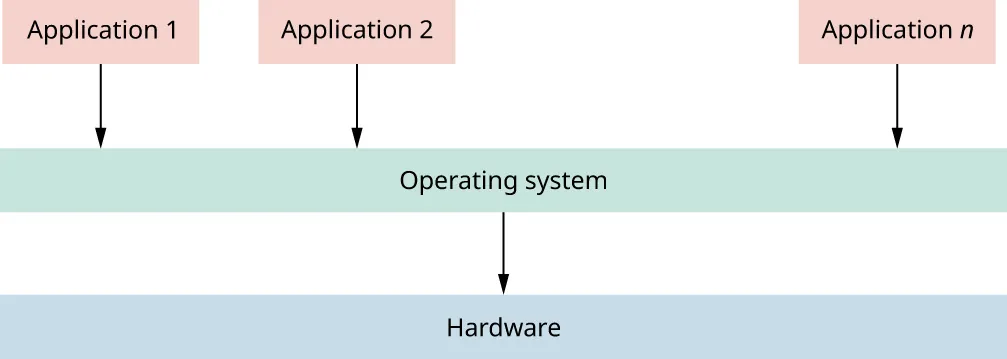

Figure 6.11 The entire OS works as one piece in the monolithic architecture. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

Layered OS Design

One alternative way to achieve monolithic OS design is the layered OS architecture, which consists of implementing the OS as a set of layers where each layer exposes an enhanced “virtual machine” to the layer above, as illustrated in Figure 6.12.

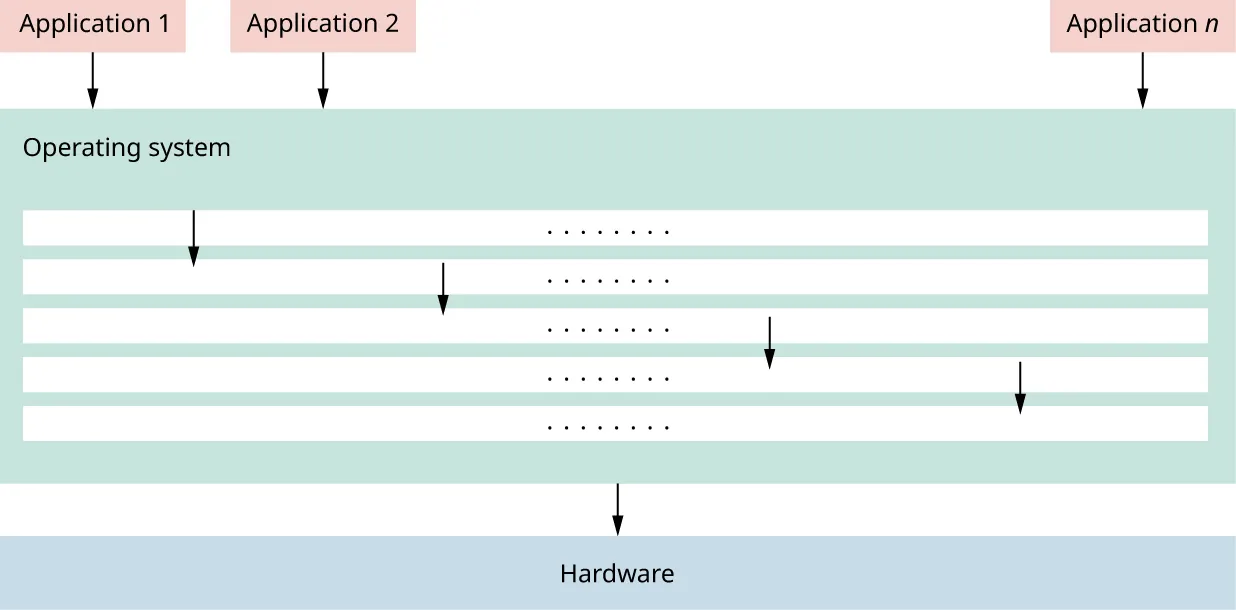

Figure 6.12 In a layered OS architecture, the OS is divided into layers, and each layer will be responsible for a specific task. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

The first example of a layered approach was Dijkstra’s THE system, which was designed in 1968. There were six layers, and they were organized as follows.

• Layer 5: A job manager executes users’ programs.
• Layer 4: A device manager handles devices and provides buffering.
• Layer 3: A console manager implements virtual consoles.
• Layer 2: A page manager implements virtual memories for each process.
• Layer 1: A kernel implements a virtual processor for each process.
• Layer 0: Hardware is the physical components of the computer.

Each layer in this setup can be tested and verified independently. Layering also helped with implementation and supported attempts at formal verification of correctness (if you can call only layers below, it is not possible to run into a loop across the various layers).

There are, however, many disadvantages to using the layered OS architecture. Namely, it imposes a hierarchical structure, while real systems are more complex because a file system requires virtual memory (VM) services, and the VM likes to use files for its backing store. Layering also imposes a performance penalty as each layer crossing has overhead associated with static versus dynamic enforcement of invocation restrictions. There is also a disconnect between model and reality as systems modeled as layers may not really be built that way.

Hardware Abstraction

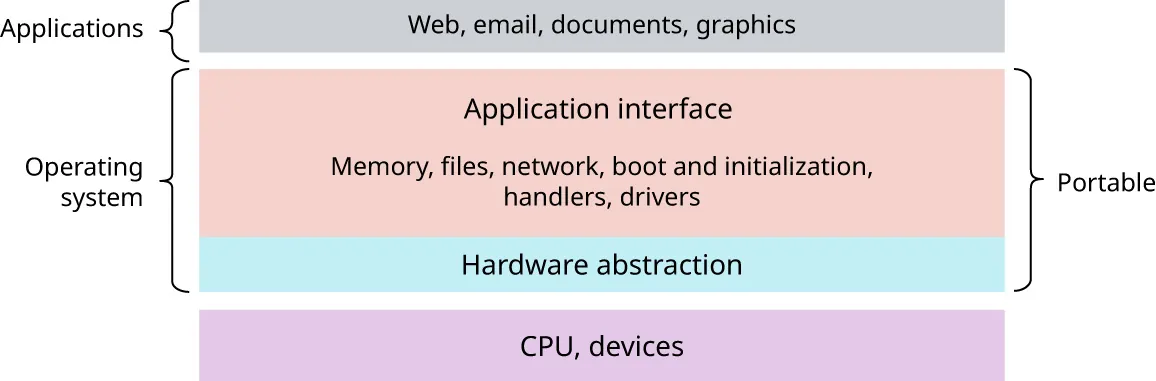

The hardware abstraction layer (HAL) is an example of layering in modern OSs, and it allows an OS to interact with a hardware device at a general or abstract level rather than going deep into a detailed hardware level, which improves readability and maintainability. In general, the goal of HAL is to separate hardware-specific routines from the core OS. HAL enables portability of core code across different pieces of hardware.

Microkernels

Another alternative OS design to monolithic OS design is a microkernels architecture. Within a microkernel, the functionality and capabilities are added to a minimal core OS as plug-ins. Microkernel architecture is also called a plug-in architecture because functionalities are added as plug-ins (Figure 6.13).

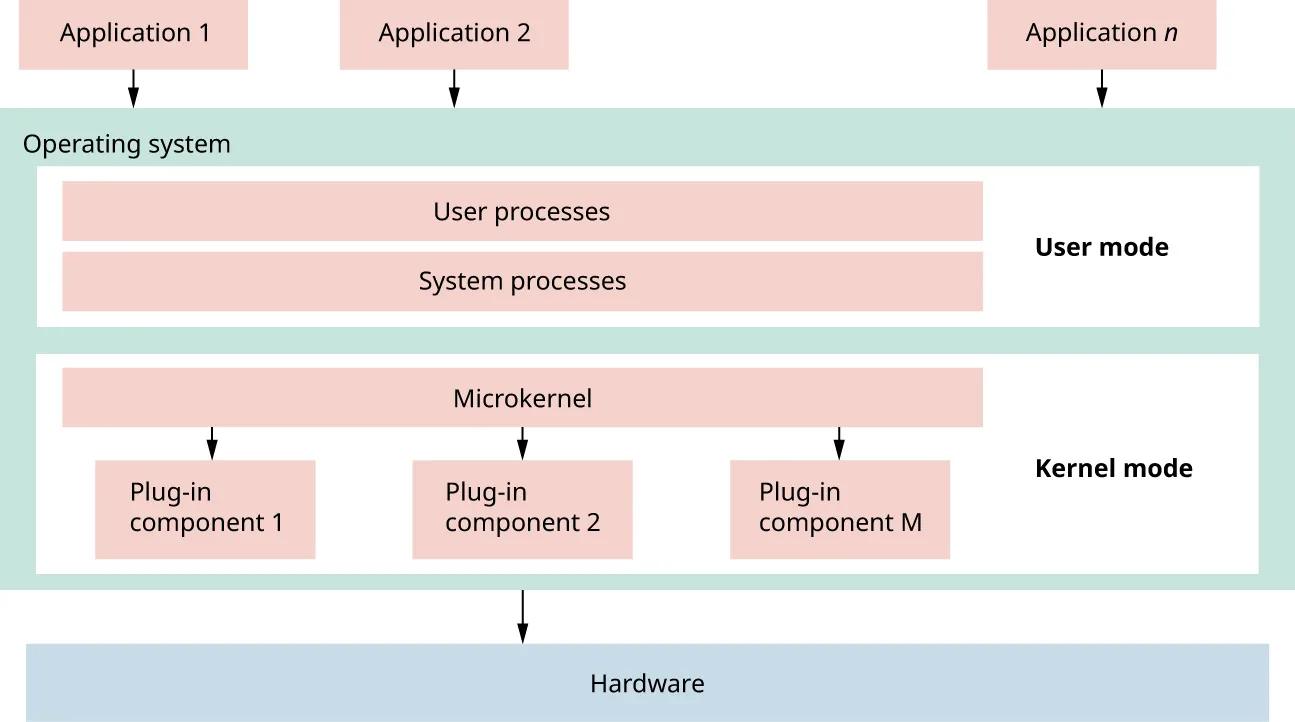

Figure 6.13 In the microkernel architecture, kernel mode is divided into multiple plug-ins to process the operations. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

The goal of a microkernel architecture is to minimize what goes into the kernel and implement everything else that traditionally goes in an OS in terms of user-level processes. This results in improving reliability due to the isolation between components. Also, there is less code running at full privilege, and greater ease of extension and customization. However, performance is generally poor due to user and kernel boundary crossings, which represent a security risk when the kernel code operates on the data.

The first microkernel system was Hydra (CMU, 1970), followed by Mach (CMU), Chorus (French UNIX-like OS), and OS X (Apple). Windows OS used to use a microkernel, but now uses a hybrid kernel architecture that combines the benefits of monolithic, microkernel, and plug-in OS architectures (Figure 6.14).

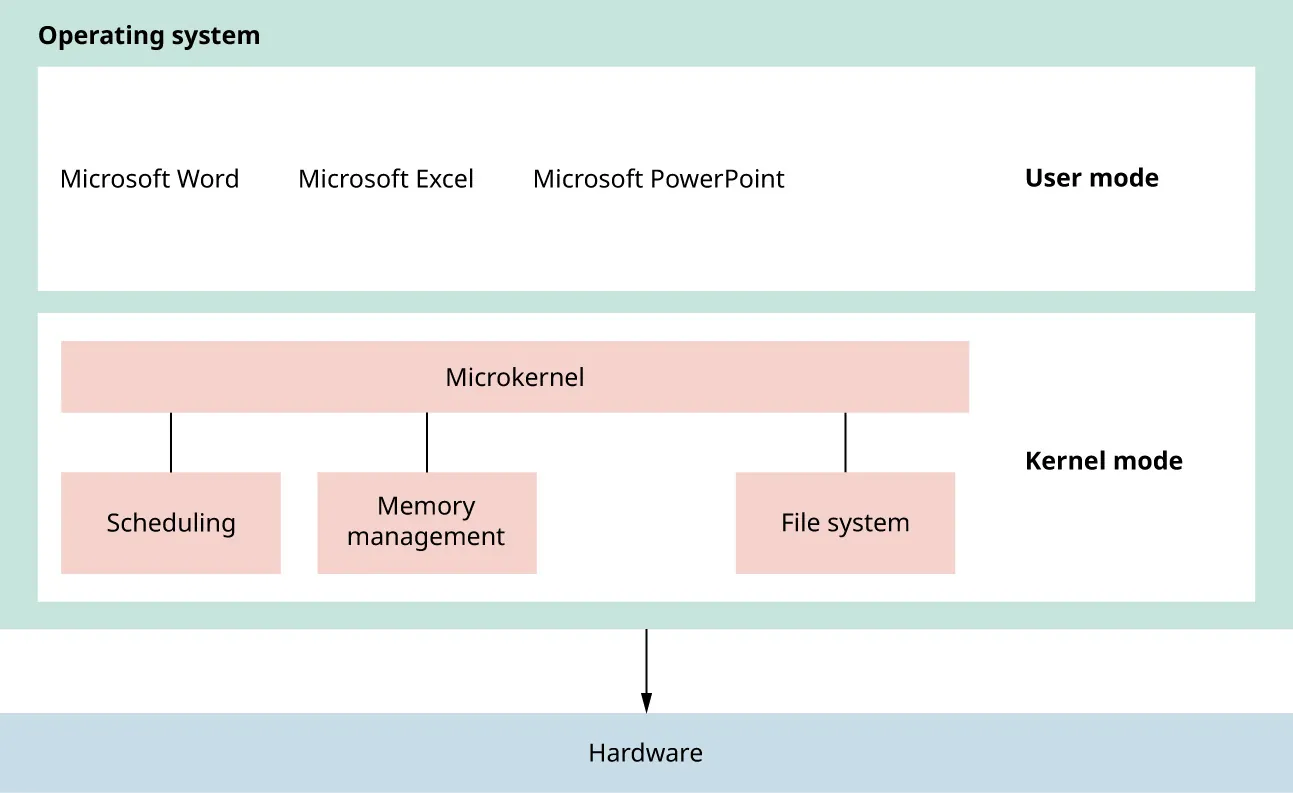

Figure 6.14 Windows OS as plug-in architecture—in Windows OS, all of the applications are in the user mode, and the OS operations are divided into plug-ins in kernel mode. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

Cloud Infrastructure and Exokernel

Two concepts that each represent critical advancements in the field of computing by offering different methodologies for resource abstraction, allocation, and management are cloud infrastructure and the exokernel.

The exokernel architecture simplifies the OS by making its core (kernel) really small and letting apps have more control over the computer’s hardware. Unlike usual systems that hide hardware details, an exokernel shows these details to apps, letting them use the hardware more smartly. This way, it cuts down on unnecessary steps and lets each app manage resources its own way, which can make the computer run better and faster. This design is especially good for special computing tasks where apps can really benefit from managing hardware directly, and this can lead to better performance and more efficient use of the computer’s parts. There are several limitations associated with exokernels. They lack abstractions for operating systems services, which makes it difficult to achieve consistency across applications. They also require an application developer to manage resource allocation and protection and to implement security mechanisms, which raises concerns.

The virtualized and scalable hardware resources that are delivered over the Internet as a service are called cloud infrastructure. This infrastructure encompasses a range of components including servers, storage devices, network equipment, and virtualization software, all hosted within data centers managed by cloud service providers. Unlike traditional physical infrastructure, cloud infrastructure offers flexibility, scalability, and accessibility, allowing users to access and manage computing resources remotely through the Internet. Cloud infrastructure is categorized into three service models:

• Infrastructure as a Service (IaaS) provides virtualized computing resources over the Internet, such as AWS EC2, Google Compute Engine, and Microsoft Azure VMs.
• Platform as a Service (PaaS) offers hardware and software tools over the Internet, typically targeting developers such as Google App Engine and Microsoft Azure.
• Software as a Service (SaaS) delivers software applications over the Internet, accessible from a web browser without installation or running on the user’s personal devices such as Google Workspace and Microsoft Office 365.

The main disadvantages of cloud infrastructure are potential downtime, security and privacy concerns, vulnerability to attacks, limited control and flexibility, vendor lock-in, cost concerns, latency issues, Internet dependency, technical issues, lack of support, bandwidth issues, and varied performance.
