8.1 Data Management Focus

Metadata Cataloging

Metadata are used in a database management system (DBMS), which is a system that creates, stores, and manages a set of databases. In a DBMS approach, metadata are stored in a catalog called a data dictionary. A data dictionary is a set of information describing the content, format, and structure of a database (e.g., in a relational DBMS, the catalog includes the names of all available tables and their associated fields). The metadata catalog constitutes the heart of the database system and can be part of a DBMS or a stand-alone component. The metadata cataloging process is collecting data about processes, people, products, and any enterprise-related data, which provides an important source of information for end users, application developers, as well as the DBMS itself. The catalog typically provides an extensible metadata model, import/export facilities, support for maintenance and reuse of metadata, monitoring of integrity rules, facilities for user access, and statistics about the data and its usage for the database administrator and query optimizer. Metadata cataloging improves the user experience, adds competitive advantages, and improves the efficiency of the business.

Metadata Modeling

A business presentation of metadata is metadata modeling. A database design process can be used to design a conceptual model of a database storing metadata as an enhanced entity–relationship (EER) model (Figure 8.3) or unified modeling language (UML) model. EER and UML are used to create models for designing large systems. Metadata modeling may cover various views of these models. For example, EER models and UML class diagrams help express views of a data model. While EER focuses purely on data modeling, the UML notation may be used to express comprehensive models of information systems using additional diagrams.

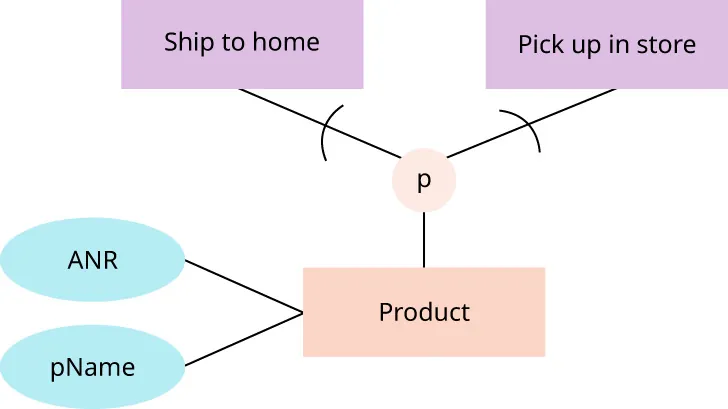

Figure 8.3 This EER diagram models a product entity and states that a product can be either shipped or picked up but not both. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

Data Quality

The measure of how well the data represents its purpose or fitness for use is called data quality (DQ). Data of acceptable quality in one decision context may be perceived to be of poor quality in another. Data quality determines the intrinsic value of the data to the business. Businesses may use the concept garbage in, garbage out (GIGO), which means that the quality of output is determined by the quality of the input. Poor DQ impacts organizations in many ways and at different management levels. For example, it negatively impacts operations in day-to-day operations; however, it makes a big difference at the strategic level in making decisions. DQ is a multidimensional concept in which each dimension represents a single aspect such as views, criteria, or measurements. DQ comprises both objective and subjective perspectives and can categorize different dimensions of data quality. The DQ framework has four categories: intrinsic DQ, contextual DQ, representation DQ, and access DQ, as illustrated in Figure 8.4.

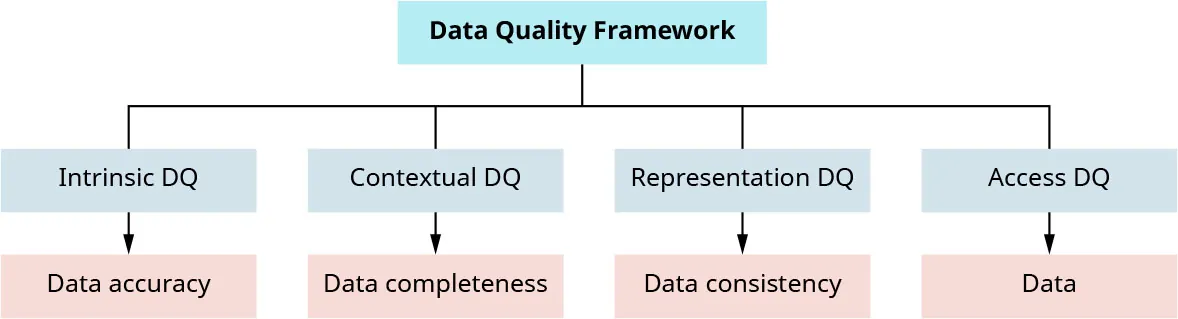

Figure 8.4 The four data quality framework categories are intrinsic DQ, contextual DQ, representation DQ, and access DQ. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

In the intrinsic DQ category, data accuracy refers to whether the data values stored for an object are the correct values, and they are often correlated with other DQ dimensions. We can count the data reliability as a part of data accuracy. The degree to which all data in a specific dataset are available with a minimum percentage of missing data is called data completeness. It can be viewed from at least three perspectives: schema completeness (the degree to which entity types and attribute types are missing from the schema), column completeness (the degree to which there exist missing values in a column of a table), and population completeness (the degree to which the necessary members of a population are present or not). The data consistency dimension is part of the representation category and can also be viewed from several perspectives: consistency of redundant or duplicated data in one table or multiple tables, consistency between two related data elements, and consistency of format for the same data element used in different tables. The accessibility dimension is part of the access category and reflects the ease of retrieving the data from the underlying data sources (this often involves a trade-off with security, which is also part of the access category).

There are many common causes of bad data quality, such as the following:

• computer processing
  • duplication: multiple data sources providing the same data, which may produce duplicates
  • consistency problem: different occurrences of data or incorrect data
  • objectivity problem: data giving different results in every process
  • limited computing resources: insufficient computing resources limiting the accessibility of relevant data
  • accessibility problem: large volumes of stored data making it difficult to access needed information in a reasonable time
• human intervention
  • biased information: using human judgment in data production
  • relevance problem: different processes updating the same data
  • data quality problems: decoupling of data producers and consumers

Data Governance and Compliance

The set of clear roles, policies, and responsibilities that enables a business to manage and safeguard data quality using internally set rules and policies is called data governance. The related concept that ensures that data practices align with external legal requirements and industry standards is called data compliance. For example, the UK-GDPR (General Data Protection Regulation) is the United Kingdom’s data security regulation, modeled after the EU-GDPR that governs and regulates how UK organizations and businesses collect, store, use, and process personal data.

Using data governance, data are managed as an asset rather than a liability. Data governance has three dimensions: technology, people, and process. It should include standard roles for quality, security, and ownership.

In planning for data governance, we should answer four questions: what, how, why, and who. What policies should we include? How do we integrate the policies with the enterprise business process? Why do we need this policy? Who will be part of this policy?

Different frameworks have been introduced for data quality management and data quality improvement: Total Data Quality Management (TDQM), Total Quality Management (TQM), Capability Maturity Model Integration (CMMI), ISO 9000, Control Objectives for Information and Related Technology (COBIT), Data Management Body of Knowledge (DMBOK), Information Technology Infrastructure Library (ITIL), and Six Sigma. These frameworks provide guidelines for organizations that define how a product or process should be based on high-quality standards. The main issue in these frameworks is that they may cause failure when the system is not considering all of the processes in a correct flow.

It is possible to annotate the data with data quality metadata as a short-term solution. Unfortunately, many data governance efforts (if any) are mostly reactive and ad hoc.

Information Architect

An information architect, also known as a data architect or information analyst, is responsible for designing the conceptual data model (blueprints) to bridge the gap between the business processes and the IT environment.

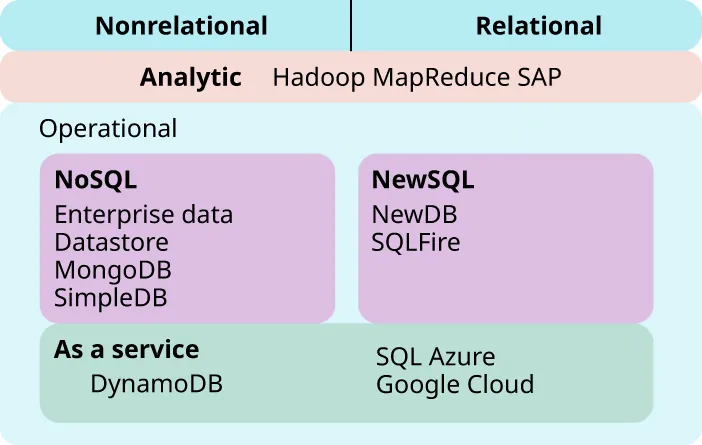

The information architect collaborates with the database designer who may assist in choosing the type of conceptual data model (e.g., EER or UML) and the database modeling tool. Figure 8.5 shows an example of different database systems that various personnel working in data management may encounter.

Figure 8.5 Existing database systems can be categorized as nonrelational and relational. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

Database Designer

A database designer is responsible for creating, implementing, and maintaining the database management system. Other responsibilities include translating the conceptual data model into a logical and internal data model, assisting the application developers in defining the views of the external data model, and defining company-wide uniform naming conventions when creating the various data models.

Data Owner

The data owner has the authority to ultimately decide on the access to, and usage of, the data. The data owner could be the original producer of the data, or the data could originate from a third party. A person who assumes the role of a data owner should be able to insert, edit, delete, or update data as well as check or populate the value of a field. The data owner is the one responsible for checking the quality of one or more datasets.

Data Steward

A data steward is a DQ expert who ensures that the enterprise's actual business data and the metadata are accurate, accessible, secure, and safe. The data steward performs extensive and regular data quality checks, initiates corrective measures or deeper investigation into root causes of data quality issues, and helps design preventive measures (e.g., modifications to operational information systems, integrity rules).

Database Administrator

The database administrator (DBA) is responsible for the implementation and monitoring of the database as well as ensuring databases run efficiently by collaboration with network and system managers.

Computer Scientist

A computer scientist is a person who has theoretical and practical knowledge of computer science. The computer scientist will solve problems using technology by applying computer science practices. Computer scientists typically focus on building end-to-end solutions for companies. For example, computer scientists can create software applications that implement complex algorithms and store and retrieve related data into and from database systems. Computer scientists may also be involved in designing and fine tuning complex machine learning algorithms.

Data Scientist

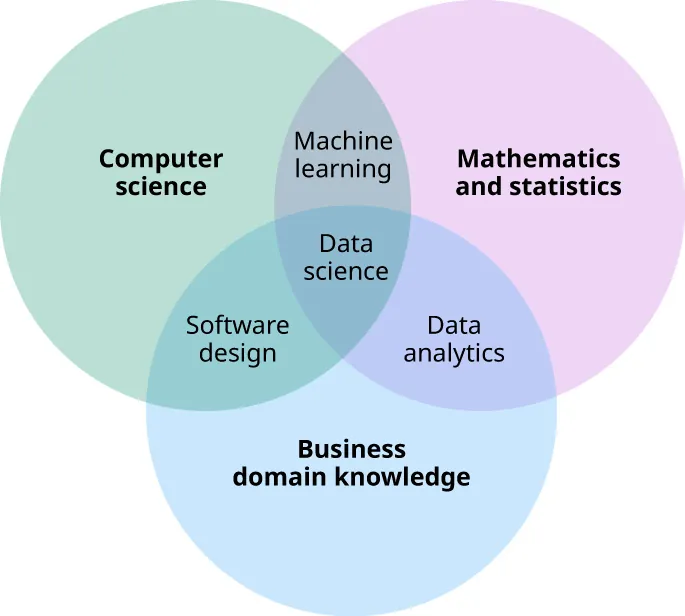

Data scientists typically focus on creating classification and prediction models by training existing machine learning algorithms. The resulting trained models act as programs to help classify new data or predict an outcome based on input data. In general, a data scientist is a person who has theoretical and practical knowledge of managing data. A data scientist’s background combines computer science, mathematics, and statistics. A person in this role is responsible for gathering a large amount of structured, semistructured, and unstructured data to preprocess and prepare data for advanced data analysis to develop a product or to make a business decision.
