11.3 Sample Responsive WAD with Bootstrap/React and Node

Creating the Node App

Before you can create the Todo application back end, you should create a Node app. To accomplish this, create the directory nodebackend/ and navigate into it. Next, run the following command to initialize the Node application:

$ npm init

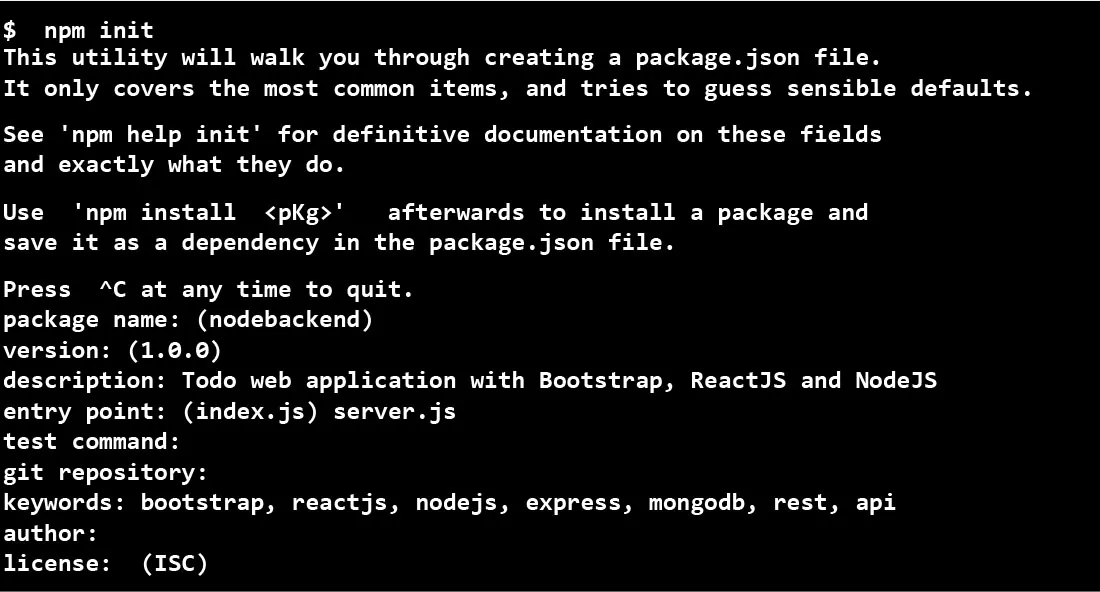

After running this command, follow the prompt, which is highlighted in Figure 11.30.

Figure 11.30 This prompt appears when the Node application is initialized. (attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

After the Node application initialization is completed, a package.json file is generated, as shown in the following code.

{
  "name": "nodebackend",
  "version": "1.0.0",
  "description": "Todo Web application with Bootstrap, ReactJS and NodeJS",
  "main": "server.js",
  "scripts": {
    "test": "echo \"Error: no test specified\" && exit 1"
  },
  "keywords": [
    "bootstrap",
    "reactjs",
    "nodejs",
    "express",
    "mongodb",
    "rest",
    "api"
  ],
  "author": "",
  "license": "ISC",
  "dependencies": {
    "body-parser": "^1.19.1",
    "cors": "^2.8.5",
    "express": "^4.17.2",
    "mongoose": "^6.1.9"
  }
}

Setting Up the Express Web Server

Once the Node application is initialized, the next step is to set up the Express web server. To do this, use the following command to install Express, Mongoose (Mongoose is a library for MongoDB that is used to interact with MongoDB by facilitating the modeling of data as objects), and other dependent packages in the nodebackend/ directory:

$ npm install express mongoose body-parser cors –save

Next, create the Express web server by going to the nodebackend/ directory, create the server.js file, and add the following code.

const express = require("express");
const bodyParser = require("body-parser");
const cors = require("cors");

const app = express();

var corsOptions = {
  origin: "http://localhost:8081"
};

app.use(cors(corsOptions));

// parse requests of content-type - application/json
app.use(bodyParser.json());

// parse requests of content-type - application/x-www-form-urlencoded
app.use(bodyParser.urlencoded({ extended: true }));

// routes
app.get("/", (req, res) => {
  res.json({ message: "Welcome to the Todo Web App." });
});

require("./routes/todo.routes.js")(app);

// set port, listen for requests
const PORT = process.env.PORT || 8080;
app.listen(PORT, () => {
  console.log(`Server is running on port ${PORT}.`);
});

Once you use the code to import Express, you can build the REST APIs. The body-parser package is used to create and parse the request object. The cors package is used to serve as middleware for Express that enables CORS. The Express web server will run on port 8080 as the default port. Use the following command to start the server:

$ node server.js

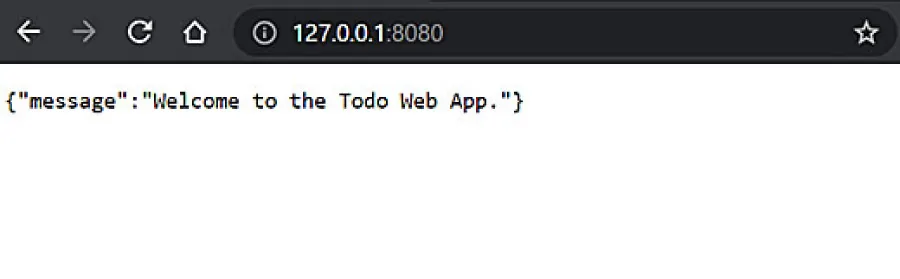

In a browser, navigate to http://localhost:8080/. The following page shown in Figure 11.31 renders.

Figure 11.31 Once the Express web server is started, this page should appear at http://localhost:8080/. (rendered in Node; attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

Configuring the MongoDB Database and Mongoose

After the Express web server is created, the next step is to configure the MongoDB database and Mongoose. To do this, in the nodebackend/ directory, create the config/ directory. Then, in the config/ directory, create the file db.config.js and add the following code. This specifies the database connection URL to the MongoDB database.

module.exports = {
    url: "mongodb://localhost:27017/todo_db"
  };

Once the MongoDB connection URL is configured, the next step is to add code to connect to the database using Mongoose. To do this, in the nodebackend/ directory, create the models/ directory. In the models/ directory, create the index.js file and add the following.

const dbConfig = require("../config/db.config.js");

const mongoose = require("mongoose");
mongoose.Promise = global.Promise;

const db = {};
db.mongoose = mongoose;
db.url = dbConfig.url;
db.todos = require("./todo.model.js")(mongoose);

module.exports = db;

Next, the nodebackend/server.js file needs to be updated to enable the Express web server to establish a connection with the MongoDB. The code for this is shown in the following snippet.

const db = require("./models");
db.mongoose.connect(db.url, {
  useNewUrlParser: true
}).then(() => {
  console.log("Connected to the database successfully!")
}).catch(err => {
  console.log("Cannot connect to the database: " , err);
  process.exit();
});

Once the database connection code is completed, the next step is to create the Mongoose model. To do this, in the nodebackend/models/ directory, create the file todo.model.js and add the following code. This code defines a Mongoose schema for the todos model, which results in the creation of a todos collection in the MongoDB database.

module.exports = mongoose => {
  var schema = mongoose.Schema({
    title: {
      type: String,
      required: true,
    },
    content: {
      type: String,
      required: false,
    },
    created: {
      type: String,
      default: Date.now(),
      required: true,
    },
    due_date: {
      type: String,
      required: true,
    },
    category: {
      type: String,
      required: true,
    },
  });

  schema.method("toJSON", function() {
    const { __v, _id, ...object } = this.toObject();
    object.id = _id;
    return object;
  });
  const Todos = mongoose.model("todos", schema);
  return Todos;
};

Creating the React App

To create the React app, the first step is to run the following command. This should be done in a directory that is outside and separate from the nodebackend/ directory.

$ npx create-react-app reactfrontend

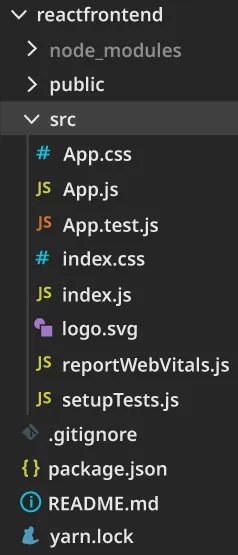

Once you run the command, it will generate the React application files in the reactfrontend/ directory, which is shown in Figure 11.32.

Figure 11.32 This shows the React application files in the reactfrontend/ directory. (rendered in React by Meta Open Source; attribution: Copyright Rice University, OpenStax, under CC BY 4.0 license)

The next step is to navigate into the reactfrontend/ directory and launch the React application to confirm the React front-end application was created successfully. At this point, this application is not connecting to the Node back end, so it launches a default React page. Run the command, which will automatically launch a browser page to http://localhost:3000.

$ npm start

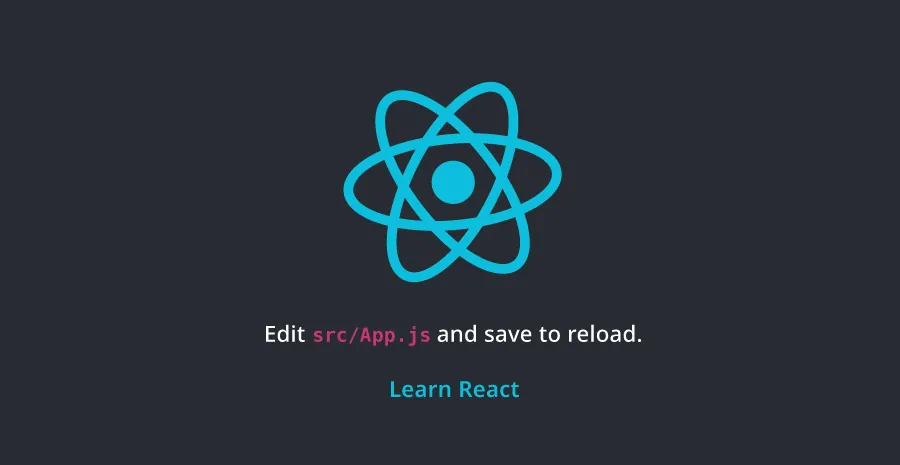

You will see the following, as illustrated in Figure 11.33.

Figure 11.33 When the React front-end application is created successfully, this page launches at http://localhost:3000. (credit: React by Meta Open Source)

Installing Bootstrap and Other Dependencies

The next step is to install the packages for bootstrap and reactstrap, which are necessary to use Bootstrap in a React app. To do this, in the reactfrontend/ directory, run the following commands:

$ npm install bootstrap@4.6.0 reactstrap@8.9.0 --legacy-peer-deps
$ npm install react-bootstrap

Next, import the Bootstrap⁴ CSS file into the React application. To do this, open reactfrontend/src/index.js and add the following Bootstrap import.

import  React from 'react';
import ReactDOM from 'react-dom';
import 'bootstrap/dist/css/bootstrap.css';
import './index.css';
import App from './App';
import reportWebVitals from './reportWebVitals';

ReactDOM.render(
  <React.StrictMode>
    <App />
  </React.StrictMode>,
  document.getElementById('root')
);

// If you want to start measuring performance in your app, pass a function
// to log results (for example: reportWebVitals(console.log))
// or send to an analytics endpoint. Learn more: https://bit.ly/CRA-vitals
reportWebVitals();

Create the React Components

The next step is to create the React components. The React user interface is rendered from the reactfrontend/src/App.js component. The reactfrontend/src/App.js file is generated when the React application is created. This is the main component of the React application, and all other components are added to the reactfrontend/src/App.js component. A few imports are added to the reactfrontend/src/App.js file, as shown in the following code. This includes an import for App.css. Customized CSS rules are added to reactfrontend/src/App.css.

//import logo from './logo.svg';
import './App.css';
import React, { Component } from "react";
import Modal from "./components/Modal";
import Nav from "./components/NavComponent";
import axios from "axios";
import { Button, Form, FormGroup, Label, Input } from 'reactstrap';

To compare with the Django web application in 11.2 Sample Responsive WAD with Bootstrap and Django, customized CSS rules were added to the style.css file in the static/ directory, as described in Creating the Templates.

Next, look at the following code, which shows App is a class component that extends React’s Component class. All state data is added to the this.state variable in the constructor.

class  App extends Component {
  constructor(props) {
    super(props);
    this.state = {
      todoChecked: false,
      todoList: [],
      categories: [],
      description: "",
      modal: false,
      activeItem: {
        title: "",
        description: "",
        completed: false,
      },
    };
  }

The next code snippet shows that every class component must include a render() function. This function returns the components that construct the user interface for the Todo web application.

render () {
    return(
      <main>
        <Nav />
        <div className="container mt-5 pl-3">
          <h1>Todo List</h1>
          <Form>
            <div className="inputContainer">
                <FormGroup>
                  <Label htmlFor="description">Description</Label>
                  <Input type="text" id="description" name="description"
                      placeholder="Description"
                      value={this.state.description}
                      />
                </FormGroup>
            </div>
            <div className="inputContainer half last">
                <FormGroup>
                  <Label htmlFor="category">Category</Label>
                  <Input id="category" className="taskCategory" type="select" name="category_select"
                    value={this.state.contactType}
                    >
                    <option className="disabled" value="">Choose a category</option>
                    <option>Work</option>
                    <option>Personal</option>
                  </Input>
                </FormGroup>
            </div>
            <div className="inputContainer half last right">
              <FormGroup>
                  <Label htmlFor="description">Due Date</Label>
                  <Input type="text" id="description" name="description"
                      placeholder="Due Date (mm/dd/yyyy)"
                      value={this.state.description}
                      />
                </FormGroup>
            </div>
            <div className="row">
                <Button
                  className="taskAdd"
                  name="taskAdd" type="submit"
                >
                  Edit
                </Button>
                <Button
                  className="taskDelete ml-1"
                  name="taskDelete"
                  type="submit"
                  onclick="$('input#sublist').click();"
                >
                  Delete
                </Button>
            </div>
          </Form>
          <ul className="taskList">{this.renderItems()}</ul>
        </div>
      </main>
    )
  }
