Learning Objectives
By the end of this section, you will be able to:
- Define a computer system
- Explain how information is stored and transferred in a computer system
- Differentiate between high-level and machine-level programs
- Identify the elements of a typical computer system
At its core, a computer system is an electronic device that does computations. These computations appear to the outside world as executing programs. When you play a game, listen to a song, or browse the web, you are instructing your computer to do computations. You may wonder how does the computer function and how do the computations performed such as browsing the web or listening to a song relate to one another?

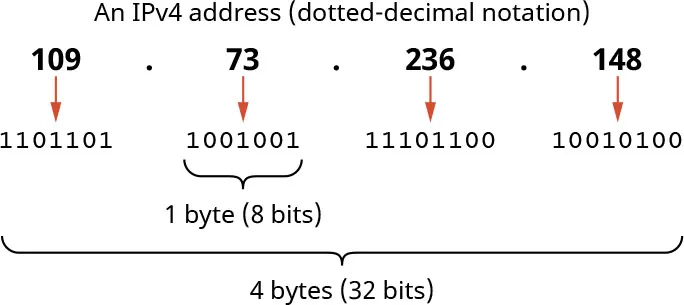

Let us start with the second part of that question: the relationship between computation and executing a program. A song that has been digitized for storage is actually a bunch of numbers that the computer reads; it produces sound based on those numbers. The computer must calculate (i.e., compute) the frequency and volume of the sound based on the numbers read. Another example is when you open a browser and type the address of a website. The computer reads what you typed on the keyboard and leverages network capabilities to translate it to a long number called an Internet Protocol (IP) address (Figure 5.2). The IP address consists of several digits, similar to your phone number, that allow the data to reach your computer over the Internet and for other computers over the Internet to recognize your computer. Your computer passes that IP address over the Internet to another big computer asking for the content of the required website, receives the content from that big computer, and executes browser software that translates it to content such as pictures, sounds, and animations on the screen. All these steps involve computations. But how does the computer do all this? To answer this question, we first need to know the components of a computer system.
Computer Systems
A computer system consists of two major parts: hardware and software. The hardware includes the physical components of the computer system, such as hard drives, motherboards, and processor chips. The software consists of the programs you execute, such as media players or web browsers, and the data needed for these programs to function. For example, the media player is a program, and the songs that you listen to using the media player are data. So, the hardware executes programs that are fed with data. Computers come in different shapes, from the small ones in your smartwatch, for example, to big supercomputers. Different computers may have different components besides the components that exist in all computer shapes. Bigger computers, datacenters, and supercomputers need extra components for getting data from multiple sources, more sophisticated parts to connect to the Internet, and cooling equipment. Mainframes that were created a few decades ago are big computers used for a different purpose. You don’t need those in your smartphone.
Data Storage Inside a Computer
All programs and their corresponding data are stored inside a computer or downloaded from the Internet. So how are these programs and data stored? And how does a computer understand and execute them? Computers do not understand English or other natural languages; they can only relate to strings of 1s and 0s and therefore all the programs and data must be stored inside the computer as a sequence of 1s and 0s. A 1 or a 0 is called a binary digit or bit. Every 8 bits unit is called a byte. This is pretty much how computers that depend on electricity work. Other types, still not in the mainstream market but in design and testing stages, such as quantum computers, do not use bits but use something else called quantum bits or qubits.
If we say that a text editor program takes 1 megabyte of storage, it means that the editor is stored inside the computer, more specifically in the disk of your computer, which is a storage mechanism for data, as a sequence of almost 1 million bytes (1 megabyte is a bit larger than 1 million bytes). We call a program stored inside a computer an executable. Since programs and data are stored as a sequence of bits or bytes, what is the difference between a program and the data?
Think It Through
Why Learn About Computer Systems?
Whether you want to be a software developer, a programmer, or a hardware designer, or even to efficiently use any computer system, you need a minimum knowledge of computer organization. You need to know what the different pieces in the computer systems are, how they interact, and how fast each piece is. Knowing the internal workings of computers helps you write more efficient software, design computers of different sizes (like the one in your watch, the one in your phone, or big supercomputers), and make the best decisions when buying a computer.
Application Programs and Executables
The programs we use in our computer systems, called applications, have been designed and written by software developers using computer languages, also called high-level languages (HLLs). HLLs have been designed to make the interaction between software developers and computers easier. However, computers do not understand HLLs. Computers understand only 1s and 0s. So, there is a set of programs designed to translate the programs written in an HLL into the 1s and 0s that computers can relate to. The programs written by software developers are translated into a set of instructions such as, “Add number 1 to number 2 and save the result as number 3.” These instructions are stored as a series of 1s and 0s. Each group of those 1s and 0s represents a single instruction. All the instructions, in their representation as 1s and 0s, are stored in a file called an executable file on the disk.

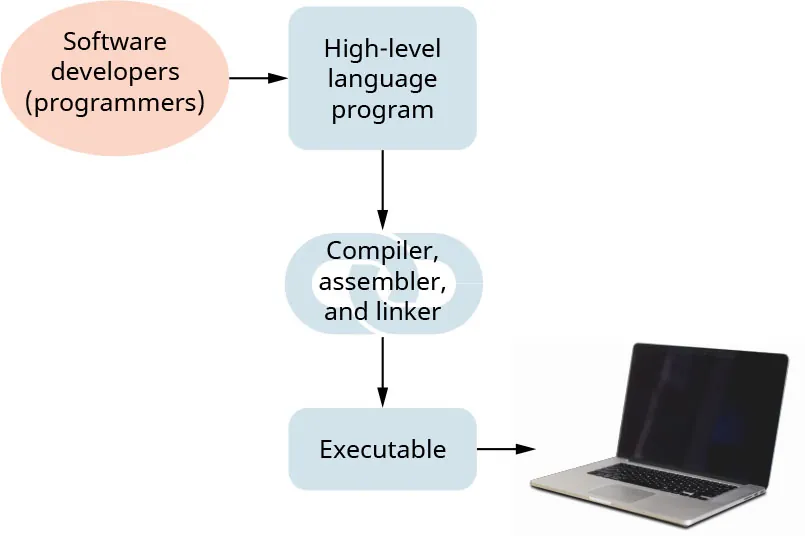

When you click an icon or type a command, the operating system, software whose job is to manage the interaction between the user of the computer, the hardware, and the programs, loads the executable from storage into the computer memory. At this point, the computer is ready to start executing the program. Figure 5.3 shows the steps for writing programs, in various HLLs by software developers, and then translating these programs to an executable (the 1s and 0s representation of the program) using a special software toolchain (Figure 5.3). This special software that translates HLLs to executables includes tools called compilers, assemblers, and linkers. We will not discuss these tools here, (refer to 5.2 Computer Levels of Abstraction and 5.4 Machine-Level Program Representation), but we now know what they do. Here, we will look at how the hardware executes instructions.
Hardware Organization of Systems
Once the executable is in the memory, the hardware needs to do several things in order to execute it. Recall that an executable is a group of instructions in the form of 1s and 0s. The hardware first needs to fetch an instruction from memory by bringing it from the memory to inside the CPU, which is the brain of the computer that performs and executes the instructions of a program. Once the instruction is fetched from memory and stored in temporary storage inside the CPU, called a register, the CPU decodes this instruction; that is, it deciphers or understands the meaning of the several 1s and 0s that constitute the instruction. For example, the software program may contain an instruction such as “add this number x to the number y and put the result in z.” Since computers do not understand English, this instruction is stored inside the computer in the form of 1s and 0s. The CPU has to read those 1s and 0s, understand what they mean (i.e., decode it), and then execute it.

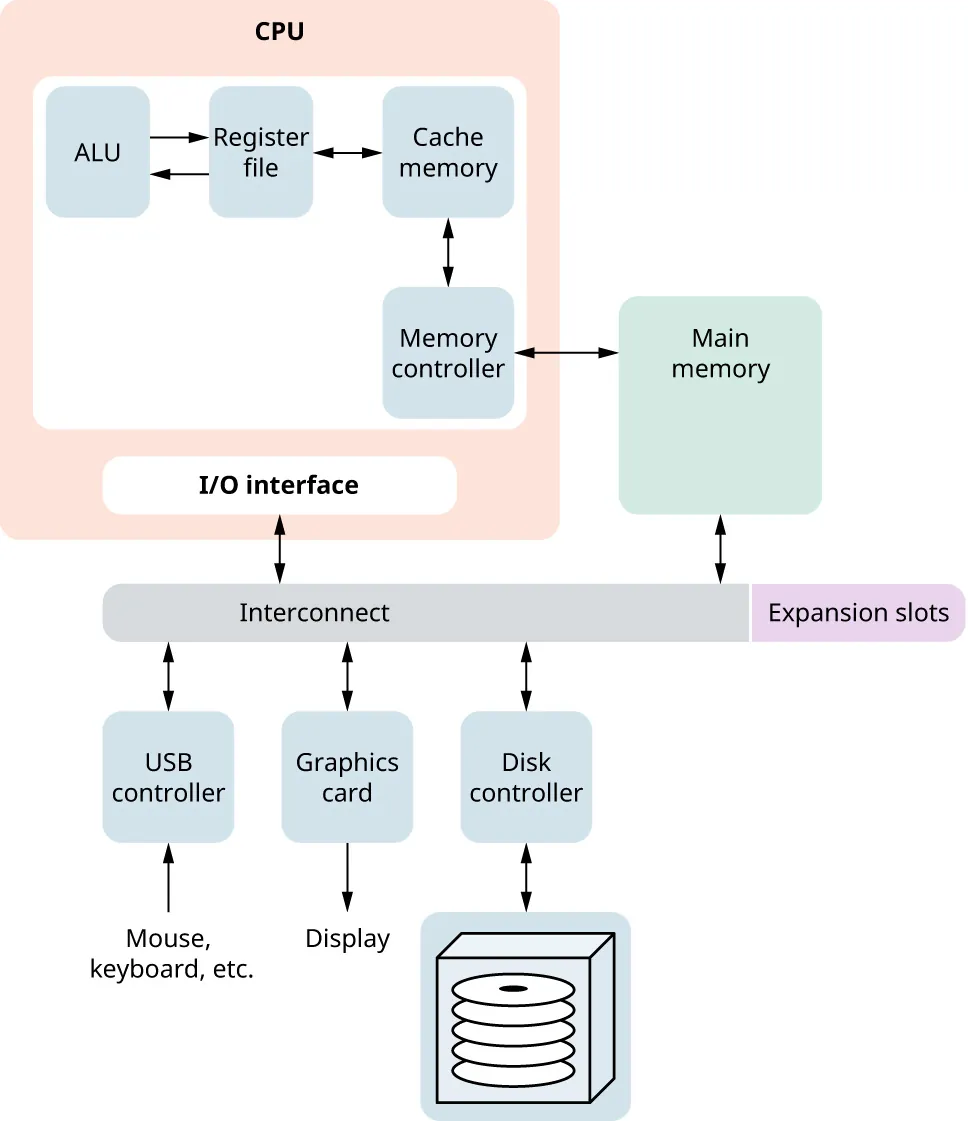

After the instruction has been decoded, the CPU instructs the arithmetic logic unit (ALU) to execute it. The ALU is the piece of hardware inside the CPU that performs computations and logical operations such as comparisons. Once the instruction is executed, the result is saved into a register or sent back to the memory. The CPU is now ready to fetch the next instruction. Figure 5.4 shows a computer system’s hardware. Inside the CPU we can see the ALU, a group of registers (called a register file), and a piece of hardware, called the memory controller, that helps the CPU talk to the memory. Inside the CPU we also find fast storage, which is faster than the memory but slower than the register, called cache memory. We will discuss cache memory in 5.5 Memory Hierarchy.
One final piece of hardware inside the CPU is the I/O interface. The input/output (I/O) interface helps the CPU talk to the other I/O devices such as a keyboard or mouse. All the pieces—CPU, memory, graphics card—are connected via a collection of wires referred to as a bus. The purpose of a bus is to transfer data between the various pieces in the computer. Buses can differ in speed, which affects how fast the data are transferred. Figure 5.4 uses the generic word interconnect to designate buses. We can add more devices to the computer system such as a different display through expansion slots.
Link to Learning
Read this concise history of computers starting from the nineteenth century to see how computers have changed and been developed over time.
Input/Output Devices
The job of input/output (I/O) devices is to take input from a user (i.e., typing on a keyboard or speaking into a microphone), transform it into 1s and 0s, and store this information in memory. It also takes some 1s and 0s, generated by some type of software program, from memory and translates them to an output format such as a picture on the screen or a sound from a speaker. Distinct devices have different speeds and varying ways of transforming the input and output to/from 1s and 0s.
Any I/O device, your keyboard for example, connects to the computer system using an interface such as a USB port that we see in all computers. The USB controller shown in Figure 5.4 is the piece of hardware that manages the USB port and allows it to detect that a device has been connected. Another important piece of hardware is the main memory.
Main Memory
For the CPU to execute programs and process data stored locally, it needs to obtain them from the computer's disk. But a disk is very slow. So, the CPU brings what it needs from the disk and temporarily stores it in faster storage referred to as main memory or random access memory (RAM). When you buy a laptop, one of the specifications is the amount of memory it has, such as 16 GB of RAM or 32 GB of RAM. The main memory is much faster than the disk and connected to the CPU with a faster interconnect, as shown in Figure 5.4. When you click an icon to start a program (e.g., your web browser), the program and its needed data are copied from the disk to the main memory. Then, the CPU reads the data and instructions from the memory into the CPU’s registers and the ALU starts executing it.
Processor
The processor, also called the microprocessor, is another name for the CPU. It is the brain of the computer system, and its main job is to execute programs. As we discussed earlier, the processor fetches instructions from the memory, understands what each instruction wants to do, gets the data needed to execute the instruction, executes the instruction, and then stores the result in a register or in the main memory. It keeps doing so until the program ends. There have been huge advances in processor design leading to faster and more powerful computers. The processor in your smartphone today is more powerful than a big supercomputer was a few decades ago.
