Check Your Understanding

5.1

14 N, 56°56° measured from the positive x-axis

5.2

a. His weight acts downward, and the force of air resistance with the parachute acts upward. b. neither; the forces are equal in magnitude

5.3

0.1m/s20.1m/s2

5.4

40m/s240m/s2

5.5

a. 159.0i^+770.0j^N159.0i^+770.0j^N; b. 0.1590i^+0.7700j^N0.1590i^+0.7700j^N

5.6

a=2.78m/s2a=2.78m/s2

5.7

a. 3.0m/s23.0m/s2; b. 18 N

5.8

a. 1.7m/s2;1.7m/s2; b. 1.3m/s21.3m/s2

5.9

6.0×1026.0×102 N

5.10

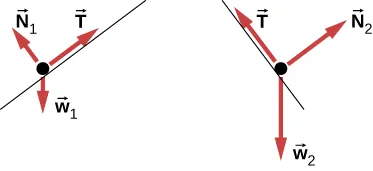

Figure a shows a free body diagram of an object on a line that slopes down to the right. Arrow T from the object points right and up, parallel to the slope. Arrow N1 points left and up, perpendicular to the slope. Arrow w1 points vertically down. Figure b shows a free body diagram of an object on a line that slopes down to the left. Arrow N2 from the object points right and up, perpendicular to the slope. Arrow T points left and up, parallel to the slope. Arrow w2 points vertically down.

;

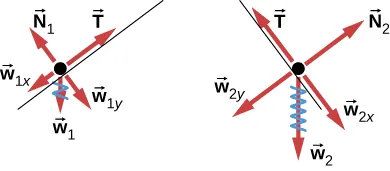

Figure a shows a free body diagram of an object on a line that slopes down to the right. Arrow T from the object points right and up, parallel to the slope. Arrow N1 points left and up, perpendicular to the slope. Arrow w1 points vertically down. Arrow w1x points left and down, parallel to the slope. Arrow w1y points right and down, perpendicular to the slope. Figure b shows a free body diagram of an object on a line that slopes down to the left. Arrow N2 from the object points right and up, perpendicular to the slope. Arrow T points left and up, parallel to the slope. Arrow w2 points vertically down. Arrow w2y points left and down, perpendicular to the slope. Arrow w2x points right and down, parallel to the slope.

Conceptual Questions

1.

Forces are directional and have magnitude.

3.

The cupcake velocity before the braking action was the same as that of the car. Therefore, the cupcakes were unrestricted bodies in motion, and when the car suddenly stopped, the cupcakes kept moving forward according to Newton’s first law.

5.

No. If the force were zero at this point, then there would be nothing to change the object’s momentary zero velocity. Since we do not observe the object hanging motionless in the air, the force could not be zero.

7.

The astronaut is truly weightless in the location described, because there is no large body (planet or star) nearby to exert a gravitational force. Her mass is 70 kg regardless of where she is located.

9.

The force you exert (a contact force equal in magnitude to your weight) is small. Earth is extremely massive by comparison. Thus, the acceleration of Earth would be incredibly small. To see this, use Newton’s second law to calculate the acceleration you would cause if your weight is 600.0 N and the mass of Earth is 6.00×1024kg6.00×1024kg.

11.

a. action: Earth pulls on the Moon, reaction: Moon pulls on Earth; b. action: foot applies force to ball, reaction: ball applies force to foot; c. action: rocket pushes on gas, reaction: gas pushes back on rocket; d. action: car tires push backward on road, reaction: road pushes forward on tires; e. action: jumper pushes down on ground, reaction: ground pushes up on jumper; f. action: gun pushes forward on bullet, reaction: bullet pushes backward on gun.

13.

a. The rifle (the shell supported by the rifle) exerts a force to expel the bullet; the reaction to this force is the force that the bullet exerts on the rifle (shell) in opposite direction. b. In a recoilless rifle, the shell is not secured in the rifle; hence, as the bullet is pushed to move forward, the shell is pushed to eject from the opposite end of the barrel. c. It is not safe to stand behind a recoilless rifle.

15.

a. Yes, the force can be acting to the left; the particle would experience deceleration and lose speed. B. Yes, the force can be acting downward because its weight acts downward even as it moves to the right.

17.

two forces of different types: weight acting downward and normal force acting upward

Problems

19.

a. Fnet=5.0i^+10.0j^NFnet=5.0i^+10.0j^N; b. the magnitude is Fnet=11NFnet=11N, and the direction is θ=63°θ=63°

21.

a. Fnet=660.0i^+150.0j^NFnet=660.0i^+150.0j^N; b. Fnet=676.6NFnet=676.6N at θ=12.8°θ=12.8° from David’s rope

23.

a. Fnet=95.0i^+283j^NFnet=95.0i^+283j^N; b. 299 N at 71°71° north of east; c. FDS=(95.0i^+283j^)NFDS=(95.0i^+283j^)N

25.

Running from rest, the sprinter attains a velocity of v=12.96m/sv=12.96m/s, at end of acceleration. We find the time for acceleration using x=20.00m=0+0.5at12x=20.00m=0+0.5at12, or t1=3.086s.t1=3.086s. For maintained velocity, x2=vt2x2=vt2, or t2=x2/v=80.00m/12.96m/s=6.173st2=x2/v=80.00m/12.96m/s=6.173s. Total time=9.259sTotal time=9.259s.

27.

a. m=56.0kgm=56.0kg; b. ameas=aastro+aship,whereaship=mastroaastromshipameas=aastro+aship,whereaship=mastroaastromship; c. If the force could be exerted on the astronaut by another source (other than the spaceship), then the spaceship would not experience a recoil.

29.

Fnet=4.12×105NFnet=4.12×105N

31.

a=253m/s2a=253m/s2

33.

Fnet=Ff=maF=1.26×103NFnet=Ff=maF=1.26×103N

35.

v2=v02+2axa=7.80m/s2Fnet=−7.80×103Nv2=v02+2axa=7.80m/s2Fnet=−7.80×103N

37.

a. Fnet=maa=9.0i^m/s2Fnet=maa=9.0i^m/s2; b. The acceleration has magnitude 9.0m/s29.0m/s2, so x=110mx=110m.

39.

1.6i^0.8j^m/s21.6i^0.8j^m/s2

41.

a. wMoon=mgMoonm=150kgwEarth=1.5×103NwMoon=mgMoonm=150kgwEarth=1.5×103N; b. Mass does not change, so the suited astronaut’s mass on both Earth and the Moon is 150kg.150kg.

43.

a. Fh=3.68×103N andw=7.35×102NFhw=5.00times greater than weightFh=3.68×103N andw=7.35×102NFhw=5.00times greater than weight;
b. Fnet=3750Nθ=11.3°from horizontalFnet=3750Nθ=11.3°from horizontal

45.

w=19.6NFnet=5.40NFnet=maa=2.70m/s2w=19.6NFnet=5.40NFnet=maa=2.70m/s2

47.

98 N

49.

497 N

51.

a. Fnet=2.64×107N;Fnet=2.64×107N; b. The force exerted on the ship is also 2.64×107N2.64×107N because it is opposite the shell’s direction of motion.

53.

Because the weight of the history book is the force exerted by Earth on the history book, we represent it as FEH=−14j^N.FEH=−14j^N. Aside from this, the history book interacts only with the physics book. Because the acceleration of the history book is zero, the net force on it is zero by Newton’s second law: FPH+FEH=0,FPH+FEH=0, where FPHFPH is the force exerted by the physics book on the history book. Thus, FPH=FEH=(−14j^)N=14j^N.FPH=FEH=(−14j^)N=14j^N. We find that the physics book exerts an upward force of magnitude 14 N on the history book. The physics book has three forces exerted on it: FEPFEP due to Earth, FHPFHP due to the history book, and FDPFDP due to the desktop. Since the physics book weighs 18 N, FEP=−18j^N.FEP=−18j^N. From Newton’s third law, FHP=FPH,FHP=FPH, so FHP=−14j^N.FHP=−14j^N. Newton’s second law applied to the physics book gives F=0,F=0, or FDP+FEP+FHP=0,FDP+FEP+FHP=0, so FDP=(−18j^)(−14j^)=32j^N.FDP=(−18j^)(−14j^)=32j^N. The desk exerts an upward force of 32 N on the physics book. To arrive at this solution, we apply Newton’s second law twice and Newton’s third law once.

55.

a. The free-body diagram of pulley 4:

A free body diagram shows vector F pointing left, a vector T pointing right and up, forming an angle theta with the horizontal and another vector T pointing right and down, forming an angle theta with the horizontal.


b. T=mg,F=2Tcosθ=2mgcosθT=mg,F=2Tcosθ=2mgcosθ

57.

a.

Figure shows two teams of nine members each pulling on a rope form either side. Each member of the team on the left has mass m1 and applies force F1. Each member of the team on the right has mass m2 and applies force F2.


Fnet=Ma;F1=1350N;F2=1365 N9(F2F1)=9(m1+m2)a;m1=68kg;m2=73 kga=0.11m/s2;Fnet=Ma;F1=1350N;F2=1365 N9(F2F1)=9(m1+m2)a;m1=68kg;m2=73 kga=0.11m/s2;
Thus, the heavy team wins.
b.

Figure shows a team of people each with mass m1 pulling on a rope towards the left with force F1. An arrow parallel to the rope, pointing right is labeled T. Net F prime is equal to M prime a.


T9F1=9m1aT=9m1a+9F1=1.2×104NT9F1=9m1aT=9m1a+9F1=1.2×104N

59.

a. T=1.96×10−4N;T=1.96×10−4N;
b. T=4.71×10−4NTT=2.40times the tension in the vertical strandT=4.71×10−4NTT=2.40times the tension in the vertical strand

61.
Figure shows a horizontal line parallel to x axis. An arrow F pointing downwards originates from the center of the line, with its tip intersecting x-axis. Two arrows originate from this point of intersection and their tips touch the line on either side. They form the same angle with the x-axis and the line.


Fynet=F2Tsinθ=0F=2TsinθT=F2sinθFynet=F2Tsinθ=0F=2TsinθT=F2sinθ

63.

a. see Example 5.13; b. 1.5 N; c. 15 N

65.

a. 5.6 kg; b. 55 N; c. T2=60NT2=60N;
d.

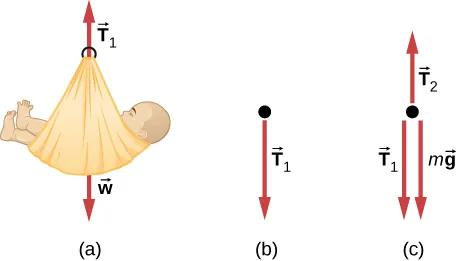

Figure a shows a baby in a basket, with arrow T1 pointing up and arrow w pointing down. Figure b shows a free body diagram of arrow T1 pointing down. Figure c shows a free body diagram of T1 pointing down, T2 pointing up and mg pointing down.
67.

a. 4.9m/s24.9m/s2, 17 N; b. 9.8 N

69.

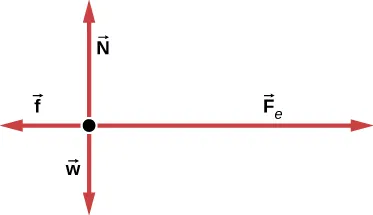

A free body diagram shows a vector F subscript e pointing right, vector N pointing up, vector f pointing left and arrow w pointing down.
71.

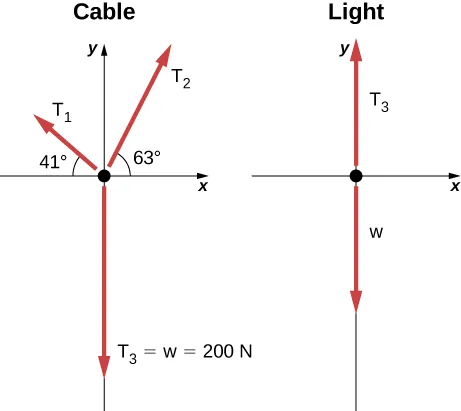

Figure shows coordinate axes. Three arrows radiate out from the origin. T1, labeled 41 degrees points up and left. T2, labeled 63 degrees points up and right. T3 equal to w equal to 200 N is along the negative y axis.

Additional Problems

73.

5.90 kg

75.
A free body diagram with arrow F pointing up and arrow w pointing down.
77.

a. Fnet=m(v2v02)2xFnet=m(v2v02)2x; b. 2590 N

79.

Fnet=F1+F2+F3=(6.02i^+14.0j^)N Fnet=maa=Fnetm=6.02i^+14.0j^N10.0kg= (0.602i^+1.40j^)m/s2 Fnet=F1+F2+F3=(6.02i^+14.0j^)N Fnet=maa=Fnetm=6.02i^+14.0j^N10.0kg= (0.602i^+1.40j^)m/s2

81.

Fnet=FA+FBFnet=Ai^+(−1.41Ai^1.41Aj^)Fnet=A(−0.41i^1.41j^)θ=254°Fnet=FA+FBFnet=Ai^+(−1.41Ai^1.41Aj^)Fnet=A(−0.41i^1.41j^)θ=254°
(We add 180°180°, because the angle is in quadrant IV.)

83.

F=2mk2x2F=2mk2x2; First, take the derivative of the velocity function to obtain a=2kxv=2kx(kx2)=2k2x3a=2kxv=2kx(kx2)=2k2x3. Then apply Newton’s second law F=ma=2mk2x2F=ma=2mk2x2.

85.

a. For box A, NA=mgNA=mg and NB=mgcosθNB=mgcosθ; b. NA>NBNA>NB because for θ<90°θ<90°, cosθ<1cosθ<1; c. NA>NBNA>NB when θ=10°θ=10°

87.

a. 8.66 N; b. 0.433 m

89.

0.40 or 40%

91.

16 N

Challenge Problems

93.

a.

Figure shows a free body diagram with F1 pointing up and left and F2 pointing down and left.

; b. No; FRFR is not shown, because it would replace F1F1 and F2F2. (If we want to show it, we could draw it and then place squiggly lines on F1F1 and F2F2 to show that they are no longer considered.

95.

a. 14.1 m/s; b. 601 N

97.

Fmt2Fmt2

99.

936 N

101.

a=−248i^433j^m/s2a=−248i^433j^m/s2

103.

0.548m/s20.548m/s2

105.

a. T1=2mgsinθT1=2mgsinθ, T2=mgsin(arctan(12tanθ))T2=mgsin(arctan(12tanθ)), T3=2mgtanθ;T3=2mgtanθ; b. ϕ=arctan(12tanθ)ϕ=arctan(12tanθ); c. 2.56°2.56°; (d) x=d(2cosθ+2cos(arctan(12tanθ))+1)x=d(2cosθ+2cos(arctan(12tanθ))+1)

107.

a. a=(5.00mi^+3.00mj^)m/s2;a=(5.00mi^+3.00mj^)m/s2; b. 1.38 kg; c. 21.2 m/s; d. v=(18.1i^+10.9j^)m/s2v=(18.1i^+10.9j^)m/s2

109.

a. 0.900i^+0.600j^N0.900i^+0.600j^N; b. 1.08 N

Citation/Attribution

Want to cite, share, or modify this book? This book is Creative Commons Attribution License 4.0 and you must attribute OpenStax.

Attribution information
  • If you are redistributing all or part of this book in a print format, then you must include on every physical page the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-1/pages/1-introduction
  • If you are redistributing all or part of this book in a digital format, then you must include on every digital page view the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-1/pages/1-introduction
Citation information

© Sep 19, 2016 OpenStax. Textbook content produced by OpenStax is licensed under a Creative Commons Attribution License 4.0 license. The OpenStax name, OpenStax logo, OpenStax book covers, OpenStax CNX name, and OpenStax CNX logo are not subject to the Creative Commons license and may not be reproduced without the prior and express written consent of Rice University.
