21.2 • Nucleophilic Acyl Substitution Reactions

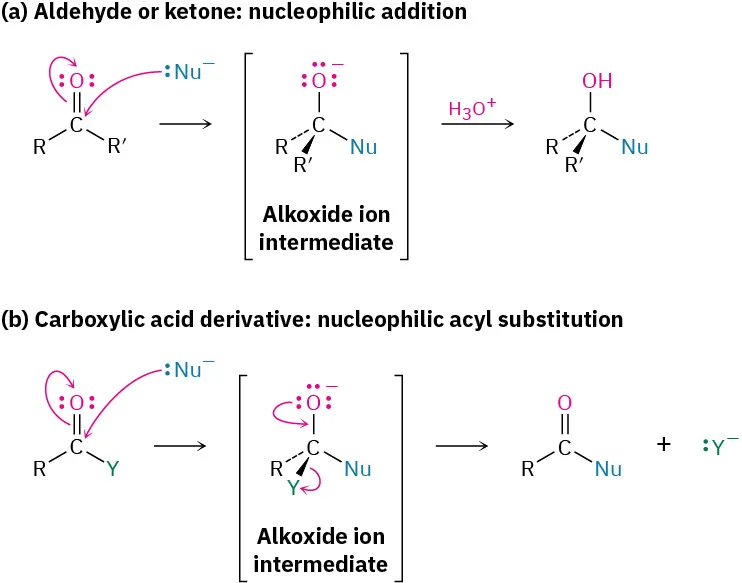

The addition of a nucleophile to a polar bond is the key step in three of the four major carbonyl-group reactions. We saw in the chapter on Aldehydes and Ketones: Nucleophilic Addition Reactions that when a nucleophile adds to an aldehyde or ketone, the initially formed tetrahedral intermediate can be protonated to yield an alcohol. When a nucleophile adds to a carboxylic acid derivative, however, a different reaction path is taken. The initially formed tetrahedral intermediate eliminates one of the two substituents originally bonded to the carbonyl carbon, leading to a net nucleophilic acyl substitution reaction (Figure 21.2).

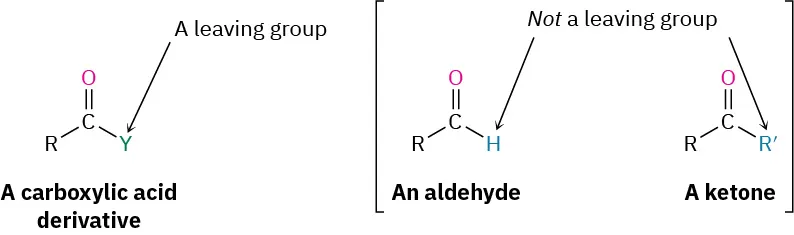

The difference in behavior between aldehydes/ketones and carboxylic acid derivatives is a consequence of structure. Carboxylic acid derivatives have an acyl carbon bonded to a group –Y that can act as a leaving group, often as a stable anion. As soon as the tetrahedral intermediate is formed, the leaving group is expelled to generate a new carbonyl compound. Aldehydes and ketones, however, have no such leaving group, however, and therefore don’t undergo substitution.
The net effect of the addition/elimination sequence is a substitution of the nucleophile for the –Y group that was originally bonded to the acyl carbon. Thus, the overall reaction is superficially similar to the kind of nucleophilic substitution that occurs during an SN2 reaction (Section 11.3), but the mechanisms of the two reactions are completely different. An SN2 reaction occurs in a single step by backside displacement of the leaving group, while a nucleophilic acyl substitution takes place in two steps and involves a tetrahedral intermediate.
Relative Reactivity of Carboxylic Acid Derivatives
Both the initial addition step and the subsequent elimination step can affect the overall rate of a nucleophilic acyl substitution reaction, but the addition is usually the rate-limiting step. Thus, any factor that makes the carbonyl group more reactive toward nucleophiles favors the substitution process.

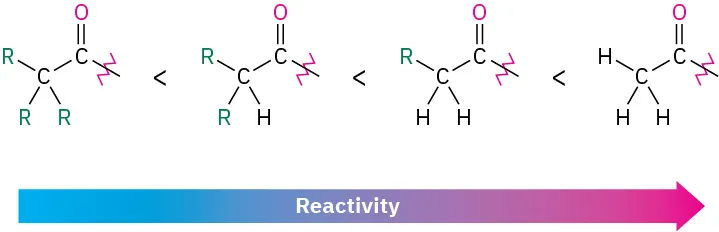

Steric and electronic factors are both important in determining reactivity. Sterically, we find within a series of similar acid derivatives that unhindered, accessible carbonyl groups react with nucleophiles more readily than do sterically hindered carbonyl groups. The reactivity order is

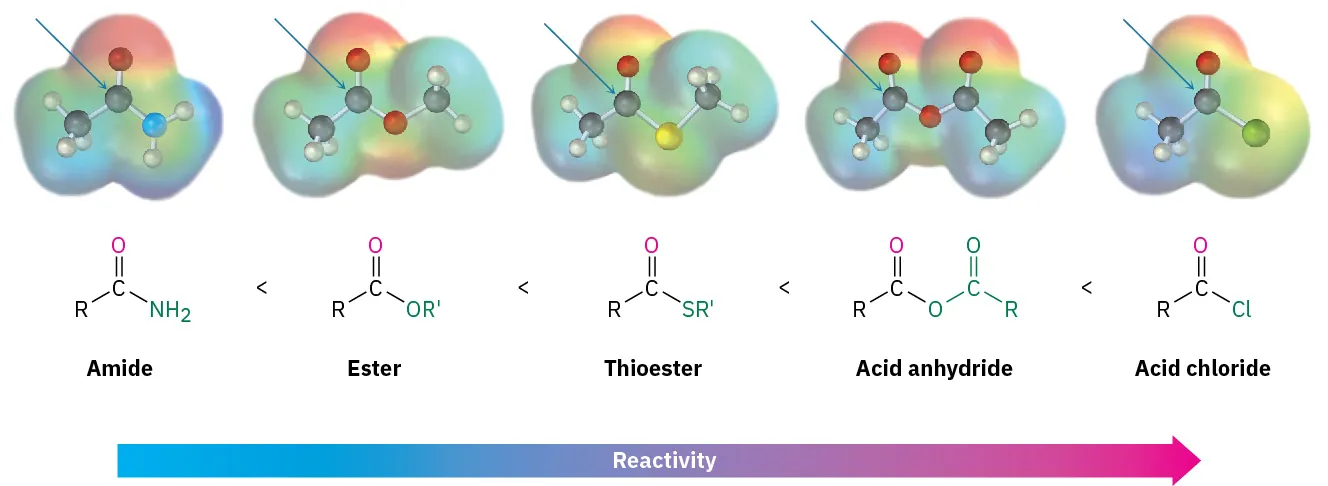

Electronically, we find that strongly polarized acyl compounds react more readily than less polar ones. Thus, acid chlorides are the most reactive because the electronegative chlorine atom withdraws electrons from the carbonyl carbon, whereas amides are the least reactive. Although subtle, electrostatic potential maps of various carboxylic acid derivatives indicate these differences by the relative blueness on the carbons. Acyl phosphates are hard to place on this scale because they are not often used in the laboratory, but in biological systems they appear to be somewhat more reactive than thioesters.
The way in which various substituents affect the polarization of a carbonyl group is similar to the way they affect the reactivity of an aromatic ring toward electrophilic substitution (Section 16.4). A chlorine substituent, for example, inductively withdraws electrons from an acyl group in the same way that it withdraws electrons from and thus deactivates an aromatic ring. Similarly, amino, methoxyl, and methylthio substituents donate electrons to acyl groups by resonance in the same way that they donate electrons to, and thus activate, aromatic rings.

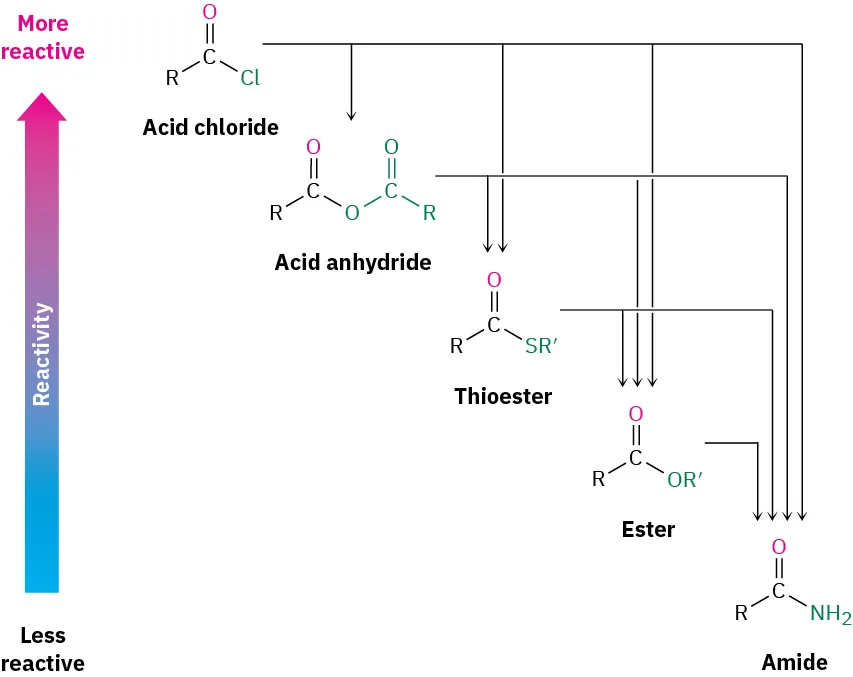

As a consequence of these reactivity differences, it’s usually possible to convert a more reactive acid derivative into a less reactive one. Acid chlorides, for instance, can be directly converted into anhydrides, thioesters, esters, and amides, but amides can’t be directly converted into esters, thioesters, anhydrides, or acid chlorides. Remembering the reactivity order is therefore a way to keep track of a large number of reactions (Figure 21.3). Another consequence, as noted previously, is that only acyl phosphates, thioesters, esters, and amides are commonly found in nature. Acid halides and acid anhydrides react so rapidly with water that they can’t exist for long in living organisms.

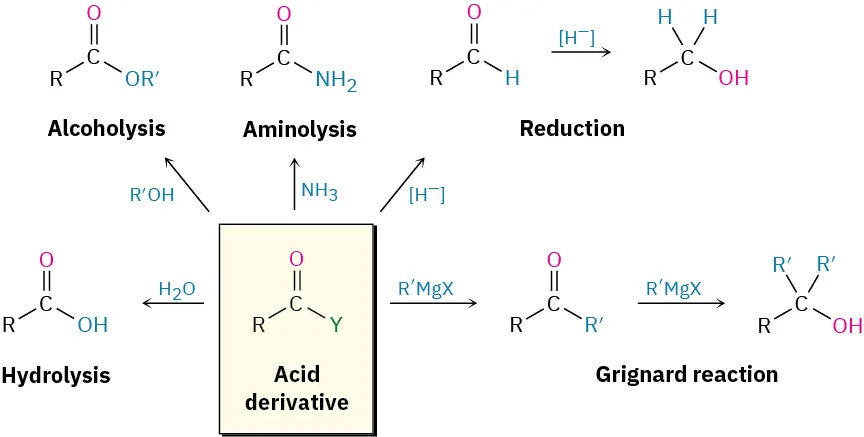

In studying the chemistry of carboxylic acid derivatives in the next few sections, we’ll be concerned largely with the reactions of just a few nucleophiles and will see that the same kinds of reactions tend to reoccur (Figure 21.4).
|• Hydrolysis||Reaction with water to yield a carboxylic acid|
|• Alcoholysis||Reaction with an alcohol to yield an ester|
|• Aminolysis||Reaction with ammonia or an amine to yield an amide|
|• Reduction||Reaction with a hydride reducing agent to yield an aldehyde or an alcohol|
|• Grignard reaction||Reaction with an organometallic reagent to yield a ketone or an alcohol|
Predicting the Product of a Nucleophilic Acyl Substitution Reaction

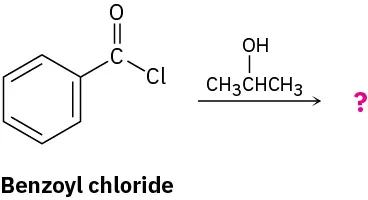

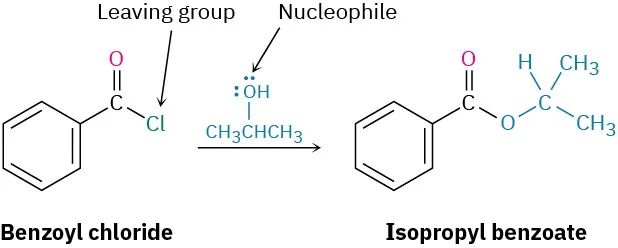

Predict the product of the following nucleophilic acyl substitution reaction of benzoyl chloride with 2-propanol:
