Problems

10.1 Electromotive Force

20.

A car battery with a 12-V emf and an internal resistance of 0.050Ω0.050Ω is being charged with a current of 60 A. Note that in this process, the battery is being charged. (a) What is the potential difference across its terminals? (b) At what rate is thermal energy being dissipated in the battery? (c) At what rate is electric energy being converted into chemical energy?

21.

The label on a battery-powered radio recommends the use of a rechargeable nickel-cadmium cell (nicads), although it has a 1.25-V emf, whereas an alkaline cell has a 1.58-V emf. The radio has a 3.20Ω3.20Ω resistance. (a) Draw a circuit diagram of the radio and its battery. Now, calculate the power delivered to the radio (b) when using a nicad cells, each having an internal resistance of 0.0400Ω0.0400Ω, and (c) when using an alkaline cell, having an internal resistance of 0.200Ω0.200Ω. (d) Does this difference seem significant, considering that the radio’s effective resistance is lowered when its volume is turned up?

22.

An automobile starter motor has an equivalent resistance of 0.0500Ω0.0500Ω and is supplied by a 12.0-V battery with a 0.0100-Ω0.0100-Ω internal resistance. (a) What is the current to the motor? (b) What voltage is applied to it? (c) What power is supplied to the motor? (d) Repeat these calculations for when the battery connections are corroded and add 0.0900Ω0.0900Ω to the circuit. (Significant problems are caused by even small amounts of unwanted resistance in low-voltage, high-current applications.)

23.

(a) What is the internal resistance of a voltage source if its terminal potential drops by 2.00 V when the current supplied increases by 5.00 A? (b) Can the emf of the voltage source be found with the information supplied?

24.

A person with body resistance between his hands of 10.0kΩ10.0kΩ accidentally grasps the terminals of a 20.0-kV power supply. (Do NOT do this!) (a) Draw a circuit diagram to represent the situation. (b) If the internal resistance of the power supply is 2000Ω2000Ω, what is the current through his body? (c) What is the power dissipated in his body? (d) If the power supply is to be made safe by increasing its internal resistance, what should the internal resistance be for the maximum current in this situation to be 1.00 mA or less? (e) Will this modification compromise the effectiveness of the power supply for driving low-resistance devices? Explain your reasoning.

25.

A 12.0-V emf automobile battery has a terminal voltage of 16.0 V when being charged by a current of 10.0 A. (a) What is the battery’s internal resistance? (b) What power is dissipated inside the battery? (c) At what rate (in °C/min°C/min) will its temperature increase if its mass is 20.0 kg and it has a specific heat of 0.300kcal/kg·°C0.300kcal/kg·°C, assuming no heat escapes?

10.2 Resistors in Series and Parallel

26.

(a) What is the resistance of a 1.00×102-Ω1.00×102-Ω, a 2.50-kΩ2.50-kΩ, and a 4.00-kΩ4.00-kΩ resistor connected in series? (b) In parallel?

27.

What are the largest and smallest resistances you can obtain by connecting a 36.0-Ω36.0-Ω, a 50.0-Ω50.0-Ω, and a 700-Ω700-Ω resistor together?

28.

An 1800-W toaster, a 1400-W speaker, and a 75-W lamp are plugged into the same outlet in a 15-A fuse and 120-V circuit. (The three devices are in parallel when plugged into the same socket.) (a) What current is drawn by each device? (b) Will this combination blow the 15-A fuse?

29.

Your car’s 30.0-W headlight and 2.40-kW starter are ordinarily connected in parallel in a 12.0-V system. What power would one headlight and the starter consume if connected in series to a 12.0-V battery? (Neglect any other resistance in the circuit and any change in resistance in the two devices.)

30.

(a) Given a 48.0-V battery and 24.0-Ω24.0-Ω and 96.0-Ω96.0-Ω resistors, find the current and power for each when connected in series. (b) Repeat when the resistances are in parallel.

31.

Referring to the example combining series and parallel circuits and Figure 10.16, calculate I3I3 in the following two different ways: (a) from the known values of II and I2I2; (b) using Ohm’s law for R3R3. In both parts, explicitly show how you follow the steps in the Figure 10.17.

32.

Referring to Figure 10.16, (a) Calculate P3P3 and note how it compares with P3P3 found in the first two example problems in this module. (b) Find the total power supplied by the source and compare it with the sum of the powers dissipated by the resistors.

33.

Refer to Figure 10.17 and the discussion of lights dimming when a heavy appliance comes on. (a) Given the voltage source is 120 V, the wire resistance is 0.800Ω,0.800Ω, and the bulb is nominally 75.0 W, what power will the bulb dissipate if a total of 15.0 A passes through the wires when the motor comes on? Assume negligible change in bulb resistance. (b) What power is consumed by the motor?

34.

Show that if two resistors R1R1 and R2R2 are combined and one is much greater than the other (R1R2)(R1R2), (a) their series resistance is very nearly equal to the greater resistanceR1R1 and (b) their parallel resistance is very nearly equal to smaller resistance R2R2.

35.

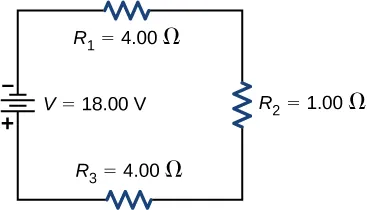

Consider the circuit shown below. The terminal voltage of the battery is V=18.00V.V=18.00V. (a) Find the equivalent resistance of the circuit. (b) Find the current through each resistor. (c) Find the potential drop across each resistor. (d) Find the power dissipated by each resistor. (e) Find the power supplied by the battery.

The figure shows negative terminal of a voltage source of 18 V connected to three resistors in series, R subscript 1 of 4 Ω, R subscript 2 of 1 Ω and R subscript 3 of 4 Ω.

10.3 Kirchhoff's Rules

36.

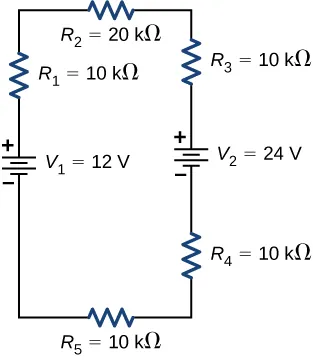

Consider the circuit shown below. (a) Find the voltage across each resistor. (b)What is the power supplied to the circuit and the power dissipated or consumed by the circuit?

The figure shows positive terminal of voltage source V subscript 1 of 12 V connected in series to resistor R subscript 1 of 10 kΩ connected in series to resistor R subscript 2 of 20 kΩ connected in series to resistor R subscript 3 of 10 kΩ connected in series to positive terminal of voltage source V subscript 2 of 24 V connected in series to resistor R subscript 4 of 10 kΩ connected in series to resistor R subscript 5 of 10 kΩ.
37.

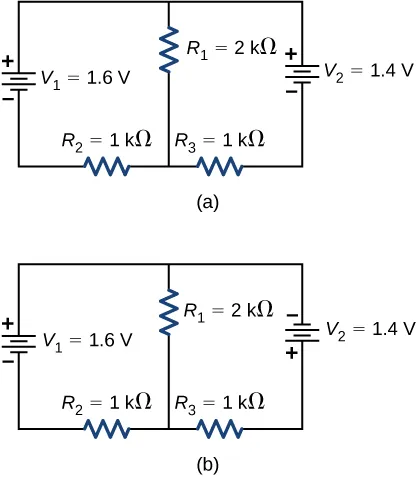

Consider the circuits shown below. (a) What is the current through each resistor in part (a)? (b) What is the current through each resistor in part (b)? (c) What is the power dissipated or consumed by each circuit? (d) What is the power supplied to each circuit?

Part a shows positive terminal of voltage source V subscript 1 of 1.6 V connected to parallel branches, one with resistor R subscript 1 of 2 kΩ and second with positive terminal of voltage source V subscript 2 of 1.4 V and resistor R subscript 3 of 1 kΩ. The two branches are connected back to V subscript 1 through resistor R subscript 2 of 1 kΩ. Part b shows the same circuit as part a but the terminals of V subscript 2 are reversed.
38.

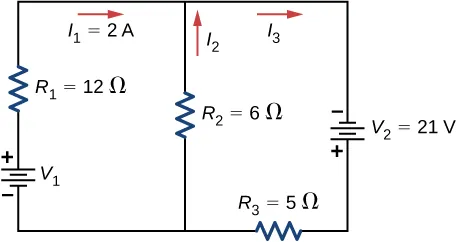

Consider the circuit shown below. Find V1,I2,andI3.V1,I2,andI3.

The positive terminal of voltage source V subscript 1 is connected to resistance R subscript 1 of 12 Ω with right current I subscript 1 of 2 A connected to two parallel branches, first with resistor R subscript 2 of 6 Ω with upward current I subscript 2 and second with right current I subscript 3, negative terminal of voltage source V subscript 2 of 21 V and resistor R subscript 3 of 5 Ω.
39.

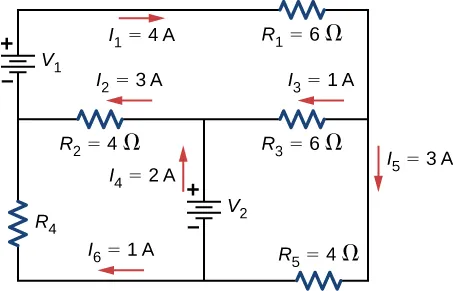

Consider the circuit shown below. Find V1,V2,andR4.V1,V2,andR4.

The figure shows a circuit with three horizontal branches. The first branch has resistor R subscript 1 of 6 Ω with right current I subscript 1 of 4 A. The second branch has resistor R subscript 2 of 4 Ω with left current I subscript 2 of 3 A and resistor R subscript 3 of 6 Ω with left current I subscript 3 of 1 A. The third branch has resistor R subscript 5 of 4 Ω with left current I subscript 5 of 3 A. The first and second horizontal branches are connected on the right directly and on the left with voltage source V subscript 1 with positive terminal connected to first branch. The second and third horizontal branches are connected on the right directly and on the left with resistor R subscript 4 with upward current I subscript 4 of 1 A. The second and third branches are also connected in the middle with a voltage source V subscript 2 with positive terminal connected to second branch.
40.

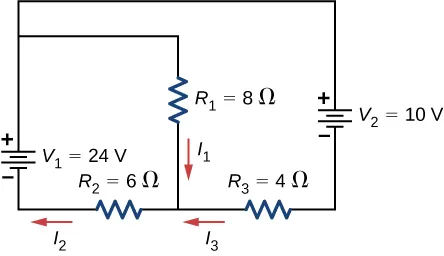

Consider the circuit shown below. Find I1,I2,andI3.I1,I2,andI3.

The positive terminal of voltage source V subscript 1 of 24 V is connected to two parallel branches. The first branch has resistor R subscript 1 of 8 Ω with downward current I subscript 1 and second branch connects to positive terminal of voltage source V subscript 2 of 10 V and resistor R subscript 3 of 4 Ω with left current I subscript 3. The two branches are connected to V subscript 1 through resistor R subscript 2 of 6 Ω with left current of I subscript 2.
41.

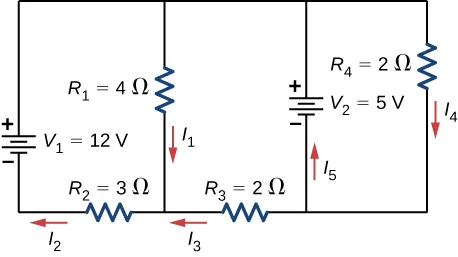

Consider the circuit shown below. (a) Find I1,I2,I3,I4,andI5.I1,I2,I3,I4,andI5. (b) Find the power supplied by the voltage sources. (c) Find the power dissipated by the resistors.

The circuit has four vertical branches. From left to right, first branch has voltage source V subscript 1 of 12 V with positive terminal upward. The second branch has resistor R subscript 1 of 4 Ω with downward current I subscript 1. The third branch has voltage source V subscript 2 of 5 V with positive terminal upward and upward current I subscript 5. The fourth branch has resistor R subscript 4 of 2 Ω with downward current I subscript 4. The first and second branch are connected at the bottom through resistor R subscript 2 of 3 Ω with left current I subscript 2 and second and third branch are connected at the bottom through resistor R subscript 3 of 2 Ω with left current I subscript 3.
42.

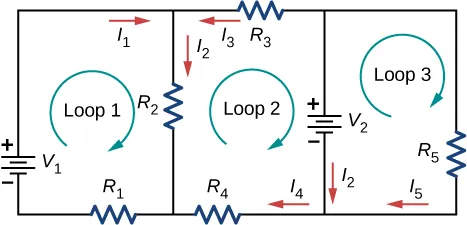

Consider the circuit shown below. Write the three loop equations for the loops shown.

The circuit has four vertical branches. From left to right, first branch has voltage source V subscript 1 with positive terminal upward. The second branch has resistor R subscript 2 with downward current I subscript 2. The third branch has voltage source V subscript 2 with positive terminal upward and downward current I subscript 2. The fourth branch has resistor R subscript 5 with downward current I subscript 5. The first and second branch are connected at the bottom through resistor R subscript 1 and second and third branch are connected at the bottom through resistor R subscript 4 with left current I subscript 4. The second and third branch are connected at the top through resistor R subscript 3 with left current I subscript 3. The current at the top between first and second branch is right I subscript 1.
43.

Consider the circuit shown below. Write equations for the three currents in terms of R and V.

The circuit has four vertical branches. From left to right, first branch has voltage source V subscript 1 with positive terminal upward and resistor R. The second branch has resistor R with downward current I subscript 1. The third and fourth branches both have resistor 2 R and are connected to positive terminal of another voltage source V. The current between first and second branch is right I subscript 2 and between second and third branch is left I subscript 3.
44.

Consider the circuit shown in the preceding problem. Write equations for the power supplied by the voltage sources and the power dissipated by the resistors in terms of R and V.

45.

A child’s electronic toy is supplied by three 1.58-V alkaline cells having internal resistances of 0.0200Ω0.0200Ω in series with a 1.53-V carbon-zinc dry cell having a 0.100-Ω0.100-Ω internal resistance. The load resistance is 10.0Ω10.0Ω. (a) Draw a circuit diagram of the toy and its batteries. (b) What current flows? (c) How much power is supplied to the load? (d) What is the internal resistance of the dry cell if it goes bad, resulting in only 0.500 W being supplied to the load?

46.

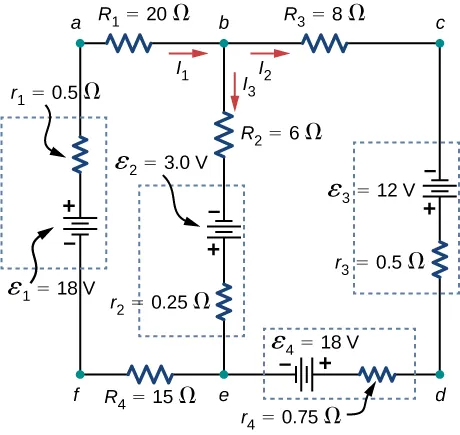

Apply the junction rule to Junction b shown below. Is any new information gained by applying the junction rule at e?

The circuit has three vertical branches. From left to right, first branch has voltage source ε subscript 1 of 18 V and internal resistance 0.5 Ω with positive terminal upward. The second branch has resistor R subscript 2 of 6 Ω with downward current I subscript 3 and voltage source ε subscript 2 of 3 V and internal resistance 0.25 Ω with positive terminal downward. The third branch has voltage source ε subscript 3 of 12 V and internal resistance 0.5 Ω with positive terminal downward. The first and second branch are connected at the top through resistor R subscript 1 of 20 Ω with right current I subscript 1 and bottom through resistor R subscript 4 of 15 Ω. The second and third branch are connected at the top through resistor R subscript 3 of 8 Ω with right current I subscript 2 and bottom through voltage source ε subscript 4 of 18 V with right positive terminal and internal resistance 0.75 Ω.
47.

Apply the loop rule to Loop afedcba in the preceding problem.

10.4 Electrical Measuring Instruments

48.

Suppose you measure the terminal voltage of a 1.585-V alkaline cell having an internal resistance of 0.100Ω0.100Ω by placing a 1.00-kΩ1.00-kΩ voltmeter across its terminals (see below). (a) What current flows? (b) Find the terminal voltage. (c) To see how close the measured terminal voltage is to the emf, calculate their ratio.

The figure shows positive terminal of a battery with emf ε and internal resistance r connected to a voltmeter.

10.5 RC Circuits

49.

The timing device in an automobile’s intermittent wiper system is based on an RC time constant and utilizes a 0.500-μF0.500-μF capacitor and a variable resistor. Over what range must R be made to vary to achieve time constants from 2.00 to 15.0 s?

50.

A heart pacemaker fires 72 times a minute, each time a 25.0-nF capacitor is charged (by a battery in series with a resistor) to 0.632 of its full voltage. What is the value of the resistance?

51.

The duration of a photographic flash is related to an RC time constant, which is 0.100μF0.100μF for a certain camera. (a) If the resistance of the flash lamp is 0.0400Ω0.0400Ω during discharge, what is the size of the capacitor supplying its energy? (b) What is the time constant for charging the capacitor, if the charging resistance is 800kΩ800kΩ?

52.

A 2.00- and a 7.50-μF7.50-μF capacitor can be connected in series or parallel, as can a 25.0- and a 100-kΩ100-kΩ resistor. Calculate the four RC time constants possible from connecting the resulting capacitance and resistance in series.

53.

A 500-Ω500-Ω resistor, an uncharged 1.50-μF1.50-μF capacitor, and a 6.16-V emf are connected in series. (a) What is the initial current? (b) What is the RC time constant? (c) What is the current after one time constant? (d) What is the voltage on the capacitor after one time constant?

54.

A heart defibrillator being used on a patient has an RC time constant of 10.0 ms due to the resistance of the patient and the capacitance of the defibrillator. (a) If the defibrillator has a capacitance of 8.00μF,8.00μF, what is the resistance of the path through the patient? (You may neglect the capacitance of the patient and the resistance of the defibrillator.) (b) If the initial voltage is 12.0 kV, how long does it take to decline to 6.00×102V6.00×102V?

55.

An ECG monitor must have an RC time constant less than 1.00×102μs1.00×102μs to be able to measure variations in voltage over small time intervals. (a) If the resistance of the circuit (due mostly to that of the patient’s chest) is 1.00kΩ1.00kΩ, what is the maximum capacitance of the circuit? (b) Would it be difficult in practice to limit the capacitance to less than the value found in (a)?

56.

Using the exact exponential treatment, determine how much time is required to charge an initially uncharged 100-pF capacitor through a 75.0-MΩ75.0-MΩ resistor to 90.0%90.0% of its final voltage.

57.

If you wish to take a picture of a bullet traveling at 500 m/s, then a very brief flash of light produced by an RC discharge through a flash tube can limit blurring. Assuming 1.00 mm of motion during one RC constant is acceptable, and given that the flash is driven by a 600-μF600-μF capacitor, what is the resistance in the flash tube?

10.6 Household Wiring and Electrical Safety

58.

(a) How much power is dissipated in a short circuit of 240-V ac through a resistance of 0.250Ω0.250Ω? (b) What current flows?

59.

What voltage is involved in a 1.44-kW short circuit through a 0.100-Ω0.100-Ω resistance?

60.

Find the current through a person and identify the likely effect on her if she touches a 120-V ac source: (a) if she is standing on a rubber mat and offers a total resistance of 300kΩ300kΩ; (b) if she is standing barefoot on wet grass and has a resistance of only 4000kΩ4000kΩ.

61.

While taking a bath, a person touches the metal case of a radio. The path through the person to the drainpipe and ground has a resistance of 4000Ω4000Ω. What is the smallest voltage on the case of the radio that could cause ventricular fibrillation?

62.

A man foolishly tries to fish a burning piece of bread from a toaster with a metal butter knife and comes into contact with 120-V ac. He does not even feel it since, luckily, he is wearing rubber-soled shoes. What is the minimum resistance of the path the current follows through the person?

63.

(a) During surgery, a current as small as 20.0μA20.0μA applied directly to the heart may cause ventricular fibrillation. If the resistance of the exposed heart is 300Ω,300Ω, what is the smallest voltage that poses this danger? (b) Does your answer imply that special electrical safety precautions are needed?

64.

(a) What is the resistance of a 220-V ac short circuit that generates a peak power of 96.8 kW? (b) What would the average power be if the voltage were 120 V ac?

65.

A heart defibrillator passes 10.0 A through a patient’s torso for 5.00 ms in an attempt to restore normal beating. (a) How much charge passed? (b) What voltage was applied if 500 J of energy was dissipated? (c) What was the path’s resistance? (d) Find the temperature increase caused in the 8.00 kg of affected tissue.

66.

A short circuit in a 120-V appliance cord has a 0.500-Ω0.500-Ω resistance. Calculate the temperature rise of the 2.00 g of surrounding materials, assuming their specific heat capacity is 0.200cal/g·°C0.200cal/g·°C and that it takes 0.0500 s for a circuit breaker to interrupt the current. Is this likely to be damaging?

Citation/Attribution

Want to cite, share, or modify this book? This book is Creative Commons Attribution License 4.0 and you must attribute OpenStax.

Attribution information
  • If you are redistributing all or part of this book in a print format, then you must include on every physical page the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-2/pages/1-introduction
  • If you are redistributing all or part of this book in a digital format, then you must include on every digital page view the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-2/pages/1-introduction
Citation information

© Oct 6, 2016 OpenStax. Textbook content produced by OpenStax is licensed under a Creative Commons Attribution License 4.0 license. The OpenStax name, OpenStax logo, OpenStax book covers, OpenStax CNX name, and OpenStax CNX logo are not subject to the Creative Commons license and may not be reproduced without the prior and express written consent of Rice University.
