Learning Objectives

By the end of the section, you will be able to:
  • Describe the electromotive force (emf) and the internal resistance of a battery
  • Explain the basic operation of a battery

If you forget to turn off your car lights, they slowly dim as the battery runs down. Why don’t they suddenly blink off when the battery’s energy is gone? Their gradual dimming implies that the battery output voltage decreases as the battery is depleted. The reason for the decrease in output voltage for depleted batteries is that all voltage sources have two fundamental parts—a source of electrical energy and an internal resistance. In this section, we examine the energy source and the internal resistance.

Introduction to Electromotive Force

Voltage has many sources, a few of which are shown in Figure 10.2. All such devices create a potential difference and can supply current if connected to a circuit. A special type of potential difference is known as electromotive force (emf). The emf is not a force at all, but the term ‘electromotive force’ is used for historical reasons. It was coined by Alessandro Volta in the 1800s, when he invented the first battery, also known as the voltaic pile. Because the electromotive force is not a force, it is common to refer to these sources simply as sources of emf (pronounced as the letters “ee-em-eff”), instead of sources of electromotive force.

The four parts of the figure show photos, part a shows a wind farm, part b shows a dam, part c shows a solar farm and part d shows three batteries.
Figure 10.2 A variety of voltage sources. (a) The Brazos Wind Farm in Fluvanna, Texas; (b) the Krasnoyarsk Dam in Russia; (c) a solar farm; (d) a group of nickel metal hydride batteries. The voltage output of each device depends on its construction and load. The voltage output equals emf only if there is no load. (credit a: modification of work by Stig Nygaard; credit b: modification of work by "vadimpl"/Wikimedia Commons; credit c: modification of work by "The tdog"/Wikimedia Commons; credit d: modification of work by "Itrados"/Wikimedia Commons)

If the electromotive force is not a force at all, then what is the emf and what is a source of emf? To answer these questions, consider a simple circuit of a 12-V lamp attached to a 12-V battery, as shown in Figure 10.3. The battery can be modeled as a two-terminal device that keeps one terminal at a higher electric potential than the second terminal. The higher electric potential is sometimes called the positive terminal and is labeled with a plus sign. The lower-potential terminal is sometimes called the negative terminal and labeled with a minus sign. This is the source of the emf.

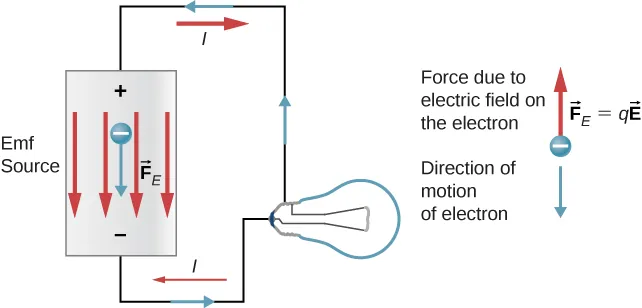

The figure shows a circuit with an emf source connected to a bulb. The electron flows from positive to negative terminal inside the source and the force on the electron is opposite to the direction of motion.
Figure 10.3 A source of emf maintains one terminal at a higher electric potential than the other terminal, acting as a source of current in a circuit.

When the emf source is not connected to the lamp, there is no net flow of charge within the emf source. Once the battery is connected to the lamp, charges flow from one terminal of the battery, through the lamp (causing the lamp to light), and back to the other terminal of the battery. If we consider positive (conventional) current flow, positive charges leave the positive terminal, travel through the lamp, and enter the negative terminal.

Positive current flow is useful for most of the circuit analysis in this chapter, but in metallic wires and resistors, electrons contribute the most to current, flowing in the opposite direction of positive current flow. Therefore, it is more realistic to consider the movement of electrons for the analysis of the circuit in Figure 10.3. The electrons leave the negative terminal, travel through the lamp, and return to the positive terminal. In order for the emf source to maintain the potential difference between the two terminals, negative charges (electrons) must be moved from the positive terminal to the negative terminal. The emf source acts as a charge pump, moving negative charges from the positive terminal to the negative terminal to maintain the potential difference. This increases the potential energy of the charges and, therefore, the electric potential of the charges.

The force on the negative charge from the electric field is in the opposite direction of the electric field, as shown in Figure 10.3. In order for the negative charges to be moved to the negative terminal, work must be done on the negative charges. This requires energy, which comes from chemical reactions in the battery. The potential is kept high on the positive terminal and low on the negative terminal to maintain the potential difference between the two terminals. The emf is equal to the work done on the charge per unit charge (ε=dWdq)(ε=dWdq) when there is no current flowing. Since the unit for work is the joule and the unit for charge is the coulomb, the unit for emf is the volt (1V=1J/C).(1V=1J/C).

The terminal voltage VterminalVterminal of a battery is voltage measured across the terminals of the battery when there is no load connected to the terminal. An ideal battery is an emf source that maintains a constant terminal voltage, independent of the current between the two terminals. An ideal battery has no internal resistance, and the terminal voltage is equal to the emf of the battery. In the next section, we will show that a real battery does have internal resistance and the terminal voltage is always less than the emf of the battery.

The Origin of Battery Potential

The combination of chemicals and the makeup of the terminals in a battery determine its emf. The lead acid battery used in cars and other vehicles is one of the most common combinations of chemicals. Figure 10.4 shows a single cell (one of six) of this battery. The cathode (positive) terminal of the cell is connected to a lead oxide plate, whereas the anode (negative) terminal is connected to a lead plate. Both plates are immersed in sulfuric acid, the electrolyte for the system.

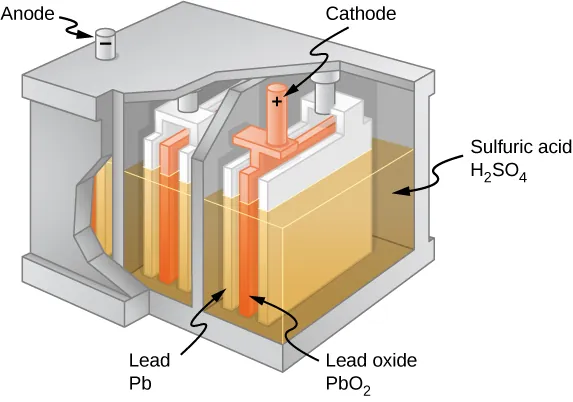

The figure shows the parts of a cell, including anode, cathode, lead, lead oxide and sulfuric acid.
Figure 10.4 Chemical reactions in a lead-acid cell separate charge, sending negative charge to the anode, which is connected to the lead plates. The lead oxide plates are connected to the positive or cathode terminal of the cell. Sulfuric acid conducts the charge, as well as participates in the chemical reaction.

Knowing a little about how the chemicals in a lead-acid battery interact helps in understanding the potential created by the battery. Figure 10.5 shows the result of a single chemical reaction. Two electrons are placed on the anode, making it negative, provided that the cathode supplies two electrons. This leaves the cathode positively charged, because it has lost two electrons. In short, a separation of charge has been driven by a chemical reaction.

Note that the reaction does not take place unless there is a complete circuit to allow two electrons to be supplied to the cathode. Under many circumstances, these electrons come from the anode, flow through a resistance, and return to the cathode. Note also that since the chemical reactions involve substances with resistance, it is not possible to create the emf without an internal resistance.

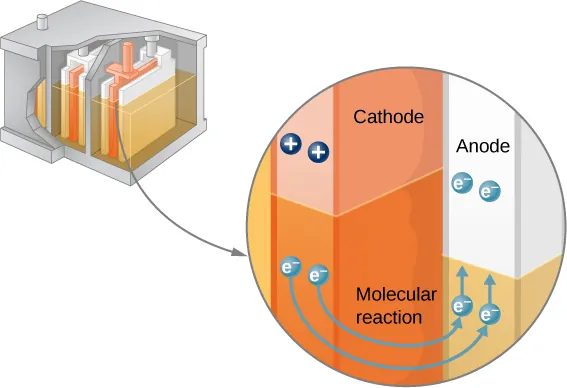

The figure shows the cathode and anode of a cell and the flow of electrons from cathode to anode.
Figure 10.5 In a lead-acid battery, two electrons are forced onto the anode of a cell, and two electrons are removed from the cathode of the cell. The chemical reaction in a lead-acid battery places two electrons on the anode and removes two from the cathode. It requires a closed circuit to proceed, since the two electrons must be supplied to the cathode.

Internal Resistance and Terminal Voltage

The amount of resistance to the flow of current within the voltage source is called the internal resistance. The internal resistance r of a battery can behave in complex ways. It generally increases as a battery is depleted, due to the oxidation of the plates or the reduction of the acidity of the electrolyte. However, internal resistance may also depend on the magnitude and direction of the current through a voltage source, its temperature, and even its history. The internal resistance of rechargeable nickel-cadmium cells, for example, depends on how many times and how deeply they have been depleted. A simple model for a battery consists of an idealized emf source εε and an internal resistance r (Figure 10.6).

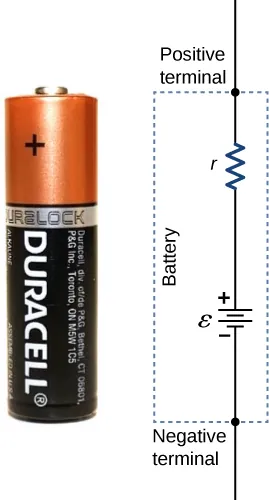

The figure shows the photo of a battery and the equivalent circuit diagram with two terminals, emf and internal resistance.
Figure 10.6 A battery can be modeled as an idealized emf (ε)(ε) with an internal resistance (r). The terminal voltage of the battery is Vterminal=εIrVterminal=εIr.

Suppose an external resistor, known as the load resistance R, is connected to a voltage source such as a battery, as in Figure 10.7. The figure shows a model of a battery with an emf εε, an internal resistance r, and a load resistor R connected across its terminals. Using conventional current flow, positive charges leave the positive terminal of the battery, travel through the resistor, and return to the negative terminal of the battery. The terminal voltage of the battery depends on the emf, the internal resistance, and the current, and is equal to

Vterminal=εIr.Vterminal=εIr.
(10.1)

For a given emf and internal resistance, the terminal voltage decreases as the current increases due to the potential drop Ir of the internal resistance.

The figure shows a circuit diagram with load resistor and battery having emf and internal resistance.
Figure 10.7 Schematic of a voltage source and its load resistor R. Since the internal resistance r is in series with the load, it can significantly affect the terminal voltage and the current delivered to the load.

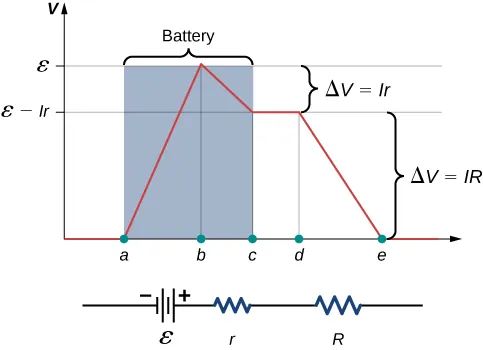

A graph of the potential difference across each element the circuit is shown in Figure 10.8. A current I runs through the circuit, and the potential drop across the internal resistor is equal to Ir. The terminal voltage is equal to εIrεIr, which is equal to the potential drop across the load resistor IR=εIrIR=εIr. As with potential energy, it is the change in voltage that is important. When the term “voltage” is used, we assume that it is actually the change in the potential, or ΔVΔV. However, ΔΔ is often omitted for convenience.

The graph shows voltage at several points in a circuit. The points are shown on the x-axis. The y-axis shows the voltage, which is 0 from origin to point a and rises linearly to E from a to b and then drops linearly to E minus I r from b to c. The voltage is constant from c to d and then drops linearly to 0 from d to e.
Figure 10.8 A graph of the voltage through the circuit of a battery and a load resistance. The electric potential increases the emf of the battery due to the chemical reactions doing work on the charges. There is a decrease in the electric potential in the battery due to the internal resistance. The potential decreases due to the internal resistance (Ir)(Ir), making the terminal voltage of the battery equal to (εIr)(εIr). The voltage then decreases by (IR). The current is equal to I=εr+R.I=εr+R.

The current through the load resistor is I=εr+RI=εr+R. We see from this expression that the smaller the internal resistance r, the greater the current the voltage source supplies to its load R. As batteries are depleted, r increases. If r becomes a significant fraction of the load resistance, then the current is significantly reduced, as the following example illustrates.

Example 10.1

Analyzing a Circuit with a Battery and a Load A given battery has a 12.00-V emf and an internal resistance of 0.100Ω0.100Ω. (a) Calculate its terminal voltage when connected to a 10.00-Ω10.00-Ω load. (b) What is the terminal voltage when connected to a 0.500-Ω0.500-Ω load? (c) What power does the 0.500-Ω0.500-Ω load dissipate? (d) If the internal resistance grows to 0.500Ω0.500Ω, find the current, terminal voltage, and power dissipated by a 0.500-Ω0.500-Ω load.

Strategy The analysis above gave an expression for current when internal resistance is taken into account. Once the current is found, the terminal voltage can be calculated by using the equation Vterminal=εIrVterminal=εIr. Once current is found, we can also find the power dissipated by the resistor.

Solution

  1. Entering the given values for the emf, load resistance, and internal resistance into the expression above yields
    I=εR+r=12.00V10.10Ω=1.188A.I=εR+r=12.00V10.10Ω=1.188A.

    Enter the known values into the equation Vterminal=εIrVterminal=εIr to get the terminal voltage:
    Vterminal=εIr=12.00V(1.188A)(0.100Ω)=11.90V.Vterminal=εIr=12.00V(1.188A)(0.100Ω)=11.90V.

    The terminal voltage here is only slightly lower than the emf, implying that the current drawn by this light load is not significant.
  2. Similarly, with Rload=0.500ΩRload=0.500Ω, the current is
    I=εR+r=12.00V0.600Ω=20.00A.I=εR+r=12.00V0.600Ω=20.00A.

    The terminal voltage is now
    Vterminal=εIr=12.00V(20.00A)(0.100Ω)=10.00V.Vterminal=εIr=12.00V(20.00A)(0.100Ω)=10.00V.

    The terminal voltage exhibits a more significant reduction compared with emf, implying 0.500Ω0.500Ω is a heavy load for this battery. A “heavy load” signifies a larger draw of current from the source but not a larger resistance.
  3. The power dissipated by the 0.500-Ω0.500-Ω load can be found using the formula P=I2RP=I2R. Entering the known values gives
    P=I2R=(20.0A)2(0.500Ω)=2.00×102W.P=I2R=(20.0A)2(0.500Ω)=2.00×102W.

    Note that this power can also be obtained using the expression V2RorIVV2RorIV, where V is the terminal voltage (10.0 V in this case).
  4. Here, the internal resistance has increased, perhaps due to the depletion of the battery, to the point where it is as great as the load resistance. As before, we first find the current by entering the known values into the expression, yielding
    I=εR+r=12.00V1.00Ω=12.00A.I=εR+r=12.00V1.00Ω=12.00A.

    Now the terminal voltage is
    Vterminal=εIr=12.00V(12.00A)(0.500Ω)=6.00V,Vterminal=εIr=12.00V(12.00A)(0.500Ω)=6.00V,

    and the power dissipated by the load is
    P=I2R=(12.00A)2(0.500Ω)=72.00W.P=I2R=(12.00A)2(0.500Ω)=72.00W.

    We see that the increased internal resistance has significantly decreased the terminal voltage, current, and power delivered to a load.

Significance The internal resistance of a battery can increase for many reasons. For example, the internal resistance of a rechargeable battery increases as the number of times the battery is recharged increases. The increased internal resistance may have two effects on the battery. First, the terminal voltage will decrease. Second, the battery may overheat due to the increased power dissipated by the internal resistance.

Check Your Understanding 10.1

If you place a wire directly across the two terminal of a battery, effectively shorting out the terminals, the battery will begin to get hot. Why do you suppose this happens?

Battery Testers

Battery testers, such as those in Figure 10.9, use small load resistors to intentionally draw current to determine whether the terminal potential drops below an acceptable level. Although it is difficult to measure the internal resistance of a battery, battery testers can provide a measurement of the internal resistance of the battery. If internal resistance is high, the battery is weak, as evidenced by its low terminal voltage.

Part a shows photo of a technician testing batteries and part b shows a battery testing device.
Figure 10.9 Battery testers measure terminal voltage under a load to determine the condition of a battery. (a) A US Navy electronics technician uses a battery tester to test large batteries aboard the aircraft carrier USS Nimitz. The battery tester she uses has a small resistance that can dissipate large amounts of power. (b) The small device shown is used on small batteries and has a digital display to indicate the acceptability of the terminal voltage. (credit a: modification of work by Jason A. Johnston; credit b: modification of work by Keith Williamson)

Some batteries can be recharged by passing a current through them in the direction opposite to the current they supply to an appliance. This is done routinely in cars and in batteries for small electrical appliances and electronic devices (Figure 10.10). The voltage output of the battery charger must be greater than the emf of the battery to reverse the current through it. This causes the terminal voltage of the battery to be greater than the emf, since V=εIrV=εIr and I is now negative.

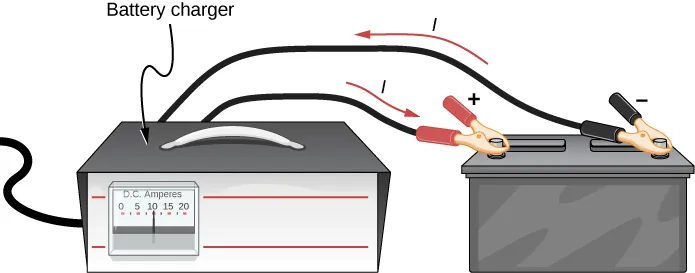

The figure shows a car battery charger connected to two terminals of a car battery. The current flows from the charger to the positive terminal and from the negative terminal back to the charger.
Figure 10.10 A car battery charger reverses the normal direction of current through a battery, reversing its chemical reaction and replenishing its chemical potential.

It is important to understand the consequences of the internal resistance of emf sources, such as batteries and solar cells, but often, the analysis of circuits is done with the terminal voltage of the battery, as we have done in the previous sections. The terminal voltage is referred to as simply as V, dropping the subscript “terminal.” This is because the internal resistance of the battery is difficult to measure directly and can change over time.

Citation/Attribution

Want to cite, share, or modify this book? This book is Creative Commons Attribution License 4.0 and you must attribute OpenStax.

Attribution information
  • If you are redistributing all or part of this book in a print format, then you must include on every physical page the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-2/pages/1-introduction
  • If you are redistributing all or part of this book in a digital format, then you must include on every digital page view the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-2/pages/1-introduction
Citation information

© Oct 6, 2016 OpenStax. Textbook content produced by OpenStax is licensed under a Creative Commons Attribution License 4.0 license. The OpenStax name, OpenStax logo, OpenStax book covers, OpenStax CNX name, and OpenStax CNX logo are not subject to the Creative Commons license and may not be reproduced without the prior and express written consent of Rice University.
