Problems

5.1 Electric Charge

37.

Common static electricity involves charges ranging from nanocoulombs to microcoulombs. (a) How many electrons are needed to form a charge of −2.00 nC? (b) How many electrons must be removed from a neutral object to leave a net charge of 0.500μC0.500μC?

38.

If 1.80×10201.80×1020 electrons move through a pocket calculator during a full day’s operation, how many coulombs of charge moved through it?

39.

To start a car engine, the car battery moves 3.75×10213.75×1021 electrons through the starter motor. How many coulombs of charge were moved?

40.

A certain lightning bolt moves 40.0 C of charge. How many fundamental units of charge is this?

41.

A 2.5-g copper penny is given a charge of −2.0×10−9C−2.0×10−9C. (a) How many excess electrons are on the penny? (b) By what percent do the excess electrons change the mass of the penny?

42.

A 2.5-g copper penny is given a charge of 4.0×10−9C4.0×10−9C. (a) How many electrons are removed from the penny? (b) If no more than one electron is removed from an atom, what percent of the atoms are ionized by this charging process?

5.2 Conductors, Insulators, and Charging by Induction

43.

Suppose a speck of dust in an electrostatic precipitator has 1.0000×10121.0000×1012 protons in it and has a net charge of −5.00 nC (a very large charge for a small speck). How many electrons does it have?

44.

An amoeba has 1.00×10161.00×1016 protons and a net charge of 0.300 pC. (a) How many fewer electrons are there than protons? (b) If you paired them up, what fraction of the protons would have no electrons?

45.

A 50.0-g ball of copper has a net charge of 2.00μC2.00μC. What fraction of the copper’s electrons has been removed? (Each copper atom has 29 protons, and copper has an atomic mass of 63.5.)

46.

What net charge would you place on a 100-g piece of sulfur if you put an extra electron on 1 in 10121012 of its atoms? (Sulfur has an atomic mass of 32.1 u.)

47.

How many coulombs of positive charge are there in 4.00 kg of plutonium, given its atomic mass is 244 and that each plutonium atom has 94 protons?

5.3 Coulomb's Law

48.

Two point particles with charges +3μC+3μC and +5μC+5μC are held in place by 3-N forces on each charge in appropriate directions. (a) Draw a free-body diagram for each particle. (b) Find the distance between the charges.

49.

Two charges +3μC+3μC and +12μC+12μC are fixed 1 m apart, with the second one to the right. Find the magnitude and direction of the net force on a −2-nC charge when placed at the following locations: (a) halfway between the two (b) half a meter to the left of the +3μC+3μC charge (c) half a meter above the +12μC+12μC charge in a direction perpendicular to the line joining the two fixed charges

50.

In a salt crystal, the distance between adjacent sodium and chloride ions is 2.82×10−10m.2.82×10−10m. What is the force of attraction between the two singly charged ions?

51.

Protons in an atomic nucleus are typically 10−15m10−15m apart. What is the electric force of repulsion between nuclear protons?

52.

Suppose Earth and the Moon each carried a net negative charge −Q. Approximate both bodies as point masses and point charges.

(a) What value of Q is required to balance the gravitational attraction between Earth and the Moon?

(b) Does the distance between Earth and the Moon affect your answer? Explain.

(c) How many electrons would be needed to produce this charge?

53.

Point charges q1=50μCq1=50μC and q2=−25μCq2=−25μC are placed 1.0 m apart. What is the force on a third charge q3=20μCq3=20μC placed midway between q1q1 and q2q2?

54.

Where must q3q3 of the preceding problem be placed so that the net force on it is zero?

55.

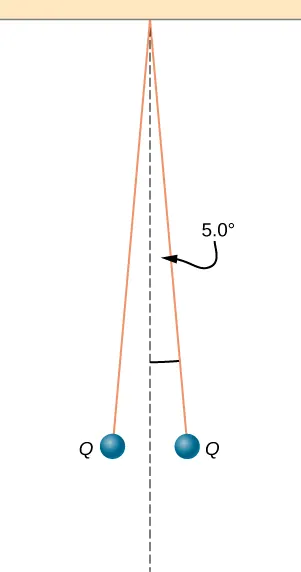

Two small balls, each of mass 5.0 g, are attached to silk threads 50 cm long, which are in turn tied to the same point on the ceiling, as shown below. When the balls are given the same charge Q, the threads hang at 5.0°5.0° to the vertical, as shown below. What is the magnitude of Q? What are the signs of the two charges?

Two small balls are attached to threads which are in turn tied to the same point on the ceiling. The threads hang at an angle of 5.0 degrees to either side of the vertical. Each ball has a charge Q.
56.

Point charges Q1=2.0μCQ1=2.0μC and Q2=4.0μCQ2=4.0μC are located at r1=(4.0i^2.0j^+5.0k^)mr1=(4.0i^2.0j^+5.0k^)m and r2=(8.0i^+5.0j^9.0k^)mr2=(8.0i^+5.0j^9.0k^)m. What is the force of Q2Q2 on Q1Q1?

57.

The net excess charge on two small spheres (small enough to be treated as point charges) is Q. Show that the force of repulsion between the spheres is greatest when each sphere has an excess charge Q/2. Assume that the distance between the spheres is so large compared with their radii that the spheres can be treated as point charges.

58.

Two small, identical conducting spheres repel each other with a force of 0.050 N when they are 0.25 m apart. After a conducting wire is connected between the spheres and then removed, they repel each other with a force of 0.060 N. What is the original charge on each sphere?

59.

A charge q=2.0μCq=2.0μC is placed at the point P shown below. What is the force on q?

Two charges are shown, placed on a horizontal line and separated by 2.0 meters. The charge on the left is a positive 1.0 micro Coulomb charge. The charge on the right is a negative 2.0 micro Coulomb charge. Point P is 1.0 to the right of the negative charge.
60.

What is the net electric force on the charge located at the lower right-hand corner of the triangle shown here?

Charges are shown at the vertices of an equilateral triangle with sides length a. The bottom of the triangle is on the x axis of an x y coordinate system, and the bottom left vertex is at the origin. The charge at the origin is positive q. The charge at the bottom right hand corner is also positive q. The charge at the top vertex is negative two q.
61.

Two fixed particles, each of charge 5.0×10−6C,5.0×10−6C, are 24 cm apart. What force do they exert on a third particle of charge −2.5×10−6C−2.5×10−6C that is 13 cm from each of them?

62.

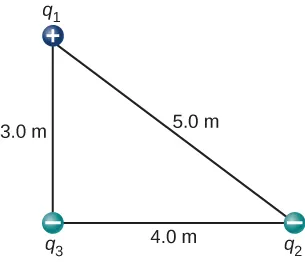

The charges q1=2.0×10−7C,q2=−4.0×10−7C,q1=2.0×10−7C,q2=−4.0×10−7C, and q3=−1.0×10−7Cq3=−1.0×10−7C are placed at the corners of the triangle shown below. What is the force on q1?q1?

Charges are shown at the vertices of a right triangle. The bottom of the triangle is length 4 meters, the vertical side on the left is length 3 meters, and the hypotenuse is length 5 meters. The charge at the top is q sub one and positive, the charge at the bottom left is q sub 3 and negative and the charge at the bottom right is q sub 2 and negative.
63.

What is the force on the charge q at the lower-right-hand corner of the square shown here?

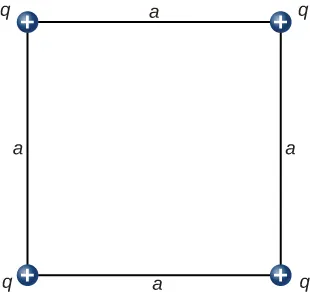

Charges are shown at the corners of a square with sides length a. All of the charges are positive and all are magnitude q.
64.

Point charges q1=10μCq1=10μC and q2=−30μCq2=−30μC are fixed at r1=(3.0i^4.0j^)mr1=(3.0i^4.0j^)m and r2=(9.0i^+6.0j^)m.r2=(9.0i^+6.0j^)m. What is the force of q2onq1q2onq1?

5.4 Electric Field

65.

A particle of charge 2.0×10−8C2.0×10−8C experiences an upward force of magnitude 4.0×10−6N4.0×10−6N when it is placed in a particular point in an electric field. (a) What is the electric field at that point? (b) If a charge q=−1.0×10−8Cq=−1.0×10−8C is placed there, what is the force on it?

66.

On a typical clear day, the atmospheric electric field points downward and has a magnitude of approximately 100 N/C. Compare the gravitational and electric forces on a small dust particle of mass 2.0×10−15g2.0×10−15g that carries a single electron charge. What is the acceleration (both magnitude and direction) of the dust particle?

67.

Consider an electron that is 10−10m10−10m from an alpha particle (q=3.2×10−19C).(q=3.2×10−19C). (a) What is the electric field due to the alpha particle at the location of the electron? (b) What is the electric field due to the electron at the location of the alpha particle? (c) What is the electric force on the alpha particle? On the electron?

68.

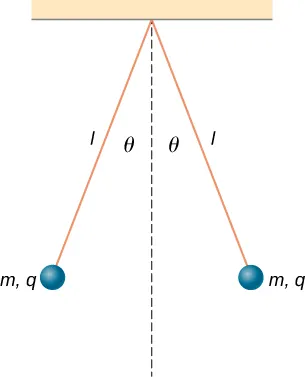

Each the balls shown below carries a charge q and has a mass m. The length of each thread is l, and at equilibrium, the balls are separated by an angle 2θ2θ. How does θθ vary with q and l? Show that θθ satisfies

sin(θ)2tan(θ)=q216πε0gl2msin(θ)2tan(θ)=q216πε0gl2m.

Two small balls are attached to threads of length l which are in turn tied to the same point on the ceiling. The threads hang at an angle of theta to either side of the vertical. Each ball has a charge q and mass m.
69.

What is the electric field at a point where the force on a −2.0×10−6−C−2.0×10−6−C charge is (4.0i^6.0j^)×10−6N?(4.0i^6.0j^)×10−6N?

70.

A proton is suspended in the air by an electric field at the surface of Earth. What is the strength of this electric field?

71.

The electric field in a particular thundercloud is 2.0×105N/C.2.0×105N/C. What is the acceleration of an electron in this field?

72.

A small piece of cork whose mass is 2.0 g is given a charge of 5.0×10−7C.5.0×10−7C. What electric field is needed to place the cork in equilibrium under the combined electric and gravitational forces?

73.

If the electric field is 100N/C100N/C at a distance of 50 cm from a point charge q, what is the value of q?

74.

What is the electric field of a proton at the first Bohr orbit for hydrogen (r=5.29×10−11m)?(r=5.29×10−11m)? What is the force on the electron in that orbit?

75.

(a) What is the electric field of an oxygen nucleus at a point that is 10−10m10−10m from the nucleus? (b) What is the force this electric field exerts on a second oxygen nucleus placed at that point?

76.

Two point charges, q1=2.0×10−7Cq1=2.0×10−7C and q2=−6.0×10−8C,q2=−6.0×10−8C, are held 25.0 cm apart. (a) What is the electric field at a point 5.0 cm from the negative charge and along the line between the two charges? (b)What is the force on an electron placed at that point?

77.

Point charges q1=50μCq1=50μC and q2=−25μCq2=−25μC are placed 1.0 m apart. (a) What is the electric field at a point midway between them? (b) What is the force on a charge q3=20μCq3=20μC situated there?

78.

Can you arrange the two point charges q1=−2.0×10−6Cq1=−2.0×10−6C and q2=4.0×10−6Cq2=4.0×10−6C along the x-axis so that E=0E=0 at the origin?

79.

Point charges q1=q2=4.0×10−6Cq1=q2=4.0×10−6C are fixed on the x-axis at x=−3.0mx=−3.0m and x=3.0m.x=3.0m. What charge q must be placed at the origin so that the electric field vanishes at x=0,y=3.0m?x=0,y=3.0m?

5.5 Calculating Electric Fields of Charge Distributions

80.

A thin conducting plate 1.0 m on the side is given a charge of −2.0×10−6C−2.0×10−6C. An electron is placed 1.0 cm above the center of the plate. What is the acceleration of the electron?

81.

Calculate the magnitude and direction of the electric field 2.0 m from a long wire that is charged uniformly at λ=4.0×10−6C/m.λ=4.0×10−6C/m.

82.

Two thin conducting plates, each 25.0 cm on a side, are situated parallel to one another and 5.0 mm apart. If 10111011 electrons are moved from one plate to the other, what is the electric field between the plates?

83.

The charge per unit length on the thin rod shown below is λλ. What is the electric field at the point P? (Hint: Solve this problem by first considering the electric field dEdE at P due to a small segment dx of the rod, which contains charge dq=λdxdq=λdx. Then find the net field by integrating dEdE over the length of the rod.)

A horizontal rod of length L is shown. The rod has total charge q. Point P is a distance a to the right of the right end of the rod.
84.

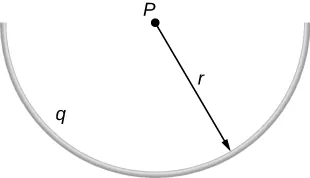

The charge per unit length on the thin semicircular wire shown below is λλ. What is the electric field at the point P?

A semicircular arc of radius r is shown. The arc has total charge q. Point P is at the center of the circle of which the arc is a part.
85.

Two thin parallel conducting plates are placed 2.0 cm apart. Each plate is 2.0 cm on a side; one plate carries a net charge of 8.0μC,8.0μC, and the other plate carries a net charge of −8.0μC.−8.0μC. What is the charge density on the inside surface of each plate? What is the electric field between the plates?

86.

A thin conducing plate 2.0 m on a side is given a total charge of −10.0μC−10.0μC. (a) What is the electric field 1.0cm1.0cm above the plate? (b) What is the force on an electron at this point? (c) Repeat these calculations for a point 2.0 cm above the plate. (d) When the electron moves from 1.0 to 2,0 cm above the plate, how much work is done on it by the electric field?

87.

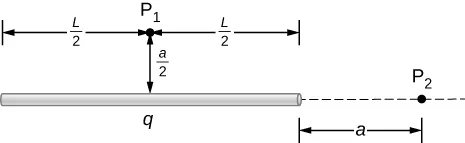

A total charge q is distributed uniformly along a thin, straight rod of length L (see below). What is the electric field at P1?AtP2?P1?AtP2?

A horizontal rod of length L is shown. The rod has total charge q. Point P 1 is a distance a over 2 above the midpoint of the rod, so that the horizontal distance from P 1 to each end of the rod is L over 2. Point P 2 is a distance a to the right of the right end of the rod.
88.

Charge is distributed along the entire x-axis with uniform density λ.λ. How much work does the electric field of this charge distribution do on an electron that moves along the y-axis from y=atoy=b?y=atoy=b?

89.

Charge is distributed along the entire x-axis with uniform density λxλx and along the entire y-axis with uniform density λy.λy. Calculate the resulting electric field at (a) r=ai^+bj^r=ai^+bj^ and (b) r=ck^.r=ck^.

90.

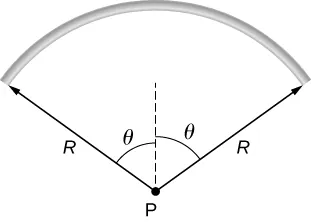

A rod bent into the arc of a circle subtends an angle 2θ2θ at the center P of the circle (see below). If the rod is charged uniformly with a total charge Q, what is the electric field at P?

An arc that is part of a circle of radius R and with center P is shown. The arc extends from an angle theta to the left of vertical to an angle theta to the right of vertical.
91.

A proton moves in the electric field E=200i^N/C.E=200i^N/C. (a) What are the force on and the acceleration of the proton? (b) Do the same calculation for an electron moving in this field.

92.

An electron and a proton, each starting from rest, are accelerated by the same uniform electric field of 200 N/C. Determine the distance and time for each particle to acquire a kinetic energy of 3.2×10−16J.3.2×10−16J.

93.

A spherical water droplet of radius 25μm25μm carries an excess 250 electrons. What vertical electric field is needed to balance the gravitational force on the droplet at the surface of the earth?

94.

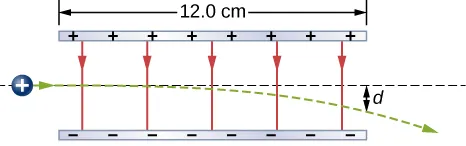

A proton enters the uniform electric field produced by the two charged plates shown below. The magnitude of the electric field is 4.0×105N/C,4.0×105N/C, and the speed of the proton when it enters is 1.5×107m/s.1.5×107m/s. What distance d has the proton been deflected downward when it leaves the plates?

Two oppositely charged horizontal plates are parallel to each other. The upper plate is positive and the lower is negative. The plates are 12.0 centimeters long. The path of a positive proton is shown passing from left to right between the plates. It enters moving horizontally and deflects down toward the negative plate, emerging a distance d below the straight line trajectory.
95.

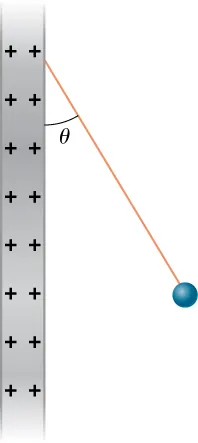

Shown below is a small sphere of mass 0.25 g that carries a charge of 9.0×10−10C.9.0×10−10C. The sphere is attached to one end of a very thin silk string 5.0 cm long. The other end of the string is attached to a large vertical conducting plate that has a charge density of 30×10−6C/m2.30×10−6C/m2. What is the angle that the string makes with the vertical?

A small sphere is attached to the lower end of a string. The other end of the string is attached to a large vertical conducting plate that has a uniform positive charge density. The string makes an angle of theta with the vertical.
96.

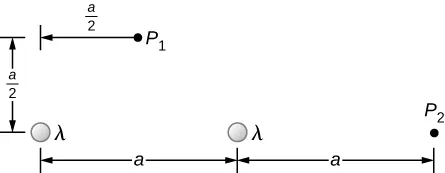

Two infinite rods, each carrying a uniform charge density λ,λ, are parallel to one another and perpendicular to the plane of the page. (See below.) What is the electrical field at P1?AtP2?P1?AtP2?

An end view of the arrangement in the problem is shown. Two rods are parallel to one another and perpendicular to the plane of the page. They are separated by a horizontal distance of a. Pint P 1 is a distance of a over 2 above the midpoint between the rods, and so also a distance of a over 2 horizontally from each rod. Point P 2 is a distance of a to the right of the rightmost rod.
97.

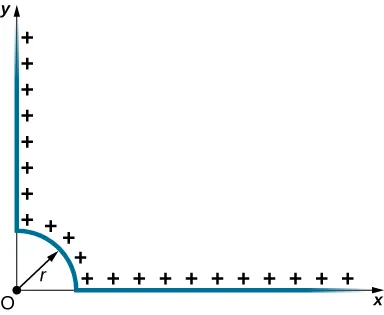

Positive charge is distributed with a uniform density λλ along the positive x-axis from rto,rto, along the positive y-axis from rto,rto, and along a 90°90° arc of a circle of radius r, as shown below. What is the electric field at O?

A uniform distribution of positive charges is shown on an x y coordinate system. The charges are distributed along a 90 degree arc of a circle of radius r in the first quadrant, centered on the origin. The distribution continues along the positive x and y axes from r to infinity.
98.

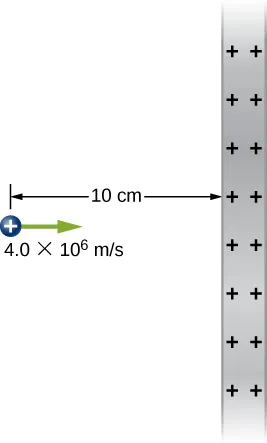

From a distance of 10 cm, a proton is projected with a speed of v=4.0×106m/sv=4.0×106m/s directly at a large, positively charged plate whose charge density is σ=2.0×10−5C/m2.σ=2.0×10−5C/m2. (See below.) (a) Does the proton reach the plate? (b) If not, how far from the plate does it turn around?

A positive charge is shown at a distance of 10 centimeters and moving to the right with a speed of 4.0 times 10 to the 6 meters per second, directly toward a large, positively and uniformly charged vertical plate.
99.

A particle of mass m and charge qq moves along a straight line away from a fixed particle of charge Q. When the distance between the two particles is r0,qr0,q is moving with a speed v0.v0. (a) Use the work-energy theorem to calculate the maximum separation of the charges. (b) What do you have to assume about v0v0 to make this calculation? (c) What is the minimum value of v0v0 such that qq escapes from Q?

5.6 Electric Field Lines

100.

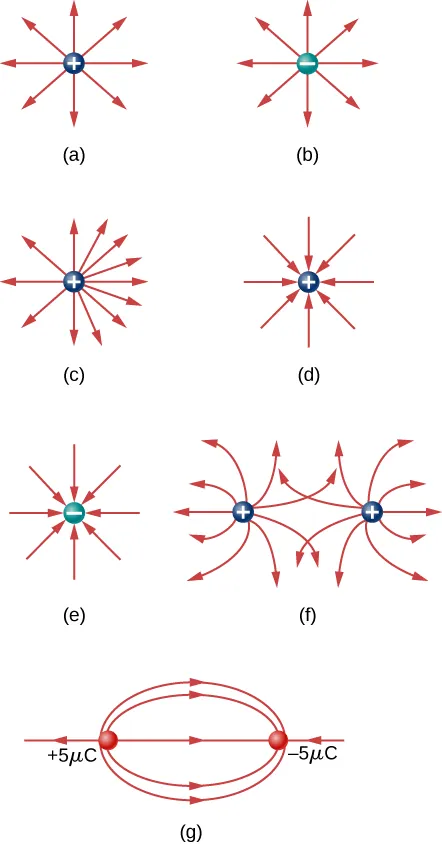

Which of the following electric field lines are incorrect for point charges? Explain why.

Figure a shows field lines pointing away from a positive charge. The lines are uniformly distributed around the charge. Figure b shows field lines pointing away from a negative charge. The lines are uniformly distributed around the charge. Figure c shows field lines pointing away from a positive charge. The lines are denser on the right side of the charge than on the left. Figure d shows field lines pointing toward a positive charge. The lines are uniformly distributed around the charge. Figure e shows field lines pointing toward a negative charge. The lines are uniformly distributed around the charge. Figure f shows two positive charges. Field lines start at each positive charge and point away from each. The lines are uniformly distributed at the charges and bend away from the midline. Some lines intersect each other. Figure g shows a positive 5 micro Coulomb charge and a negative micro Coulomb charge. Several field lines are shown. Long the line connecting the charges is a field line that points away from the positive charge and toward the negative one. Another field line forms an ellipse that starts at the positive charge and ends at the negative charge. Another field line also forms an ellipse that points away from the positive and ends at the negative charge but appears to envelop the charges rather than start and end at the charges.
101.

In this exercise, you will practice drawing electric field lines. Make sure you represent both the magnitude and direction of the electric field adequately. Note that the number of lines into or out of charges is proportional to the charges.

(a) Draw the electric field lines map for two charges +20μC+20μC and −20μC−20μC situated 5 cm from each other.

(b) Draw the electric field lines map for two charges +20μC+20μC and +20μC+20μC situated 5 cm from each other.

(c) Draw the electric field lines map for two charges +20μC+20μC and −30μC−30μC situated 5 cm from each other.

102.

Draw the electric field for a system of three particles of charges +1μC,+1μC, +2μC,+2μC, and −3μC−3μC fixed at the corners of an equilateral triangle of side 2 cm.

103.

Two charges of equal magnitude but opposite sign make up an electric dipole. A quadrupole consists of two electric dipoles that are placed anti-parallel at two edges of a square as shown.

Four charges are shown at the corners of a square. At the top left is positive 10 nano Coulombs. At the top right is negative 10 nano Coulombs. At the bottom left is negative 10 nano Coulombs. At the bottom right is positive 10 nano Coulombs.

Draw the electric field of the charge distribution.

104.

Suppose the electric field of an isolated point charge decreased with distance as 1/r2+δ1/r2+δ rather than as 1/r21/r2. Show that it is then impossible to draw continous field lines so that their number per unit area is proportional to E.

5.7 Electric Dipoles

105.

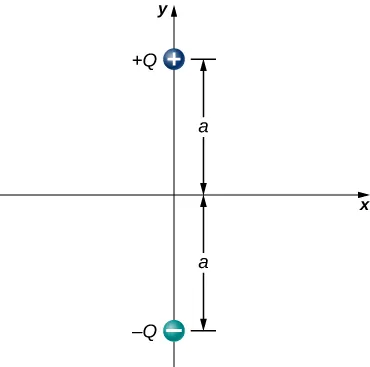

Consider the equal and opposite charges shown below. (a) Show that at all points on the x-axis for which |x|a,EQa/2πε0x3.|x|a,EQa/2πε0x3. (b) Show that at all points on the y-axis for which |y|a,EQa/πε0y3.|y|a,EQa/πε0y3.

Two charges are shown on the y axis of an x y coordinate system. Charge +Q is a distance a above the origin, and charge −Q is a distance a below the origin.
106.

(a) What is the dipole moment of the configuration shown above? If Q=4.0μCQ=4.0μC, (b) what is the torque on this dipole with an electric field of 4.0×105N/Ci^4.0×105N/Ci^? (c) What is the torque on this dipole with an electric field of −4.0×105N/Ci^−4.0×105N/Ci^? (d) What is the torque on this dipole with an electric field of ±4.0×105N/Cj^±4.0×105N/Cj^?

107.

A water molecule consists of two hydrogen atoms bonded with one oxygen atom. The bond angle between the two hydrogen atoms is 104°104° (see below). Calculate the net dipole moment of a hypothetical water molecule where the charge at the oxygen molecule is −2e and at each hydrogen atom is +e. The net dipole moment of the molecule is the vector sum of the individual dipole moment between the two O-Hs. The separation O-H is 0.9578 angstroms.

A schematic representation of the outer electron cloud of a neutral water molecule is shown. Three atoms are at the vertices of a triangle. The hydrogen atom has positive q charge and the oxygen atom has minus two q charge, and the angle between the line joining each hydrogen atom with the oxygen atom is one hundred and four degrees. The cloud density is shown as being greater at the oxygen atom.
Citation/Attribution

Want to cite, share, or modify this book? This book is Creative Commons Attribution License 4.0 and you must attribute OpenStax.

Attribution information
  • If you are redistributing all or part of this book in a print format, then you must include on every physical page the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-2/pages/1-introduction
  • If you are redistributing all or part of this book in a digital format, then you must include on every digital page view the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-2/pages/1-introduction
Citation information

© Oct 6, 2016 OpenStax. Textbook content produced by OpenStax is licensed under a Creative Commons Attribution License 4.0 license. The OpenStax name, OpenStax logo, OpenStax book covers, OpenStax CNX name, and OpenStax CNX logo are not subject to the Creative Commons license and may not be reproduced without the prior and express written consent of Rice University.
