Learning Objectives

By the end of this section, you will be able to:
  • Describe the electric force, both qualitatively and quantitatively
  • Calculate the force that charges exert on each other
  • Determine the direction of the electric force for different source charges
  • Correctly describe and apply the superposition principle for multiple source charges

Experiments with electric charges have shown that if two objects each have electric charge, then they exert an electric force on each other. The magnitude of the force is linearly proportional to the net charge on each object and inversely proportional to the square of the distance between them. (Interestingly, the force does not depend on the mass of the objects.) The direction of the force vector is along the imaginary line joining the two objects and is dictated by the signs of the charges involved.

Let

  • q1,q2=q1,q2= the net electric charges of the two objects;
  • r12=r12= the vector displacement from q1q1 to q2q2.

The electric force FF on one of the charges is proportional to the magnitude of its own charge and the magnitude of the other charge, and is inversely proportional to the square of the distance between them:

Fq1q2r122.Fq1q2r122.

This proportionality becomes an equality with the introduction of a proportionality constant. For reasons that will become clear in a later chapter, the proportionality constant that we use is actually a collection of constants. (We discuss this constant shortly.)

Coulomb’s Law

The magnitude of the electric force (or Coulomb force) between two electrically charged particles is equal to

| F 12 | = 1 4 π ε 0 | q 1 q 2 | r 12 2 | F 12 | = 1 4 π ε 0 | q 1 q 2 | r 12 2
(5.1)

The unit vector rr has a magnitude of 1 and points along the axis as the charges. If the charges have the same sign, the force is in the same direction as rr showing a repelling force. If the charges have different signs, the force is in the opposite direction of rr showing an attracting force. (Figure 5.14).

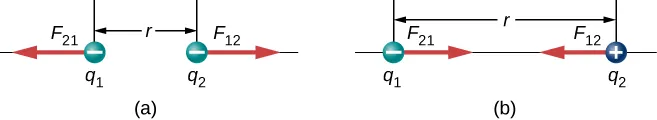

In part a, two charges q one and q two are shown separated by a distance r. Force vector arrow F one two points toward left and acts on q one. Force vector arrow F two one points toward right and acts on q two. Both forces act in opposite directions and are represented by arrows of same length. In part b, two charges q one and q two are shown at a distance r. Force vector arrow F one two points toward right and acts on q one. Force vector arrow F two one points toward left and acts on q two. Both forces act toward each other and are represented by arrows of same length.
Figure 5.14 The electrostatic force FF between point charges q1q1 and q2q2 separated by a distance r is given by Coulomb’s law. Note that Newton’s third law (every force exerted creates an equal and opposite force) applies as usual—the force on q1q1 is equal in magnitude and opposite in direction to the force it exerts on q2q2. (a) Like charges; (b) unlike charges.

It is important to note that the electric force is not constant; it is a function of the separation distance between the two charges. If either the test charge or the source charge (or both) move, then rr changes, and therefore so does the force. An immediate consequence of this is that direct application of Newton’s laws with this force can be mathematically difficult, depending on the specific problem at hand. It can (usually) be done, but we almost always look for easier methods of calculating whatever physical quantity we are interested in. (Conservation of energy is the most common choice.)

Finally, the new constant ε0ε0 in Coulomb’s law is called the permittivity of free space, or (better) the permittivity of vacuum. It has a very important physical meaning that we will discuss in a later chapter; for now, it is simply an empirical proportionality constant. Its numerical value (to three significant figures) turns out to be

ε0=8.85×10−12C2N·m2.ε0=8.85×10−12C2N·m2.

These units are required to give the force in Coulomb’s law the correct units of newtons. Note that in Coulomb’s law, the permittivity of vacuum is only part of the proportionality constant. For convenience, we often define a Coulomb’s constant:

ke=14πε0=8.99×109N·m2C2.ke=14πε0=8.99×109N·m2C2.

Example 5.1

The Force on the Electron in Hydrogen A hydrogen atom consists of a single proton and a single electron. The proton has a charge of +e+e and the electron has ee. In the “ground state” of the atom, the electron orbits the proton at most probable distance of 5.29×10−11m5.29×10−11m (Figure 5.15). Calculate the electric force on the electron due to the proton.

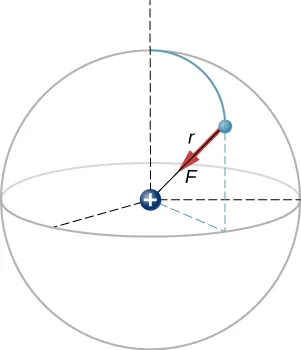

A positive charge is shown at the center of a sphere of radius r. An electron is depicted as a particle on the sphere. The force on the electron is along the radius, toward the nucleus.
Figure 5.15 A schematic depiction of a hydrogen atom, showing the force on the electron. This depiction is only to enable us to calculate the force; the hydrogen atom does not really look like this. Recall Figure 5.7.

Strategy For the purposes of this example, we are treating the electron and proton as two point particles, each with an electric charge, and we are told the distance between them; we are asked to calculate the force on the electron. We thus use Coulomb’s law.

Solution Our two charges and the distance between them are,

q1=+e=+1.602×10−19Cq2=e=−1.602×10−19Cr=5.29×10−11m.q1=+e=+1.602×10−19Cq2=e=−1.602×10−19Cr=5.29×10−11m.

The magnitude of the force on the electron is

F=14πϵ0|e|2r2=14π(8.85×10−12C2N·m2)(1.602×10−19C)2(5.29×10−11m)2=8.25×10−8N.F=14πϵ0|e|2r2=14π(8.85×10−12C2N·m2)(1.602×10−19C)2(5.29×10−11m)2=8.25×10−8N.

As for the direction, since the charges on the two particles are opposite, the force is attractive; the force on the electron points radially directly toward the proton, everywhere in the electron’s orbit. The force is thus expressed as

F=(8.25×10−8N)r^.F=(8.25×10−8N)r^.

Significance This is a three-dimensional system, so the electron (and therefore the force on it) can be anywhere in an imaginary spherical shell around the proton. In this “classical” model of the hydrogen atom, the electrostatic force on the electron points in the inward centripetal direction, thus maintaining the electron’s orbit. But note that the quantum mechanical model of hydrogen (discussed in Quantum Mechanics) is utterly different.

Check Your Understanding 5.1

What would be different if the electron also had a positive charge?

Multiple Source Charges

The analysis that we have done for two particles can be extended to an arbitrary number of particles; we simply repeat the analysis, two charges at a time. Specifically, we ask the question: Given N charges (which we refer to as source charge), what is the net electric force that they exert on some other point charge (which we call the test charge)? Note that we use these terms because we can think of the test charge being used to test the strength of the force provided by the source charges.

Like all forces that we have seen up to now, the net electric force on our test charge is simply the vector sum of each individual electric force exerted on it by each of the individual test charges. Thus, we can calculate the net force on the test charge Q by calculating the force on it from each source charge, taken one at a time, and then adding all those forces together (as vectors). This ability to simply add up individual forces in this way is referred to as the principle of superposition, and is one of the more important features of the electric force. In mathematical form, this becomes

F(r)=14πε0Qi=1Nqiri2r^i.F(r)=14πε0Qi=1Nqiri2r^i.
(5.2)

In this expression, Q represents the charge of the particle that is experiencing the electric force FF, and is located at rr from the origin; the qi’sqi’s are the N source charges, and the vectors ri=rir^iri=rir^i are the displacements from the position of the ith charge to the position of Q. Each of the N unit vectors points directly from its associated source charge toward the test charge. All of this is depicted in Figure 5.16. Please note that there is no physical difference between Q and qiqi; the difference in labels is merely to allow clear discussion, with Q being the charge we are determining the force on.

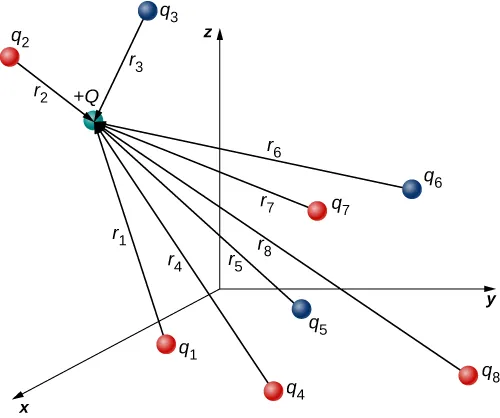

Eight source charges are shown as small spheres distributed within an x y z coordinate system. The sources are labeled q sub 1, q sub 2, and so on. Sources 1, 2, 4, 7 and 8 are shaded red and sources 3, 5, and 6 are shaded blue. A test charge is also shown, shaded in green and labeled as plus Q. The r vectors from each source to the test charge Q are shown as arrows with tails at the sources and heads at the test charge. The vector from q sub 1 to the test charge is labeled as r sub 1. The vector from q sub 2 to the test charge is labeled as r sub 2, and so on for all eight vectors.
Figure 5.16 The eight source charges each apply a force on the single test charge Q. Each force can be calculated independently of the other seven forces. This is the essence of the superposition principle.

(Note that the force vector FiFi does not necessarily point in the same direction as the unit vector r^ir^i; it may point in the opposite direction, r^ir^i. The signs of the source charge and test charge determine the direction of the force on the test charge.)

There is a complication, however. Just as the source charges each exert a force on the test charge, so too (by Newton’s third law) does the test charge exert an equal and opposite force on each of the source charges. As a consequence, each source charge would change position. However, by Equation 5.2, the force on the test charge is a function of position; thus, as the positions of the source charges change, the net force on the test charge necessarily changes, which changes the force, which again changes the positions. Thus, the entire mathematical analysis quickly becomes intractable. Later, we will learn techniques for handling this situation, but for now, we make the simplifying assumption that the source charges are fixed in place somehow, so that their positions are constant in time. (The test charge is allowed to move.) With this restriction in place, the analysis of charges is known as electrostatics, where “statics” refers to the constant (that is, static) positions of the source charges and the force is referred to as an electrostatic force.

Example 5.2

The Net Force from Two Source Charges Three different, small charged objects are placed as shown in Figure 5.17. The charges q1q1 and q3q3 are fixed in place; q2q2 is free to move. Given q1=2eq1=2e, q2=−3eq2=−3e, and q3=−5eq3=−5e, and that d=2.0×10−7md=2.0×10−7m, what is the net force on the middle charge q2q2?

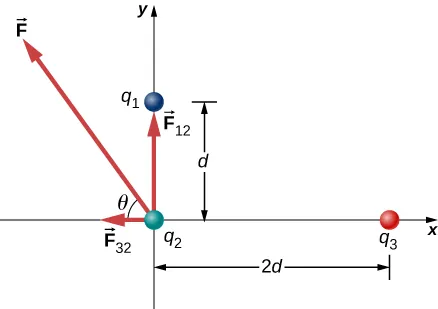

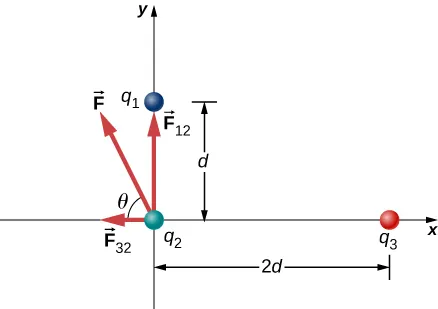

Three charges are shown in an x y coordinate system. Charge q sub 1 is at x=0, y=d. Charge q sub 2 is at x=2 d, y=0. Charge q sub 3 is at the origin. Force F 1 2 is exerted on charge q sub 2 and points up. Force F 2 3 is exerted on charge q sub 2 and points to the left. Force F is exerted on charge q sub 2 and points at an angle theta above the minus x direction.
Figure 5.17 Source charges q1q1 and q3q3 each apply a force on q2q2.

Strategy We use Coulomb’s law again. The way the question is phrased indicates that q2q2 is our test charge, so that q1q1 and q3q3 are source charges. The principle of superposition says that the force on q2q2 from each of the other charges is unaffected by the presence of the other charge. Therefore, we write down the force on q2q2 from each and add them together as vectors.

Solution We have two source charges (q1(q1 and q3),q3), a test charge (q2),(q2), distances (r21(r21 and r23),r23), and we are asked to find a force. This calls for Coulomb’s law and superposition of forces. There are two forces:

F=F21+F23=14πε0[q2q1r212j^+(q2q3r232i^)].F=F21+F23=14πε0[q2q1r212j^+(q2q3r232i^)].

We can’t add these forces directly because they don’t point in the same direction: F12F12 points only in the −x-direction, while F13F13 points only in the +y-direction. The net force is obtained from applying the Pythagorean theorem to its x- and y-components:

F=Fx2+Fy2F=Fx2+Fy2

where

Fx=F23=14πε0q2q3r232=(8.99×109N·m2C2)(4.806×10−19C)(8.01×10−19C)(4.00×10−7m)2=2.16×10−14NFx=F23=14πε0q2q3r232=(8.99×109N·m2C2)(4.806×10−19C)(8.01×10−19C)(4.00×10−7m)2=2.16×10−14N

and

Fy=F21=14πε0q2q1r212=(8.99×109N·m2C2)(4.806×10−19C)(3.204×10−19C)(2.00×10−7m)2=3.46×10−14N.Fy=F21=14πε0q2q1r212=(8.99×109N·m2C2)(4.806×10−19C)(3.204×10−19C)(2.00×10−7m)2=3.46×10−14N.

We find that

F=Fx2+Fy2=4.08×10−14NF=Fx2+Fy2=4.08×10−14N

at an angle of

ϕ=tan−1(FyFx)=tan−1(3.46×10−14N−2.16×10−14N)=−58°,ϕ=tan−1(FyFx)=tan−1(3.46×10−14N−2.16×10−14N)=−58°,

that is, 58°58° above the −x-axis, as shown in the diagram.

Significance Notice that when we substituted the numerical values of the charges, we did not include the negative sign of either q2q2 or q3q3. Recall that negative signs on vector quantities indicate a reversal of direction of the vector in question. But for electric forces, the direction of the force is determined by the types (signs) of both interacting charges; we determine the force directions by considering whether the signs of the two charges are the same or are opposite. If you also include negative signs from negative charges when you substitute numbers, you run the risk of mathematically reversing the direction of the force you are calculating. Thus, the safest thing to do is to calculate just the magnitude of the force, using the absolute values of the charges, and determine the directions physically.

It’s also worth noting that the only new concept in this example is how to calculate the electric forces; everything else (getting the net force from its components, breaking the forces into their components, finding the direction of the net force) is the same as force problems you have done earlier.

Check Your Understanding 5.2

What would be different if q1q1 were negative?

Citation/Attribution

Want to cite, share, or modify this book? This book is Creative Commons Attribution License 4.0 and you must attribute OpenStax.

Attribution information
  • If you are redistributing all or part of this book in a print format, then you must include on every physical page the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-2/pages/1-introduction
  • If you are redistributing all or part of this book in a digital format, then you must include on every digital page view the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-2/pages/1-introduction
Citation information

© Oct 6, 2016 OpenStax. Textbook content produced by OpenStax is licensed under a Creative Commons Attribution License 4.0 license. The OpenStax name, OpenStax logo, OpenStax book covers, OpenStax CNX name, and OpenStax CNX logo are not subject to the Creative Commons license and may not be reproduced without the prior and express written consent of Rice University.
