### Learning Objectives

- 4.4.1 Describe the concept of environmental carrying capacity in the logistic model of population growth.
- 4.4.2 Draw a direction field for a logistic equation and interpret the solution curves.
- 4.4.3 Solve a logistic equation and interpret the results.

Differential equations can be used to represent the size of a population as it varies over time. We saw this in an earlier chapter in the section on exponential growth and decay, which is the simplest model. A more realistic model includes other factors that affect the growth of the population. In this section, we study the logistic differential equation and see how it applies to the study of population dynamics in the context of biology.

### Population Growth and Carrying Capacity

To model population growth using a differential equation, we first need to introduce some variables and relevant terms. The variable $t.$ will represent time. The units of time can be hours, days, weeks, months, or even years. Any given problem must specify the units used in that particular problem. The variable $P$ will represent population. Since the population varies over time, it is understood to be a function of time. Therefore we use the notation $P\left(t\right)$ for the population as a function of time. If $P\left(t\right)$ is a differentiable function, then the first derivative $\frac{dP}{dt}$ represents the instantaneous rate of change of the population as a function of time.

In Exponential Growth and Decay, we studied the exponential growth and decay of populations and radioactive substances. An example of an exponential growth function is $P\left(t\right)={P}_{0}{e}^{rt}.$ In this function, $P\left(t\right)$ represents the population at time $t,{P}_{0}$ represents the initial population (population at time $t=0),$ and the constant $r>0$ is called the growth rate. Figure 4.18 shows a graph of $P(t)=100{e}^{0.03t}.$ Here ${P}_{0}=100$ and $r=0.03.$

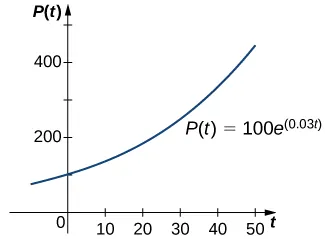

We can verify that the function $P\left(t\right)={P}_{0}{e}^{rt}$ satisfies the initial-value problem

This differential equation has an interesting interpretation. The left-hand side represents the rate at which the population increases (or decreases). The right-hand side is equal to a positive constant multiplied by the current population. Therefore the differential equation states that the rate at which the population increases is proportional to the population at that point in time. Furthermore, it states that the constant of proportionality never changes.

One problem with this function is its prediction that as time goes on, the population grows without bound. This is unrealistic in a real-world setting. Various factors limit the rate of growth of a particular population, including birth rate, death rate, food supply, predators, and so on. The growth constant $r$ usually takes into consideration the birth and death rates but none of the other factors, and it can be interpreted as a net (birth minus death) percent growth rate per unit time. A natural question to ask is whether the population growth rate stays constant, or whether it changes over time. Biologists have found that in many biological systems, the population grows until a certain steady-state population is reached. This possibility is not taken into account with exponential growth. However, the concept of carrying capacity allows for the possibility that in a given area, only a certain number of a given organism or animal can thrive without running into resource issues.

### Definition

The carrying capacity of an organism in a given environment is defined to be the maximum population of that organism that the environment can sustain indefinitely.

We use the variable $K$ to denote the carrying capacity. The growth rate is represented by the variable $r.$ Using these variables, we can define the logistic differential equation.

### Definition

Let $K$ represent the carrying capacity for a particular organism in a given environment, and let $r$ be a real number that represents the growth rate. The function $P\left(t\right)$ represents the population of this organism as a function of time $t,$ and the constant ${P}_{0}$ represents the initial population (population of the organism at time $t=0).$ Then the logistic differential equation is

### Media

See this website for more information on the logistic equation.

The logistic equation was first published by Pierre Verhulst in $1845.$ This differential equation can be coupled with the initial condition $P\left(0\right)={P}_{0}$ to form an initial-value problem for $P\left(t\right).$

Suppose that the initial population is small relative to the carrying capacity. Then $\frac{P}{K}$ is small, possibly close to zero. Thus, the quantity in parentheses on the right-hand side of Equation 4.8 is close to $1,$ and the right-hand side of this equation is close to $rP.$ If $r>0,$ then the population grows rapidly, resembling exponential growth.

However, as the population grows, the ratio $\frac{P}{K}$ also grows, because $K$ is constant. If the population remains below the carrying capacity, then $\frac{P}{K}$ is less than $1,$ so $1-\frac{P}{K}>0.$ Therefore the right-hand side of Equation 4.8 is still positive, but the quantity in parentheses gets smaller, and the growth rate decreases as a result. If $P=K$ then the right-hand side is equal to zero, and the population does not change.

Now suppose that the population starts at a value higher than the carrying capacity. Then $\frac{P}{K}>1,$ and $1-\frac{P}{K}<0.$ Then the right-hand side of Equation 4.8 is negative, and the population decreases. As long as $P>K,$ the population decreases. It never actually reaches $K$ because $\frac{dP}{dt}$ will get smaller and smaller, but the population approaches the carrying capacity as $t$ approaches infinity. This analysis can be represented visually by way of a phase line. A phase line describes the general behavior of a solution to an autonomous differential equation, depending on the initial condition. For the case of a carrying capacity in the logistic equation, the phase line is as shown in Figure 4.19.

This phase line shows that when $P$ is less than zero or greater than $K,$ the population decreases over time. When $P$ is between $0$ and $K,$ the population increases over time.

### Example 4.14

#### Chapter Opener: Examining the Carrying Capacity of a Deer Population

Let’s consider the population of white-tailed deer (*Odocoileus virginianus*) in the state of Kentucky. The Kentucky Department of Fish and Wildlife Resources (KDFWR) sets guidelines for hunting and fishing in the state. Before the hunting season of $2004,$ it estimated a population of $\mathrm{900,000}$ deer. Johnson notes: “A deer population that has plenty to eat and is not hunted by humans or other predators will double every three years.” (George Johnson, “The Problem of Exploding Deer Populations Has No Attractive Solutions,” January $12,2001,$ accessed April 9, 2015, http://www.txtwriter.com/onscience/Articles/deerpops.html.) This observation corresponds to a rate of increase $r=\frac{\text{ln}\left(2\right)}{3}=0.2311,$ so the approximate growth rate is $23.11\text{\%}$ per year*.* (This assumes that the population grows exponentially, which is reasonable––at least in the short term––with plentiful food supply and no predators.) The KDFWR also reports deer population densities for $32$ counties in Kentucky, the average of which is approximately $27$ deer per square mile. Suppose this is the deer density for the whole state $(\mathrm{39,732}$ square miles). The carrying capacity $K$ is $\mathrm{39,732}$ square miles times $27$ deer per square mile, or $\mathrm{1,072,764}$ deer*.*

- For this application, we have ${P}_{0}=\mathrm{900,000},K=\mathrm{1,072,764},$ and $r=0.2311.$ Substitute these values into Equation 4.8 and form the initial-value problem.
- Solve the initial-value problem from part a.
- According to this model, what will be the population in $3$ years? Recall that the doubling time predicted by Johnson for the deer population was $3$ years. How do these values compare?

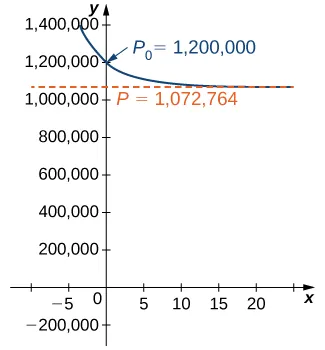

- Suppose the population managed to reach $\mathrm{1,200,000}$ deer. What does the logistic equation predict will happen to the population in this scenario?

### Solving the Logistic Differential Equation

The logistic differential equation is an autonomous differential equation, so we can use separation of variables to find the general solution, as we just did in Example 4.14.

Step 1: Setting the right-hand side equal to zero leads to $P=0$ and $P=K$ as constant solutions. The first solution indicates that when there are no organisms present, the population will never grow. The second solution indicates that when the population starts at the carrying capacity, it will never change.

Step 2: Rewrite the differential equation in the form

Then multiply both sides by $dt$ and divide both sides by $P\left(K-P\right).$ This leads to

Multiply both sides of the equation by $K$ and integrate:

The left-hand side of this equation can be integrated using partial fraction decomposition. We leave it to you to verify that

Then the equation becomes

Now exponentiate both sides of the equation to eliminate the natural logarithm:

We define ${C}_{1}={e}^{c}$ and, noting that $K,P>0$ and $P<K$, so that $\frac{P}{K\u2013P}>0$ we can drop the absolute value sign, so that the equation becomes

To solve this equation for $P\left(t\right),$ first multiply both sides by $K-P$ and collect the terms containing $P$ on the left-hand side of the equation:

Next, factor $P$ from the left-hand side and divide both sides by the other factor:

The last step is to determine the value of ${C}_{1}.$ The easiest way to do this is to substitute $t=0$ and ${P}_{0}$ in place of $P$ in Equation 4.9 and solve for ${C}_{1}\text{:}$

Finally, substitute the expression for ${C}_{1}$ into Equation 4.10:

Now multiply the numerator and denominator of the right-hand side by $\left(K-{P}_{0}\right)$ and simplify:

We state this result as a theorem.

#### Solution of the Logistic Differential Equation

Consider the logistic differential equation subject to an initial population of ${P}_{0}$ with carrying capacity $K$ and growth rate $r.$ The solution to the corresponding initial-value problem is given by

Now that we have the solution to the initial-value problem, we can choose values for ${P}_{0},r,$ and $K$ and study the solution curve. For example, in Example 4.14 we used the values $r=0.2311,K=\mathrm{1,072,764},$ and an initial population of $\mathrm{900,000}$ deer. This leads to the solution

Dividing top and bottom by $\mathrm{900,000}$ gives

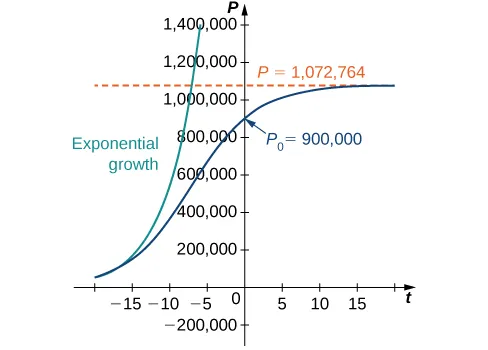

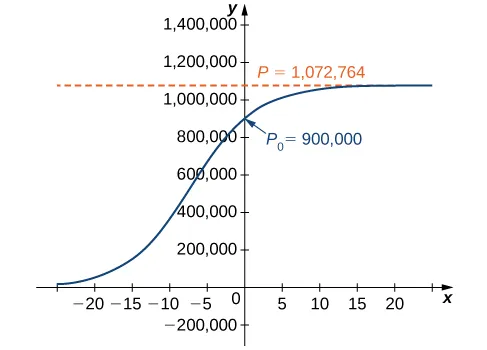

This is the same as the original solution. The graph of this solution is shown again in blue in Figure 4.23, superimposed over the graph of the exponential growth model with initial population $\mathrm{900,000}$ and growth rate $0.2311$ (appearing in green). The red dashed line represents the carrying capacity, and is a horizontal asymptote for the solution to the logistic equation.

Working under the assumption that the population grows according to the logistic differential equation, this graph predicts that approximately $20$ years earlier $(1984),$ the growth of the population was very close to exponential. The net growth rate at that time would have been around $23.1\text{\%}$ per year. As time goes on, the two graphs separate. This happens because the population increases, and the logistic differential equation states that the growth rate decreases as the population increases. At the time the population was measured $(2004),$ it was close to carrying capacity, and the population was starting to level off.

The solution to the logistic differential equation has a point of inflection. To find this point, set the second derivative equal to zero:

Setting the numerator equal to zero,

As long as ${P}_{0}\ne K,$ the entire quantity before and including ${e}^{rt}$ is nonzero, so we can divide it out:

Solving for $t,$

Notice that if ${P}_{0}>K,$ then this quantity is undefined, and the graph does not have a point of inflection. In the logistic graph, the point of inflection can be seen as the point where the graph changes from concave up to concave down. This is where the “leveling off” starts to occur, because the net growth rate becomes slower as the population starts to approach the carrying capacity.

A population of rabbits in a meadow is observed to be $200$ rabbits at time $t=0.$ After a month, the rabbit population is observed to have increased by $4\text{\%}.$ Using an initial population of $200$ and a growth rate of $0.04,$ with a carrying capacity of $750$ rabbits,

- Write the logistic differential equation and initial condition for this model.
- Draw a slope field for this logistic differential equation, and sketch the solution corresponding to an initial population of $200$ rabbits.
- Solve the initial-value problem for $P\left(t\right).$
- Use the solution to predict the population after $1$ year.

### Student Project

#### Student Project: Logistic Equation with a Threshold Population

An improvement to the logistic model includes a threshold population. The threshold population is defined to be the minimum population that is necessary for the species to survive. We use the variable $T$ to represent the threshold population. A differential equation that incorporates both the threshold population $T$ and carrying capacity $K$ is

where $r$ represents the growth rate, as before.

- The threshold population is useful to biologists and can be utilized to determine whether a given species should be placed on the endangered list. A group of Australian researchers say they have determined the threshold population for any species to survive: $5000$ adults. (Catherine Clabby, “A Magic Number,”
*American Scientist*98(1): 24, doi:10.1511/2010.82.24. accessed April 9, 2015, http://www.americanscientist.org/issues/pub/a-magic-number). Therefore we use $T=5000$ as the threshold population in this project. Suppose that the environmental carrying capacity in Montana for elk is $\mathrm{25,000}.$ Set up Equation 4.12 using the carrying capacity of $\mathrm{25,000}$ and threshold population of $5000.$ Assume an annual net growth rate of $18\text{\%}.$ - Draw the direction field for the differential equation from step $1,$ along with several solutions for different initial populations. What are the constant solutions of the differential equation? What do these solutions correspond to in the original population model (i.e., in a biological context)?
- What is the limiting population for each initial population you chose in step $2?$ (Hint: use the slope field to see what happens for various initial populations, i.e., look for the horizontal asymptotes of your solutions.)
- This equation can be solved using the method of separation of variables. However, it is very difficult to get the solution as an explicit function of $t.$ Using an initial population of $\mathrm{18,000}$ elk, solve the initial-value problem and express the solution as an implicit function of $t,$ or solve the general initial-value problem, finding a solution in terms of $r,K,T,\text{and}\phantom{\rule{0.2em}{0ex}}{P}_{0}.$

### Section 4.4 Exercises

For the following problems, consider the logistic equation in the form $P\prime =CP-{P}^{2}.$ Draw the directional field and find the stability of the equilibria.

$C=3$

$C=\mathrm{-3}$

Solve the logistic equation for $C=\mathrm{-10}$ and an initial condition of $P(0)=2.$

A population of deer inside a park has a carrying capacity of $200$ and a growth rate of $2\text{\%}.$ If the initial population is $50$ deer, what is the population of deer at any given time?

A population of frogs in a pond has a growth rate of $5\text{\%}.$ If the initial population is $1000$ frogs and the carrying capacity is $6000,$ what is the population of frogs at any given time?

**[T]** Bacteria grow at a rate of $20\text{\%}$ per hour in a petri dish. If there is initially one bacterium and a carrying capacity of $1$ million cells, how long does it take to reach $\mathrm{500,000}$ cells?

**[T]** Rabbits in a park have an initial population of $10$ and grow at a rate of $4\text{\%}$ per year. If the carrying capacity is $500,$ at what time does the population reach $100$ rabbits?

**[T]** Two monkeys are placed on an island. After $5$ years, there are $8$ monkeys, and the estimated carrying capacity is $25$ monkeys. When does the population of monkeys reach $16$ monkeys?

**[T]** A butterfly sanctuary is built that can hold $2000$ butterflies, and $400$ butterflies are initially moved in. If after $2$ months there are now $800$ butterflies, when does the population get to $1500$ butterflies?

The following problems consider the logistic equation with an added term for depletion, either through death or emigration.

**[T]** The population of trout in a pond is given by $P\prime =0.4P\left(1-\frac{P}{10000}\right)-400,$ where $400$ trout are caught per year. Use your calculator or computer software to draw a directional field and draw a few sample solutions. What do you expect for the behavior?

In the preceding problem, what are the stabilities of the equilibria $0<{P}_{1}<{P}_{2}?$

**[T]** For the preceding problem, use software to generate a directional field for the value $f=400.$ What are the stabilities of the equilibria?

**[T]** For the preceding problems, use software to generate a directional field for the value $f=600.$ What are the stabilities of the equilibria?

**[T]** For the preceding problems, consider the case where a certain number of fish are added to the pond, or $f=\mathrm{-200}.$ What are the nonnegative equilibria and their stabilities?

It is more likely that the amount of fishing is governed by the current number of fish present, so instead of a constant number of fish being caught, the rate is proportional to the current number of fish present, with proportionality constant $k,$ as

$P\prime =0.4P\left(1-\frac{P}{10000}\right)-kP.$

**[T]** For the previous fishing problem, draw a directional field assuming $k=0.1.$ Draw some solutions that exhibit this behavior. What are the equilibria and what are their stabilities?

**[T]** Use software or a calculator to draw directional fields for $k=0.4.$ What are the nonnegative equilibria and their stabilities?

**[T]** Use software or a calculator to draw directional fields for $k=0.6.$ What are the equilibria and their stabilities?

Solve this equation, assuming a value of $k=0.05$ and an initial condition of $5000$ fish.

The following problems add in a minimal threshold value for the species to survive, $T,$ which changes the differential equation to $P\prime \left(t\right)=rP\left(1-\frac{P}{K}\right)\left(1-\frac{T}{P}\right).$

Draw the directional field of the threshold logistic equation, assuming $K=10,r=0.1,T=2.$ When does the population survive? When does it go extinct?

For the preceding problem, solve the logistic threshold equation, assuming the initial condition $P\left(0\right)={P}_{0}.$

Bengal tigers in a conservation park have a carrying capacity of $100$ and need a minimum of $10$ to survive. If they grow in population at a rate of $1\text{\%}$ per year, with an initial population of $15$ tigers, solve for the number of tigers present.

A forest containing ring-tailed lemurs in Madagascar has the potential to support $5000$ individuals, and the lemur population grows at a rate of $5\text{\%}$ per year. A minimum of $500$ individuals is needed for the lemurs to survive. Given an initial population of $600$ lemurs, solve for the population of lemurs.

The population of mountain lions in Northern Arizona has an estimated carrying capacity of $250$ and grows at a rate of $0.25\text{\%}$ per year and there must be $25$ for the population to survive. With an initial population of $30$ mountain lions, how many years will it take to get the mountain lions off the endangered species list (at least $100)?$

The following questions consider the Gompertz equation, a modification for logistic growth, which is often used for modeling cancer growth, specifically the number of tumor cells.

The Gompertz equation is given by $P\left(t\right)\prime =\alpha \phantom{\rule{0.1em}{0ex}}\text{ln}\phantom{\rule{0.1em}{0ex}}\left(\frac{K}{P\left(t\right)}\right)P\left(t\right).$ Draw the directional fields for this equation assuming all parameters are positive, and given that $K=1.$

Assume that for a population, $K=1000$ and $\alpha =0.05.$ Draw the directional field associated with this differential equation and draw a few solutions. What is the behavior of the population?

Solve the Gompertz equation for generic $\alpha $ and $K$ and $P\left(0\right)={P}_{0}.$

**[T]** The Gompertz equation has been used to model tumor growth in the human body. Starting from one tumor cell on day $1$ and assuming $\alpha =0.1$ and a carrying capacity of $10$ million cells, how long does it take to reach “detection” stage at $5$ million cells?

**[T]** It is estimated that the world human population reached $3$ billion people in $1959$ and $6$ billion in $1999.$ Assuming a carrying capacity of $16$ billion humans, write and solve the differential equation for logistic growth, and determine what year the population reached $7$ billion.

**[T]** It is estimated that the world human population reached $3$ billion people in $1959$ and $6$ billion in $1999.$ Assuming a carrying capacity of $16$ billion humans, write and solve the differential equation for Gompertz growth, and determine what year the population reached $7$ billion. Was logistic growth or Gompertz growth more accurate, considering world population reached $7$ billion on October $31,2011?$

Show that the population grows fastest when it reaches half the carrying capacity for the logistic equation $P\prime =rP\left(1-\frac{P}{K}\right).$

When does population increase the fastest in the threshold logistic equation $P\prime \left(t\right)=rP\left(1-\frac{P}{K}\right)\left(1-\frac{T}{P}\right)?$

When does population increase the fastest for the Gompertz equation $P\left(t\right)\prime =\alpha \phantom{\rule{0.1em}{0ex}}\text{ln}\phantom{\rule{0.1em}{0ex}}\left(\frac{K}{P\left(t\right)}\right)P\left(t\right)?$

Below is a table of the populations of whooping cranes in the wild from $1940\phantom{\rule{0.2em}{0ex}}\text{to}\phantom{\rule{0.2em}{0ex}}2000.$ The population rebounded from near extinction after conservation efforts began. The following problems consider applying population models to fit the data. Assume a carrying capacity of $\mathrm{10,000}$ cranes. Fit the data assuming years since $1940$ (so your initial population at time $0$ would be $22$ cranes).

Year (years since conservation began) | Whooping Crane Population |
---|---|

$1940\left(0\right)$ | $22$ |

$1950\left(10\right)$ | $31$ |

$1960\left(20\right)$ | $36$ |

$1970\left(30\right)$ | $57$ |

$1980\left(40\right)$ | $91$ |

$1990\left(50\right)$ | $159$ |

$2000\left(60\right)$ | $256$ |

Find the equation and parameters $r$ and $T$ that best fit the data for the threshold logistic equation.

Graph all three solutions and the data on the same graph. Which model appears to be most accurate?

Using the three equations found in the previous problems, estimate the population in $2010$ (year $70$ after conservation). The real population measured at that time was $437.$ Which model is most accurate?
