11.1 Understanding Data, Data Validation, and Data Tables

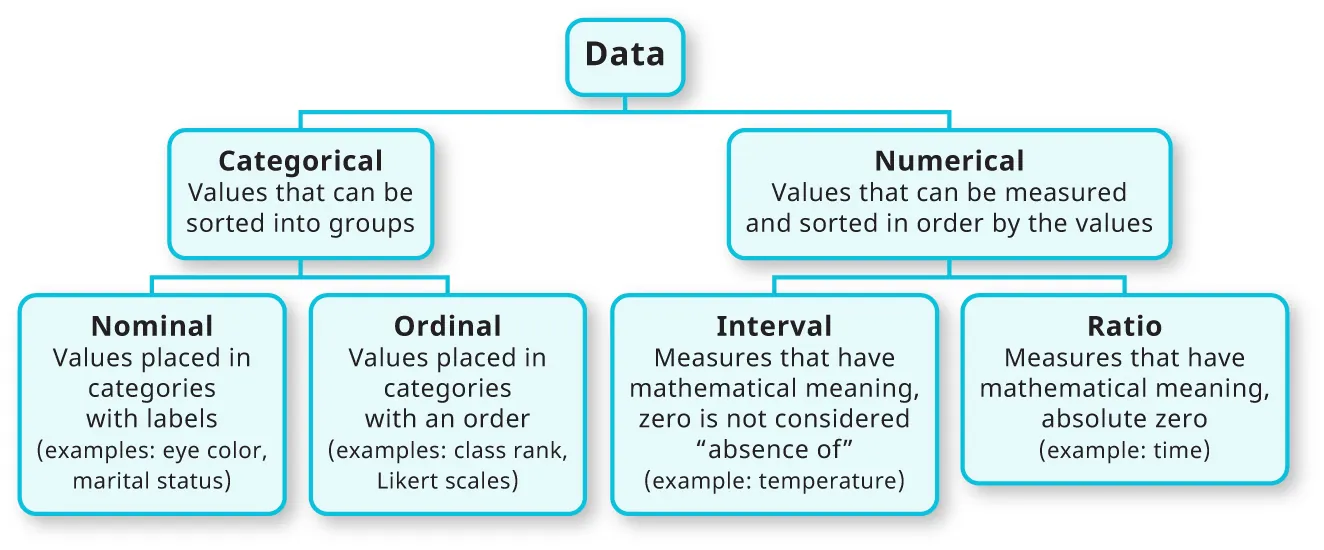

Categorical Data

Nominal and ordinal data make up categorical data, which is grouped into categories based on attributes or characteristics. Categorical data is considered qualitative data. The data can be represented with numbers; however, those numbers do not have a mathematical meaning. Some examples would be gender, marital status, or employment status (see Figure 11.4). Numbers can be assigned to these categories to make analysis possible with Excel, but those assignments are arbitrary. For example, you could represent full-time employment with the number 1 and unemployment with a 0. The same analysis could happen if the numbers were 2 and 4. There is no mathematical meaning behind the assigned numbers.

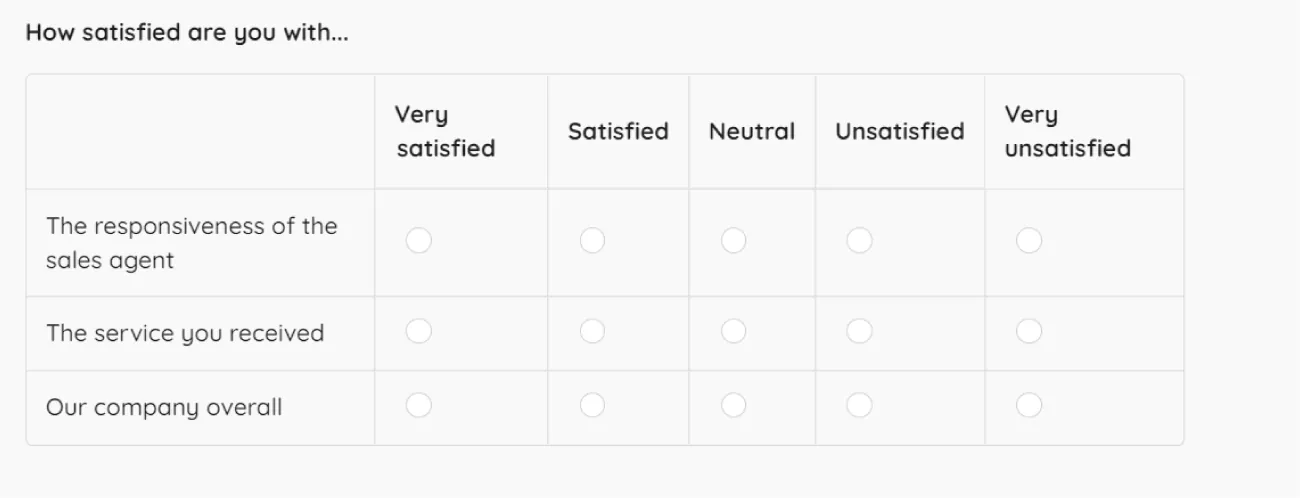

An advantage of using categorical data is that you can capture assessments of behaviors, opinions, and emotions. These concepts are not quantifiable, but using categorical data, you can assess and analyze these concepts to better understand the situation at hand. A disadvantage of categorical data is that deeper analysis using statistical methods may not be possible. Categorical data is often represented in a table format and graphically displayed with pie charts or bar charts. The data is most often analyzed through percentages in each of the categories of interest.

Numerical Data

The interval and ratio levels of measurement are numerical data. Numerical data is quantitative data and represents measures of variables, and it can either be discrete or continuous. The key feature is that the numbers have mathematical meaning with respect to the attribute or variable being evaluated. For example, a manager could determine the distance between two office locations in miles to determine the mileage reimbursement for employees traveling between the two sites. Other examples include the length of time waiting for a table at a restaurant, the amount of money spent by a customer at a particular shop, or the fuel efficiency of a vehicle (Figure 11.5). The advantage of using numerical data is that you can do in-depth analysis with statistics and use the data to develop predictions for future performance. This could be helpful for a business to forecast sales in the next quarter or predict expenses for the next year. Numerical data can be graphed using scatter plots and histograms. The data can be analyzed using various statistical methods. These could include mean, mode, median, standard deviation, and regression modeling.

Figure 11.5 Categorical data can be used for behaviors and emotions. Numerical data is used for more objective information such as distances or sales figures.

Data Validation

The process of validating data is made easier with Excel. There are several ways to customize the validation processes to meet specific needs. One simple validation approach is removing duplicates. You access this tool through the Data tab. This function is helpful if you are unsure whether there are duplicate entries in your data.

Consider an example in which there are twenty employees at WorldCorp’s warehouse location in Portland and each of those employees has a unique company identification number. In a spreadsheet keeping track of the number of days of vacation remaining for the year for each employee, you would not expect to have more than one line per employee. For a dataset of only twenty employees, it would be easy to identify a duplicate entry. But what if your company had two thousand employees? This could take a good bit of time to manually identify duplicates.

To remove duplicates from your data, first open the spreadsheet that you want to examine. Click on the Data tab and then on the Remove Duplicates tool (Figure 11.6).

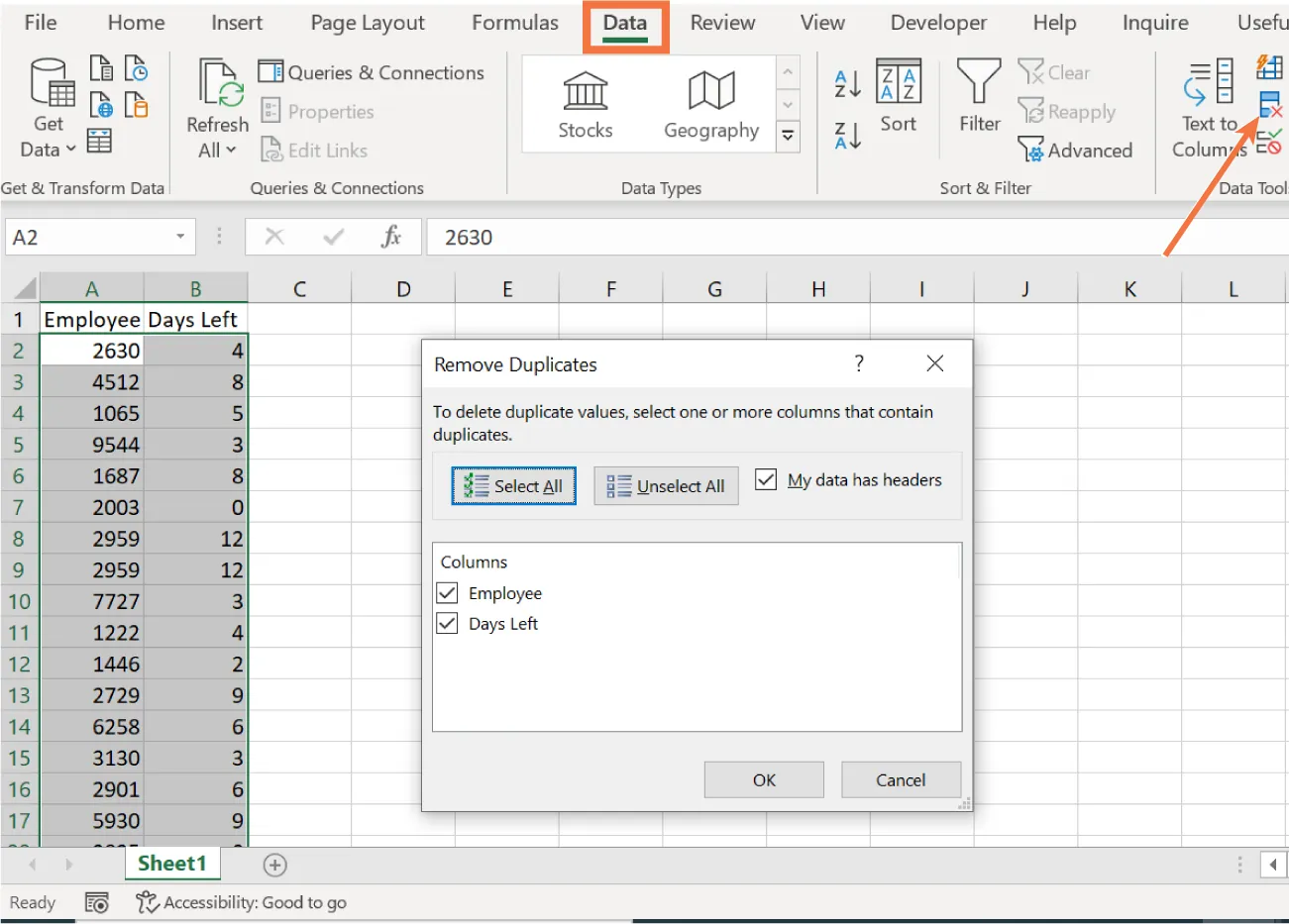

Figure 11.6 The Remove Duplicates dialog box allows you to choose the data from which you need to remove the duplicates. (Used with permission from Microsoft)

The dialog box that opens has several options. First, ensure that the box next to “My data has headers” is checked if your data has a header row, as shown in Figure 11.6. Then, choose which columns you want to check for duplicates. In this case, you will check both columns for rows that have duplicate data in both. The removal of the duplicate information in this example requires checking both columns and only occurs if both columns have duplicate information. You can check only one column if desired as well. In this example, though, you choose both columns because the information is grouped by rows. Thus, the Employee number is matched up with their days of vacation left.

After you’ve chosen the data to check, click OK. Notice that employee number 2959 (rows 8 and 9) appears twice, with the same number of days left. Excel will remove one of these entries. If you had only selected the first column, Excel would delete any rows that had duplicate information in Column A, regardless of the content of Column B. For this reason, you need to be careful to ensure that your criteria will not unintentionally delete too much data. Once the tool has finished removing duplicates in the selected data, Excel will notify you of the number of duplicates that were removed from the selection and indicate how many unique values remain (Figure 11.7).

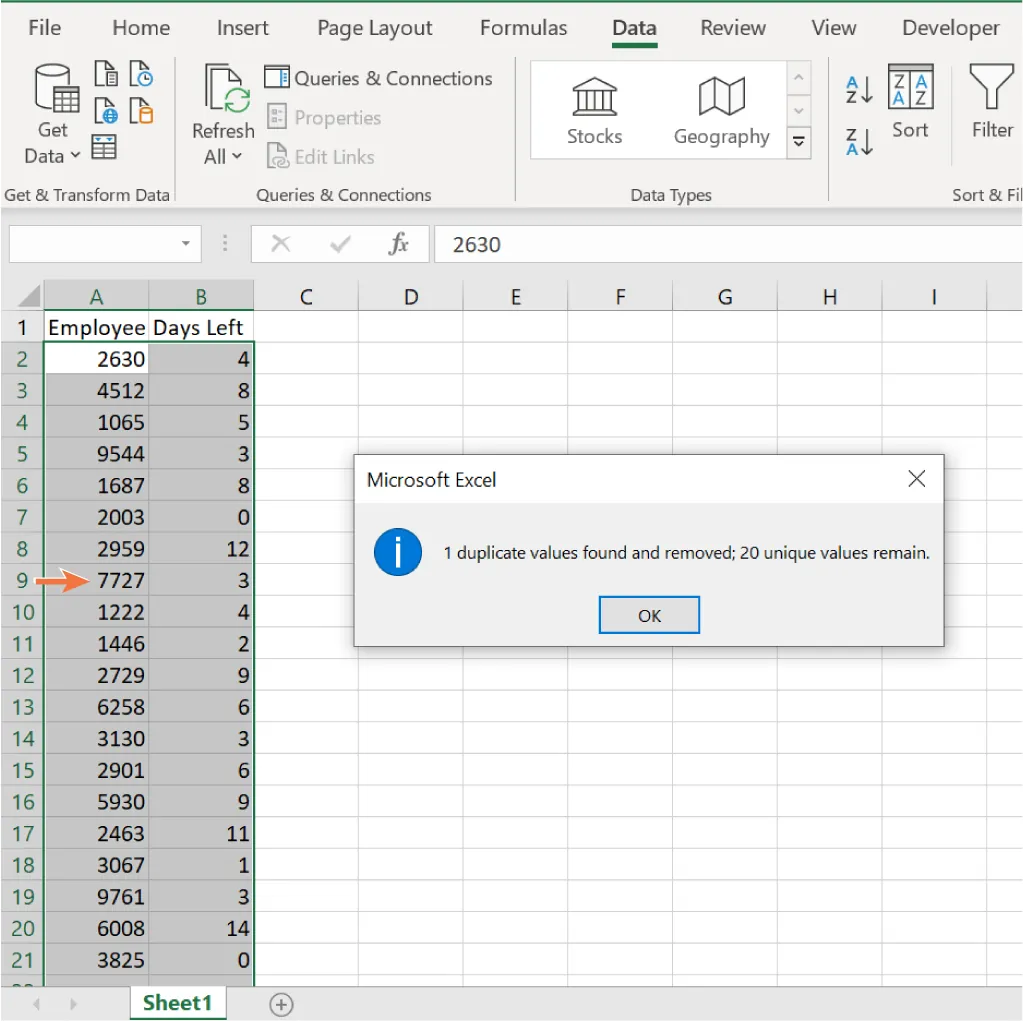

Figure 11.7 The Remove Duplicates tool removed Employee 2959, who appeared twice in the data, from row 9. (Used with permission from Microsoft)

Further validation of data can be accomplished using Excel’s Data Validation tool accessed through the Data tab in the Data Tools command group. This tool checks a selection of data to determine if it falls within a specific range of numbers.

There are several options available with the Data Validation tool. You can set the tool to check the data within a certain date range, to verify if all numbers are whole numbers, or to check for all positive numbers. You can also create a drop-down list of options from which the user can choose. Additionally, you can set the tool to display an error message when a data point does not meet the criteria you have established.

How to Add Data Validation

Adding data validation means that you are requiring that a dataset meet certain specifications to be deemed valid. If these specifications are not met, the formula will not work. To demonstrate how to add data validation, you’ll go back to the example of employee vacation days.

In the spreadsheet, first select the data (B2:B21) you want to examine. Do not select the column headers when selecting the data. Only select/highlight the numerical information. Next, click on the Data tab and choose the Data Validation tool (Figure 11.8). The Data Validation window will open. Once open, there are three tabs available.

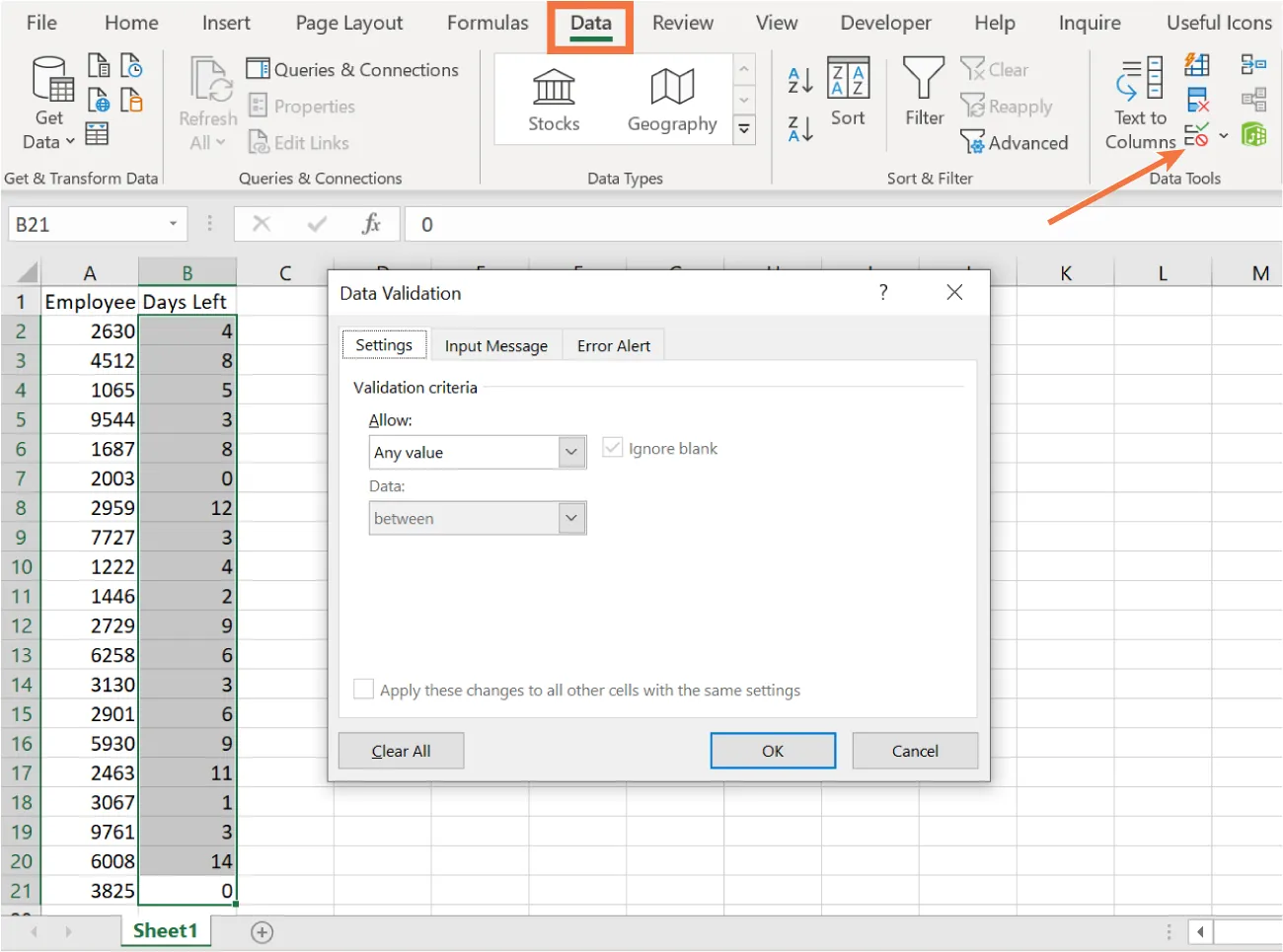

Figure 11.8 When using the Data Validation tool, first select the data and then choose the tool from the Data Tools command group. (Used with permission from Microsoft)

The Settings tab allows you to set parameters/ranges for the data validation. Assume that each employee is allocated two weeks (or 14 days) of paid vacation per year. This simple spreadsheet shows the number of vacation days remaining for each of the employees. Make sure that all entries are from 0 through 14. Using the Settings tab, change the value box under Allow to indicate a whole number (Figure 11.9). Then, under Data, choose “less than or equal to” and enter 14 in the Maximum box. Examine the other options available under Data. You could choose to have the number fall between two values. You could select greater than, greater than or equal to, and not between two values. The many choices will accommodate most data validation needs.

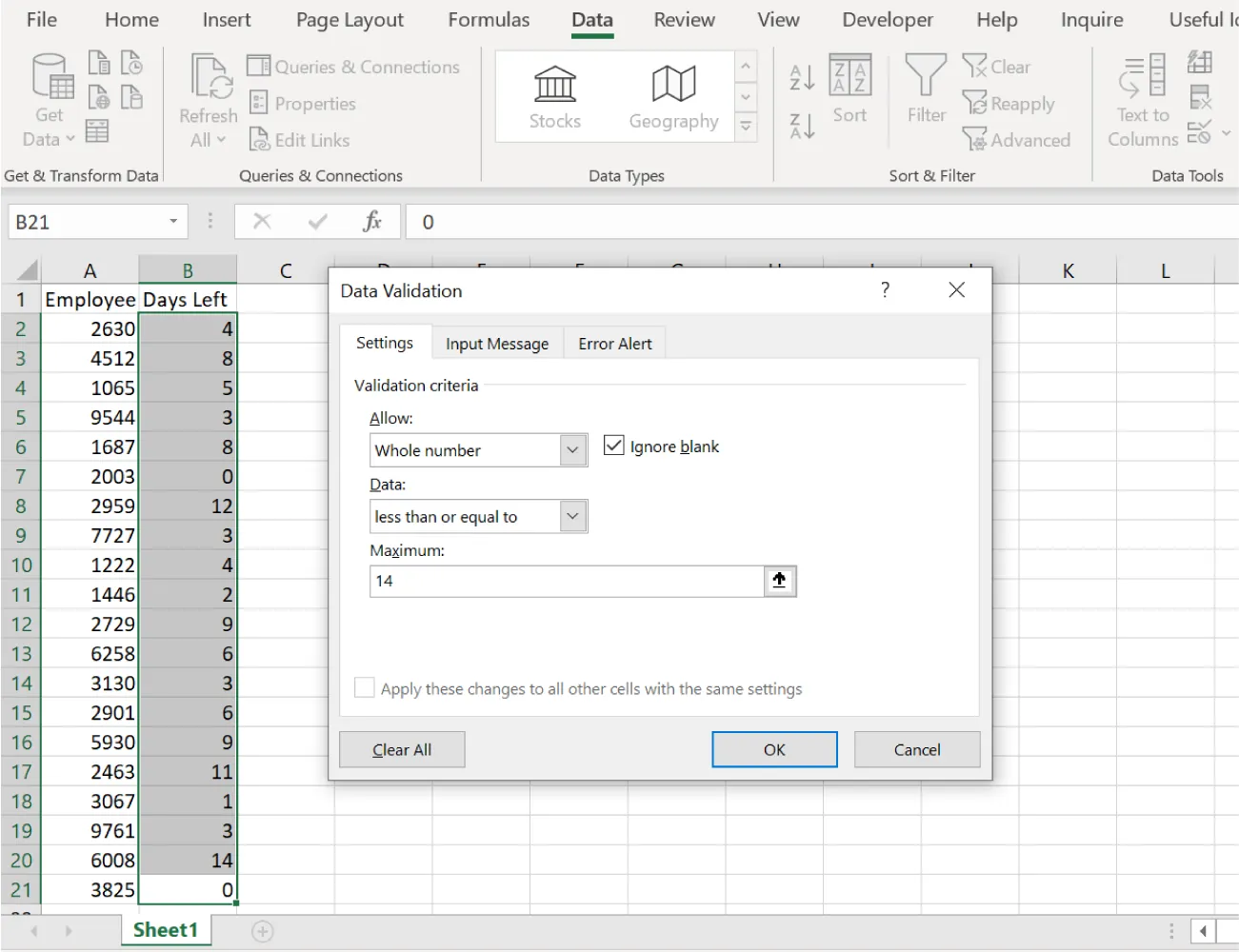

Figure 11.9 Use the Allow and Data fields to change the parameters of the data validation. (Used with permission from Microsoft)

Next, go to the Input Message tab. This is used to show a message to a user of a spreadsheet when they click in a cell to add data. For example, this message could indicate that the number must fall within a certain range. This is particularly useful if you have multiple users for an Excel spreadsheet.

Finally, the Error Alert tab will display a message to the user when they have entered an invalid entry. There are three different types of errors available. The Stop error gives you the option only to retype an entry or cancel. The Warning error allows the user to add an entry that is not in the predetermined list. Finally, the Information error simply states to the user that the entry does not match the validation rules, but the entry is still allowed. When an entry triggers an error, a small green triangle will appear in the upper-left corner of the cell. Clicking on the triangle will show what caused the error. Finally, you have the option to not display an error alert at all. By selecting this checkbox, all entries are permitted.

Once the parameters and messages are established in the previous steps, click OK. Now, using those settings, Excel can check the data. Under the Data Validation tool, click on the small down arrow to the right of the button to open the additional options. Select Circle Invalid Data. You then will see all data that does not meet the established criteria circled in orange (Figure 11.10).

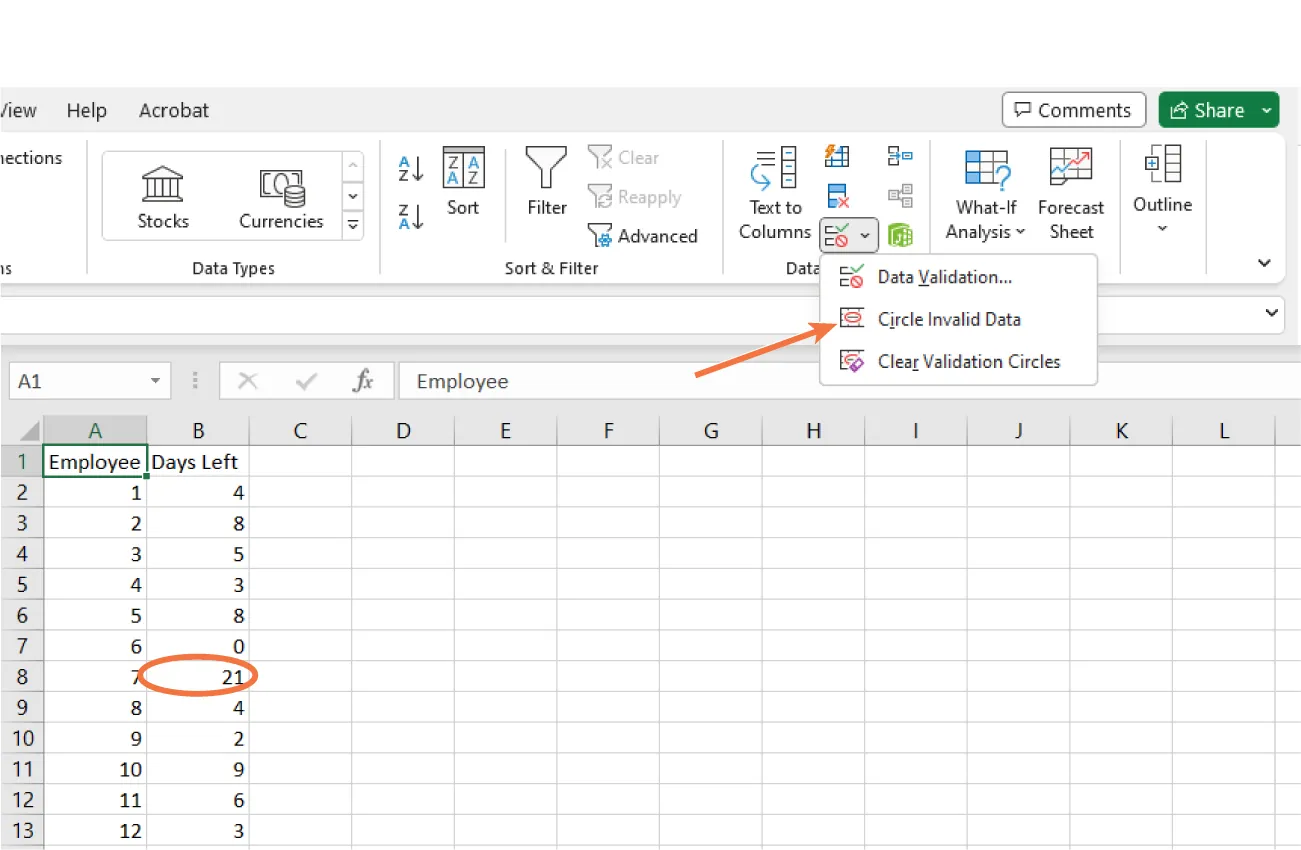

Figure 11.10 You input the settings for validating data with data validation. Then, to do the validation, choose “Circle Invalid Data.” The circle is placed around data that does not meet the parameter of the data validation. (Used with permission from Microsoft)

You can clear the circles by clicking on Clear Validation Circles. To remove data validation entirely, select the Data Validation tool, and in the lower left, choose Clear All. This will clear the validation rules from the cells. Here are the general steps for using the Data Validation tool to find invalid data:

1. Highlight the desired data (include only numbers, not text).
2. Click on the Data tab and select the Data Validation tool.
3. Set the parameters for the validation under the Settings tab.
4. Set an input message if desired.
5. Set an error alert message if desired.
6. Click OK.
7. Choose Circle Invalid Data under the Data Validation tool to identify data that does not meet the parameters established in Step 3.

Data Validation List

Creating a data validation list is a convenient way to ensure that only specific values are entered into a spreadsheet. The user chooses the appropriate response from a predetermined set of values, which can be numbers or text. This assures that only acceptable values will be entered into the spreadsheet. For example, let’s add a column to the employee spreadsheet that indicates the employee’s location. Suppose the company has three different locations: North, East, and South. The management team may want to review staffing at the various locations when vacation time is used, so this column might provide helpful information for scheduling purposes.

To create a data validation list, first click in an empty cell on the spreadsheet. Then, access the Data Validation tool. On the Settings tab under Allow, choose List. In the Source, you have two options. You can input text or values into the box separated by commas (Figure 11.11a), or if you have the list already in the named range, you can reference the named range in the Source box (Figure 11.11b). By using the cell range reference, the drop-down list is dynamic and will update if you change the source list. This is often the preferred method unless it is certain that the options will remain the same.

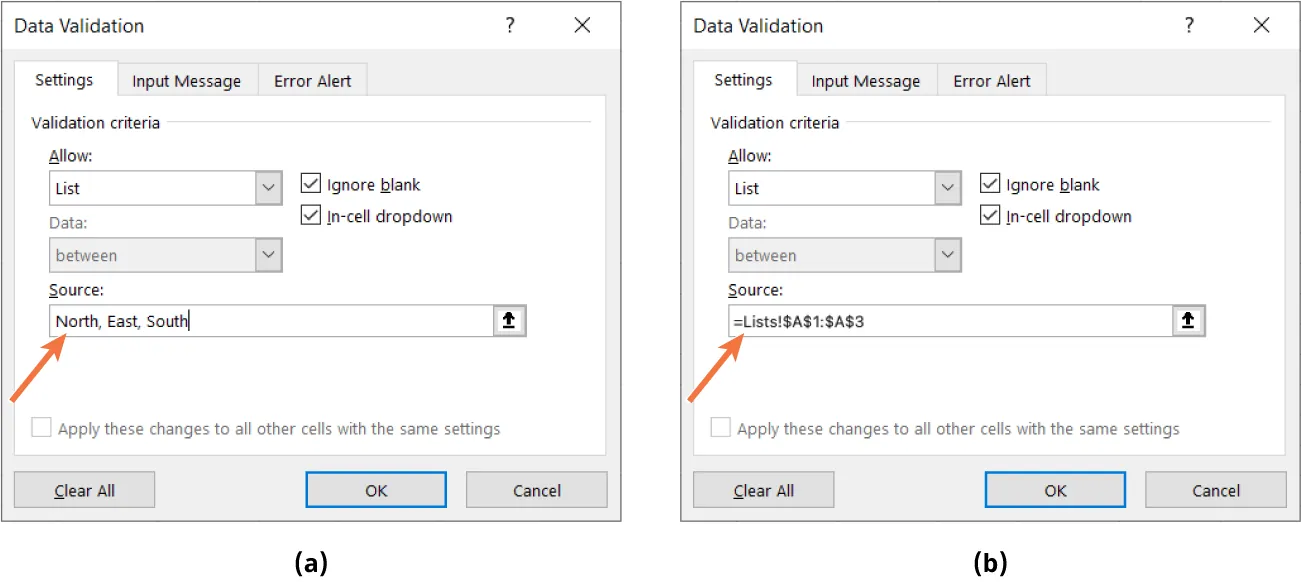

Figure 11.11 When establishing a data validation list, you can (a) directly enter the text or values, but it is preferred to use (b) cell references so that the drop-down list is dynamic. (Used with permission from Microsoft)

Either method will give the user a drop-down list to choose from when inputting information into the spreadsheet (Figure 11.12). If the list needs to be copied to other cells, it can be copied using the Paste Special technique (see Essentials of Software Application for Business).

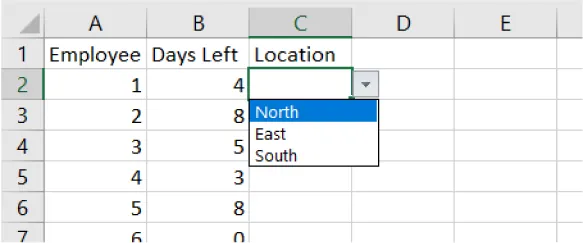

Figure 11.12 The drop-down list will show the text from the data validation list so the user can choose from the permitted values. (Used with permission from Microsoft)

Custom Data Validation Rules

If there are specific validation needs that are not covered by the existing built-in choices in data validation, you can create a custom data validation rule. This allows you to set your own parameters for the cells. Open the Data Validation tool and in the Allow drop-down menu, choose Custom. This offers a great deal of flexibility to use formulas and functions in data validation. You can use any of the available functions for data validation, even those that look at text or characters. Using data validation to look at text or characters could help you identify product codes or city names that were spelled incorrectly.

Using the employee vacation list, let’s add the employee names to the data. Create a column called Name. To ensure that only textual information is entered into the cell, you will use the custom data validation option. Open the Data Validation tool. Select Custom. In the Formula Bar of the window, use the ISTEXT function to restrict the entries to text data only (Figure 11.13). You can also add an input message and error alert if desired. Click OK.

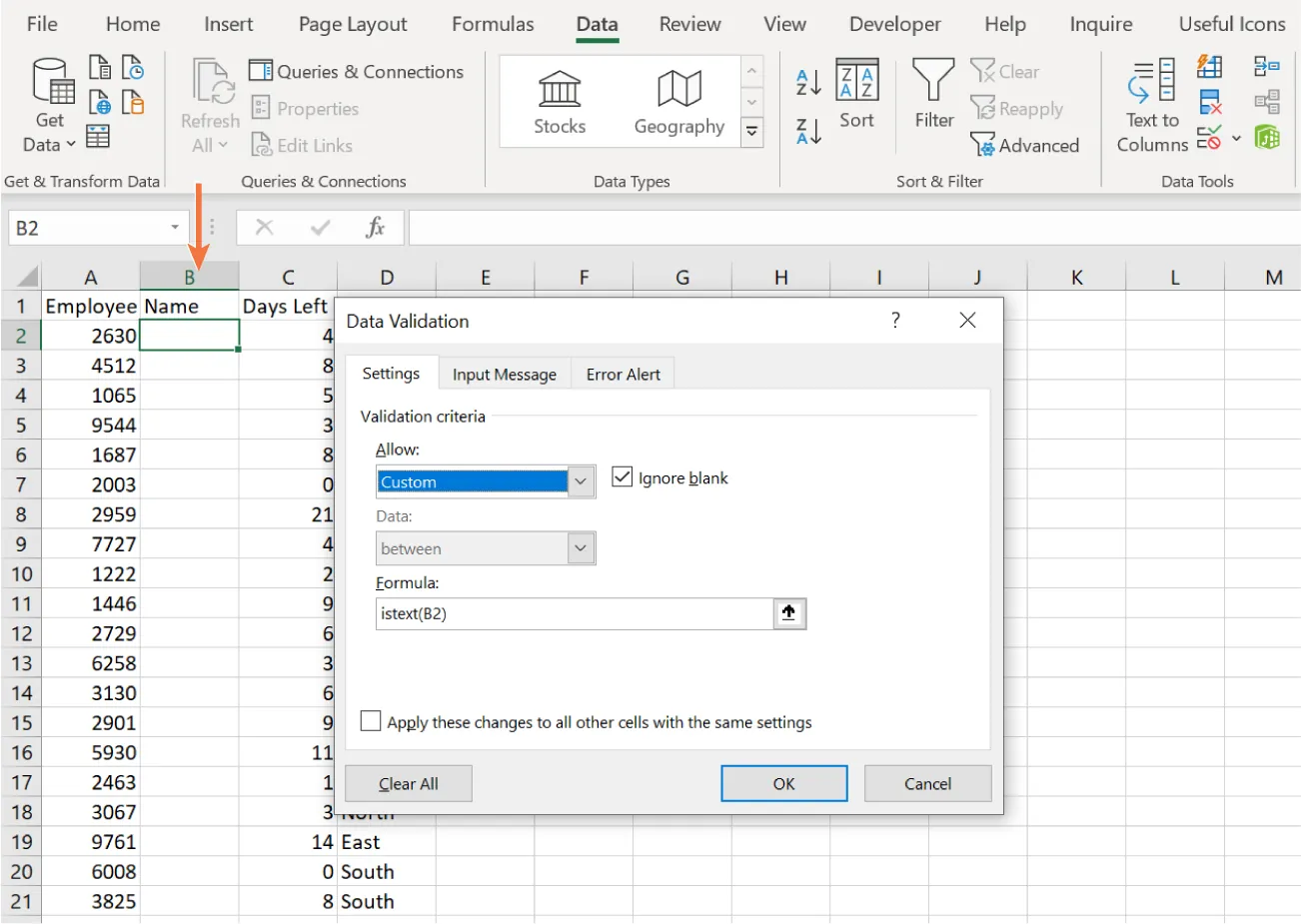

Figure 11.13 Data validation can be set to ensure that only text is input into a cell or group of cells. (Used with permission from Microsoft)

If the user tries to enter a number in the cell and you have enabled error alerts, an alert message will appear. Other custom data validation rules include not allowing any punctuation, restricting entries to not exceed a certain total, or entering data within a specified range.

The custom data validation rule option helps to ensure the accuracy of data entered based on scenarios that are appropriate to your specific application. These options are useful when creating spreadsheets that have multiple users. Data quality issues can be mitigated by setting up validation rules or adding drop-down lists. Data validation along with other skills, such as protecting sheets or cells, can be critical to maintaining the integrity of the spreadsheet and the data analysis built from the information in the spreadsheet.

Editing Validation Rules

To edit existing validation rules, first identify the cells where data validation rules are located. To do this, on the Home tab, go to Find & Select on the far right side of the tab, and choose the down arrow. When the menu appears, choose Data Validation. This will highlight all cells that have data validation rules. To view the parameters of that rule, simply click in one of the highlighted cells. Then, go to the Data Validation tool. The tool window will appear and list the restrictions of the data validation rule. If you want to make any changes, you can make them here. However, before closing the window, ensure that you check the box next to the instruction “Apply these changes to all other cells with the same settings” (Figure 11.14). This will then apply the changes to the other cells with the same data validation rule.

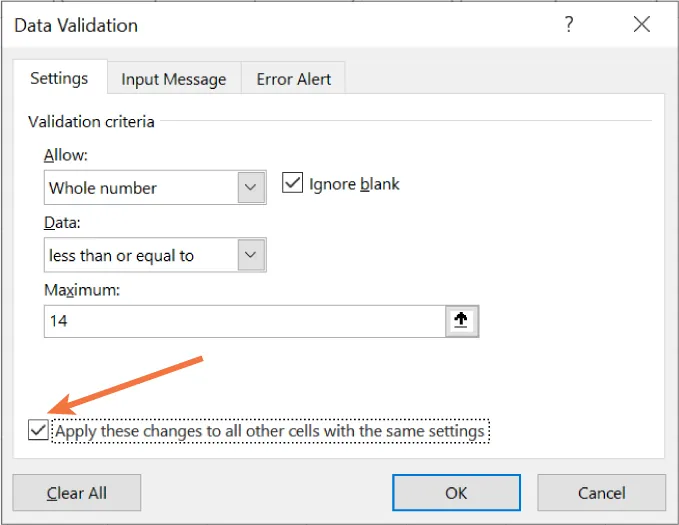

Figure 11.14 Be sure to select this checkbox to apply changes to all cells using the same data validation rule. (Used with permission from Microsoft)

Constructing a Data Table

To add even more functionality, you can format data to be an Excel Data Table, rather than simply a table of numbers. Using the Data Table formatting sets the data as a separate object in the spreadsheet. It is more than simply adding column or row headings. This feature allows you to easily add rows or columns, is automatically formatted to look professional, and allows you to quickly sort and filter information with a filter button at the top of the column. The table will automatically expand with the insertion of new rows or columns, and the preset formatting will carry over to these additions. Column headings are always visible without manually freezing the row, and formulas entered into cells are automatically applied to all cells in that column. Although these functions are available without formatting a set of data as a Data Table, working with the data is much easier if it is set this way.

You can create a Data Table from scratch and then add the data at another time. However, it is often easier to work from an existing spreadsheet of data to create the Data Table. To do so, open the "pivot_table_data" tab in the downloadable Chapter 11 data file workbook. There are two ways to format the data as a Data Table. For both, first highlight the data you want to convert to a Data Table. Then, press Ctrl+T, which opens a small window showing the selected range and a checkbox if the data contains a header row (Figure 11.17). Click OK. The other method is to click on the Home tab and choose Format as a Table in the Styles command group.

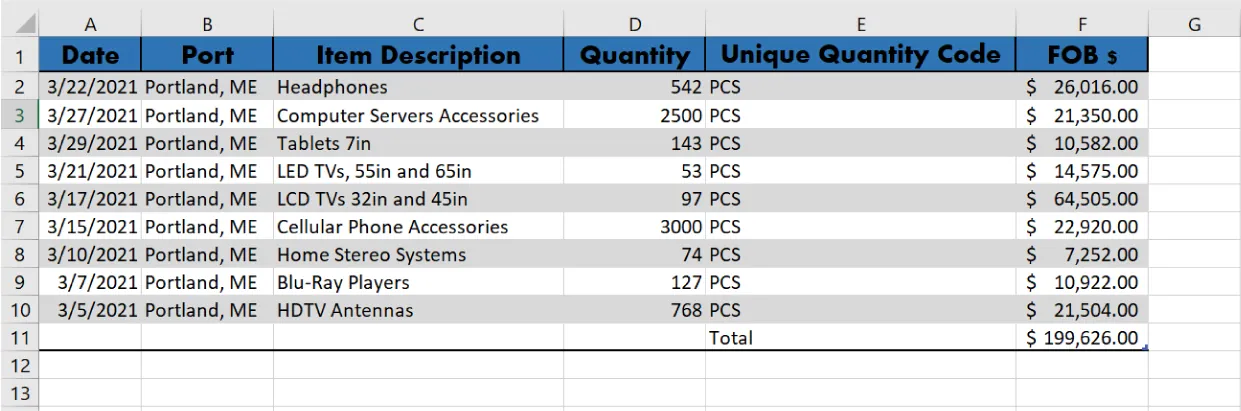

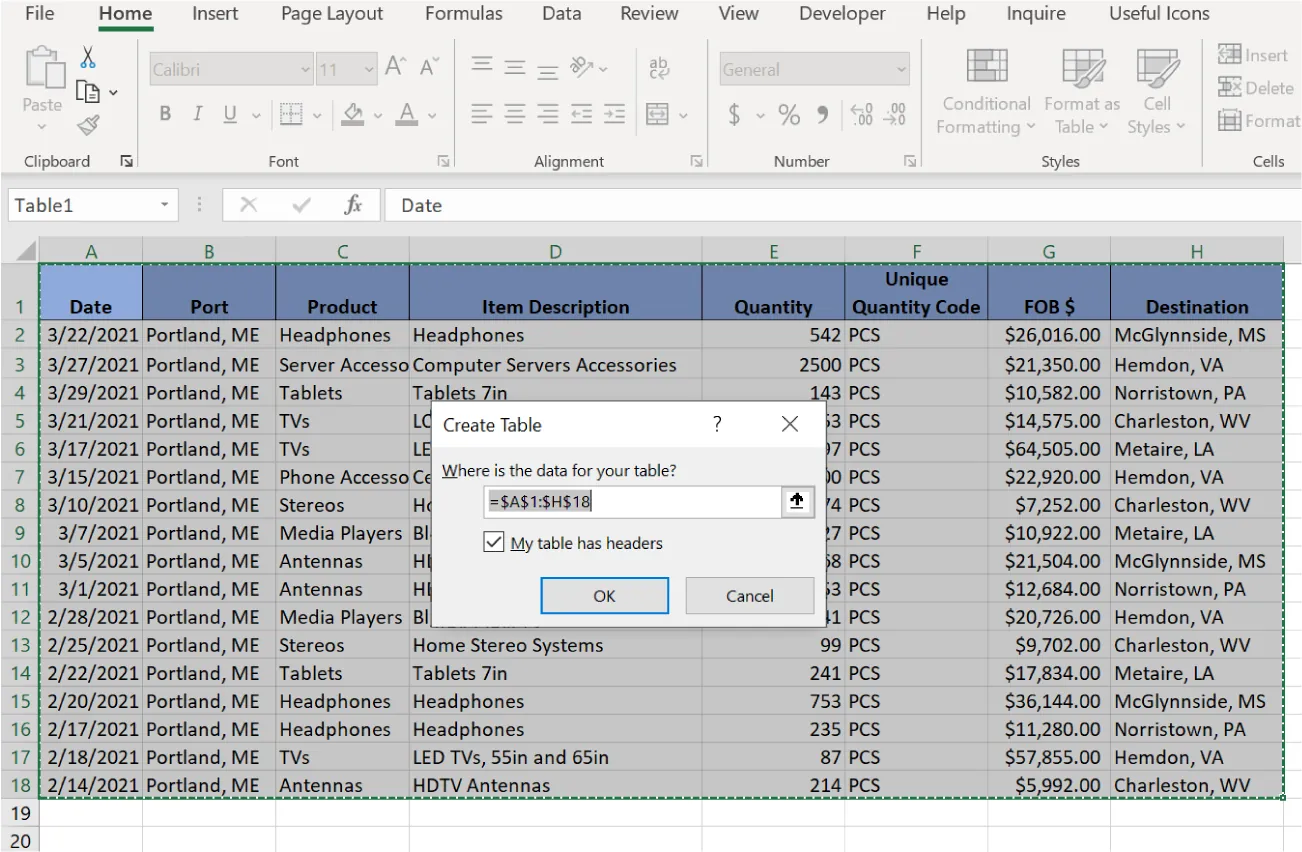

Figure 11.17 To create a Data Table, first select the columns and rows to be included in the table. (Used with permission from Microsoft)

Once you click OK, you will notice that your data looks different. There are drop-down arrows associated with each column, and there is a new tab in the ribbon: the Table Design tab (Figure 11.18).

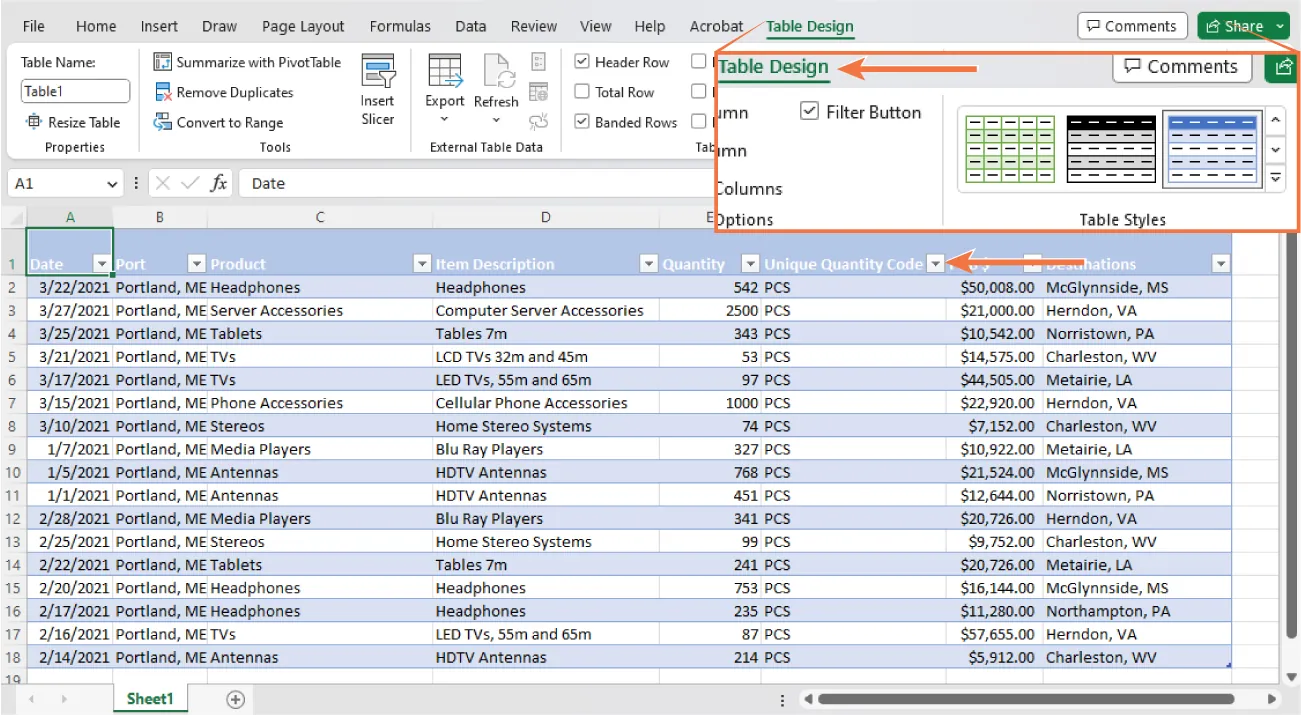

Figure 11.18 When data are in a Data Table, you will see a Table Design tab for formatting options. (Used with permission from Microsoft)

The Table Design tab appears when you click inside the Data Table and allows you to customize the table. You can change the color scheme, name the table, summarize the data, and refresh the information.

The drop-down arrows on each column header allow you to filter and sort the data. You can sort the data in many ways, and you can filter the data to only show selected information. You could sort this example to show certain destinations, such as Metairie, LA (Figure 11.19).

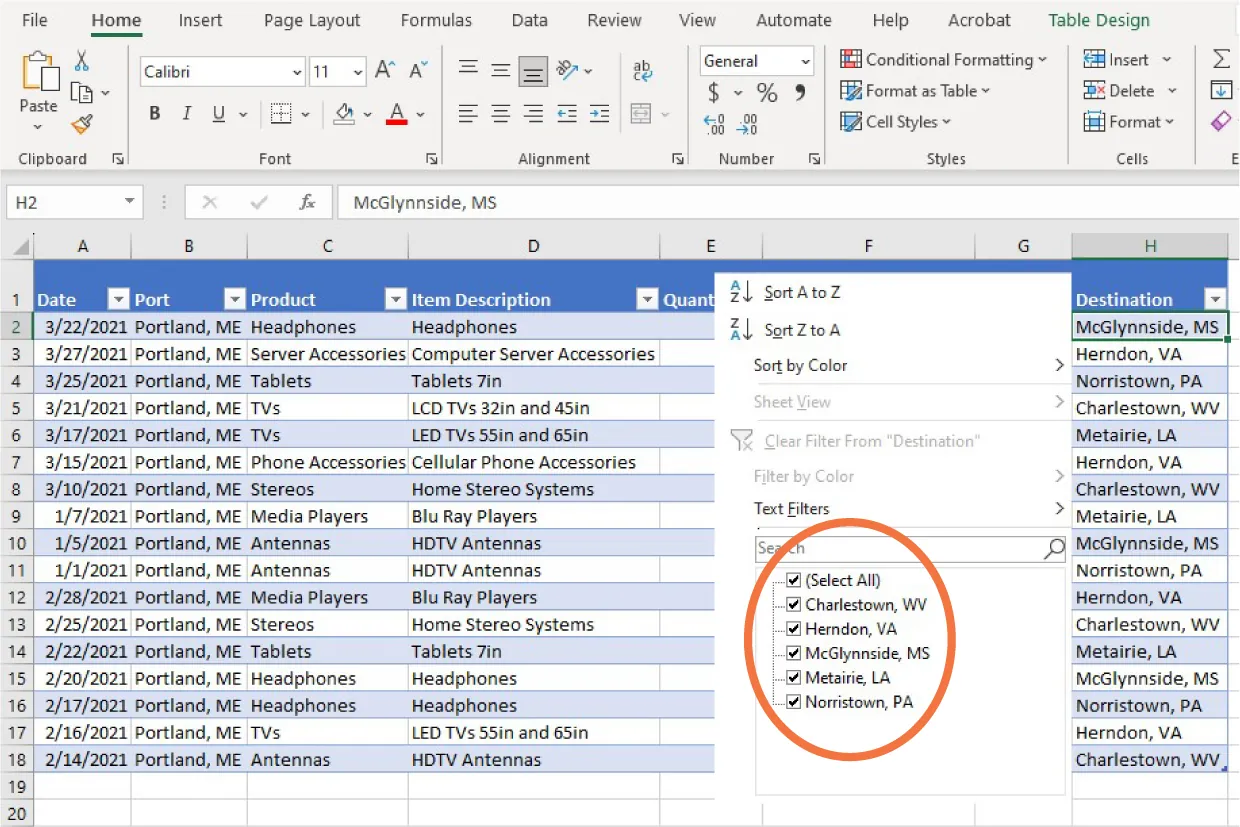

Figure 11.19 The drop-down menu with each column in a Data Table is a convenient way to filter information. (Used with permission from Microsoft)

To accomplish this, select the down arrow in the Destination column. Then, deselect all the destinations except Metairie. This will filter the entire table to only display those products for Metairie (Figure 11.20). You can tell that the data is filtered because the row number starts at a number other than 2 (row 1 is the header row). In this case, it starts at row 6. The other data is still contained in the table, but it does not display when this filter is applied. Also notice that the drop-down arrow changes to a funnel icon to indicate that the table has been filtered based on the information in this column. To remove the filter, click on the funnel icon and choose Clear Filter. This will remove the filtering from the table, and it will return to its original form. The funnel icon will change back to a drop-down arrow. If you do not want to filter your data, you can choose to not have the filter buttons displayed in your table using the Table Design tab in the Table Style Options command group. You can also use the Table Styles Options command group to add a total row to your Data Table.

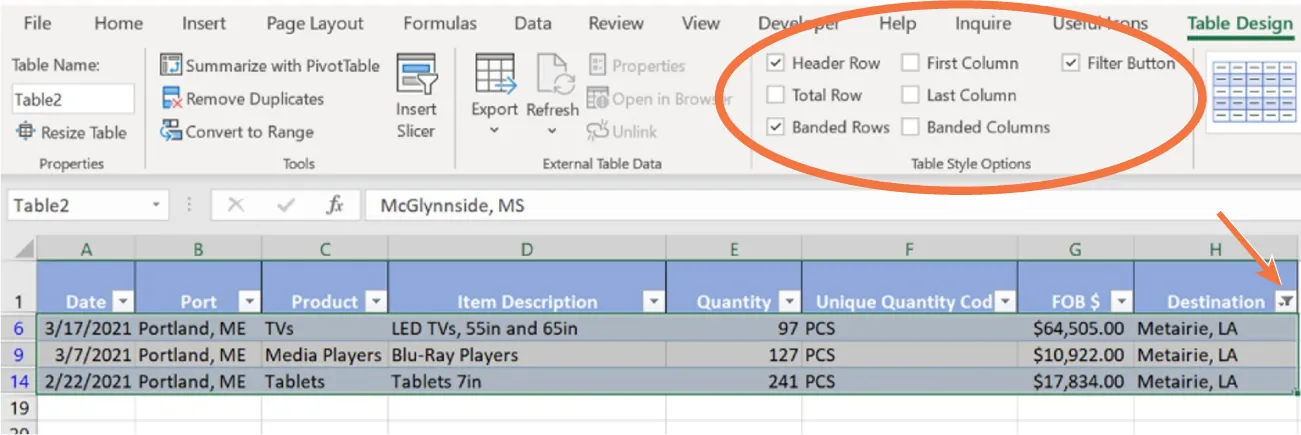

Figure 11.20 Customize the Data Table using the options in the Table Style Options command group. (Used with permission from Microsoft)

To customize the color scheme of the Data Table, choose the Table Style Options command group in the Table Design tab. There are many color choices and designs to choose from. You can also create a custom style, perhaps with your company colors, by choosing New Table Style. A window appears that allows you to format each section of the table with various fonts or colors.

Another benefit of using Data Tables is that you can easily summarize the data using PivotTables. This feature allows you to display the data in various ways to better analyze the information. You can create subtotals and summations of various factors within the table. To use this feature, choose Summarize with PivotTable from the Tools command group on the Table Design tab. We will discuss PivotTables in PivotTables/Charts.

If you no longer want to use a Data Table object for your data, you can revert it to a regular data range. Choose Convert to Range in the Tools command group on the Table Design tab. This will keep all the formatting but will leave the data as a range rather than a Data Table object in the spreadsheet. This makes it easier to copy and paste the information into a document or a presentation when communicating the analysis to others.

One-Variable Data Tables

Data Tables allow you to change cell values and see the result those changes have on other cells containing formulas. The tables can be used to evaluate possible scenarios to help make decisions within a business. Often, Data Tables are used to understand the financial implications of decisions.

Data Tables can use one variable or two variables. The Data Table tool is part of the What-If Analysis options on the Data tab. A one-variable Data Table investigates the impact of manipulating a single cell on another cell. Imagine you are interested in looking at the impact to your company’s overall profit if the price of one product is changed. Begin by setting up a model of the current data. For this example, let’s look at WorldCorp’s 32” LCD TV that sells for $170 and costs WorldCorp $85 to make. Let’s assume that marketing and administrative costs are $5,000 annually. You can set up an initial spreadsheet that reflects the current model and an abbreviated income statement to show the company profit (Figure 11.21). The formulas are shown in column D so that you can see how the cells were calculated.

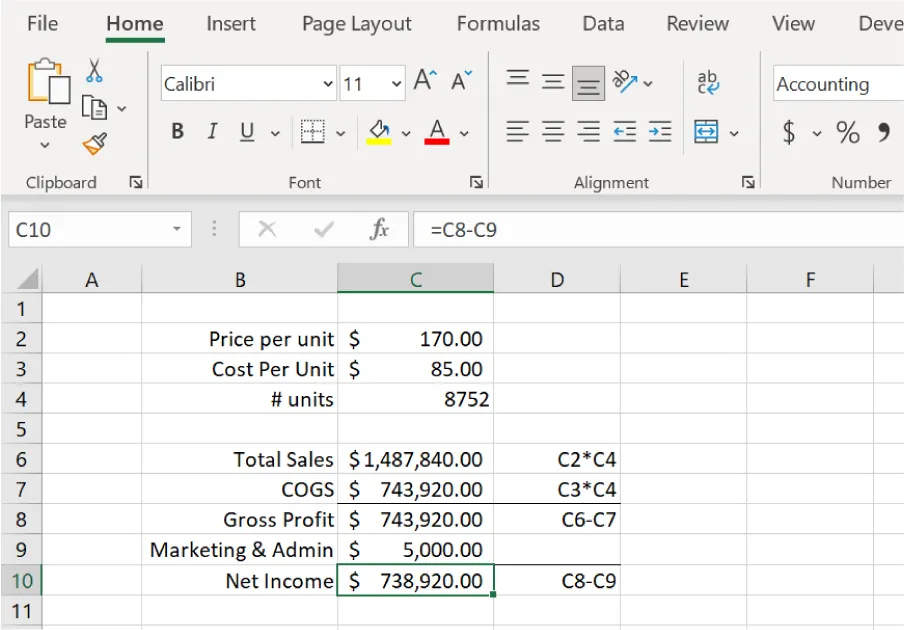

Figure 11.21 For a one-variable Data Table, you will model a single variable such as Net Income. (Used with permission from Microsoft)

You are interested in seeing the impact to profit, or cell C10, in this example. The value in this cell becomes the top row of the Data Table, so repeat it below the model. Next, identify the new prices to investigate. With a one-variable Data Table, those values are placed in the column to the left of the impacted cell. In this example, put the values in column B, starting in the row below the impacted cell. At this point, you can format the values using the Currency style to be more representative of what is being investigated. Then, select the cells to include in the Data Table, including all the price-level changes being evaluated.

Now, construct the Data Table. Go to the Data tab, click the arrow next to What-If Analysis, and select Data Table from the list (Figure 11.22). When the input window appears, choose the input value (price in this example) in the Column input cell box. You only use the Column input cell for a one-variable Data Table (Figure 11.23). Notice the dotted line around the input cell and the highlighted region for the Data Table. Click OK.

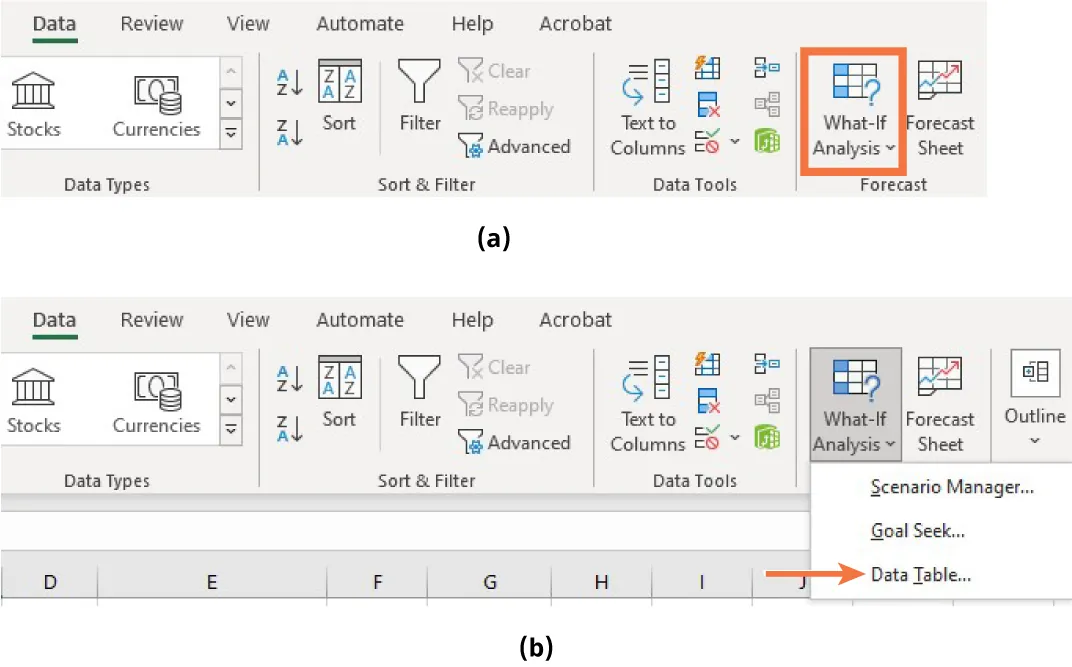

Figure 11.22 (a) For the new data table, first choose the What-If Analysis option from the Data tab. (b) Then select Data Table from the drop-down menu. (Used with permission from Microsoft)

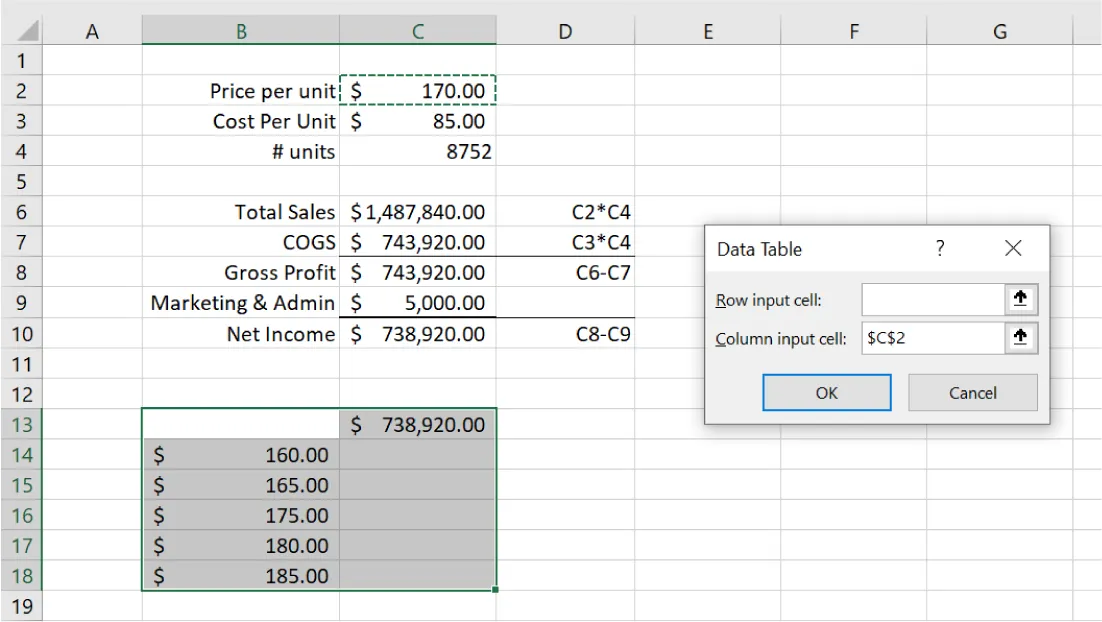

Figure 11.23 The impact of the Price per unit on overall Net Income is the desired output. (Used with permission from Microsoft)

When you click OK, Excel will use the information from the model to calculate the Net Income at each of the price points (Figure 11.24).

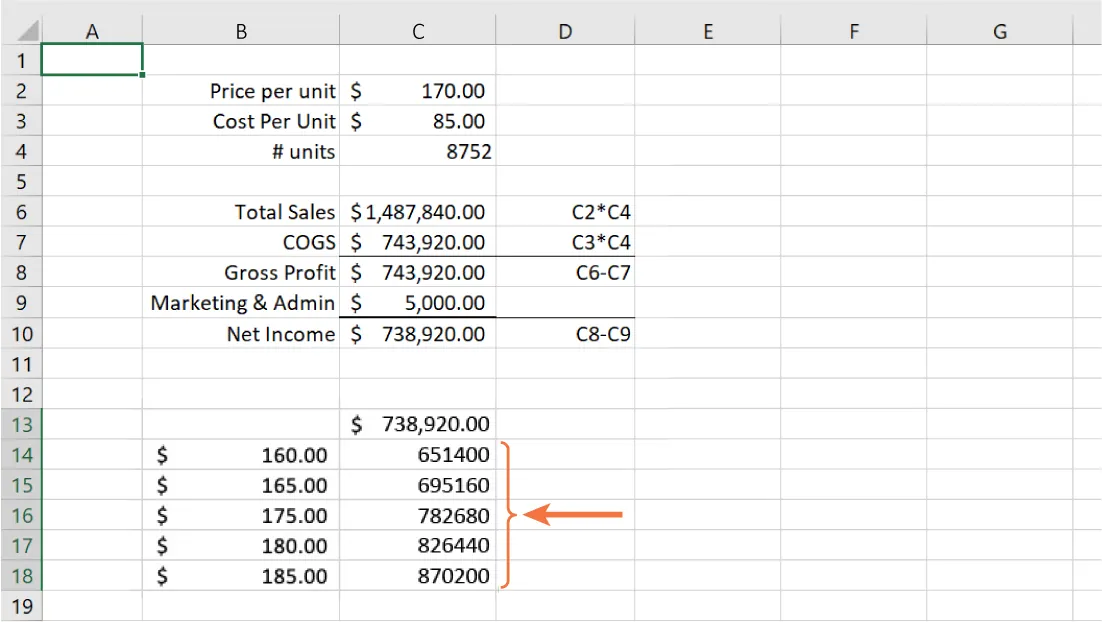

Figure 11.24 The change in net income due to the change in the price per unit is automatically generated. (Used with permission from Microsoft)

Excel shows that if the price point per unit is adjusted to $165.00, the Net Income will be $695,160, as shown in cell C15. When Excel creates the Data Table, the results are not automatically formatted. You can format the information after the Data Table is created, or you can set the number style to accounting or currency for the cells C14:C18 prior to creating the table. This simple example demonstrates the value of creating a Data Table. Excel quickly calculates the impacted cell values based on the predetermined formulas. This allows the decision maker to see all options in a single table.

Two-Variable Data Tables

Often in data analysis, there is more than one variable. You may need to investigate the interaction between two variables to get more information. For example, a two-variable Data Table could analyze the performance of various locations during each quarter of the year or could examine different production levels at various price points to investigate the impact on profit.

Let’s continue with the example of product price and impact on profit, and add various quantities sold into the analysis. Again, the target impacted cell is C10, Net Income. Put the quantity values across the top of the table and the prices down the side, as with the one-variable Data Table. Format the output cells (D14:H17) as currency. Next, highlight the table area and go to the Data Table tool in What-If Analysis. For the Row input cell, choose the # units, C4, and for the Column input cell, use the unit price, C2. Click OK (Figure 11.25). Notice the output cells are formatted to the Currency style. As a manager, you can see the impact on your profit outlook when you change the two variables (Figure 11.26). For example, if the price is lowered to $165 and you sell 9,500 units, your profit would be 755,000 (cell G15).

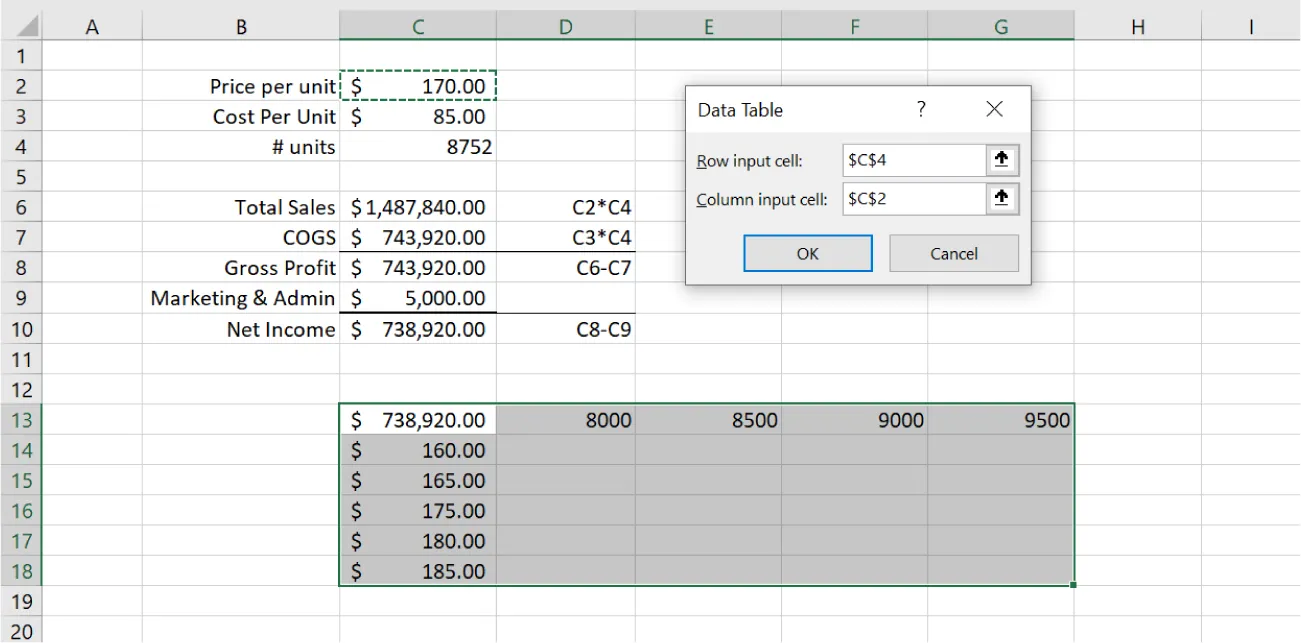

Figure 11.25 Two-variable Data Tables can manipulate two cells. Use the Data Table tool to enter your input cells. (Used with permission from Microsoft)

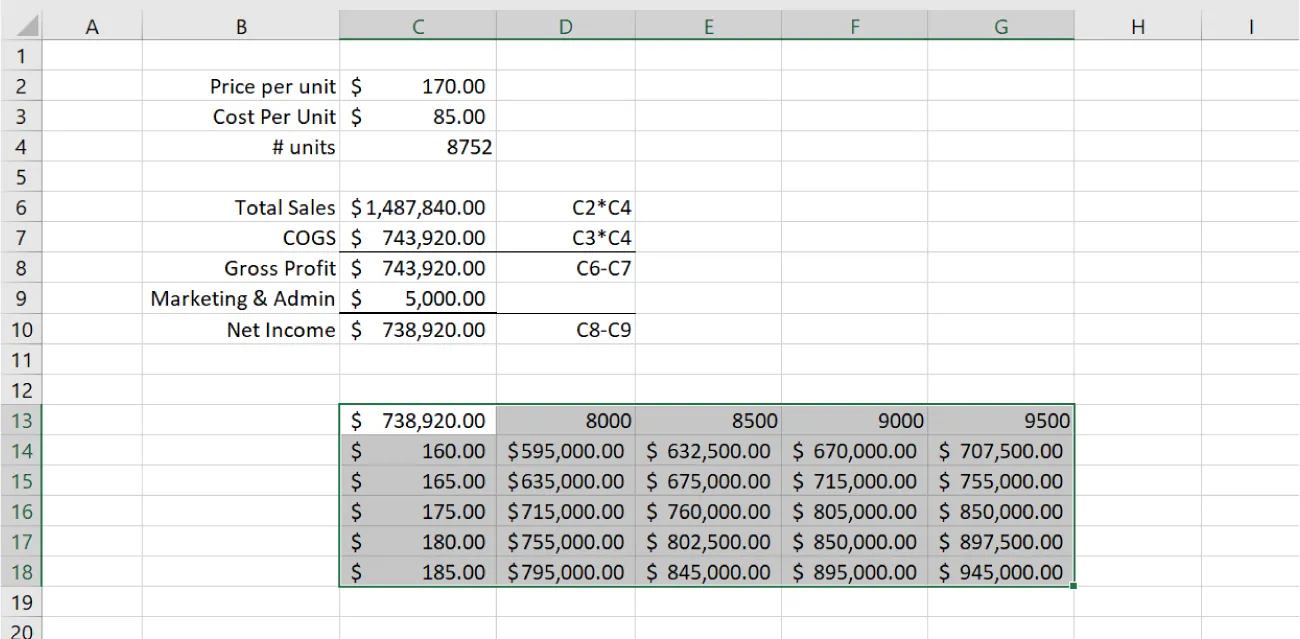

Figure 11.26 The final Data Table shows the impact of changing one or both variables. (Used with permission from Microsoft)

Visualizing Mixed Variables

Data collected by businesses comes in a wide variety of forms. It may not always be numerical. It might include income or age data reported as ranges of numbers rather than an exact number. Sales data may report a purchase was made but not include the sales price. The Data Table in Figure 11.27 includes both numerical data (the number of units sold) and categorical data (the sales agent). Summarizing both categorical and numerical data in the same table is appropriate and useful in many cases. The data can also be visually presented with a combination of charts and graphs. However, for any in-depth analysis, you will need to adjust the categorical data.

Figure 11.27 Information in a Data Table can be numerical or categorial. (Used with permission from Microsoft)

One strategy to adjust categorical data is to replace the text with a numerical value. Using the data in Figure 11.27, you could replace all instances of “Antonio” with the number 1, “Izabelle” with the number 2, and “James” with the number 3. When making a substitution like this, be sure the spreadsheet includes a legend that identifies each category and its corresponding number. This could be a simple chart on the same worksheet or on another worksheet that explains what each number represents. When there are only two categories, such as a Yes/No question, you can use the binary system with 0 for No and 1 for Yes. Using the Find and Replace tool makes the process of changing text to numbers easier. Categorical data combined with numerical data can also be analyzed using PivotTables.
