Learning Objectives

By the end of this section, you will be able to:
  • Describe how to set up a boundary-value problem for the stationary Schrӧdinger equation
  • Explain why the energy of a quantum particle in a box is quantized
  • Describe the physical meaning of stationary solutions to Schrӧdinger’s equation and the connection of these solutions with time-dependent quantum states
  • Explain the physical meaning of Bohr’s correspondence principle

In this section, we apply Schrӧdinger’s equation to a particle bound to a one-dimensional box. This special case provides lessons for understanding quantum mechanics in more complex systems. The energy of the particle is quantized as a consequence of a standing wave condition inside the box.

Consider a particle of mass mm that is allowed to move only along the x-direction and its motion is confined to the region between hard and rigid walls located at x=0x=0 and at x=Lx=L (Figure 7.10). Between the walls, the particle moves freely. This physical situation is called the infinite square well, described by the potential energy function

U(x)={0,0xL,,otherwise.U(x)={0,0xL,,otherwise.
(7.31)

Combining this equation with Schrӧdinger’s time-independent wave equation gives

22md2ψ(x)dx2=Eψ(x),for 0xL22md2ψ(x)dx2=Eψ(x),for 0xL
(7.32)

where E is the total energy of the particle. What types of solutions do we expect? The energy of the particle is a positive number, so if the value of the wave function is positive (right side of the equation), the curvature of the wave function is negative, or concave down (left side of the equation). Similarly, if the value of the wave function is negative (right side of the equation), the curvature of the wave function is positive or concave up (left side of equation). This condition is met by an oscillating wave function, such as a sine or cosine wave. Since these waves are confined to the box, we envision standing waves with fixed endpoints at x=0x=0 and x=Lx=L.

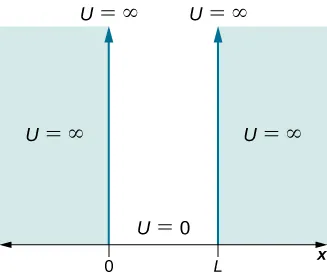

The potential U is plotted as a function of x. U is equal to infinity at x equal to or less than zero, and at x equal to or greater than L. U is equal to zero between x = 0 and x = L.
Figure 7.10 The potential energy function that confines the particle in a one-dimensional box.

Solutions ψ(x)ψ(x) to this equation have a probabilistic interpretation. In particular, the square |ψ(x)|2|ψ(x)|2 represents the probability density of finding the particle at a particular location x. This function must be integrated to determine the probability of finding the particle in some interval of space. We are therefore looking for a normalizable solution that satisfies the following normalization condition:

0Ldx|ψ(x)|2=1.0Ldx|ψ(x)|2=1.
(7.33)

The walls are rigid and impenetrable, which means that the particle is never found beyond the wall. Mathematically, this means that the solution must vanish at the walls:

ψ(0)=ψ(L)=0.ψ(0)=ψ(L)=0.
(7.34)

We expect oscillating solutions, so the most general solution to this equation is

ψk(x)=Akcoskx+Bksinkxψk(x)=Akcoskx+Bksinkx
(7.35)

where k is the wave number, and AkAk and BkBk are constants. Applying the boundary condition expressed by Equation 7.34 gives

ψk(0)=Akcos(k·0)+Bksin(k·0)=Ak=0.ψk(0)=Akcos(k·0)+Bksin(k·0)=Ak=0.
(7.36)

Because we have Ak=0Ak=0, the solution must be

ψk(x)=Bksinkx.ψk(x)=Bksinkx.
(7.37)

If BkBk is zero, ψk(x)=0ψk(x)=0 for all values of x and the normalization condition, Equation 7.33, cannot be satisfied. Assuming Bk0Bk0, Equation 7.34 for x=Lx=L then gives

0=Bksin(kL)sin(kL)=0kL=nπ,n=1,2,3,...0=Bksin(kL)sin(kL)=0kL=nπ,n=1,2,3,...
(7.38)

We discard the n=0n=0 solution because ψ(x)ψ(x) for this quantum number would be zero everywhere—an un-normalizable and therefore unphysical solution. Substituting Equation 7.37 into Equation 7.32 gives

22md2dx2(Bksin(kx))=E(Bksin(kx)).22md2dx2(Bksin(kx))=E(Bksin(kx)).
(7.39)

Computing these derivatives leads to

E=Ek=2k22m.E=Ek=2k22m.
(7.40)

According to de Broglie, p=k,p=k, so this expression implies that the total energy is equal to the kinetic energy, consistent with our assumption that the “particle moves freely.” Combining the results of Equation 7.38 and Equation 7.40 gives

En=n2π222mL2,n=1,2,3,...En=n2π222mL2,n=1,2,3,...
(7.41)

Strange! A particle bound to a one-dimensional box can only have certain discrete (quantized) values of energy. Further, the particle cannot have a zero kinetic energy—it is impossible for a particle bound to a box to be “at rest.”

To evaluate the allowed wave functions that correspond to these energies, we must find the normalization constant BnBn. We impose the normalization condition Equation 7.33 on the wave function

ψn(x)=Bnsinnπx/Lψn(x)=Bnsinnπx/L
(7.42)
1=0Ldx|ψn(x)|2=0LdxBn2sin2nπLx=Bn20Ldxsin2nπLx=Bn2L2Bn=2L.1=0Ldx|ψn(x)|2=0LdxBn2sin2nπLx=Bn20Ldxsin2nπLx=Bn2L2Bn=2L.

Hence, the wave functions that correspond to the energy values given in Equation 7.41 are

ψn(x)=2LsinnπxL,n=1,2,3,...ψn(x)=2LsinnπxL,n=1,2,3,...
(7.43)

For the lowest energy state or ground state energy, we have

E1=π222mL2,ψ1(x)=2Lsin(πxL).E1=π222mL2,ψ1(x)=2Lsin(πxL).
(7.44)

All other energy states can be expressed as

En=n2E1,ψn(x)=2Lsin(nπxL).En=n2E1,ψn(x)=2Lsin(nπxL).
(7.45)

The index n is called the energy quantum number or principal quantum number. The state for n=2n=2 is the first excited state, the state for n=3n=3 is the second excited state, and so on. The first three quantum states (for n=1,2,and3)n=1,2,and3) of a particle in a box are shown in Figure 7.11.

The wave functions in Equation 7.45 are sometimes referred to as the “states of definite energy.” Particles in these states are said to occupy energy levels, which are represented by the horizontal lines in Figure 7.11. Energy levels are analogous to rungs of a ladder that the particle can “climb” as it gains or loses energy.

The wave functions in Equation 7.45 are also called stationary states and standing wave states. These functions are “stationary,” because their probability density functions, |Ψ(x,t)|2|Ψ(x,t)|2, do not vary in time, and “standing waves” because their real and imaginary parts oscillate up and down like a standing wave—like a rope waving between two children on a playground. Stationary states are states of definite energy [Equation 7.45], but linear combinations of these states, such as ψ(x)=aψ1+bψ2ψ(x)=aψ1+bψ2 (also solutions to Schrӧdinger’s equation) are states of mixed energy.

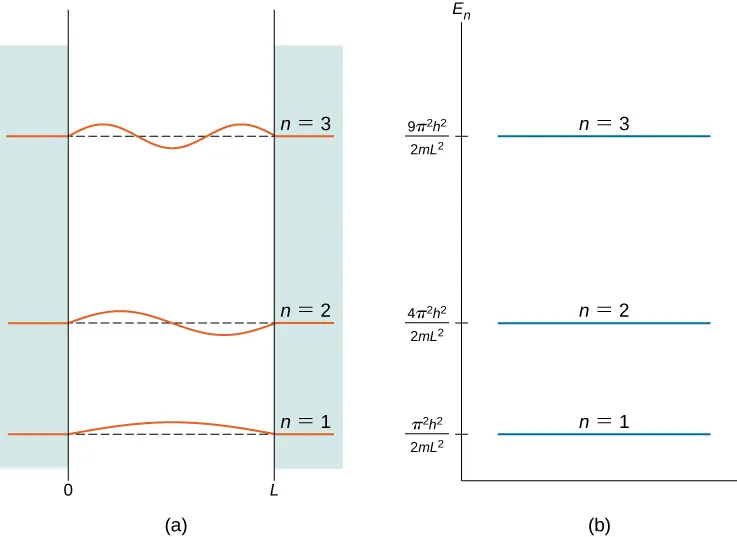

The first three quantum states of a quantum particle in a box for principal quantum numbers n=1, n=2, and n=3 are shown: Figure (a) shown the graphs of the standing wave solutions. The vertical axis is the wave function, with a separate origin for each state that is aligned with the energy scale of figure (b). The horizontal axis is x from just below 0 to just past L. Figure (b) shows the energy of each of the states on the vertical E sub n axis. All of the wave functions are zero for x less than 0 and x greater than L. The n=1 function is the first half wave of the wavelength 2 L sine function and its energy is pi squared times h squared divided by the quantity 2 m L squared. The n=2 function is the first full wave of the wavelength 2 L sine function and its energy is 4 pi squared times h squared divided by the quantity 2 m L squared. The n=3 function is the first one and a half waves of the wavelength 2 L sine function and its energy is 9 pi squared times h squared divided by the quantity 2 m L squared.
Figure 7.11 The first three quantum states of a quantum particle in a box for principal quantum numbers n=1,2,and3n=1,2,and3: (a) standing wave solutions and (b) allowed energy states.

Energy quantization is a consequence of the boundary conditions. If the particle is not confined to a box but wanders freely, the allowed energies are continuous. However, in this case, only certain energies (E1,4E1,9E1,(E1,4E1,9E1,…) are allowed. The energy difference between adjacent energy levels is given by

ΔEn+1,n=En+1En=(n+1)2E1n2E1=(2n+1)E1.ΔEn+1,n=En+1En=(n+1)2E1n2E1=(2n+1)E1.
(7.46)

Conservation of energy demands that if the energy of the system changes, the energy difference is carried in some other form of energy. For the special case of a charged particle confined to a small volume (for example, in an atom), energy changes are often carried away by photons. The frequencies of the emitted photons give us information about the energy differences (spacings) of the system and the volume of containment—the size of the “box” [see Equation 7.44].

Example 7.8

A Simple Model of the Nucleus Suppose a proton is confined to a box of width L=1.00×10−14mL=1.00×10−14m (a typical nuclear radius). What are the energies of the ground and the first excited states? If the proton makes a transition from the first excited state to the ground state, what are the energy and the frequency of the emitted photon?

Strategy If we assume that the proton confined in the nucleus can be modeled as a quantum particle in a box, all we need to do is to use Equation 7.41 to find its energies E1E1 and E2E2. The mass of a proton is m=1.76×10−27kg.m=1.76×10−27kg. The emitted photon carries away the energy difference ΔE=E2E1.ΔE=E2E1. We can use the relation Ef=hfEf=hf to find its frequency f.

Solution The ground state:

E1=π222mL2=π2(1.05×10−34J·s)22(1.67×10−27kg)(1.00×10−14m)2=3.28×10−13J=2.05MeV.E1=π222mL2=π2(1.05×10−34J·s)22(1.67×10−27kg)(1.00×10−14m)2=3.28×10−13J=2.05MeV.

The first excited state: E2=22E1=4(2.05MeV)=8.20MeVE2=22E1=4(2.05MeV)=8.20MeV.

The energy of the emitted photon is Ef=ΔE=E2E1=8.20MeV2.05MeV=6.15MeVEf=ΔE=E2E1=8.20MeV2.05MeV=6.15MeV.

The frequency of the emitted photon is

f=Efh=6.15MeV4.14×10−21MeV·s=1.49×1021Hz.f=Efh=6.15MeV4.14×10−21MeV·s=1.49×1021Hz.

Significance This is the typical frequency of a gamma ray emitted by a nucleus. The energy of this photon is about 10 million times greater than that of a visible light photon.

The expectation value of the position for a particle in a box is given by

x=0Ldxψn*(x)xψn(x)=0Ldxx|ψn*(x)|2=0Ldxx2Lsin2nπxL=L2.x=0Ldxψn*(x)xψn(x)=0Ldxx|ψn*(x)|2=0Ldxx2Lsin2nπxL=L2.
(7.47)

We can also find the expectation value of the momentum or average momentum of a large number of particles in a given state:

p=0Ldxψn*(x)[iddxψn(x)]=i0Ldx2LsinnπxL[ddx2LsinnπxL]=i2L0LdxsinnπxL[nπLcosnπxL]=i2nπL20Ldx12sin2nπxL=inπL2L2nπ02πndφsinφ=i2L·0=0.p=0Ldxψn*(x)[iddxψn(x)]=i0Ldx2LsinnπxL[ddx2LsinnπxL]=i2L0LdxsinnπxL[nπLcosnπxL]=i2nπL20Ldx12sin2nπxL=inπL2L2nπ02πndφsinφ=i2L·0=0.
(7.48)

Thus, for a particle in a state of definite energy, the average position is in the middle of the box and the average momentum of the particle is zero—as it would also be for a classical particle. Note that while the minimum energy of a classical particle can be zero (the particle can be at rest in the middle of the box), the minimum energy of a quantum particle is nonzero and given by Equation 7.44. The average particle energy in the nth quantum state—its expectation value of energy—is

En=E=n2π222m.En=E=n2π222m.
(7.49)

The result is not surprising because the standing wave state is a state of definite energy. Any energy measurement of this system must return a value equal to one of these allowed energies.

Our analysis of the quantum particle in a box would not be complete without discussing Bohr’s correspondence principle. This principle states that for large quantum numbers, the laws of quantum physics must give identical results as the laws of classical physics. To illustrate how this principle works for a quantum particle in a box, we plot the probability density distribution

|ψn(x)|2=2Lsin2(nπx/L)|ψn(x)|2=2Lsin2(nπx/L)
(7.50)

for finding the particle around location x between the walls when the particle is in quantum state ψnψn. Figure 7.12 shows these probability distributions for the ground state, for the first excited state, and for a highly excited state that corresponds to a large quantum number. We see from these plots that when a quantum particle is in the ground state, it is most likely to be found around the middle of the box, where the probability distribution has the largest value. This is not so when the particle is in the first excited state because now the probability distribution has the zero value in the middle of the box, so there is no chance of finding the particle there. When a quantum particle is in the first excited state, the probability distribution has two maxima, and the best chance of finding the particle is at positions close to the locations of these maxima. This quantum picture is unlike the classical picture.

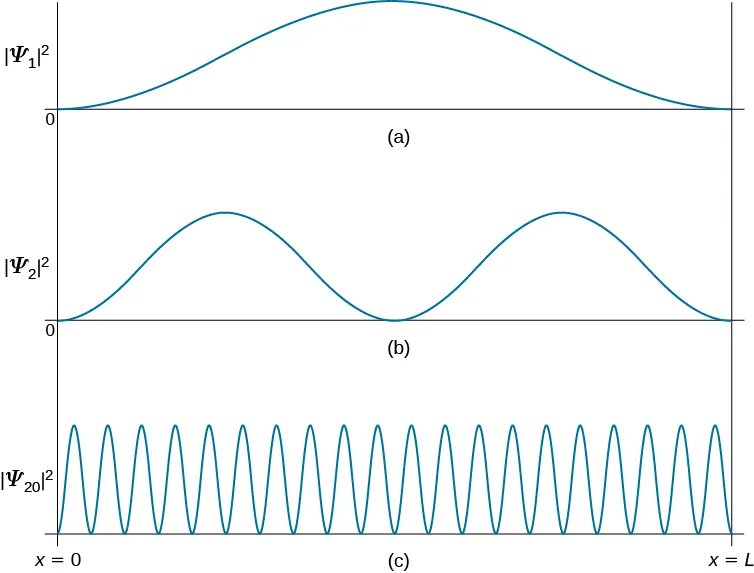

The probability distributions Psi amplitude squared for the n=1 state, for the n=2 state, and for the n=20 are plotted as functions of x from x=0 to x=L. Psi sub 1 squared is maximum in the middle of the box, decreases to either side and goes to zero at the ends. Psi sub 2 squared is zero value in the middle of the box and at the ends, and has two equal value maxima. Psi sub 20 squared has twenty maxima, all of the same size, and goes to zero between them and at the ends.
Figure 7.12 The probability density distribution |ψn(x)|2|ψn(x)|2 for a quantum particle in a box for: (a) the ground state, n=1n=1; (b) the first excited state, n=2n=2; and, (c) the nineteenth excited state, n=20n=20.

The probability density of finding a classical particle between x and x+Δxx+Δx depends on how much time ΔtΔt the particle spends in this region. Assuming that its speed u is constant, this time is Δt=Δx/u,Δt=Δx/u, which is also constant for any location between the walls. Therefore, the probability density of finding the classical particle at x is uniform throughout the box, and there is no preferable location for finding a classical particle. This classical picture is matched in the limit of large quantum numbers. For example, when a quantum particle is in a highly excited state, shown in Figure 7.12, the probability density is characterized by rapid fluctuations and then the probability of finding the quantum particle in the interval ΔxΔx does not depend on where this interval is located between the walls.

Example 7.9

A Classical Particle in a Box A small 0.40-kg cart is moving back and forth along an air track between two bumpers located 2.0 m apart. We assume no friction; collisions with the bumpers are perfectly elastic so that between the bumpers, the car maintains a constant speed of 0.50 m/s. Treating the cart as a quantum particle, estimate the value of the principal quantum number that corresponds to its classical energy.

Strategy We find the kinetic energy K of the cart and its ground state energy E1E1 as though it were a quantum particle. The energy of the cart is completely kinetic, so K=n2E1K=n2E1 (Equation 7.45). Solving for n gives n=(K/E1)1/2n=(K/E1)1/2.

Solution The kinetic energy of the cart is

K=12mu2=12(0.40kg)(0.50m/s)2=0.050J.K=12mu2=12(0.40kg)(0.50m/s)2=0.050J.

The ground state of the cart, treated as a quantum particle, is

E1=π222mL2=π2(1.05×10−34J·s)22(0.40kg)(2.0m)2=1.700×10−68J.E1=π222mL2=π2(1.05×10−34J·s)22(0.40kg)(2.0m)2=1.700×10−68J.

Therefore, n=(K/E1)1/2=(0.050/1.700×10−68)1/2=1.2×1033n=(K/E1)1/2=(0.050/1.700×10−68)1/2=1.2×1033.

Significance We see from this example that the energy of a classical system is characterized by a very large quantum number. Bohr’s correspondence principle concerns this kind of situation. We can apply the formalism of quantum mechanics to any kind of system, quantum or classical, and the results are correct in each case. In the limit of high quantum numbers, there is no advantage in using quantum formalism because we can obtain the same results with the less complicated formalism of classical mechanics. However, we cannot apply classical formalism to a quantum system in a low-number energy state.

Check Your Understanding 7.7

(a) Consider an infinite square well with wall boundaries x=0x=0 and x=Lx=L. What is the probability of finding a quantum particle in its ground state somewhere between x=0x=0 and x=L/4x=L/4? (b) Repeat question (a) for a classical particle.

Having found the stationary states ψn(x)ψn(x) and the energies EnEn by solving the time-independent Schrӧdinger equation Equation 7.32, we use Equation 7.28 to write wave functions Ψn(x,t)Ψn(x,t) that are solutions of the time-dependent Schrӧdinger’s equation given by Equation 7.23. For a particle in a box this gives

Ψn(x,t)=eiωntψn(x)=2LeiEnt/sinnπxL,n=1,2,3,...Ψn(x,t)=eiωntψn(x)=2LeiEnt/sinnπxL,n=1,2,3,...
(7.51)

where the energies are given by Equation 7.41.

The quantum particle in a box model has practical applications in a relatively newly emerged field of optoelectronics, which deals with devices that convert electrical signals into optical signals. This model also deals with nanoscale physical phenomena, such as a nanoparticle trapped in a low electric potential bounded by high-potential barriers.
