Learning Objectives

By the end of this section, you will be able to:
  • Describe the role Schrӧdinger’s equation plays in quantum mechanics
  • Explain the difference between time-dependent and -independent Schrӧdinger’s equations
  • Interpret the solutions of Schrӧdinger’s equation

In the preceding two sections, we described how to use a quantum mechanical wave function and discussed Heisenberg’s uncertainty principle. In this section, we present a complete and formal theory of quantum mechanics that can be used to make predictions. In developing this theory, it is helpful to review the wave theory of light. For a light wave, the electric field E(x,t) obeys the relation

2Ex2=1c22Et2,2Ex2=1c22Et2,
(7.17)

where c is the speed of light and the symbol represents a partial derivative. (Recall from Oscillations that a partial derivative is closely related to an ordinary derivative, but involves functions of more than one variable. When taking the partial derivative of a function by a certain variable, all other variables are held constant.) A light wave consists of a very large number of photons, so the quantity |E(x,t)|2|E(x,t)|2 can interpreted as a probability density of finding a single photon at a particular point in space (for example, on a viewing screen).

There are many solutions to this equation. One solution of particular importance is

E(x,t)=Asin(kxωt),E(x,t)=Asin(kxωt),
(7.18)

where A is the amplitude of the electric field, k is the wave number, and ωω is the angular frequency. Combing this equation with Equation 7.17 gives

k2=ω2c2.k2=ω2c2.
(7.19)

According to de Broglie’s equations, we have p=kp=k and E=ωE=ω. Substituting these equations in Equation 7.19 gives

p=Ec,p=Ec,
(7.20)

or

E=pc.E=pc.
(7.21)

Therefore, according to Einstein’s general energy-momentum equation (Equation 5.11), Equation 7.17 describes a particle with a zero rest mass. This is consistent with our knowledge of a photon.

This process can be reversed. We can begin with the energy-momentum equation of a particle and then ask what wave equation corresponds to it. The energy-momentum equation of a nonrelativistic particle in one dimension is

E=p22m+U(x,t),E=p22m+U(x,t),
(7.22)

where p is the momentum, m is the mass, and U is the potential energy of the particle. The wave equation that goes with it turns out to be a key equation in quantum mechanics, called Schrӧdinger’s time-dependent equation.

The Schrӧdinger Time-Dependent Equation

The equation describing the energy and momentum of a wave function is known as the Schrӧdinger equation:

22m2Ψ(x,t)x2+U(x,t)Ψ(x,t)=iΨ(x,t)t.22m2Ψ(x,t)x2+U(x,t)Ψ(x,t)=iΨ(x,t)t.
(7.23)

As described in Potential Energy and Conservation of Energy, the force on the particle described by this equation is given by

F=U(x,t)x.F=U(x,t)x.
(7.24)

This equation plays a role in quantum mechanics similar to Newton’s second law in classical mechanics. Once the potential energy of a particle is specified—or, equivalently, once the force on the particle is specified—we can solve this differential equation for the wave function. The solution to Newton’s second law equation (also a differential equation) in one dimension is a function x(t) that specifies where an object is at any time t. The solution to Schrӧdinger’s time-dependent equation provides a tool—the wave function—that can be used to determine where the particle is likely to be. This equation can be also written in two or three dimensions. Solving Schrӧdinger’s time-dependent equation often requires the aid of a computer.

Consider the special case of a free particle. A free particle experiences no force (F=0).(F=0). Based on Equation 7.24, this requires only that

U(x,t)=U0=constant.U(x,t)=U0=constant.
(7.25)

For simplicity, we set U0=0U0=0. Schrӧdinger’s equation then reduces to

22m2Ψ(x,t)x2=iΨ(x,t)t.22m2Ψ(x,t)x2=iΨ(x,t)t.
(7.26)

A valid solution to this equation is

Ψ(x,t)=Aei(kxωt).Ψ(x,t)=Aei(kxωt).
(7.27)

Not surprisingly, this solution contains an imaginary number (i=−1)(i=−1) because the differential equation itself contains an imaginary number. As stressed before, however, quantum-mechanical predictions depend only on |Ψ(x,t)|2|Ψ(x,t)|2, which yields completely real values. Notice that the real plane-wave solutions, Ψ(x,t)=Asin(kxωt)Ψ(x,t)=Asin(kxωt) and Ψ(x,t)=Acos(kxωt),Ψ(x,t)=Acos(kxωt), do not obey Schrödinger’s equation. The temptation to think that a wave function can be seen, touched, and felt in nature is eliminated by the appearance of an imaginary number. In Schrӧdinger’s theory of quantum mechanics, the wave function is merely a tool for calculating things.

If the potential energy function (U) does not depend on time, it is possible to show that

Ψ(x,t)=ψ(x)eiωtΨ(x,t)=ψ(x)eiωt
(7.28)

satisfies Schrӧdinger’s time-dependent equation, where ψ(x)ψ(x) is a time-independent function and eiωteiωt is a space-independent function. In other words, the wave function is separable into two parts: a space-only part and a time-only part. The factor eiωteiωt is sometimes referred to as a time-modulation factor since it modifies the space-only function. According to de Broglie, the energy of a matter wave is given by E=ωE=ω, where E is its total energy. Thus, the above equation can also be written as

Ψ(x,t)=ψ(x)eiEt/.Ψ(x,t)=ψ(x)eiEt/.
(7.29)

Any linear combination of such states (mixed state of energy or momentum) is also valid solution to this equation. Such states can, for example, describe a localized particle (see Figure 7.9)

Check Your Understanding 7.5

A particle with mass m is moving along the x-axis in a potential given by the potential energy function U(x)=0.5mω2x2U(x)=0.5mω2x2. Compute the product Ψ(x,t)*U(x)Ψ(x,t).Ψ(x,t)*U(x)Ψ(x,t). Express your answer in terms of the time-independent wave function, ψ(x).ψ(x).

Combining Equation 7.23 and Equation 7.28, Schrödinger’s time-dependent equation reduces to

22md2ψ(x)dx2+U(x)ψ(x)=Eψ(x),22md2ψ(x)dx2+U(x)ψ(x)=Eψ(x),
(7.30)

where E is the total energy of the particle (a real number). This equation is called Schrӧdinger’s time-independent equation. Notice that we use “big psi” (Ψ)(Ψ) for the time-dependent wave function and “little psi” (ψ)(ψ) for the time-independent wave function. The wave-function solution to this equation must be multiplied by the time-modulation factor to obtain the time-dependent wave function.

In the next sections, we solve Schrӧdinger’s time-independent equation for three cases: a quantum particle in a box, a simple harmonic oscillator, and a quantum barrier. These cases provide important lessons that can be used to solve more complicated systems. The time-independent wave function ψ(x)ψ(x) solutions must satisfy three conditions:

  • ψ(x)ψ(x) must be a continuous function.
  • The first derivative of ψ(x)ψ(x) with respect to space, dψ(x)/dxdψ(x)/dx, must be continuous, unless V(x)=V(x)=.
  • ψ(x)ψ(x) must not diverge (“blow up”) at x=±.x=±.

The first condition avoids sudden jumps or gaps in the wave function. The second condition requires the wave function to be smooth at all points, except in special cases. (In a more advanced course on quantum mechanics, for example, potential spikes of infinite depth and height are used to model solids). The third condition requires the wave function be normalizable. This third condition follows from Born’s interpretation of quantum mechanics. It ensures that |ψ(x)|2|ψ(x)|2 is a finite number so we can use it to calculate probabilities.

Check Your Understanding 7.6

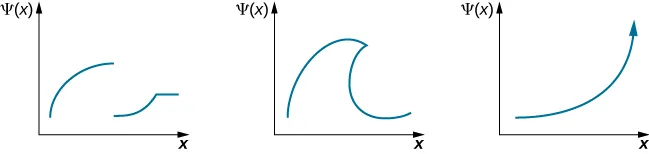

Which of the following wave functions is a valid wave-function solution for Schrӧdinger’s equation?

Three graphs of Psi of x versus x are shown. The first rises then drops discontinuously to a lower value, rises again and then has a constant value. The second function looks like a breaking wave, with a crest overtaking the base. The third increases exponentially to infinity.
