The Dutch physicist Christiaan Huygens (1629–1695) thought that light was a wave, but Isaac Newton did not. Newton thought that there were other explanations for color, and for the interference and diffraction effects that were observable at the time. Owing to Newton’s tremendous reputation, his view generally prevailed; the fact that Huygens’s principle worked was not considered direct evidence proving that light is a wave. The acceptance of the wave character of light came many years later in 1801, when the English physicist and physician Thomas Young (1773–1829) demonstrated optical interference with his now-classic double-slit experiment.

If there were not one but two sources of waves, the waves could be made to interfere, as in the case of waves on water (Figure 3.2). If light is an electromagnetic wave, it must therefore exhibit interference effects under appropriate circumstances. In Young’s experiment, sunlight was passed through a pinhole on a board. The emerging beam fell on two pinholes on a second board. The light emanating from the two pinholes then fell on a screen where a pattern of bright and dark spots was observed. This pattern, called fringes, can only be explained through interference, a wave phenomenon.

A photograph of an interference pattern is shown. Waves visible as white circles on the blue surface emanate from two centers and intersect at the numerous points.
Figure 3.2 Photograph of an interference pattern produced by circular water waves in a ripple tank. Two thin plungers are vibrated up and down in phase at the surface of the water. Circular water waves are produced by and emanate from each plunger.

We can analyze double-slit interference with the help of Figure 3.3, which depicts an apparatus analogous to Young’s. Light from a monochromatic source falls on a slit S0S0. The light emanating from S0S0 is incident on two other slits S1S1 and S2S2 that are equidistant from S0S0. A pattern of interference fringes on the screen is then produced by the light emanating from S1S1 and S2S2. All slits are assumed to be so narrow that they can be considered secondary point sources for Huygens’ wavelets (The Nature of Light). Slits S1S1 and S2S2 are a distance d apart (d1mmd1mm), and the distance between the screen and the slits is D(1m)D(1m), which is much greater than d.

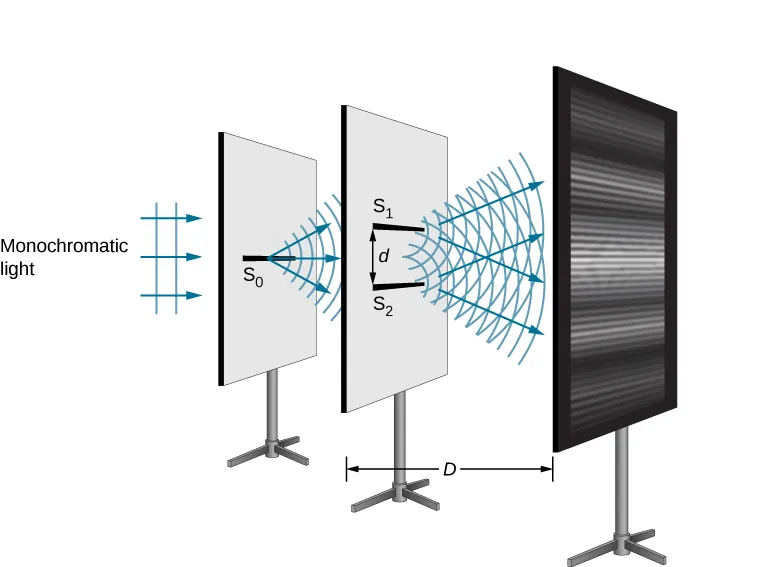

Picture is a schematic drawing of the double-slit experiment. Monochromatic light first travels through the narrow slit S0. Next is travels through the two slits S1 and S2 positioned one on a top of another and separated by the distance d. Finally, light reaches the screen where the interference pattern is formed. Distance between the double-slit screen and the final screen is D.
Figure 3.3 The double-slit interference experiment using monochromatic light and narrow slits. Fringes produced by interfering Huygens wavelets from slits S1S1 and S2S2 are observed on the screen.

Since S0S0 is assumed to be a point source of monochromatic light, the secondary Huygens wavelets leaving S1S1 and S2S2 always maintain a constant phase difference (zero in this case because S1S1 and S2S2 are equidistant from S0S0) and have the same frequency. The sources S1S1 and S2S2 are then said to be coherent. By coherent waves, we mean the waves are in phase or have a definite phase relationship. The term incoherent means the waves have random phase relationships, which would be the case if S1S1 and S2S2 were illuminated by two independent light sources, rather than a single source S0S0. Two independent light sources (which may be two separate areas within the same lamp or the Sun) would generally not emit their light in unison, that is, not coherently. Also, because S1S1 and S2S2 are the same distance from S0S0, the amplitudes of the two Huygens wavelets are equal.

Young used sunlight, where each wavelength forms its own pattern, making the effect more difficult to see. In the following discussion, we illustrate the double-slit experiment with monochromatic light (single λλ) to clarify the effect. Figure 3.4 shows the pure constructive and destructive interference of two waves having the same wavelength and amplitude.

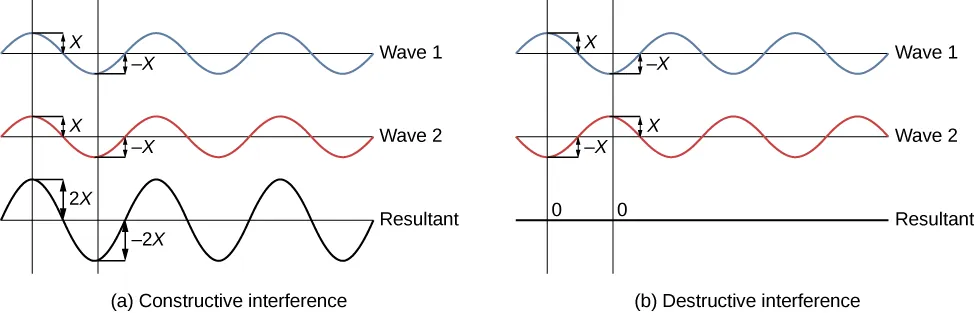

Left picture is a schematic drawing of the constructive interference. Two identical waves are in phase resulting in a wave with the doubled amplitude. Right picture is a schematic drawing of the destructive interference. Two identical waves are out phase - shifted by half a wavelength - resulting in a wave with the zero amplitude.
Figure 3.4 The amplitudes of waves add. (a) Pure constructive interference is obtained when identical waves are in phase. (b) Pure destructive interference occurs when identical waves are exactly out of phase, or shifted by half a wavelength.

When light passes through narrow slits, the slits act as sources of coherent waves and light spreads out as semicircular waves, as shown in Figure 3.5(a). Pure constructive interference occurs where the waves are crest to crest or trough to trough. Pure destructive interference occurs where they are crest to trough. The light must fall on a screen and be scattered into our eyes for us to see the pattern. An analogous pattern for water waves is shown in Figure 3.2. Note that regions of constructive and destructive interference move out from the slits at well-defined angles to the original beam. These angles depend on wavelength and the distance between the slits, as we shall see below.

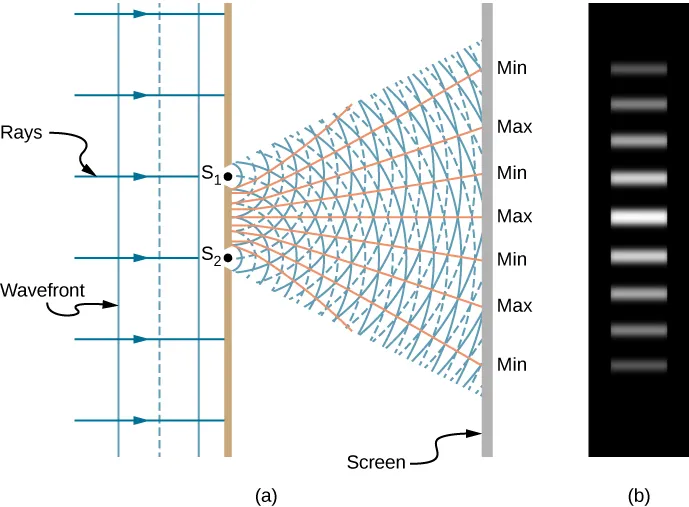

Left picture is a schematic drawing of the double-slit experiment. Monochromatic light enters the two slits S1 and S2. Light spreads out after travelling through the slits with the waves overlapping constructively and destructively. Right picture is a photograph of the fringe pattern that shows the bright spots aligned as a line.
Figure 3.5 Double slits produce two coherent sources of waves that interfere. (a) Light spreads out (diffracts) from each slit, because the slits are narrow. These waves overlap and interfere constructively (bright lines) and destructively (dark regions). We can only see this if the light falls onto a screen and is scattered into our eyes. (b) When light that has passed through double slits falls on a screen, we see a pattern such as this.

To understand the double-slit interference pattern, consider how two waves travel from the slits to the screen (Figure 3.6). Each slit is a different distance from a given point on the screen. Thus, different numbers of wavelengths fit into each path. Waves start out from the slits in phase (crest to crest), but they may end up out of phase (crest to trough) at the screen if the paths differ in length by half a wavelength, interfering destructively. If the paths differ by a whole wavelength, then the waves arrive in phase (crest to crest) at the screen, interfering constructively. More generally, if the path length difference ΔlΔl between the two waves is any half-integral number of wavelengths [(1 / 2)λλ, (3 / 2)λλ, (5 / 2)λλ, etc.], then destructive interference occurs. Similarly, if the path length difference is any integral number of wavelengths (λλ, 2λλ, 3λλ, etc.), then constructive interference occurs. These conditions can be expressed as equations:

Δl=mλ,form=0,±1,±2,±3(constructive interference)Δl=mλ,form=0,±1,±2,±3(constructive interference)
3.1
Δl=(m+12)λ,form=0,±1,±2,±3(destructive interference)Δl=(m+12)λ,form=0,±1,±2,±3(destructive interference)
3.2

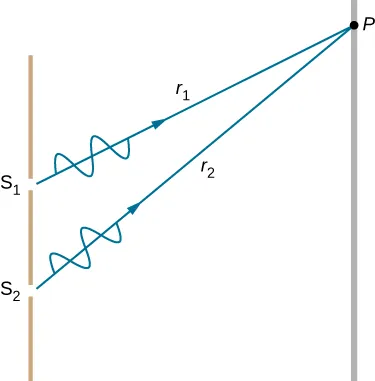

Picture is a schematic drawing that shows waves r1 and r2 passing through the two slits S1 and S2. The waves meet in a common point P on a screen.
Figure 3.6 Waves follow different paths from the slits to a common point P on a screen. Destructive interference occurs where one path is a half wavelength longer than the other—the waves start in phase but arrive out of phase. Constructive interference occurs where one path is a whole wavelength longer than the other—the waves start out and arrive in phase.
