### Learning Objectives

By the end of this section, you will be able to:

- Describe the composition and size of an atomic nucleus
- Use a nuclear symbol to express the composition of an atomic nucleus
- Explain why the number of neutrons is greater than protons in heavy nuclei
- Calculate the atomic mass of an element given its isotopes

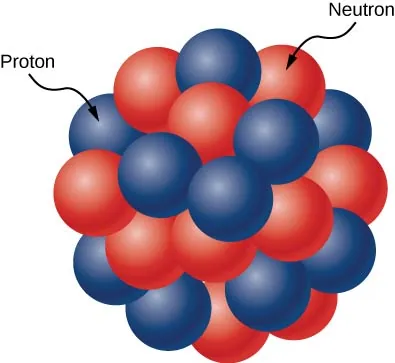

The atomic nucleus is composed of protons and neutrons (Figure 10.2). Protons and neutrons have approximately the same mass, but protons carry one unit of positive charge $(\text{+}e),$ and neutrons carry no charge. These particles are packed together into an extremely small space at the center of an atom. According to scattering experiments, the nucleus is spherical or ellipsoidal in shape, and about 1/100,000th the size of a hydrogen atom. If an atom were the size of a major league baseball stadium, the nucleus would be roughly the size of the baseball. Protons and neutrons within the nucleus are called nucleons.

### Counts of Nucleons

The number of protons in the nucleus is given by the atomic number, *Z*. The number of neutrons in the nucleus is the neutron number, *N*. The total number of nucleons is the mass number, *A*. These numbers are related by

A nucleus is represented symbolically by

where X represents the chemical element, *A* is the mass number, and *Z* is the atomic number. For example, ${}_{\phantom{\rule{0.5em}{0ex}}6}^{12}\text{C}$ represents the carbon nucleus with six protons and six neutrons (or 12 nucleons).

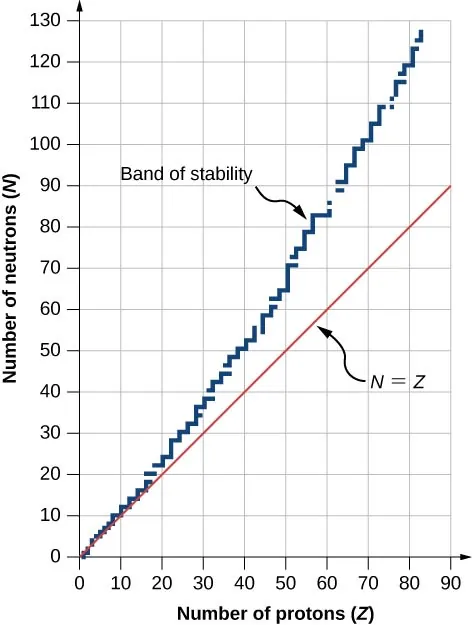

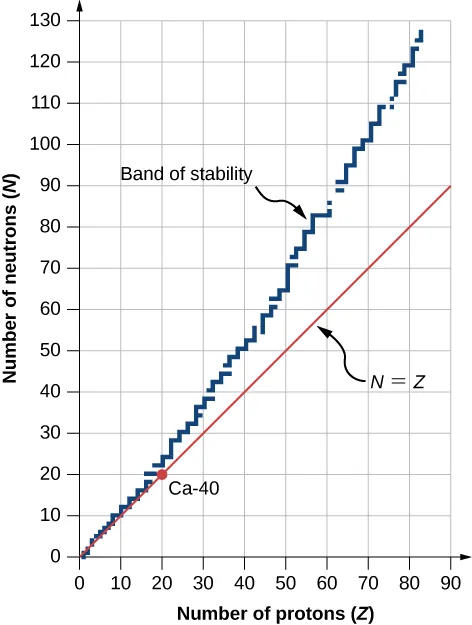

A graph of the number *N* of neutrons versus the number *Z* of protons for a range of stable nuclei (nuclide**s**) is shown in Figure 10.3. For a given value of *Z*, multiple values of *N* (blue points) are possible. For small values of *Z*, the number of neutrons equals the number of protons $\left(N=P\right),$ and the data fall on the red line. For large values of Z, the number of neutrons is greater than the number of protons $\left(N>P\right),$ and the data points fall above the red line. The number of neutrons is generally greater than the number of protons for $Z>15.$

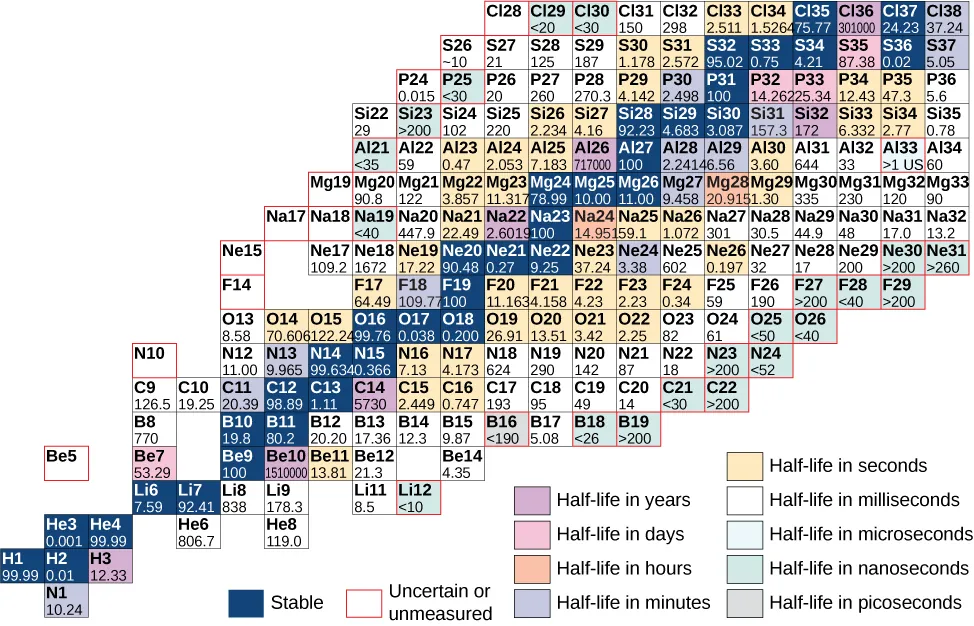

A chart based on this graph that provides more detailed information about each nucleus is given in Figure 10.4. This chart is called a chart of the nuclides. Each cell or tile represents a separate nucleus. The nuclei in this chart are arranged in order of ascending *N* (along the horizontal direction) and ascending *Z* (along the vertical direction).

Atoms that contain nuclei with the same number of protons (*Z*) and different numbers of neutrons (*N*) are called isotopes. For example, hydrogen has three isotopes: normal hydrogen (1 proton, no neutrons), deuterium (one proton and one neutron), and tritium (one proton and two neutrons). Isotopes of a given atom share the same chemical properties, since these properties are determined by interactions between the outer electrons of the atom, and not the nucleons. For example, water that contains deuterium rather than hydrogen (“heavy water”) looks and tastes like normal water. The following table shows a list of common isotopes.

Element | Symbol | Mass Number | Mass (Atomic Mass Units) | Percent Abundance* | Half-life** |
---|---|---|---|---|---|

Hydrogen | H | 1 | 1.0078 | 99.99 | stable |

${}^{2}\text{H}\phantom{\rule{0.2em}{0ex}}\text{or}\phantom{\rule{0.2em}{0ex}}\text{D}$ | 2 | 2.0141 | 0.01 | stable | |

${}^{3}\text{H}$ | 3 | 3.0160 | − | 12.32 y | |

Carbon | ${}^{12}\text{C}$ | 12 | 12.0000 | 98.91 | stable |

${}^{13}\text{C}$ | 13 | 13.0034 | 1.1 | stable | |

${}^{14}\text{C}$ | 14 | 14.0032 | − | 5730 y | |

Nitrogen | ${}^{14}\text{N}$ | 14 | 14.0031 | 99.6 | stable |

${}^{15}\text{N}$ | 15 | 15.0001 | 0.4 | stable | |

${}^{16}\text{N}$ | 16 | 16.0061 | − | 7.13 s | |

Oxygen | ${}^{16}\text{O}$ | 16 | 15.9949 | 99.76 | stable |

${}^{17}\text{O}$ | 17 | 16.9991 | 0.04 | stable | |

${}^{18}\text{O}$ | 18 | 17.9992 | 0.20 | stable | |

${}^{19}\text{O}$ | 19 | 19.0035 | − | 26.46 s |

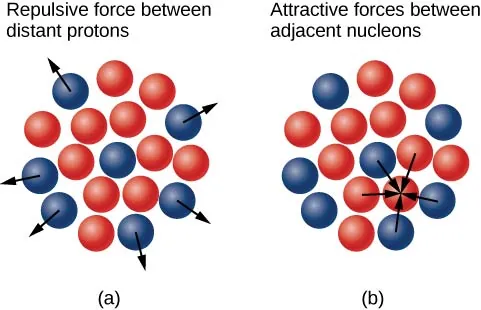

Why do neutrons outnumber protons in heavier nuclei (Figure 10.5)? The answer to this question requires an understanding of forces inside the nucleus. Two types of forces exist: (1) the long-range electrostatic (Coulomb) force that makes the positively charged protons repel one another; and (2) the short-range strong nuclear force that makes all nucleons in the nucleus attract one another. You may also have heard of a “weak” nuclear force. This force is responsible for some nuclear decays, but as the name implies, it does not play a role in stabilizing the nucleus against the strong Coulomb repulsion it experiences. We discuss strong nuclear force in more detail in the next chapter when we cover particle physics. Nuclear stability occurs when the attractive forces between nucleons compensate for the repulsive, long-range electrostatic forces between all protons in the nucleus. For heavy nuclei $\left(Z>15\right),$ excess neutrons are necessary to keep the electrostatic interactions from breaking the nucleus apart, as shown in Figure 10.3.

Detailed examination reveals greater stability and more attractive nuclear forces when when neutrons and protons are in pairs. German-born physicist Maria Goeppert-Mayer identified these characteristics based on certain quantities of nucleons, leading to her development of nuclear shell theory. Goeppert Mayer and other researchers recognized that "closed" nuclear shells are more stable than others. The theory has been very successful in explaining nuclear energy levels, nuclear decay, and the greater stability of nuclei with closed shells. Along with Johannes Jensen and Eugene Wigner, Maria Goeppert Mayer received the Nobel Prize for this work, becoming the second woman to win the award.

Because of the existence of stable isotopes, we must take special care when quoting the mass of an element. For example, Copper (Cu) has two stable isotopes:

Given these two “versions” of Cu, what is the mass of this element? The atomic mass of an element is defined as the weighted average of the masses of its isotopes. Thus, the atomic mass of Cu is ${m}_{\text{Cu}}=\left(62.929595\right)\left(0.6909\right)\phantom{\rule{0.2em}{0ex}}+\phantom{\rule{0.2em}{0ex}}\left(64.927786\right)\left(0.3091\right)=63.55\phantom{\rule{0.2em}{0ex}}\text{g/mol}.$ The mass of an individual nucleus is often expressed in atomic mass unit**s** (u), where $\text{u}=1.66054\phantom{\rule{0.2em}{0ex}}\times \phantom{\rule{0.2em}{0ex}}{10}^{\mathrm{-27}}\text{kg}$. (An atomic mass unit is defined as 1/12th the mass of a ${}^{12}\text{C}$ nucleus.) In atomic mass units, the mass of a helium nucleus (*A = 4*) is approximately 4 u. A helium nucleus is also called an alpha (*α*) particle.

### Nuclear Size

The simplest model of the nucleus is a densely packed sphere of nucleons. The volume *V* of the nucleus is therefore proportional to the number of nucleons *A*, expressed by

where *r* is the radius of a nucleus and *k* is a constant with units of volume. Solving for *r*, we have

where ${r}_{0}$ is a constant. For hydrogen ($A=1$), ${r}_{0}$ corresponds to the radius of a single proton. Scattering experiments support this general relationship for a wide range of nuclei, and they imply that neutrons have approximately the same radius as protons. The experimentally measured value for ${r}_{0}$ is approximately 1.2 femtometer (recall that $1\phantom{\rule{0.2em}{0ex}}\text{fm}={10}^{\mathrm{-15}}\text{m}$).

### Example 10.1

#### The Iron Nucleus

Find the radius (*r*) and approximate density ($\rho $) of a Fe-56 nucleus. Assume the mass of the Fe-56 nucleus is approximately 56 u.

#### Strategy

(a) Finding the radius of ${}^{56}\text{Fe}$ is a straightforward application of $r={r}_{0}{A}^{1\text{/}3}$, given $A=56.$ (b) To find the approximate density of this nucleus, assume the nucleus is spherical. Calculate its volume using the radius found in part (a), and then find its density from $\rho =m\text{/}V.$#### Solution

- The radius of a nucleus is given by
$$r={r}_{0}{A}^{1\text{/}3}.$$Substituting the values for ${r}_{0}$ and
*A*yields$$\begin{array}{cc}\hfill r& =\left(1.2\phantom{\rule{0.2em}{0ex}}\text{fm}\right){\left(56\right)}^{1\text{/}3}=\left(1.2\phantom{\rule{0.2em}{0ex}}\text{fm}\right)\left(3.83\right)\hfill \\ & =4.6\phantom{\rule{0.2em}{0ex}}\text{fm}.\hfill \end{array}$$ - Density is defined to be $\rho =m\text{/}V,$ which for a sphere of radius
*r*is$$\rho =\frac{m}{V}=\frac{m}{(4\text{/}3)\text{\pi}{r}^{3}}.$$Substituting known values gives$$\rho =\frac{56\phantom{\rule{0.2em}{0ex}}\text{u}}{(1.33)(3.14){(4.6\phantom{\rule{0.2em}{0ex}}\text{fm})}^{3}}=0.138\phantom{\rule{0.2em}{0ex}}{\text{u/fm}}^{3}.$$Converting to units of $\text{kg}\text{/}{\text{m}}^{3},$ we find$$\rho =(0.138\phantom{\rule{0.2em}{0ex}}{\text{u/fm}}^{3})(1.66\phantom{\rule{0.2em}{0ex}}\times \phantom{\rule{0.2em}{0ex}}{10}^{\mathrm{-27}}\phantom{\rule{0.2em}{0ex}}\text{kg/u})\left(\frac{1\phantom{\rule{0.2em}{0ex}}\text{fm}}{{10}^{\mathrm{-15}}\phantom{\rule{0.2em}{0ex}}\text{m}}\right)=2.3\phantom{\rule{0.2em}{0ex}}\times \phantom{\rule{0.2em}{0ex}}{10}^{17}\phantom{\rule{0.2em}{0ex}}{\text{kg/m}}^{3}.$$

#### Significance

- The radius of the Fe-56 nucleus is found to be approximately 5 fm, so its diameter is about 10 fm, or ${10}^{\mathrm{-14}}\text{m}.$ In previous discussions of Rutherford’s scattering experiments, a light nucleus was estimated to be ${10}^{\mathrm{-15}}\text{m}$ in diameter. Therefore, the result shown for a mid-sized nucleus is reasonable.
- The density found here may seem incredible. However, it is consistent with earlier comments about the nucleus containing nearly all of the mass of the atom in a tiny region of space. One cubic meter of nuclear matter has the same mass as a cube of water 61 km on each side.

### Check Your Understanding 10.1

Nucleus X is two times larger than nucleus Y. What is the ratio of their atomic masses?
