Learning Objectives

By the end of this section, you will be able to:
  • Define the concept of flux
  • Describe electric flux
  • Calculate electric flux for a given situation

The concept of flux describes how much of something goes through a given area. More formally, it is the dot product of a vector field (in this chapter, the electric field) with an area. You may conceptualize the flux of an electric field as a measure of the number of electric field lines passing through an area (Figure 6.3). The larger the area, the more field lines go through it and, hence, the greater the flux; similarly, the stronger the electric field is (represented by a greater density of lines), the greater the flux. On the other hand, if the area rotated so that the plane is aligned with the field lines, none will pass through and there will be no flux.

Figure shows a shaded area in the center. Several arrows pointing right are shown behind, in front of and passing through the shaded area. These are labeled electric field.

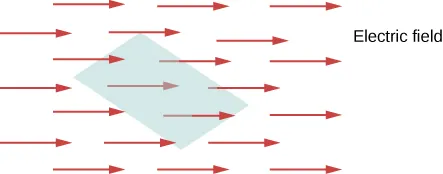

Figure 6.3 The flux of an electric field through the shaded area captures information about the “number” of electric field lines passing through the area. The numerical value of the electric flux depends on the magnitudes of the electric field and the area, as well as the relative orientation of the area with respect to the direction of the electric field.

A macroscopic analogy that might help you imagine this is to put a hula hoop in a flowing river. As you change the angle of the hoop relative to the direction of the current, more or less of the flow will go through the hoop. Similarly, the amount of flow through the hoop depends on the strength of the current and the size of the hoop. Again, flux is a general concept; we can also use it to describe the amount of sunlight hitting a solar panel or the amount of energy a telescope receives from a distant star, for example.

To quantify this idea, Figure 6.4(a) shows a planar surface S1S1 of area A1A1 that is perpendicular to the uniform electric field E=Ey^.E=Ey^. If N field lines pass through S1S1, then we know from the definition of electric field lines (Electric Charges and Fields) that N/A1E,N/A1E, or NEA1.NEA1.

The quantity EA1EA1 is the electric flux through S1S1. We represent the electric flux through an open surface like S1S1 by the symbol ΦΦ. Electric flux is a scalar quantity and has an SI unit of newton-meters squared per coulomb (N·m2/CN·m2/C). Notice that NEA1NEA1 may also be written as NΦNΦ, demonstrating that electric flux is a measure of the number of field lines crossing a surface.

Figure a shows a rectangular shaded area in the xz plane. This is labeled S1. There are three arrows labeled E passing through S1. They are parallel to the y axis and point along the positive y axis.  Figure b, too has plane S1 and arrows E. Another plane, labeled S2 forms an angle theta with plane S1. Their line of intersection is parallel to the x axis. An arrow labeled n hat 2 forms an angle theta with E.

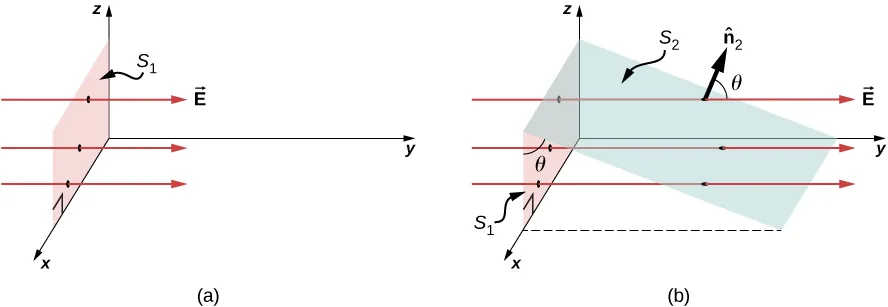

Figure 6.4 (a) A planar surface S1S1 of area A1A1 is perpendicular to the electric field Ej^Ej^. N field lines cross surface S1S1. (b) A surface S2S2 of area A2A2 whose projection onto the xz-plane is S1S1.The same number of field lines cross each surface.

Now consider a planar surface that is not perpendicular to the field. How would we represent the electric flux? Figure 6.4(b) shows a surface S2S2 of area A2A2 that is inclined at an angle θθ to the xz-plane and whose projection in that plane is S1S1 (area A1A1). The areas are related by A2cosθ=A1.A2cosθ=A1. Because the same number of field lines crosses both S1S1 and S2S2, the fluxes through both surfaces must be the same. The flux through S2S2 is therefore Φ=EA1=EA2cosθ.Φ=EA1=EA2cosθ. Designating n^2n^2 as a unit vector normal to S2S2 (see Figure 6.4(b)), we obtain

Φ=E·n^2A2.Φ=E·n^2A2.

Interactive

Check out this video to observe what happens to the flux as the area changes in size and angle, or the electric field changes in strength.

Area Vector

For discussing the flux of a vector field, it is helpful to introduce an area vector A.A. This allows us to write the last equation in a more compact form. What should the magnitude of the area vector be? What should the direction of the area vector be? What are the implications of how you answer the previous question?

The area vector of a flat surface of area A has the following magnitude and direction:

  • Magnitude is equal to area (A)
  • Direction is along the normal to the surface (n^n^); that is, perpendicular to the surface.

Since the normal to a flat surface can point in either direction from the surface, the direction of the area vector of an open surface needs to be chosen, as shown in Figure 6.5.

Figure shows two horizontal planes labeled A. The first has two arrows pointing up from the plane. The longer is labeled vector A and the shorter is labeled n hat. The second plane has the same two arrows pointing down from the plane.

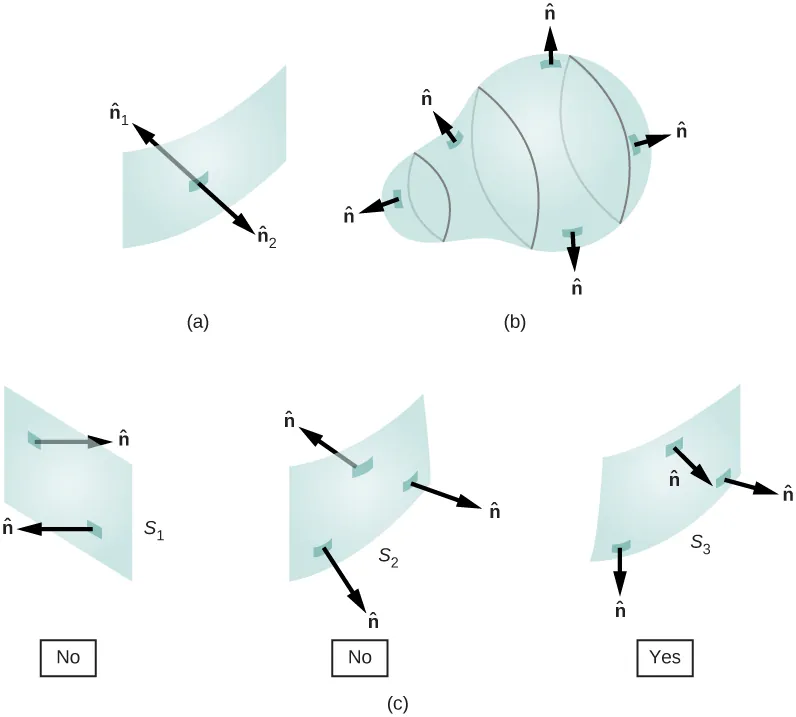

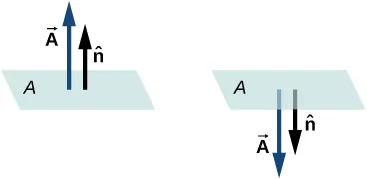

Figure 6.5 The direction of the area vector of an open surface needs to be chosen; it could be either of the two cases displayed here. The area vector of a part of a closed surface is defined to point from the inside of the closed space to the outside. This rule gives a unique direction.

Since n^n^ is a unit normal to a surface, it has two possible directions at every point on that surface (Figure 6.6(a)). For an open surface, we can use either direction, as long as we are consistent over the entire surface. Part (c) of the figure shows several cases.

Figure a shows a curved rectangular surface. Two arrows originate from a point at its center and point in opposite directions. They are both perpendicular to the surface. They are labeled n hat 1 and n hat 2. Figure b shows a 3 dimensional surface shaped somewhat like a light bulb. There are five arrows labeled n hat, which originate from various points on the surface and point outward, perpendicular to the surface. Figure c shows three rectangular surfaces labeled S1, S2 and S3. Two arrows labeled n hat are perpendicular to S1 and point in opposite directions. Three arrows labeled n hat are perpendicular to S2, one pointing in a direction opposite to the other two. There are three arrows perpendicular to S3. All point outward from the same side of the surface.
Figure 6.6 (a) Two potential normal vectors arise at every point on a surface. (b) The outward normal is used to calculate the flux through a closed surface. (c) Only S3S3 has been given a consistent set of normal vectors that allows us to define the flux through the surface.

However, if a surface is closed, then the surface encloses a volume. In that case, the direction of the normal vector at any point on the surface points from the inside to the outside. On a closed surface such as that of Figure 6.6(b), n^n^ is chosen to be the outward normal at every point, to be consistent with the sign convention for electric charge.

Electric Flux

Now that we have defined the area vector of a surface, we can define the electric flux of a uniform electric field through a flat area as the scalar product of the electric field and the area vector, as defined in Products of Vectors:

Φ=E·A(uniformE,flat surface).Φ=E·A(uniformE,flat surface).
(6.1)

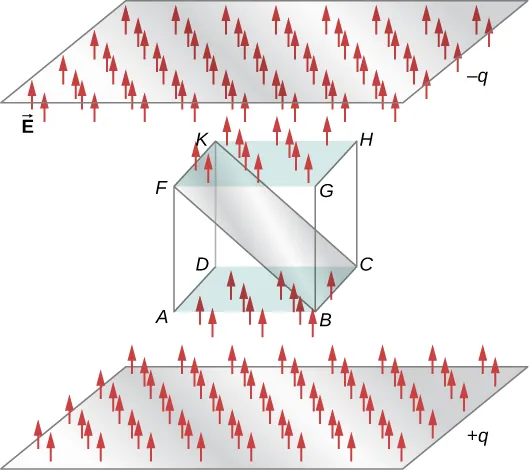

Figure 6.7 shows the electric field of an oppositely charged, parallel-plate system and an imaginary box between the plates. The electric field between the plates is uniform and points from the positive plate toward the negative plate. A calculation of the flux of this field through various faces of the box shows that the net flux through the box is zero. Why does the flux cancel out here?

A cube ABCDKFGH is shown in the center. A diagonal plane is shown within it from KF to BC. The top surface of the cube, FGHK has a plane labeled minus q slightly above it and parallel to it. Similarly, another plane is labeled plus q is shown slightly below the bottom surface of the cube, parallel to it. Small red arrows are shown pointing upwards from the bottom plane, pointing up to the bottom surface of the cube, pointing up from the top surface of the cube and pointing up to the top plane. These are labeled vector E.
Figure 6.7 Electric flux through a cube, placed between two charged plates. Electric flux through the bottom face (ABCD) is negative, because EE is in the opposite direction to the normal to the surface. The electric flux through the top face (FGHK) is positive, because the electric field and the normal are in the same direction. The electric flux through the other faces is zero, since the electric field is perpendicular to the normal vectors of those faces. The net electric flux through the cube is the sum of fluxes through the six faces. Here, the net flux through the cube is equal to zero. The magnitude of the flux through rectangle BCKF is equal to the magnitudes of the flux through both the top and bottom faces.

The reason is that the sources of the electric field are outside the box. Therefore, if any electric field line enters the volume of the box, it must also exit somewhere on the surface because there is no charge inside for the lines to land on. Therefore, quite generally, electric flux through a closed surface is zero if there are no sources of electric field, whether positive or negative charges, inside the enclosed volume. In general, when field lines leave (or “flow out of”) a closed surface, ΦΦ is positive; when they enter (or “flow into”) the surface, ΦΦ is negative.

Any smooth, non-flat surface can be replaced by a collection of tiny, approximately flat surfaces, as shown in Figure 6.8. If we divide a surface S into small patches, then we notice that, as the patches become smaller, they can be approximated by flat surfaces. This is similar to the way we treat the surface of Earth as locally flat, even though we know that globally, it is approximately spherical.

Figure shows a wavy surface labeled S. Three arrows labeled n hat originate from three different patches on the surface. Longer arrows labeled vector E also originate from each patch. An enlarged view of one patch is shown on the side. It shows n hat to be perpendicular to the patch.

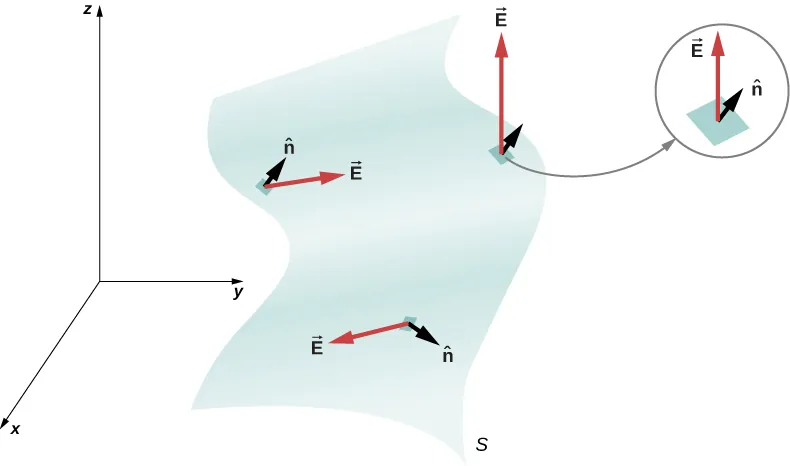

Figure 6.8 A surface is divided into patches to find the flux.

To keep track of the patches, we can number them from 1 through N . Now, we define the area vector for each patch as the area of the patch pointed in the direction of the normal. Let us denote the area vector for the ith patch by δAi.δAi. (We have used the symbol δδ to remind us that the area is of an arbitrarily small patch.) With sufficiently small patches, we may approximate the electric field over any given patch as uniform. Let us denote the average electric field at the location of the ith patch by Ei.Ei.

Ei=average electric field over theith patch.Ei=average electric field over theith patch.

Therefore, we can write the electric flux ΦiΦi through the area of the ith patch as

Φi=Ei·δAi(ith patch).Φi=Ei·δAi(ith patch).

The flux through each of the individual patches can be constructed in this manner and then added to give us an estimate of the net flux through the entire surface S, which we denote simply as ΦΦ.

Φ=i=1NΦi=i=1NEi·δAi(Npatch estimate).Φ=i=1NΦi=i=1NEi·δAi(Npatch estimate).

This estimate of the flux gets better as we decrease the size of the patches. However, when you use smaller patches, you need more of them to cover the same surface. In the limit of infinitesimally small patches, they may be considered to have area dA and unit normal n^n^. Since the elements are infinitesimal, they may be assumed to be planar, and EiEi may be taken as constant over any element. Then the flux dΦdΦ through an area dA is given by dΦ=E·n^dA.dΦ=E·n^dA. It is positive when the angle between EiEi and n^n^ is less than 90°90° and negative when the angle is greater than 90°90°. The net flux is the sum of the infinitesimal flux elements over the entire surface. With infinitesimally small patches, you need infinitely many patches, and the limit of the sum becomes a surface integral. With SS representing the integral over S,

Φ=SE·n^dA=SE·dA(open surface).Φ=SE·n^dA=SE·dA(open surface).
(6.2)

In practical terms, surface integrals are computed by taking the antiderivatives of both dimensions defining the area, with the edges of the surface in question being the bounds of the integral.

To distinguish between the flux through an open surface like that of Figure 6.4 and the flux through a closed surface (one that completely bounds some volume), we represent flux through a closed surface by

Φ=SE·n^dA=SE·dA(closed surface)Φ=SE·n^dA=SE·dA(closed surface)
(6.3)

where the circle through the integral symbol simply means that the surface is closed, and we are integrating over the entire thing. If you only integrate over a portion of a closed surface, that means you are treating a subset of it as an open surface.

Example 6.1

Flux of a Uniform Electric Field A constant electric field of magnitude E0E0 points in the direction of the positive z-axis (Figure 6.9). What is the electric flux through a rectangle with sides a and b in the (a) xy-plane and in the (b) xz-plane?

A rectangular patch is shown in the xy plane. Its side along the x axis is of length a and its side along the y axis is of length b. Arrows labeled E subscript 0 originate from the plane and point in the positive z direction.

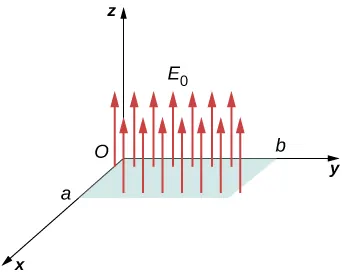

Figure 6.9 Calculating the flux of E0E0 through a rectangular surface.

Strategy Apply the definition of flux: Φ=E·A(uniformE)Φ=E·A(uniformE), where the definition of dot product is crucial.

Solution

  1. In this case, Φ=E0·A=E0A=E0ab.Φ=E0·A=E0A=E0ab.
  2. Here, the direction of the area vector is either along the positive y-axis or toward the negative y-axis. Therefore, the scalar product of the electric field with the area vector is zero, giving zero flux.

Significance The relative directions of the electric field and area can cause the flux through the area to be zero.

Example 6.2

Flux of a Uniform Electric Field through a Closed Surface A constant electric field of magnitude E0E0 points in the direction of the positive z-axis (Figure 6.10). What is the net electric flux through a cube?

A cube ABCDKFGH is shown in the center. A diagonal plane is shown within it from KF to BC. The top surface of the cube, FGHK has a plane labeled minus q slightly above it and parallel to it. Similarly, another plane is labeled plus q is shown slightly below the bottom surface of the cube, parallel to it. Small red arrows are shown pointing upwards from the bottom plane, pointing up to the bottom surface of the cube, pointing up from the top surface of the cube and pointing up to the top plane. These are labeled vector E.
Figure 6.10 Calculating the flux of E0E0 through a closed cubic surface.

Strategy Apply the definition of flux: Φ=E·A(uniformE)Φ=E·A(uniformE), noting that a closed surface eliminates the ambiguity in the direction of the area vector.

Solution Through the top face of the cube, Φ=E0·A=E0A.Φ=E0·A=E0A.

Through the bottom face of the cube, Φ=E0·A=E0A,Φ=E0·A=E0A, because the area vector here points downward.

Along the other four sides, the direction of the area vector is perpendicular to the direction of the electric field. Therefore, the scalar product of the electric field with the area vector is zero, giving zero flux.

The net flux is Φnet=E0AE0A+0+0+0+0=0Φnet=E0AE0A+0+0+0+0=0.

Significance The net flux of a uniform electric field through a closed surface is zero.

Example 6.3

Electric Flux through a Plane, Integral Method A uniform electric field EE of magnitude 10 N/C is directed parallel to the yz-plane at 30°30° above the xy-plane, as shown in Figure 6.11. What is the electric flux through the plane surface of area 6.0m26.0m2 located in the xz-plane? Assume that n^n^ points in the positive y-direction.

A rectangular surface S is shown in the xz plane. Three arrows labeled n hat originate from three points on the surface and point in the positive y direction. Three longer arrows labeled vector E also originate from the same points. They make an angle of 30 degrees with n hat.
Figure 6.11 The electric field produces a net electric flux through the surface S.

Strategy Apply Φ=SE·n^dAΦ=SE·n^dA, where the direction and magnitude of the electric field are constant.

Solution The angle between the uniform electric field EE and the unit normal n^n^ to the planar surface is 30°30°. Since both the direction and magnitude are constant, E comes outside the integral. All that is left is a surface integral over dA, which is A. Therefore, using the open-surface equation, we find that the electric flux through the surface is

Φ=SE·n^dA=EAcosθ=(10N/C)(6.0m2)(cos30°)=52N·m2/C.Φ=SE·n^dA=EAcosθ=(10N/C)(6.0m2)(cos30°)=52N·m2/C.

Significance Again, the relative directions of the field and the area matter, and the general equation with the integral will simplify to the simple dot product of area and electric field.

Check Your Understanding 6.1

What angle should there be between the electric field and the surface shown in Figure 6.11 in the previous example so that no electric flux passes through the surface?

Example 6.4

Inhomogeneous Electric Field What is the total flux of the electric field E=cy2k^E=cy2k^ through the rectangular surface shown in Figure 6.12?

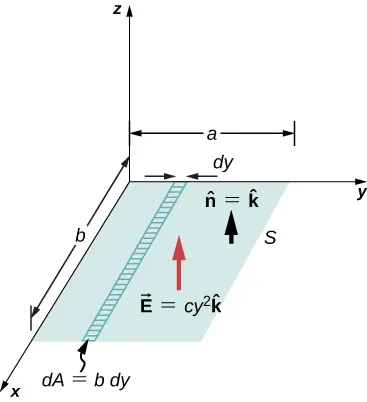

A rectangle labeled S is shown in the xy plane. Its side along y axis is of length a and that along the x axis measures b. A strip is marked on the rectangle, with its length parallel to x axis. Its length is b and its breadth is dy. Its area is labeled dA equal to b dy. Two arrows are shown perpendicular to S, n hat equal to k hat and vector E equal to cy squared k hat. These point in the positive z direction.
Figure 6.12 Since the electric field is not constant over the surface, an integration is necessary to determine the flux.

Strategy Apply Φ=SE·n^dAΦ=SE·n^dA. We assume that the unit normal n^n^ to the given surface points in the positive z-direction, so n^=k^.n^=k^. Since the electric field is not uniform over the surface, it is necessary to divide the surface into infinitesimal strips along which EE is essentially constant. As shown in Figure 6.12, these strips are parallel to the x-axis, and each strip has an area dA=bdy.dA=bdy.

Solution From the open surface integral, we find that the net flux through the rectangular surface is

Φ=SE·n^dA=0a(cy2k^)·k^(bdy)=cb0ay2dy=13a3bc.Φ=SE·n^dA=0a(cy2k^)·k^(bdy)=cb0ay2dy=13a3bc.

Significance For a non-constant electric field, the integral method is required.

Check Your Understanding 6.2

If the electric field in Example 6.4 is E=mxk^,E=mxk^, what is the flux through the rectangular area?

Citation/Attribution

Want to cite, share, or modify this book? This book is Creative Commons Attribution License 4.0 and you must attribute OpenStax.

Attribution information
  • If you are redistributing all or part of this book in a print format, then you must include on every physical page the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-2/pages/1-introduction
  • If you are redistributing all or part of this book in a digital format, then you must include on every digital page view the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-2/pages/1-introduction
Citation information

© Oct 6, 2016 OpenStax. Textbook content produced by OpenStax is licensed under a Creative Commons Attribution License 4.0 license. The OpenStax name, OpenStax logo, OpenStax book covers, OpenStax CNX name, and OpenStax CNX logo are not subject to the Creative Commons license and may not be reproduced without the prior and express written consent of Rice University.
