Learning Objectives

By the end of this section you will be able to:

  • Describe the meaning of entropy
  • Calculate the change of entropy for some simple processes

The second law of thermodynamics is best expressed in terms of a change in the thermodynamic variable known as entropy, which is represented by the symbol S. Entropy, like internal energy, is a state function. This means that when a system makes a transition from one state into another, the change in entropy ΔSΔS is independent of path and depends only on the thermodynamic variables of the two states.

We first consider ΔSΔS for a system undergoing a reversible process at a constant temperature. In this case, the change in entropy of the system is given by

ΔS=QT,ΔS=QT,
4.8

where Q is the heat exchanged by the system kept at a temperature T (in kelvin). If the system absorbs heat—that is, with Q>0Q>0—the entropy of the system increases. As an example, suppose a gas is kept at a constant temperature of 300 K while it absorbs 10 J of heat in a reversible process. Then from Equation 4.8, the entropy change of the gas is

ΔS=10J300K=0.033J/K.ΔS=10J300K=0.033J/K.

Similarly, if the gas loses 5.0 J of heat; that is, Q=−5.0JQ=−5.0J, at temperature T=200KT=200K, we have the entropy change of the system given by

ΔS=−5.0J200K=−0.025J/K.ΔS=−5.0J200K=−0.025J/K.

Example 4.4

Entropy Change of Melting Ice

Heat is slowly added to a 50-g chunk of ice at 0°C0°C until it completely melts into water at the same temperature. What is the entropy change of the ice?

Strategy

Because the process is slow, we can approximate it as a reversible process. The temperature is a constant, and we can therefore use Equation 4.8 in the calculation.

Solution

The ice is melted by the addition of heat:
Q=mLf=50g×335J/g=16.8kJ.Q=mLf=50g×335J/g=16.8kJ.

In this reversible process, the temperature of the ice-water mixture is fixed at 0°C0°C or 273 K. Now from ΔS=Q/TΔS=Q/T, the entropy change of the ice is

ΔS=16.8kJ273K=61.5J/KΔS=16.8kJ273K=61.5J/K

when it melts to water at 0°C0°C.

Significance

During a phase change, the temperature is constant, allowing us to use Equation 4.8 to solve this problem. The same equation could also be used if we changed from a liquid to a gas phase, since the temperature does not change during that process either.

The change in entropy of a system for an arbitrary, reversible transition for which the temperature is not necessarily constant is defined by modifying ΔS=Q/TΔS=Q/T. Imagine a system making a transition from state A to B in small, discrete steps. The temperatures associated with these states are TATA and TB,TB, respectively. During each step of the transition, the system exchanges heat ΔQiΔQi reversibly at a temperature Ti.Ti. This can be accomplished experimentally by placing the system in thermal contact with a large number of heat reservoirs of varying temperatures TiTi, as illustrated in Figure 4.15. The change in entropy for each step is ΔSi=Qi/Ti.ΔSi=Qi/Ti. The net change in entropy of the system for the transition is

ΔS=SBSA=iΔSi=iΔQiTi.ΔS=SBSA=iΔSi=iΔQiTi.
4.9

We now take the limit as ΔQi0ΔQi0, and the number of steps approaches infinity. Then, replacing the summation by an integral, we obtain

ΔS=SBSA=ABdQT,ΔS=SBSA=ABdQT,
4.10

where the integral is taken between the initial state A and the final state B. This equation is valid only if the transition from A to B is reversible.

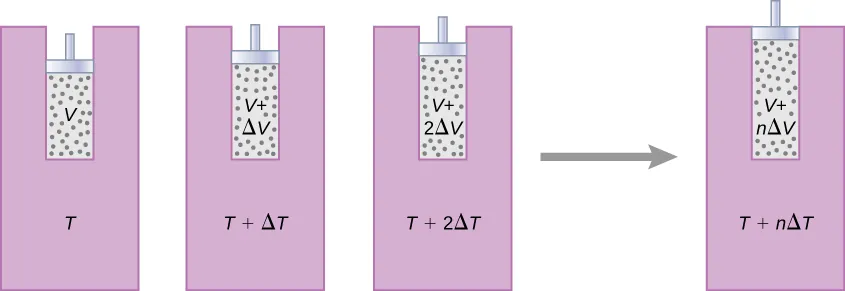

The figure shows four heat reservoirs. The first reservoir at temperature T has gas with volume V, the second reservoir at T plus delta T has gas V plus delta V, the third reservoir at T plus 2 delta T has gas V plus 2 delta V and the final reservoir at T plus n delta T has gas at V plus n delta V.
Figure 4.15 The gas expands at constant pressure as its temperature is increased in small steps through the use of a series of heat reservoirs.

As an example, let us determine the net entropy change of a reversible engine while it undergoes a single Carnot cycle. In the adiabatic steps 2 and 4 of the cycle shown in Figure 4.11, no heat exchange takes place, so ΔS2=ΔS4=dQ/T=0.ΔS2=ΔS4=dQ/T=0. In step 1, the engine absorbs heat QhQh at a temperature Th,Th, so its entropy change is ΔS1=Qh/Th.ΔS1=Qh/Th. Similarly, in step 3, ΔS3=Qc/Tc.ΔS3=Qc/Tc. The net entropy change of the engine in one cycle of operation is then

ΔSE=ΔS1+ΔS2+ΔS3+ΔS4=QhThQcTc.ΔSE=ΔS1+ΔS2+ΔS3+ΔS4=QhThQcTc.

However, we know that for a Carnot engine,

QhTh=QcTc,QhTh=QcTc,

so

ΔSE=0.ΔSE=0.

There is no net change in the entropy of the Carnot engine over a complete cycle. Although this result was obtained for a particular case, its validity can be shown to be far more general: There is no net change in the entropy of a system undergoing any complete reversible cyclic process. Mathematically, we write this statement as

dS=dQT=0dS=dQT=0
4.11

where represents the integral over a closed reversible path.

We can use Equation 4.11 to show that the entropy change of a system undergoing a reversible process between two given states is path independent. An arbitrary, closed path for a reversible cycle that passes through the states A and B is shown in Figure 4.16. From Equation 4.11, dS=0dS=0 for this closed path. We may split this integral into two segments, one along I, which leads from A to B, the other along II, which leads from B to A. Then

[ABdS]I+[BAdS]II=0.[ABdS]I+[BAdS]II=0.

Since the process is reversible,

[ABdS]I=[ABdS]II.[ABdS]I=[ABdS]II.

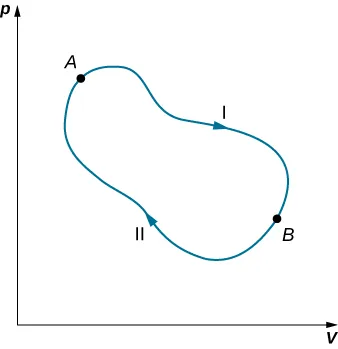

The figure shows a a pear shaped closed loop graph with x-axis V and y-axis p.
Figure 4.16 The closed loop passing through states A and B represents a reversible cycle.

Hence, the entropy change in going from A to B is the same for paths I and II. Since paths I and II are arbitrary, reversible paths, the entropy change in a transition between two equilibrium states is the same for all the reversible processes joining these states. Entropy, like internal energy, is therefore a state function.

What happens if the process is irreversible? When the process is irreversible, we expect the entropy of a closed system, or the system and its environment (the universe), to increase. Therefore we can rewrite this expression as

ΔS0,ΔS0,
4.12

where S is the total entropy of the closed system or the entire universe, and the equal sign is for a reversible process. The fact is the entropy statement of the second law of thermodynamics:

Second Law of Thermodynamics (Entropy statement)

The entropy of a closed system and the entire universe never decreases.

We can show that this statement is consistent with the Kelvin statement, the Clausius statement, and the Carnot principle.

Example 4.5

Entropy Change of a System during an Isobaric Process

Determine the entropy change of an object of mass m and specific heat c that is cooled rapidly (and irreversibly) at constant pressure from ThTh to Tc.Tc.

Strategy

The process is clearly stated as an irreversible process; therefore, we cannot simply calculate the entropy change from the actual process. However, because entropy of a system is a function of state, we can imagine a reversible process that starts from the same initial state and ends at the given final state. Then, the entropy change of the system is given by Equation 4.10, ΔS=ABdQ/T.ΔS=ABdQ/T.

Solution

To replace this rapid cooling with a process that proceeds reversibly, we imagine that the hot object is put into thermal contact with successively cooler heat reservoirs whose temperatures range from ThTh to Tc.Tc. Throughout the substitute transition, the object loses infinitesimal amounts of heat dQ, so we have
ΔS=ThTcdQT.ΔS=ThTcdQT.

From the definition of heat capacity, an infinitesimal exchange dQ for the object is related to its temperature change dT by

dQ=mcdT.dQ=mcdT.

Substituting this dQ into the expression for ΔSΔS, we obtain the entropy change of the object as it is cooled at constant pressure from ThtoTc:ThtoTc:

ΔS=ThTcmcdTT=mclnTcTh.ΔS=ThTcmcdTT=mclnTcTh.

Note that ΔS<0ΔS<0 here because Tc<Th.Tc<Th. In other words, the object has lost some entropy. But if we count whatever is used to remove the heat from the object, we would still end up with ΔSuniverse>0ΔSuniverse>0 because the process is irreversible.

Significance

If the temperature changes during the heat flow, you must keep it inside the integral to solve for the change in entropy. If, however, the temperature is constant, you can simply calculate the entropy change as the heat flow divided by the temperature.

Example 4.6

Stirling Engine

The steps of a Stirling engine are as follows. For this problem, we will use 0.0010 mol of a monatomic gas that starts at a temperature of 133°C133°C and a volume of 0.10m30.10m3, which will be called point A. Then it goes through the following steps:
  1. Step AB: isothermal expansion at 133°C133°C from 0.10m30.10m3 to 0.20m30.20m3
  2. Step BC: isochoric cooling to 33°C33°C
  3. Step CD: isothermal compression at 33°C33°C from 0.20m30.20m3 to 0.10m30.10m3
  4. Step DA: isochoric heating back to 133°C133°C and 0.10m30.10m3

(a) Draw the pV diagram for the Stirling engine with proper labels.

(b) Fill in the following table.

Step W (J) Q (J) ΔSΔS (J/K)
Step AB
Step BC
Step CD
Step DA
Complete cycle

(c) How does the efficiency of the Stirling engine compare to the Carnot engine working within the same two heat reservoirs?

Strategy

Using the ideal gas law, calculate the pressure at each point so that they can be labeled on the pV diagram. Isothermal work is calculated using W=nRTln(V2V1),W=nRTln(V2V1), and an isochoric process has no work done. The heat flow is calculated from the first law of thermodynamics, Q=ΔEintWQ=ΔEintW where ΔEint=32nRΔTΔEint=32nRΔT for monatomic gasses. Isothermal steps have a change in entropy of Q/T, whereas isochoric steps have ΔS=32nRln(T2T1).ΔS=32nRln(T2T1). The efficiency of a heat engine is calculated by using eStir=W/Qh.eStir=W/Qh.

Solution

  1. The graph is shown below.

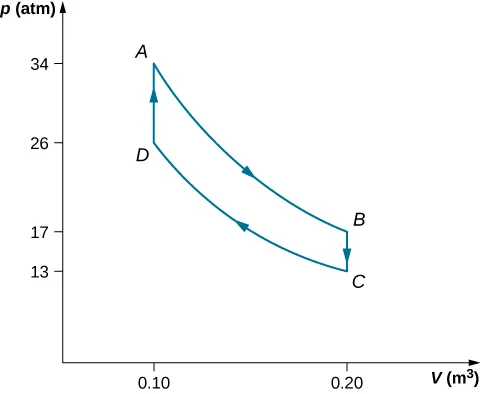

    The figure shows a graph with x-axis V in m superscript 3 and y-axis p in atm. The four points A (0.10, 26), B (0.20, 17), C (0.20, 13) and D (0.10, 26) are connected to form a closed loop.
  2. The completed table is shown below.
    Step W (J) Q (J) ΔSΔS (J/K)
    Step AB Isotherm 2.3 2.3 0.0057
    Step BC Isochoric 0 –1.2 –0.0035
    Step CD Isotherm –1.8 –1.8 –0.0057
    Step DA Isochoric 0 1.2 0.0035
    Complete cycle 0.5 0.5 ~ 0
  3. The efficiency of the Stirling heat engine is
    eStir=W/Qh=(QAB+QCD)/(QAB+QDA)=0.5/3.5=0.14.eStir=W/Qh=(QAB+QCD)/(QAB+QDA)=0.5/3.5=0.14.

If this were a Carnot engine operating between the same heat reservoirs, its efficiency would be

eCar=1(TcTh)=0.25.eCar=1(TcTh)=0.25.

Therefore, the Carnot engine would have a greater efficiency than the Stirling engine.

Significance

We have noted that all reversible engines operating between the same two reservoirs have the same efficiency. Since we found that the Stirling engine has a lower efficiency than the Carnot cycle, it must not be a reversible engine, and this is indeed the case. The isochoric steps are not reversible unless a regenerator is used to capture and reclaim the heat during these steps. With a perfect regenerator, the efficiency of the ideal Stirling engine would be the same as that of the Carnot engine.

In the early days of steam engines, accidents would occur due to the high pressure of the steam in the boiler. Robert Stirling developed an engine in 1816 that did not use steam and therefore was safer. The Stirling engine was commonly used in the nineteenth century, but developments in steam and internal combustion engines have made it difficult to broaden the use of the Stirling engine.

The Stirling engine uses compressed air as the working substance, which passes back and forth between two chambers with a porous plug, called the regenerator, which is made of material that does not conduct heat as well. In two of the steps, pistons in the two chambers move in phase.
