Learning Objectives

By the end of this section, you will be able to:
  • Determine the magnitude of an induced emf in a wire moving at a constant speed through a magnetic field
  • Discuss examples that use motional emf, such as a rail gun and a tethered satellite

Magnetic flux depends on three factors: the strength of the magnetic field, the area through which the field lines pass, and the orientation of the field with the surface area. If any of these quantities varies, a corresponding variation in magnetic flux occurs. So far, we’ve only considered flux changes due to a changing field. Now we look at another possibility: a changing area through which the field lines pass including a change in the orientation of the area.

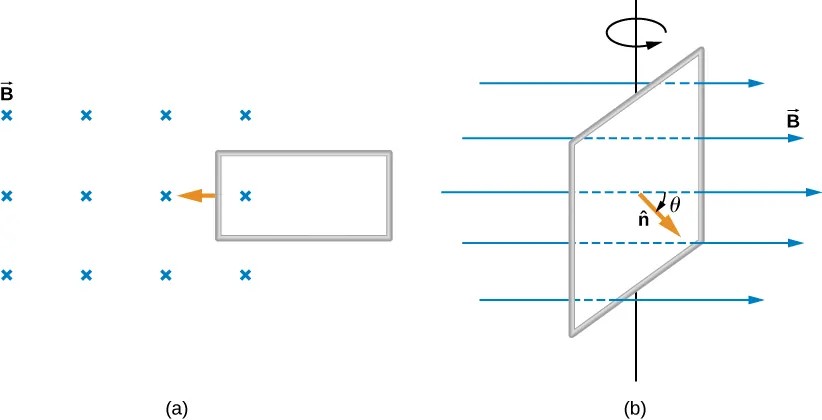

Two examples of this type of flux change are represented in Figure 13.11. In part (a), the flux through the rectangular loop increases as it moves into the magnetic field, and in part (b), the flux through the rotating coil varies with the angle θθ.

Figure A shows a rectangular loop moving into a perpendicular magnetic field. Figure B shows a square loop rotating in a magnetic field.
Figure 13.11 (a) Magnetic flux changes as a loop moves into a magnetic field; (b) magnetic flux changes as a loop rotates in a magnetic field.

It’s interesting to note that what we perceive as the cause of a particular flux change actually depends on the frame of reference we choose. For example, if you are at rest relative to the moving coils of Figure 13.11, you would see the flux vary because of a changing magnetic field—in part (a), the field moves from left to right in your reference frame, and in part (b), the field is rotating. It is often possible to describe a flux change through a coil that is moving in one particular reference frame in terms of a changing magnetic field in a second frame, where the coil is stationary. However, reference-frame questions related to magnetic flux are beyond the level of this textbook. We’ll avoid such complexities by always working in a frame at rest relative to the laboratory and explain flux variations as due to either a changing field or a changing area.

Now let’s look at a conducting rod pulled in a circuit, changing magnetic flux. The area enclosed by the circuit ‘MNOP’ of Figure 13.12 is lx and is perpendicular to the magnetic field, so we can simplify the integration of Equation 13.1 into a multiplication of magnetic field and area. The magnetic flux through the open surface is therefore

Φm=Blx.Φm=Blx.
(13.4)

Since B and l are constant and the velocity of the rod is v=dx/dt,v=dx/dt, we can now restate Faraday’s law, Equation 13.2, for the magnitude of the emf in terms of the moving conducting rod as

ε=dΦmdt=Bldxdt=Blv.ε=dΦmdt=Bldxdt=Blv.
(13.5)

The current induced in the circuit is the emf divided by the resistance or

I=BlvR.I=BlvR.

Furthermore, the direction of the induced emf satisfies Lenz’s law, as you can verify by inspection of the figure.

This calculation of motionally induced emf is not restricted to a rod moving on conducting rails. With F=qv×BF=qv×B as the starting point, it can be shown that ε=dΦm/dtε=dΦm/dt holds for any change in flux caused by the motion of a conductor. We saw in Faraday’s Law that the emf induced by a time-varying magnetic field obeys this same relationship, which is Faraday’s law. Thus Faraday’s law holds for all flux changes, whether they are produced by a changing magnetic field, by motion, or by a combination of the two.

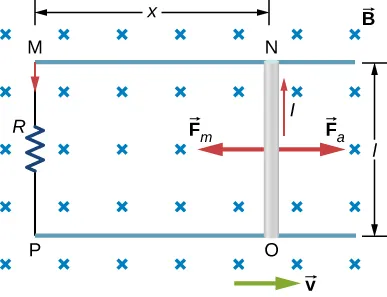

Figure shows a conducting rod that is pushed to the right through the perpendicular magnetic field at constant velocity. The resulting change in the magnetic flux induces a current in the circuit.
Figure 13.12 A conducting rod is pushed to the right at constant velocity. The resulting change in the magnetic flux induces a current in the circuit.

From an energy perspective, FaFa produces power Fav,Fav, and the resistor dissipates power I2RI2R. Since the rod is moving at constant velocity, the applied force FaFa must balance the magnetic force Fm=IlBFm=IlB on the rod when it is carrying the induced current I. Thus the power produced is

Fav=IlBv=BlvR·lBv=l2B2v2R.Fav=IlBv=BlvR·lBv=l2B2v2R.
(13.6)

The power dissipated is

P=I2R=(BlvR)2R=l2B2v2R.P=I2R=(BlvR)2R=l2B2v2R.
(13.7)

In satisfying the principle of energy conservation, the produced and dissipated powers are equal.

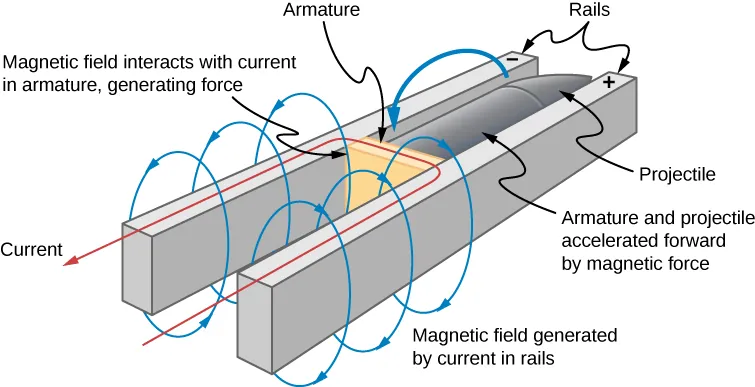

This principle can be seen in the operation of a rail gun. A rail gun is an electromagnetic projectile launcher that uses an apparatus similar to Figure 13.12 and is shown in schematic form in Figure 13.13. The conducting rod is replaced with a projectile or weapon to be fired. So far, we’ve only heard about how motion causes an emf. In a rail gun, the optimal shutting off/ramping down of a magnetic field decreases the flux in between the rails, causing a current to flow in the rod (armature) that holds the projectile. This current through the armature experiences a magnetic force and is propelled forward. Rail guns, however, are not used widely in the military due to the high cost of production and high currents: Nearly one million amps is required to produce enough energy for a rail gun to be an effective weapon.

Figure shows a schematic drawing of the rail gun. An armature is placed between two rails of opposite charge. Magnetic field is generated by currents in rails and interacts with the current in armature, generating the force.
Figure 13.13 Current through two rails drives a conductive projectile forward by the magnetic force created.

We can calculate a motionally induced emf with Faraday’s law even when an actual closed circuit is not present. We simply imagine an enclosed area whose boundary includes the moving conductor, calculate ΦmΦm, and then find the emf from Faraday’s law. For example, we can let the moving rod of Figure 13.14 be one side of the imaginary rectangular area represented by the dashed lines. The area of the rectangle is lx, so the magnetic flux through it is Φm=Blx.Φm=Blx. Differentiating this equation, we obtain

dΦmdt=Bldxdt=Blv,dΦmdt=Bldxdt=Blv,
(13.8)

which is identical to the potential difference between the ends of the rod that we determined earlier.

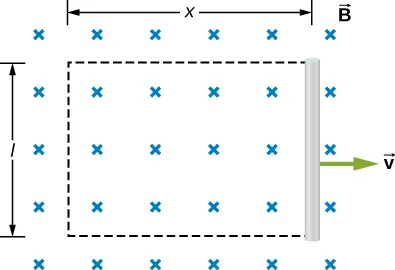

Figure shows a conducting rod of the length l that is pushed to the right for the distance x through the perpendicular magnetic field at constant velocity.
Figure 13.14 With the imaginary rectangle shown, we can use Faraday’s law to calculate the induced emf in the moving rod.

Motional emfs in Earth’s weak magnetic field are not ordinarily very large, or we would notice voltage along metal rods, such as a screwdriver, during ordinary motions. For example, a simple calculation of the motional emf of a 1.0-m rod moving at 3.0 m/s perpendicular to the Earth’s field gives

emf=Bv=(5.0×10−5T)(1.0m)(3.0m/s)=150μV.emf=Bv=(5.0×10−5T)(1.0m)(3.0m/s)=150μV.

This small value is consistent with experience. There is a spectacular exception, however. In 1992 and 1996, attempts were made with the space shuttle to create large motional emfs. The tethered satellite was to be let out on a 20-km length of wire, as shown in Figure 13.15, to create a 5-kV emf by moving at orbital speed through Earth’s field. This emf could be used to convert some of the shuttle’s kinetic and potential energy into electrical energy if a complete circuit could be made. To complete the circuit, the stationary ionosphere was to supply a return path through which current could flow. (The ionosphere is the rarefied and partially ionized atmosphere at orbital altitudes. It conducts because of the ionization. The ionosphere serves the same function as the stationary rails and connecting resistor in Figure 13.13, without which there would not be a complete circuit.) Drag on the current in the cable due to the magnetic force F=IBsinθF=IBsinθ does the work that reduces the shuttle’s kinetic and potential energy, and allows it to be converted into electrical energy. Both tests were unsuccessful. In the first, the cable hung up and could only be extended a couple of hundred meters; in the second, the cable broke when almost fully extended. Example 13.4 indicates feasibility in principle.

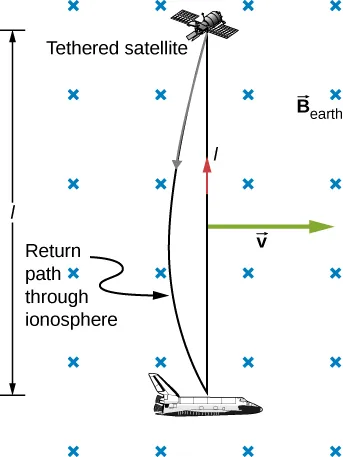

Figure is a schematic drawing that shows tethered satellite that launched and returns to the space shuttle while moving through the Earth’s magnetic field.
Figure 13.15 Motional emf as electrical power conversion for the space shuttle was the motivation for the tethered satellite experiment. A 5-kV emf was predicted to be induced in the 20-km tether while moving at orbital speed in Earth’s magnetic field. The circuit is completed by a return path through the stationary ionosphere.

Example 13.4

Calculating the Large Motional Emf of an Object in Orbit Calculate the motional emf induced along a 20.0-km conductor moving at an orbital speed of 7.80 km/s perpendicular to Earth’s 5.00×10−5T5.00×10−5T magnetic field.

Strategy This is a great example of using the equation motional ε=Bv.ε=Bv.

Solution Entering the given values into ε=Bvε=Bv gives

ε=Bv=(5.00×10−5T)(2.00×104m)(7.80×103m/s)=7.80×103V.ε=Bv=(5.00×10−5T)(2.00×104m)(7.80×103m/s)=7.80×103V.

Significance The value obtained is greater than the 5-kV measured voltage for the shuttle experiment, since the actual orbital motion of the tether is not perpendicular to Earth’s field. The 7.80-kV value is the maximum emf obtained when θ=90°θ=90° and so sinθ=1.sinθ=1.

Example 13.5

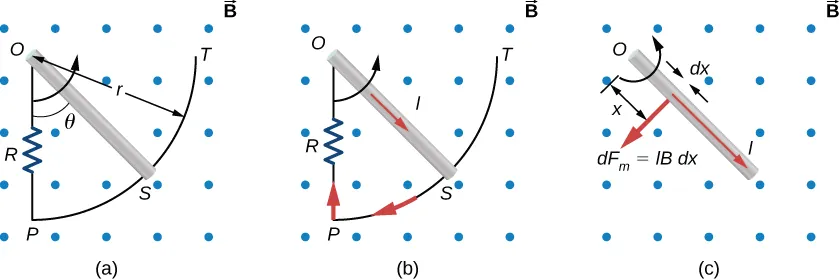

A Metal Rod Rotating in a Magnetic Field Part (a) of Figure 13.16 shows a metal rod OS that is rotating in a horizontal plane around point O. The rod slides along a wire that forms a circular arc PST of radius r. The system is in a constant magnetic field BB that is directed out of the page. (a) If you rotate the rod at a constant angular velocity ωω, what is the current I in the closed loop OPSO? Assume that the resistor R furnishes all of the resistance in the closed loop. (b) Calculate the work per unit time that you do while rotating the rod and show that it is equal to the power dissipated in the resistor.

Figure A shows the end of a rotating metal rod that slides along a circular wire in a horizontal plane. Uniform magnetic field is perpendicular to the rod. Figure B visualizes the current induced by the rod. Figure C visualizes magnetic force on an infinitesimal current segment.
Figure 13.16 (a) The end of a rotating metal rod slides along a circular wire in a horizontal plane. (b) The induced current in the rod. (c) The magnetic force on an infinitesimal current segment.

Strategy The magnetic flux is the magnetic field times the area of the quarter circle or A=r2θ/2.A=r2θ/2. When finding the emf through Faraday’s law, all variables are constant in time but θθ, withω=dθ/dt.ω=dθ/dt. To calculate the work per unit time, we know this is related to the torque times the angular velocity. The torque is calculated by knowing the force on a rod and integrating it over the length of the rod.

Solution

  1. From geometry, the area of the loop OPSO is A=r2θ2.A=r2θ2. Hence, the magnetic flux through the loop is
    Φm=BA=Br2θ2.Φm=BA=Br2θ2.

    Differentiating with respect to time and using ω=dθ/dt,ω=dθ/dt, we have
    ε=|dΦmdt|=Br2ω2.ε=|dΦmdt|=Br2ω2.

    When divided by the resistance R of the loop, this yields for the magnitude of the induced current
    I=εR=Br2ω2R.I=εR=Br2ω2R.

    As θθ increases, so does the flux through the loop due to B.B. To counteract this increase, the magnetic field due to the induced current must be directed into the page in the region enclosed by the loop. Therefore, as part (b) of Figure 13.16 illustrates, the current circulates clockwise.
  2. You rotate the rod by exerting a torque on it. Since the rod rotates at constant angular velocity, this torque is equal and opposite to the torque exerted on the current in the rod by the original magnetic field. The magnetic force on the infinitesimal segment of length dx shown in part (c) of Figure 13.16 is dFm=IBdx,dFm=IBdx, so the magnetic torque on this segment is
    dτm=x·dFm=IBxdx.dτm=x·dFm=IBxdx.

    The net magnetic torque on the rod is then
    τm=0rdτm=IB0rxdx=12IBr2.τm=0rdτm=IB0rxdx=12IBr2.

    The torque ττ that you exert on the rod is equal and opposite to τm,τm, and the work that you do when the rod rotates through an angle dθdθ is dW=τdθ.dW=τdθ. Hence, the work per unit time that you do on the rod is
    dWdt=τdθdt=12IBr2dθdt=12(Br2ω2R)Br2ω=B2r4ω24R,dWdt=τdθdt=12IBr2dθdt=12(Br2ω2R)Br2ω=B2r4ω24R,

    where we have substituted for I. The power dissipated in the resister is P=I2RP=I2R, which can be written as
    P=(Br2ω2R)2R=B2r4ω24R.P=(Br2ω2R)2R=B2r4ω24R.

    Therefore, we see that
    P=dWdt.P=dWdt.

    Hence, the power dissipated in the resistor is equal to the work per unit time done in rotating the rod.

Significance An alternative way of looking at the induced emf from Faraday’s law is to integrate in space instead of time. The solution, however, would be the same. The motional emf is

|ε|=Bvdl.|ε|=Bvdl.

The velocity can be written as the angular velocity times the radius and the differential length written as dr. Therefore,

|ε|=Bvdr=Bω0lrdr=12Bωl2,|ε|=Bvdr=Bω0lrdr=12Bωl2,

which is the same solution as before.

Example 13.6

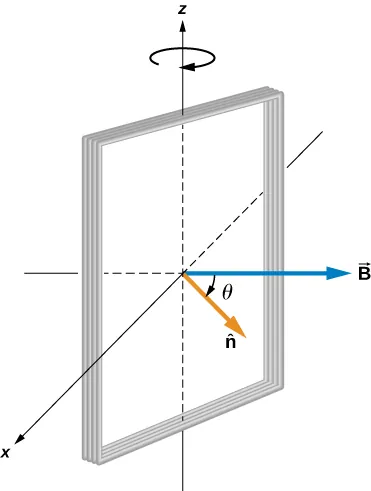

A Rectangular Coil Rotating in a Magnetic Field A rectangular coil of area A and N turns is placed in a uniform magnetic field B=Bj^,B=Bj^, as shown in Figure 13.17. The coil is rotated about the z-axis through its center at a constant angular velocity ω.ω. Obtain an expression for the induced emf in the coil.

Figure shows a rectangular coil rotating in a uniform magnetic field.
Figure 13.17 A rectangular coil rotating in a uniform magnetic field.

Strategy According to the diagram, the angle between the perpendicular to the surface (n^n^) and the magnetic field (B)(B) is θθ. The dot product of B·n^B·n^ simplifies to only the cosθcosθ component of the magnetic field, namely where the magnetic field projects onto the unit area vector n^n^. The magnitude of the magnetic field and the area of the loop are fixed over time, which makes the integration simplify quickly. The induced emf is written out using Faraday’s law.

Solution When the coil is in a position such that its normal vector n^n^ makes an angle θθ with the magnetic field B,B, the magnetic flux through a single turn of the coil is

Φm=SB·n^dA=BAcosθ.Φm=SB·n^dA=BAcosθ.

From Faraday’s law, the emf induced in the coil is

ε=NdΦmdt=NBAsinθdθdt.ε=NdΦmdt=NBAsinθdθdt.

The constant angular velocity is ω=dθ/dt.ω=dθ/dt. The angle θθ represents the time evolution of the angular velocity or ωtωt. This is changes the function to time space rather than θθ. The induced emf therefore varies sinusoidally with time according to

ε=ε0sinωt,ε=ε0sinωt,

where ε0=NBAω.ε0=NBAω.

Significance If the magnetic field strength or area of the loop were also changing over time, these variables wouldn’t be able to be pulled out of the time derivative to simply the solution as shown. This example is the basis for an electric generator, as we will give a full discussion in Applications of Newton’s Law.

Check Your Understanding 13.4

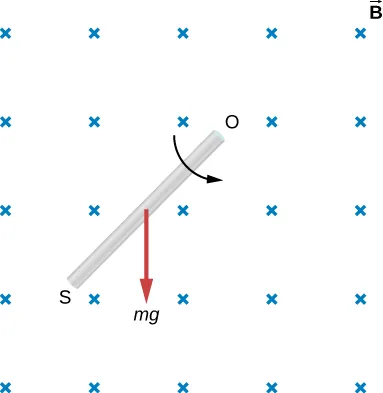

Shown below is a rod of length l that is rotated counterclockwise around the axis through O by the torque due to mg.mg. Assuming that the rod is in a uniform magnetic field BB, what is the emf induced between the ends of the rod when its angular velocity is ωω? Which end of the rod is at a higher potential?

Figure shows a rod of length l that is located in the uniform magnetic field. The rod is rotated counterclockwise around the axis through O by the torque due to mg.
Check Your Understanding 13.5

A rod of length 10 cm moves at a speed of 10 m/s perpendicularly through a 1.5-T magnetic field. What is the potential difference between the ends of the rod?

Citation/Attribution

Want to cite, share, or modify this book? This book is Creative Commons Attribution License 4.0 and you must attribute OpenStax.

Attribution information
  • If you are redistributing all or part of this book in a print format, then you must include on every physical page the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-2/pages/1-introduction
  • If you are redistributing all or part of this book in a digital format, then you must include on every digital page view the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-2/pages/1-introduction
Citation information

© Oct 6, 2016 OpenStax. Textbook content produced by OpenStax is licensed under a Creative Commons Attribution License 4.0 license. The OpenStax name, OpenStax logo, OpenStax book covers, OpenStax CNX name, and OpenStax CNX logo are not subject to the Creative Commons license and may not be reproduced without the prior and express written consent of Rice University.
