Learning Objectives

By the end of this section, you will be able to:

  • Use Lenz’s law to determine the direction of induced emf whenever a magnetic flux changes
  • Use Faraday’s law with Lenz’s law to determine the induced emf in a coil and in a solenoid

The direction in which the induced emf drives current around a wire loop can be found through the negative sign. However, it is usually easier to determine this direction with Lenz’s law, named in honor of its discoverer, Heinrich Lenz (1804–1865). (Faraday also discovered this law, independently of Lenz.) We state Lenz’s law as follows:

Lenz’s Law

The direction of the induced emf drives current around a wire loop to always oppose the change in magnetic flux that causes the emf.

Lenz’s law can also be considered in terms of conservation of energy. If pushing a magnet into a coil causes current, the energy in that current must have come from somewhere. If the induced current causes a magnetic field opposing the increase in field of the magnet we pushed in, then the situation is clear. We pushed a magnet against a field and did work on the system, and that showed up as current. If it were not the case that the induced field opposes the change in the flux, the magnet would be pulled in and produce a current without any work. Electric potential energy would have been created, violating the conservation of energy.

To determine an induced emf εε, you first calculate the magnetic flux ΦmΦm and then obtain dΦm/dt.dΦm/dt. The magnitude of εε is given by ε=|dΦm/dt|.ε=|dΦm/dt|. Finally, you can apply Lenz’s law to determine the sense of εε. This will be developed through examples that illustrate the following problem-solving strategy.

Problem-Solving Strategy

Lenz’s Law

To use Lenz’s law to determine the directions of induced magnetic fields, currents, and emfs:

  1. Make a sketch of the situation for use in visualizing and recording directions.
  2. Determine the direction of the applied magnetic field B.B.
  3. Determine whether its magnetic flux is increasing or decreasing.
  4. Now determine the direction of the induced magnetic field B.B. The induced magnetic field tries to reinforce a magnetic flux that is decreasing or opposes a magnetic flux that is increasing. Therefore, the induced magnetic field adds or subtracts to the applied magnetic field, depending on the change in magnetic flux.
  5. Use right-hand rule 2 (RHR-2; see Magnetic Forces and Fields) to determine the direction of the induced current I that is responsible for the induced magnetic field B.B.
  6. The direction (or polarity) of the induced emf can now drive a conventional current in this direction.

Let’s apply Lenz’s law to the system of Figure 13.7(a). We designate the “front” of the closed conducting loop as the region containing the approaching bar magnet, and the “back” of the loop as the other region. As the north pole of the magnet moves toward the loop, the flux through the loop due to the field of the magnet increases because the strength of field lines directed from the front to the back of the loop is increasing. A current is therefore induced in the loop. By Lenz’s law, the direction of the induced current must be such that its own magnetic field is directed in a way to oppose the changing flux caused by the field of the approaching magnet. Hence, the induced current circulates so that its magnetic field lines through the loop are directed from the back to the front of the loop. By RHR-2, place your thumb pointing against the magnetic field lines, which is toward the bar magnet. Your fingers wrap in a counterclockwise direction as viewed from the bar magnet. Alternatively, we can determine the direction of the induced current by treating the current loop as an electromagnet that opposes the approach of the north pole of the bar magnet. This occurs when the induced current flows as shown, for then the face of the loop nearer the approaching magnet is also a north pole.

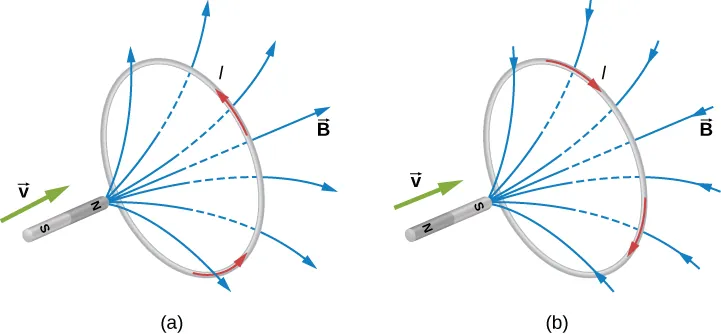

Figure A shows a magnet that is moving towards the loop with the North pole facing the loop. The magnetic field lines leave the North pole of the magnet and cause the counterclockwise current flow in the loop. Figure B shows a magnet that is moving towards the loop with the South pole facing the loop. The magnetic field lines enter the South pole of the magnet and cause the clockwise current flow in the loop.
Figure 13.7 The change in magnetic flux caused by the approaching magnet induces a current in the loop. (a) An approaching north pole induces a counterclockwise current with respect to the bar magnet. (b) An approaching south pole induces a clockwise current with respect to the bar magnet.

Part (b) of the figure shows the south pole of a magnet moving toward a conducting loop. In this case, the flux through the loop due to the field of the magnet increases because the number of field lines directed from the back to the front of the loop is increasing. To oppose this change, a current is induced in the loop whose field lines through the loop are directed from the front to the back. Equivalently, we can say that the current flows in a direction so that the face of the loop nearer the approaching magnet is a south pole, which then repels the approaching south pole of the magnet. By RHR-2, your thumb points away from the bar magnet. Your fingers wrap in a clockwise fashion, which is the direction of the induced current.

Another example illustrating the use of Lenz’s law is shown in Figure 13.8. When the switch is opened, the decrease in current through the solenoid causes a decrease in magnetic flux through its coils, which induces an emf in the solenoid. This emf must oppose the change (the termination of the current) causing it. Consequently, the induced emf has the polarity shown and drives in the direction of the original current. This may generate an arc across the terminals of the switch as it is opened.

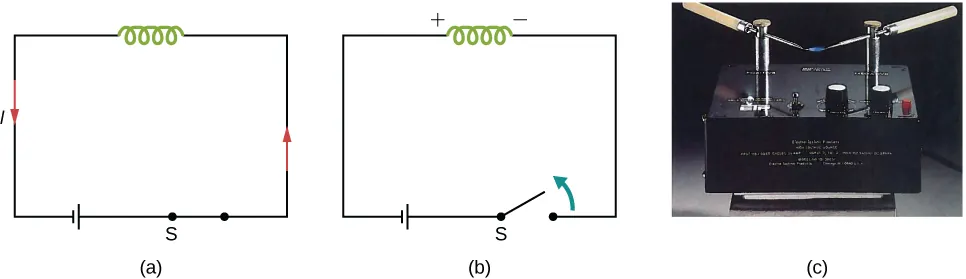

Figure A shows a circuit that consists of a solenoid, capacitor, and a closed switch. There is no current flow in the circuit. Figure B shows a circuit that consists of a solenoid, capacitor, and an opening switch. There is a current flow in the circuit. Figure C is a photo of an electrical arc generated between two metal contacts.
Figure 13.8 (a) A solenoid connected to a source of emf. (b) Opening switch S terminates the current, which in turn induces an emf in the solenoid. (c) A potential difference between the ends of the sharply pointed rods is produced by inducing an emf in a coil. This potential difference is large enough to produce an arc between the sharp points.

Check Your Understanding 13.2

Find the direction of the induced current in the wire loop shown below as the magnet enters, passes through, and leaves the loop.

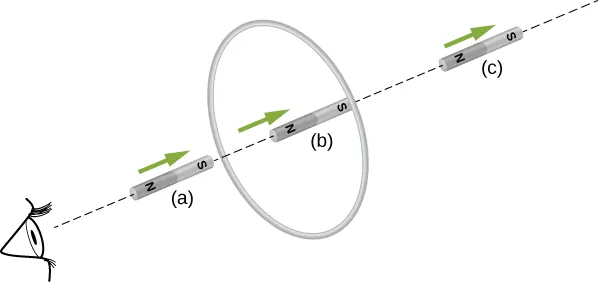

Figure shows a magnet that is moving into and through the loop with the South pole facing the loop. Position (a) corresponds to magnet approaching the loop; position (b) corresponds to the magnet directly into the loop. Position (c) corresponds to the magnet moving away from the loop.

Check Your Understanding 13.3

Verify the directions of the induced currents in Figure 13.3.

Example 13.2

A Circular Coil in a Changing Magnetic Field

A magnetic field BB is directed outward perpendicular to the plane of a circular coil of radius r=0.50mr=0.50m (Figure 13.9). The field is cylindrically symmetrical with respect to the center of the coil, and its magnitude decays exponentially according to B=(1.5T)e(5.0s−1)t,B=(1.5T)e(5.0s−1)t, where B is in teslas and t is in seconds. (a) Calculate the emf induced in the coil at the times t1=0,t1=0, t2=5.0×102s,t2=5.0×102s, and t3=1.0s.t3=1.0s. (b) Determine the current in the coil at these three times if its resistance is 10Ω.10Ω.

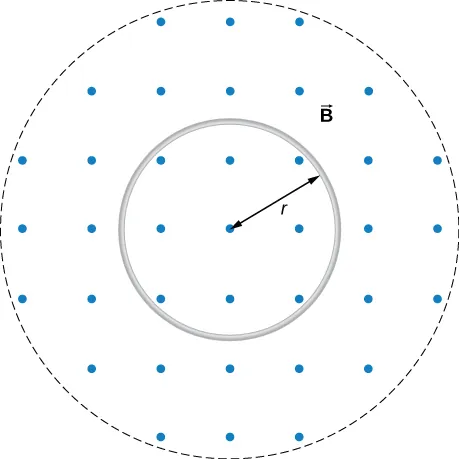

Figure shows a circular coil of radius r in a decreasing uniform magnetic field.
Figure 13.9 A circular coil in a decreasing magnetic field.

Strategy

Since the magnetic field is perpendicular to the plane of the coil and constant over each spot in the coil, the dot product of the magnetic field BB and normal to the area unit vector n^n^ turns into a multiplication. The magnetic field can be pulled out of the integration, leaving the flux as the product of the magnetic field times area. We need to take the time derivative of the exponential function to calculate the emf using Faraday’s law. Then we use Ohm’s law to calculate the current.

Solution

  1. Since BB is perpendicular to the plane of the coil, the magnetic flux is given by
    Φm=Bπr2=(1.5e−5.0tT)π(0.50m)2=1.2e(5.0s−1)tWb.Φm=Bπr2=(1.5e−5.0tT)π(0.50m)2=1.2e(5.0s−1)tWb.
    From Faraday’s law, the magnitude of the induced emf is
    ε=|dΦmdt|=|ddt(1.2e(5.0s−1)tWb)|=6.0e(5.0s−1)tV.ε=|dΦmdt|=|ddt(1.2e(5.0s−1)tWb)|=6.0e(5.0s−1)tV.
    Since BB is directed out of the page and is decreasing, the induced current must flow counterclockwise when viewed from above so that the magnetic field it produces through the coil also points out of the page. For all three times, the sense of ε is counterclockwise; its magnitudes are
    ε(t1)=6.0V;ε(t2)=4.7V;ε(t3)=0.040V.ε(t1)=6.0V;ε(t2)=4.7V;ε(t3)=0.040V.
  2. From Ohm’s law, the respective currents are
    I(t1)=ε(t1)R=6.0V10Ω=0.60A;I(t2)=4.7V10Ω=0.47A;I(t1)=ε(t1)R=6.0V10Ω=0.60A;I(t2)=4.7V10Ω=0.47A;
    and
    I(t3)=0.040V10Ω=4.0×10−3A.I(t3)=0.040V10Ω=4.0×10−3A.

Significance

An emf voltage is created by a changing magnetic flux over time. If we know how the magnetic field varies with time over a constant area, we can take its time derivative to calculate the induced emf.

Example 13.3

Changing Magnetic Field Inside a Solenoid

The current through the windings of a solenoid with n=2000n=2000 turns per meter is changing at a rate dI/dt=3.0A/s.dI/dt=3.0A/s. (See Sources of Magnetic Fields for a discussion of solenoids.) The solenoid is 50-cm long and has a cross-sectional diameter of 3.0 cm. A small coil consisting of N=20N=20 closely wound turns wrapped in a circle of diameter 1.0 cm is placed in the middle of the solenoid such that the plane of the coil is perpendicular to the central axis of the solenoid. Assuming that the infinite-solenoid approximation is valid at the location of the small coil, determine the magnitude of the emf induced in the coil.

Strategy

The magnetic field in the middle of the solenoid is a uniform value of μ0nI.μ0nI. This field is producing a maximum magnetic flux through the coil as it is directed along the length of the solenoid. Therefore, the magnetic flux through the coil is the product of the solenoid’s magnetic field times the area of the coil. Faraday’s law involves a time derivative of the magnetic flux. The only quantity varying in time is the current, the rest can be pulled out of the time derivative. Lastly, we include the number of turns in the coil to determine the induced emf in the coil.

Solution

Since the field of the solenoid is given by B=μ0nI,B=μ0nI, the flux through each turn of the small coil is
Φm=μ0nI(πd24),Φm=μ0nI(πd24),

where d is the diameter of the coil. Now from Faraday’s law, the magnitude of the emf induced in the coil is

ε=|NdΦmdt|=|Nμ0nπd24dIdt|=20(4π×10−7T·m/s)(2000m-1)π(0.010m)24(3.0A/s)=1.2×10−5V.ε=|NdΦmdt|=|Nμ0nπd24dIdt|=20(4π×10−7T·m/s)(2000m-1)π(0.010m)24(3.0A/s)=1.2×10−5V.

Significance

When the current is turned on in a vertical solenoid, as shown in Figure 13.10, the ring has an induced emf from the solenoid’s changing magnetic flux that opposes the change. The result is that the ring is fired vertically into the air.

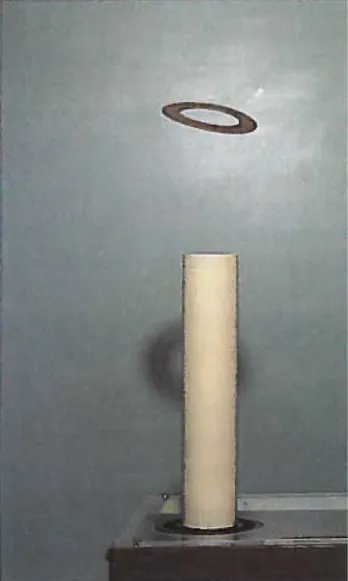

Figure is a photograph of a thin metal ring levitating above the vertical solenoid.
Figure 13.10 The jumping ring. When a current is turned on in the vertical solenoid, a current is induced in the metal ring. The stray field produced by the solenoid causes the ring to jump off the solenoid.

Interactive

Visit this website for a demonstration of the jumping ring from MIT.

Order a print copy

As an Amazon Associate we earn from qualifying purchases.

Citation/Attribution

Want to cite, share, or modify this book? This book uses the Creative Commons Attribution License and you must attribute OpenStax.

Attribution information
  • If you are redistributing all or part of this book in a print format, then you must include on every physical page the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-2/pages/1-introduction
  • If you are redistributing all or part of this book in a digital format, then you must include on every digital page view the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-2/pages/1-introduction
Citation information

© Jul 21, 2023 OpenStax. Textbook content produced by OpenStax is licensed under a Creative Commons Attribution License . The OpenStax name, OpenStax logo, OpenStax book covers, OpenStax CNX name, and OpenStax CNX logo are not subject to the Creative Commons license and may not be reproduced without the prior and express written consent of Rice University.
