Learning Objectives

By the end of this section, you will be able to:

  • Explain the concept of reference frames.
  • Write the position and velocity vector equations for relative motion.
  • Draw the position and velocity vectors for relative motion.
  • Analyze one-dimensional and two-dimensional relative motion problems using the position and velocity vector equations.

Motion does not happen in isolation. If you’re riding in a train moving at 10 m/s east, this velocity is measured relative to the ground on which you’re traveling. However, if another train passes you at 15 m/s east, your velocity relative to this other train is different from your velocity relative to the ground. Your velocity relative to the other train is 5 m/s west. To explore this idea further, we first need to establish some terminology.

Reference Frames

To discuss relative motion in one or more dimensions, we first introduce the concept of reference frames. When we say an object has a certain velocity, we must state it has a velocity with respect to a given reference frame. In most examples we have examined so far, this reference frame has been Earth. If you say a person is sitting in a train moving at 10 m/s east, then you imply the person on the train is moving relative to the surface of Earth at this velocity, and Earth is the reference frame. We can expand our view of the motion of the person on the train and say Earth is spinning in its orbit around the Sun, in which case the motion becomes more complicated. In this case, the solar system is the reference frame. In summary, all discussion of relative motion must define the reference frames involved. We now develop a method to refer to reference frames in relative motion. This method makes an approximation that breaks down near the speed of light, where the more accurate methods or special relativity are needed, but is extremely accurate for everyday speeds (Relativity).

Relative Motion in One Dimension

We introduce relative motion in one dimension first, because the velocity vectors simplify to having only two possible directions. Take the example of the person sitting in a train moving east. If we choose east as the positive direction and Earth as the reference frame, then we can write the velocity of the train with respect to the Earth as vTE=10m/si^vTE=10m/si^ east, where the subscripts TE refer to train and Earth. Let’s now say the person gets up out of her seat and walks toward the back of the train at 2 m/s. This tells us she has a velocity relative to the reference frame of the train. Since the person is walking west, in the negative direction, we write her velocity with respect to the train as vPT=−2m/si^.vPT=−2m/si^. We can add the two velocity vectors to find the velocity of the person with respect to Earth. This relative velocity is written as

vPE=vPT+vTE.vPE=vPT+vTE.
4.33

Note the ordering of the subscripts for the various reference frames in Equation 4.33. The subscripts for the coupling reference frame, which is the train, appear consecutively in the right-hand side of the equation. Figure 4.24 shows the correct order of subscripts when forming the vector equation.

The vector equation vector v sub P E equals vector v sub P T plus vector v sub T E is shown. The subscripts P (in v sub P T) and E (in v sub T E) in the sum are linked. The subscripts T (in v sub P T) and T (in v sub T E) in the sum are linked.
Figure 4.24 When constructing the vector equation, the subscripts for the coupling reference frame appear consecutively on the inside. The subscripts on the left-hand side of the equation are the same as the two outside subscripts on the right-hand side of the equation.

Adding the vectors, we find vPE=8m/si^,vPE=8m/si^, so the person is moving 8 m/s east with respect to Earth. Graphically, this is shown in Figure 4.25.

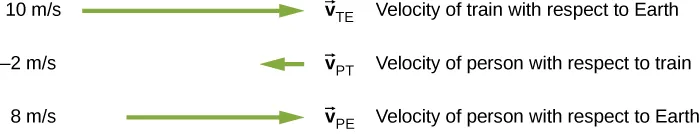

Velocity vectors of the train with respect to Earth, person with respect to the train, and person with respect to Earth. V sub T E is the velocity vector of the train with respect to Earth. It has value 10 meters per second and is represented as a long green arrow pointing to the right. V sub P T is the velocity vector of the person with respect to the train. It has value -2 meters per second and is represented as a short green arrow pointing to the left. V sub P E is the velocity vector of the person with respect to Earth. It has value 8 meters per second and is represented as a medium length green arrow pointing to the right.
Figure 4.25 Velocity vectors of the train with respect to Earth, person with respect to the train, and person with respect to Earth.

Relative Velocity in Two Dimensions

We can now apply these concepts to describing motion in two dimensions. Consider a particle P and reference frames S and S,S, as shown in Figure 4.26. The position of the origin of SS as measured in S is rSS,rSS, the position of P as measured in SS is rPS,rPS, and the position of P as measured in S is rPS.rPS.

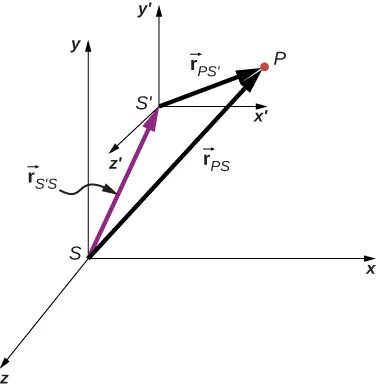

An x y z coordinate system is shown and labeled as system S. A second coordinate system, S prime with axes x prime, y prime, z prime, is shifted relative to S. The vector r sub S prime S, shown as a purple arrow, extends from the origin of S to the origin of S prime. Vector r sub P S is a vector from the origin of S to a point P. Vector r sub P S prime is a vector from the origin of S prime to the same point P. The vectors r s prime s, r P S prime, and r P S form a triangle, and r P S is the vector sum of r S prime S and r P S prime.
Figure 4.26 The positions of particle P relative to frames S and SS are rPSrPS and rPS,rPS, respectively.

From Figure 4.26 we see that

rPS=rPS+rSS.rPS=rPS+rSS.
4.34

The relative velocities are the time derivatives of the position vectors. Therefore,

vPS=vPS+vSS.vPS=vPS+vSS.
4.35

The velocity of a particle relative to S is equal to its velocity relative to SS plus the velocity of SS relative to S.

We can extend Equation 4.35 to any number of reference frames. For particle P with velocities vPA,vPB,andvPCvPA,vPB,andvPC in frames A, B, and C,

vPC=vPA+vAB+vBC.vPC=vPA+vAB+vBC.
4.36

We can also see how the accelerations are related as observed in two reference frames by differentiating Equation 4.35:

aPS=aPS+aSS.aPS=aPS+aSS.
4.37

We see that if the velocity of SS relative to S is a constant, then aSS=0aSS=0 and

aPS=aPS.aPS=aPS.
4.38

This says the acceleration of a particle is the same as measured by two observers moving at a constant velocity relative to each other.

Example 4.13

Motion of a Car Relative to a Truck

A truck is traveling south at a speed of 70 km/h toward an intersection. A car is traveling east toward the intersection at a speed of 80 km/h (Figure 4.27). What is the velocity of the car relative to the truck?

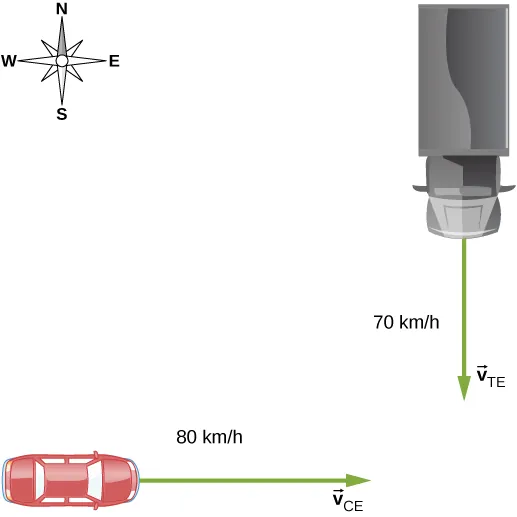

A truck is shown traveling south at a speed V sub T E of 70 km/h toward an intersection. A car is traveling east toward the intersection at a speed V sub C E of 80 km/h
Figure 4.27 A car travels east toward an intersection while a truck travels south toward the same intersection.

Strategy

First, we must establish the reference frame common to both vehicles, which is Earth. Then, we write the velocities of each with respect to the reference frame of Earth, which enables us to form a vector equation that links the car, the truck, and Earth to solve for the velocity of the car with respect to the truck.

Solution

The velocity of the car with respect to Earth is vCE=80km/hi^.vCE=80km/hi^. The velocity of the truck with respect to Earth is vTE=−70km/hj^.vTE=−70km/hj^. Using the velocity addition rule, the relative motion equation we are seeking is
vCT=vCE+vET.vCT=vCE+vET.

Here, vCTvCT is the velocity of the car with respect to the truck, and Earth is the connecting reference frame. Since we have the velocity of the truck with respect to Earth, the negative of this vector is the velocity of Earth with respect to the truck: vET=vTE.vET=vTE. The vector diagram of this equation is shown in Figure 4.28.

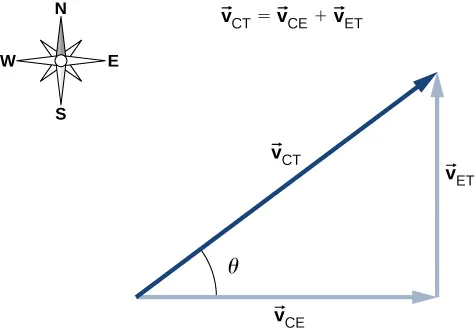

The right triangle formed by the vectors V sub C E to the right, V sub E T down, and V sub C T up and right is shown V sub C T is the hypotenuse and makes an angle of theta with V sub C E. The vector equation vector v sub C T equals vector C E plus vector E T is given. A compass is shown indicating north is up, east to the right, south down, and west to the left.
Figure 4.28 Vector diagram of the vector equation vCT=vCE+vETvCT=vCE+vET.

We can now solve for the velocity of the car with respect to the truck:

|vCT|=(80.0km/h)2+(70.0km/h)2=106.km/h|vCT|=(80.0km/h)2+(70.0km/h)2=106.km/h

and

θ=tan−1(70.080.0)=41.2°north of east.θ=tan−1(70.080.0)=41.2°north of east.

Significance

Drawing a vector diagram showing the velocity vectors can help in understanding the relative velocity of the two objects.

Check Your Understanding 4.6

A boat heads due north, moving at 4.5 m/s relative to the water of a river that is running east at 3.0 m/s. What is the velocity of the boat with respect to Earth?

Example 4.14

Flying a Plane in a Wind

A pilot must fly a plane due north to reach their destination. The plane can fly at 300 km/h in still air. A wind is blowing out of the northeast at 90 km/h. (a) In what direction must the pilot head the plane to fly due north? (b) What is the speed of the plane relative to the ground?

Strategy

The pilot must point the plane somewhat east of north to compensate for the wind velocity. We need to construct a vector equation that contains the velocity of the plane with respect to the ground, the velocity of the plane with respect to the air, and the velocity of the air with respect to the ground. Since these last two quantities are known, we can solve for the velocity of the plane with respect to the ground. We can graph the vectors and use this diagram to evaluate the magnitude of the plane’s velocity with respect to the ground. The diagram will also tell us the angle the plane’s velocity makes with north with respect to the air, which is the direction the pilot must head the plane.

Solution

The vector equation is vPG=vPA+vAG,vPG=vPA+vAG, where P = plane, A = air, and G = ground. From the geometry in Figure 4.29, we can solve easily for the magnitude of the velocity of the plane with respect to the ground and the angle of the plane’s heading, θ.θ.

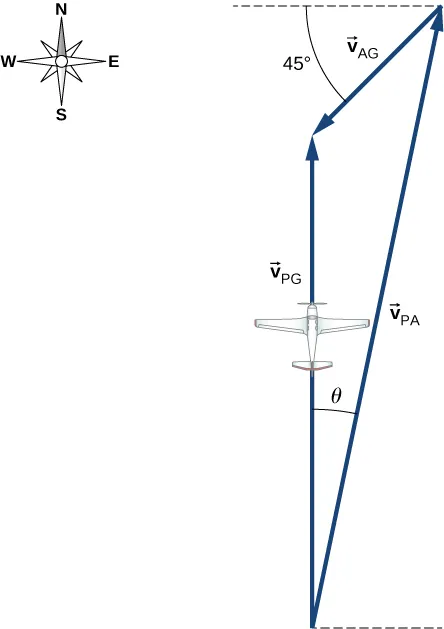

A compass shows north is up, east to the right, south down, and west to the left. Vectors V sub P G, V sub A G and V sub P A form a triangle. An airplane is shown on vector V sub P G, which points up. V sub P A points up and to the right, at an angle of theta to vector V sub P G. V sub A G points down and left, at an angle of 45 degrees below the horizontal. V sub P G is the vector sum of v sub P A and V sub A G.
Figure 4.29 Vector diagram for Equation 4.34 showing the vectors vPA,vAG,andvPG.vPA,vAG,andvPG.

Known quantities:

|vPA|=300km/h|vPA|=300km/h
|vAG|=90km/h|vAG|=90km/h

(a) In the x direction we have the following:

  • |vPA|sinθ|vAG|sin45°=0|vPA|sinθ|vAG|sin45°=0

  • θ=sin–1(90km/h)(sin45°300km/h)θ=sin–1(90km/h)(sin45°300km/h)

  • θ=12°θ=12° east of north

(b) In the y direction we have the following:

  • |vPG|=|vPA|cosθ|vAG|cos45°|vPG|=|vPA|cosθ|vAG|cos45°

  • |vPG|=(300km/h)(cos12°)(90km/h)(cos45°)|vPG|=(300km/h)(cos12°)(90km/h)(cos45°)

  • |vPG|=230km/h|vPG|=230km/h

Order a print copy

As an Amazon Associate we earn from qualifying purchases.

Citation/Attribution

Want to cite, share, or modify this book? This book uses the Creative Commons Attribution License and you must attribute OpenStax.

Attribution information
  • If you are redistributing all or part of this book in a print format, then you must include on every physical page the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-1/pages/1-introduction
  • If you are redistributing all or part of this book in a digital format, then you must include on every digital page view the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-1/pages/1-introduction
Citation information

© Apr 5, 2023 OpenStax. Textbook content produced by OpenStax is licensed under a Creative Commons Attribution License . The OpenStax name, OpenStax logo, OpenStax book covers, OpenStax CNX name, and OpenStax CNX logo are not subject to the Creative Commons license and may not be reproduced without the prior and express written consent of Rice University.
