Learning Objectives

By the end of this section, you will be able to:
  • Explain the mechanism behind sound-reducing headphones
  • Describe resonance in a tube closed at one end and open at the other end
  • Describe resonance in a tube open at both ends

Interference is the hallmark of waves, all of which exhibit constructive and destructive interference exactly analogous to that seen for water waves. In fact, one way to prove something “is a wave” is to observe interference effects. Since sound is a wave, we expect it to exhibit interference.

Interference of Sound Waves

In Waves, we discussed the interference of wave functions that differ only in a phase shift. We found that the wave function resulting from the superposition of y1(x,t)=Asin(kxωt+ϕ)y1(x,t)=Asin(kxωt+ϕ) and y2(x,t)=Asin(kxωt)y2(x,t)=Asin(kxωt) is

y(x,t)=[2Acos(ϕ2)]sin(kxωt+ϕ2).y(x,t)=[2Acos(ϕ2)]sin(kxωt+ϕ2).

One way for two identical waves that are initially in phase to become out of phase with one another is to have the waves travel different distances; that is, they have different path lengths. Sound waves provide an excellent example of a phase shift due to a path difference. As we have discussed, sound waves can basically be modeled as longitudinal waves, where the molecules of the medium oscillate around an equilibrium position, or as pressure waves.

When the waves leave the speakers, they move out as spherical waves (Figure 17.16). The waves interfere; constructive inference is produced by the combination of two crests or two troughs, as shown. Destructive interference is produced by the combination of a trough and a crest.

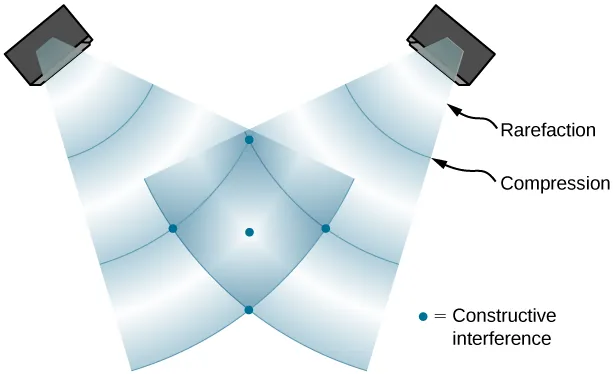

A drawing of two speakers that act as sources of the same frequency sound waves. Points of high-intensity sound which result from two crests (compression) or two troughs (rarefaction) overlapping are shown. In addition, points of constructive interference are indicated.
Figure 17.16 When sound waves are produced by a speaker, they travel at the speed of sound and move out as spherical waves. Here, two speakers produce the same steady tone (frequency). The result is points of high-intensity sound (highlighted), which result from two crests (compression) or two troughs (rarefaction) overlapping. Destructive interference results from a crest and trough overlapping. The points where there is constructive interference in the figure occur because the two waves are in phase at those points. Points of destructive interference (Figure 17.17) are the result of the two waves being out of phase.

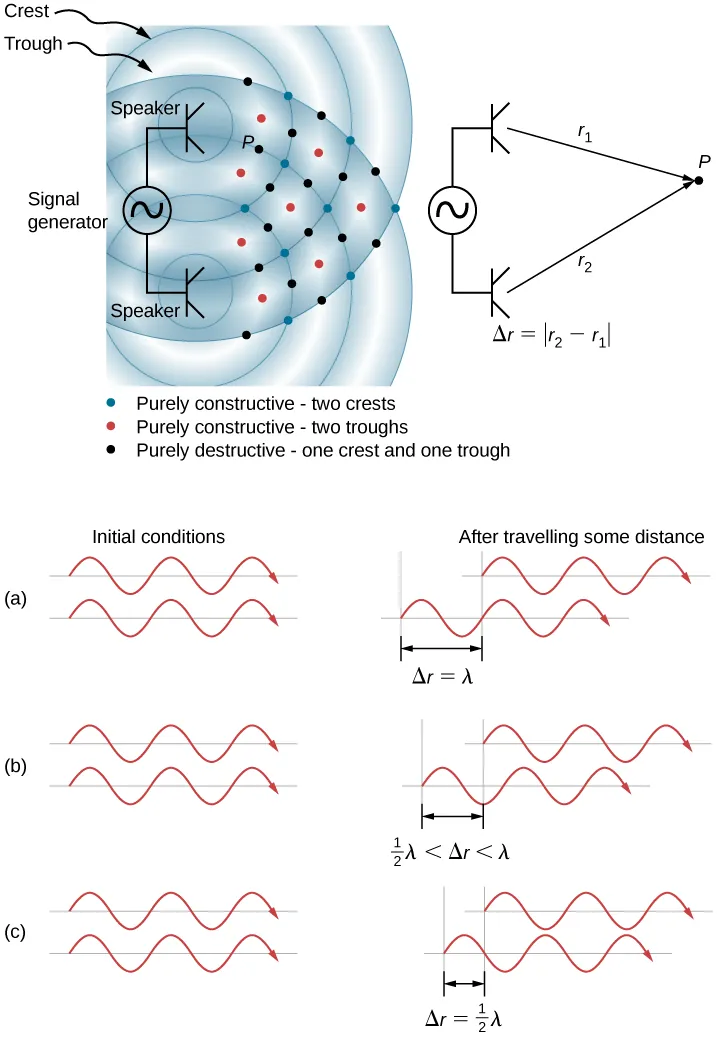

Top picture is a drawing of two speakers being driven by a single signal generator. The sound waves produced by the speakers are in phase and are of a single frequency. The constructive interference is marked by the red and blue dots, the destructive interference is marked by black dots. Figure A corresponds to the situation when difference in the path lengths is one wavelength, resulting in total constructive interference and a resulting amplitude equal to twice the original amplitude.
Figure 17.17 Two speakers being driven by a single signal generator. The sound waves produced by the speakers are in phase and are of a single frequency. The sound waves interfere with each other. When two crests or two troughs coincide, there is constructive interference, marked by the red and blue dots. When a trough and a crest coincide, destructive interference occurs, marked by black dots. The phase difference is due to the path lengths traveled by the individual waves. Two identical waves travel two different path lengths to a point P. (a) The difference in the path lengths is one wavelength, resulting in total constructive interference and a resulting amplitude equal to twice the original amplitude. (b) The difference in the path lengths is less than one wavelength but greater than one half a wavelength, resulting in an amplitude greater than zero and less than twice the original amplitude. (c) The difference in the path lengths is one half of a wavelength, resulting in total destructive interference and a resulting amplitude of zero.

The phase difference at each point is due to the different path lengths traveled by each wave. When the difference in the path lengths is an integer multiple of a wavelength,

Δr=|r2r1|=nλ,wheren=0,1,2,3,…,Δr=|r2r1|=nλ,wheren=0,1,2,3,…,

the waves are in phase and there is constructive interference. When the difference in path lengths is an odd multiple of a half wavelength,

Δr=|r2r1|=nλ2,wheren=1,3,5,…,Δr=|r2r1|=nλ2,wheren=1,3,5,…,

the waves are 180°(πrad)180°(πrad) out of phase and the result is destructive interference. These points can be located with a sound-level intensity meter.

Example 17.5

Interference of Sound Waves Two speakers are separated by 5.00 m and are being driven by a signal generator at an unknown frequency. A student with a sound-level meter walks out 6.00 m and down 2.00 m, and finds the first minimum intensity, as shown below. What is the frequency supplied by the signal generator? Assume the wave speed of sound is v=343.00m/s.v=343.00m/s.

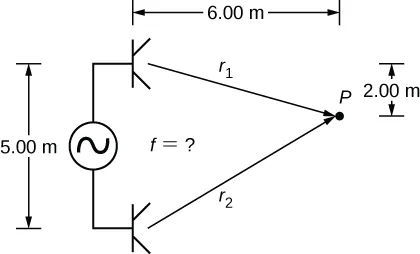

Picture is a drawing of two speakers placed 5 meters apart that are driven by a single signal generator. The sound waves produced by the speakers meet at the point that is 6 meters away from the top speaker and 2 meters below it. The distance from the top speaker to the point is r1; the distance from the bottom speaker to the point is r2.

Strategy The wave velocity is equal to v=λT=λf.v=λT=λf. The frequency is then f=vλ.f=vλ. A minimum intensity indicates destructive interference and the first such point occurs where there is path difference of Δr=λ/2,Δr=λ/2, which can be found from the geometry.

Solution

  1. Find the path length to the minimum point from each speaker.
    Picture shows a triangle with two sides of r1 and 2. The height of a triangle is 6 meters. The altitude to the base of the triangle splits base into two parts that are 2 meters and 3 meters long.
    r1=(6.00m)2+(2.00m)2=6.32m,r2=(6.00m)2+(3.00m)2=6.71mr1=(6.00m)2+(2.00m)2=6.32m,r2=(6.00m)2+(3.00m)2=6.71m
  2. Use the difference in the path length to find the wavelength.
    Δr=|r2r1|=|6.71m6.32m|=0.39mΔr=|r2r1|=|6.71m6.32m|=0.39m

    λ=2Δr=2(0.39m)=0.78mλ=2Δr=2(0.39m)=0.78m
  3. Find the frequency.
    f=vλ=343.00m/s0.78m=439.74Hzf=vλ=343.00m/s0.78m=439.74Hz

Significance If point P were a point of maximum intensity, then the path length would be an integer multiple of the wavelength.

Check Your Understanding 17.4

If you walk around two speakers playing music, how come you do not notice places where the music is very loud or very soft, that is, where there is constructive and destructive interference?

The concept of a phase shift due to a difference in path length is very important. You will use this concept again in Interference and Photons and Matter Waves, where we discuss how Thomas Young used this method in his famous double-slit experiment to provide evidence that light has wavelike properties.

Noise Reduction through Destructive Interference

Figure 17.18 shows a clever use of sound interference to cancel noise. Larger-scale applications of active noise reduction by destructive interference have been proposed for entire passenger compartments in commercial aircraft. To obtain destructive interference, a fast electronic analysis is performed, and a second sound is introduced 180°180° out of phase with the original sound, with its maxima and minima exactly reversed from the incoming noise. Sound waves in fluids are pressure waves and are consistent with Pascal’s principle; that is, pressures from two different sources add and subtract like simple numbers. Therefore, positive and negative gauge pressures add to a much smaller pressure, producing a lower-intensity sound. Although completely destructive interference is possible only under the simplest conditions, it is possible to reduce noise levels by 30 dB or more using this technique.

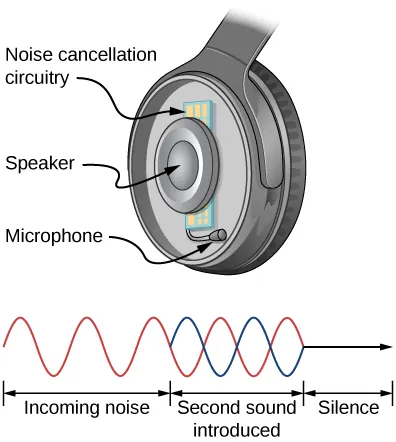

Top picture is a drawing of the headphone that consists of a speaker surrounded by the noise cancellation circuitry and a microphone next to it. Bottom picture shows a sinusoidal wave of the incoming noise that destructively overlaps with the second sound wave resulting in silence.
Figure 17.18 Headphones designed to cancel noise with destructive interference create a sound wave exactly opposite to the incoming sound. These headphones can be more effective than the simple passive attenuation used in most ear protection. Such headphones were used on the record-setting, around-the-world nonstop flight of the Voyager aircraft in 1986 to protect the pilots’ hearing from engine noise.
Check Your Understanding 17.5

Describe how noise-canceling headphones differ from standard headphones used to block outside sounds.

Where else can we observe sound interference? All sound resonances, such as in musical instruments, are due to constructive and destructive interference. Only the resonant frequencies interfere constructively to form standing waves, whereas others interfere destructively and are absent.

Resonance in a Tube Closed at one End

As we discussed in Waves, standing waves are formed by two waves moving in opposite directions. When two identical sinusoidal waves move in opposite directions, the waves may be modeled as

y1(x,t)=Asin(kxωt)andy2(x,t)=Asin(kx+ωt).y1(x,t)=Asin(kxωt)andy2(x,t)=Asin(kx+ωt).

When these two waves interfere, the resultant wave is a standing wave:

yR(x,t)=[2Asin(kx)]cos(ωt).yR(x,t)=[2Asin(kx)]cos(ωt).

Resonance can be produced due to the boundary conditions imposed on a wave. In Waves, we showed that resonance could be produced in a string under tension that had symmetrical boundary conditions, specifically, a node at each end. We defined a node as a fixed point where the string did not move. We found that the symmetrical boundary conditions resulted in some frequencies resonating and producing standing waves, while other frequencies interfere destructively. Sound waves can resonate in a hollow tube, and the frequencies of the sound waves that resonate depend on the boundary conditions.

Suppose we have a tube that is closed at one end and open at the other. If we hold a vibrating tuning fork near the open end of the tube, an incident sound wave travels through the tube and reflects off the closed end. The reflected sound has the same frequency and wavelength as the incident sound wave, but is traveling in the opposite direction. At the closed end of the tube, the molecules of air have very little freedom to oscillate, and a node arises. At the open end, the molecules are free to move, and at the right frequency, an antinode occurs. Unlike the symmetrical boundary conditions for the standing waves on the string, the boundary conditions for a tube open at one end and closed at the other end are anti-symmetrical: a node at the closed end and an antinode at the open end.

If the tuning fork has just the right frequency, the air column in the tube resonates loudly, but at most frequencies it vibrates very little. This observation just means that the air column has only certain natural frequencies. Consider the lowest frequency that will cause the tube to resonate, producing a loud sound. There will be a node at the closed end and an antinode at the open end, as shown in Figure 17.19.

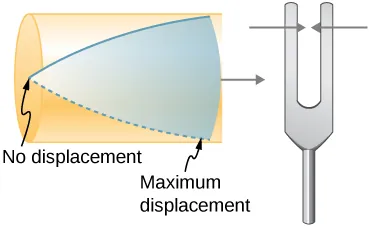

Picture shows the resonance of air in a tube closed at one end. There is maximum displacement at the closed end and no displacement at the open end. Resonance is caused by a tuning fork placed next to the tube.
Figure 17.19 Resonance of air in a tube closed at one end, caused by a tuning fork that vibrates at the lowest frequency that can produce resonance (the fundamental frequency). A node exists at the closed end and an antinode at the open end.

The standing wave formed in the tube has an antinode at the open end and a node at the closed end. The distance from a node to an antinode is one-fourth of a wavelength, and this equals the length of the tube; thus, λ1=4L.λ1=4L. This same resonance can be produced by a vibration introduced at or near the closed end of the tube (Figure 17.20). It is best to consider this a natural vibration of the air column, independently of how it is induced.

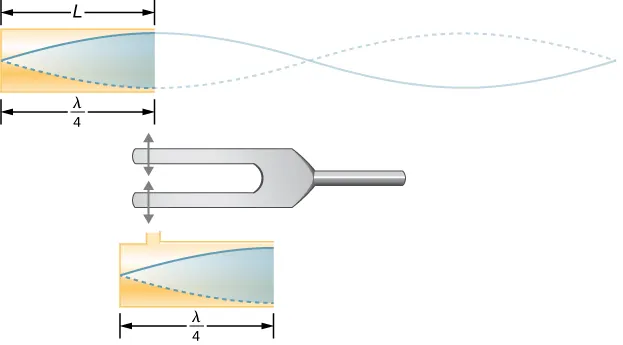

Picture is a diagram of the standing wave that is created in the tube by a vibration introduced near its closed end. The standing wave has three-fourths of its wavelength in the tube.
Figure 17.20 The same standing wave is created in the tube by a vibration introduced near its closed end.

Given that maximum air displacements are possible at the open end and none at the closed end, other shorter wavelengths can resonate in the tube, such as the one shown in Figure 17.21. Here the standing wave has three-fourths of its wavelength in the tube, or 34λ3=L,34λ3=L, so that λ3=43L.λ3=43L. Continuing this process reveals a whole series of shorter-wavelength and higher-frequency sounds that resonate in the tube. We use specific terms for the resonances in any system. The lowest resonant frequency is called the fundamental, while all higher resonant frequencies are called overtones. The resonant frequencies that are integral multiples of the fundamental are collectively called harmonics. The fundamental is the first harmonic, the second harmonic is twice the frequency of the first harmonic, and so on. Some of these harmonics may not exist for a given scenario. Figure 17.22 shows the fundamental and the first three overtones (or the first, third, fifth, and seventh harmonics) in a tube closed at one end.

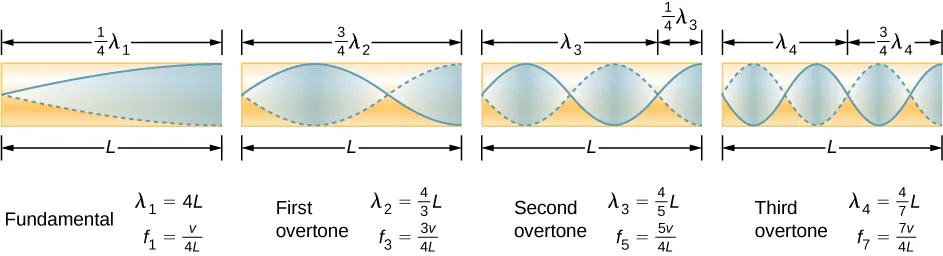

Picture is a diagram of the resonance for a tube closed at one end. The standing wave has maximum air displacement at the open end and none at the closed end. The standing wave has three-fourths of its wavelength in the tube.
Figure 17.21 Another resonance for a tube closed at one end. This standing wave has maximum air displacement at the open end and none at the closed end. The wavelength is shorter, with three-fourths λλ equaling the length of the tube, so that λ=4L/3λ=4L/3. This higher-frequency vibration is the first overtone.
Picture is a diagram of the fundamental and three lowest overtones for a tube closed at one end. Fundamental has one-fourth of its wavelength in a tube. First overtone has three-fourth of its wavelength in a tube, second overtone has five-fourth of its wavelength in a tube, third overtone has seven-fourth of its wavelength in a tube. All have maximum air displacements at the open end and none at the closed end.
Figure 17.22 The fundamental and three lowest overtones for a tube closed at one end. All have maximum air displacements at the open end and none at the closed end.

The relationship for the resonant wavelengths of a tube closed at one end is

λn=4nLn=1,3,5,...λn=4nLn=1,3,5,...
(17.13)

Now let us look for a pattern in the resonant frequencies for a simple tube that is closed at one end. The fundamental has λ=4L,λ=4L, and frequency is related to wavelength and the speed of sound as given by

v=fλ.v=fλ.

Solving for f in this equation gives

f=vλ=v4L,f=vλ=v4L,

where v is the speed of sound in air. Similarly, the first overtone has λ=4L/3λ=4L/3 (see Figure 17.22), so that

f3=3v4L=3f1.f3=3v4L=3f1.

Because f3=3f1,f3=3f1, we call the first overtone the third harmonic. Continuing this process, we see a pattern that can be generalized in a single expression. The resonant frequencies of a tube closed at one end are

fn=nv4L,n=1,3,5,...,fn=nv4L,n=1,3,5,...,
(17.14)

where f1f1 is the fundamental, f3f3 is the first overtone, and so on. It is interesting that the resonant frequencies depend on the speed of sound and, hence, on temperature. This dependence poses a noticeable problem for organs in old unheated cathedrals, and it is also the reason why musicians commonly bring their wind instruments to room temperature before playing them.

Resonance in a Tube Open at Both Ends

Another source of standing waves is a tube that is open at both ends. In this case, the boundary conditions are symmetrical: an antinode at each end. The resonances of tubes open at both ends can be analyzed in a very similar fashion to those for tubes closed at one end. The air columns in tubes open at both ends have maximum air displacements at both ends (Figure 17.23). Standing waves form as shown.

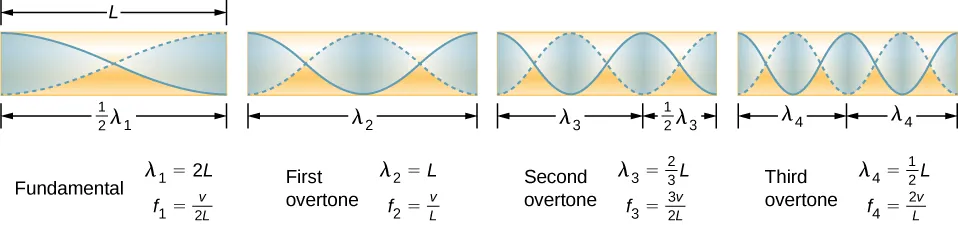

Picture is a diagram of the fundamental and three lowest overtones for a tube closed at one end. Fundamental has half of its wavelength in a tube. First overtone has one of its wavelength in a tube, second overtone has one and a half of its wavelength in a tube, third overtone has two of its wavelength in a tube. All have maximum air displacements at both ends of a tube.
Figure 17.23 The resonant frequencies of a tube open at both ends, including the fundamental and the first three overtones. In all cases, the maximum air displacements occur at both ends of the tube, giving it different natural frequencies than a tube closed at one end.

The relationship for the resonant wavelengths of a tube open at both ends is

λn=2nL,n=1,2,3,....λn=2nL,n=1,2,3,....
(17.15)

Based on the fact that a tube open at both ends has maximum air displacements at both ends, and using Figure 17.23 as a guide, we can see that the resonant frequencies of a tube open at both ends are

fn=nv2L,n=1,2,3...,fn=nv2L,n=1,2,3...,
(17.16)

where f1f1 is the fundamental, f2f2 is the first overtone, f3f3 is the second overtone, and so on. Note that a tube open at both ends has a fundamental frequency twice what it would have if closed at one end. It also has a different spectrum of overtones than a tube closed at one end.

Note that a tube open at both ends has symmetrical boundary conditions, similar to the string fixed at both ends discussed in Waves. The relationships for the wavelengths and frequencies of a stringed instrument are the same as given in Equation 17.15 and Equation 17.16. The speed of the wave on the string (from Waves) is v=FTμ.v=FTμ. The air around the string vibrates at the same frequency as the string, producing sound of the same frequency. The sound wave moves at the speed of sound and the wavelength can be found using v=λf.v=λf.

Check Your Understanding 17.6

How is it possible to use a standing wave’s node and antinode to determine the length of a closed-end tube?

Interactive

This video lets you visualize sound waves.

Check Your Understanding 17.7

You observe two musical instruments that you cannot identify. One plays high-pitched sounds and the other plays low-pitched sounds. How could you determine which is which without hearing either of them play?

Citation/Attribution

Want to cite, share, or modify this book? This book is Creative Commons Attribution License 4.0 and you must attribute OpenStax.

Attribution information
  • If you are redistributing all or part of this book in a print format, then you must include on every physical page the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-1/pages/1-introduction
  • If you are redistributing all or part of this book in a digital format, then you must include on every digital page view the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-1/pages/1-introduction
Citation information

© Sep 19, 2016 OpenStax. Textbook content produced by OpenStax is licensed under a Creative Commons Attribution License 4.0 license. The OpenStax name, OpenStax logo, OpenStax book covers, OpenStax CNX name, and OpenStax CNX logo are not subject to the Creative Commons license and may not be reproduced without the prior and express written consent of Rice University.
