Learning Objectives

By the end of this section, you will be able to:
  • Describe the characteristics of flow
  • Calculate flow rate
  • Describe the relationship between flow rate and velocity
  • Explain the consequences of the equation of continuity to the conservation of mass

The first part of this chapter dealt with fluid statics, the study of fluids at rest. The rest of this chapter deals with fluid dynamics, the study of fluids in motion. Even the most basic forms of fluid motion can be quite complex. For this reason, we limit our investigation to ideal fluids in many of the examples. An ideal fluid is a fluid with negligible viscosity. Viscosity is a measure of the internal friction in a fluid; we examine it in more detail in Viscosity and Turbulence. In a few examples, we examine an incompressible fluid—one for which an extremely large force is required to change the volume—since the density in an incompressible fluid is constant throughout.

Characteristics of Flow

Velocity vectors are often used to illustrate fluid motion in applications like meteorology. For example, wind—the fluid motion of air in the atmosphere—can be represented by vectors indicating the speed and direction of the wind at any given point on a map. Figure 14.24 shows velocity vectors describing the winds during Hurricane Arthur in 2014.

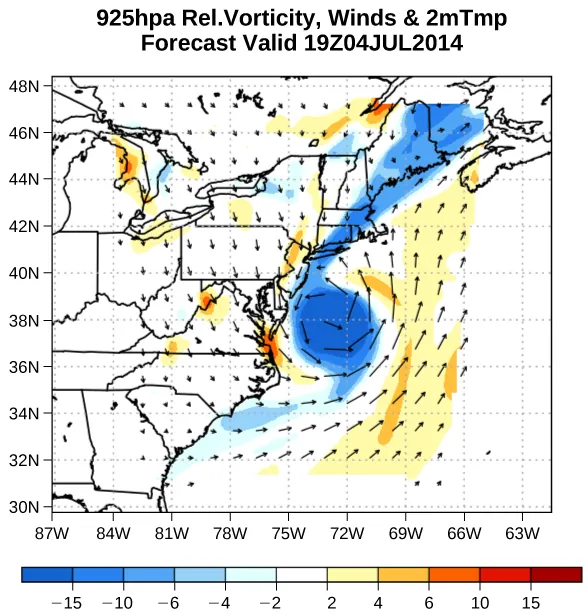

Figure is a pressure map of Hurricane Arthur traveling up the East Coast. The low pressure center is indicated as the blue dot. Wind speed is highest near the low pressure center with the winds moving in a counterclockwise direction around it.
Figure 14.24 The velocity vectors show the flow of wind in Hurricane Arthur. Notice the circulation of the wind around the eye of the hurricane. Wind speeds are highest near the eye. The colors represent the relative vorticity, a measure of turning or spinning of the air. (credit: modification of work by Joseph Trout, Stockton University)

Another method for representing fluid motion is a streamline. A streamline represents the path of a small volume of fluid as it flows. The velocity is always tangential to the streamline. The diagrams in Figure 14.25 use streamlines to illustrate two examples of fluids moving through a pipe. The first fluid exhibits a laminar flow (sometimes described as a steady flow), represented by smooth, parallel streamlines. Note that in the example shown in part (a), the velocity of the fluid is greatest in the center and decreases near the walls of the pipe due to the viscosity of the fluid and friction between the pipe walls and the fluid. This is a special case of laminar flow, where the friction between the pipe and the fluid is high, known as no slip boundary conditions. The second diagram represents turbulent flow, in which streamlines are irregular and change over time. In turbulent flow, the paths of the fluid flow are irregular as different parts of the fluid mix together or form small circular regions that resemble whirlpools. This can occur when the speed of the fluid reaches a certain critical speed.

Figure A is the schematic of the laminar flow shown as layers of fluid moving in parallel lines. Figure B is the schematics of the turbulent flow shown as layers of fluid moving in irregular, colliding paths.

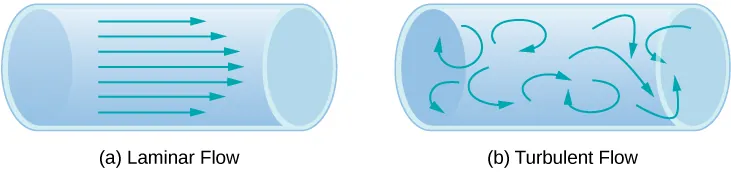

Figure 14.25 (a) Laminar flow can be thought of as layers of fluid moving in parallel, regular paths. (b) In turbulent flow, regions of fluid move in irregular, colliding paths, resulting in mixing and swirling.

Flow Rate and its Relation to Velocity

The volume of fluid passing by a given location through an area during a period of time is called flow rate Q, or more precisely, volume flow rate. In symbols, this is written as

Q=dVdtQ=dVdt
(14.13)

where V is the volume and t is the elapsed time. In Figure 14.26, the volume of the cylinder is Ax, so the flow rate is

Q=dVdt=ddt(Ax)=Adxdt=Av.Q=dVdt=ddt(Ax)=Adxdt=Av.
Figure is a schematic of a uniform pipeline with the cross-section area A. Fluid flows through the pipeline. Volume of fluid V passes a point P in time t.

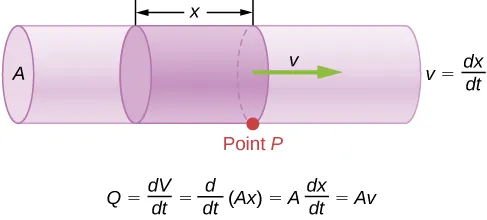

Figure 14.26 Flow rate is the volume of fluid flowing past a point through the area A per unit time. Here, the shaded cylinder of fluid flows past point P in a uniform pipe in time t.

The SI unit for flow rate is m3/s,m3/s, but several other units for Q are in common use, such as liters per minute (L/min). Note that a liter (L) is 1/1000 of a cubic meter or 1000 cubic centimeters (10−3m3or103cm3).(10−3m3or103cm3).

Flow rate and velocity are related, but quite different, physical quantities. To make the distinction clear, consider the flow rate of a river. The greater the velocity of the water, the greater the flow rate of the river. But flow rate also depends on the size and shape of the river. A rapid mountain stream carries far less water than the Amazon River in Brazil, for example. Figure 14.26 illustrates the volume flow rate. The volume flow rate is Q=dVdt=Av,Q=dVdt=Av, where AA is the cross-sectional area of the pipe and v is the magnitude of the velocity.

The precise relationship between flow rate Q and average speed v is

Q=Av,Q=Av,

where A is the cross-sectional area and vv is the average speed. The relationship tells us that flow rate is directly proportional to both the average speed of the fluid and the cross-sectional area of a river, pipe, or other conduit. The larger the conduit, the greater its cross-sectional area. Figure 14.26 illustrates how this relationship is obtained. The shaded cylinder has a volume V=AdV=Ad, which flows past the point P in a time t. Dividing both sides of this relationship by t gives

Vt=Adt.Vt=Adt.

We note that Q=V/tQ=V/t and the average speed is v =d/tv =d/t. Thus the equation becomes Q=AvQ=Av.

Figure 14.27 shows an incompressible fluid flowing along a pipe of decreasing radius. Because the fluid is incompressible, the same amount of fluid must flow past any point in the tube in a given time to ensure continuity of flow. The flow is continuous because they are no sources or sinks that add or remove mass, so the mass flowing into the pipe must be equal the mass flowing out of the pipe. In this case, because the cross-sectional area of the pipe decreases, the velocity must necessarily increase. This logic can be extended to say that the flow rate must be the same at all points along the pipe. In particular, for arbitrary points 1 and 2,

Q1=Q2,A1v1=A2v2.Q1=Q2,A1v1=A2v2.
(14.14)

This is called the equation of continuity and is valid for any incompressible fluid (with constant density). The consequences of the equation of continuity can be observed when water flows from a hose into a narrow spray nozzle: It emerges with a large speed—that is the purpose of the nozzle. Conversely, when a river empties into one end of a reservoir, the water slows considerably, perhaps picking up speed again when it leaves the other end of the reservoir. In other words, speed increases when cross-sectional area decreases, and speed decreases when cross-sectional area increases.

Figure is the schematic of a pipeline that narrows from the cross section area A1 to the cross section area A2. Fluid flows through the pipeline. Volume of fluid V1 passes a point 1, located at the wide cross-section part, in time t. Volume of fluid V2 passes a point 2, located in the narrow cross-section part, in time t.

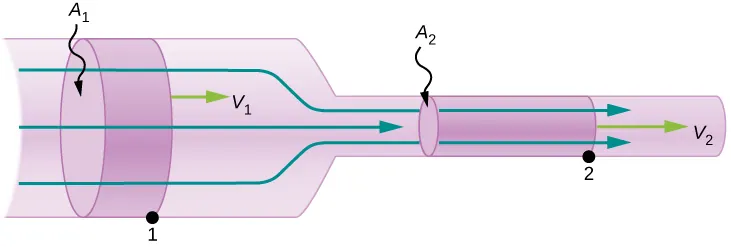

Figure 14.27 When a tube narrows, the same volume occupies a greater length. For the same volume to pass points 1 and 2 in a given time, the speed must be greater at point 2. The process is exactly reversible. If the fluid flows in the opposite direction, its speed decreases when the tube widens. (Note that the relative volumes of the two cylinders and the corresponding velocity vector arrows are not drawn to scale.)

Since liquids are essentially incompressible, the equation of continuity is valid for all liquids. However, gases are compressible, so the equation must be applied with caution to gases if they are subjected to compression or expansion.

Example 14.5

Calculating Fluid Speed through a Nozzle A nozzle with a diameter of 0.500 cm is attached to a garden hose with a radius of 0.900 cm. The flow rate through hose and nozzle is 0.500 L/s. Calculate the speed of the water (a) in the hose and (b) in the nozzle.

Strategy We can use the relationship between flow rate and speed to find both speeds. We use the subscript 1 for the hose and 2 for the nozzle.

Solution

  1. We solve the flow rate equation for speed and use πr12πr12 for the cross-sectional area of the hose, obtaining
    v=QA=Qπr12.v=QA=Qπr12.

    Substituting values and using appropriate unit conversions yields
    v=(0.500L/s)(10−3m3/L)3.14(9.00×10−3m)2=1.96m/s.v=(0.500L/s)(10−3m3/L)3.14(9.00×10−3m)2=1.96m/s.
  2. We could repeat this calculation to find the speed in the nozzle v2v2, but we use the equation of continuity to give a somewhat different insight. The equation states
    A1v1=A2v2.A1v1=A2v2.

    Solving for v2v2 and substituting πr2πr2 for the cross-sectional area yields
    v2=A1A2v1=πr12πr22v1=r12r22v1.v2=A1A2v1=πr12πr22v1=r12r22v1.

    Substituting known values,
    v2=(0.900 cm)2(0.250 cm)21.96m/s=25.5m/s.v2=(0.900 cm)2(0.250 cm)21.96m/s=25.5m/s.

Significance A speed of 1.96 m/s is about right for water emerging from a hose with no nozzle. The nozzle produces a considerably faster stream merely by constricting the flow to a narrower tube.

The solution to the last part of the example shows that speed is inversely proportional to the square of the radius of the tube, making for large effects when radius varies. We can blow out a candle at quite a distance, for example, by pursing our lips, whereas blowing on a candle with our mouth wide open is quite ineffective.

Mass Conservation

The rate of flow of a fluid can also be described by the mass flow rate or mass rate of flow. This is the rate at which a mass of the fluid moves past a point. Refer once again to Figure 14.26, but this time consider the mass in the shaded volume. The mass can be determined from the density and the volume:

m=ρV=ρAx.m=ρV=ρAx.

The mass flow rate is then

dmdt=ddt(ρAx)=ρAdxdt=ρAv,dmdt=ddt(ρAx)=ρAdxdt=ρAv,

where ρρ is the density, A is the cross-sectional area, and v is the magnitude of the velocity. The mass flow rate is an important quantity in fluid dynamics and can be used to solve many problems. Consider Figure 14.28. The pipe in the figure starts at the inlet with a cross sectional area of A1A1 and constricts to an outlet with a smaller cross sectional area of A2A2. The mass of fluid entering the pipe has to be equal to the mass of fluid leaving the pipe. For this reason the velocity at the outlet (v2)(v2) is greater than the velocity of the inlet (v1)(v1). Using the fact that the mass of fluid entering the pipe must be equal to the mass of fluid exiting the pipe, we can find a relationship between the velocity and the cross-sectional area by taking the rate of change of the mass in and the mass out:

(dmdt)1=(dmdt)2ρ1A1v1=ρ2A2v2.(dmdt)1=(dmdt)2ρ1A1v1=ρ2A2v2.
(14.15)

Equation 14.15 is also known as the continuity equation in general form. If the density of the fluid remains constant through the constriction—that is, the fluid is incompressible—then the density cancels from the continuity equation,

A1v1=A2v2.A1v1=A2v2.

The equation reduces to show that the volume flow rate into the pipe equals the volume flow rate out of the pipe.

Figure is a schematic of fluid flowing in a uniform pipeline with the cross-section area A. Volume of fluid V delta t passes the pipeline during the time delta t.
Figure 14.28 Geometry for deriving the equation of continuity. The amount of liquid entering the cross-sectional (shaded) area must equal the amount of liquid leaving the cross-sectional area if the liquid is incompressible.
Citation/Attribution

Want to cite, share, or modify this book? This book is Creative Commons Attribution License 4.0 and you must attribute OpenStax.

Attribution information
  • If you are redistributing all or part of this book in a print format, then you must include on every physical page the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-1/pages/1-introduction
  • If you are redistributing all or part of this book in a digital format, then you must include on every digital page view the following attribution:
    Access for free at https://openstax.org/books/university-physics-volume-1/pages/1-introduction
Citation information

© Sep 19, 2016 OpenStax. Textbook content produced by OpenStax is licensed under a Creative Commons Attribution License 4.0 license. The OpenStax name, OpenStax logo, OpenStax book covers, OpenStax CNX name, and OpenStax CNX logo are not subject to the Creative Commons license and may not be reproduced without the prior and express written consent of Rice University.
