14.4 Archimedes’ Principle and Buoyancy - University Physics Volume 1

Learning Objectives

By the end of this section, you will be able to:

Define buoyant force
State Archimedes’ principle
Describe the relationship between density and Archimedes’ principle

When placed in a fluid, some objects float due to a buoyant force. Where does this buoyant force come from? Why is it that some things float and others do not? Do objects that sink get any support at all from the fluid? Is your body buoyed by the atmosphere, or are only helium balloons affected (Figure 14.19)?

Figure A is a drawing of a ship anchor submerged underwater next to some sea shrubs. Figure B is a photo of a floating submarine with a wake on 3 sides. Figure C is a photo of many colored balloons floating in air.

Figure 14.19 (a) Even objects that sink, like this anchor, are partly supported by water when submerged. (b) Submarines have adjustable density (ballast tanks) so that they may float or sink as desired. (c) Helium-filled balloons tug upward on their strings, demonstrating air’s buoyant effect. (credit b: modification of work by Allied Navy; credit c: modification of work by “Crystl”/Flickr)

Answers to all these questions, and many others, are based on the fact that pressure increases with depth in a fluid. This means that the upward force on the bottom of an object in a fluid is greater than the downward force on top of the object. There is an upward force, or buoyant force, on any object in any fluid (Figure 14.20). If the buoyant force is greater than the object’s weight, the object rises to the surface and floats. If the buoyant force is less than the object’s weight, the object sinks. If the buoyant force equals the object’s weight, the object can remain suspended at its present depth. The buoyant force is always present, whether the object floats, sinks, or is suspended in a fluid.

Buoyant Force

The buoyant force is the upward force on any object in any fluid.

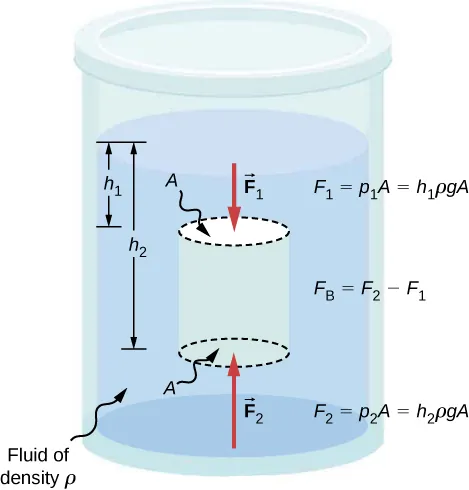

Figure is a schematic drawing of the cylinder filled with fluid and opened to the atmosphere on one side. An imaginary object with the surface area A, that is smaller than the surface area of the cylinder, is submerged into the fluid. Distance between the top of the fluid and the top of the object is h1. Distance between the top of the fluid and the bottom of the object is h2. Forces F1 and F2 are applied to the top and the bottom of the object, respectively.

Figure 14.20 Pressure due to the weight of a fluid increases with depth because

p = h p g

. This change in pressure and associated upward force on the bottom of the cylinder are greater than the downward force on the top of the cylinder. The differences in the force results in the buoyant force

F_{B}

. (Horizontal forces cancel.)

Archimedes’ Principle

Just how large a force is buoyant force? To answer this question, think about what happens when a submerged object is removed from a fluid, as in Figure 14.21. If the object were not in the fluid, the space the object occupied would be filled by fluid having a weight $w_{fl} .$ This weight is supported by the surrounding fluid, so the buoyant force must equal $w_{fl},$ the weight of the fluid displaced by the object.

Archimedes’ Principle

The buoyant force on an object equals the weight of the fluid it displaces. In equation form, Archimedes’ principle is

F_{B} = w_{fl},

where $F_{B}$ is the buoyant force and $w_{fl}$ is the weight of the fluid displaced by the object.

This principle is named after the Greek mathematician and inventor Archimedes (ca. 287–212 BCE), who stated this principle long before concepts of force were well established.

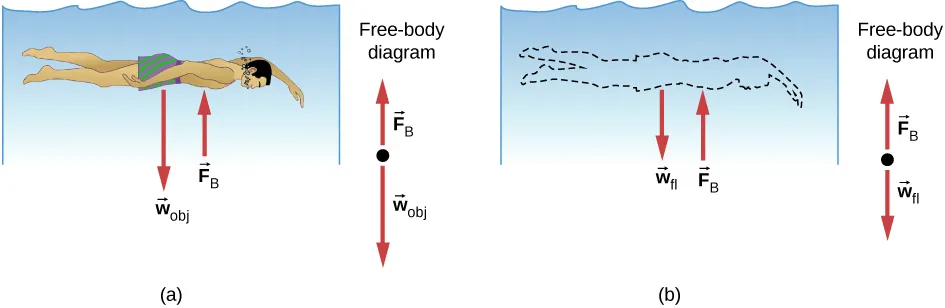

Figure A is a drawing of a person submerged in water. Force wobj is expressed by the person, force Fb is applied by the water to the person. Figure B is a drawing in which the person is replaced by water. Now Force wfl is expressed by the water that replaced the person, force Fb remains the same.

Figure 14.21 (a) An object submerged in a fluid experiences a buoyant force

F_{B} .

F_{B}

is greater than the weight of the object, the object rises. If

F_{B}

is less than the weight of the object, the object sinks. (b) If the object is removed, it is replaced by fluid having weight

w_{fl} .

Since this weight is supported by surrounding fluid, the buoyant force must equal the weight of the fluid displaced.

Archimedes’ principle refers to the force of buoyancy that results when a body is submerged in a fluid, whether partially or wholly. The force that provides the pressure of a fluid acts on a body perpendicular to the surface of the body. In other words, the force due to the pressure at the bottom is pointed up, while at the top, the force due to the pressure is pointed down; the forces due to the pressures at the sides are pointing into the body.

Since the bottom of the body is at a greater depth than the top of the body, the pressure at the lower part of the body is higher than the pressure at the upper part, as shown in Figure 14.20. Therefore a net upward force acts on the body. This upward force is the force of buoyancy, or simply buoyancy.

Interactive

The exclamation “Eureka” (meaning “I found it”) has often been credited to Archimedes as he made the discovery that would lead to Archimedes’ principle. Some say it all started in a bathtub. To hear this story, watch this video or explore Scientific American to learn more.

Density and Archimedes’ Principle

If you drop a lump of clay in water, it will sink. But if you mold the same lump of clay into the shape of a boat, it will float. Because of its shape, the clay boat displaces more water than the lump and experiences a greater buoyant force, even though its mass is the same. The same is true of steel ships.

The average density of an object is what ultimately determines whether it floats. If an object’s average density is less than that of the surrounding fluid, it will float. The reason is that the fluid, having a higher density, contains more mass and hence more weight in the same volume. The buoyant force, which equals the weight of the fluid displaced, is thus greater than the weight of the object. Likewise, an object denser than the fluid will sink.

The extent to which a floating object is submerged depends on how the object’s density compares to the density of the fluid. In Figure 14.22, for example, the unloaded ship has a lower density and less of it is submerged compared with the same ship when loaded. We can derive a quantitative expression for the fraction submerged by considering density. The fraction submerged is the ratio of the volume submerged to the volume of the object, or

fraction submerged = \frac{V_{sub}}{V_{obj}} = \frac{V_{fl}}{V_{obj}} .

The volume submerged equals the volume of fluid displaced, which we call $V_{f l}$ . Now we can obtain the relationship between the densities by substituting $ρ = \frac{m}{V}$ into the expression. This gives

\frac{V_{fl}}{V_{obj}} = \frac{m_{fl} / ρ_{fl}}{m_{obj} / ρ_{obj}},

where $ρ_{obj}$ is the average density of the object and $ρ_{fl}$ is the density of the fluid. Since the object floats, its mass and that of the displaced fluid are equal, so they cancel from the equation, leaving

fraction submerged = \frac{ρ_{obj}}{ρ_{fl}} .

We can use this relationship to measure densities.

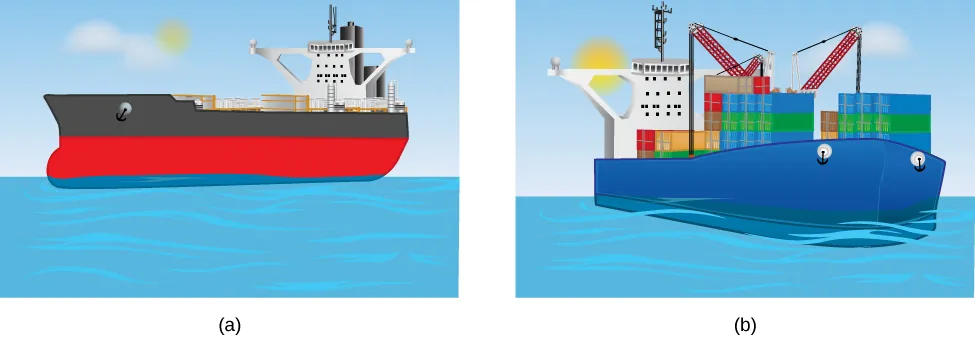

Figure A is a drawing of an unloaded ship floating high in the water. Figure B is a drawing of a loaded ship floating deeper in the water.

Figure 14.22 An unloaded ship (a) floats higher in the water than a loaded ship (b).

Example 14.4

Calculating Average Density

Suppose a 60.0-kg woman floats in fresh water with 97.0% of her volume submerged when her lungs are full of air. What is her average density?

Strategy

We can find the woman’s density by solving the equation

fraction submerged = \frac{ρ_{obj}}{ρ_{fl}}

for the density of the object. This yields

ρ_{obj} = ρ_{person} = (fraction submerged) \cdot ρ_{fl} .

We know both the fraction submerged and the density of water, so we can calculate the woman’s density.

Solution

Entering the known values into the expression for her density, we obtain

ρ_{person} = 0.970 \cdot (10^{3} \frac{kg}{m^{3}}) = 970 \frac{kg}{m^{3}} .

Significance

The woman’s density is less than the fluid density. We expect this because she floats.

Numerous lower-density objects or substances float in higher-density fluids: oil on water, a hot-air balloon in the atmosphere, a bit of cork in wine, an iceberg in salt water, and hot wax in a “lava lamp,” to name a few. A less obvious example is mountain ranges floating on the higher-density crust and mantle beneath them. Even seemingly solid Earth has fluid characteristics.

Measuring Density

One of the most common techniques for determining density is shown in Figure 14.23.

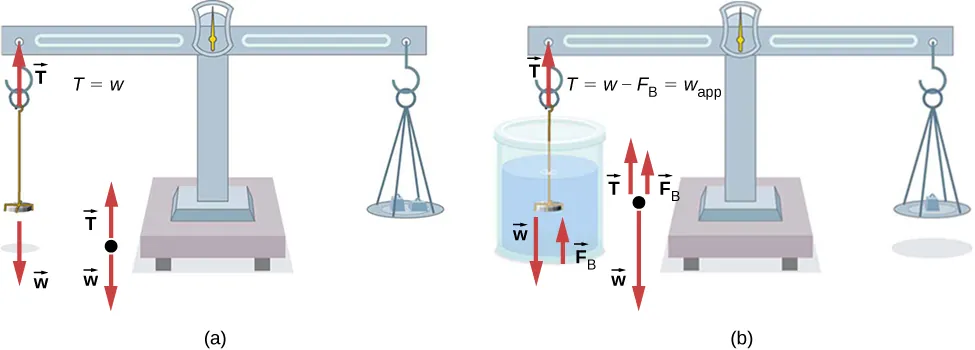

Figure A is a drawing of a coin in the air weighed on a manual scale. A large balance is used to counterbalance the coin. Figure B is a drawing of the same coin in water weighed on the manual scale. A smaller balance is used to counterbalance the coin.

Figure 14.23 (a) A coin is weighed in air. (b) The apparent weight of the coin is determined while it is completely submerged in a fluid of known density. These two measurements are used to calculate the density of the coin.

An object, here a coin, is weighed in air and then weighed again while submerged in a liquid. The density of the coin, an indication of its authenticity, can be calculated if the fluid density is known. We can use this same technique to determine the density of the fluid if the density of the coin is known.

All of these calculations are based on Archimedes’ principle, which states that the buoyant force on the object equals the weight of the fluid displaced. This, in turn, means that the object appears to weigh less when submerged; we call this measurement the object’s apparent weight. The object suffers an apparent weight loss equal to the weight of the fluid displaced. Alternatively, on balances that measure mass, the object suffers an apparent mass loss equal to the mass of fluid displaced. That is, apparent weight loss equals weight of fluid displaced, or apparent mass loss equals mass of fluid displaced.
