5.4 Inclined Planes

Physics5.4 Inclined Planes

Section Learning Objectives

By the end of this section, you will be able to do the following:

  • Distinguish between static friction and kinetic friction
  • Solve problems involving inclined planes

Teacher Support

Teacher Support

The learning objectives in this section will help your students master the following standards:

  • (4) Science concepts. The student knows and applies the laws governing motion in two dimensions for a variety of situations. The student is expected to:
    • (D) calculate the effect of forces on objects, including the law of inertia, the relationship between force and acceleration, and the nature of force pairs between objects.

Section Key Terms

kinetic friction static friction

Static Friction and Kinetic Friction

Recall from the previous chapter that friction is a force that opposes relative motion parallel to the contact surface of the interacting objects and is around us all the time. Friction allows us to move, which you have discovered if you have ever tried to walk on ice.

There are different types of friction—kinetic and static. Kinetic friction acts on an object in relative motion, while static friction acts on an object or system at rest relative to each other. The maximum static friction is usually greater than the kinetic friction between the objects.

Teacher Support

Teacher Support

[BL][OL] Review the concept of friction.

[AL] Start a discussion about the two kinds of friction: static and kinetic. Ask students which one they think would be greater for two given surfaces. Explain the concept of coefficient of friction and what the number would imply in practical terms. Look at the table of static and kinetic friction and ask students to guess which other systems would have higher or lower coefficients.

Imagine, for example, trying to slide a heavy crate across a concrete floor. You may push harder and harder on the crate and not move it at all. This means that the static friction responds to what you do—it increases to be equal to and in the opposite direction of your push. But if you finally push hard enough, the crate seems to slip suddenly and starts to move. Once in motion, it is easier to keep it in motion than it was to get it started because the kinetic friction force is less than the static friction force. If you were to add mass to the crate, (for example, by placing a box on top of it) you would need to push even harder to get it started and also to keep it moving. If, on the other hand, you oiled the concrete you would find it easier to get the crate started and keep it going.

Figure 5.33 shows how friction occurs at the interface between two objects. Magnifying these surfaces shows that they are rough on the microscopic level. So when you push to get an object moving (in this case, a crate), you must raise the object until it can skip along with just the tips of the surface hitting, break off the points, or do both. The harder the surfaces are pushed together (such as if another box is placed on the crate), the more force is needed to move them.

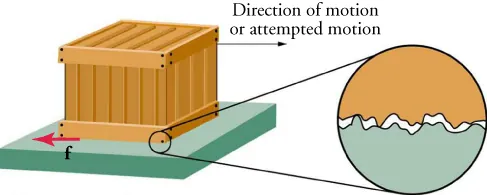

A box is shown sitting on a floor. A vector labeled f points to the left from the area where the bottom of the box meets the floor. A zoom-in diagram shows the bottom surface of the box and the surface of the floor as rough.
Figure 5.33 Frictional forces, such as f, always oppose motion or attempted motion between objects in contact. Friction arises in part because of the roughness of the surfaces in contact, as seen in the expanded view.

The magnitude of the frictional force has two forms: one for static friction, the other for kinetic friction. When there is no motion between the objects, the magnitude of static friction fs is

f s μ s N s , f s μ s N s ,

where μ s μ s is the coefficient of static friction and N is the magnitude of the normal force. Recall that the normal force acts perpendicular to the surface and prevents the crate from falling through the floor. It opposes the force of gravity in this example, but that will not always be the case.

Since the symbol means less than or equal to, this equation says that static friction can have a maximum value of μ s N. μ s N. That is,

f s (max)= μ s N. f s (max)= μ s N.

Static friction is a responsive force that increases to be equal and opposite to whatever force is exerted, up to its maximum limit. Once the applied force exceeds fs(max), the object will move. Once an object is moving, the magnitude of kinetic friction fk is given by

f k = μ k N. f k = μ k N.

where μ k μ k is the coefficient of kinetic friction.

Friction varies from surface to surface because different substances are rougher than others. Table 5.2 compares values of static and kinetic friction for different surfaces. The coefficient of the friction depends on the two surfaces that are in contact.

System Static Friction μ s μ s Kinetic Friction μ k μ k
Rubber on dry concrete 1.0 0.7
Rubber on wet concrete 0.7 0.5
Wood on wood 0.5 0.3
Waxed wood on wet snow 0.14 0.1
Metal on wood 0.5 0.3
Steel on steel (dry) 0.6 0.3
Steel on steel (oiled) 0.05 0.03
Teflon on steel 0.04 0.04
Bone lubricated by synovial fluid 0.016 0.015
Shoes on wood 0.9 0.7
Shoes on ice 0.1 0.05
Ice on ice 0.1 0.03
Steel on ice 0.4 0.02
Table 5.2 Coefficients of Static and Kinetic Friction

Since friction always opposes relative motion, the direction of friction is upward along the plane if the object is at rest or sliding down the incline. For example, if the crate you try to push (with a force parallel to the floor) has a mass of 100 kg, then the normal force would be equal to its weight

W=mg=(100kg)(9.80 m/s 2 )=980 N, W=mg=(100kg)(9.80 m/s 2 )=980 N,

perpendicular to the floor. If the coefficient of static friction is 0.45, you would have to exert a force parallel to the floor greater than

f s (max)= μ s N=(0.45)(980 N)=440 N f s (max)= μ s N=(0.45)(980 N)=440 N

to move the crate. Once there is motion, friction is less and the coefficient of kinetic friction might be 0.30, so that a force of only 290 N

f k = μ k N=(0.30)(980 N)=290 N f k = μ k N=(0.30)(980 N)=290 N

would keep it moving at a constant speed. If the floor were lubricated, both coefficients would be much smaller than they would be without lubrication. The coefficient of friction is unitless and is a number usually between 0 and 1.0, but there is no theoretical upper limit to its value.

Working with Inclined Planes

We discussed previously that when an object rests on a horizontal surface, there is a normal force supporting it equal in magnitude to its weight. Up until now, we dealt only with normal force in one dimension, with gravity and normal force acting perpendicular to the surface in opposing directions (gravity downward, and normal force upward). Now that you have the skills to work with forces in two dimensions, we can explore what happens to weight and the normal force on a tilted surface such as an inclined plane. For inclined plane problems, it is easier breaking down the forces into their components if we rotate the coordinate system, as illustrated in Figure 5.34. The first step when setting up the problem is to break down the force of weight into components.

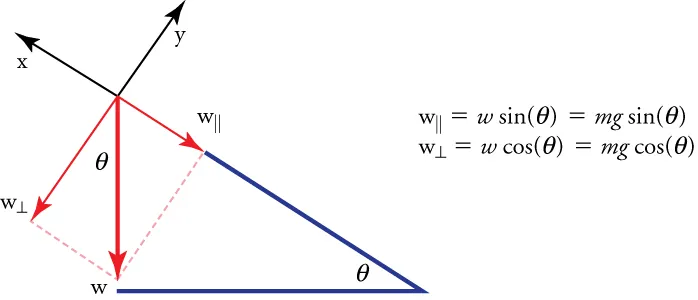

A diagram shows perpendicular and horizontal components of weight. The weight is on an inclined plane that slopes downward to the right.
Figure 5.34 The diagram shows perpendicular and horizontal components of weight on an inclined plane.

Teacher Support

Teacher Support

[BL] Review the concepts of mass, weight, gravitation and normal force.

[OL] Review vectors and components of vectors.

When an object rests on an incline that makes an angle θ θ with the horizontal, the force of gravity acting on the object is divided into two components: A force acting perpendicular to the plane, w w , and a force acting parallel to the plane, w || w || . The perpendicular force of weight, w w , is typically equal in magnitude and opposite in direction to the normal force, N. N. The force acting parallel to the plane, w || w || , causes the object to accelerate down the incline. The force of friction, f f , opposes the motion of the object, so it acts upward along the plane.

It is important to be careful when resolving the weight of the object into components. If the angle of the incline is at an angle θ θ to the horizontal, then the magnitudes of the weight components are

w || =wsin(θ)=mgsin(θ) and w || =wsin(θ)=mgsin(θ) and
w =wcos(θ)=mgcos(θ). w =wcos(θ)=mgcos(θ).

Instead of memorizing these equations, it is helpful to be able to determine them from reason. To do this, draw the right triangle formed by the three weight vectors. Notice that the angle of the incline is the same as the angle formed between w w and w w . Knowing this property, you can use trigonometry to determine the magnitude of the weight components

cos(θ)= w w w =wcos(θ)=mgcos(θ) cos(θ)= w w w =wcos(θ)=mgcos(θ)
sin(θ)= w || w w || =wsin(θ)=mgsin(θ). sin(θ)= w || w w || =wsin(θ)=mgsin(θ).

Teacher Support

Teacher Support

[BL][OL][AL] Experiment with sliding different objects on inclined planes to understand static and kinetic friction. Which objects need a larger angle to slide down? What does this say about the coefficients of friction of those systems? Is a greater force required to start the motion of an object than to keep it in motion? What does this say about static and kinetic friction? When does an object slide down at constant velocity? What does this say about friction and normal force?

Watch Physics

Inclined Plane Force Components

This video shows how the weight of an object on an inclined plane is broken down into components perpendicular and parallel to the surface of the plane. It explains the geometry for finding the angle in more detail.

This video shows how the weight of an object on an inclined plane is broken down into components perpendicular and parallel to the surface of the plane. It explains the geometry for finding the angle in more detail.

When the surface is flat, you could say that one of the components of the gravitational force is zero; Which one? As the angle of the incline gets larger, what happens to the magnitudes of the perpendicular and parallel components of gravitational force?

  1. When the angle is zero, the parallel component is zero and the perpendicular component is at a maximum. As the angle increases, the parallel component decreases and the perpendicular component increases. This is because the cosine of the angle shrinks while the sine of the angle increases.
  2. When the angle is zero, the parallel component is zero and the perpendicular component is at a maximum. As the angle increases, the parallel component decreases and the perpendicular component increases. This is because the cosine of the angle increases while the sine of the angle shrinks.
  3. When the angle is zero, the parallel component is zero and the perpendicular component is at a maximum. As the angle increases, the parallel component increases and the perpendicular component decreases. This is because the cosine of the angle shrinks while the sine of the angle increases.
  4. When the angle is zero, the parallel component is zero and the perpendicular component is at a maximum. As the angle increases, the parallel component increases and the perpendicular component decreases. This is because the cosine of the angle increases while the sine of the angle shrinks.

Tips For Success

Normal force is represented by the variable N. N. This should not be confused with the symbol for the newton, which is also represented by the letter N. It is important to tell apart these symbols, especially since the units for normal force ( N N ) happen to be newtons (N). For example, the normal force, N N , that the floor exerts on a chair might be N=100 N. N=100 N. One important difference is that normal force is a vector, while the newton is simply a unit. Be careful not to confuse these letters in your calculations!

To review, the process for solving inclined plane problems is as follows:

  1. Draw a sketch of the problem.
  2. Identify known and unknown quantities, and identify the system of interest.
  3. Draw a free-body diagram (which is a sketch showing all of the forces acting on an object) with the coordinate system rotated at the same angle as the inclined plane. Resolve the vectors into horizontal and vertical components and draw them on the free-body diagram.
  4. Write Newton’s second law in the horizontal and vertical directions and add the forces acting on the object. If the object does not accelerate in a particular direction (for example, the x -direction) then Fnet x = 0. If the object does accelerate in that direction, Fnet x = ma.
  5. Check your answer. Is the answer reasonable? Are the units correct?

Worked Example

Finding the Coefficient of Kinetic Friction on an Inclined Plane

A skier, illustrated in Figure 5.35(a), with a mass of 62 kg is sliding down a snowy slope at an angle of 25 degrees. Find the coefficient of kinetic friction for the skier if friction is known to be 45.0 N.

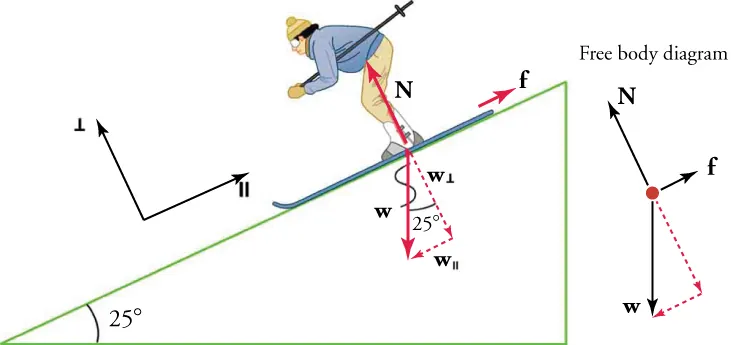

A skier is moving down a slope with an angle measure of twenty-five degrees to the ground. Force vectors are shown: N points upward from the skier, f points to the right of the skis, w points at a downward left angle from the skiers' feet, forming an angle with vector w that has a measure of twenty-five degrees. A free-body diagram illustrates the right triangle formed by these vectors.
Figure 5.35 Use the diagram to help find the coefficient of kinetic friction for the skier.

Strategy

The magnitude of kinetic friction was given as 45.0 N. Kinetic friction is related to the normal force N as f k = μ k N f k = μ k N . Therefore, we can find the coefficient of kinetic friction by first finding the normal force of the skier on a slope. The normal force is always perpendicular to the surface, and since there is no motion perpendicular to the surface, the normal force should equal the component of the skier’s weight perpendicular to the slope.

That is,

N= w =w cos( 25 )=mg cos( 25 ) . N= w =w cos( 25 )=mg cos( 25 ) .

Substituting this into our expression for kinetic friction, we get

f k = μ k mg  cos 25 , f k = μ k mg  cos 25 ,

which can now be solved for the coefficient of kinetic friction μk.

Discussion

This result is a little smaller than the coefficient listed in Table 5.2 for waxed wood on snow, but it is still reasonable since values of the coefficients of friction can vary greatly. In situations like this, where an object of mass m slides down a slope that makes an angle θ with the horizontal, friction is given by f k = μ k mg cosθ. f k = μ k mg cosθ.

Worked Example

Weight on an Incline, a Two-Dimensional Problem

The skier’s mass, including equipment, is 60.0 kg. (See Figure 5.36(b).) (a) What is her acceleration if friction is negligible? (b) What is her acceleration if the frictional force is 45.0 N?

A skier is moving down a slope with an angle measure of twenty-five degrees to the ground. Force vectors are shown: N points upward from the skier, f points to the right of the skis, w points at a downward left angle from the skiers' feet, forming an angle with vector w that has a measure of twenty-five degrees. A free-body diagram illustrates the right triangle formed by these vectors.
Figure 5.36 Now use the diagram to help find the skier's acceleration if friction is negligible and if the frictional force is 45.0 N.

Strategy

The most convenient coordinate system for motion on an incline is one that has one coordinate parallel to the slope and one perpendicular to the slope. Remember that motions along perpendicular axes are independent. We use the symbol to mean perpendicular, and || || to mean parallel.

The only external forces acting on the system are the skier’s weight, friction, and the normal force exerted by the ski slope, labeled w w , f f , and N N in the free-body diagram. N N is always perpendicular to the slope and f f is parallel to it. But w w is not in the direction of either axis, so we must break it down into components along the chosen axes. We define w || w || to be the component of weight parallel to the slope and w w the component of weight perpendicular to the slope. Once this is done, we can consider the two separate problems of forces parallel to the slope and forces perpendicular to the slope.

Discussion

Since friction always opposes motion between surfaces, the acceleration is smaller when there is friction than when there is not.

Practice Problems

15.

When an object sits on an inclined plane that makes an angle θ with the horizontal, what is the expression for the component of the objects weight force that is parallel to the incline?

  1. w||=wcosθw||=wcosθ
  2. w||=wsinθw||=wsinθ
  3. w||=wsinθcosθw||=wsinθcosθ
  4. w||=wcosθsinθw||=wcosθsinθ
16 .
An object with a mass of 5 kg rests on a plane inclined 30 from horizontal. What is the component of the weight force that is parallel to the incline?
  1. 4.33 N
  2. 5.0 N
  3. 24.5 N
  4. 42.43 N

Snap Lab

Friction at an Angle: Sliding a Coin

An object will slide down an inclined plane at a constant velocity if the net force on the object is zero. We can use this fact to measure the coefficient of kinetic friction between two objects. As shown in the first Worked Example, the kinetic friction on a slope f k = μ k mg cosθ f k = μ k mg cosθ , and the component of the weight down the slope is equal to mg sinθ mg sinθ . These forces act in opposite directions, so when they have equal magnitude, the acceleration is zero. Writing these out

f k = F g x μ k mg cosθ = mg sinθ. f k = F g x μ k mg cosθ = mg sinθ.

Solving for μ k μ k , since tanθ=sinθ/cosθ tanθ=sinθ/cosθ we find that

μ k = mg sinθ mg cosθ = tanθ. μ k = mg sinθ mg cosθ = tanθ.
5.10
  • 1 coin
  • 1 book
  • 1 protractor
    1. Put a coin flat on a book and tilt it until the coin slides at a constant velocity down the book. You might need to tap the book lightly to get the coin to move.
    2. Measure the angle of tilt relative to the horizontal and find μ k μ k .

Grasp Check

True or False—If only the angles of two vectors are known, we can find the angle of their resultant addition vector.

  1. True
  2. False

Check Your Understanding

17 .
What is friction?
  1. Friction is an internal force that opposes the relative motion of an object.
  2. Friction is an internal force that accelerates an object’s relative motion.
  3. Friction is an external force that opposes the relative motion of an object.
  4. Friction is an external force that increases the velocity of the relative motion of an object.
18 .
What are the two varieties of friction? What does each one act upon?
  1. Kinetic and static friction both act on an object in motion.
  2. Kinetic friction acts on an object in motion, while static friction acts on an object at rest.
  3. Kinetic friction acts on an object at rest, while static friction acts on an object in motion.
  4. Kinetic and static friction both act on an object at rest.
19 .
Given static and kinetic friction between two surfaces, which has a greater value? Why?
  1. The kinetic friction has a greater value because the friction between the two surfaces is more when the two surfaces are in relative motion.
  2. The static friction has a greater value because the friction between the two surfaces is more when the two surfaces are in relative motion.
  3. The kinetic friction has a greater value because the friction between the two surfaces is less when the two surfaces are in relative motion.
  4. The static friction has a greater value because the friction between the two surfaces is less when the two surfaces are in relative motion.

Teacher Support

Teacher Support

Use the Check Your Understanding questions to assess whether students achieve the learning objectives for this section. If students are struggling with a specific objective, the Check Your Understanding will help identify which objective is causing the problem and direct students to the relevant content.
