Section Learning Objectives

By the end of this section, you will be able to do the following:

  • Explain the meaning of slope and area in velocity vs. time graphs
  • Solve problems using velocity vs. time graphs

Teacher Support

Teacher Support

The learning objectives in this section will help your students master the following standards:

  • (4) Science concepts. The student knows and applies the laws governing motion in a variety of situations. The student is expected to:
    • (A) generate and interpret graphs and charts describing different types of motion, including the use of real-time technology such as motion detectors or photogates.

Section Key Terms

acceleration

Teacher Support

Teacher Support

Ask students to use their knowledge of position graphs to construct velocity vs. time graphs. Alternatively, provide an example of a velocity vs. time graph and ask students what information can be derived from the graph. Ask—Is it the same information as in a position vs. time graph? How is the information portrayed differently? Is there any new information in a velocity vs. time graph?

Graphing Velocity as a Function of Time

Earlier, we examined graphs of position versus time. Now, we are going to build on that information as we look at graphs of velocity vs. time. Velocity is the rate of change of displacement. Acceleration is the rate of change of velocity; we will discuss acceleration more in another chapter. These concepts are all very interrelated.

Virtual Physics

Maze Game

In this simulation you will use a vector diagram to manipulate a ball into a certain location without hitting a wall. You can manipulate the ball directly with position or by changing its velocity. Explore how these factors change the motion. If you would like, you can put it on the a setting, as well. This is acceleration, which measures the rate of change of velocity. We will explore acceleration in more detail later, but it might be interesting to take a look at it here.

Grasp Check

  1. The ball can be easily manipulated with displacement because the arena is a position space.
  2. The ball can be easily manipulated with velocity because the arena is a position space.
  3. The ball can be easily manipulated with displacement because the arena is a velocity space.
  4. The ball can be easily manipulated with velocity because the arena is a velocity space.

What can we learn about motion by looking at velocity vs. time graphs? Let’s return to our drive to school, and look at a graph of position versus time as shown in Figure 2.15.

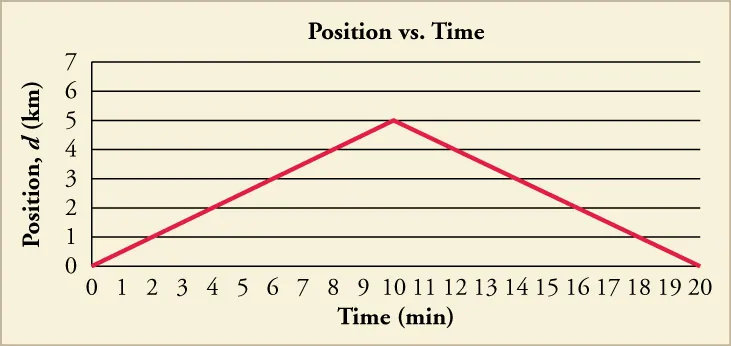

A line graph titled Position versus Time is shown. The x-axis is labeled time in minutes and has a scale from zero to twenty in increments of one. The y-axis is labeled position, d, in kilometers and has a scale from zero to twelve in increments of one. The line intersects the following data points to form a line that slopes upward and then downward: zero, zero; two, one; four, two; ten, five; twelve, four; fourteen, three; twenty, zero.
Figure 2.15 A graph of position versus time for the drive to and from school is shown.

We assumed for our original calculation that your parent drove with a constant velocity to and from school. We now know that the car could not have gone from rest to a constant velocity without speeding up. So the actual graph would be curved on either end, but let’s make the same approximation as we did then, anyway.

Tips For Success

It is common in physics, especially at the early learning stages, for certain things to be neglected, as we see here. This is because it makes the concept clearer or the calculation easier. Practicing physicists use these kinds of short-cuts, as well. It works out because usually the thing being neglected is small enough that it does not significantly affect the answer. In the earlier example, the amount of time it takes the car to speed up and reach its cruising velocity is very small compared to the total time traveled.

Looking at this graph, and given what we learned, we can see that there are two distinct periods to the car’s motion—the way to school and the way back. The average velocity for the drive to school is 0.5 km/minute. We can see that the average velocity for the drive back is –0.5 km/minute. If we plot the data showing velocity versus time, we get another graph (Figure 2.16):

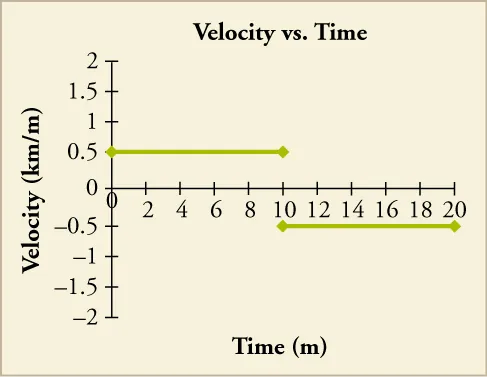

A graph that shows time in minutes on the x-axis and velocity in kilometers per minute on the y axis. A horizontal line is show at a velocity of 0.5 that runs from 0 to 10 minutes. Another horizontal line is shown at a velocity of –0.5 that runs from 10 to 20 minutes.
Figure 2.16 Graph of velocity versus time for the drive to and from school.

We can learn a few things. First, we can derive a v versus t graph from a d versus t graph. Second, if we have a straight-line position–time graph that is positively or negatively sloped, it will yield a horizontal velocity graph. There are a few other interesting things to note. Just as we could use a position vs. time graph to determine velocity, we can use a velocity vs. time graph to determine position. We know that v = d/t. If we use a little algebra to re-arrange the equation, we see that d = v ×× t. In Figure 2.16, we have velocity on the y-axis and time along the x-axis. Let’s take just the first half of the motion. We get 0.5 km/minute ×× 10 minutes. The units for minutes cancel each other, and we get 5 km, which is the displacement for the trip to school. If we calculate the same for the return trip, we get –5 km. If we add them together, we see that the net displacement for the whole trip is 0 km, which it should be because we started and ended at the same place.

Tips For Success

You can treat units just like you treat numbers, so a km/km=1 (or, we say, it cancels out). This is good because it can tell us whether or not we have calculated everything with the correct units. For instance, if we end up with m × s for velocity instead of m/s, we know that something has gone wrong, and we need to check our math. This process is called dimensional analysis, and it is one of the best ways to check if your math makes sense in physics.

The area under a velocity curve represents the displacement. The velocity curve also tells us whether the car is speeding up. In our earlier example, we stated that the velocity was constant. So, the car is not speeding up. Graphically, you can see that the slope of these two lines is 0. This slope tells us that the car is not speeding up, or accelerating. We will do more with this information in a later chapter. For now, just remember that the area under the graph and the slope are the two important parts of the graph. Just like we could define a linear equation for the motion in a position vs. time graph, we can also define one for a velocity vs. time graph. As we said, the slope equals the acceleration, a. And in this graph, the y-intercept is v0. Thus, v= v 0 +at v= v 0 +at .

But what if the velocity is not constant? Let’s look back at our jet-car example. At the beginning of the motion, as the car is speeding up, we saw that its position is a curve, as shown in Figure 2.17.

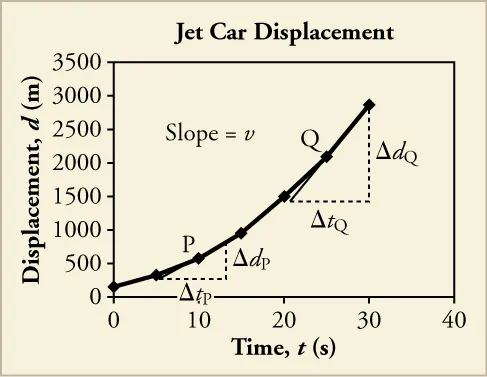

A line graph titled Jet Car Displacement is shown. The x-axis is labeled time, t, in seconds and has a scale from zero to forty on increments of ten. The y-axis is labeled displacement, x, in meters and has a scale from zero to three thousand five hundred in increments of five hundred. The following approximate data points are plotted, resulting in a line that curves upward: eight, two hundred fifty; ten, five hundred; fifteen, one thousand; twenty, one thousand five hundred; twenty-five, two thousand; thirty, three thousand. A right triangle is drawn at points eight, two hundred fifty; twelve, two hundred fifty, and twelve seven hundred fifty. The legs are labeled change in tp and change in dp. Point ten, five hundred is labeled P. Another right triangle is drawn at points twenty, one thousand five hundred; thirty, one thousand five hundred, and thirty, three thousand. The legs are labeled change in tq and change in dq. Point twenty-five, two thousand is labeled Q.
Figure 2.17 A graph is shown of the position of a jet-powered car during the time span when it is speeding up. The slope of a d vs. t graph is velocity. This is shown at two points. Instantaneous velocity at any point is the slope of the tangent at that point.

You do not have to do this, but you could, theoretically, take the instantaneous velocity at each point on this graph. If you did, you would get Figure 2.18, which is just a straight line with a positive slope.

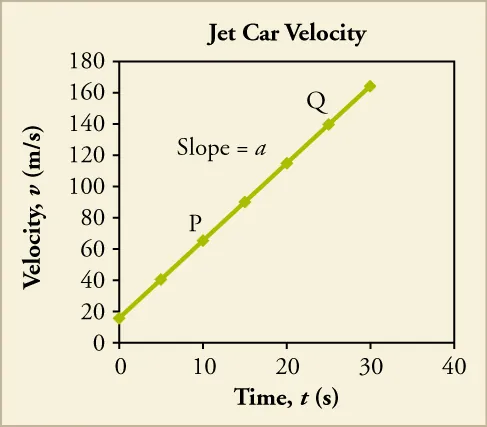

A line graph titled Jet Car Velocity is shown. The x-axis is labeled time, t, in seconds and has a scale from zero to forty on increments of ten. The y-axis is labeled velocity, v, in meters per second and has a scale from zero to one hundred eighty in increments of twenty. A straight line with a positive slope is plotted that intersects the following approximate points: zero, eighteen; ten, sixty (labeled P); fifteen, ninety; twenty, one hundred twenty; twenty five, one hundred fifty (labeled Q); thirty, one hundred sixty. Slope equals a is shown above the graphed lined.
Figure 2.18 The graph shows the velocity of a jet-powered car during the time span when it is speeding up.

Again, if we take the slope of the velocity vs. time graph, we get the acceleration, the rate of change of the velocity. And, if we take the area under the slope, we get back to the displacement.

Teacher Support

Teacher Support

Teacher Demonstration

Return to the scenario of the drive to and from school. Re-draw the V-shaped position graph. Ask the students what the velocity is at different times on that graph. Students should then be able to see that the corresponding velocity graph is a horizontal line at 0.5km/minute and then a horizontal line at –0.5 km/minute. Then draw a few velocity graphs and see if they can get the corresponding position graph.

[OL][AL] Have students describe the relationship between the velocity and the position on these graphs. Ask—Can a velocity graph be used to find the position? Can a velocity graph be used to find anything else?

[AL] What is wrong with this graph? Ask students whether the velocity could actually be constant from rest or shift to negative so quickly. What would more realistic graphs look like? How inaccurate is it to ignore the non-constant portion of the motion?

[OL] Students should be able to see that if a position graph is a straight line, then the velocity graph will be a horizontal line. Also, the instantaneous velocity can be read off the velocity graph at any moment, but more steps are needed to calculate the average velocity.

[AL] Guide students in seeing that the area under the velocity curve is actually the position and the slope represents the rate of change of the velocity, just as the slope of the position line represents the rate of change of the position.

Solving Problems using Velocity–Time Graphs

Most velocity vs. time graphs will be straight lines. When this is the case, our calculations are fairly simple.

Worked Example

Using Velocity Graph to Calculate Some Stuff: Jet Car

Use this figure to (a) find the displacement of the jet car over the time shown (b) calculate the rate of change (acceleration) of the velocity. (c) give the instantaneous velocity at 5 s, and (d) calculate the average velocity over the interval shown.

Strategy

  1. The displacement is given by finding the area under the line in the velocity vs. time graph.
  2. The acceleration is given by finding the slope of the velocity graph.
  3. The instantaneous velocity can just be read off of the graph.
  4. To find the average velocity, recall that v avg = Δd Δt = d f d 0 t f t 0 v avg = Δd Δt = d f d 0 t f t 0
Discussion

The average velocity we calculated here makes sense if we look at the graph. 100m/s falls about halfway across the graph and since it is a straight line, we would expect about half the velocity to be above and half below.

Teacher Support

Teacher Support

The quantities solved for are slightly different in the different kinds of graphs, but students should begin to see that the process of analyzing or breaking down any of these graphs is similar. Ask—Where are the turning points in the motion? When is the object moving forward? What does a curve in the graph mean? Also, students should start to have an intuitive understanding of the relationship between position and velocity graphs.

Tips For Success

You can have negative position, velocity, and acceleration on a graph that describes the way the object is moving. You should never see a graph with negative time on an axis. Why?

Most of the velocity vs. time graphs we will look at will be simple to interpret. Occasionally, we will look at curved graphs of velocity vs. time. More often, these curved graphs occur when something is speeding up, often from rest. Let’s look back at a more realistic velocity vs. time graph of the jet car’s motion that takes this speeding up stage into account.

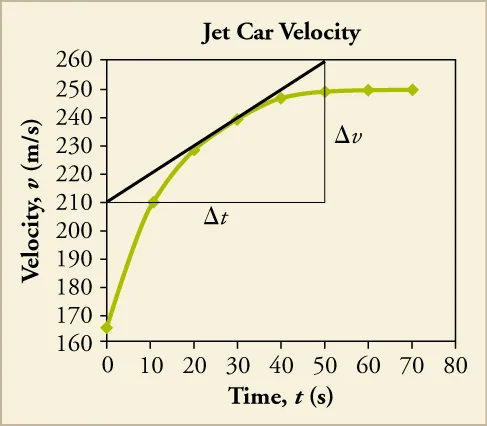

A line graph titled Jet Car Velocity is shown. The x-axis is labeled time, t, in seconds and has a scale from zero to eighty on increments of ten. The y-axis is labeled velocity, v, in meters per second and has a scale from one hundred sixty to two hundred sixty in increments of ten. The following approximate data points are plotted and connected to form a line that curves upward, and then becomes flat: zero, one hundred sixty five; ten, two hundred ten; twenty, two hundred thirty; thirty, two hundred forty; forty, two hundred forty-five; fifty, two hundred forty-five; sixty, two hundred forty-five; seventy, two hundred forty-five. A right triangle is drawn, with a hypotenuse that intersects points twenty, two hundred thirty and thirty, two hundred forty. The bottom leg of the triangle has ends at points zero, two hundred ten and fifty, two hundred ten and is labeled change in t. The upright leg has ends at points fifty, two hundred ten and fifty, two hundred sixty and is labeled change in v.
Figure 2.19 The graph shows a more accurate graph of the velocity of a jet-powered car during the time span when it is speeding up.

Worked Example

Using Curvy Velocity Graph to Calculate Some Stuff: jet car, Take Two

Use Figure 2.19 to (a) find the approximate displacement of the jet car over the time shown, (b) calculate the instantaneous acceleration at t = 30 s, (c) find the instantaneous velocity at 30 s, and (d) calculate the approximate average velocity over the interval shown.

Strategy

  1. Because this graph is an undefined curve, we have to estimate shapes over smaller intervals in order to find the areas.
  2. Like when we were working with a curved displacement graph, we will need to take a tangent line at the instant we are interested and use that to calculate the instantaneous acceleration.
  3. The instantaneous velocity can still be read off of the graph.
  4. We will find the average velocity the same way we did in the previous example.
Discussion

This is a much more complicated process than the first problem. If we were to use these estimates to come up with the average velocity over just the first 30 s we would get about 191 m/s. By approximating that curve with a line, we get an average velocity of 202.5 m/s. Depending on our purposes and how precise an answer we need, sometimes calling a curve a straight line is a worthwhile approximation.

Teacher Support

Teacher Support

Finding the tangent line can be a challenging concept for high school students, and they need to understand it theoretically. If you drew a regular curve inside of the curve at the point you are interested in, you could draw a radius of that curve. The tangent line would be the line perpendicular to that radius.

[OL] Have the students compare this problem and the last one. Ask—What is the difference? When would you care about the more accurate picture of the motion? And when would it really not matter? Why would you ever want to look at a less accurate depiction of motion?

Practice Problems

19.
no alt text
Figure 2.20

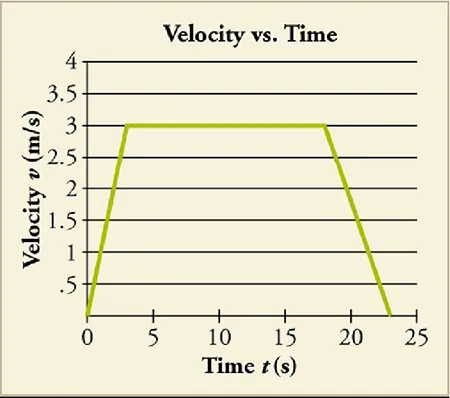

Consider the velocity vs. time graph shown below of a person in an elevator. Suppose the elevator is initially at rest. It then speeds up for 3 seconds, maintains that velocity for 15 seconds, then slows down for 5 seconds until it stops. Find the instantaneous velocity at t = 10 s and t = 23 s.

  1. Instantaneous velocity at t = 10 s and t = 23 s are 0 m/s and 0 m/s.
  2. Instantaneous velocity at t = 10 s and t = 23 s are 0 m/s and 3 m/s.
  3. Instantaneous velocity at t = 10 s and t = 23 s are 3 m/s and 0 m/s.
  4. Instantaneous velocity at t = 10 s and t = 23 s are 3 m/s and 1.5 m/s.
20.
no alt text
Figure 2.21

Calculate the net displacement and the average velocity of the elevator over the time interval shown.

  1. Net displacement is 45 m and average velocity is 2.10 m/s.
  2. Net displacement is 45 m and average velocity is 2.28 m/s.
  3. Net displacement is 57 m and average velocity is 2.66 m/s.
  4. Net displacement is 57 m and average velocity is 2.48 m/s.

Snap Lab

Graphing Motion, Take Two

In this activity, you will graph a moving ball’s velocity vs. time.

  • your graph from the earlier Graphing Motion Snap Lab!
  • 1 piece of graph paper
  • 1 pencil
Procedure
  1. Take your graph from the earlier Graphing Motion Snap Lab! and use it to create a graph of velocity vs. time.
  2. Use your graph to calculate the displacement.

Grasp Check

Describe the graph and explain what it means in terms of velocity and acceleration.
  1. The graph shows a horizontal line indicating that the ball moved with a constant velocity, that is, it was not accelerating.
  2. The graph shows a horizontal line indicating that the ball moved with a constant velocity, that is, it was accelerating.
  3. The graph shows a horizontal line indicating that the ball moved with a variable velocity, that is, it was not accelerating.
  4. The graph shows a horizontal line indicating that the ball moved with a variable velocity, that is, it was accelerating.

Teacher Support

Teacher Support

In this lab, students will use the displacement graph they drew in the last snap lab to create a velocity graph. If the rolling ball slowed down in the last snap lab, perhaps due to the ramp being too low, then the graph may not show constant velocity.

Check Your Understanding

21.
What information could you obtain by looking at a velocity vs. time graph?
  1. acceleration
  2. direction of motion
  3. reference frame of the motion
  4. shortest path
22.
How would you use a position vs. time graph to construct a velocity vs. time graph and vice versa?
  1. Slope of position vs. time curve is used to construct velocity vs. time curve, and slope of velocity vs. time curve is used to construct position vs. time curve.
  2. Slope of position vs. time curve is used to construct velocity vs. time curve, and area of velocity vs. time curve is used to construct position vs. time curve.
  3. Area of position vs. time curve is used to construct velocity vs. time curve, and slope of velocity vs. time curve is used to construct position vs. time curve.
  4. Area of position/time curve is used to construct velocity vs. time curve, and area of velocity vs. time curve is used to construct position vs. time curve.

Teacher Support

Teacher Support

Use the Check Your Understanding questions to assess students’ achievement of the section’s learning objectives. If students are struggling with a specific objective, the Check Your Understanding will help direct students to the relevant content.

Citation/Attribution

Want to cite, share, or modify this book? This book is Creative Commons Attribution License 4.0 and you must attribute “Texas Education Agency (TEA)." The original material is available at: https://www.texasgateway.org/book/tea-physics. Changes were made to the original material, including updates to art, structure, and other content updates.

Attribution information
  • If you are redistributing all or part of this book in a print format, then you must include on every physical page the following attribution:
    Access for free at https://openstax.org/books/physics/pages/1-introduction
  • If you are redistributing all or part of this book in a digital format, then you must include on every digital page view the following attribution:
    Access for free at https://openstax.org/books/physics/pages/1-introduction
Citation information

© Sep 2, 2020 Texas Education Agency (TEA). The OpenStax name, OpenStax logo, OpenStax book covers, OpenStax CNX name, and OpenStax CNX logo are not subject to the Creative Commons license and may not be reproduced without the prior and express written consent of Rice University.
