Section Learning Objectives

By the end of this section, you will be able to do the following:

  • Explain the similarities and differences between electric potential energy and gravitational potential energy
  • Calculate the electric potential difference between two point charges and in a uniform electric field

Teacher Support

Teacher Support

The learning objectives in this section will help your students master the following standards:

  • (5) The student knows the nature of forces in the physical world. The student is expected to:
    • (C) describe and calculate how the magnitude of the electrical force between two objects depends on their charges and the distance between them; and
    • (D) identify examples of electric and magnetic forces in everyday life.

Section Key Terms

electric potential electric potential energy

Teacher Support

Teacher Support

This section again uses the analogy between gravity and electric force to present electric potential energy and electric potential.

[BL]Ask students to define how potential is used in everyday life. Draw the analogy between this and potential energy.

[OL][AL]Review the concept of potential energy as being the potential an object has to do work by virtue of its position with respect to another object.

[OL]Remind students that gravitational potential energy is only meaningful when we deal with differences in energy. In other words, a reference position is chosen, and all other potential energies are compared with the potential energy at the reference position.

[AL]Point out that sometimes the reference position is at infinity, in which case this may not be explicitly stated.

As you learned in studying gravity, a mass in a gravitational field has potential energy, which means it has the potential to accelerate and thereby increase its kinetic energy. This kinetic energy can be used to do work. For example, imagine you want to use a stone to pound a nail into a piece of wood. You first lift the stone high above the nail, which increases the potential energy of the stone-Earth system—because Earth is so large, it does not move, so we usually shorten this by saying simply that the potential energy of the stone increases. When you drop the stone, gravity converts the potential energy into kinetic energy. When the stone hits the nail, it does work by pounding the nail into the wood. The gravitational potential energy is the work that a mass can potentially do by virtue of its position in a gravitational field. Potential energy is a very useful concept, because it can be used with conservation of energy to calculate the motion of masses in a gravitational field.

Electric potential energy works much the same way, but it is based on the electric field instead of the gravitational field. By virtue of its position in an electric field, a charge has an electric potential energy. If the charge is free to move, the force due to the electric field causes it to accelerate, so its potential energy is converted to kinetic energy, just like a mass that falls in a gravitational field. This kinetic energy can be used to do work. The electric potential energy is the work that a charge can do by virtue of its position in an electric field.

The analogy between gravitational potential energy and electric potential energy is depicted in Figure 18.21. On the left, the ball-Earth system gains gravitational potential energy when the ball is higher in Earth's gravitational field. On the right, the two-charge system gains electric potential energy when the positive charge is farther from the negative charge.

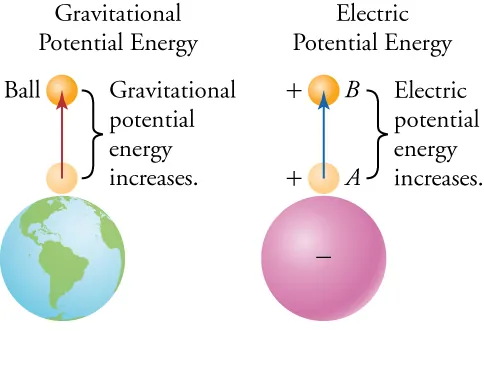

This figure has two columns. The left column is labeled “Gravitational Potential Energy”, and the right column is labeled “Electric Potential Energy”. In the left column, a large sphere represents planet Earth, as it shows features of land and water. Above it are two small balls, with an arrow pointing from the lower to the upper ball. The gap between the two small balls is labeled “Gravitational potential energy increases.” In the right column, a large sphere is marked with a minus sign at its center. Above it are two small balls, each marked with a plus sign, and an arrow points from the lower to the upper ball. The gap between the two small balls is labeled “Electric potential energy increases.”
Figure 18.21 On the left, the gravitational field points toward Earth. The higher the ball is in the gravitational field, the higher the potential energy is of the Earth-ball system. On the right, the electric field points toward a negative charge. The farther the positive charge is from the negative charge, the higher the potential energy is of the two-charge system.

Let’s use the symbol U G U G to denote gravitational potential energy. When a mass falls in a gravitational field, its gravitational potential energy decreases. Conservation of energy tells us that the work done by the gravitational field to make the mass accelerate must equal the loss of potential energy of the mass. If we use the symbol W donebygravity W donebygravity to denote this work, then

Δ U G = W donebygravity, Δ U G = W donebygravity,
18.18

where the minus sign reflects the fact that the potential energy of the ball decreases.

The work done by gravity on the mass is

W donebygravity =F( y f y i ), W donebygravity =F( y f y i ),
18.19

where F is the force due to gravity, and y i y i and y f y f are the initial and final positions of the ball, respectively. The negative sign is because gravity points down, which we consider to be the negative direction. For the constant gravitational field near Earth’s surface, F=mg F=mg . The change in gravitational potential energy of the mass is

Δ U G = W donebygravity =F( y f y i )=mg( y f y i ) , or Δ U G =mg( y f y i ). Δ U G = W donebygravity =F( y f y i )=mg( y f y i ) , or Δ U G =mg( y f y i ).
18.20

Note that y f y i y f y i is just the negative of the height h from which the mass falls, so we usually just write Δ U G =mgh Δ U G =mgh .

We now apply the same reasoning to a charge in an electric field to find the electric potential energy. The change Δ U E Δ U E in electric potential energy is the work done by the electric field to move a charge q from an initial position x i x i to a final position x f x f ( Δ U E = W donebyE-field Δ U E = W donebyE-field ). The definition of work does not change, except that now the work is done by the electric field: W donebyE-field =F( x f x i ) W donebyE-field =F( x f x i ) . For a charge that falls through a constant electric field E, the force applied to the charge by the electric field is F=qE F=qE . The change in electric potential energy of the charge is thus

Δ U E = W donebyE-field =Fd=qE( x f x i ) Δ U E = W donebyE-field =Fd=qE( x f x i )
18.21

or

Δ U E =qE( x f x i ). Δ U E =qE( x f x i ).
18.22

This equation gives the change in electric potential energy of a charge q when it moves from position x i x i to position x f x f in a constant electric field E.

Figure 18.22 shows how this analogy would work if we were close to Earth’s surface, where gravity is constant. The top image shows a charge accelerating due to a constant electric field. Likewise, the round mass in the bottom image accelerates due to a constant gravitation field. In both cases, the potential energy of the particle decreases, and its kinetic energy increases.

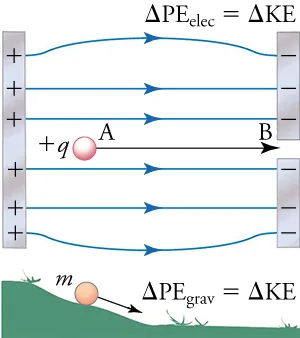

This figure is divided into two parts. The upper part shows a vertical strip on the left marked with plus signs and two vertical strips on the right marked with minus signs. A series of horizontal arrows point from the left strip to the strips on the right. A small sphere, labeled “plus q”, is located between these arrows and near the strip on the left. Another horizontal arrow, with ends labeled “A” and “B”, points from the sphere toward a gap between the strips on the right. Above this drawing is an equation: delta P E subscript elec equals delta K E. The lower part of the figure shows a small sphere, labeled “m”, on the slope of a small green hill. An arrow points from the sphere downward, parallel to the slope of the hill. To the right of the hill is a flat green area. Above the flat area is an equation: delta P E subscript grav equals delta K E.
Figure 18.22 In the top picture, a mass accelerates due to a constant electric field. In the bottom picture, the mass accelerates due to a constant gravitational field.

Teacher Support

Teacher Support

Point out the fringing fields at the ends of the plates. Ask what path the charge would take if it were released in a fringing field (note that the charge does not follow the field lines due to its inertia).

Ask students to draw the gravitational field lines in the bottom picture. Discuss why the mass does not follow the gravitational field lines.

Watch Physics

Analogy between Gravity and Electricity

This video discusses the analogy between gravitational potential energy and electric potential energy. It reviews the concepts of work and potential energy and shows the connection between a mass in a uniform gravitation field, such as on Earth’s surface, and an electric charge in a uniform electric field.

If the electric field is not constant, then the equation Δ U E =qE( x f x i ) Δ U E =qE( x f x i ) is not valid, and deriving the electric potential energy becomes more involved. For example, consider the electric potential energy of an assembly of two point charges q 1 q 1 and q 2 q 2 of the same sign that are initially very far apart. We start by placing charge q 1 q 1 at the origin of our coordinate system. This takes no electrical energy, because there is no electric field at the origin (because charge q 2 q 2 is very far away). We then bring charge q 2 q 2 in from very far away to a distance r from the center of charge q 1 q 1 . This requires some effort, because the electric field of charge q 1 q 1 applies a repulsive force on charge q 2 q 2 . The energy it takes to assemble these two charges can be recuperated if we let them fly apart again. Thus, the charges have potential energy when they are a distance r apart. It turns out that the electric potential energy of a pair of point charges q 1 q 1 and q 2 q 2 a distance r apart is

U E = k q 1 q 2 r U E = k q 1 q 2 r
18.23

To recap, if charges q 1 q 1 and q 2 q 2 are free to move, they can accumulate kinetic energy by flying apart, and this kinetic energy can be used to do work. The maximum amount of work the two charges can do (if they fly infinitely far from each other) is given by the equation above.

Notice that if the two charges have opposite signs, then the potential energy is negative. This means that the charges have more potential to do work when they are far apart than when they are at a distance r apart. This makes sense: Opposite charges attract, so the charges can gain more kinetic energy if they attract each other from far away than if they start at only a short distance apart. Thus, they have more potential to do work when they are far apart. Figure 18.23 summarizes how the electric potential energy depends on charge and separation.

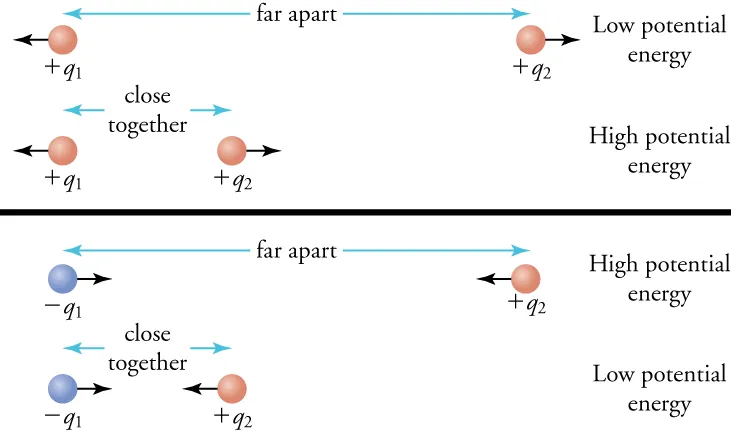

This figure has two panels. The upper panel shows a pair of red spheres, labeled “plus q subscript 1” and “plus q subscript 2”, separated horizontally by a distance marked “far apart”, and a label to their right says “Low potential energy”. Below them is a similar pair of spheres, but they are at a distance marked “close together”, and a label to their right says “High potential energy”. The lower panel shows a blue sphere on the left labeled “minus q subscript 1” and a red sphere on the right labeled “plus q subscript 2”. They are separated horizontally by a distance marked “far apart”, and a label to their right says “High potential energy”. Below them is a similar pair of spheres, but they are at a distance marked “close together”, and a label to their right says “Low potential energy”.
Figure 18.23 The potential energy depends on the sign of the charges and their separation. The arrows on the charges indicate the direction in which the charges would move if released. When charges with the same sign are far apart, their potential energy is low, as shown in the top panel for two positive charges. The situation is the reverse for charges of opposite signs, as shown in the bottom panel.

Teacher Support

Teacher Support

Have students imagine that they have to push together or pull apart balls that carry these charges. Discuss which would require more work: pushing them together from far apart or from close together. Compare this with the analogous situations for the different charge combinations and for pushing together versus pulling apart.

Electric Potential

Recall that to find the force applied by a fixed charge Q on any arbitrary test charge q, it was convenient to define the electric field, which is the force per unit charge applied by Q on any test charge that we place in its electric field. The same Strategy is used here with electric potential energy: We now define the electric potential V, which is the electric potential energy per unit charge.

V= U E q V= U E q
18.24

Teacher Support

Teacher Support

Misconception Alert

Emphasize the difference between electric potential energy and electric potential. Although the latter seems to be shorthand for the former, the two terms have different meanings.

Normally, the electric potential is simply called the potential or voltage. The units for the potential are J/C, which are given the name volt (V) after the Italian physicist Alessandro Volta (1745–1827). From the equation U E = k q 1 q 2 /r U E = k q 1 q 2 /r , the electric potential a distance r from a point charge q 1 q 1 is

V= U E q 2 = k q 1 r . V= U E q 2 = k q 1 r .
18.25

This equation gives the energy required per unit charge to bring a charge q 2 q 2 from infinity to a distance r from a point charge q 1 . q 1 . Mathematically, this is written as

V= U E q 2 | R=r U E q 2 | R= . V= U E q 2 | R=r U E q 2 | R= .
18.26

Note that this equation actually represents a difference in electric potential. However, because the second term is zero, it is normally not written, and we speak of the electric potential instead of the electric potential difference, or we just say the potential difference, or voltage). Below, when we consider the electric potential energy per unit charge between two points not infinitely far apart, we speak of electric potential difference explicitly. Just remember that electric potential and electric potential difference are really the same thing; the former is used just when the electric potential energy is zero in either the initial or final charge configuration.

Coming back now to the electric potential a distance r from a point charge q 1 q 1 , note that q 1 q 1 can be any arbitrary point charge, so we can drop the subscripts and simply write

V= kq r . V= kq r .
18.27

Now consider the electric potential near a group of charges q1, q2, and q3, as drawn in Figure 18.24. The electric potential is derived by considering the electric field. Electric fields follow the principle of superposition and can be simply added together, so the electric potential from different charges also add together. Thus, the electric potential of a point near a group of charges is

V= k q 1 r 1 + k q 2 r 2 + k q 3 r 3 +⋯. V= k q 1 r 1 + k q 2 r 2 + k q 3 r 3 +⋯.
18.28

where r 1 , r 2 , r 3 ,…, r 1 , r 2 , r 3 ,…, are the distances from the center of charges q 1 , q 2 , q 3 , q 1 , q 2 , q 3 , to the point of interest, as shown in Figure 18.24.

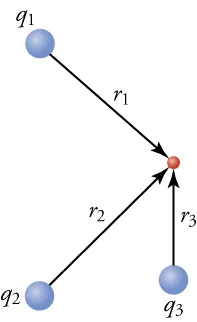

This figure shows three small blue spheres distributed around a much smaller red sphere. One blue sphere, labeled “q subscript 1”, lies roughly northwest of the red sphere, and an arrow labeled “r subscript 1” points from the blue sphere to the red one. A second blue sphere, labeled “q subscript 2”, lies roughly southwest of the red sphere, and an arrow labeled “r subscript 2” points from this blue sphere to the red one. The third blue sphere, labeled “q subscript 3”, lies directly south of the red sphere, and an arrow labeled “r subscript 3” points from this blue sphere to the red one.
Figure 18.24 The potential at the red point is simply the sum of the potentials due to each individual charge.

Now let’s consider the electric potential in a uniform electric field. From the equation Δ U E =qE( x f x i ) Δ U E =qE( x f x i ), we see that the potential difference in going from x i x i to x f x f in a uniform electric field E is

ΔV= Δ U E q =E( x f x i ) . ΔV= Δ U E q =E( x f x i ).
18.29

Tips For Success

Notice from the equation ΔV=E( x f x i ) ΔV=E( x f x i ) that the electric field can be written as

E= ΔV x f x i E= ΔV x f x i
18.30

which means that the electric field has units of V/m. Thus, if you know the potential difference between two points, calculating the electric field is very simple—you simply divide the potential difference by the distance!

Notice that a positive charge in a region with high potential will experience a force pushing it toward regions of lower potential. In this sense, potential is like pressure for fluids. Imagine a pipe containing fluid, with the fluid at one end of the pipe under high pressure and the fluid at the other end of the pipe under low pressure. If nothing prevents the fluid from flowing, it will flow from the high-pressure end to the low-pressure end. Likewise, a positive charge that is free to move will move from a region with high potential to a region with lower potential.

Watch Physics

Voltage

This video starts from electric potential energy and explains how this is related to electric potential (or voltage). The lecturer calculates the electric potential created by a uniform electric field.

Grasp Check

What is the voltage difference between the positions x f = 11 m and x i = 5.0 m in an electric field of ( 2.0 N/C ) x ^ ?
  1. 6 V
  2. 12 V
  3. 24 V
  4. 32 V

Worked Example

X-ray Tube

Dentists use X-rays to image their patients’ teeth and bones. The X-ray tubes that generate X-rays contain an electron source separated by about 10 cm from a metallic target. The electrons are accelerated from the source to the target by a uniform electric field with a magnitude of about 100 kN/C, as drawn in Figure 18.26. When the electrons hit the target, X-rays are produced. (a) What is the potential difference between the electron source and the metallic target? (b) What is the kinetic energy of the electrons when they reach the target, assuming that the electrons start at rest?

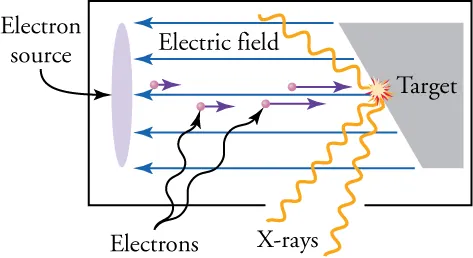

This diagram shows a vertically oriented ellipse labeled “Electron source” on the left, and a trapezoid labeled “Target” on the right. Between them, in the middle section of the diagram, there are four tiny spheres labeled “Electrons”, each of which has a short, rightward pointing arrow attached to it. Five long, horizontal arrows point from the trapezoid to the ellipse, and a label between them says “Electric field”. Near the middle of the left edge of the trapezoid is a yellow circle from which emerge three long, orange, wavy lines, as well as a number of short yellow and red lines. The long wavy lines are labeled “X-rays”.
Figure 18.26 In an X-ray tube, a large current flows through the electron source, causing electrons to be ejected from the electron source. The ejected electrons are accelerated toward the target by the electric field. When they strike the target, X-rays are produced.

Strategy FOR (A)

Use the equation ΔV=E( x f x i ) ΔV=E( x f x i ) to find the potential difference given a constant electric field. Define the source position as x i =0 x i =0 and the target position as x f =10cm x f =10cm . To accelerate the electrons in the positive x direction, the electric field must point in the negative x direction. This way, the force F=qE F=qE on the electrons will point in the positive x direction, because both q and E are negative. Thus, E=100× 10 3 N/C E=100× 10 3 N/C .

Discussion for (a)

The potential difference is positive, so the energy per unit positive charge is higher at the target than at the source. This means that free positive charges would fall from the target to the source. However, electrons are negative charges, so they accelerate from the source toward the target, gaining kinetic energy as they go.

Strategy FOR (B)

Apply conservation of energy to find the final kinetic energy of the electrons. In going from the source to the target, the change in electric potential energy plus the change in kinetic energy of the electrons must be zero, so Δ U E +ΔK=0 . Δ U E +ΔK=0. The change in electric potential energy for moving through a constant electric field is given by the equation

Δ U E =qE( x f x i ) , Δ U E =qE( x f x i ),

where the electric field is E=100× 10 3 N/C E=100× 10 3 N/C . Because the electrons start at rest, their initial kinetic energy is zero. Thus, the change in kinetic energy is simply their final kinetic energy, so ΔK= K f ΔK= K f .

Discussion for (b)

This is a very small energy. However, electrons are very small, so they are easy to accelerate, and this energy is enough to make an electron go extremely fast. You can find their speed by using the definition of kinetic energy, K= 1 2 m v 2 K= 1 2 m v 2 . The result is that the electrons are moving at more than 100 million miles per hour!

Worked Example

Electric Potential Energy of Doorknob and Dust Speck

Consider again the doorknob from the example in the previous section. The doorknob is treated as a spherical conductor with a uniform static charge q 1 =−1.5nC q 1 =−1.5nC on its surface. What is the electric potential energy between the doorknob and a speck of dust carrying a charge q 2 =0.20nC q 2 =0.20nC at 1.0 cm from the front surface of the doorknob? The diameter of the doorknob is 5.0 cm.

Strategy

As we did in the previous section, we treat the charge as if it were concentrated at the center of the doorknob. Again, as you will be able to validate in later physics classes, we can make this simplification, because the charge is uniformly distributed over the surface of the spherical object. Make a sketch of the situation and define a coordinate system, as shown in the image below. We use +x +x to indicate the outward direction perpendicular to the door, with x=0 x=0 at the center of the doorknob. If the diameter of the doorknob is 5.0 cm, its radius is 2.5 cm. Thus, the speck of dust 1.0 cm from the surface of the doorknob is a distance r=2.5cm+1.0cm=3.5cm r=2.5cm+1.0cm=3.5cm from the center of the doorknob. To solve this problem, use the equation U E = k q 1 q 2 /r U E = k q 1 q 2 /r .

This diagram shows the edge of a door in cross-section and a doorknob attached to it. Two axes, perpendicular to each other, originate from the center of the doorknob and point away from it. The horizontal axis is labeled “plus x circumflexΣ and the vertical axis is labeled “plus y circumflex”. A dot on the horizontal axis beyond the doorknob is labeled “Speck of dust”, and a second label that gives the equation “x = 3.5 cm”.
Discussion

The energy is negative, which means that the energy will decrease that is, get even more negative as the speck of dust approaches the doorknob. This helps explain why dust accumulates on objects that carry a static charge. However, note that insulators normally collect more static charge than conductors, because any charge that accumulates on insulators cannot move about on the insulator to find a way to escape. They must simply wait to be removed by some passing moist speck of dust or other host.

Practice Problems

19.

What is the electric potential 10 cm from a −10 nC charge?

  1. 9.0 × 102 V
  2. 9.0 × 103 V
  3. 9.0 × 104 V
  4. 9.0 × 105 V
20.

An electron accelerates from 0 to 10 × 104 m/s in an electric field. Through what potential difference did the electron travel? The mass of an electron is 9.11 × 10–31 kg, and its charge is −1.60 × 10–19 C.

  1. 29 mV
  2. 290 mV
  3. 2,900 mV
  4. 29 V

Check Your Understanding

21.

Gravitational potential energy is the ( 10 N/C) x ^ ( 10 N/C) x ^ potential for two masses to do work by virtue of their positions with respect to each other. What is the analogous definition of electric potential energy?

  1. Electric potential energy is the potential for two charges to do work by virtue of their positions with respect to the origin point.
  2. Electric potential energy is the potential for two charges to do work by virtue of their positions with respect to infinity.
  3. Electric potential energy is the potential for two charges to do work by virtue of their positions with respect to each other.
  4. Electric potential energy is the potential for single charges to do work by virtue of their positions with respect to their final positions.
22.

A negative charge is 10 m from a positive charge. Where would you have to move the negative charge to increase the potential energy of the system?

  1. The negative charge should be moved closer to the positive charge.
  2. The negative charge should be moved farther away from the positive charge.
  3. The negative charge should be moved to infinity.
  4. The negative charge should be placed just next to the positive charge.
Citation/Attribution

Want to cite, share, or modify this book? This book is Creative Commons Attribution License 4.0 and you must attribute OpenStax.

Attribution information
  • If you are redistributing all or part of this book in a print format, then you must include on every physical page the following attribution:
    Access for free at https://openstax.org/books/physics/pages/1-introduction
  • If you are redistributing all or part of this book in a digital format, then you must include on every digital page view the following attribution:
    Access for free at https://openstax.org/books/physics/pages/1-introduction
Citation information

© Jun 17, 2020 OpenStax. Textbook content produced by OpenStax is licensed under a Creative Commons Attribution License 4.0 license. The OpenStax name, OpenStax logo, OpenStax book covers, OpenStax CNX name, and OpenStax CNX logo are not subject to the Creative Commons license and may not be reproduced without the prior and express written consent of Rice University.
