7.10 The Hammond Postulate

7.10 • The Hammond Postulate

Let’s summarize what we’ve learned of electrophilic addition reactions to this point:

• Electrophilic addition to an unsymmetrically substituted alkene gives the more substituted carbocation intermediate. A more substituted carbocation forms faster than a less substituted one and, once formed, rapidly goes on to give the final product.
• A more substituted carbocation is more stable than a less substituted one. That is, the stability order of carbocations is tertiary > secondary > primary > methyl.

What we have not yet seen is how these two points are related. Why does the stability of the carbocation intermediate affect the rate at which it’s formed and thereby determine the structure of the final product? After all, carbocation stability is determined by the free-energy change ΔG°, but reaction rate is determined by the activation energy ΔG^‡. The two quantities aren’t directly related.

Although there is no simple quantitative relationship between the stability of a carbocation intermediate and the rate of its formation, there is an intuitive relationship. It’s generally true when comparing two similar reactions that the more stable intermediate forms faster than the less stable one. The situation is shown graphically in Figure 7.14, where the energy profile in part (a) represents the typical situation, as opposed to the profile in part (b). That is, the curves for two similar reactions don’t cross one another.

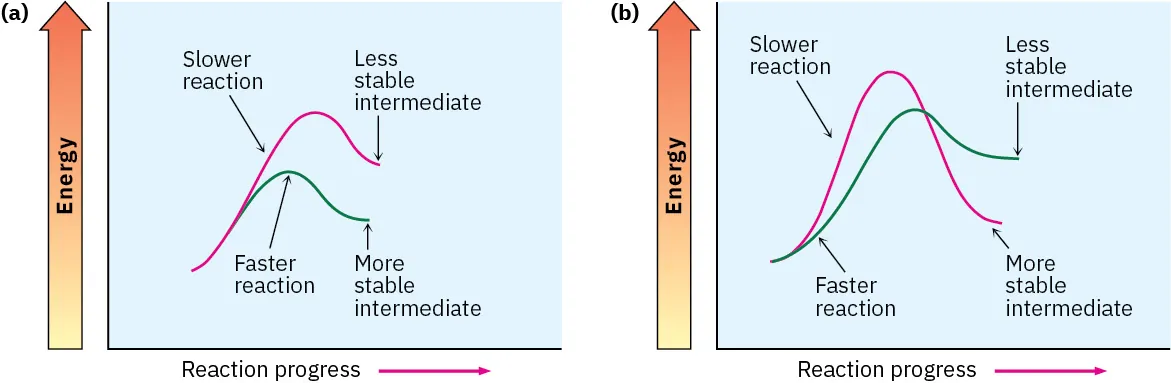

Figure 7.14 Energy diagrams for two similar competing reactions. In (a), the faster reaction yields the more stable intermediate. In (b), the slower reaction yields the more stable intermediate. The curves shown in (a) represent the typical situation.

Called the Hammond postulate, the explanation of the relationship between reaction rate and intermediate stability goes like this: Transition states represent energy maxima. They are high-energy activated complexes that occur transiently during the course of a reaction and immediately go on to a more stable species. Although we can’t actually observe transition states because they have no finite lifetime, the Hammond postulate says that we can get an idea of a particular transition state’s structure by looking at the structure of the nearest stable species. Imagine the two cases shown in Figure 7.15, for example. The reaction profile in part (a) shows the energy curve for an endergonic reaction step, and the profile in part (b) shows the curve for an exergonic step.

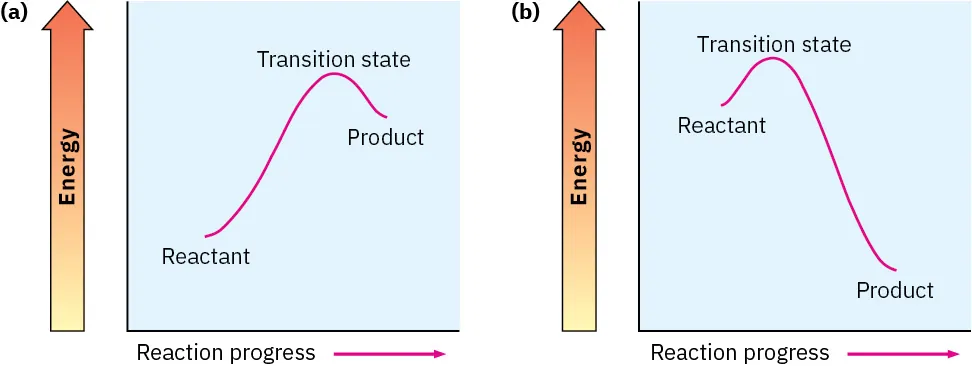

Figure 7.15 Energy diagrams for endergonic and exergonic steps. (a) In an endergonic step, the energy levels of transition state and product are closer. (b) In an exergonic step, the energy levels of transition state and reactant are closer.

In an endergonic reaction (Figure 7.15a), the energy level of the transition state is closer to that of the product than that of the reactant. Since the transition state is closer energetically to the product, we make the natural assumption that it’s also closer structurally. In other words, the transition state for an endergonic reaction step structurally resembles the product of that step. Conversely, the transition state for an exergonic reaction (Figure 7.15b), is closer energetically, and thus structurally, to the reactant than to the product. We therefore say that the transition state for an exergonic reaction step structurally resembles the reactant for that step.

Hammond postulate:
The structure of a transition state resembles the structure of the nearest stable species. Transition states for endergonic steps structurally resemble products, and transition states for exergonic steps structurally resemble reactants.

How does the Hammond postulate apply to electrophilic addition reactions? The formation of a carbocation by protonation of an alkene is an endergonic step. Thus, the transition state for alkene protonation structurally resembles the carbocation intermediate, and any factor that stabilizes the carbocation will also stabilize the nearby transition state. Since increasing alkyl substitution stabilizes carbocations, it also stabilizes the transition states leading to those ions, thus resulting in a faster reaction. In other words, more stable carbocations form faster because their greater stability is reflected in the lower-energy transition state leading to them (Figure 7.16).

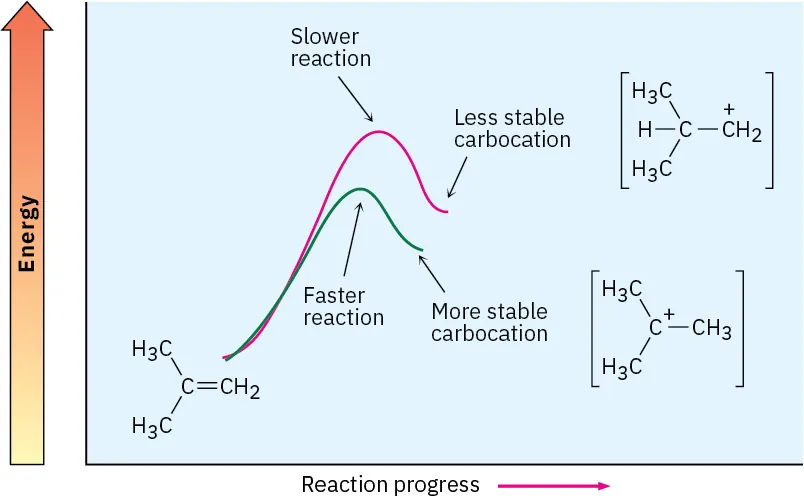

Figure 7.16 Energy diagrams for carbocation formation. The more stable tertiary carbocation is formed faster (green curve) because its increased stability lowers the energy of the transition state leading to it.

We can imagine the transition state for alkene protonation to be a structure in which one of the alkene carbon atoms has almost completely rehybridized from sp² to sp³ and the remaining alkene carbon bears much of the positive charge (Figure 7.17). This transition state is stabilized by hyperconjugation and inductive effects in the same way as the product carbocation. The more alkyl groups that are present, the greater the extent of stabilization and the faster the transition state forms.

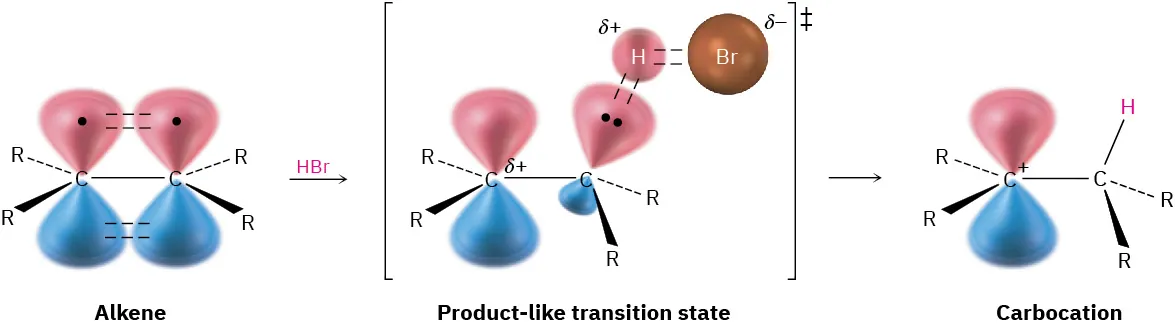

Figure 7.17 The hypothetical structure of a transition state for alkene protonation. The transition state is closer in both energy and structure to the carbocation than to the alkene. Thus, an increase in carbocation stability (lower ΔG°) also causes an increase in transition-state stability (lower ΔG^‡), thereby increasing the rate of its formation.
