Learning Objectives

By the end of this section, you will be able to:

  • Solve applications using properties of triangles
  • Use the Pythagorean Theorem
  • Solve applications using rectangle properties

Be Prepared 3.12

Before you get started, take this readiness quiz.

Simplify: 12(6h).12(6h).
If you missed this problem, review Example 1.122.

Be Prepared 3.13

The length of a rectangle is three less than the width. Let w represent the width. Write an expression for the length of the rectangle.
If you missed this problem, review Example 1.26.

Be Prepared 3.14

Solve: A=12bhA=12bh for b when A=260A=260 and h=52.h=52.
If you missed this problem, review Example 2.61.

Be Prepared 3.15

Simplify: 144.144.
If you missed this problem, review Example 1.111.

Solve Applications Using Properties of Triangles

In this section we will use some common geometry formulas. We will adapt our problem-solving strategy so that we can solve geometry applications. The geometry formula will name the variables and give us the equation to solve. In addition, since these applications will all involve shapes of some sort, most people find it helpful to draw a figure and label it with the given information. We will include this in the first step of the problem solving strategy for geometry applications.

How To

Solve Geometry Applications.

  1. Step 1. Read the problem and make sure all the words and ideas are understood. Draw the figure and label it with the given information.
  2. Step 2. Identify what we are looking for.
  3. Step 3. Label what we are looking for by choosing a variable to represent it.
  4. Step 4. Translate into an equation by writing the appropriate formula or model for the situation. Substitute in the given information.
  5. Step 5. Solve the equation using good algebra techniques.
  6. Step 6. Check the answer by substituting it back into the equation solved in step 5 and by making sure it makes sense in the context of the problem.
  7. Step 7. Answer the question with a complete sentence.

We will start geometry applications by looking at the properties of triangles. Let’s review some basic facts about triangles. Triangles have three sides and three interior angles. Usually each side is labeled with a lowercase letter to match the uppercase letter of the opposite vertex.

The plural of the word vertex is vertices. All triangles have three vertices. Triangles are named by their vertices: The triangle in Figure 3.4 is called ABC.ABC.

A triangle with vertices A, B, and C. The sides opposite these vertices are marked a, b, and c, respectively.
Figure 3.4 Triangle ABC has vertices A, B, and C. The lengths of the sides are a, b, and c.

The three angles of a triangle are related in a special way. The sum of their measures is 180°.180°. Note that we read mAmA as “the measure of angle A.” So in ABCABC in Figure 3.4,

mA+mB+mC=180°mA+mB+mC=180°

Because the perimeter of a figure is the length of its boundary, the perimeter of ABCABC is the sum of the lengths of its three sides.

P=a+b+cP=a+b+c

To find the area of a triangle, we need to know its base and height. The height is a line that connects the base to the opposite vertex and makes a 90°90° angle with the base. We will draw ABCABC again, and now show the height, h. See Figure 3.5.

A triangle with vertices A, B, and C. The sides opposite these vertices are marked a, b, and c, respectively. The side b is parallel to the bottom of the page, and it has a dashed line drawn from vertex B to it. This line is marked h and makes a right angle with side b.
Figure 3.5 The formula for the area of ABCABC is A=12bh,A=12bh, where b is the base and h is the height.

Triangle Properties

A triangle with vertices A, B, and C. The sides opposite these vertices are marked a, b, and c, respectively. The side b is parallel to the bottom of the page, and it has a dashed line drawn from vertex B to it. This line is marked h and makes a right angle with side b.

For ABCABC

Angle measures:

mA+mB+mC=180mA+mB+mC=180
  • The sum of the measures of the angles of a triangle is 180°.180°.

Perimeter:

P=a+b+cP=a+b+c
  • The perimeter is the sum of the lengths of the sides of the triangle.

Area:

A=12bh,b=base,h=heightA=12bh,b=base,h=height
  • The area of a triangle is one-half the base times the height.

Example 3.34

The measures of two angles of a triangle are 55 and 82 degrees. Find the measure of the third angle.

Try It 3.67

The measures of two angles of a triangle are 31 and 128 degrees. Find the measure of the third angle.

Try It 3.68

The measures of two angles of a triangle are 49 and 75 degrees. Find the measure of the third angle.

Example 3.35

The perimeter of a triangular garden is 24 feet. The lengths of two sides are four feet and nine feet. How long is the third side?

Try It 3.69

The perimeter of a triangular garden is 48 feet. The lengths of two sides are 18 feet and 22 feet. How long is the third side?

Try It 3.70

The lengths of two sides of a triangular window are seven feet and five feet. The perimeter is 18 feet. How long is the third side?

Example 3.36

The area of a triangular church window is 90 square meters. The base of the window is 15 meters. What is the window’s height?

Try It 3.71

The area of a triangular painting is 126 square inches. The base is 18 inches. What is the height?

Try It 3.72

A triangular tent door has an area of 15 square feet. The height is five feet. What is the base?

The triangle properties we used so far apply to all triangles. Now we will look at one specific type of triangle—a right triangle. A right triangle has one 90°90° angle, which we usually mark with a small square in the corner.

A right triangle with the largest angle marked 90 degrees.

Right Triangle

A right triangle has one 90°90° angle, which is often marked with a square at the vertex.

Example 3.37

One angle of a right triangle measures 28°.28°. What is the measure of the third angle?

Try It 3.73

One angle of a right triangle measures 56°.56°. What is the measure of the other small angle?

Try It 3.74

One angle of a right triangle measures 45°.45°. What is the measure of the other small angle?

In the examples we have seen so far, we could draw a figure and label it directly after reading the problem. In the next example, we will have to define one angle in terms of another. We will wait to draw the figure until we write expressions for all the angles we are looking for.

Example 3.38

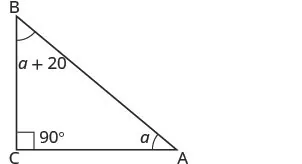

The measure of one angle of a right triangle is 20 degrees more than the measure of the smallest angle. Find the measures of all three angles.

Try It 3.75

The measure of one angle of a right triangle is 50° more than the measure of the smallest angle. Find the measures of all three angles.

Try It 3.76

The measure of one angle of a right triangle is 30° more than the measure of the smallest angle. Find the measures of all three angles.

Use the Pythagorean Theorem

We have learned how the measures of the angles of a triangle relate to each other. Now, we will learn how the lengths of the sides relate to each other. An important property that describes the relationship among the lengths of the three sides of a right triangle is called the Pythagorean Theorem. This theorem has been used around the world since ancient times. It is named after the Greek philosopher and mathematician, Pythagoras, who lived around 500 BC.

Before we state the Pythagorean Theorem, we need to introduce some terms for the sides of a triangle. Remember that a right triangle has a 90°90° angle, marked with a small square in the corner. The side of the triangle opposite the 90°90° angle is called the hypotenuse and each of the other sides are called legs.

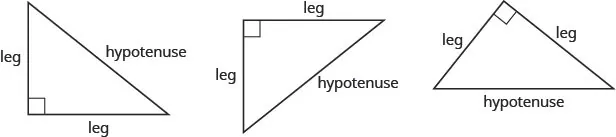

Three right triangles with different orientations. The right angles are marked with two small lines that make a small square with the angle. Opposite these angles, hypotenuse is written. The other sides are marked “leg.”

The Pythagorean Theorem tells how the lengths of the three sides of a right triangle relate to each other. It states that in any right triangle, the sum of the squares of the lengths of the two legs equals the square of the length of the hypotenuse. In symbols we say: in any right triangle, a2+b2=c2,a2+b2=c2, where aandbaandb are the lengths of the legs and cc is the length of the hypotenuse.

Writing the formula in every exercise and saying it aloud as you write it, may help you remember the Pythagorean Theorem.

The Pythagorean Theorem

In any right triangle, a2+b2=c2.a2+b2=c2.

A right triangle with sides marked a, b, and c. The side marked c is the hypotenuse.

where a and b are the lengths of the legs, c is the length of the hypotenuse.

To solve exercises that use the Pythagorean Theorem, we will need to find square roots. We have used the notation mm and the definition:

If m=n2,m=n2, then m=n,m=n, for n0.n0.

For example, we found that 2525 is 5 because 25=52.25=52.

Because the Pythagorean Theorem contains variables that are squared, to solve for the length of a side in a right triangle, we will have to use square roots.

Example 3.39

Use the Pythagorean Theorem to find the length of the hypotenuse shown below.

A right triangle with legs marked 3 and 4.

Try It 3.77

Use the Pythagorean Theorem to find the length of the hypotenuse in the triangle shown below.

A right triangle with legs marked 6 and 8. The hypotenuse is marked c.

Try It 3.78

Use the Pythagorean Theorem to find the length of the hypotenuse in the triangle shown below.

No Alt Text

Example 3.40

Use the Pythagorean Theorem to find the length of the leg shown below.

A right angle with one leg marked 5. The hypotenuse is labeled 13.

Try It 3.79

Use the Pythagorean Theorem to find the length of the leg in the triangle shown below.

A right triangle with legs marked b and 15. The hypotenuse is marked 17.

Try It 3.80

Use the Pythagorean Theorem to find the length of the leg in the triangle shown below.

A right triangle with legs marked b and 9. The hypotenuse is marked 15.

Example 3.41

A gazebo is shown. In one of its corners, a triangle is made with the wood. The hypotenuse is marked 10 inches, and one of the legs is marked x

Kelvin is building a gazebo and wants to brace each corner by placing a 1010 piece of wood diagonally as shown above.

If he fastens the wood so that the ends of the brace are the same distance from the corner, what is the length of the legs of the right triangle formed? Approximate to the nearest tenth of an inch.

Try It 3.81

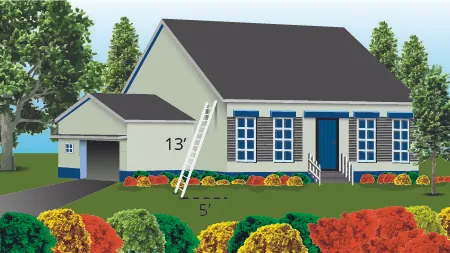

John puts the base of a 13-foot ladder five feet from the wall of his house as shown below. How far up the wall does the ladder reach?

A house is shown with a ladder leaning against it. The ladder is marked 13’, and the distance from the house to the base of the ladder is marked 5’.

Try It 3.82

Randy wants to attach a 17 foot string of lights to the top of the 15 foot mast of his sailboat, as shown below. How far from the base of the mast should he attach the end of the light string?

A sailboat is shown with a 15’ mast (the straight tall part). From the top of the mast, a series of colored dots stretches down to the back of the boat and is marked 17’.

Solve Applications Using Rectangle Properties

You may already be familiar with the properties of rectangles. Rectangles have four sides and four right (90°)(90°) angles. The opposite sides of a rectangle are the same length. We refer to one side of the rectangle as the length, L, and its adjacent side as the width, W.

A rectangle with sides marked W and L.

The distance around this rectangle is L+W+L+W,L+W+L+W, or 2L+2W.2L+2W. This is the perimeter, P, of the rectangle.

P=2L+2WP=2L+2W

What about the area of a rectangle? Imagine a rectangular rug that is 2-feet long by 3-feet wide. Its area is 6 square feet. There are six squares in the figure.

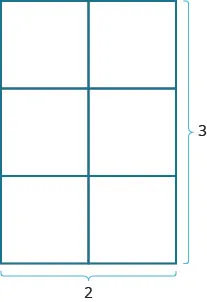

A rectangles composed of 6 squares that is three high and two wide. The height is marked 3 and the width is marked 2.
A=6A=2·3A=L·WA=6A=2·3A=L·W

The area is the length times the width.

The formula for the area of a rectangle is A=LW.A=LW.

Properties of Rectangles

Rectangles have four sides and four right (90°)(90°) angles.

The lengths of opposite sides are equal.

The perimeter of a rectangle is the sum of twice the length and twice the width.

P=2L+2WP=2L+2W

The area of a rectangle is the product of the length and the width.

A=L·WA=L·W



Example 3.42

The length of a rectangle is 32 meters and the width is 20 meters. What is the perimeter?

Try It 3.83

The length of a rectangle is 120 yards and the width is 50 yards. What is the perimeter?

Try It 3.84

The length of a rectangle is 62 feet and the width is 48 feet. What is the perimeter?

Example 3.43

The area of a rectangular room is 168 square feet. The length is 14 feet. What is the width?

Try It 3.85

The area of a rectangle is 598 square feet. The length is 23 feet. What is the width?

Try It 3.86

The width of a rectangle is 21 meters. The area is 609 square meters. What is the length?

Example 3.44

Find the length of a rectangle with perimeter 50 inches and width 10 inches.

Try It 3.87

Find the length of a rectangle with: perimeter 80 and width 25.

Try It 3.88

Find the length of a rectangle with: perimeter 30 and width 6.

We have solved problems where either the length or width was given, along with the perimeter or area; now we will learn how to solve problems in which the width is defined in terms of the length. We will wait to draw the figure until we write an expression for the width so that we can label one side with that expression.

Example 3.45

The width of a rectangle is two feet less than the length. The perimeter is 52 feet. Find the length and width.

Try It 3.89

The width of a rectangle is seven meters less than the length. The perimeter is 58 meters. Find the length and width.

Try It 3.90

The length of a rectangle is eight feet more than the width. The perimeter is 60 feet. Find the length and width.

Example 3.46

The length of a rectangle is four centimeters more than twice the width. The perimeter is 32 centimeters. Find the length and width.

Try It 3.91

The length of a rectangle is eight more than twice the width. The perimeter is 64. Find the length and width.

Try It 3.92

The width of a rectangle is six less than twice the length. The perimeter is 18. Find the length and width.

Example 3.47

The perimeter of a rectangular swimming pool is 150 feet. The length is 15 feet more than the width. Find the length and width.

Try It 3.93

The perimeter of a rectangular swimming pool is 200 feet. The length is 40 feet more than the width. Find the length and width.

Try It 3.94

The length of a rectangular garden is 30 yards more than the width. The perimeter is 300 yards. Find the length and width.

Section 3.4 Exercises

Practice Makes Perfect

Solving Applications Using Triangle Properties

In the following exercises, solve using triangle properties.

211.

The measures of two angles of a triangle are 26 and 98 degrees. Find the measure of the third angle.

212.

The measures of two angles of a triangle are 61 and 84 degrees. Find the measure of the third angle.

213.

The measures of two angles of a triangle are 105 and 31 degrees. Find the measure of the third angle.

214.

The measures of two angles of a triangle are 47 and 72 degrees. Find the measure of the third angle.

215.

The perimeter of a triangular pool is 36 yards. The lengths of two sides are 10 yards and 15 yards. How long is the third side?

216.

A triangular courtyard has perimeter 120 meters. The lengths of two sides are 30 meters and 50 meters. How long is the third side?

217.

If a triangle has sides 6 feet and 9 feet and the perimeter is 23 feet, how long is the third side?

218.

If a triangle has sides 14 centimeters and 18 centimeters and the perimeter is 49 centimeters, how long is the third side?

219.

A triangular flag has base one foot and height 1.5 foot. What is its area?

220.

A triangular window has base eight feet and height six feet. What is its area?

221.

What is the base of a triangle with area 207 square inches and height 18 inches?

222.

What is the height of a triangle with area 893 square inches and base 38 inches?

223.

One angle of a right triangle measures 33 degrees. What is the measure of the other small angle?

224.

One angle of a right triangle measures 51 degrees. What is the measure of the other small angle?

225.

One angle of a right triangle measures 22.5 degrees. What is the measure of the other small angle?

226.

One angle of a right triangle measures 36.5 degrees. What is the measure of the other small angle?

227.

The perimeter of a triangle is 39 feet. One side of the triangle is one foot longer than the second side. The third side is two feet longer than the second side. Find the length of each side.

228.

The perimeter of a triangle is 35 feet. One side of the triangle is five feet longer than the second side. The third side is three feet longer than the second side. Find the length of each side.

229.

One side of a triangle is twice the shortest side. The third side is five feet more than the shortest side. The perimeter is 17 feet. Find the lengths of all three sides.

230.

One side of a triangle is three times the shortest side. The third side is three feet more than the shortest side. The perimeter is 13 feet. Find the lengths of all three sides.

231.

The two smaller angles of a right triangle have equal measures. Find the measures of all three angles.

232.

The measure of the smallest angle of a right triangle is 20° less than the measure of the next larger angle. Find the measures of all three angles.

233.

The angles in a triangle are such that one angle is twice the smallest angle, while the third angle is three times as large as the smallest angle. Find the measures of all three angles.

234.

The angles in a triangle are such that one angle is 20° more than the smallest angle, while the third angle is three times as large as the smallest angle. Find the measures of all three angles.

Use the Pythagorean Theorem

In the following exercises, use the Pythagorean Theorem to find the length of the hypotenuse.

235.
A right triangle with legs marked 9 and 12.
236.
A right triangle with legs marked 16 and 12.
237.
A right triangle with legs marked 15 and 20.
238.
A right triangle with legs marked 5 and 12.

In the following exercises, use the Pythagorean Theorem to find the length of the leg. Round to the nearest tenth, if necessary.

239.
A right triangle with one leg marked 6 and hypotenuse marked 10.
240.
A right triangle with one leg marked 8 and hypotenuse marked 17.
241.
A right triangle with one leg marked 5 and hypotenuse marked 13.
242.
A right triangle with one leg marked 16 and hypotenuse marked 20.
243.
A right triangle with one leg marked 8 and hypotenuse marked 13.
244.
A right triangle with both legs marked 6.
245.
No Alt Text
246.
A right triangle with legs marked 5 and 7.

In the following exercises, solve using the Pythagorean Theorem. Approximate to the nearest tenth, if necessary.

247.

A 13-foot string of lights will be attached to the top of a 12-foot pole for a holiday display, as shown below. How far from the base of the pole should the end of the string of lights be anchored?

A right triangle with one leg marked 12 and hypotenuse marked 13.
248.

Pam wants to put a banner across her garage door, as shown below, to congratulate her son for his college graduation. The garage door is 12 feet high and 16 feet wide. How long should the banner be to fit the garage door?

A house is shown with a banner over the garage door. The garage door is marked 16 ft wide and 12 ft high.
249.

Chi is planning to put a path of paving stones through her flower garden, as shown below. The flower garden is a square with side 10 feet. What will the length of the path be?

A square garden is shown that is marked 10’ on the side. There is a path of stones along the diagonal of the square.
250.

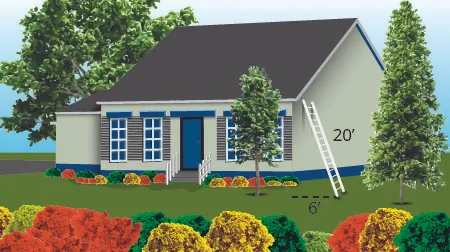

Brian borrowed a 20 foot extension ladder to use when he paints his house. If he sets the base of the ladder 6 feet from the house, as shown below, how far up will the top of the ladder reach?

A house is shown with a ladder leaning against it. The ladder is marked 20’, and the distance from the house to the base of the ladder is marked 6’.

Solve Applications Using Rectangle Properties

In the following exercises, solve using rectangle properties.

251.

The length of a rectangle is 85 feet and the width is 45 feet. What is the perimeter?

252.

The length of a rectangle is 26 inches and the width is 58 inches. What is the perimeter?

253.

A rectangular room is 15 feet wide by 14 feet long. What is its perimeter?

254.

A driveway is in the shape of a rectangle 20 feet wide by 35 feet long. What is its perimeter?

255.

The area of a rectangle is 414 square meters. The length is 18 meters. What is the width?

256.

The area of a rectangle is 782 square centimeters. The width is 17 centimeters. What is the length?

257.

The width of a rectangular window is 24 inches. The area is 624 square inches. What is the length?

258.

The length of a rectangular poster is 28 inches. The area is 1316 square inches. What is the width?

259.

Find the length of a rectangle with perimeter 124 and width 38.

260.

Find the width of a rectangle with perimeter 92 and length 19.

261.

Find the width of a rectangle with perimeter 16.2 and length 3.2.

262.

Find the length of a rectangle with perimeter 20.2 and width 7.8.

263.

The length of a rectangle is nine inches more than the width. The perimeter is 46 inches. Find the length and the width.

264.

The width of a rectangle is eight inches more than the length. The perimeter is 52 inches. Find the length and the width.

265.

The perimeter of a rectangle is 58 meters. The width of the rectangle is five meters less than the length. Find the length and the width of the rectangle.

266.

The perimeter of a rectangle is 62 feet. The width is seven feet less than the length. Find the length and the width.

267.

The width of the rectangle is 0.7 meters less than the length. The perimeter of a rectangle is 52.6 meters. Find the dimensions of the rectangle.

268.

The length of the rectangle is 1.1 meters less than the width. The perimeter of a rectangle is 49.4 meters. Find the dimensions of the rectangle.

269.

The perimeter of a rectangle is 150 feet. The length of the rectangle is twice the width. Find the length and width of the rectangle.

270.

The length of a rectangle is three times the width. The perimeter of the rectangle is 72 feet. Find the length and width of the rectangle.

271.

The length of a rectangle is three meters less than twice the width. The perimeter of the rectangle is 36 meters. Find the dimensions of the rectangle.

272.

The length of a rectangle is five inches more than twice the width. The perimeter is 34 inches. Find the length and width.

273.

The perimeter of a rectangular field is 560 yards. The length is 40 yards more than the width. Find the length and width of the field.

274.

The perimeter of a rectangular atrium is 160 feet. The length is 16 feet more than the width. Find the length and width of the atrium.

275.

A rectangular parking lot has perimeter 250 feet. The length is five feet more than twice the width. Find the length and width of the parking lot.

276.

A rectangular rug has perimeter 240 inches. The length is 12 inches more than twice the width. Find the length and width of the rug.

Everyday Math

277.

Christa wants to put a fence around her triangular flowerbed. The sides of the flowerbed are six feet, eight feet and 10 feet. How many feet of fencing will she need to enclose her flowerbed?

278.

Jose just removed the children’s playset from his back yard to make room for a rectangular garden. He wants to put a fence around the garden to keep out the dog. He has a 50 foot roll of fence in his garage that he plans to use. To fit in the backyard, the width of the garden must be 10 feet. How long can he make the other length?

Writing Exercises

279.

If you need to put tile on your kitchen floor, do you need to know the perimeter or the area of the kitchen? Explain your reasoning.

280.

If you need to put a fence around your backyard, do you need to know the perimeter or the area of the backyard? Explain your reasoning.

281.

Look at the two figures below.

On the left, we have a rectangle with height 2 and width 8. On the right, we have a square with height 4 and width 4.
  1. Which figure looks like it has the larger area?
  2. Which looks like it has the larger perimeter?
  3. Now calculate the area and perimeter of each figure.
  4. Which has the larger area?
  5. Which has the larger perimeter?
282.

Write a geometry word problem that relates to your life experience, then solve it and explain all your steps.

Self Check

After completing the exercises, use this checklist to evaluate your mastery of the objectives of this section.

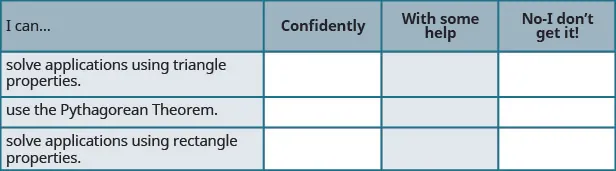

This is a table that has four rows and four columns. In the first row, which is a header row, the cells read from left to right “I can…,” “Confidently,” “With some help,” and “No-I don’t get it!” The first column below “I can…” reads “solve applications using triangle properties,” “use the Pythagorean Theorem,” and “solve applications using rectangle properties.” The rest of the cells are blank

What does this checklist tell you about your mastery of this section? What steps will you take to improve?

Order a print copy

As an Amazon Associate we earn from qualifying purchases.

Citation/Attribution

This book may not be used in the training of large language models or otherwise be ingested into large language models or generative AI offerings without OpenStax's permission.

Want to cite, share, or modify this book? This book uses the Creative Commons Attribution License and you must attribute OpenStax.

Attribution information
  • If you are redistributing all or part of this book in a print format, then you must include on every physical page the following attribution:
    Access for free at https://openstax.org/books/elementary-algebra-2e/pages/1-introduction
  • If you are redistributing all or part of this book in a digital format, then you must include on every digital page view the following attribution:
    Access for free at https://openstax.org/books/elementary-algebra-2e/pages/1-introduction
Citation information

© Jan 23, 2024 OpenStax. Textbook content produced by OpenStax is licensed under a Creative Commons Attribution License . The OpenStax name, OpenStax logo, OpenStax book covers, OpenStax CNX name, and OpenStax CNX logo are not subject to the Creative Commons license and may not be reproduced without the prior and express written consent of Rice University.
