13.6Humidity, Evaporation, and Boiling

College Physics13.6 Humidity, Evaporation, and Boiling
Figure 13.31 Dew drops like these, on a banana leaf photographed just after sunrise, form when the air temperature drops to or below the dew point. At the dew point, the rate at which water molecules join together is greater than the rate at which they separate, and some of the water condenses to form droplets. (credit: Aaron Escobar, Flickr)

The expression “it’s not the heat, it’s the humidity” makes a valid point. We keep cool in hot weather by evaporating sweat from our skin and water from our breathing passages. Because evaporation is inhibited by high humidity, we feel hotter at a given temperature when the humidity is high. Low humidity, on the other hand, can cause discomfort from excessive drying of mucous membranes and can lead to an increased risk of respiratory infections.

When we say humidity, we really mean relative humidity. Relative humidity tells us how much water vapor is in the air compared with the maximum possible. At its maximum, denoted as saturation, the relative humidity is 100%, and evaporation is inhibited. The amount of water vapor in the air depends on temperature. For example, relative humidity rises in the evening, as air temperature declines, sometimes reaching the dew point. At the dew point temperature, relative humidity is 100%, and fog may result from the condensation of water droplets if they are small enough to stay in suspension. Conversely, if you wish to dry something (perhaps your hair), it is more effective to blow hot air over it rather than cold air, because, among other things, the increase in temperature increases the energy of the molecules, so the rate of evaporation increases.

The amount of water vapor in the air depends on the vapor pressure of water. The liquid and solid phases are continuously giving off vapor because some of the molecules have high enough speeds to enter the gas phase; see Figure 13.32(a). If a lid is placed over the container, as in Figure 13.32(b), evaporation continues, increasing the pressure, until sufficient vapor has built up for condensation to balance evaporation. Then equilibrium has been achieved, and the vapor pressure is equal to the partial pressure of water in the container. Vapor pressure increases with temperature because molecular speeds are higher as temperature increases. Table 13.5 gives representative values of water vapor pressure over a range of temperatures.

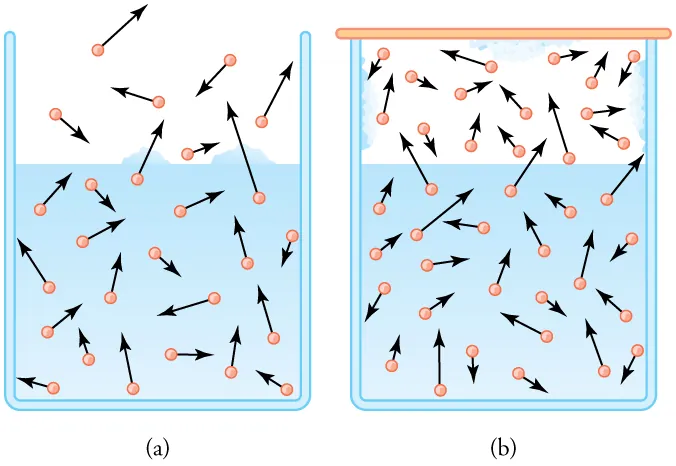

Figure 13.32 (a) Because of the distribution of speeds and kinetic energies, some water molecules can break away to the vapor phase even at temperatures below the ordinary boiling point. (b) If the container is sealed, evaporation will continue until there is enough vapor density for the condensation rate to equal the evaporation rate. This vapor density and the partial pressure it creates are the saturation values. They increase with temperature and are independent of the presence of other gases, such as air. They depend only on the vapor pressure of water.

Relative humidity is related to the partial pressure of water vapor in the air. At 100% humidity, the partial pressure is equal to the vapor pressure, and no more water can enter the vapor phase. If the partial pressure is less than the vapor pressure, then evaporation will take place, as humidity is less than 100%. If the partial pressure is greater than the vapor pressure, condensation takes place. In everyday language, people sometimes refer to the capacity of air to “hold” water vapor, but this is not actually what happens. The water vapor is not held by the air. The amount of water in air is determined by the vapor pressure of water and has nothing to do with the properties of air.

Temperature $(ºC)(ºC) size 12{ $$°C$$ } {}$ Vapor pressure (Pa) Saturation vapor density (g/m3)
−50 4.0 0.039
−20 $1 . 04 × 10 2 1 . 04 × 10 2 size 12{1 "." "04" times "10" rSup { size 8{2} } } {}$ 0.89
−10 $2 . 60 × 10 2 2 . 60 × 10 2 size 12{2 "." "60"´"10" rSup { size 8{2} } } {}$ 2.36
0 $6 . 10 × 10 2 6 . 10 × 10 2 size 12{6 "." "10"´"10" rSup { size 8{2} } } {}$ 4.84
5 $8 . 68 × 10 2 8 . 68 × 10 2 size 12{8 "." "68"´"10" rSup { size 8{2} } } {}$ 6.80
10 $1 . 19 × 10 3 1 . 19 × 10 3 size 12{1 "." "19"´"10" rSup { size 8{3} } } {}$ 9.40
15 $1 . 69 × 10 3 1 . 69 × 10 3 size 12{1 "." "69"´"10" rSup { size 8{3} } } {}$ 12.8
20 $2 . 33 × 10 3 2 . 33 × 10 3 size 12{2 "." "33"´"10" rSup { size 8{3} } } {}$ 17.2
25 $3 . 17 × 10 3 3 . 17 × 10 3 size 12{3 "." "17"´"10" rSup { size 8{3} } } {}$ 23.0
30 $4 . 24 × 10 3 4 . 24 × 10 3 size 12{4 "." "24"´"10" rSup { size 8{3} } } {}$ 30.4
37 $6 . 31 × 10 3 6 . 31 × 10 3 size 12{6 "." "31"´"10" rSup { size 8{3} } } {}$ 44.0
40 $7 . 34 × 10 3 7 . 34 × 10 3 size 12{7 "." "34"´"10" rSup { size 8{3} } } {}$ 51.1
50 $1 . 23 × 10 4 1 . 23 × 10 4 size 12{1 "." "23" times "10" rSup { size 8{4} } } {}$ 82.4
60 $1 . 99 × 10 4 1 . 99 × 10 4 size 12{1 "." "99"´"10" rSup { size 8{4} } } {}$ 130
70 $3 . 12 × 10 4 3 . 12 × 10 4 size 12{3 "." "12"´"10" rSup { size 8{4} } } {}$ 197
80 $4 . 73 × 10 4 4 . 73 × 10 4 size 12{4 "." "73"´"10" rSup { size 8{4} } } {}$ 294
90 $7 . 01 × 10 4 7 . 01 × 10 4 size 12{7 "." "01"´"10" rSup { size 8{4} } } {}$ 418
95 $8 . 59 × 10 4 8 . 59 × 10 4 size 12{8 "." "59"´"10" rSup { size 8{4} } } {}$ 505
100 $1 . 01 × 10 5 1 . 01 × 10 5 size 12{1 "." "99"´"10" rSup { size 8{5} } } {}$ 598
120 $1 . 99 × 10 5 1 . 99 × 10 5 size 12{1 "." "99"´"10" rSup { size 8{5} } } {}$ 1095
150 $4 . 76 × 10 5 4 . 76 × 10 5 size 12{4 "." "76"´"10" rSup { size 8{5} } } {}$ 2430
200 $1 . 55 × 10 6 1 . 55 × 10 6 size 12{1 "." "55"´"10" rSup { size 8{6} } } {}$ 7090
220 $2 . 32 × 10 6 2 . 32 × 10 6 size 12{2 "." "32"´"10" rSup { size 8{6} } } {}$ 10,200
Table 13.5 Saturation Vapor Density of Water

Example 13.12

Calculating Density Using Vapor Pressure

Table 13.5 gives the vapor pressure of water at $20.0ºC20.0ºC size 12{"20" "." 0°C} {}$ as $2.33×103 Pa.2.33×103 Pa. size 12{2 "." "33"´"10" rSup { size 8{3} } " Pa" "." } {}$ Use the ideal gas law to calculate the density of water vapor in $g/m3g/m3 size 12{g/m rSup { size 8{3} } } {}$ that would create a partial pressure equal to this vapor pressure. Compare the result with the saturation vapor density given in the table.

Strategy

To solve this problem, we need to break it down into a two steps. The partial pressure follows the ideal gas law,

$PV=nRT,PV=nRT, size 12{ size 11{ ital "PV"= ital "nRT"}} {}$
13.70

where $nn size 12{n} {}$ is the number of moles. If we solve this equation for $n/Vn/V size 12{n/V} {}$ to calculate the number of moles per cubic meter, we can then convert this quantity to grams per cubic meter as requested. To do this, we need to use the molecular mass of water, which is given in the periodic table.

Solution

1. Identify the knowns and convert them to the proper units:

1. temperature $T=20ºC=293 KT=20ºC=293 K size 12{T="20"°"C=293 K"} {}$
2. vapor pressure $PP size 12{P} {}$ of water at $20ºC20ºC size 12{"20"°C} {}$ is $2.33×103 Pa2.33×103 Pa size 12{2 "." "33" times "10" rSup { size 8{3} } " Pa"} {}$
3. molecular mass of water is $18.0 g/mol18.0 g/mol size 12{"18" "." 0" g/mol"} {}$

2. Solve the ideal gas law for $n/Vn/V size 12{n/V} {}$.

$n V = P RT n V = P RT size 12{ { { size 11{n}} over { size 11{V}} } = { { size 11{P}} over { size 11{ ital "RT"}} } } {}$
13.71

3. Substitute known values into the equation and solve for $n/Vn/V size 12{n/V} {}$.

$n V = P RT = 2 . 33 × 10 3 Pa 8 . 31 J/mol ⋅ K 293 K = 0 . 957 mol/m 3 n V = P RT = 2 . 33 × 10 3 Pa 8 . 31 J/mol ⋅ K 293 K = 0 . 957 mol/m 3 size 12{ { { size 11{n}} over { size 11{V}} } = { { size 11{P}} over { size 11{ ital "RT"}} } = { { size 11{2 "." "33" times "10" rSup { size 8{3} } "Pa"}} over { size 12{ left (8 "." "31""J/mol" cdot K right ) left ("293"K right )} } } =0 "." "957""mol/m" rSup { size 8{3} } } {}$
13.72

4. Convert the density in moles per cubic meter to grams per cubic meter.

$ρ = 0 . 957 mol m 3 18 . 0 g mol = 17 . 2 g/m 3 ρ = 0 . 957 mol m 3 18 . 0 g mol = 17 . 2 g/m 3 size 12{ size 11{ρ= left ( size 11{0 "." "957" { { size 11{"mol"}} over { size 11{m rSup { size 8{3} } }} } } right ) left ( size 12{ { {"18" "." "0 g"} over { size 12{"mol"} } } } right )="17" "." 2" g/m" rSup { size 8{3} } }} {}$
13.73

Discussion

The density is obtained by assuming a pressure equal to the vapor pressure of water at $20.0ºC20.0ºC size 12{"20" "." 0°C} {}$. The density found is identical to the value in Table 13.5, which means that a vapor density of $17.2 g/m317.2 g/m3 size 12{"17" "." 2" g/m" rSup { size 8{3} } } {}$ at $20.0ºC20.0ºC size 12{"20" "." 0°C} {}$ creates a partial pressure of $2.33×103 Pa,2.33×103 Pa, size 12{2 "." "33"´"10" rSup { size 8{3} } " Pa,"} {}$ equal to the vapor pressure of water at that temperature. If the partial pressure is equal to the vapor pressure, then the liquid and vapor phases are in equilibrium, and the relative humidity is 100%. Thus, there can be no more than 17.2 g of water vapor per $m3m3 size 12{m rSup { size 8{3} } } {}$ at $20.0ºC20.0ºC size 12{"20" "." 0°C} {}$, so that this value is the saturation vapor density at that temperature. This example illustrates how water vapor behaves like an ideal gas: the pressure and density are consistent with the ideal gas law (assuming the density in the table is correct). The saturation vapor densities listed in Table 13.5 are the maximum amounts of water vapor that air can hold at various temperatures.

Percent Relative Humidity

We define percent relative humidity as the ratio of vapor density to saturation vapor density, or

$percent relative humidity = vapor density saturation vapor density × 100 percent relative humidity = vapor density saturation vapor density × 100$
13.74

We can use this and the data in Table 13.5 to do a variety of interesting calculations, keeping in mind that relative humidity is based on the comparison of the partial pressure of water vapor in air and ice.

Example 13.13

Calculating Humidity and Dew Point

(a) Calculate the percent relative humidity on a day when the temperature is $25.0ºC25.0ºC size 12{"25" "." 0°C} {}$ and the air contains 9.40 g of water vapor per $m3m3 size 12{m rSup { size 8{3} } } {}$. (b) At what temperature will this air reach 100% relative humidity (the saturation density)? This temperature is the dew point. (c) What is the humidity when the air temperature is $25.0ºC25.0ºC size 12{"25" "." 0°C} {}$ and the dew point is $–10.0ºC–10.0ºC size 12{ +- "10" "." 0°C} {}$?

Strategy and Solution

(a) Percent relative humidity is defined as the ratio of vapor density to saturation vapor density.

$percent relative humidity = vapor density saturation vapor density × 100 percent relative humidity = vapor density saturation vapor density × 100 size 12{ size 11{"percent relative humidity"= { { size 11{"vapor density"}} over { size 11{"saturation vapor density"}} } times "100"}} {}$
13.75

The first is given to be $9.40 g/m39.40 g/m3 size 12{9 "." "40 g/m" rSup { size 8{3} } } {}$, and the second is found in Table 13.5 to be $23.0 g/m323.0 g/m3 size 12{"23" "." "0 g/m" rSup { size 8{3} } } {}$. Thus,

$percent relative humidity = 9 . 40 g/m 3 23 . 0 g/m 3 × 100 = 40 . 9 .% percent relative humidity = 9 . 40 g/m 3 23 . 0 g/m 3 × 100 = 40 . 9 .% size 12{ size 11{"percent relative humidity"= { { size 11{9 "." "40 g/m" rSup { size 8{3} } }} over { size 12{"23" "." "0 g/m" rSup { size 8{3} } } } } ´"100"="40" "." 9% "." }} {}$
13.76

(b) The air contains $9.40 g/m39.40 g/m3 size 12{9 "." "40 g/m" rSup { size 8{3} } } {}$ of water vapor. The relative humidity will be 100% at a temperature where $9.40 g/m39.40 g/m3 size 12{9 "." "40 g/m" rSup { size 8{3} } } {}$ is the saturation density. Inspection of Table 13.5 reveals this to be the case at $10.0ºC10.0ºC size 12{"10" "." 0°C} {}$, where the relative humidity will be 100%. That temperature is called the dew point for air with this concentration of water vapor.

(c) Here, the dew point temperature is given to be $–10.0ºC–10.0ºC size 12{ +- "10" "." 0°C} {}$. Using Table 13.5, we see that the vapor density is $2.36 g/m32.36 g/m3 size 12{2 "." "36 g/m" rSup { size 8{3} } } {}$, because this value is the saturation vapor density at $–10.0ºC–10.0ºC size 12{ +- "10" "." 0°C} {}$. The saturation vapor density at $25.0ºC25.0ºC size 12{"25" "." 0°C} {}$ is seen to be $23.0 g/m323.0 g/m3 size 12{"23" "." "0 g/m" rSup { size 8{3} } } {}$. Thus, the relative humidity at $25.0ºC25.0ºC size 12{"25" "." 0°C} {}$ is

$percent relative humidity = 2 . 36 g/m 3 23 . 0 g/m 3 × 100 = 10 . 3 % . percent relative humidity = 2 . 36 g/m 3 23 . 0 g/m 3 × 100 = 10 . 3 % . size 12{ size 11{"percent relative humidity"= { { size 11{2 "." "36 g/m" rSup { size 8{3} } }} over { size 12{"23" "." "0 g/m" rSup { size 8{3} } } } } ×"100"="10" "." 3% "." }} {}$
13.77

Discussion

The importance of dew point is that air temperature cannot drop below $10.0ºC10.0ºC size 12{"10" "." 0°C} {}$ in part (b), or $–10.0ºC–10.0ºC size 12{ +- "10" "." 0°C} {}$ in part (c), without water vapor condensing out of the air. If condensation occurs, considerable transfer of heat occurs (discussed in Heat and Heat Transfer Methods), which prevents the temperature from further dropping. When dew points are below $0ºC0ºC size 12{0°C} {}$, freezing temperatures are a greater possibility, which explains why farmers keep track of the dew point. Low humidity in deserts means low dew-point temperatures. Thus condensation is unlikely. If the temperature drops, vapor does not condense in liquid drops. Because no heat is released into the air, the air temperature drops more rapidly compared to air with higher humidity. Likewise, at high temperatures, liquid droplets do not evaporate, so that no heat is removed from the gas to the liquid phase. This explains the large range of temperature in arid regions.

Why does water boil at $100ºC100ºC size 12{"100"°C} {}$? You will note from Table 13.5 that the vapor pressure of water at $100ºC100ºC size 12{"100"°C} {}$ is $1.01×105 Pa1.01×105 Pa size 12{1 "." "01"´"10" rSup { size 8{5} } " Pa"} {}$, or 1.00 atm. Thus, it can evaporate without limit at this temperature and pressure. But why does it form bubbles when it boils? This is because water ordinarily contains significant amounts of dissolved air and other impurities, which are observed as small bubbles of air in a glass of water. If a bubble starts out at the bottom of the container at $20ºC20ºC size 12{"20"°C} {}$, it contains water vapor (about 2.30%). The pressure inside the bubble is fixed at 1.00 atm (we ignore the slight pressure exerted by the water around it). As the temperature rises, the amount of air in the bubble stays the same, but the water vapor increases; the bubble expands to keep the pressure at 1.00 atm. At $100ºC100ºC size 12{"100"°C} {}$, water vapor enters the bubble continuously since the partial pressure of water is equal to 1.00 atm in equilibrium. It cannot reach this pressure, however, since the bubble also contains air and total pressure is 1.00 atm. The bubble grows in size and thereby increases the buoyant force. The bubble breaks away and rises rapidly to the surface—we call this boiling! (See Figure 13.33.)

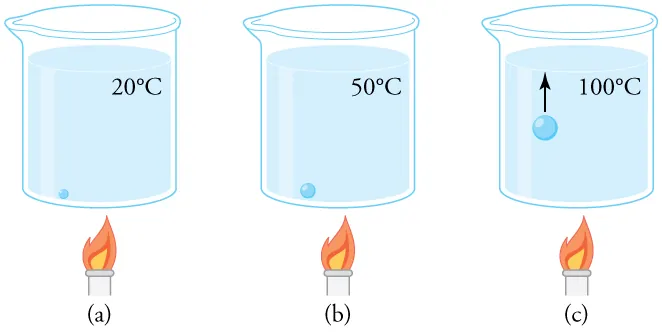

Figure 13.33 (a) An air bubble in water starts out saturated with water vapor at $20ºC20ºC size 12{"20"°C} {}$. (b) As the temperature rises, water vapor enters the bubble because its vapor pressure increases. The bubble expands to keep its pressure at 1.00 atm. (c) At $100ºC100ºC size 12{"100"°C} {}$, water vapor enters the bubble continuously because water’s vapor pressure exceeds its partial pressure in the bubble, which must be less than 1.00 atm. The bubble grows and rises to the surface.

Freeze drying is a process in which substances, such as foods, are dried by placing them in a vacuum chamber and lowering the atmospheric pressure around them. How does the lowered atmospheric pressure speed the drying process, and why does it cause the temperature of the food to drop?

PhET Explorations

States of Matter

Watch different types of molecules form a solid, liquid, or gas. Add or remove heat and watch the phase change. Change the temperature or volume of a container and see a pressure-temperature diagram respond in real time. Relate the interaction potential to the forces between molecules.

Figure 13.34
